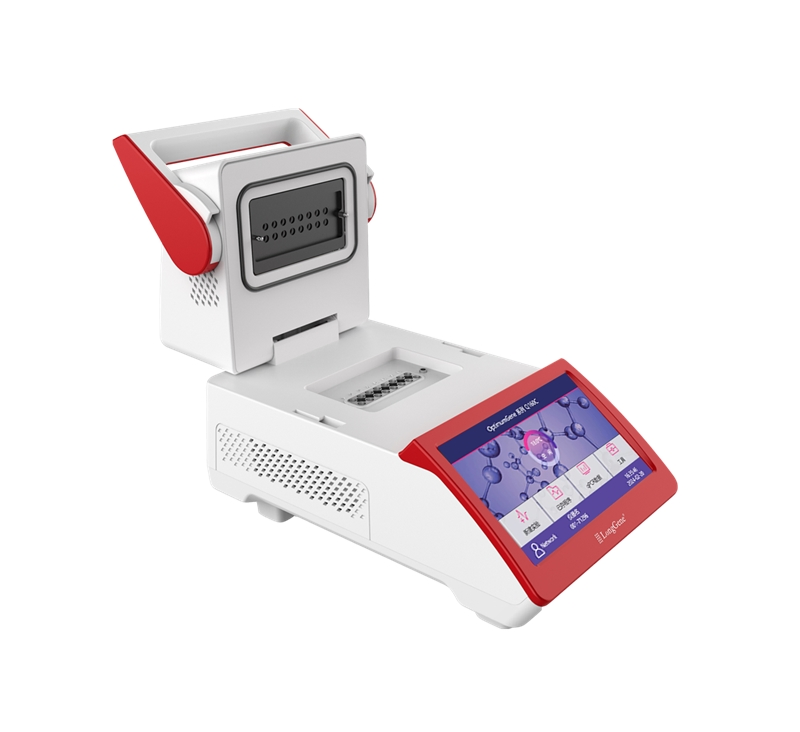

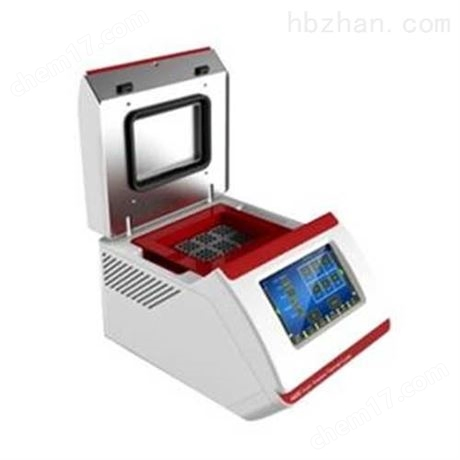

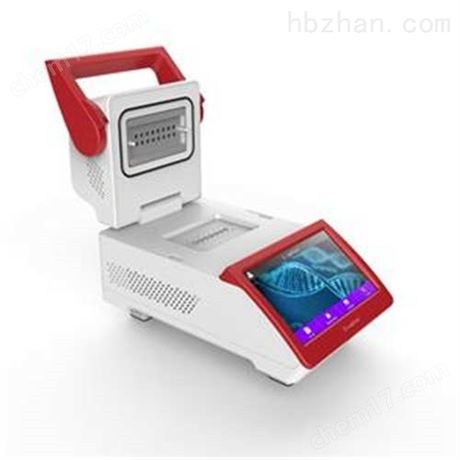

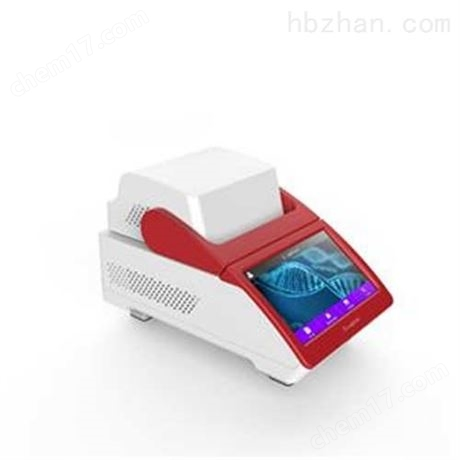

Umalz019 Fluorescence Quantitative PCR System: Portable Real-Time PCR with High Sensitivity
Umalz019 Fluorescence Quantitative PCR System: Portable Real-Time PCR with High Sensitivity
Umalz019 Fluorescence Quantitative PCR System: Portable Real-Time PCR with High Sensitivity
Umalz019 Fluorescence Quantitative PCR System: Portable Real-Time PCR with High Sensitivity
1 / 4
Umalz019 Fluorescence Quantitative PCR System: Portable Real-Time PCR with High Sensitivity
Umalz019 Fluorescence Quantitative PCR System: Portable Real-Time PCR with High Sensitivity
Umalz019 Fluorescence Quantitative PCR System: Portable Real-Time PCR with High Sensitivity
Umalz019 Fluorescence Quantitative PCR System: Portable Real-Time PCR with High Sensitivity

Umalz019 Fluorescence Quantitative PCR System: Portable Real-Time PCR with High Sensitivity

Customization: Available
Classification: Biological Diagnostics
Type: Biochemistry Analyzer
Send Inquiry

Product Description

Basic Information
Model NO.
UMALZ019
Certification
CE, FDA, ISO13485
Sample Capacity
16 Wells × 0.1 Ml
Sample Volume Range
10-100 μl
Applicable Tubes
White 0.1 Ml PCR Tubes, 8-Strip T
Thermal Cycling
High-Grade Semiconductor
Operating Mode
Standalone or PC-Controlled
Temperature Range
4℃ to 100℃
Heating Rate
5℃/Second
Optical System
SSLPTM Static Fluorescence CCD
Product Description
UMALZ019 Fluorescence Quantitative PCR System Overview

The UMALZ019 Fluorescence Quantitative PCR System is a portable, real-time PCR instrument designed for high-performance nucleic acid amplification and detection. It features a 7-inch high-definition touch screen, automatic thermal lid pressure control, and advanced optical detection technology. This system is ideal for rapid and accurate quantitative PCR analysis in various laboratory and clinical settings.

Key Features & Advantages
📱
High-Definition Touch Screen
7-inch TFT LCD display for intuitive operation and instant result viewing.
🌡️
Automatic Thermal Lid
Prevents evaporation during PCR cycles with precise pressure control.
🧬
Flexible Configuration
Available in single, dual, or quad-channel options for various needs.
💻
Remote Management
Supports remote control of up to 30 units via a single computer.
📊
Advanced Software
Auto-calculation of Ct and Tm values with direct curve visualization.
🔌
Global Compatibility
100-240V, 50-60Hz power supply suitable for worldwide use.
Technical Specifications
Parameter Value
Sample Capacity16 wells × 0.1 mL
Sample Volume Range10-100 μL
Thermal TechnologyHigh-grade semiconductor chip (MARLOW)
Max Heating Rate5ºC/second
Max Cooling Rate4ºC/second
Temperature Uniformity≤±0.25ºC
Light SourceLong-life LED
Detection Range1-10^10 copies
Dyes SupportedFAM/SYBR Green, VIC/HEX/JOE, ROX/TEXAS-RED, CY5
Dimensions305mm (L) × 179mm (W) × 186mm (H)
Weight3.6 kg
Data FormatsTXT, PDF, WORD, EXCEL
Detailed Photos
Detailed Product View
Packaging & Shipping
Packaging Details
Installation & Factory
Factory Production
Installation Instructions
Product FAQ
What types of PCR tubes are compatible with the UMALZ019?
The system is optimized for white 0.1 mL PCR tubes and 8-strip tubes with optical caps to ensure the best fluorescence detection performance.
Can the device operate without a computer connection?
Yes, the UMALZ019 features a 7-inch TFT high-definition touch screen and built-in software, allowing it to function as a standalone unit for analysis and data viewing.
How many fluorescence channels does this PCR system support?
It offers flexible configurations with options for single, dual, or quad-channel detection, supporting common dyes like FAM, SYBR Green, VIC, HEX, ROX, and CY5.
What is the sensitivity and detection range?
The system has a high sensitivity (≥1 copy) and a wide detection range of 1-10^10 copies, making it suitable for high-precision diagnostic research.
How can I export the test data?
Data can be easily exported via USB 2.0 or Ethernet in multiple formats, including TXT, PDF, Word, and Excel.
Is the thermal lid pressure adjustable?
Yes, the system features automatic thermal lid pressure control to prevent sample evaporation and ensure consistent thermal cycling across all 16 wells.
