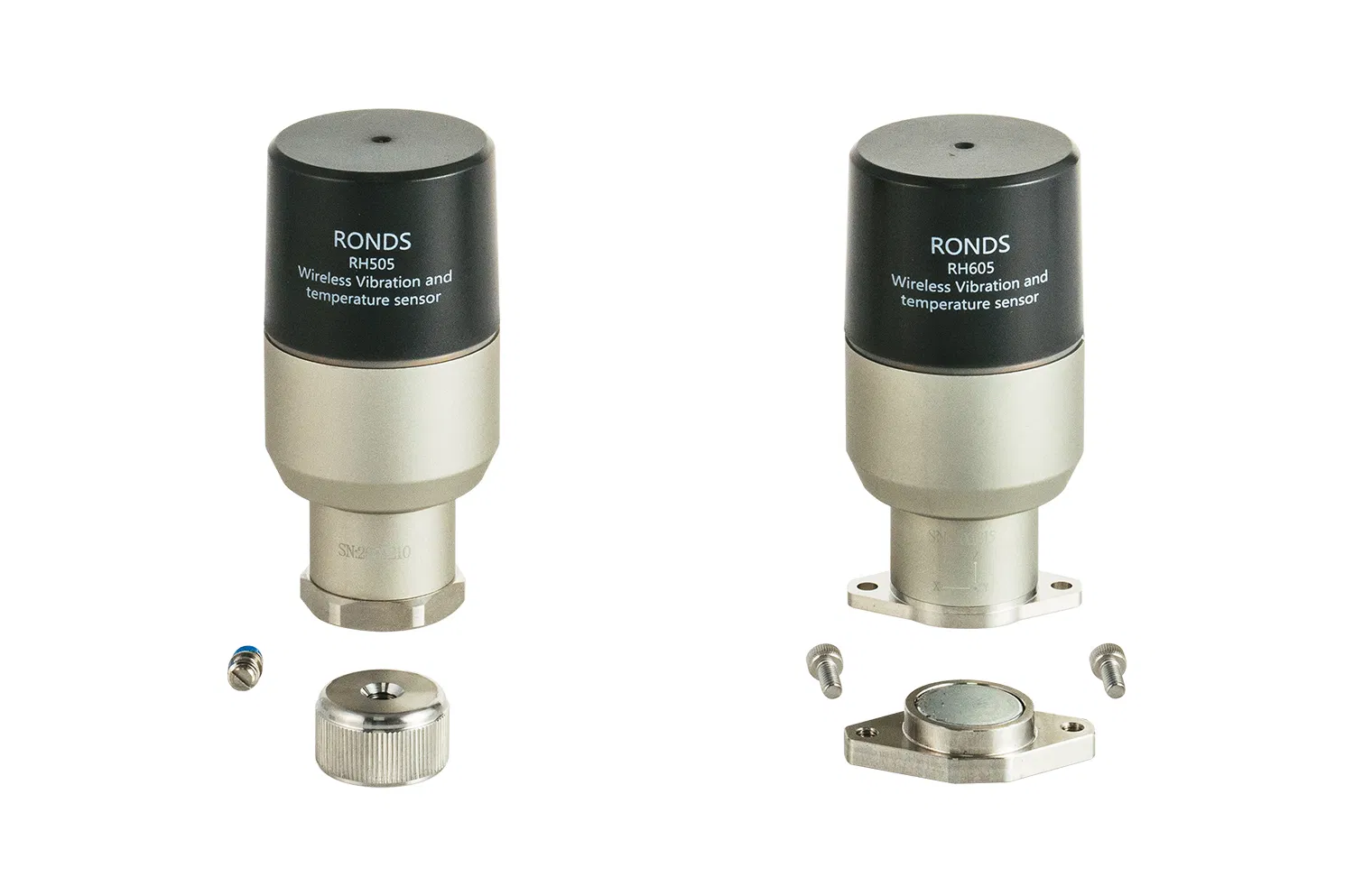

| RH505 Wireless Vibration and Temperature Integrated Sensor | |
|---|---|
| Vibration Measurement Parameter | |
| Vibration Range | ±50 g |
| Linearity | 1% |
| Frequency Range (±3dB) | 2~20kHz |
| Sampling rate | 1280Hz~51.2kHz |
| Analysis frequency | 500Hz,1kHz,2kHz,5kHz,10kHz,20kHz |
| Waveform Length | 1K,2K,4K,8K,16K,32K,64K,128K |
| Lines | 400,800,1600,3200,6400,12800,25600,51200 |
| Long time waveform | Maximal length 2M |
| Temperature Measurement Parameter | |
| Temperature Range | -40~125 ºC |
| Temperature Accuracy | ±1 ºC (-40ºC~125ºC) |
| Electrical and Structure Parameter | |
| Power Supply | Lithium - thionyl chloride battery, 3.6V, 3.3Ah |
| Communication Method | 2.4GHz IEEE 802.15.4 |
| Dimension | 46 mm × 94 mm (Diameter * Height) |
| Weight | 188 g |
| Environment Parameter | |
| Working Temperature | -40~70 ºC |
| IP grade | IP67 |

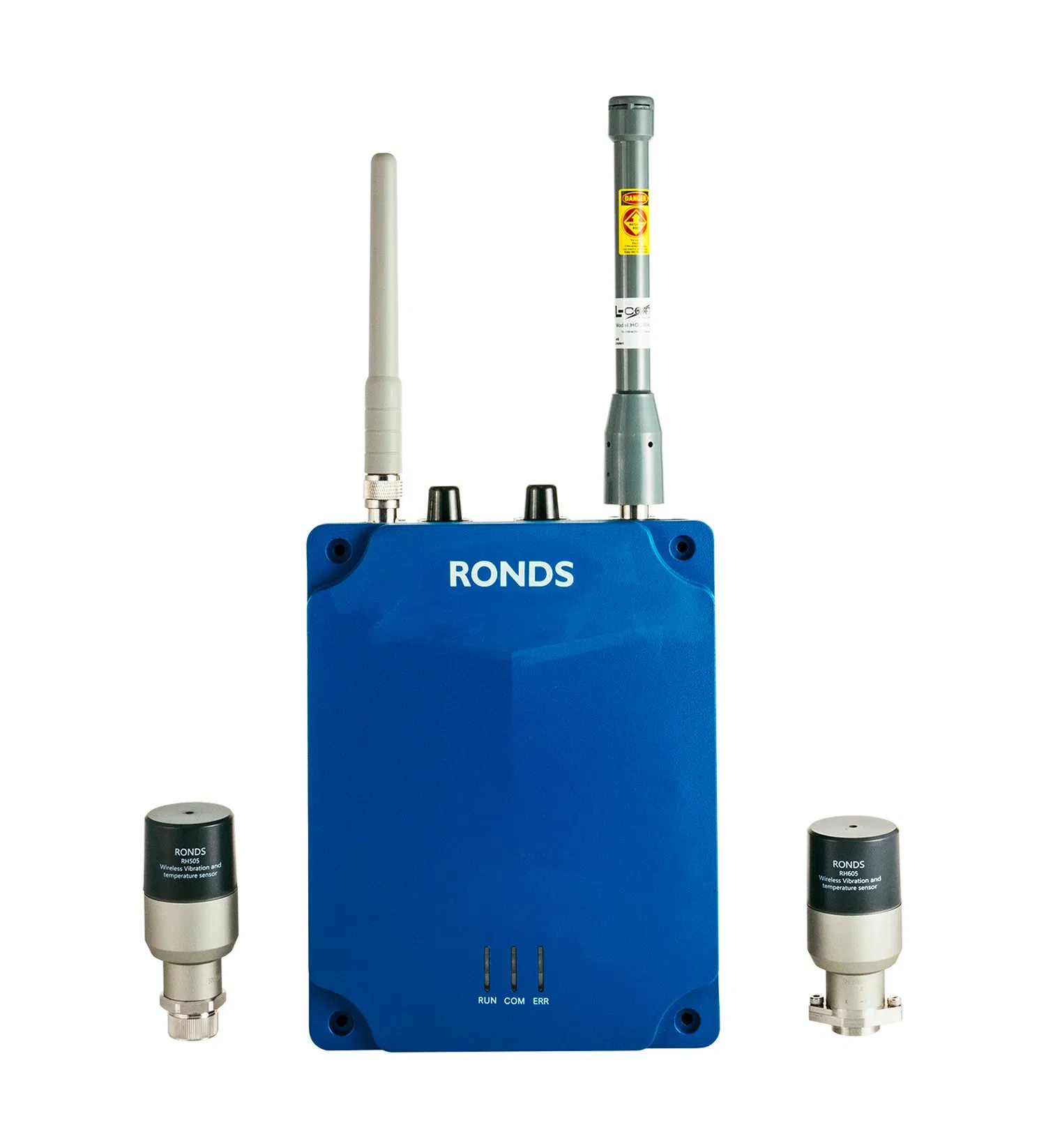

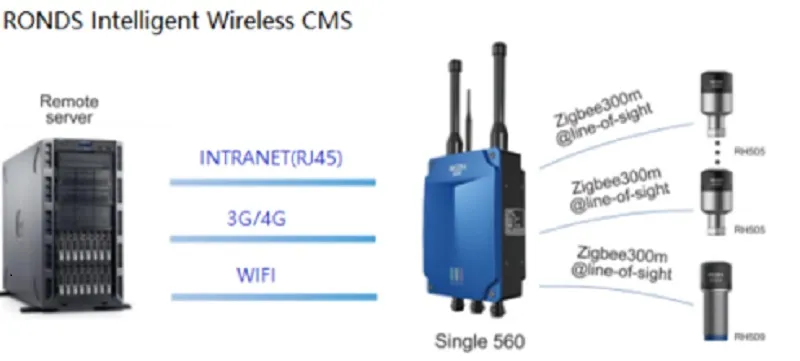

| RH560 Wireless Data Collector | |
|---|---|
| Input and Output | |
| Communication with Sensor | 2.4GHz IEEE 802.15.4 |
| Indicator LED | Total 3 pieces (working, communication, abnormal status) |
| Number of RH505 connecting | 30~60 units according to real application condition |
| Electrical and Structure Parameter | |
| Power Supply | 220V AC |
| Dimension | 203 mm × 82 mm × 260 mm (L*W*H) |
| Weight | 3 kg |
| Mounting | Hanging or fixation through holder |
| Environmental Parameter | |
| Working Temperature | -40~70 °C |
| IP grade | IP66 |

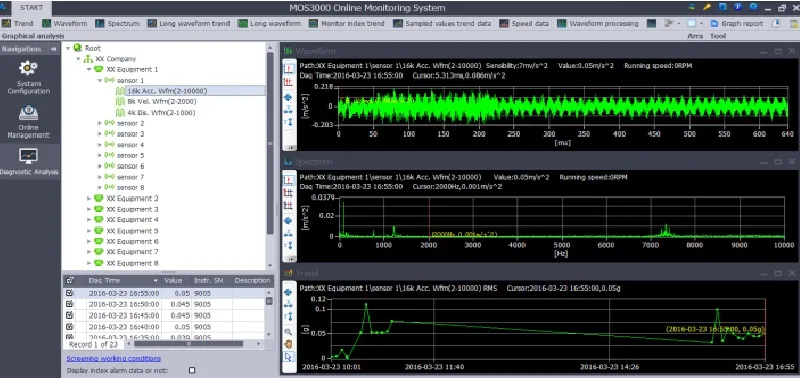

MOS3000 Software Interface:

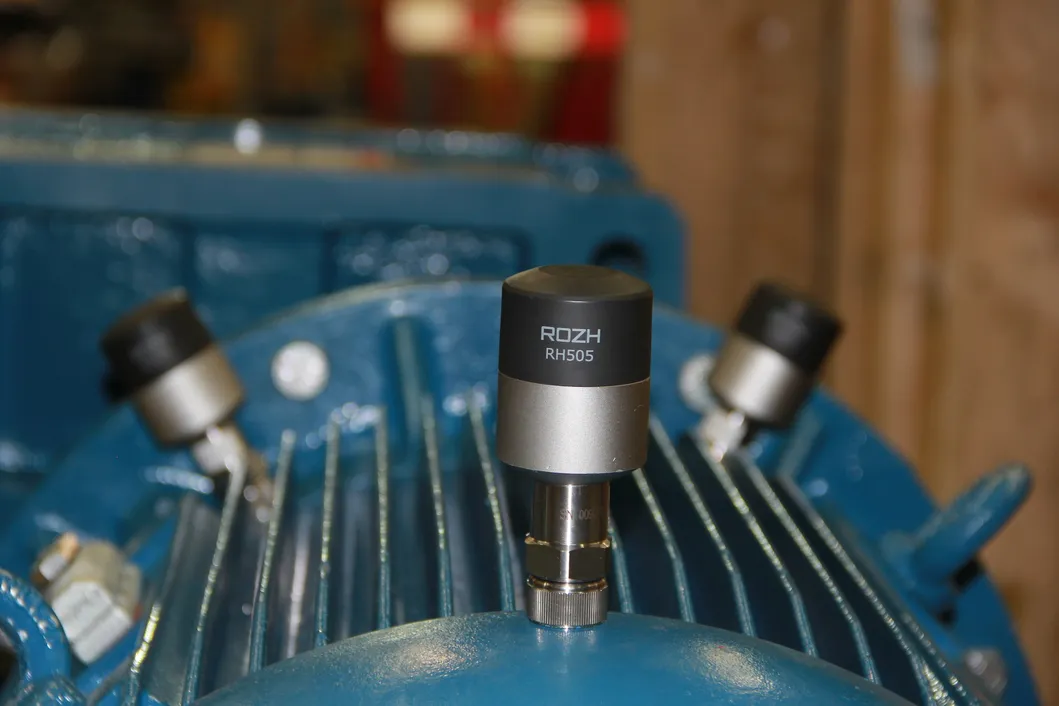

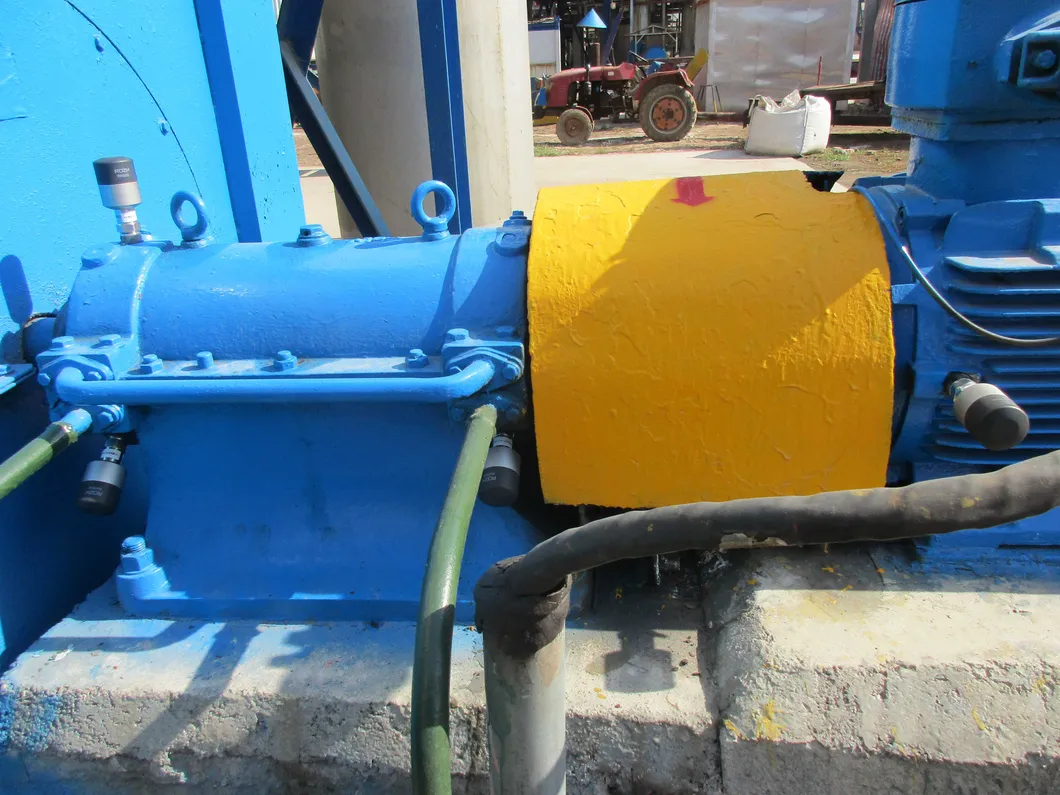

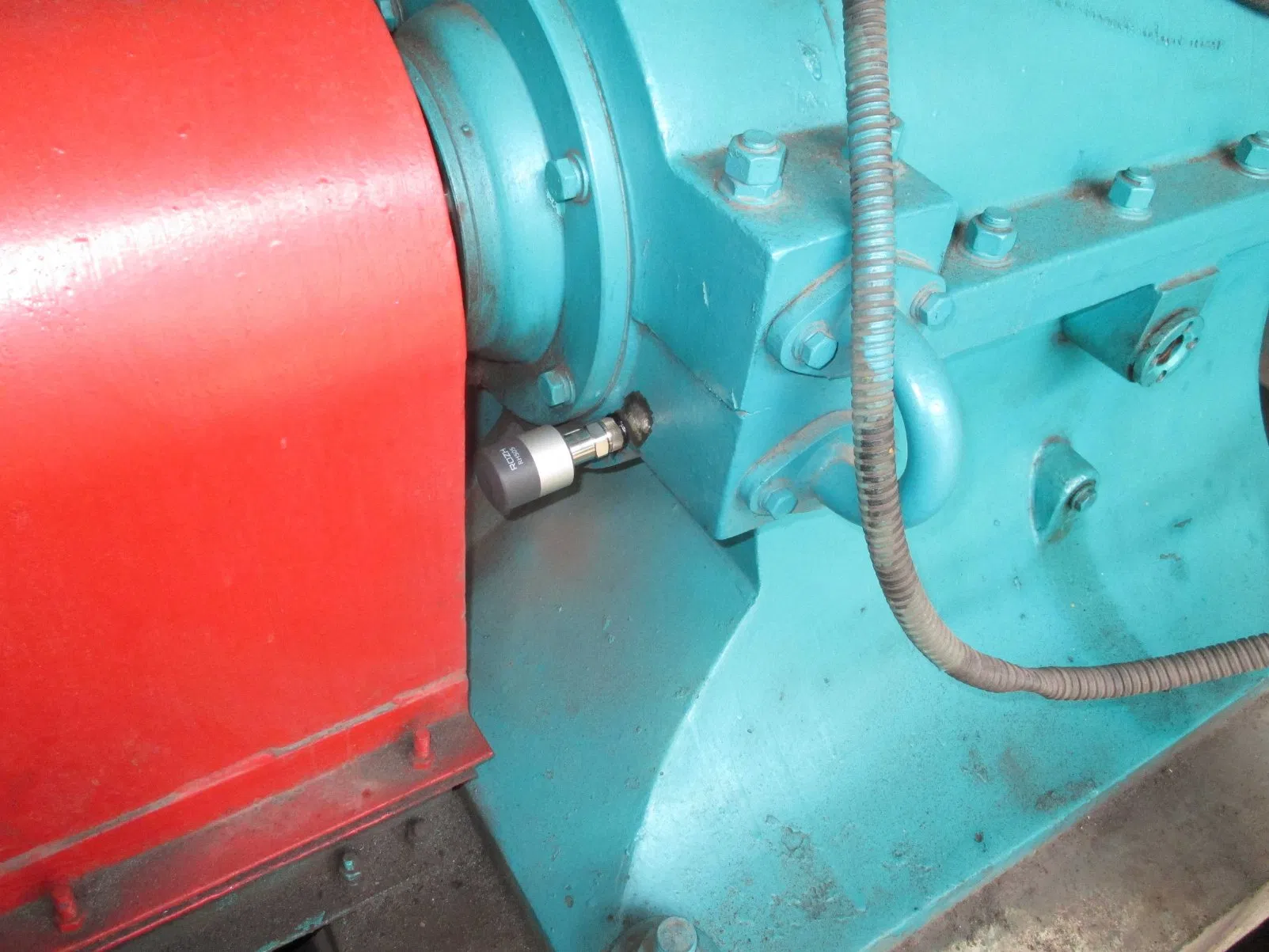

Site Installation Gallery:
Expert Vibration Analysts:
Intelligent Algorithm & Big Data:

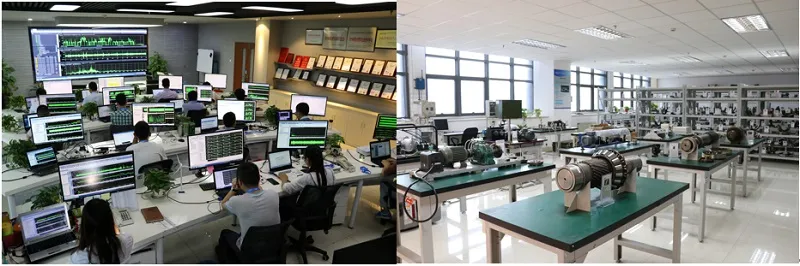

Remote Diagnostic Center and Lab:
