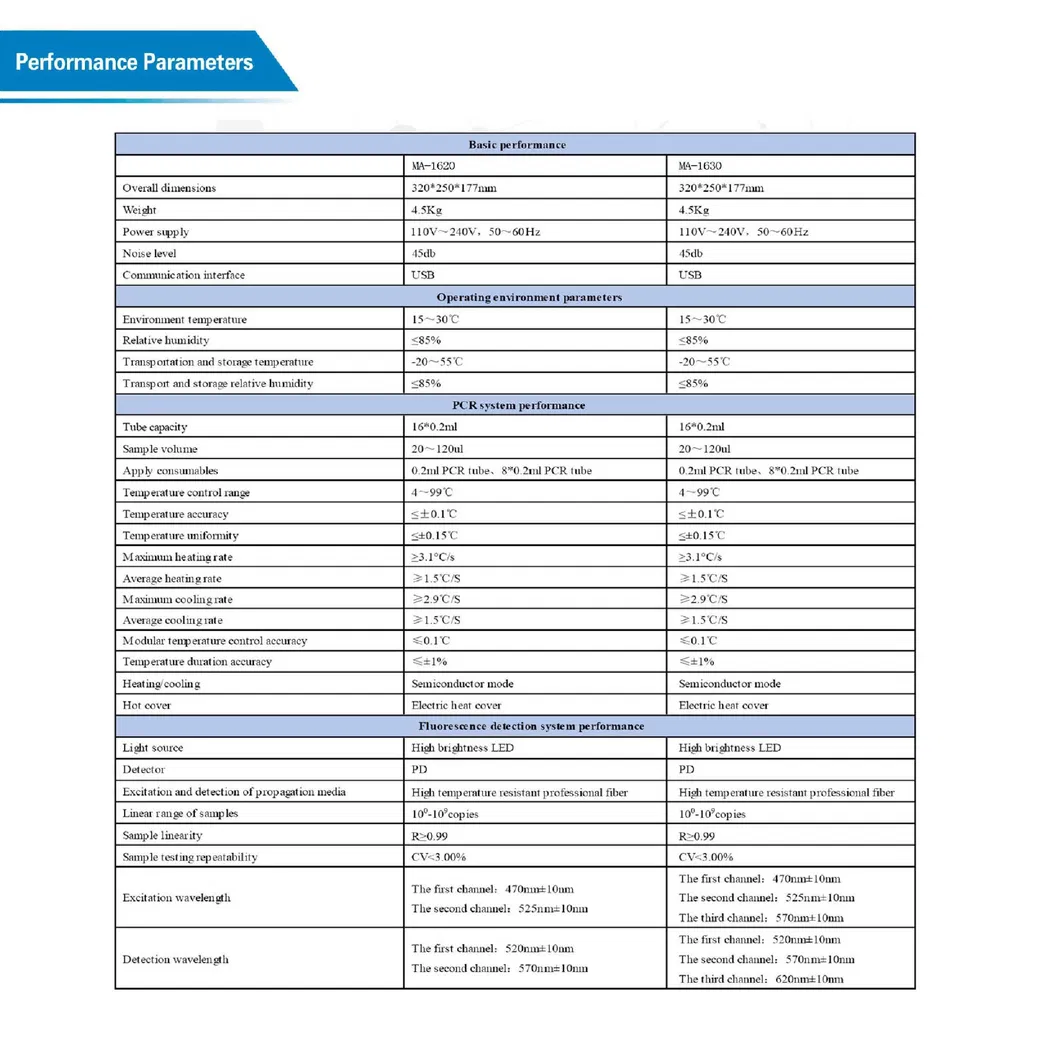

Technical Specifications
Certification
CE, ISO13485
Product Description

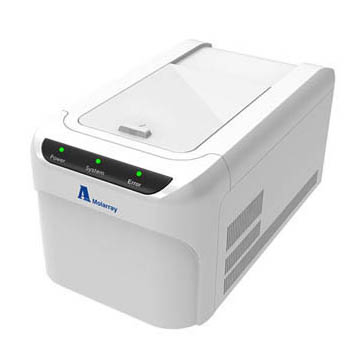

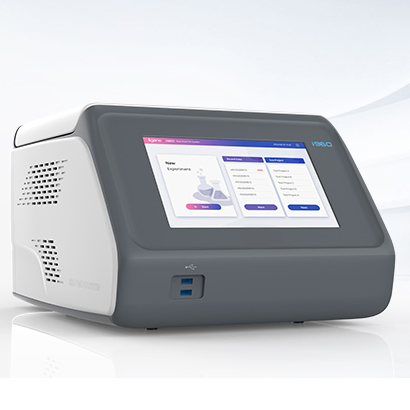

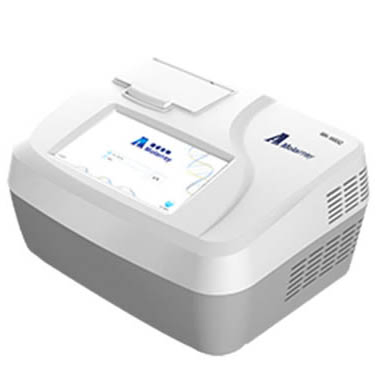

The series portable real-time fluorescence quantitative PCR system is developed based on classic fluorescence quantitative PCR technology. This system can be equipped with a maximum of 3 fluorescence detection channels and a standard detection flux of 16 holes. It can complete all experimental operations and results analysis through the built-in touch screen.
Portable Design: Compact body design with optional external battery, ideal for small flux experiments and field work.

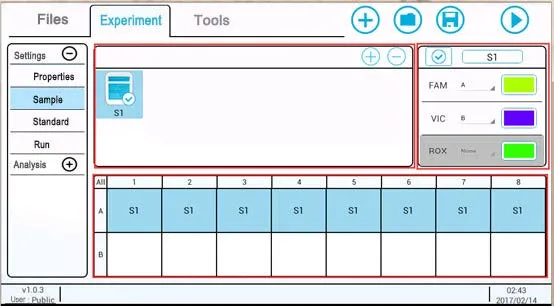

Advanced Interface: Built-in 7" HD capacitive screen PDA with intuitive touch screen operation for quick setup.
Versatile Analysis: Supports relative quantitative, absolute quantitative, melting curve, and positive/negative analysis.
Module Compatibility: 16x0.2ml reaction module, fully compatible with eight-row tubes and single tubes.
Frequently Asked Questions
What is the sample capacity of this portable PCR system?
The system features a standard detection flux of 16 holes, using a 16x0.2ml reaction module compatible with single tubes and eight-row tubes.
Can this system be used in the field without a direct power source?
Yes, the system is designed with a small, lightweight body and offers an optional external battery to meet the needs of conducting experiments in the wild or outside the lab.
Does it require an external computer for data analysis?
No, the system includes a built-in 7" HD capacitive touch screen PDA. All experimental operations and results analysis can be completed directly through this interface.
How many fluorescence detection channels are available?
This system can be configured with a maximum of 3 fluorescence detection channels for versatile analysis.

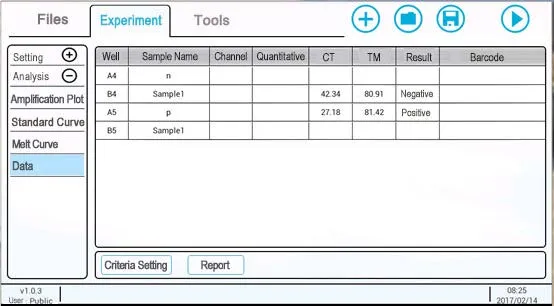

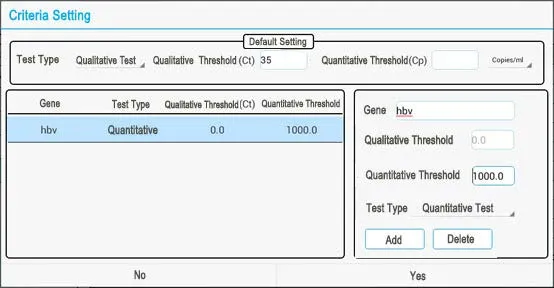

What types of PCR analysis can the software perform?
The powerful built-in software supports absolute quantitative analysis, relative quantitative analysis, melting curve analysis, and positive/negative analysis.
Is the system easy for beginners to operate?
Yes, it features simple and intuitive software guidance, making it easy to open and run fluorescence quantitative PCR experiments quickly.
