Product Description

Fluorescence Quantitative PCR Detection System

Fluorescence Quantitative PCR Detection System

Model: LEIA-X4 | 96-Well Real-Time Analysis

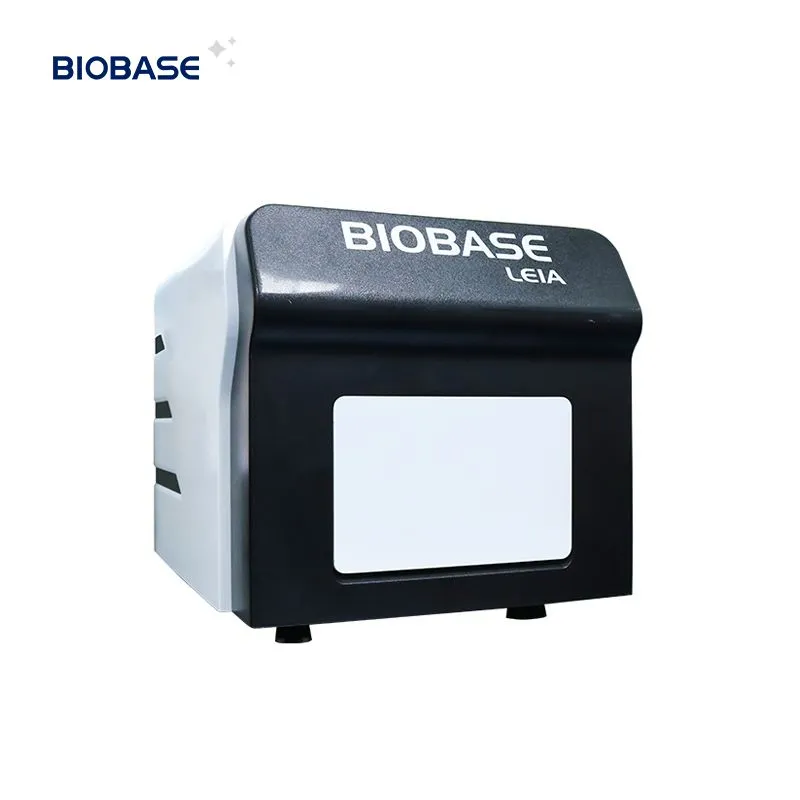

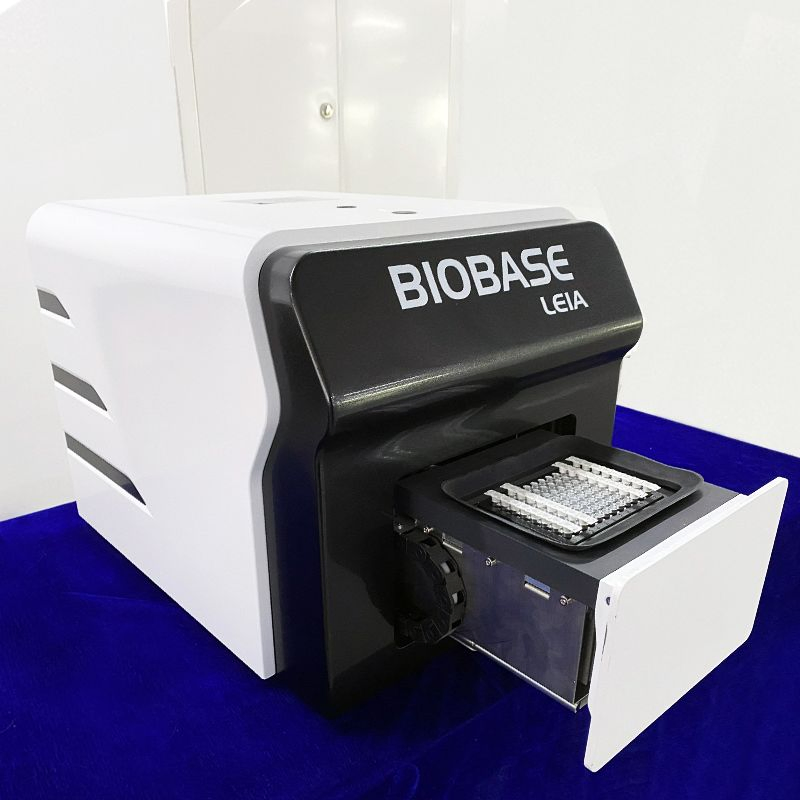

Real Time PCR Machine View 1
Real Time PCR Machine View 2
💡 Key Features
🌡️
High Performance: Excellent temperature control with maximum rise and fall rates ≥5.0ºC/s.
🔬
Optical Precision: Top excitation/detection with no edge effect and non-contact measurement.
📡
High Sensitivity: Fluorescence detection utilizes high-sensitivity MPPC sensors.
🔋
Durable Light Source: Long-life LED light source with stable emission wavelength, maintenance-free.
📊
Multi-Channel: 4-channel fluorescence detection with zero cross-interference between channels.
💻
Smart Software: User-friendly interface with flexible programming and comprehensive analysis reporting.
📸 Product Gallery

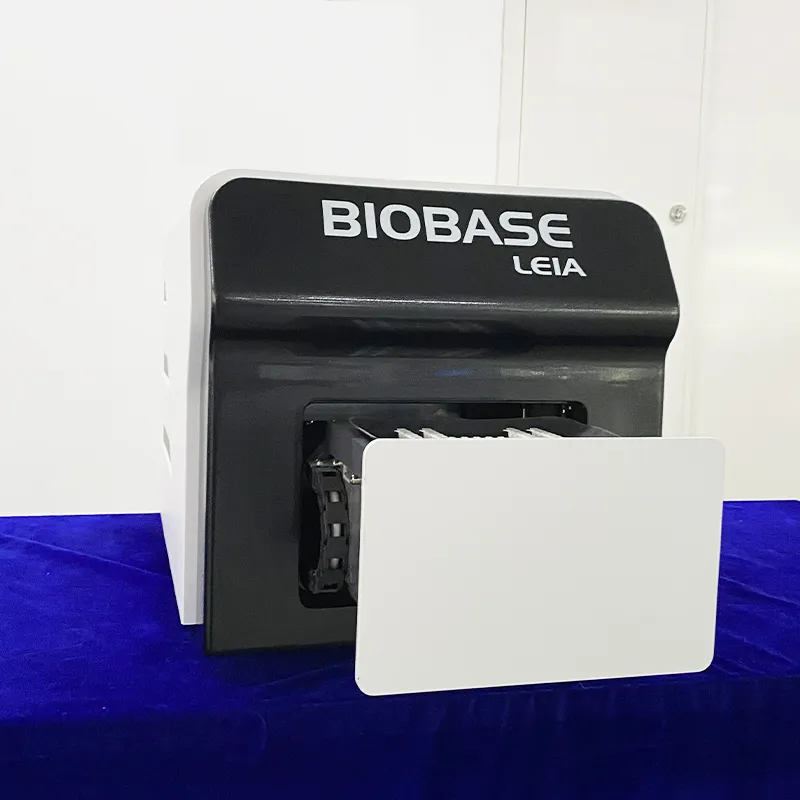

PCR System Detail 1

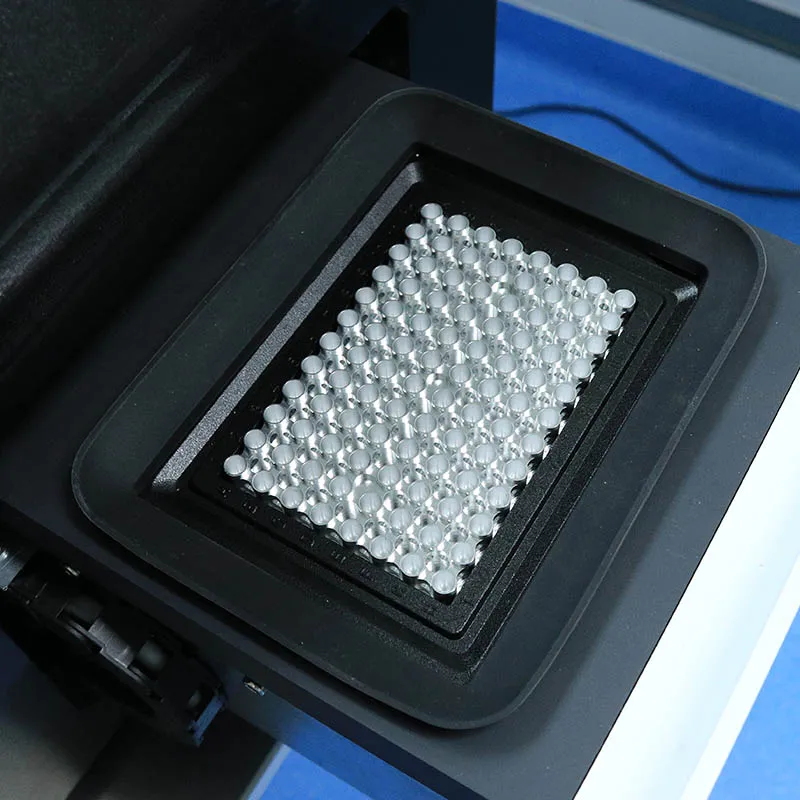

PCR System Detail 2
PCR System Detail 3
📋 Technical Parameters
Product Name Fluorescence Quantitative PCR Detection System
Model LEIA-X4
Sample Capacity 96x0.1ml PCR plate, 12x8-strip tubes, 96*0.1ml single tube
Reaction System 10~50μl
Dynamics Range 1-10^10 copies
Channel Count 4 Channels
Detector / Light Source MPPC / LED
Detection Path F1 (FAM/SYBR), F2 (VIC/JOE/HEX), F3 (ROX/TEXAS-RED), F4 (Cy5)
Ramp Rate 5.0ºC/s (Max)
Temperature Accuracy ±0.3ºC
Scanning Time 8.5s
Special Functions Absolute/Relative quantification, SNP Analysis, Melting curve analysis
Operating System Windows 10
Dimensions (L*W*H) 375*490*365 mm
🔍 Related Product Views
Related View 1
Related View 2
Related View 3
❓ Frequently Asked Questions
1. What type of samples can the LEIA-X4 accommodate?
The system supports 96x0.1ml PCR plates, 12x8-strip tubes, and 96x0.1ml single tubes with transparent covers.
2. What is the maximum heating and cooling rate of the module?
The instrument offers excellent temperature control with a maximum ramp rate of ≥5.0ºC/s.
3. How many fluorescence detection channels are available?
It features 4-channel fluorescence detection (F1-F4) covering FAM, SYBR GREEN, VIC, JOE, HEX, TET, ROX, TEXAS-RED, and Cy5 dyes.
4. What kind of detector and light source does the system use?
The system utilizes a high-sensitivity MPPC sensor for detection and a long-life, maintenance-free LED light source.
5. Does the software support absolute and relative quantification?
Yes, the user-friendly software includes special functions for absolute quantitative analysis, relative quantification, SNP analysis, and melting curve analysis.
6. What operating system is required to run the PCR software?
The system is fully compatible with Microsoft Windows 10 and connects via a standard USB port.
