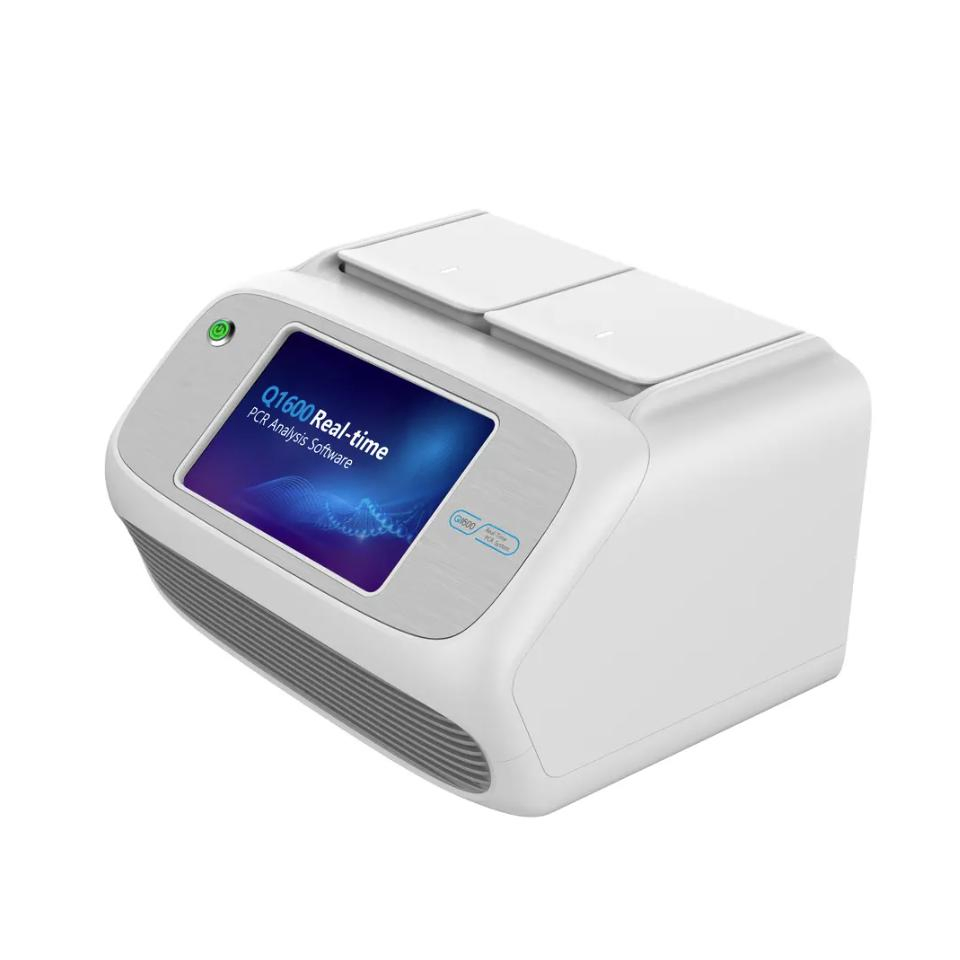

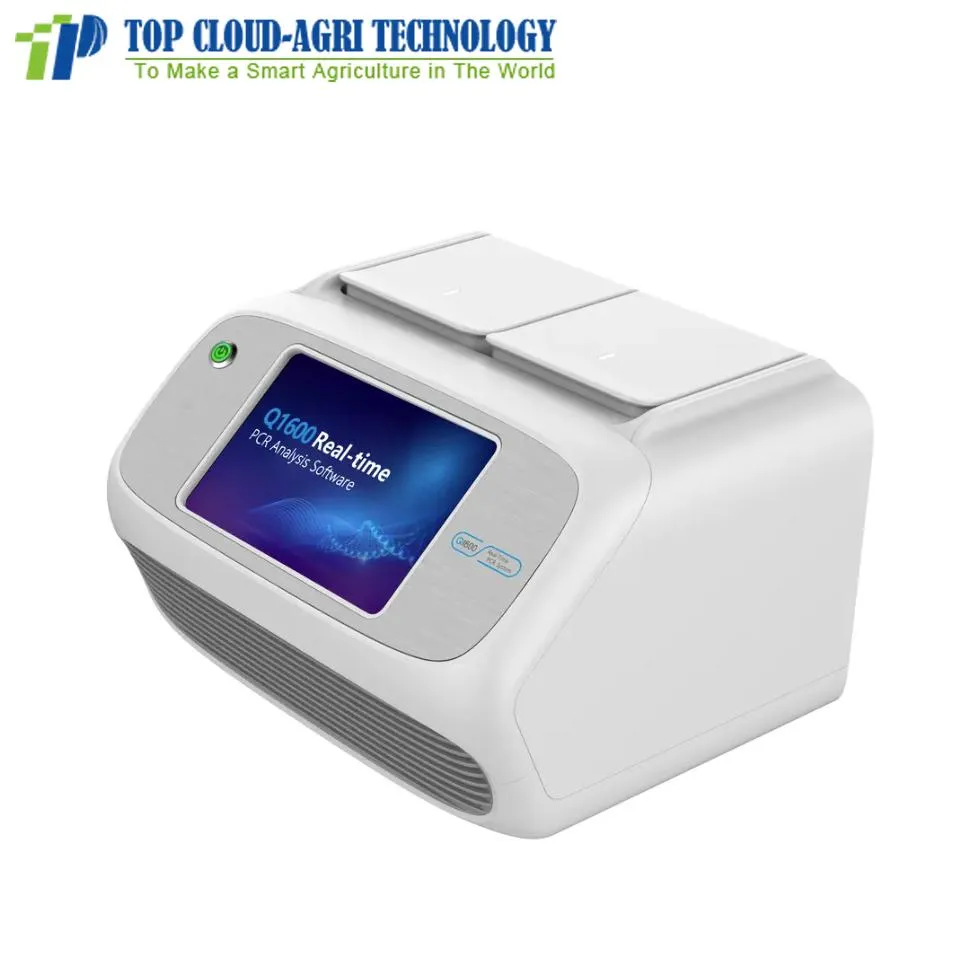

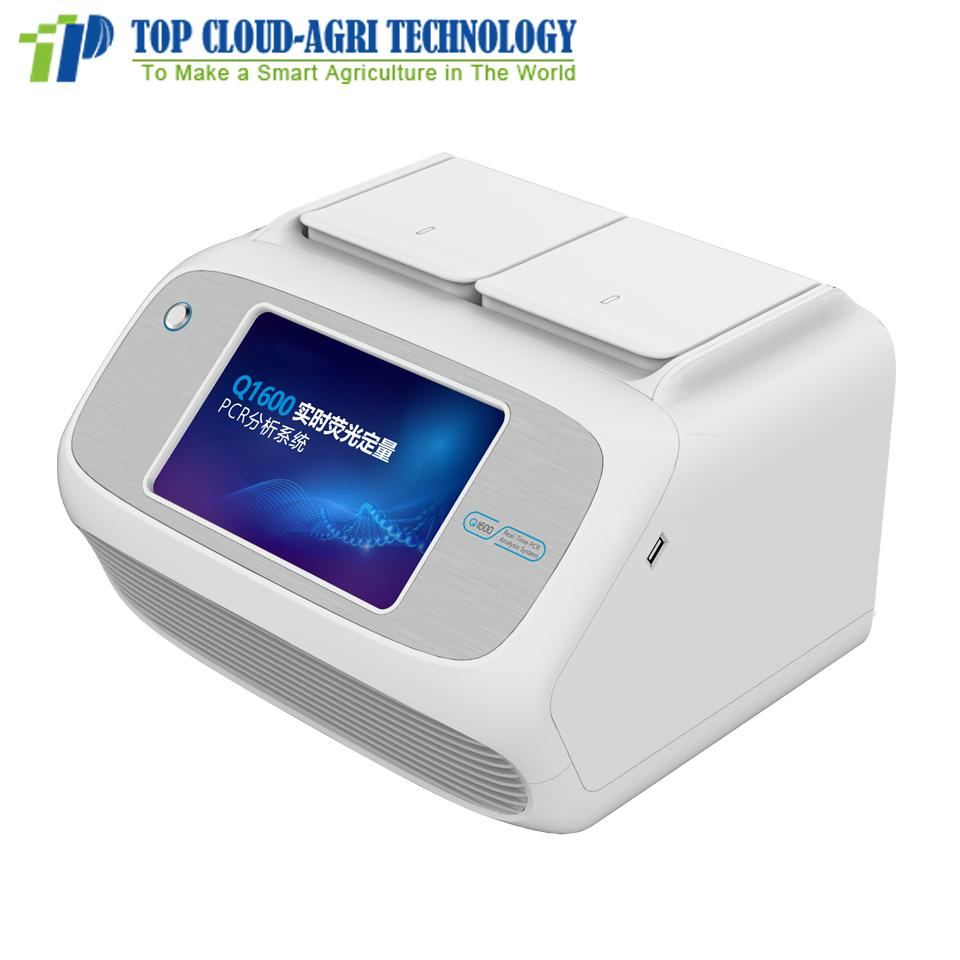

System Overview: This system adopts double channels and double 8-well blocks design, allowing multi-purpose operation in one machine. It features an embedded 7-inch high-definition TFT color touch screen and a user-friendly operating system with integrated analysis software, enabling quantitative analysis and printing without the need for a separate computer.
Equipped with a custom-made Peltier module, high-sensitivity photoelectric detector, and side scan technology, the system ensures superior performance and stable detection results across various environments.
Application Fields: Ideal for real-time detection in pastures, forest farms, breeding facilities, and water sources. It is widely used for rapid diagnosis of epidemic diseases, food safety inspection, quarantine, and advanced scientific research in biological laboratories.
| Model No. | Q1600 / Q1602 |
| Sample Capacity | 16X0.2ml (2X8 well, double block) |
| Consumable | Clear 0.2 ml PCR tube / 8-tube strips |
| Reaction Volume | 10-100 μl |
| Temp. Control Tech | Customized Peltier (1,000,000 cycles) |
| Temperature Range | 0-100°C (Resolution: 0.1°C) |
| Max. Ramp Rate | 6.0°C/s |
| Temp. Uniformity | ±0.25°C |
| Hot Lid Temp. | 30-110°C (Adjustable, default 105°C) |
| Excitation Source | Long life LED |
| Detection | High-sensitivity photoelectric detector |
| Dynamic Range | 1-10^10 Copies |
| Data Export Formats | Excel, CSV, TXT |
| Dimension | 300x267x198mm (L x W x H) |
We maintain a professional after-sales team with global service coverage, providing solutions 24/7.

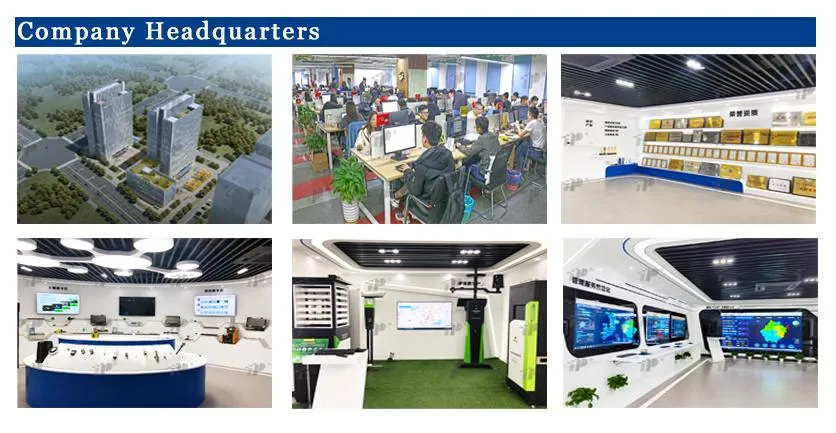

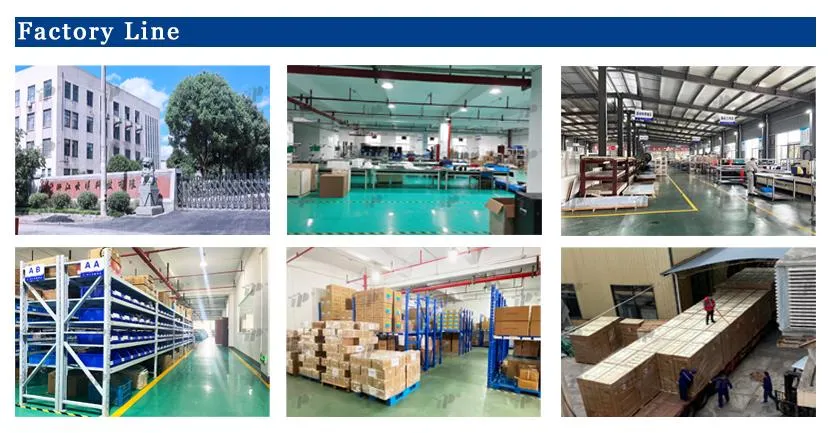

Founded in 2008, the enterprise specializes in the design, development, and manufacture of agricultural testing instruments and laboratory equipment. Holding numerous national patents and software copyrights, we ensure quality through rigorous ISO-certified management systems.
