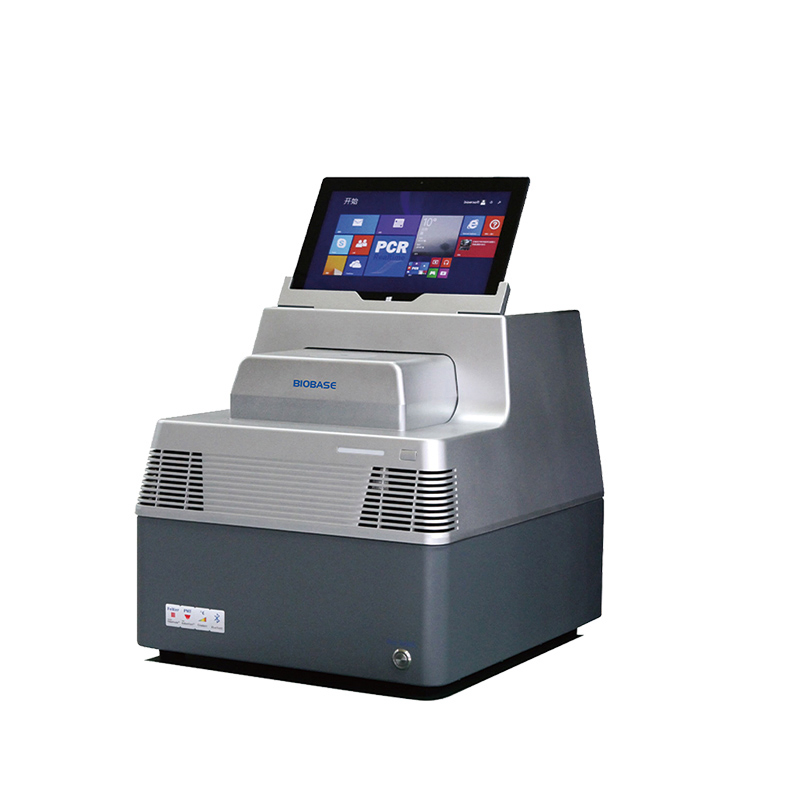

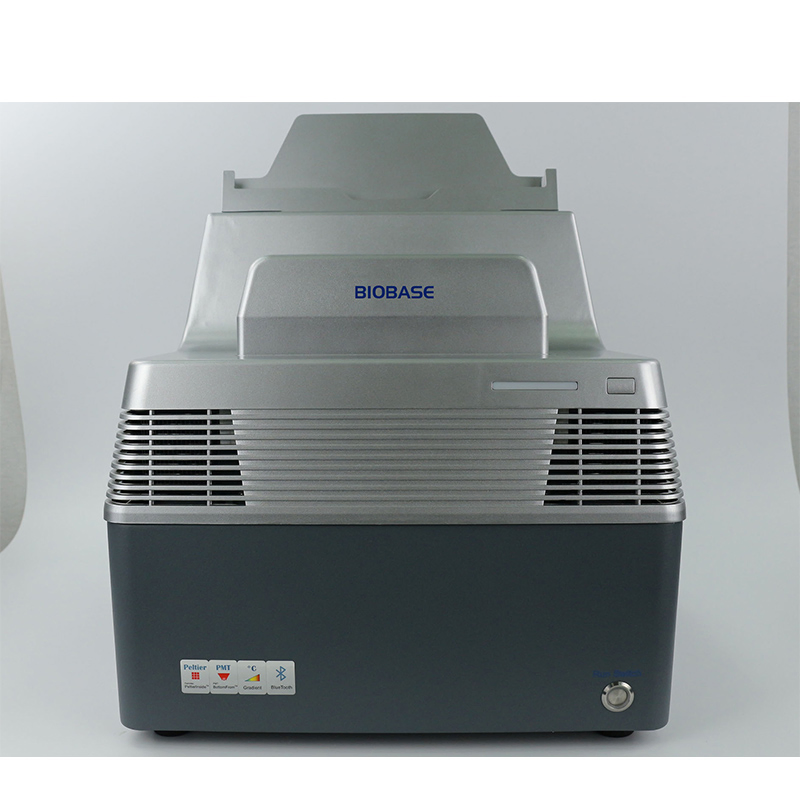

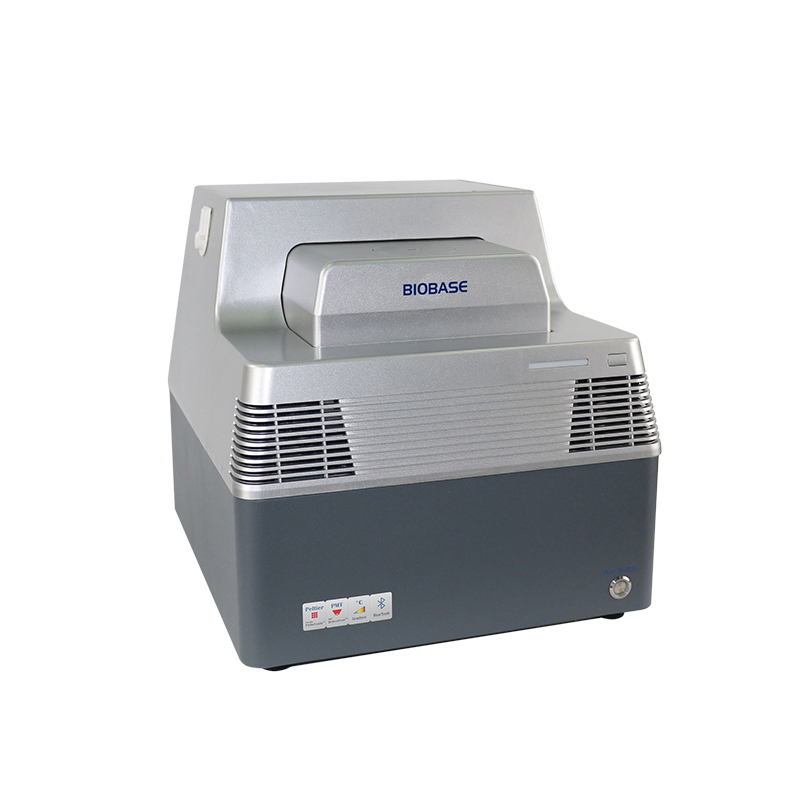

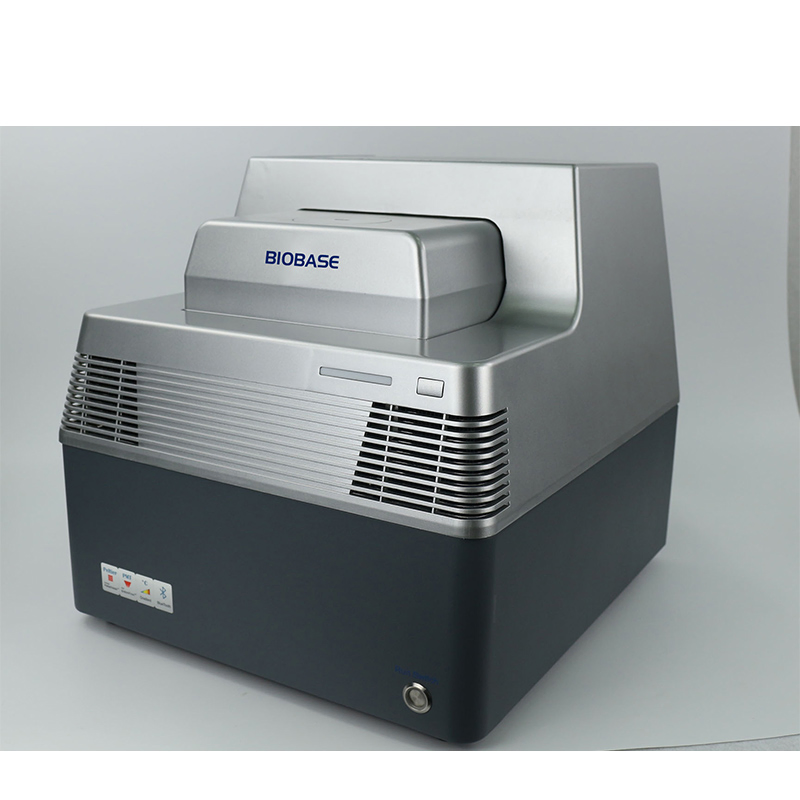

Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR
Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR
Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR
Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR
Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR
1 / 5
Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR
Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR
Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR
Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR
Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR

Biobase PCR Analysis System Auto 96 Gradient Thermal Real Time PCR

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model
FQD-96A
Certification
CE, RoHS 2.0, IVD
Reaction System
5~100μL
Dynamics Range
1-10^10
Excitation Wavelength
300-800nm
Emission Wavelength
500-800nm
Capacity
96-well PCR plate, 12x8-strip tubes
Production Capacity
1000 units/Month
🚀 Product Features

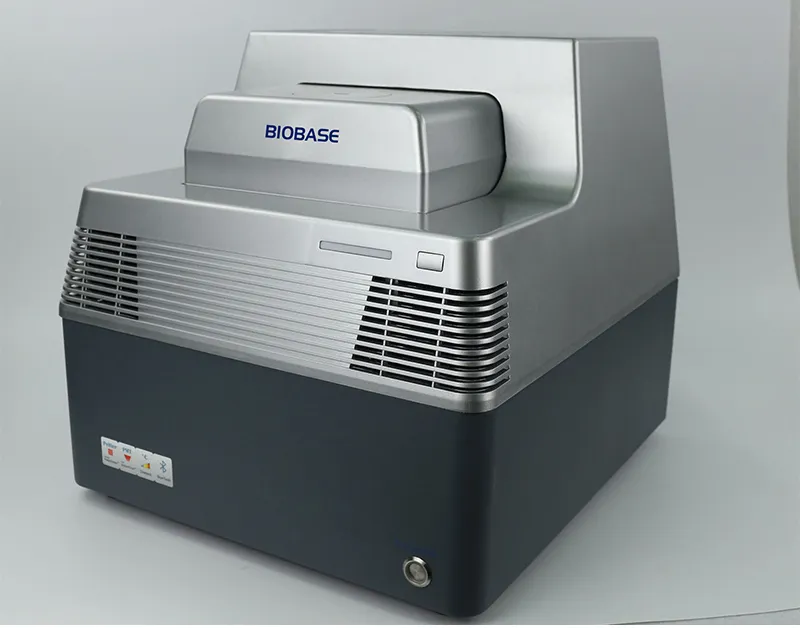

PCR Analysis System Gradient Thermal PCR
  • Whole block scanning and formulated line scanning mode (96-well scanning in 5.5s).
  • 6 channels fluorescence detection with no cross talk between channels.
  • Unique bottom detection, compatible with reaction volumes down to 5μl.

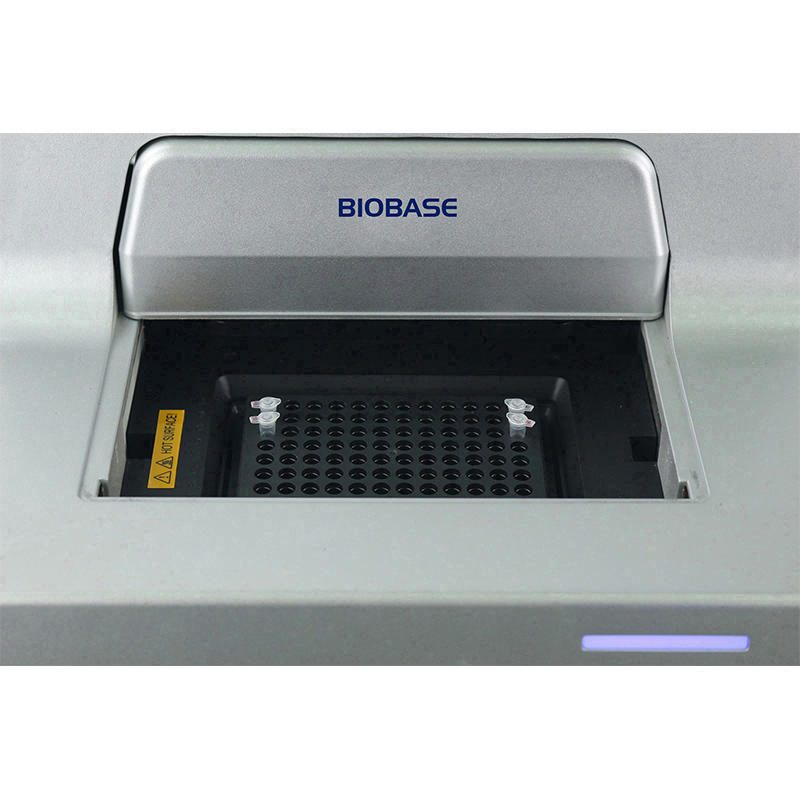

  • New automatic hot lid with automatic open/close to prevent reagent evaporation.
  • LED excitation light source with super long service life.
  • Advanced TE module ensures reliable and long-term performance.
  • Suitable for diverse scientific research and clinical diagnostic applications.

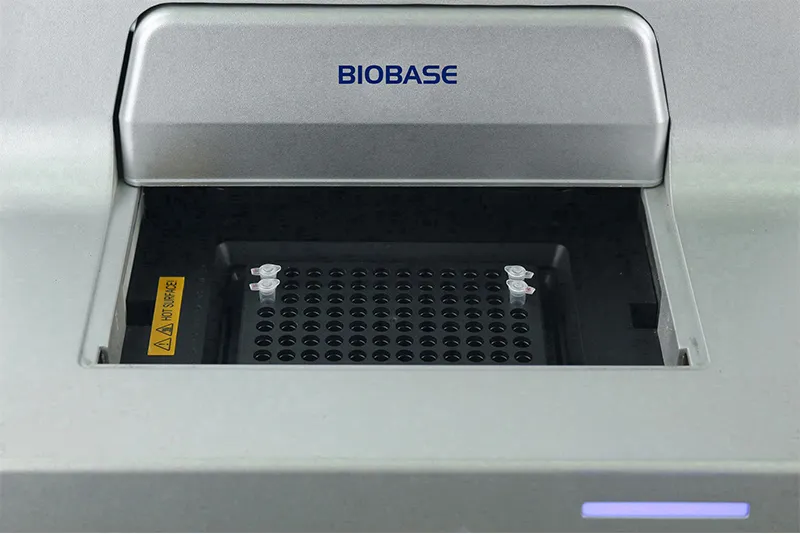

PCR System Overview
📊 Technical Parameters
Product Name Fluorescence Quantitative PCR Detection System
Sample Capacity 96x0.2ml PCR plate, 12x8-strip tubes, 96*0.2ml single tube
Temp. Range 4-105ºC (Resolution: 0.1ºC) with Soak Storage
Max Ramp Rate 4.0ºC/s
Temp. Accuracy ±0.1ºC
Gradient Range 1-36ºC
Scanning Time 5.5s
Special Functions SNP Analysis, Melting Curve, HRM, 6 Independent Temp Zones
Port Method USB, RS232, and Bluetooth
Details
❓ Frequently Asked Questions
1. What is the scanning speed of the 96-well system?
The system features high-speed whole block scanning, completing a 96-well double-color scan in just 5.5 seconds.
2. Does the system prevent reagent evaporation?
Yes, it is equipped with a new automatic hot lid that opens and closes automatically to strictly prevent reagent evaporation during thermal cycling.
3. What types of reaction vessels are compatible?
It supports 96x0.2ml PCR plates, 12x8-strip tubes, and 96x0.2ml single tubes with transparent bottoms.
4. How many detection channels are available?
The system provides 6 channels of fluorescence detection (F1-F6), ensuring no cross-talk between different dyes such as FAM, HEX, ROX, and Cy5.
5. What is the minimum required reaction volume?
Thanks to the unique bottom detection technology, the system is compatible with reaction volumes as low as 5μl.
6. Which operating systems are compatible with the software?
The control software is compatible with Microsoft Windows 7, Windows 8.1, and Windows 10.
