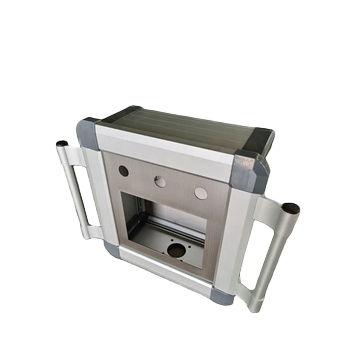

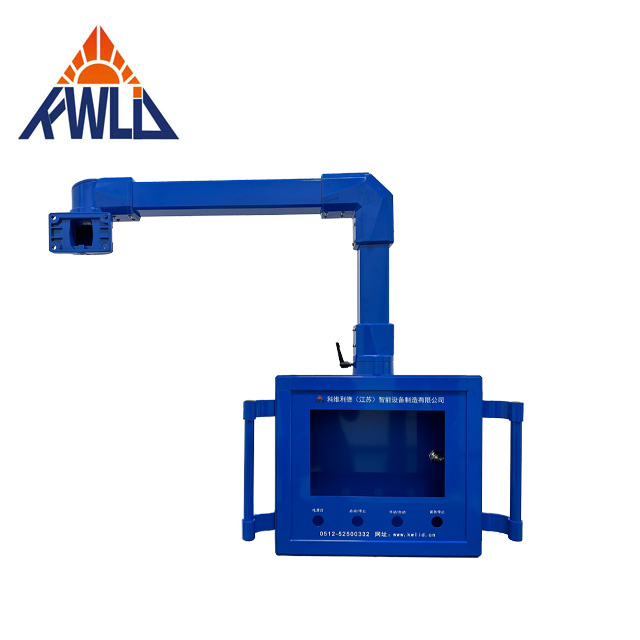

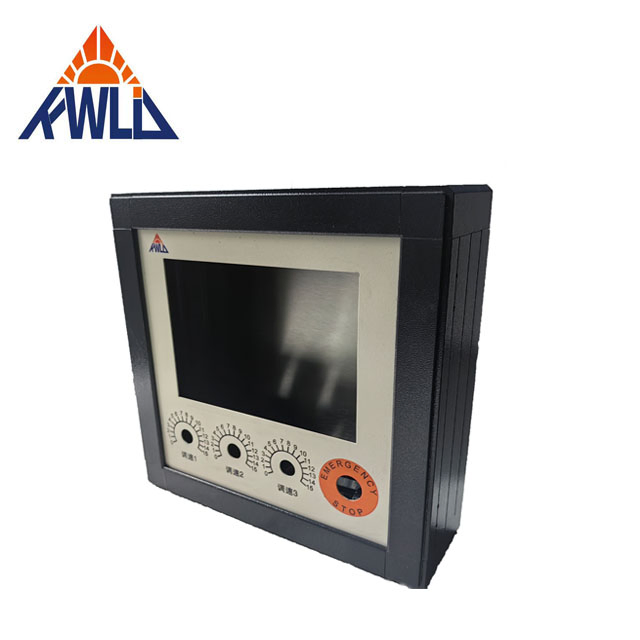

Easy Installation Aluminum Support Arm System for User-Friendly Controls

Customization: Available
Type: Cantilever Control Box
Structure: Stable Structure

Product Description

i

Basic Specifications

Model NO.Customized Aluminum Support Arm
CertificationCE
Shell MaterialHigh-Grade Aluminum Alloy
Protection GradeIP56
Operation VoltageCustomized
Application RangeAutomation Equipment & CNC Machine Tools
FunctionCircuit Board Installation & User Interface Control
Transport PackageSecure Carton/Wooden Case
!

Product Description

The aluminum tubes and components of the cantilever control box stand as a beacon of superior craftsmanship. They showcase an exquisite spray-coated surface finish that exudes luxury and promises lasting durability. Each component is meticulously engineered with unparalleled precision, crafted from high-grade aluminum alloy through advanced die-casting technology, ensuring unmatched strength and remarkable longevity.

This product features an elegantly simple structure designed for seamless and hassle-free installation. It is ideally suited for human-machine interfaces, CNC machine tools, assembly lines, and specialized equipment, enhancing both operational efficiency and adaptability.

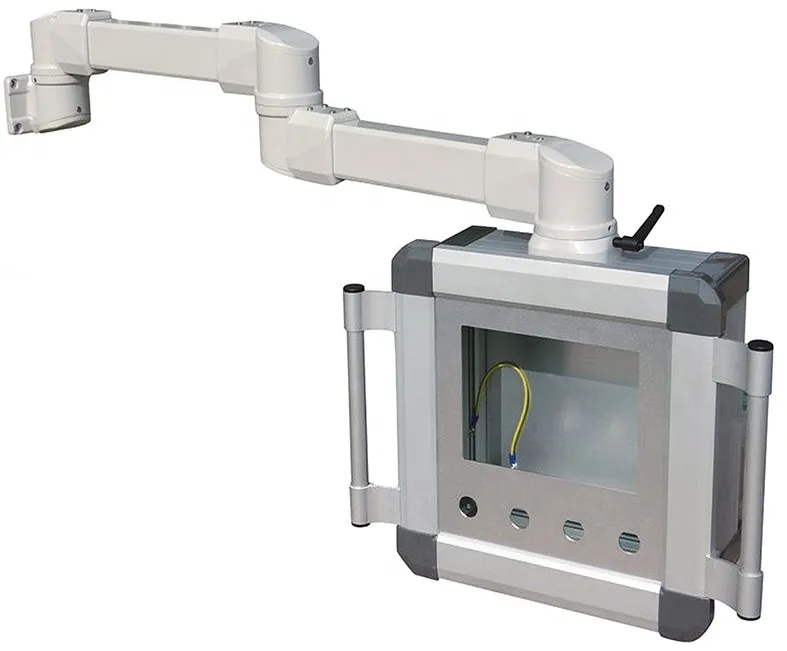

Aluminum Support Arm System

Key Benefits

Premium Material: Forged from premium anodized aluminum profiles and die-cast corner parts for supreme quality.
Robust Design: Combines simplicity with sophistication, delivering exceptional stability and unwavering reliability.
Easy Maintenance: The anodized surface ensures your cabinet retains its immaculate allure and preserves its pristine condition.
Ergonomic Excellence: Designed with a 7-degree elevation angle to prioritize user comfort during interaction.
Versatile Integration: Supports a wide array of man-machine interfaces and industrial accessories.

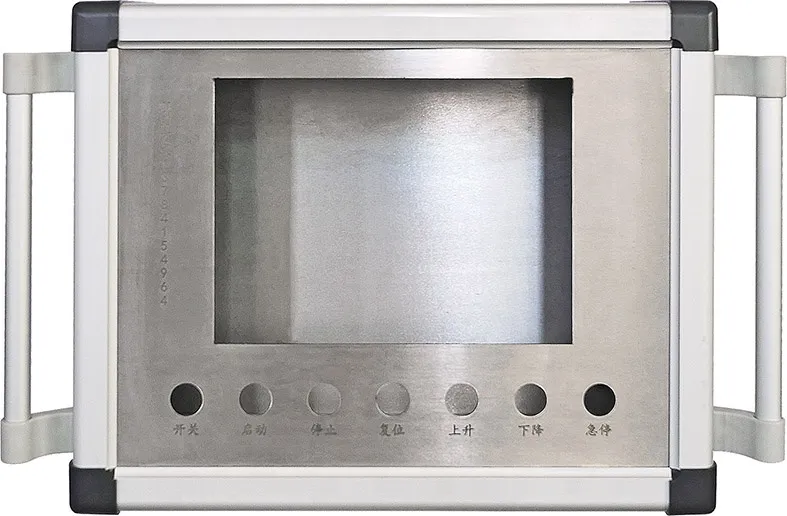

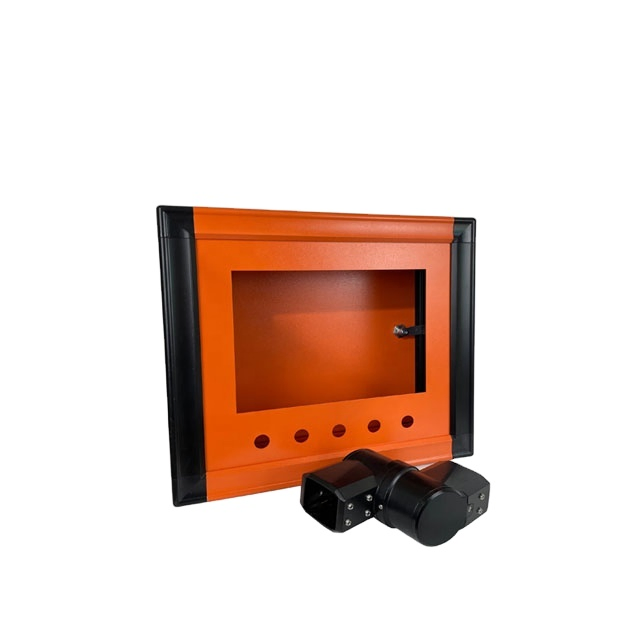

RA Series Control Box

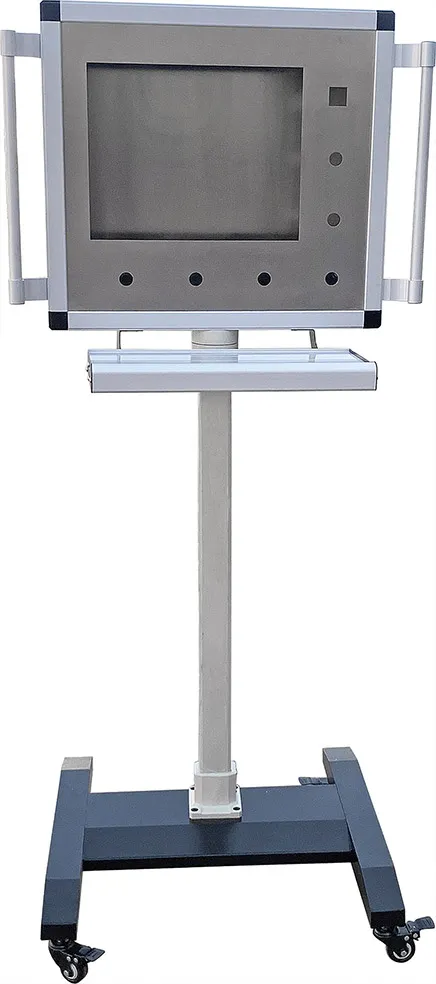

Ergonomic Support Arm

Technical Drawings & Performance

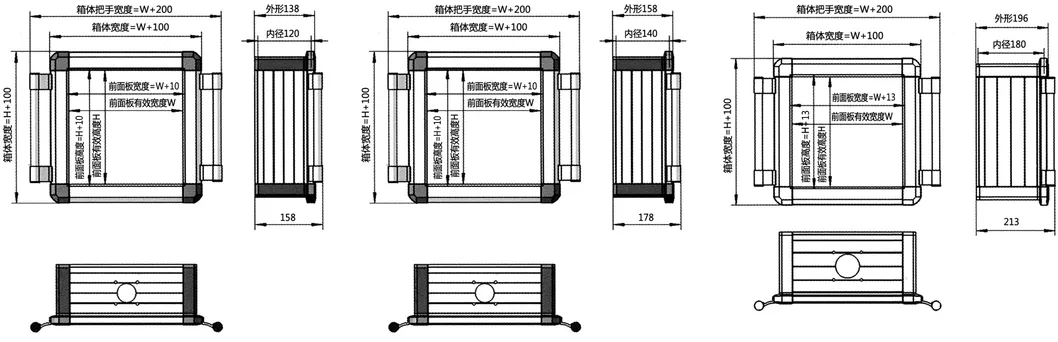

Technical Drawing 1

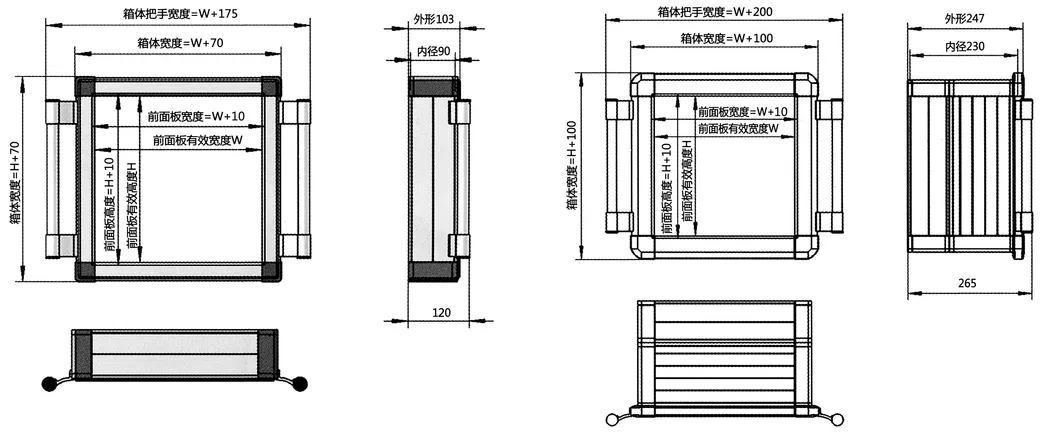

Technical Drawing 2
Parameter Description
Series TypeRA-120/140/180RA-90/230
Effective Depth120mm / 140mm / 180mm90mm / 230mm
Protection LevelBackdoor: IP54; Screw fixation panel: IP65
MaterialsAluminum 6063 (Profiles), Die-cast alloy 102 (Corners), PA66 (Fasteners)

Product Selections

Main Body Selection

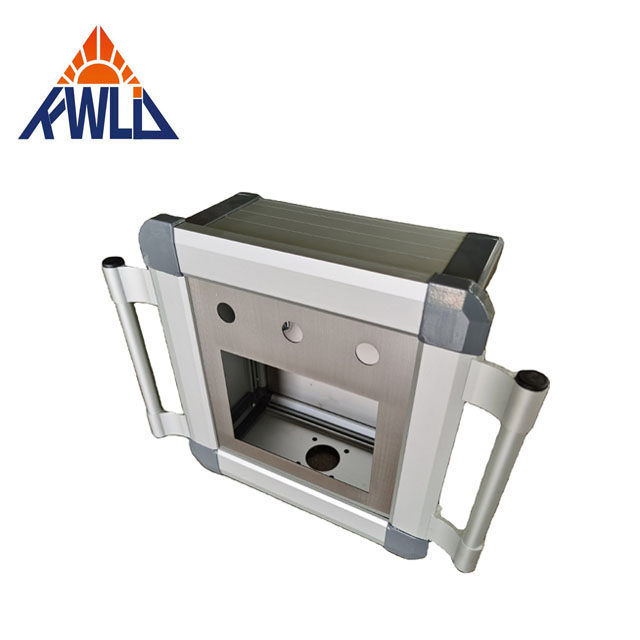

Sturdy Main Body
Custom Parts
Customizable Parts
Precision Components
Precision Components
Enhanced Functionality
Advanced Assembly
Final Finish

Packaging & Application

Our packaging strategy is expertly crafted to uphold the highest levels of safety and protection. We use environmentally considerate materials to guarantee that each package arrives in perfect condition.

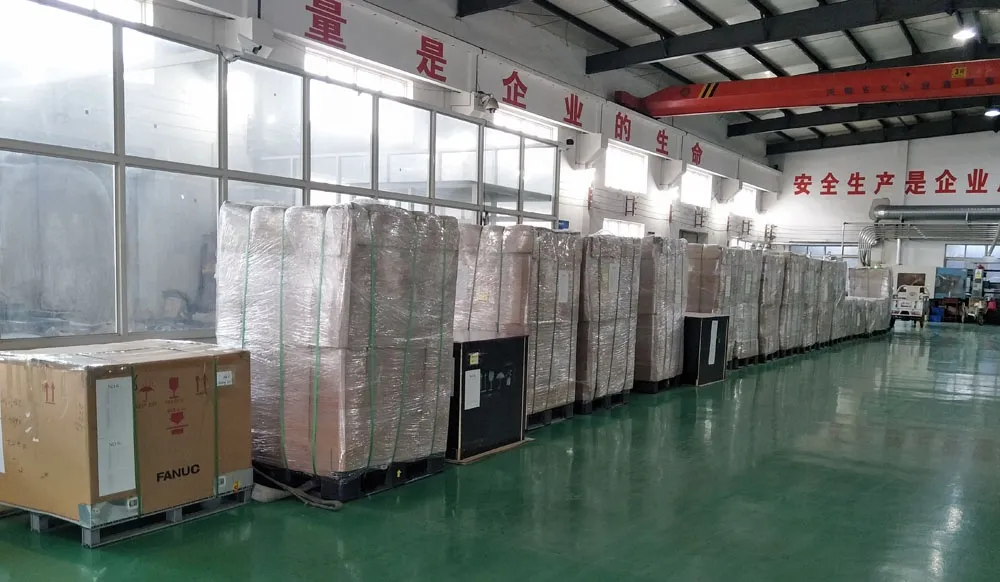

Packaging Logistics

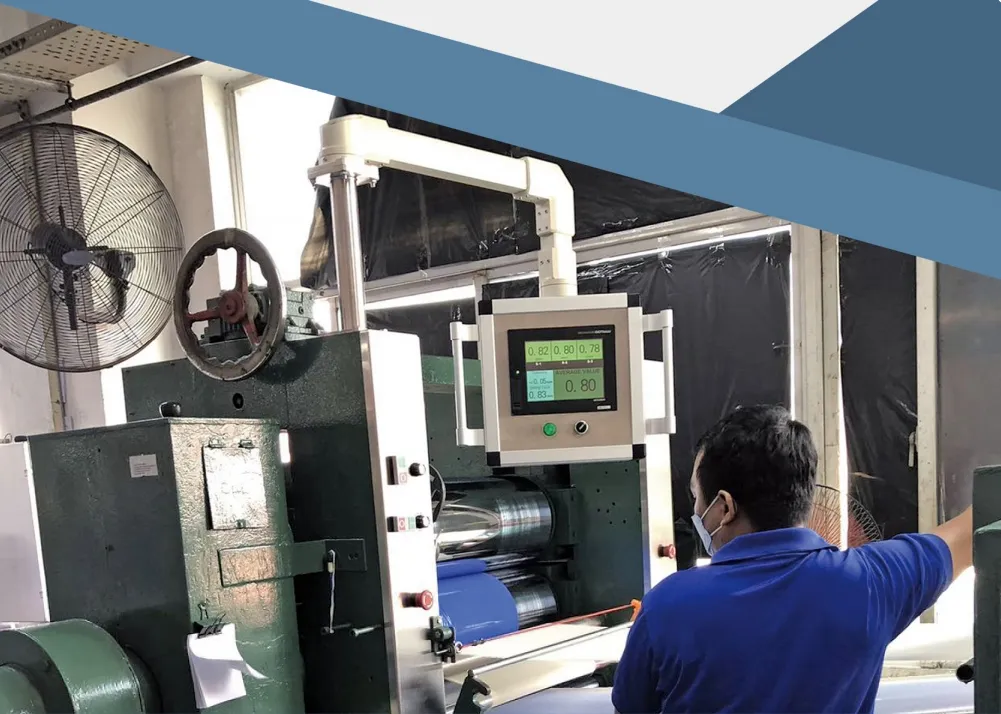

Industrial Application
?

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a professional manufacturer with a dedicated R&D team and advanced production lines specializing in intelligent industrial equipment accessories.
How long is the delivery time for orders?
Delivery depends on order quantity. Standard items in stock are usually shipped within 5 days. For customized products, the typical lead time is 7-15 workdays after payment.
What shipping methods are available?
For small orders, we use express services like DHL, UPS, or FedEx. Larger bulk orders are arranged via sea or air freight according to client requirements.
Do you test your products before delivery?
Yes, we conduct 100% testing and quality inspections on all goods before shipment to ensure full compliance and safety.
Can the control box and support system be customized?
Absolutely. We offer customization for sizes, panel configurations, and color finishes to meet specific industrial application needs.
What is the protection rating of your support systems?
Our systems typically reach IP54 for standard backdoors and up to IP65/IP56 for screw-fixation panels, ensuring high protection in industrial environments.
