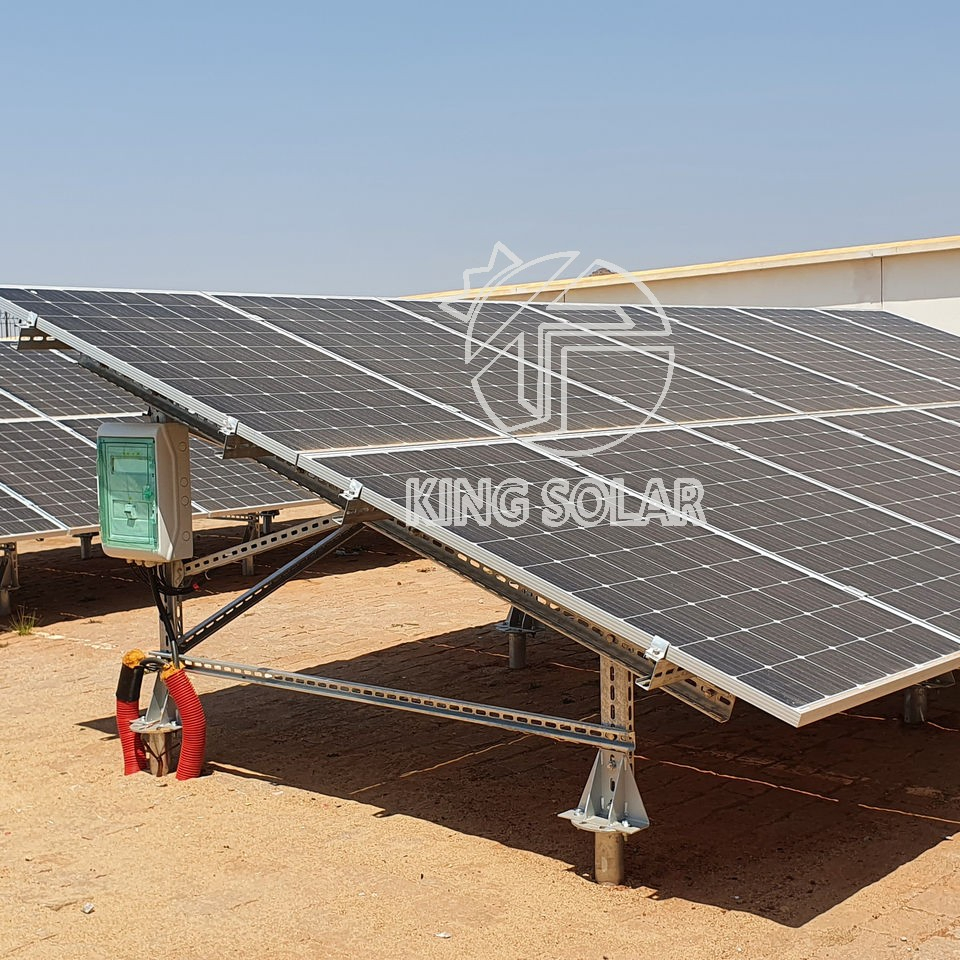

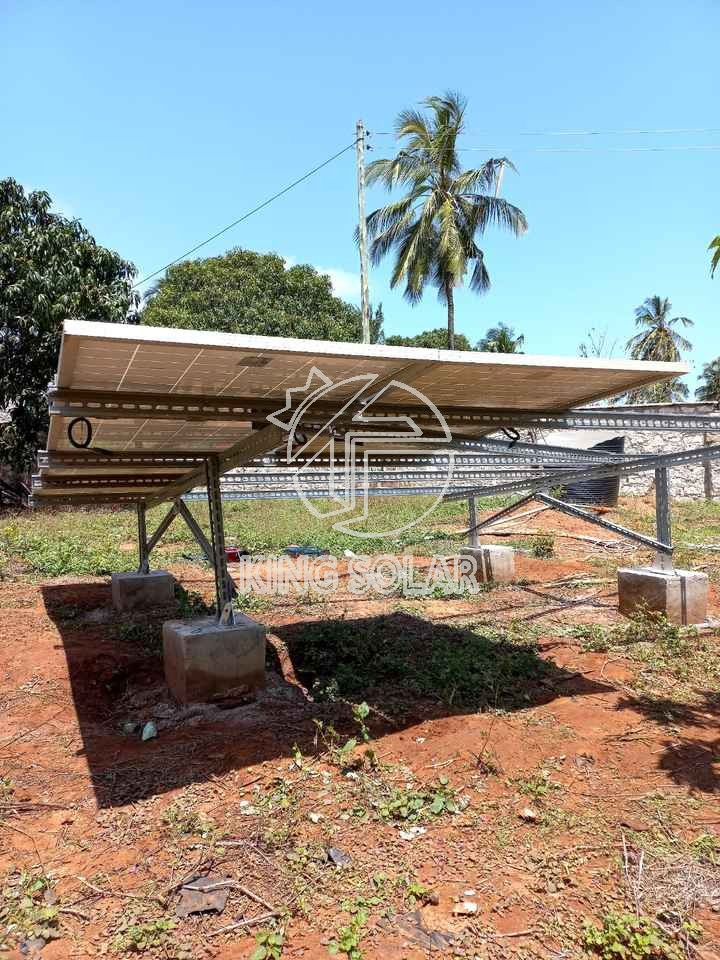

Carbon Steel Solar Panel Ground Support Mounting System
Carbon Steel Solar Panel Ground Support Mounting System
Carbon Steel Solar Panel Ground Support Mounting System
Carbon Steel Solar Panel Ground Support Mounting System
Carbon Steel Solar Panel Ground Support Mounting System
1 / 5
Carbon Steel Solar Panel Ground Support Mounting System
Carbon Steel Solar Panel Ground Support Mounting System
Carbon Steel Solar Panel Ground Support Mounting System
Carbon Steel Solar Panel Ground Support Mounting System
Carbon Steel Solar Panel Ground Support Mounting System

Carbon Steel Solar Panel Ground Support Mounting System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Specifications

Certification
ISO, CE
Application
Commercial / Industrial
Material
Steel / Aluminum Alloy
Type
Ground Bracket
Lead Time
5-15 Days
Resistance Grade
IP65 / Outdoor Corrosion Resistant
Production Capacity
1GW / Year
MOQ
1 Cbm
🏗️

Product Description

Multiple foundation options are available for different land types. We have a team of specialised technicians providing solutions for ordinary ground supports, garages, sheds, adjustable tripods, and other ground-based systems. Materials include premium aluminium alloy and hot-dip galvanised steel to suit various environmental needs.
🔹
Pile Driven & Ground Screw: Robust structure fully utilizing ground screw benefits. Cost-competitive and environmentally friendly, designed to handle heavy snow loads and high wind speeds.
🔹

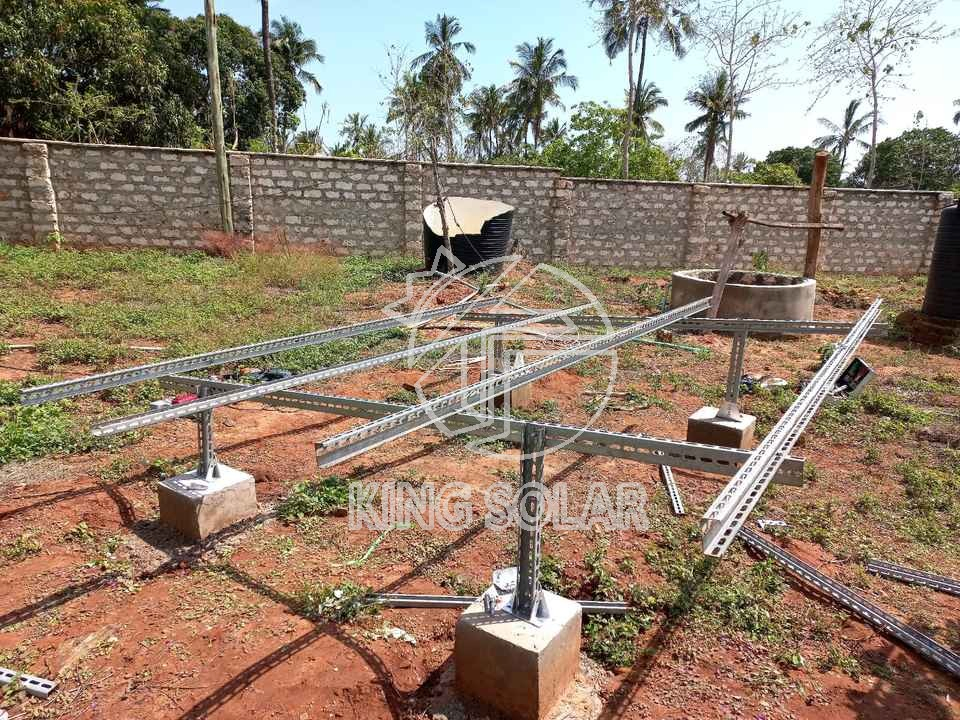

Concrete Base: Ideal for locations where ground excavation is restricted. Sizes are adjusted based on static requirements and location. Also suitable for cement flat roofs.

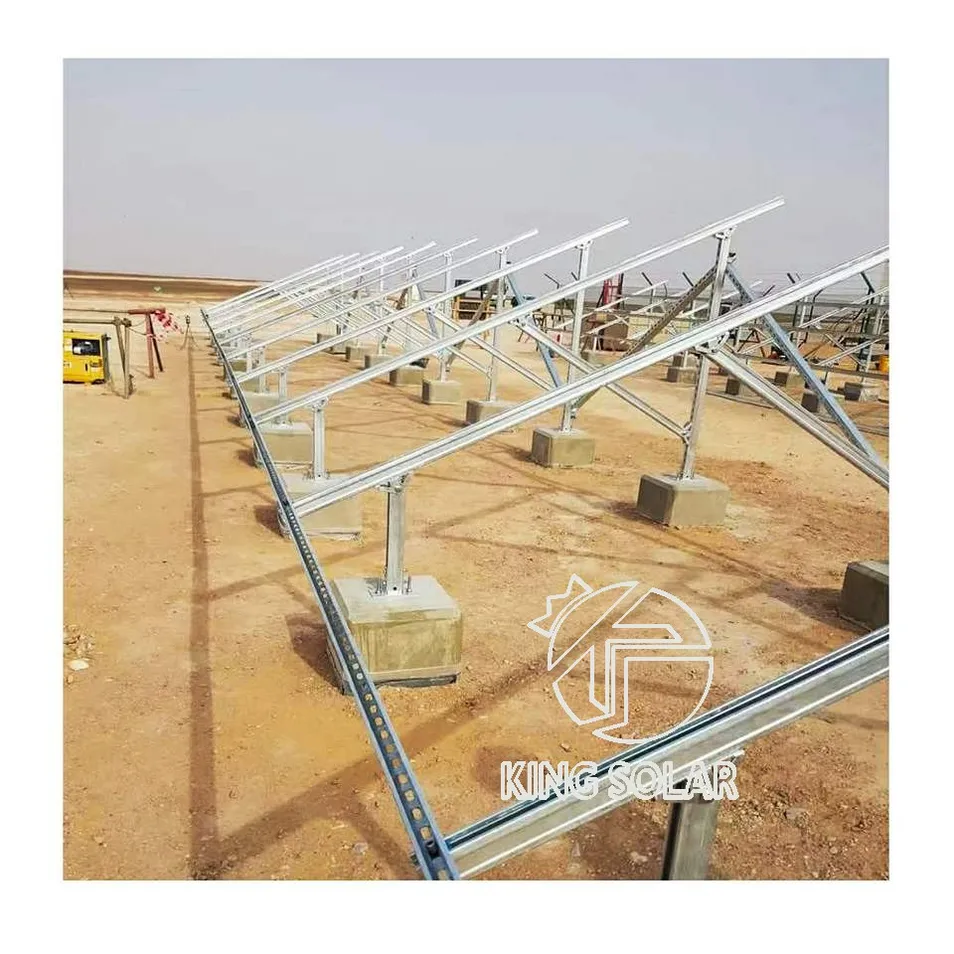

Ground Mounting System
📋

Technical Specifications

MaterialAnodized AL6005-T5, HDG steel Q235B, SUS304
FoundationGround Screw and Concrete Base
Warranty10 years warranty and 25 years service life
StandardAS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Max Wind LoadUp to 60m/s
Snow LoadUp to 1.4KN/M²
Applicable ModuleFramed Or Frameless
Module OrientationPortrait or Landscape

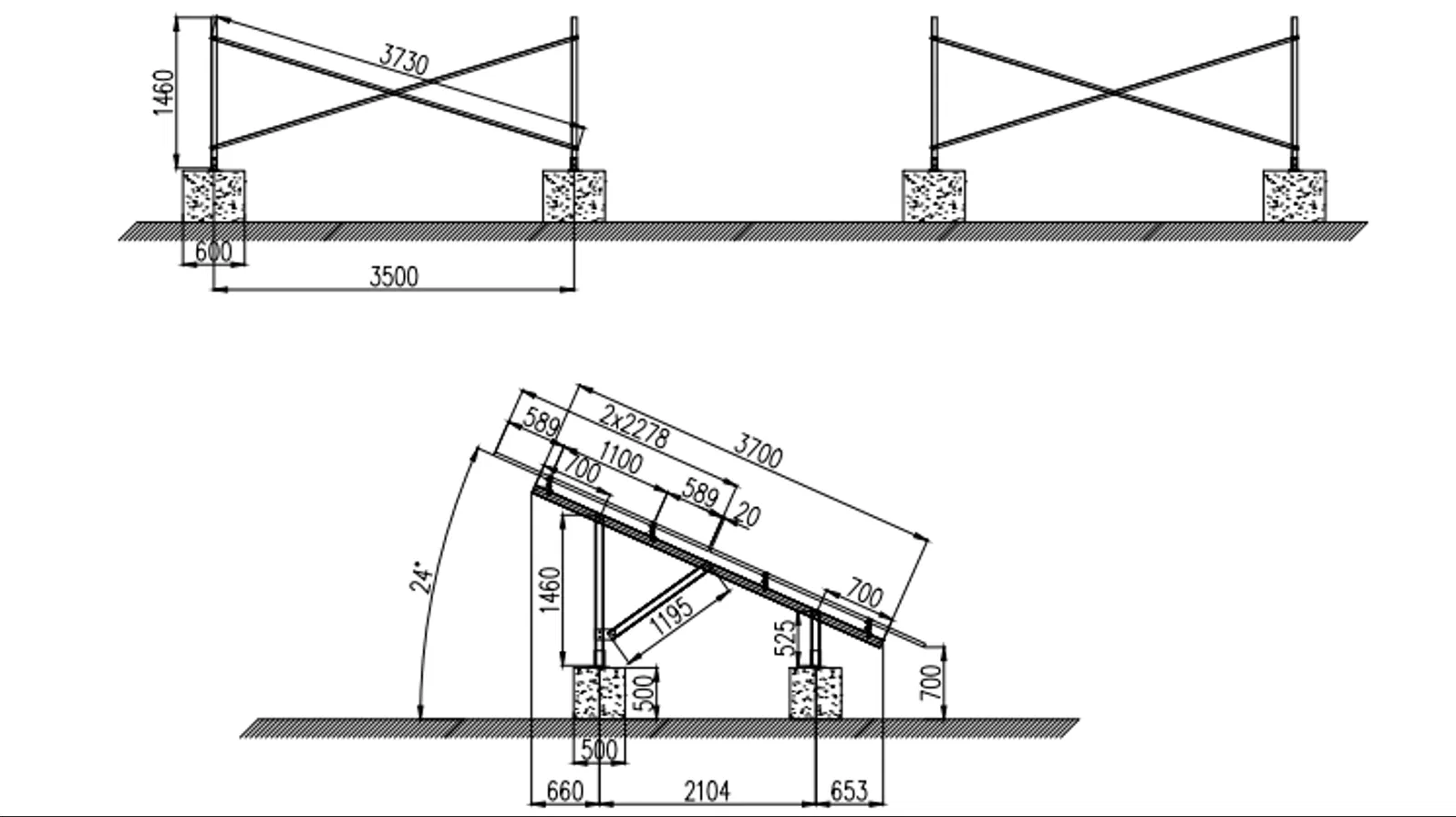

Technical Drawing
💡

Quotation Requirements

To provide an accurate proposal, please prepare the following details:

1. Solar panel dimensions (L/W/T) and power rating.
2. Panel array layout (rows x columns).
3. Local wind load (m/s) and snow load (cm).
4. Preferred installation angle and module orientation.
5. Foundation type preference (Concrete or Ground Screw).

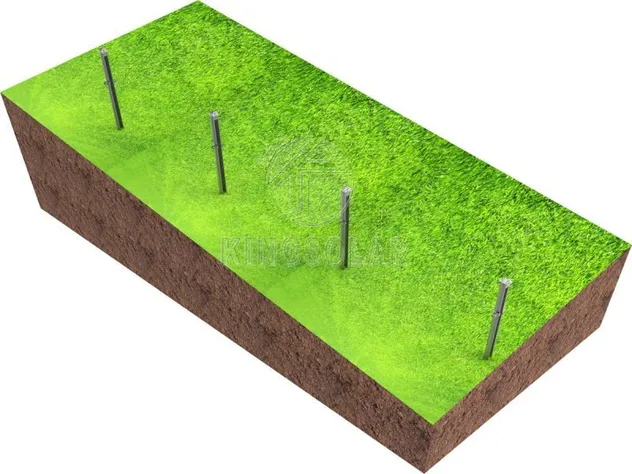

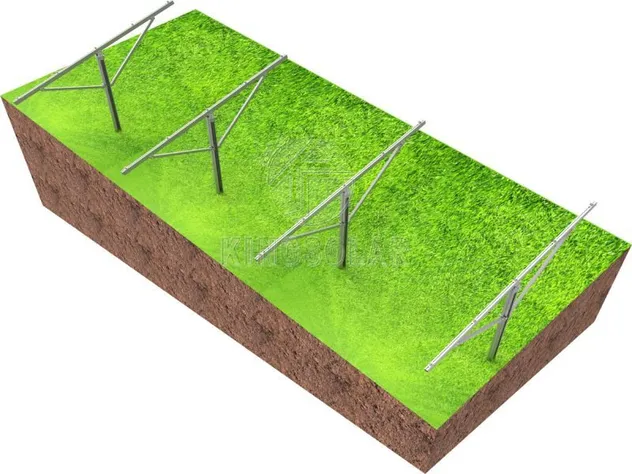

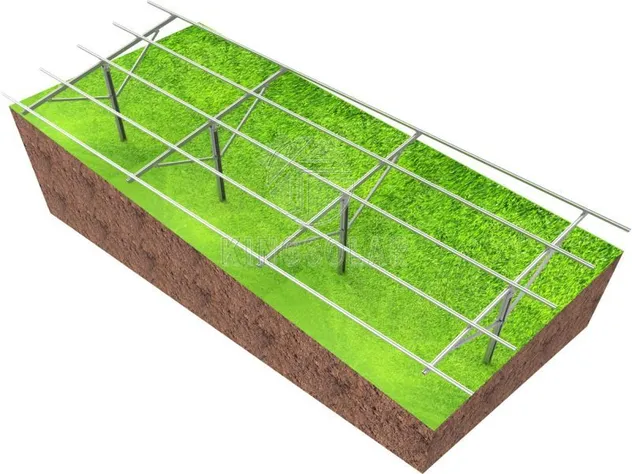

Mounting Part 1 Mounting Part 2 Mounting Part 3
✅

Product Advantages

Our systems are designed for durability and efficiency in diverse global environments.

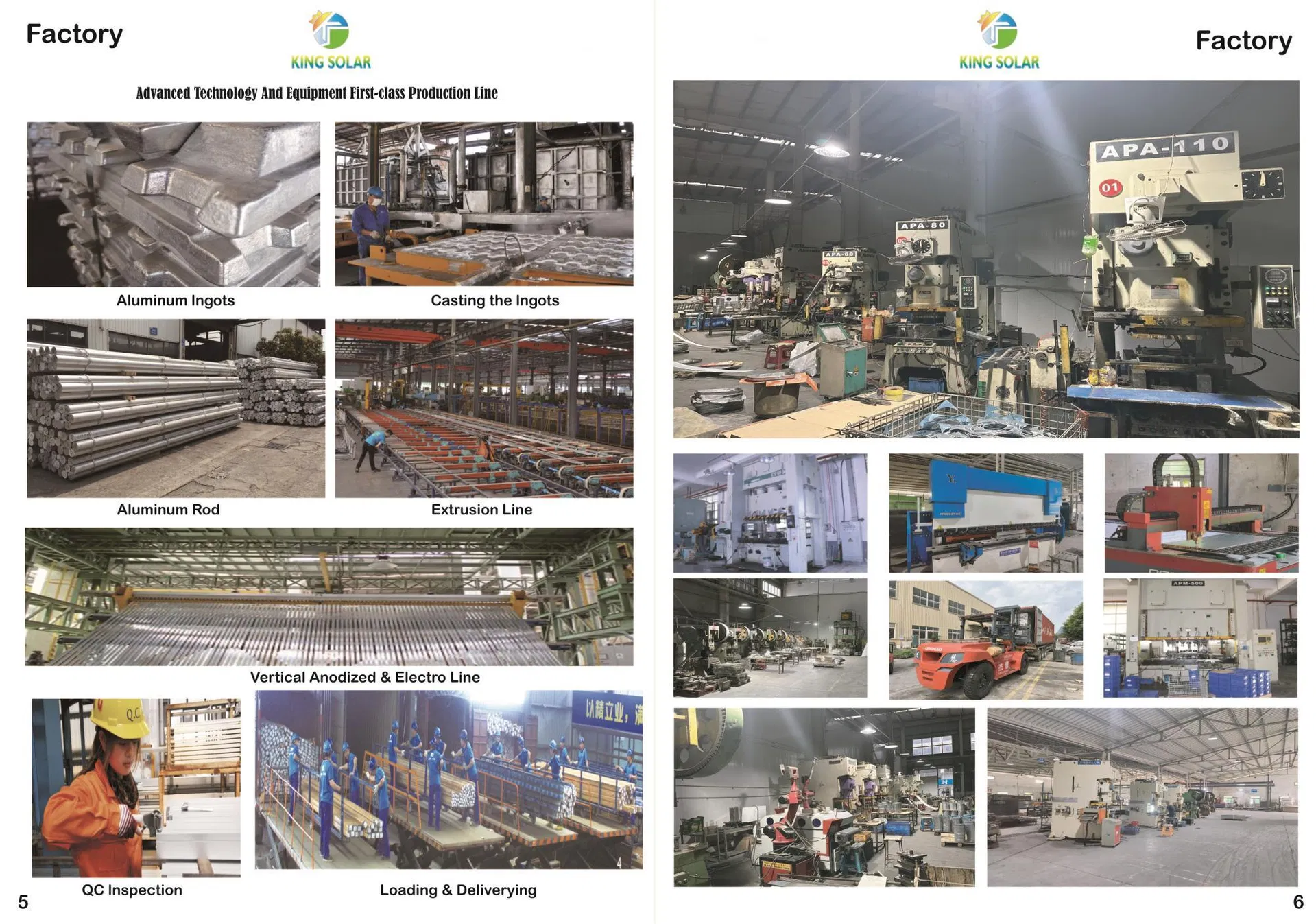

Production Process
01. Lightweight & Safe: Easy transportation and installation for safe construction site management.
02. High Durability: Excellent corrosion resistance and high salt tolerance for coastal areas.
03. Rapid Installation: Maximum pre-assembly to save significantly on construction time and labor costs.
04. Eco-Friendly: Suitable for various geological conditions; durable and fully recyclable.

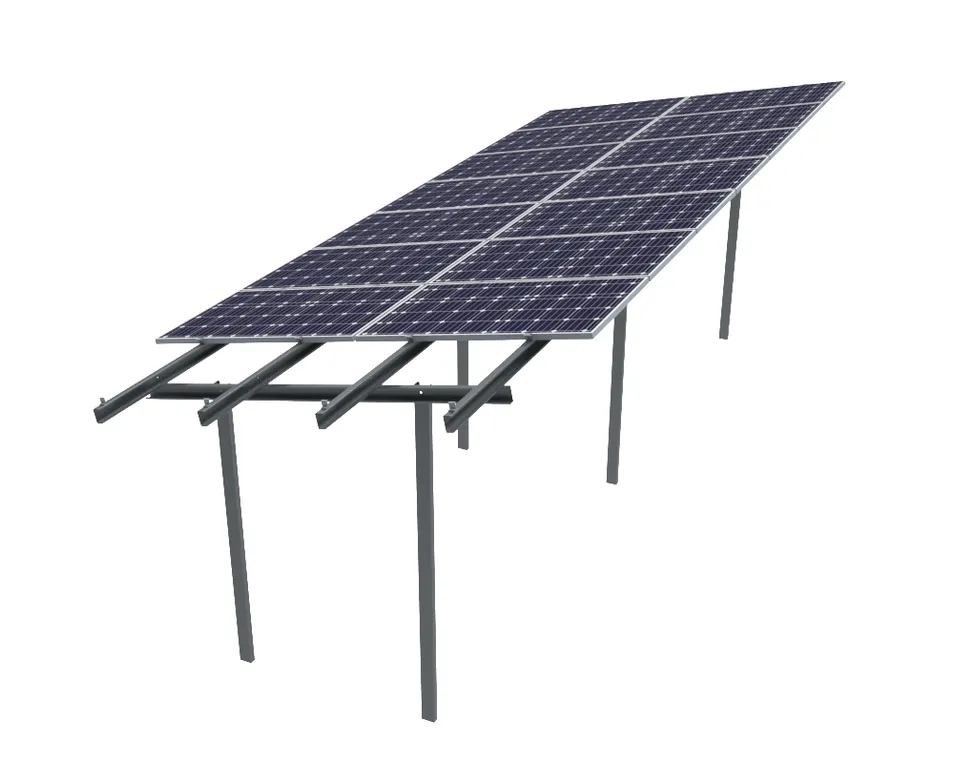

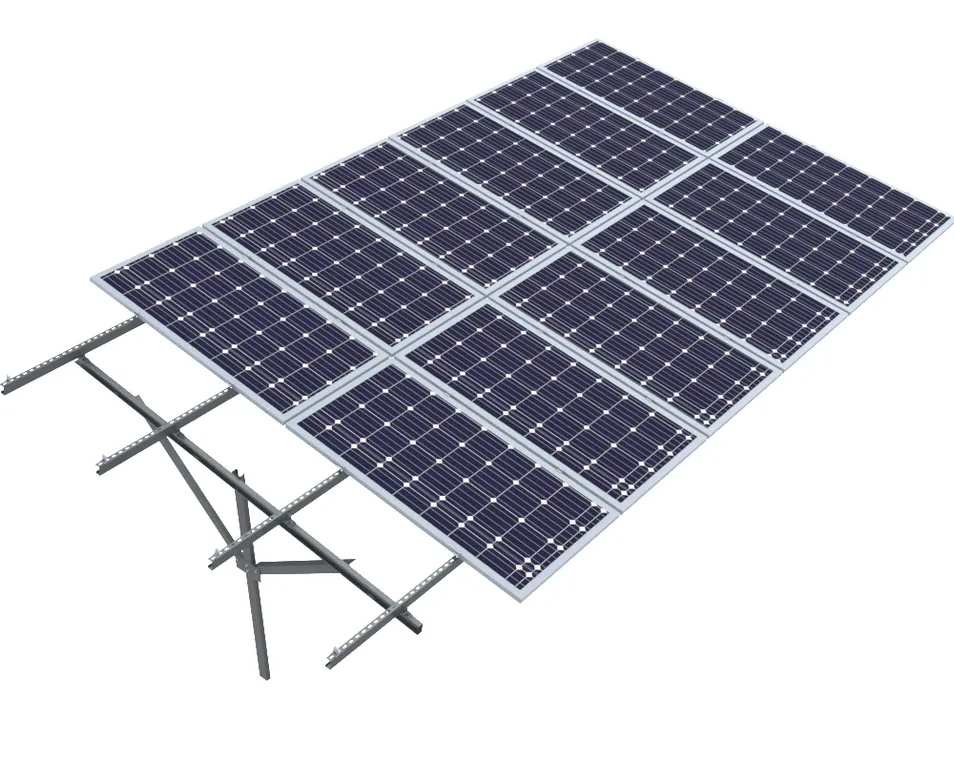

Application 1 Application 2
❓

Frequently Asked Questions

Q1: Are you a professional photovoltaic system manufacturer?
Yes, we have a professional R&D team and our own factory with over 10 years of production experience in photovoltaic system design and manufacturing.
Q2: Do you support OEM and ODM services?
Yes, we provide both OEM and ODM services. We have extensive experience designing for top EPC distributors worldwide.
Q3: What is the typical delivery time for orders?
Standard products take 5-15 days. For customized solutions, the lead time is approximately 20 days depending on the complexity.
Q4: Can I request samples for testing?
Yes, we provide free samples for your quality testing and verification before placing bulk orders.
Q5: What is the warranty period for your mounting systems?
We offer a 10-year warranty on our structures with a projected service lifespan of 25 years.
Q6: How are the goods shipped for large orders?
Large orders are typically shipped via sea freight, taking 7 to 30 days depending on the destination distance and port.
