| Product Name | Industrial Commercial Energy Storage System |
| Nominal Voltage | 230V/400V |
| Nominal Capacity | 215kWh |
| Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| Cycle Life | 9000 Cycles |
| Rated Power | 105kW |
| Cooling Method | Intelligent Liquid Cooling |
| Protection Level | IP54 |
| Warranty | 5 Years |

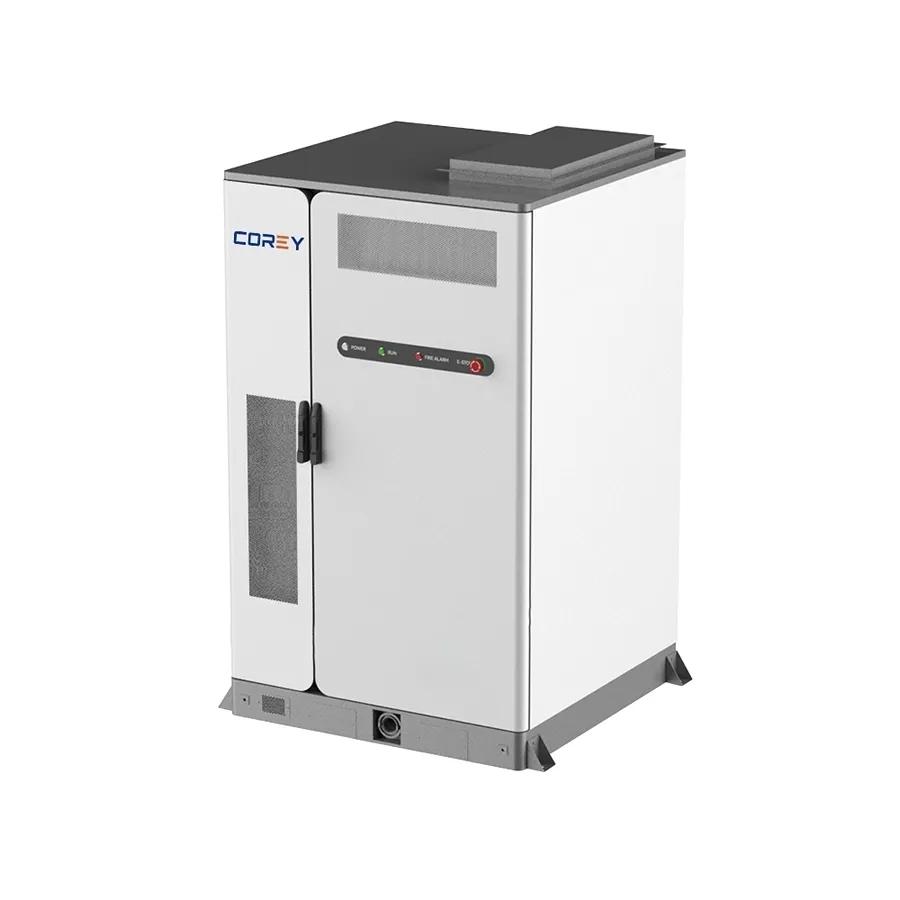

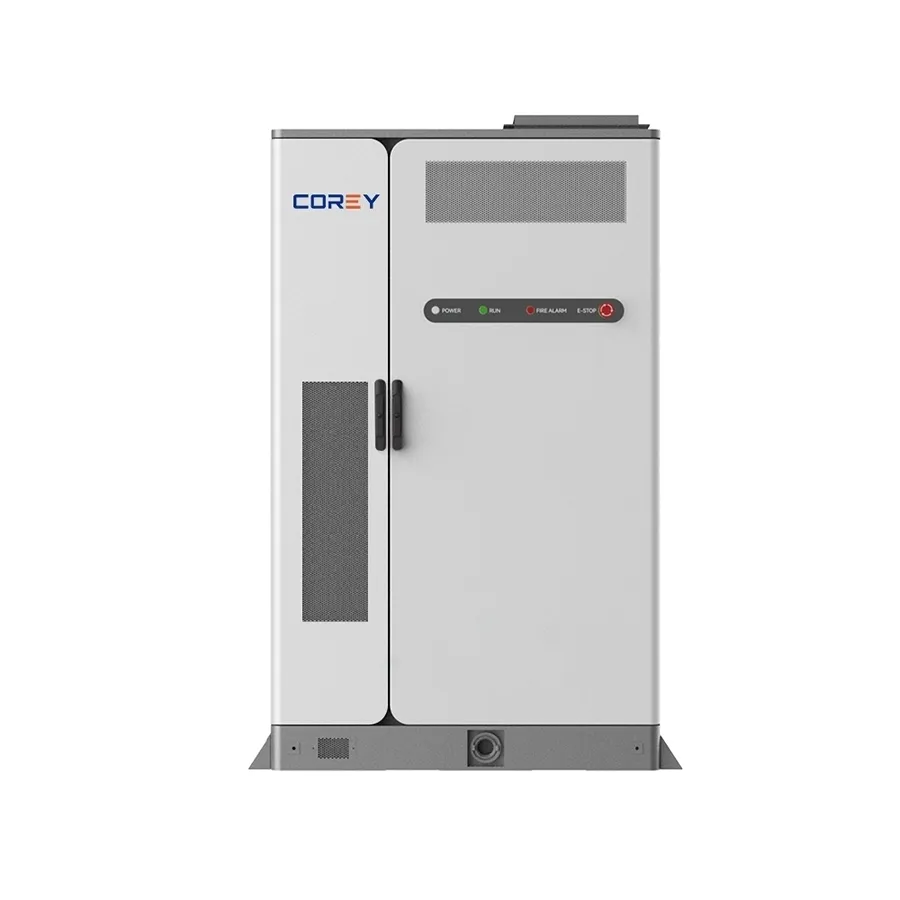

The industrial and commercial storage cabinet system uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults and prevent fault spread. The divided system design and three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the safety of people and assets.

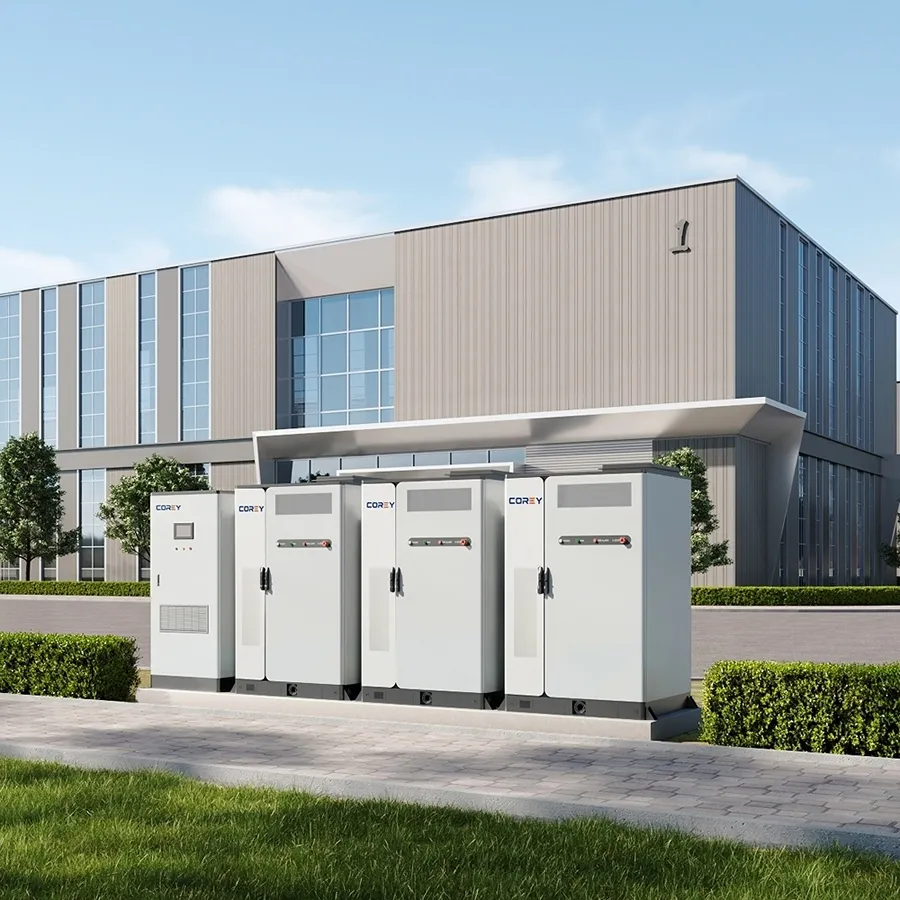

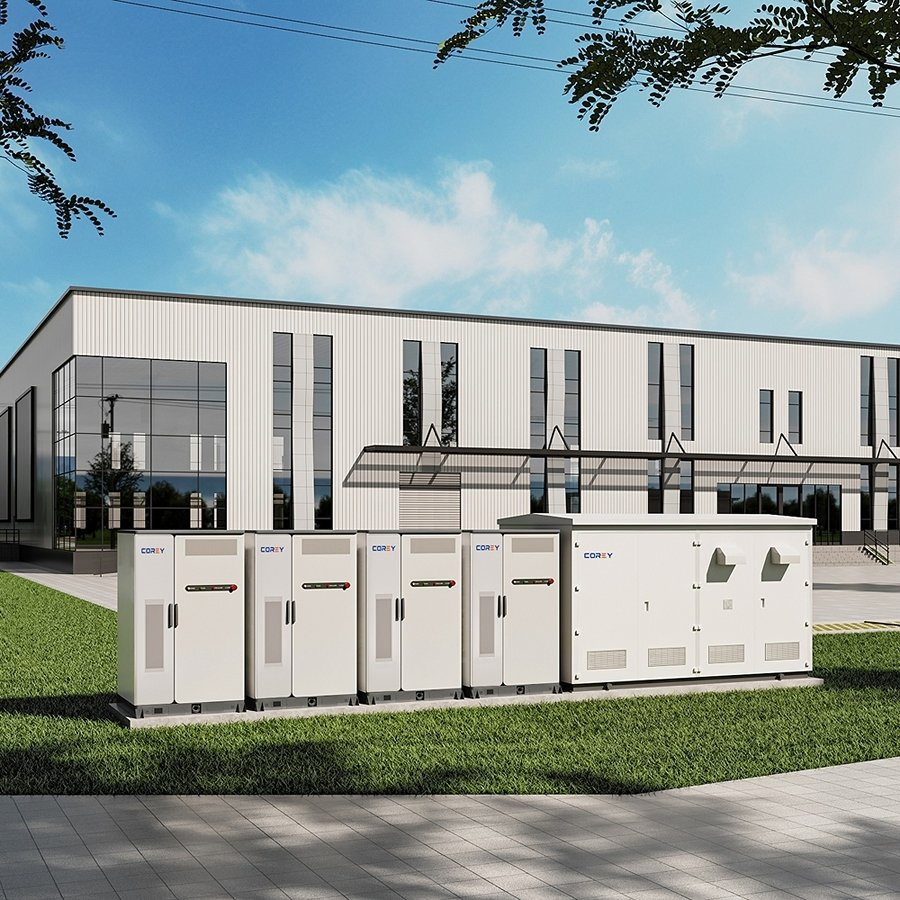

Applications: Commercial buildings, factory buildings, remote areas, and regions with power shortages.
| System Parameters | |
| Communication | CAN/RS485/Ethernet/4G |
| Fire Fighting | Aerosol (pack+cluster level) + Water Fire Protection (cabinet level) |
| Operating Altitude | 4000m (>2000m, derating operated) |
| Operating Temperature | -20°C to 50°C (Discharge), 0°C to 50°C (Charge) |
| Noise | ≤75dB |

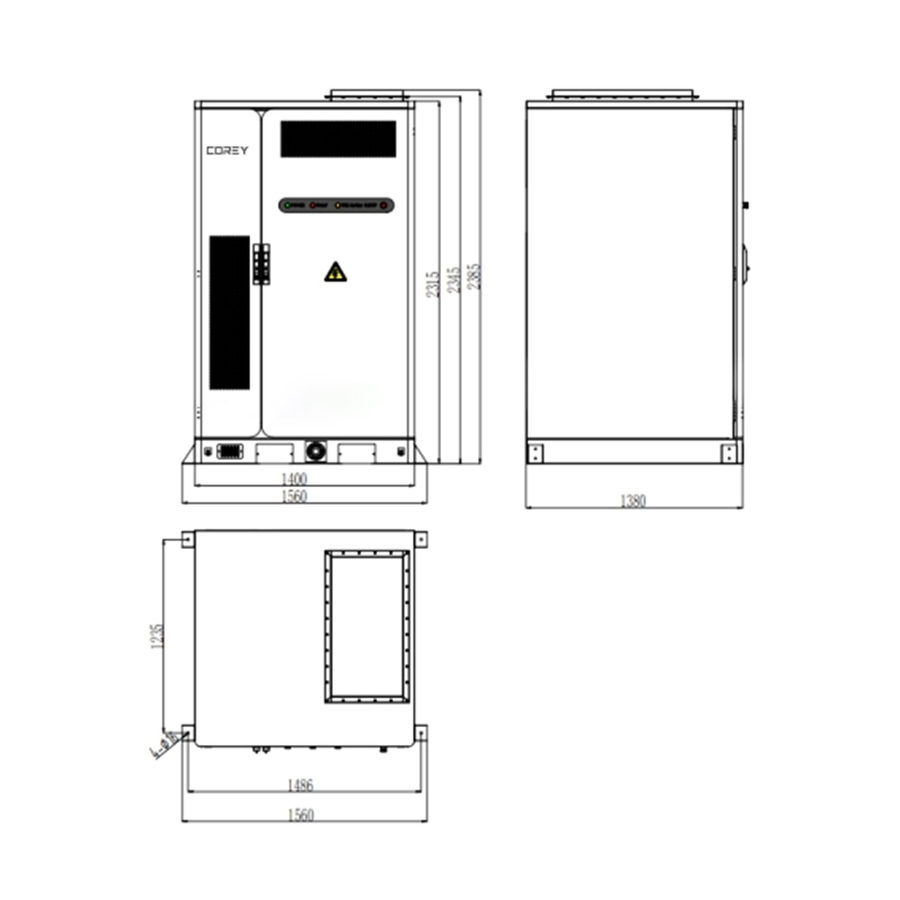

| Dimensions | L1560mm * D1380mm * H2385mm |
| AC Side | |
| Voltage Range | 230V/400V (±15%) |
| Maximum Current | 167A |
| Power Factor | ≥0.99 (-1 to 1) |
| Certifications | |
| CQC, LVRT/HVRT, EN62477, EN 61000, EN 50549-2, UN38.3, EN62619, VDE 4105 | |
Strong Flexibility: Modular design adapts to various power requirements and supports equipment expansion.
Intelligent Management: Equipped with Energy Management System (EMS) for power dispatching and load optimization.
Economic Efficiency: Ideal for peak-shaving and valley-filling to reduce corporate electricity expenses.
Environmental Protection: Supports photovoltaic access and helps achieve carbon neutrality goals.
