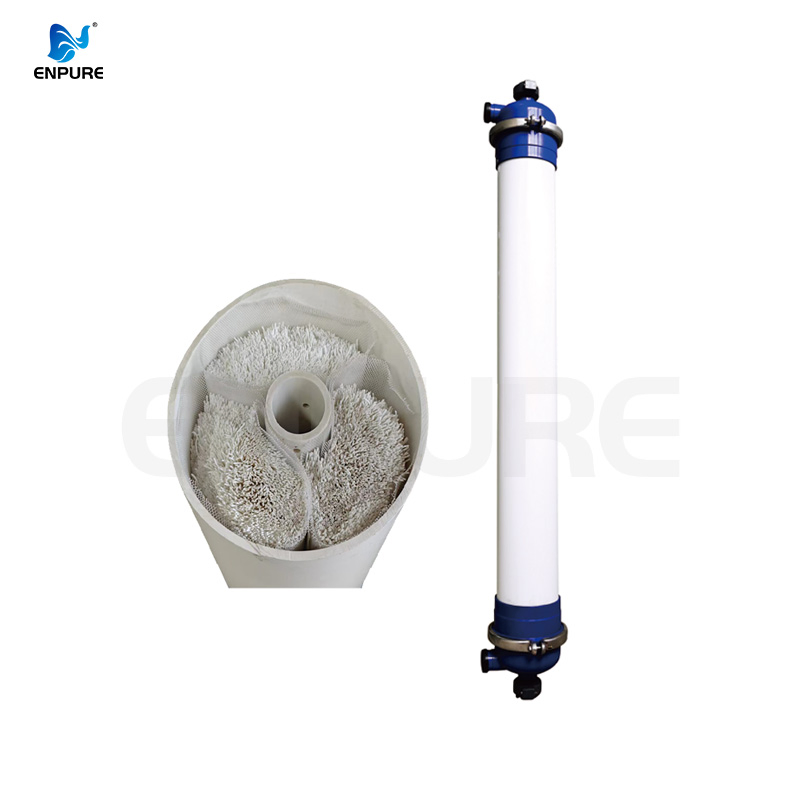

Low-Cost Professional Filtration Full Support China Smart Treatment Water Filtration Membrane System with High Performance

Product Description

⚙️ Product Parameters

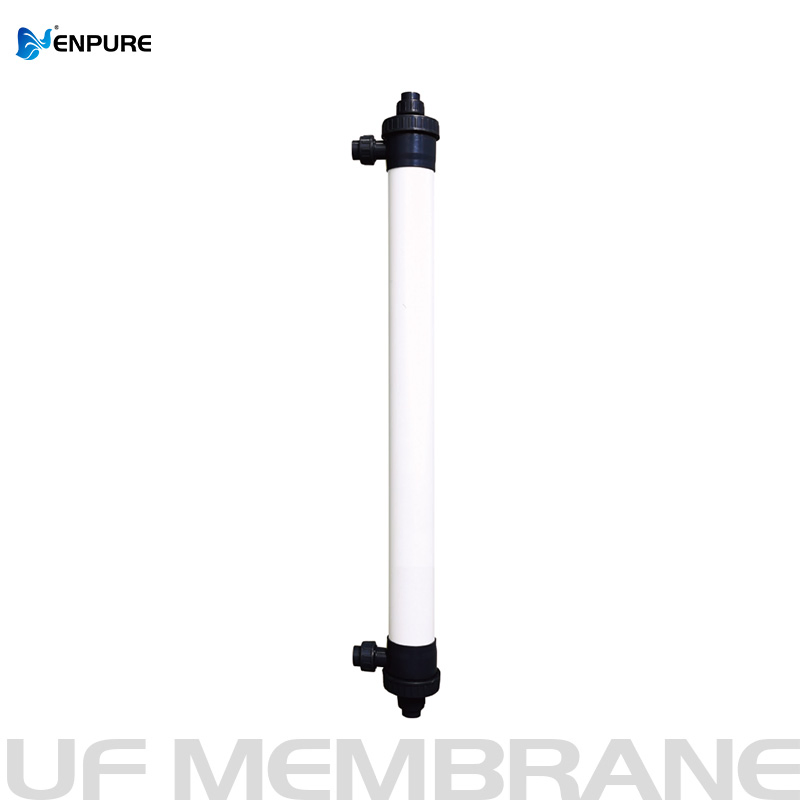

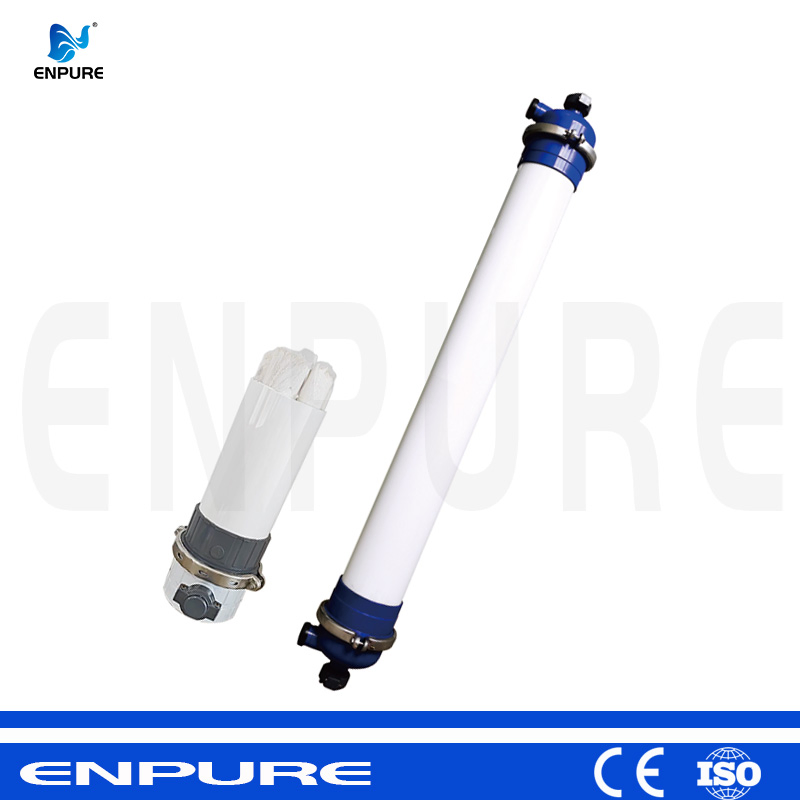

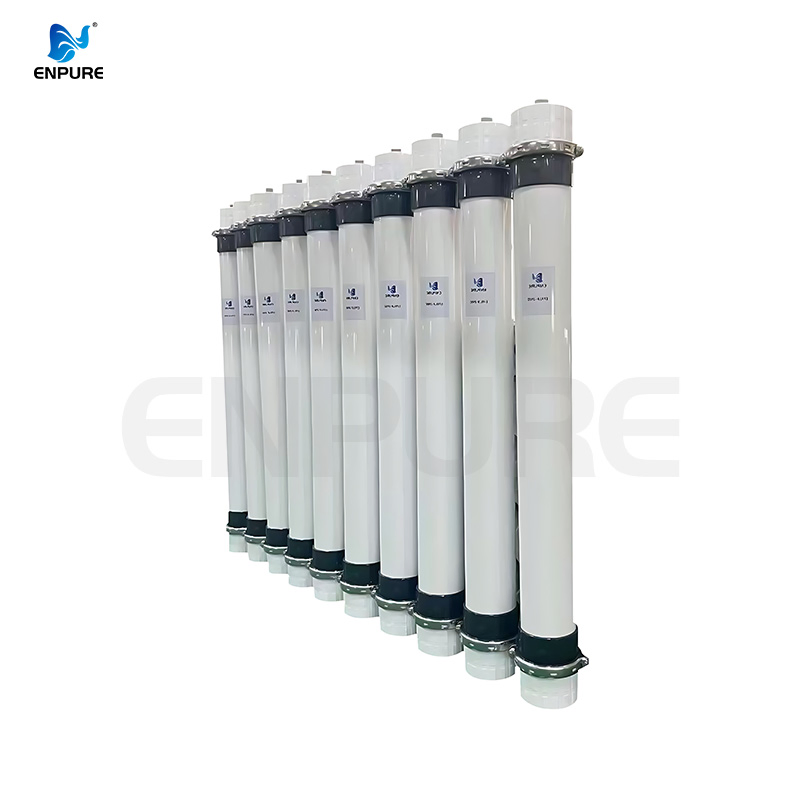

Smart Treatment Water Filtration Membrane System
Size Model L L1 L2 L3
EPRUF-0980 2360 2000 2130 2320
Technical Specifications
Effective Area 72 square meters
Membrane Shell Size 2360 × φ 225mm
Water Inlet Size DN50
Water Outlet Size DN50
📊 Process Operating Conditions
Category Parameter Item Standard Value
Performance Initial flux of pure water 120L/(m²·h)
Turbidity of produced water ≤0.1NTU
Suspended solids Standard Level 2 sewage
Coliforms Not detected
Guaranteed service life 3 ~ 5 years
Conditions of Use Operating mode External pressure operation
Control Mode Constant pressure/current control
Design flux (effluent) 40~60L/(m²·h)
Max inlet pressure 0.3MPa
Max water inlet flow 150L/(m²·h)
Max transmembrane pressure 0.15MPa
Temperature range 5~45°C
PH range PH2~10
Filtration mode Full or cross flow filtration
Backwash flow rate 1.5~2 times permeability
Backwash frequency 20~60 min
🛡️ Typical Process Conditions
Parameter Item Condition Setting
Airflow flow rate 60-150L(m²·h)
Gas scrubbing inlet pressure ≤ 0.1MPa
Air source requirements Oil free compressed air
Backwash water pressure 0.03-0.08MPa
Backwash water flow 120L/(m²·h)
Backwash water time 20-60s
Water production setting 50L/(m²·h)
Pressure for use 0.05-0.2MPa
Chemical cleaning cycle 3-12 weeks
Online water cleaning cycle 50-90s/20-60min

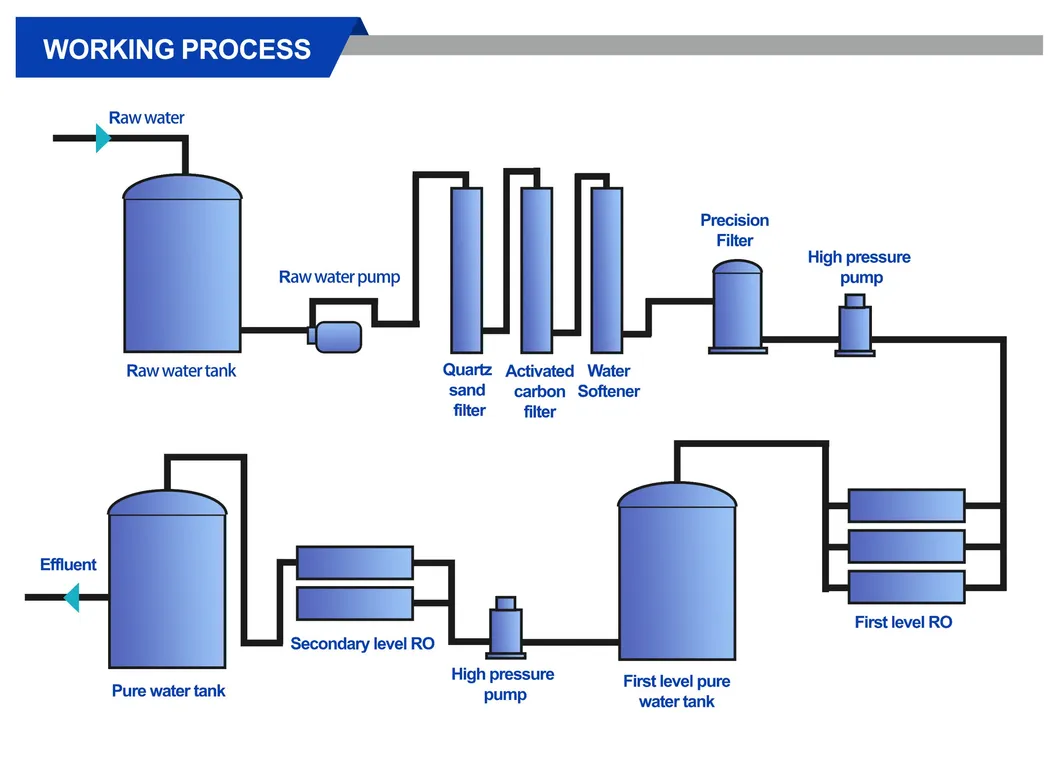

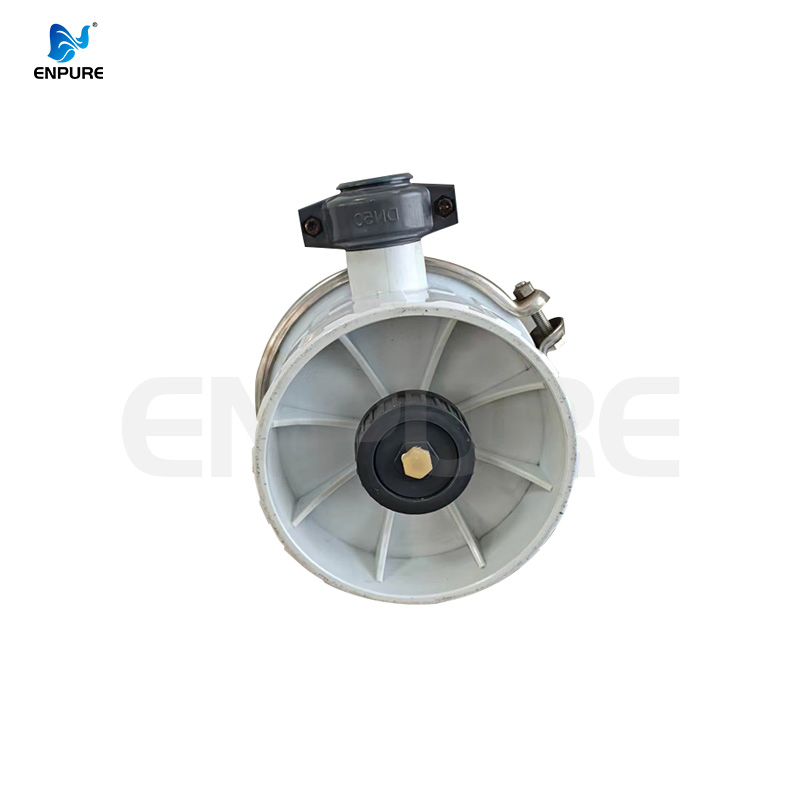

Detailed Membrane System View
🏢 Technical Overview
Leading filtration membrane equipment manufacturer with a 50,000-square-meter production facility, specializing in R&D, production, and global distribution of high-performance water treatment systems.

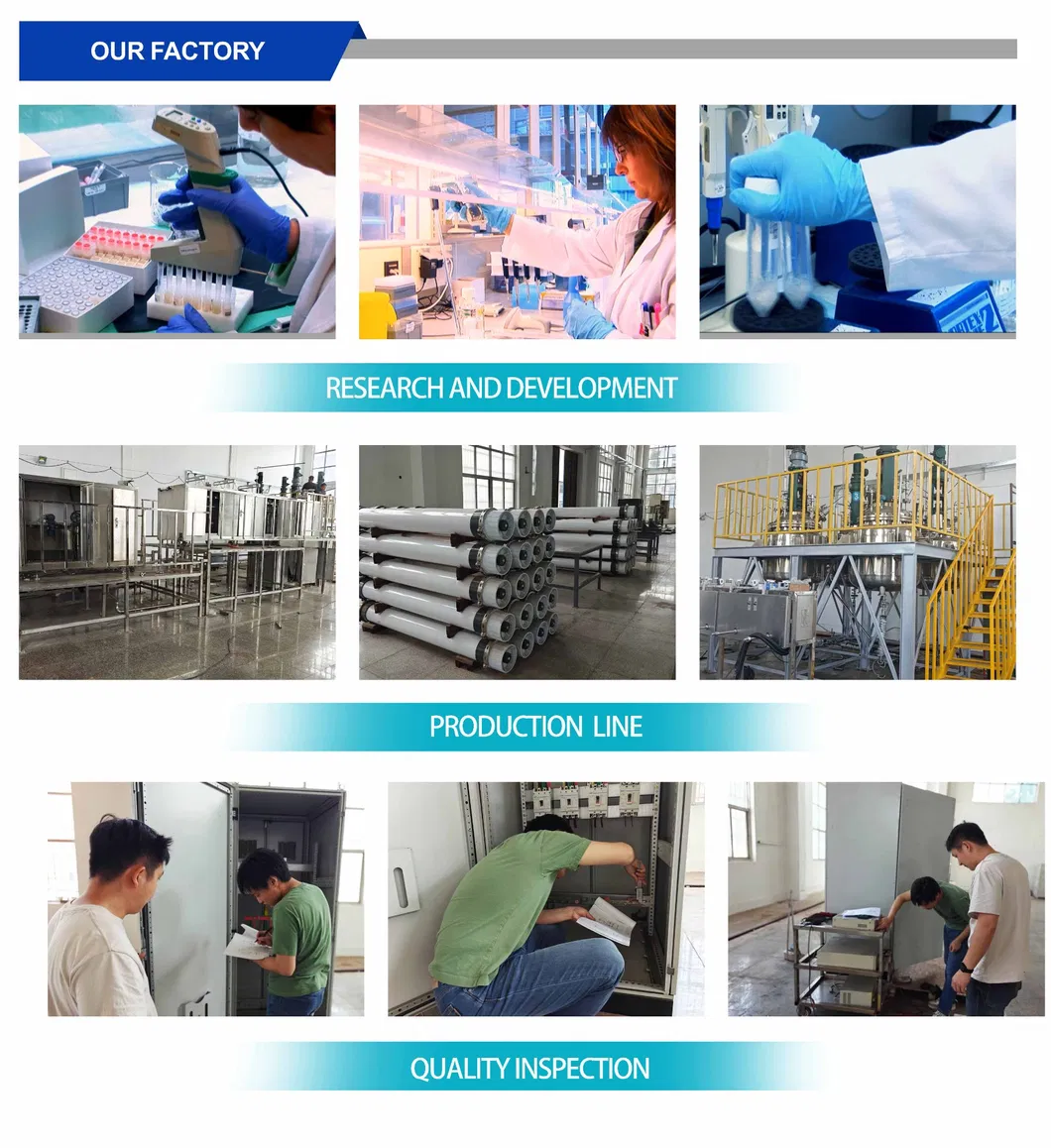

Production Facility
R&D Center
Testing Lab
  • Ultrafiltration (UF) Membranes: High-flux, anti-fouling designs for industrial and municipal applications
  • Nanofiltration (NF) & Reverse Osmosis (RO) Membranes: Precision separation for demanding environments
  • Seawater Desalination Systems: Energy-efficient SWRO plants for arid regions
  • Global Reach: Exported to 15+ Middle Eastern countries (Saudi Arabia, UAE, Qatar, etc.)
  • Certifications: Certified to ISO 9001, CE and SGS standards with 10+ technology patents
Factory View
Membrane Module
Certification

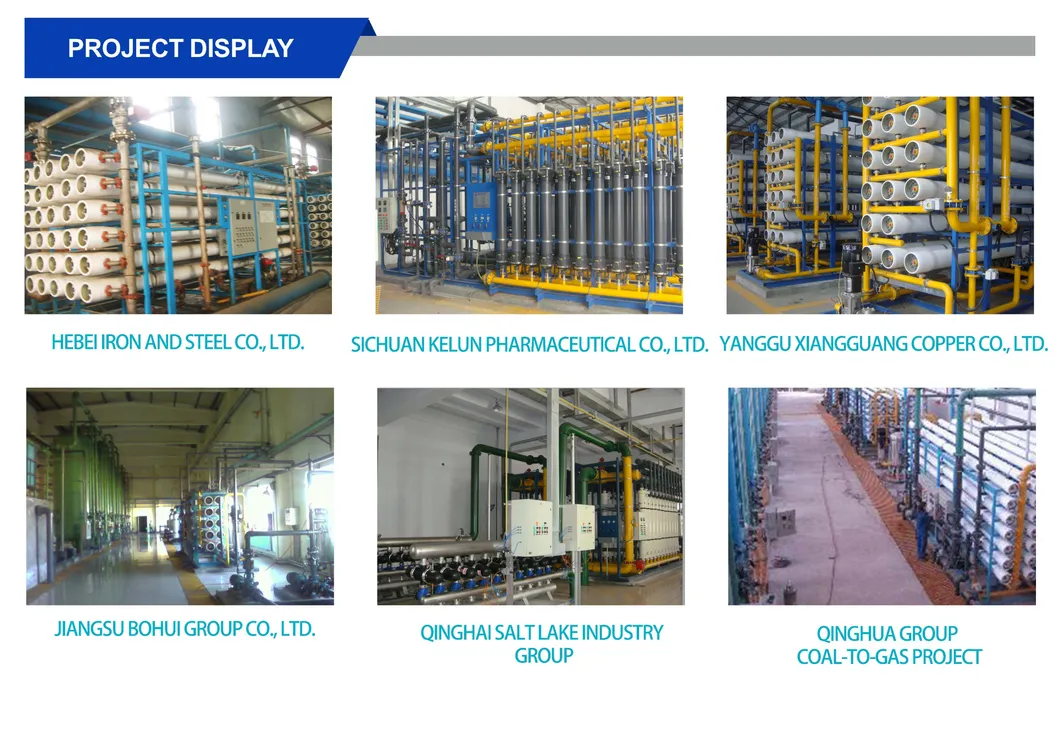

System Installation
Frequently Asked Questions
What's the type of your company?
We are a certified manufacturer specializing in advanced membrane technology and comprehensive water treatment solutions.
What information is needed for product selection?
Please provide: 1. Water source characteristics (TDS, pH, turbidity); 2. Capacity requirements (m³ per day); 3. End-use purpose; 4. Technical parameters (piping/electrical standards); 5. Site installation requirements.
How can I choose products that match my specific case?
We provide fully customized membrane solutions engineered by our in-house technical team to ensure a perfect match for your project requirements.
What are the payment terms?
Our standard terms are a deposit in advance and the remaining balance settled before delivery.
What is the product warranty and service life?
We offer a 1-year warranty. With proper use and regular maintenance, the product itself can operate effectively for approximately 5 years.
Are the systems certified for international standards?
Yes, our systems and production processes are certified to ISO 9001, CE, and SGS standards, ensuring global quality compliance.
