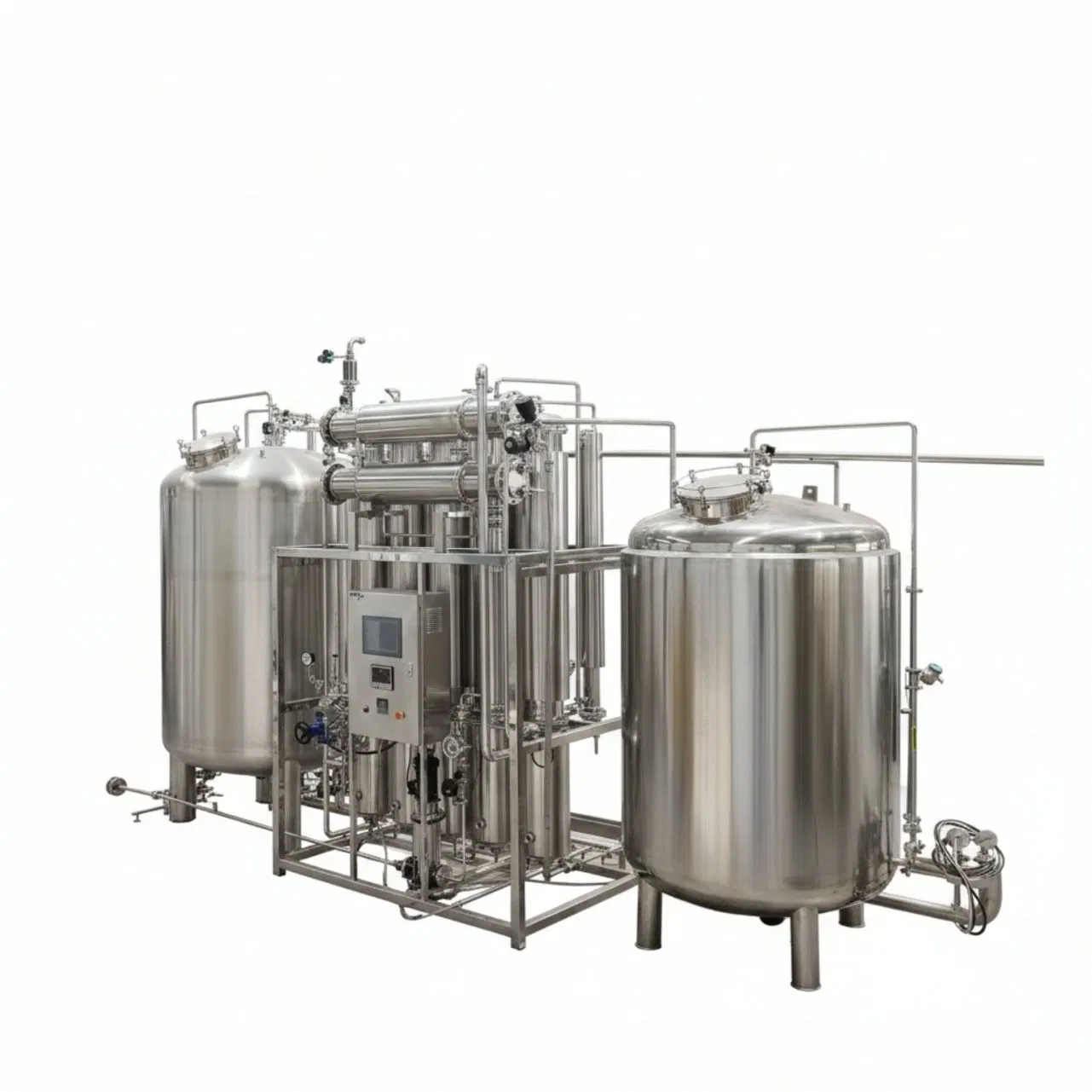

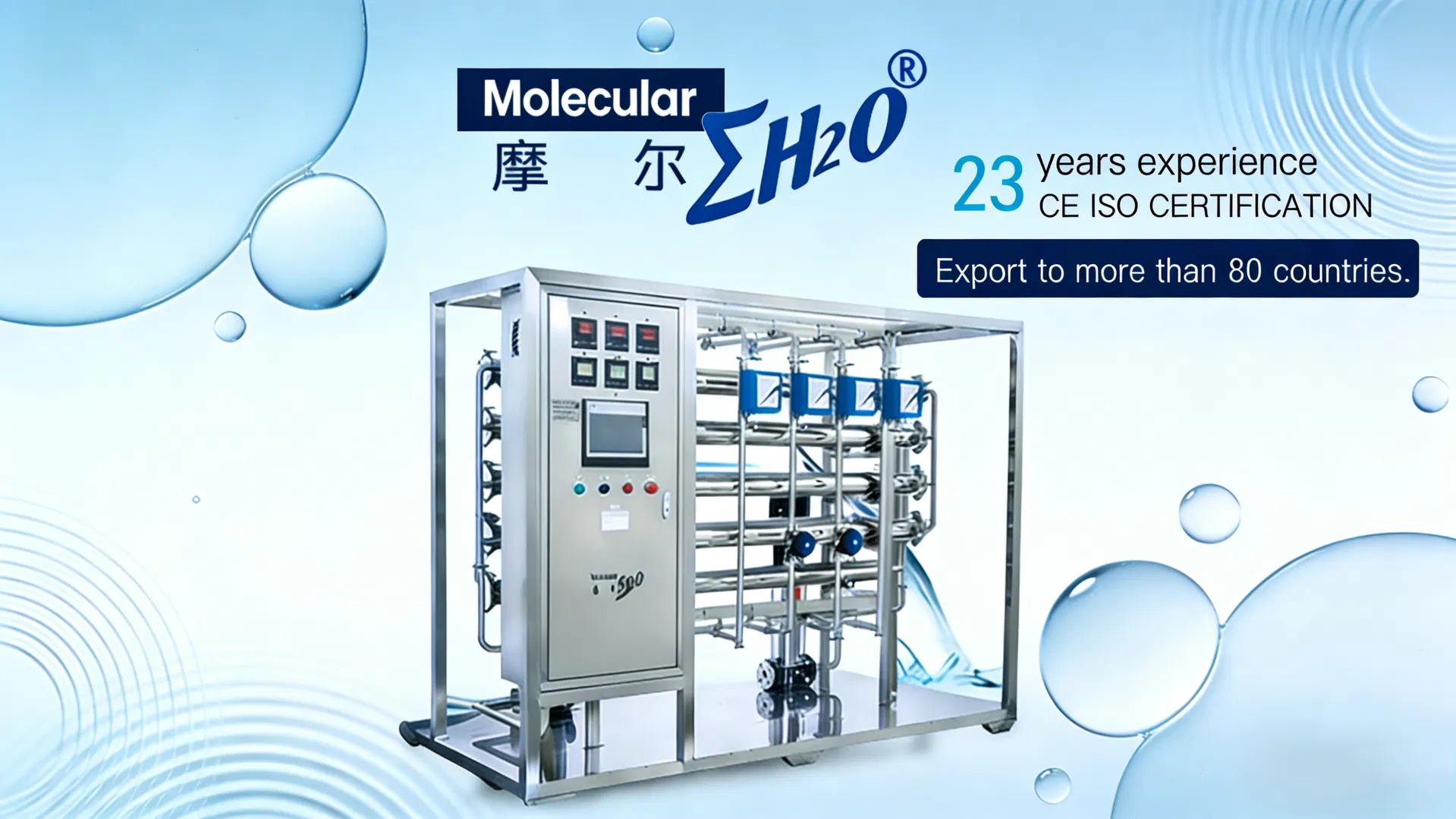

Water for Injection System (WFI)

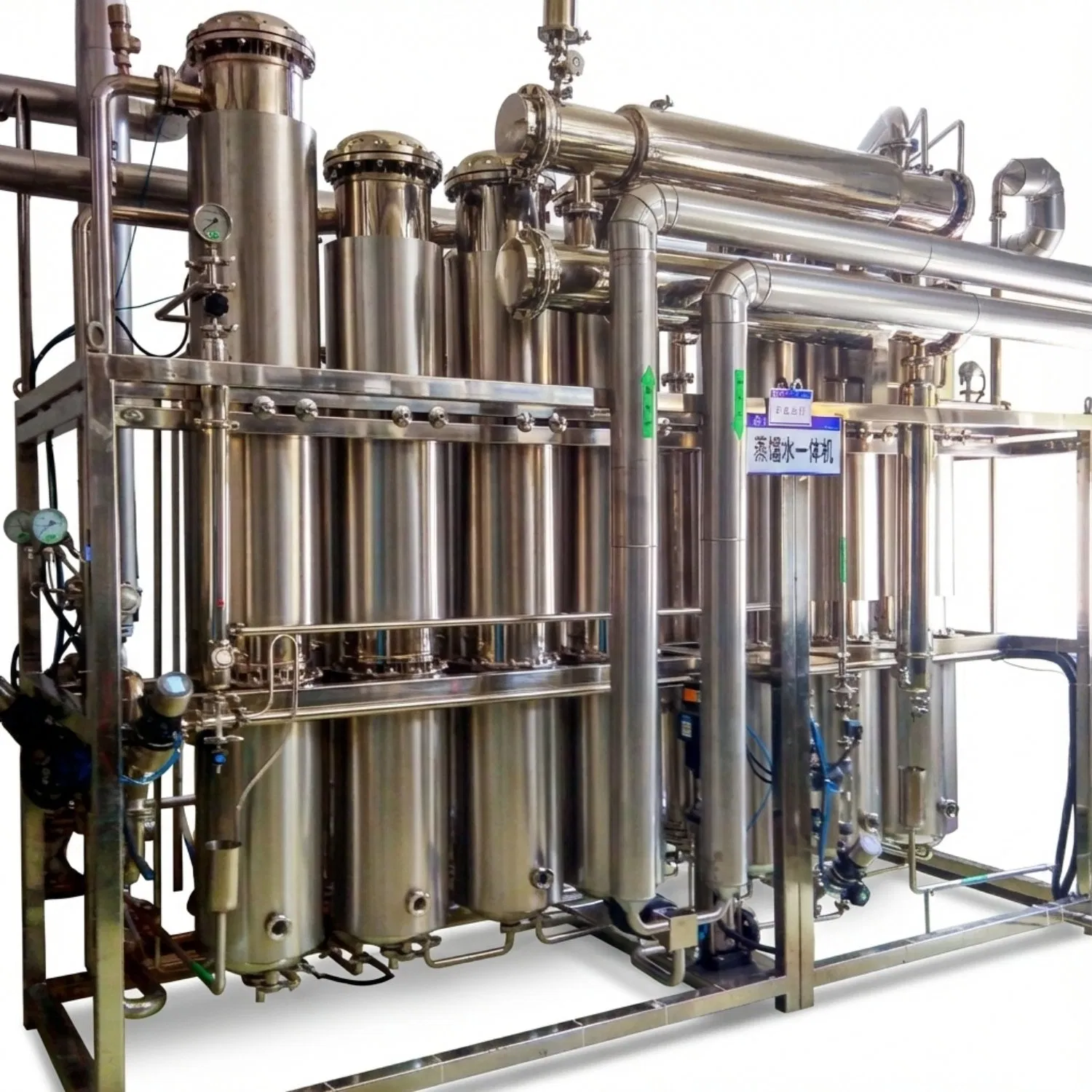

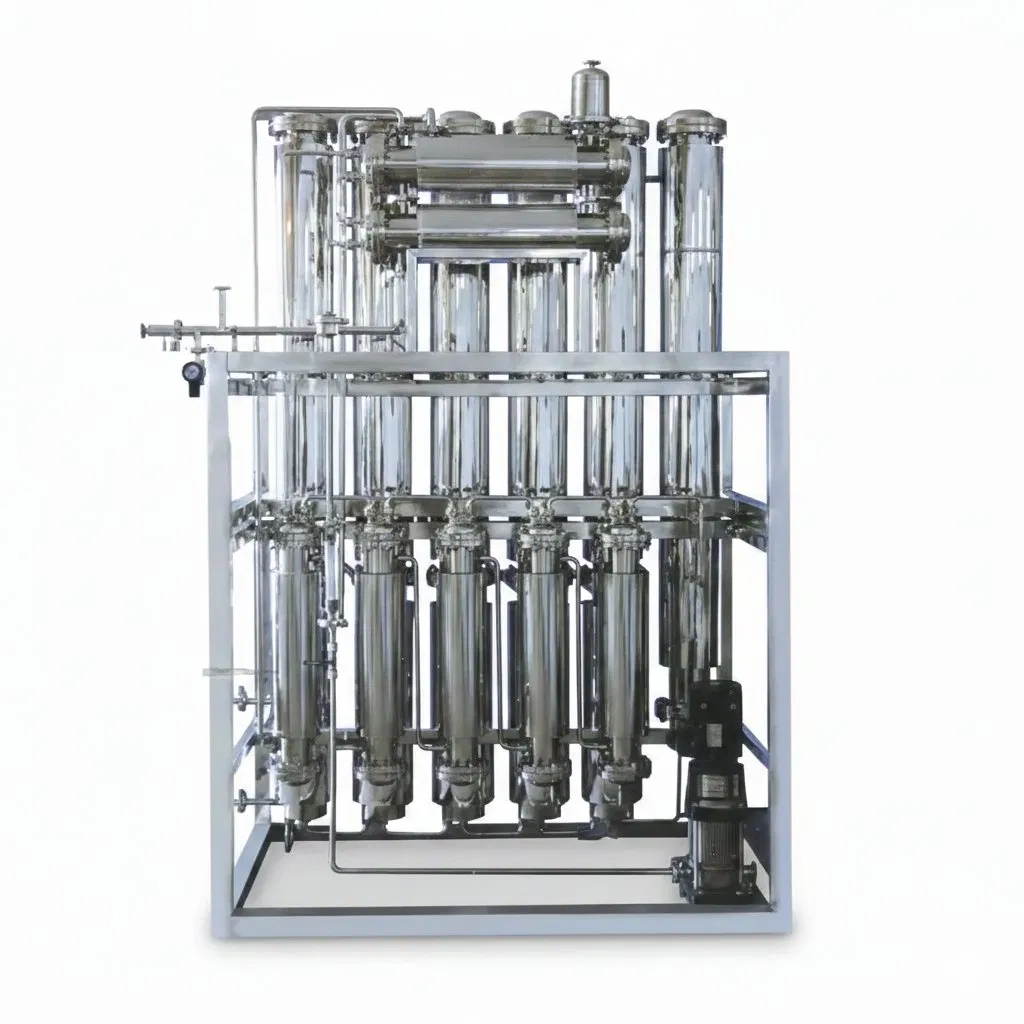

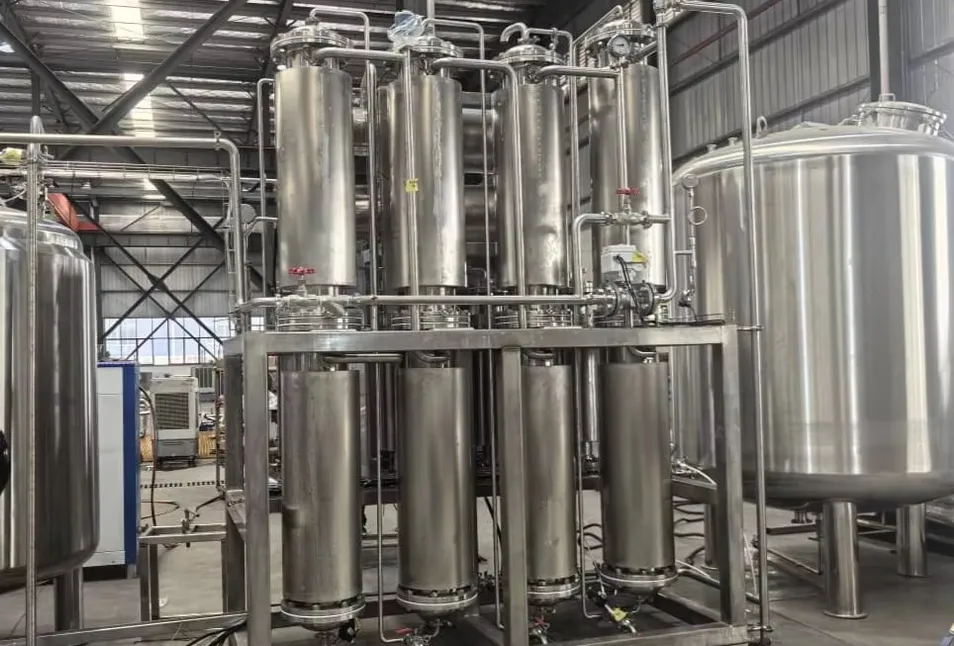

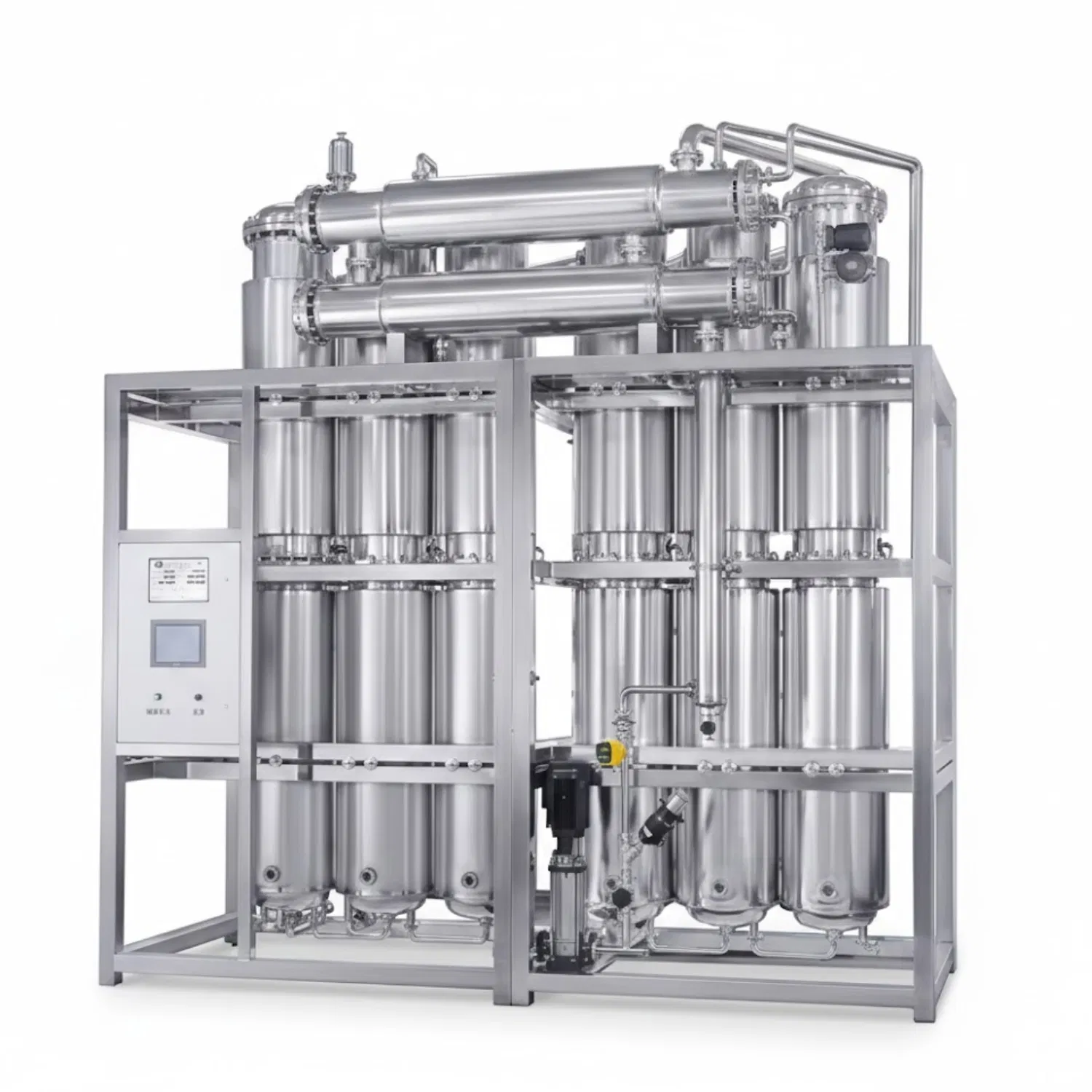

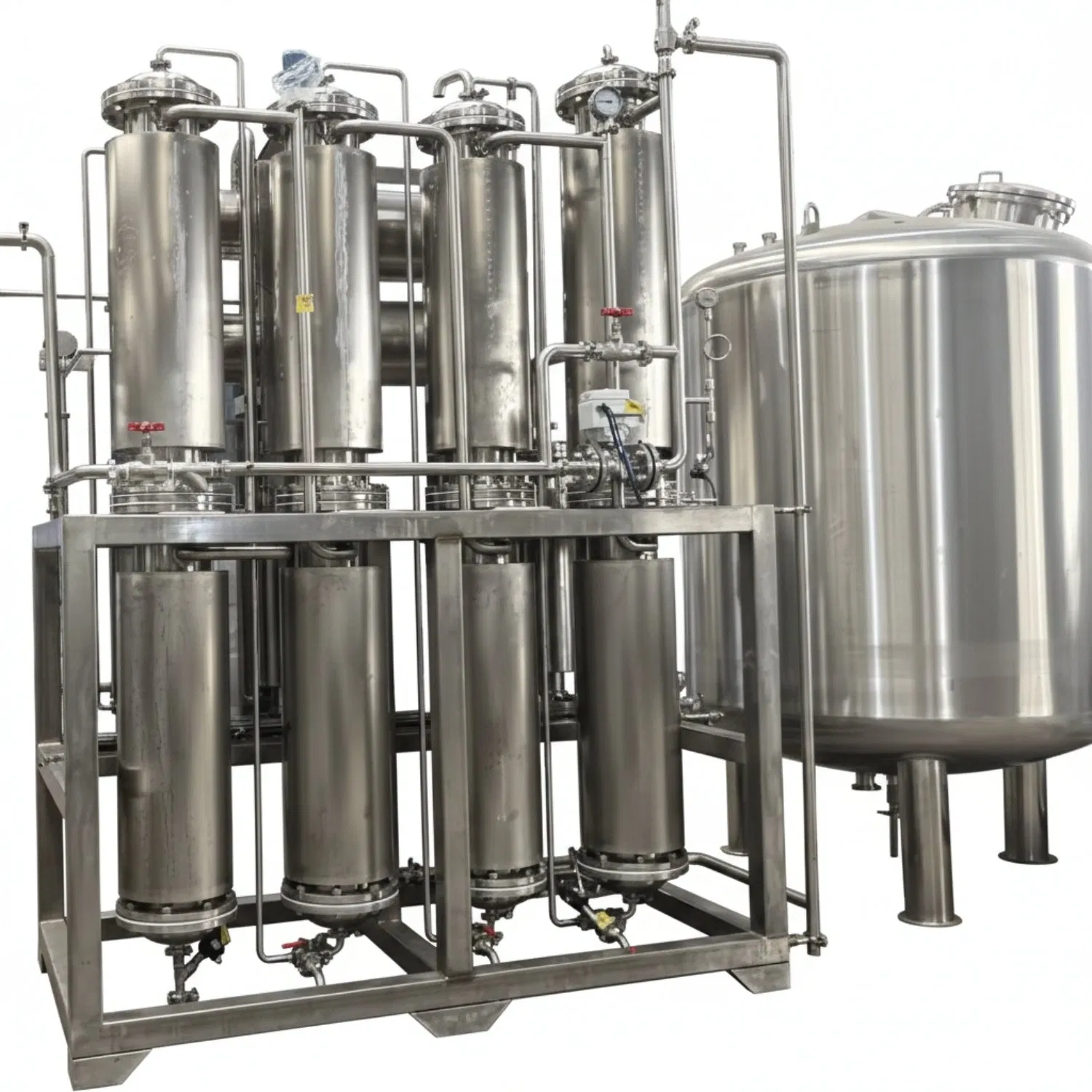

A complete solution for producing Water for Injection (WFI) including pre-treatment, RO, EDI, and multiple-effect distillation machinery. Pure steam generators are available as an option. The system features sanitary construction including double tube sheets, condenser exchangers, sloped piping, low-point drains, minimum dead legs, and sanitary connections to meet the latest GMP requirements.
| Model | Capacity (L/H) | Steam (L/H) | Cooling Water (L/H) | Raw Water (L/H) |
|---|---|---|---|---|
| MOLWFI-300 | 300 | 102 | 280 | 350 |
| MOLWFI-500 | 500 | 95-105 | 0-280 | 550 |
| MOLWFI-1000 | 1000 | 190-210 | 0 | 1100 |
| MOLWFI-1500 | 1500 | 285-315 | 0 | 1650 |
| MOLWFI-2000 | 2000 | 380-420 | 0 | 2200 |
| MOLWFI-3000 | 3000 | 570-630 | 0 | 3300 |
| MOLWFI-4000 | 4000 | 760-840 | 0 | 4400 |
| MOLWFI-5000 | 5000 | 950-1050 | 0 | 5500 |

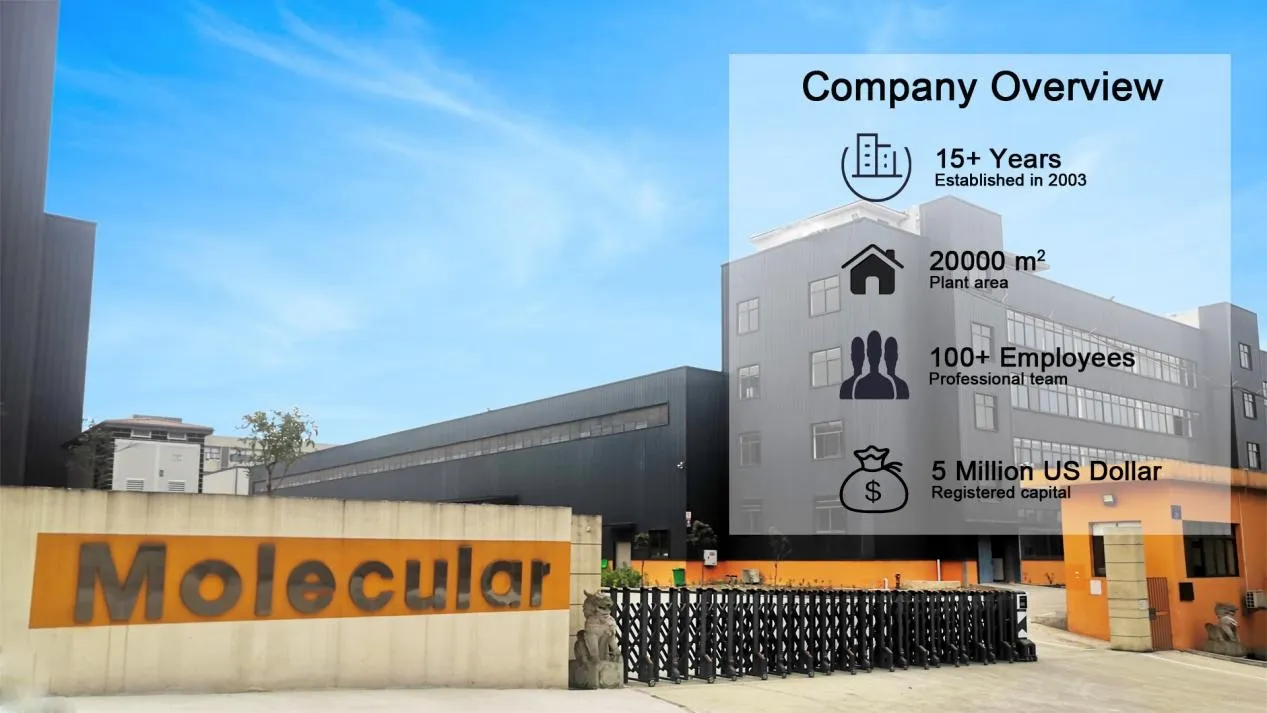

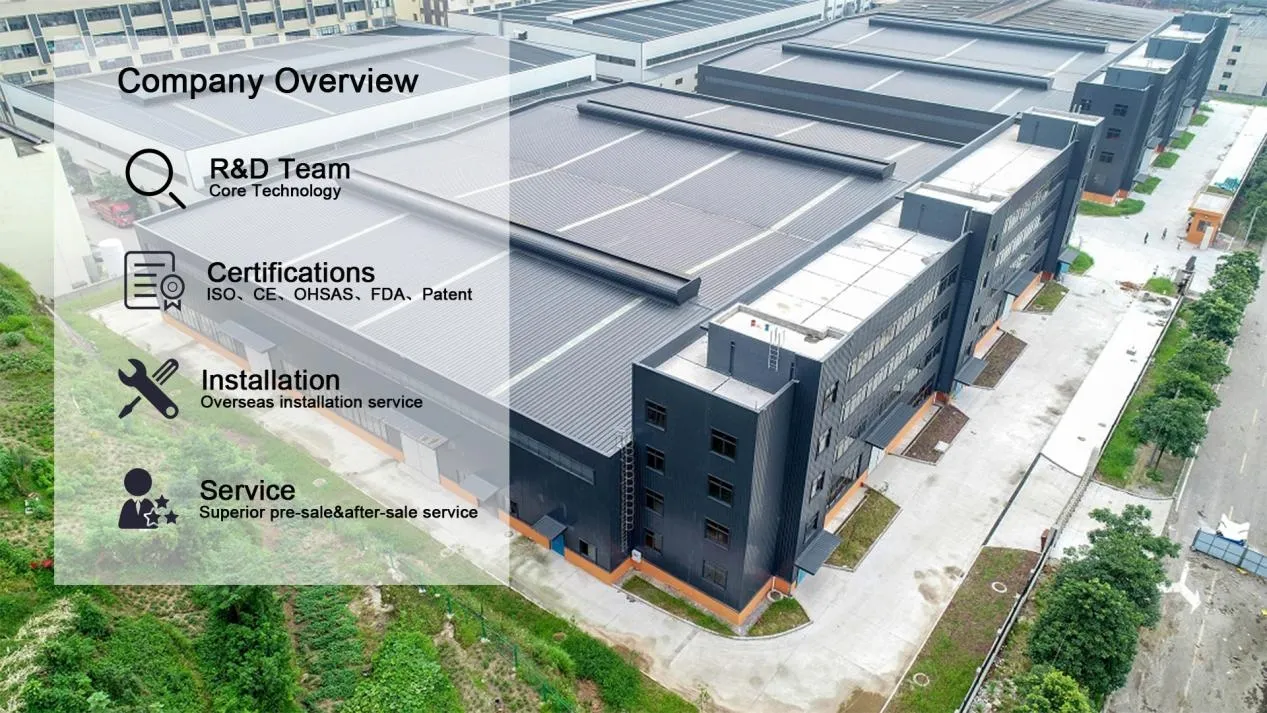

Established in 2003, the enterprise is a national-level high-tech entity specializing in the development, production, sales, and installation of water treatment equipment. Recognized as a specialized, refined, and innovative "Little Giant", the team has been engaged in pure water research for over 20 years with over 100 patents. The business scope covers direct drinking water equipment, industrial pure water, pharmaceutical pure water, medical central pure water, and ultra-pure water equipment, providing full process services from analysis and design to installation and training.
