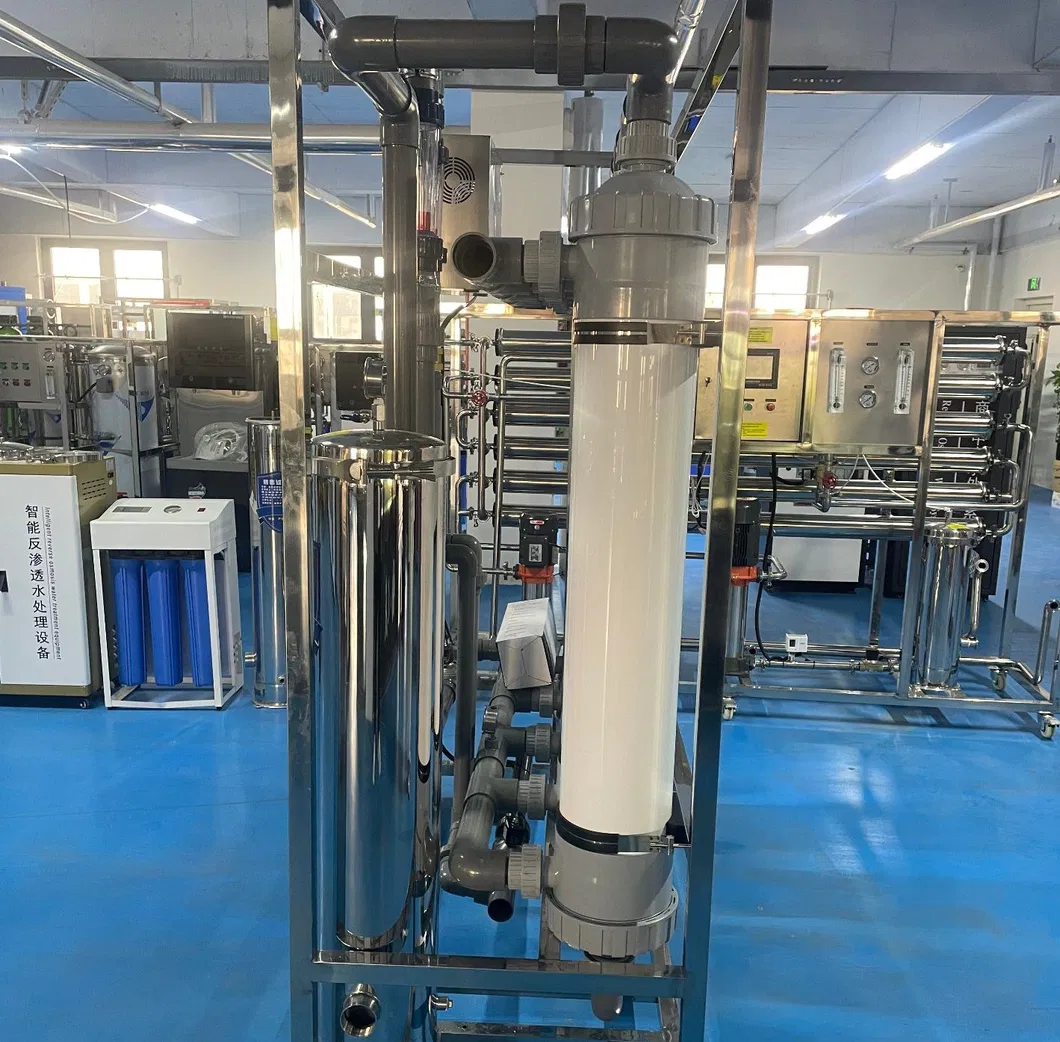

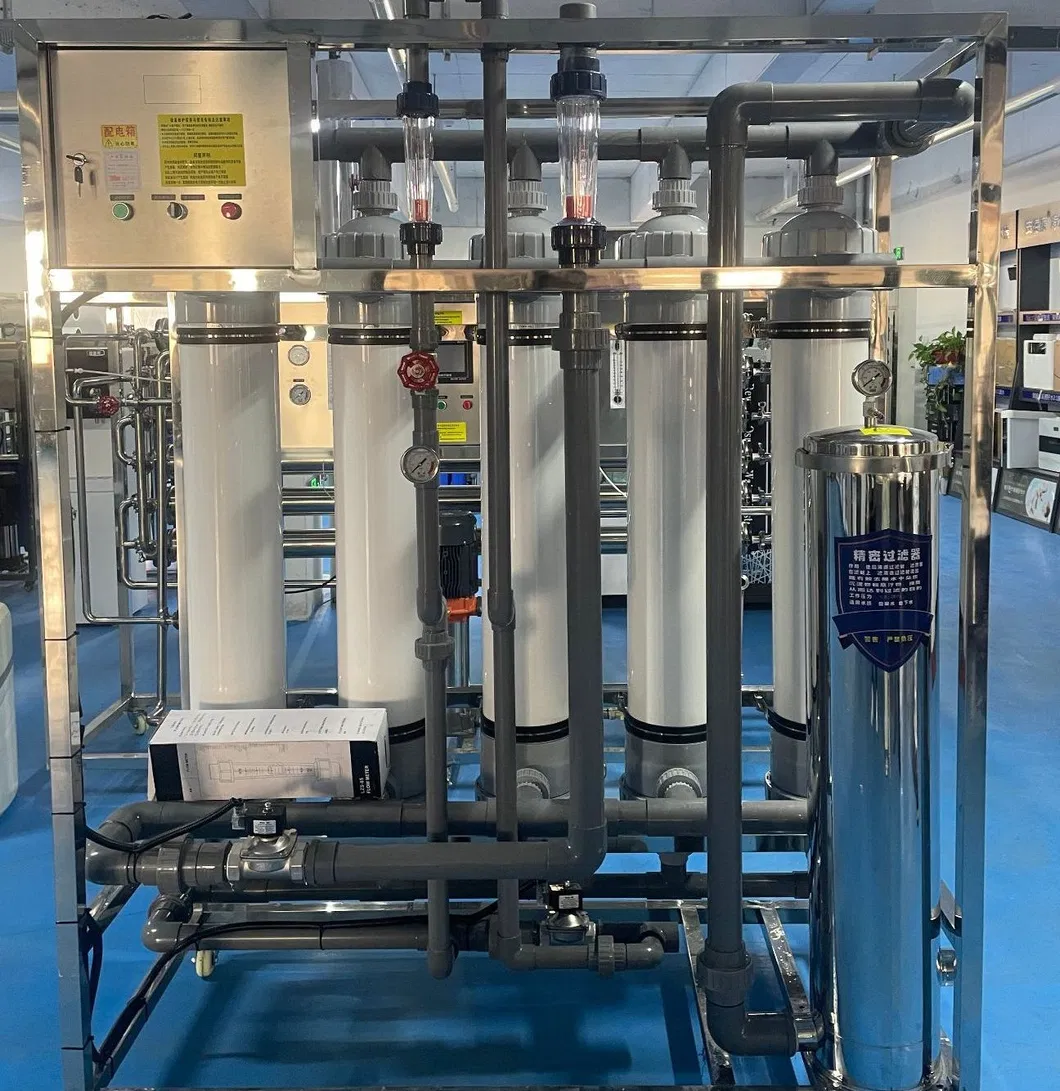

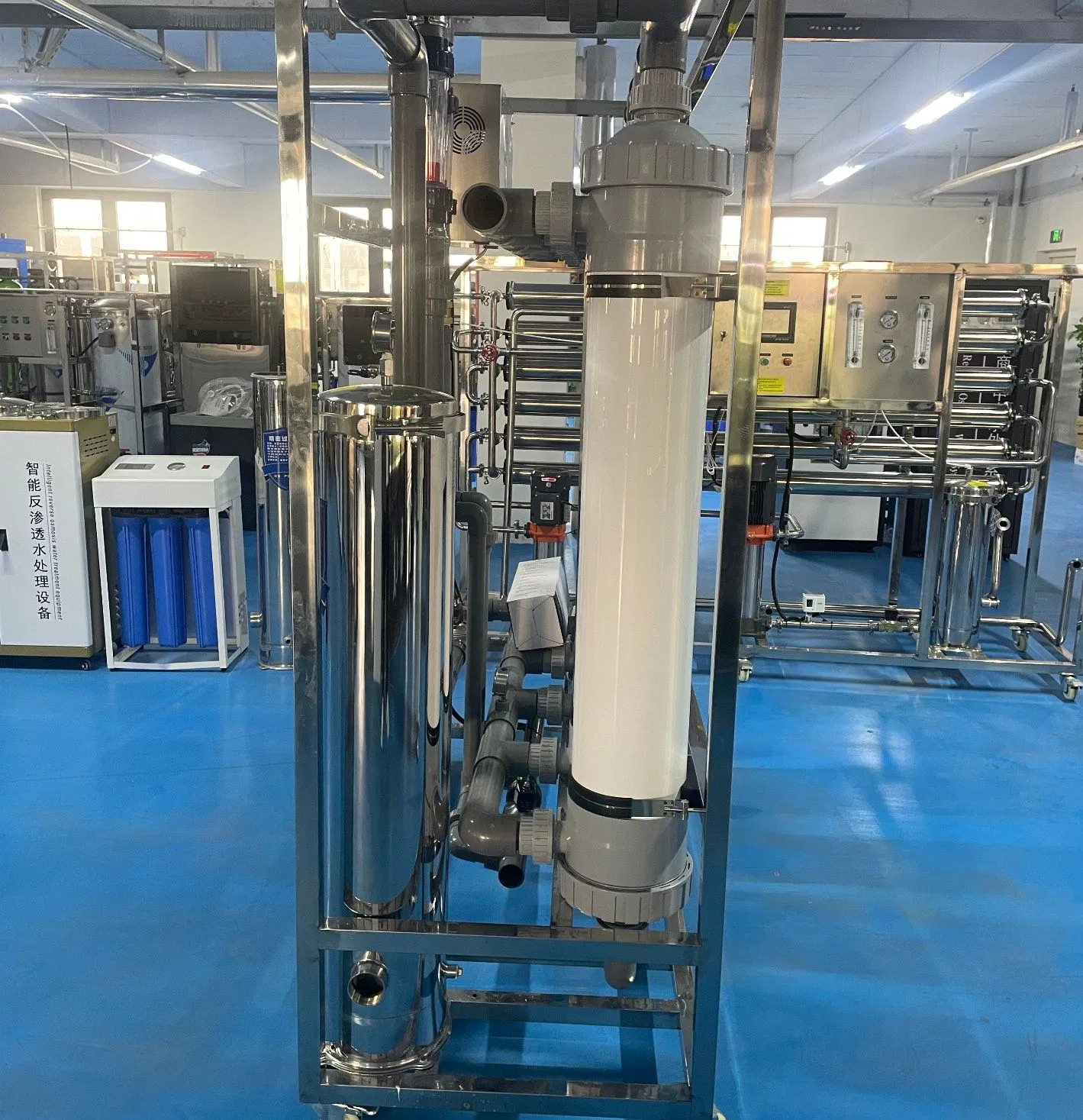

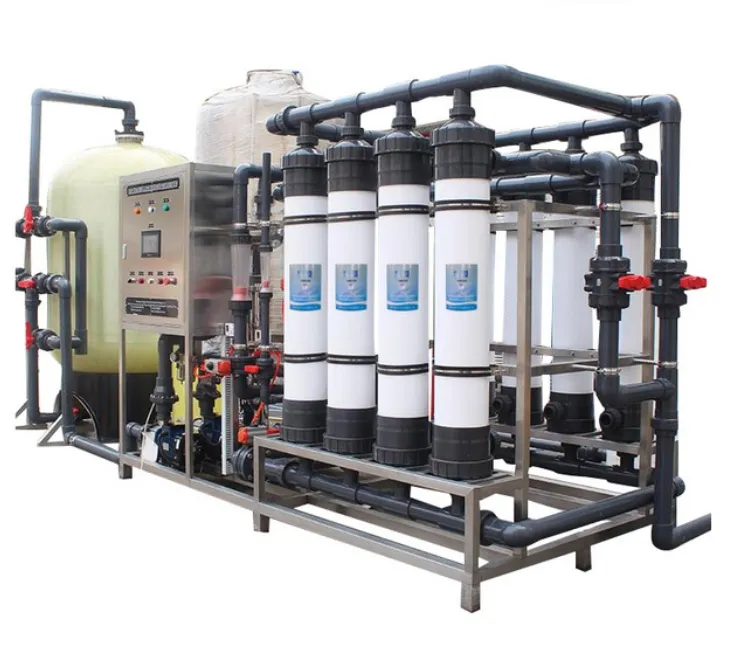

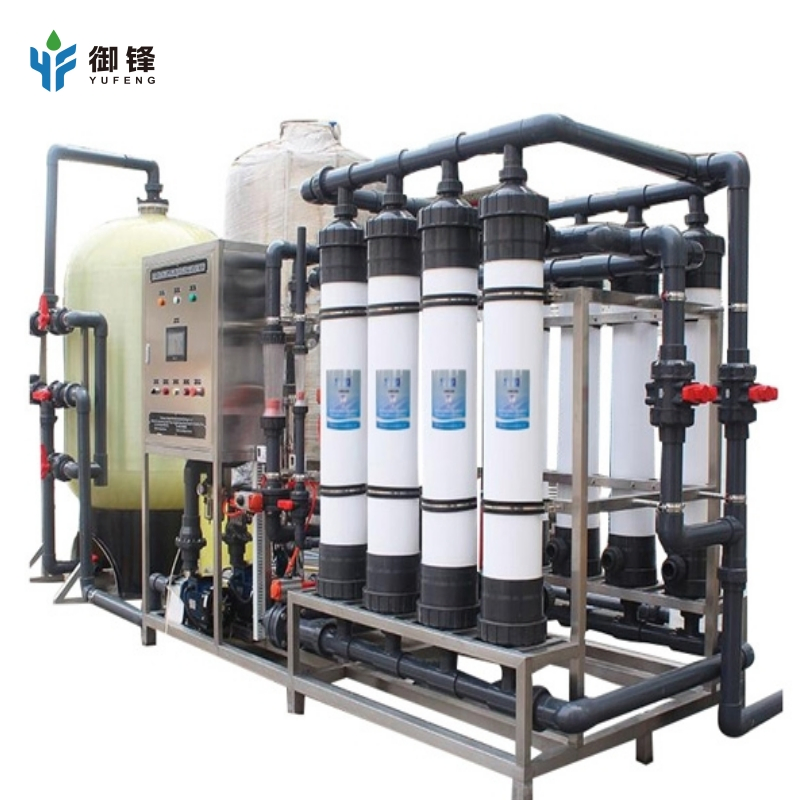

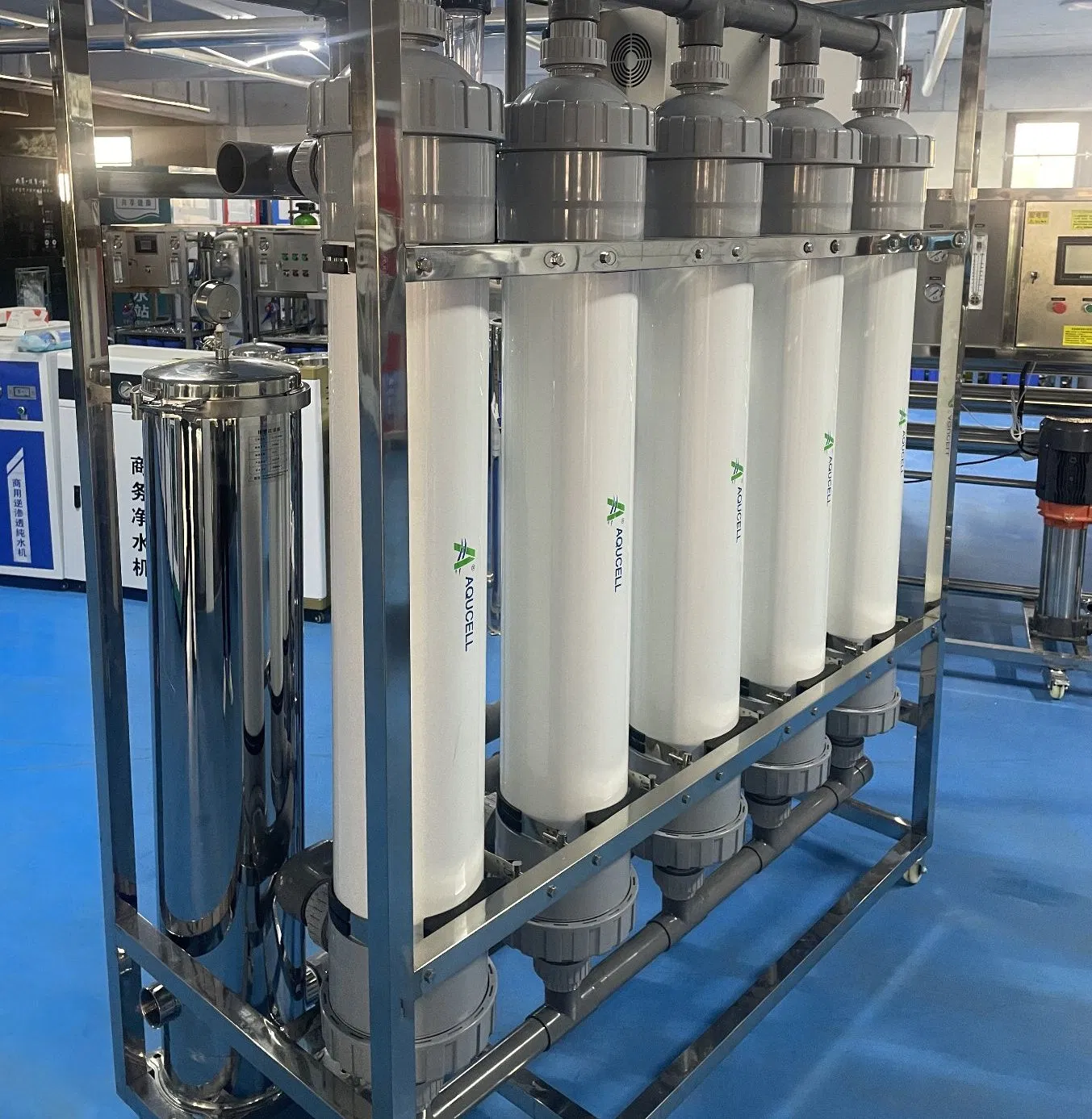

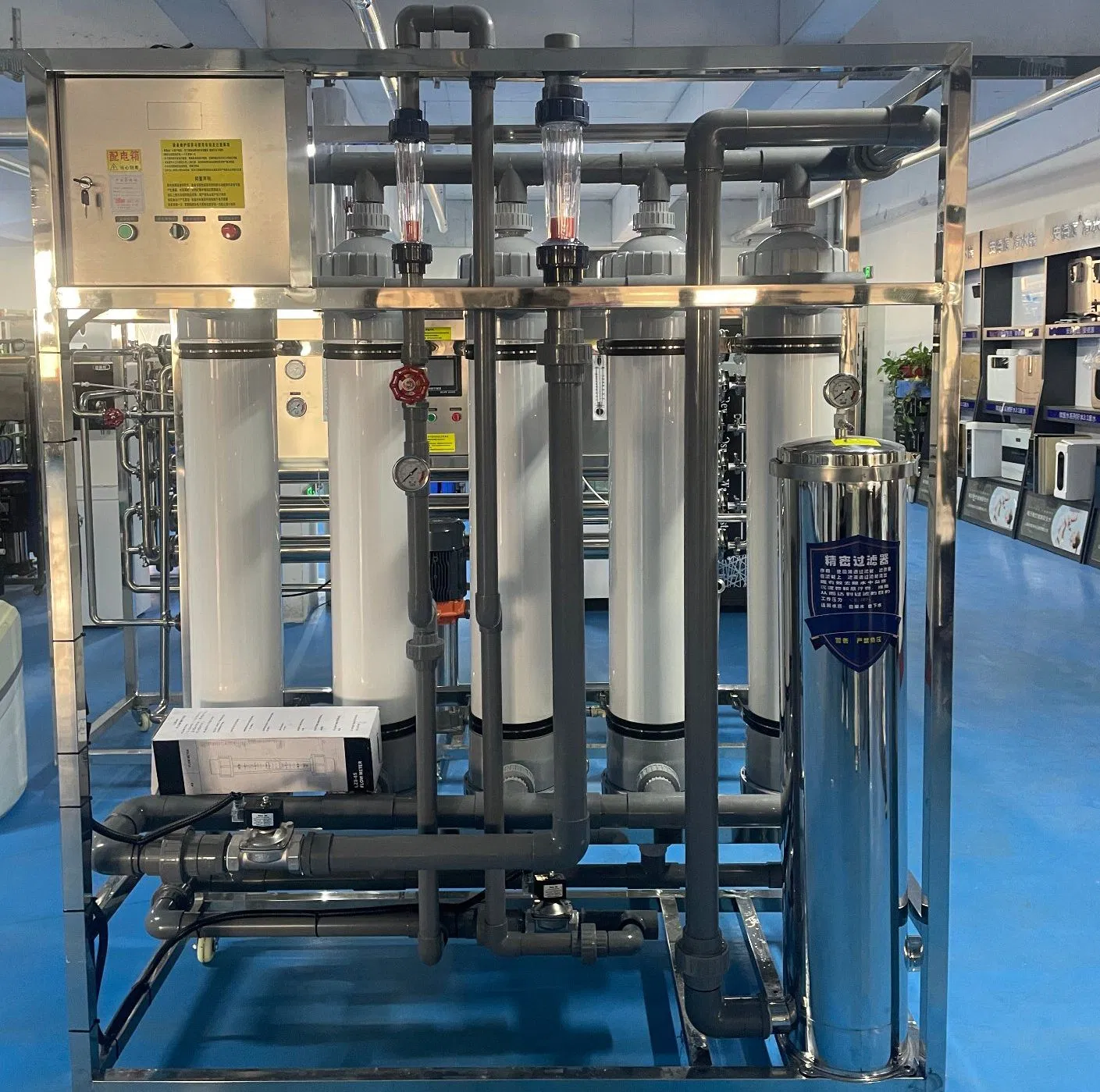

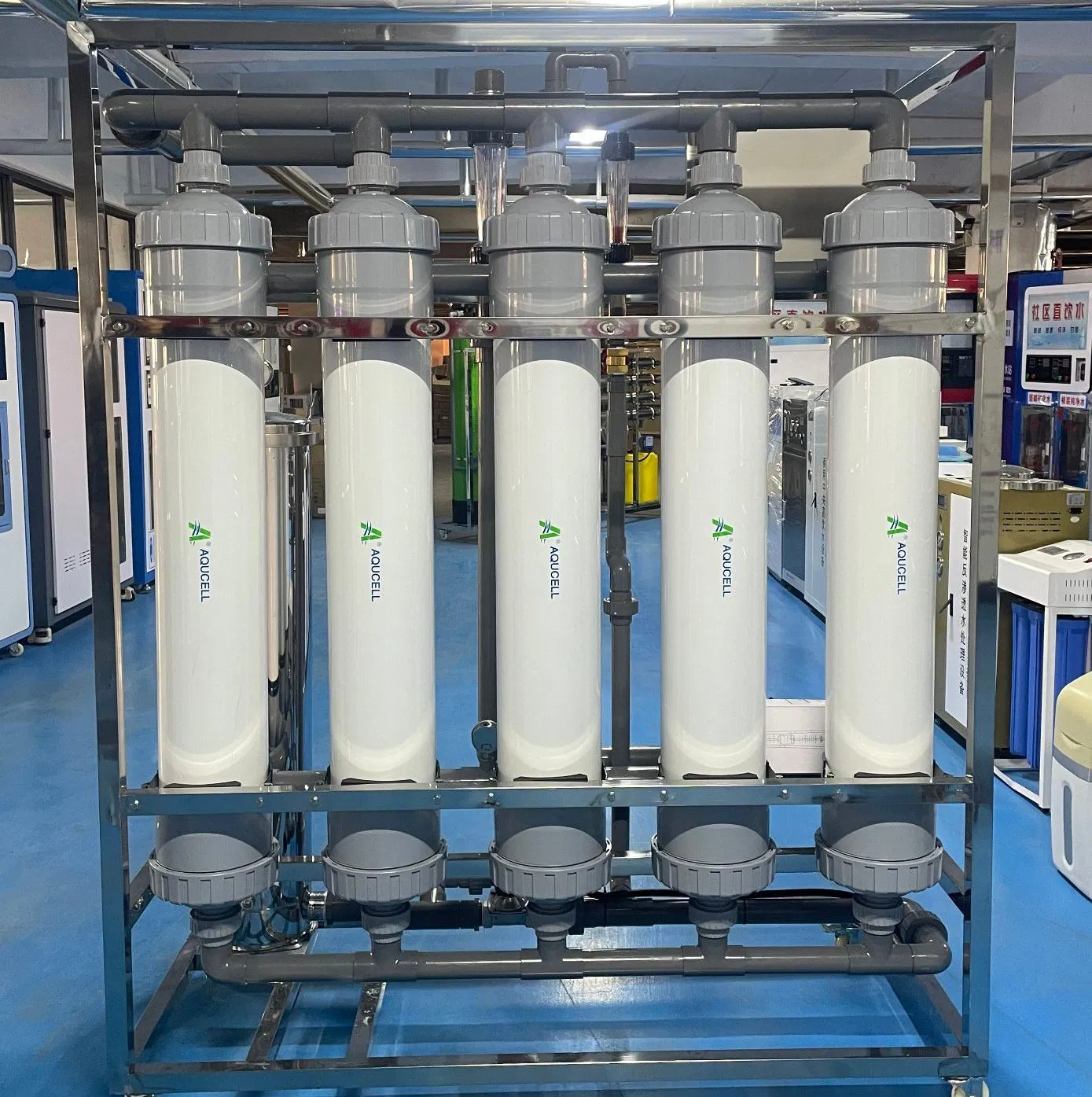

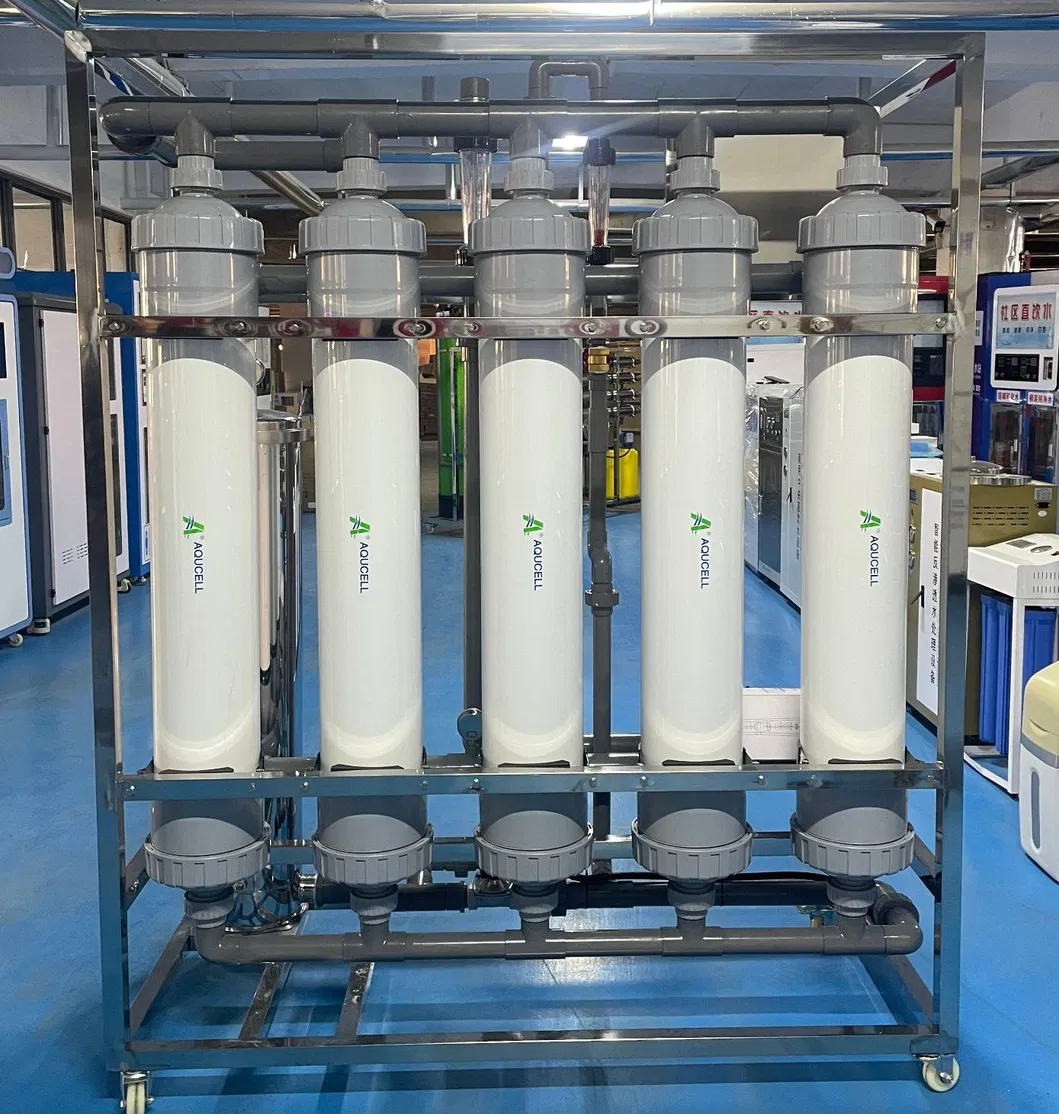

The High-Efficiency Ultrafiltration Equipment Water Treatment System is an advanced water treatment technology that utilizes the selective permeability of ultrafiltration membranes. It effectively removes harmful substances such as suspended solids, colloids, bacteria, and viruses from water while retaining beneficial minerals and trace elements for human health.
Product Features
🚀 Efficient Filtration
High-precision membrane filtration thoroughly removes impurities and microorganisms, ensuring safety and reliability.
🌱 Eco-Friendly
Adopts physical filtration without chemical agents, avoiding secondary pollution and maintaining low energy consumption.
🤖 Automated Control
Smart water management system achieves automated operation, reducing labor costs and improving efficiency.
Product Advantages
Excellent Performance: High filtration accuracy ensures clarity and purity of the effluent.
Strong Adaptability: Stable output quality despite fluctuations in raw water quality.
Low Operating Costs: Operates at normal temperature and pressure with no chemical additives.
High Resource Utilization: Water recovery rate can reach more than 95%, reducing resource waste.
Process Flow Introduction
1. Pre-treatment: Filters large particles to protect the membrane module.
2. Dosing System: Optional flocculants and bactericides to prevent deep pollution.
3. Ultrafiltration: Selective permeability removes bacteria and viruses.
4. Backwashing: Regular cleaning to restore filtration performance.
5. Chemical Cleaning: Specialized cleaning for long-term maintenance.
Technical Specifications
Purification Process
Raw water - Quartz sand filter - Ultrafiltration system
Equipment Rack
Stainless Steel
Water Production
20 ton/hour
Desalination Rate
80-99%
Working Pressure
0.2-0.4MPa
Membrane Shell
FRP Material / 8080
Filter Filling
Quartz sand + Activated carbon + Resin
Precision Filter
3 cores 20 inch PP cotton
Voltage
110V / 220V / 380V
Solenoid Valve
Brass electric valve
Packaging & Application
Machines are packaged in specially designed export wooden crates for safe shipping.
Application Fields: Household Drinking Water, Industrial Pure Water Preparation, Agricultural Irrigation, and Public Facilities (Schools, Hospitals, Pools).
Professional Manufacturer

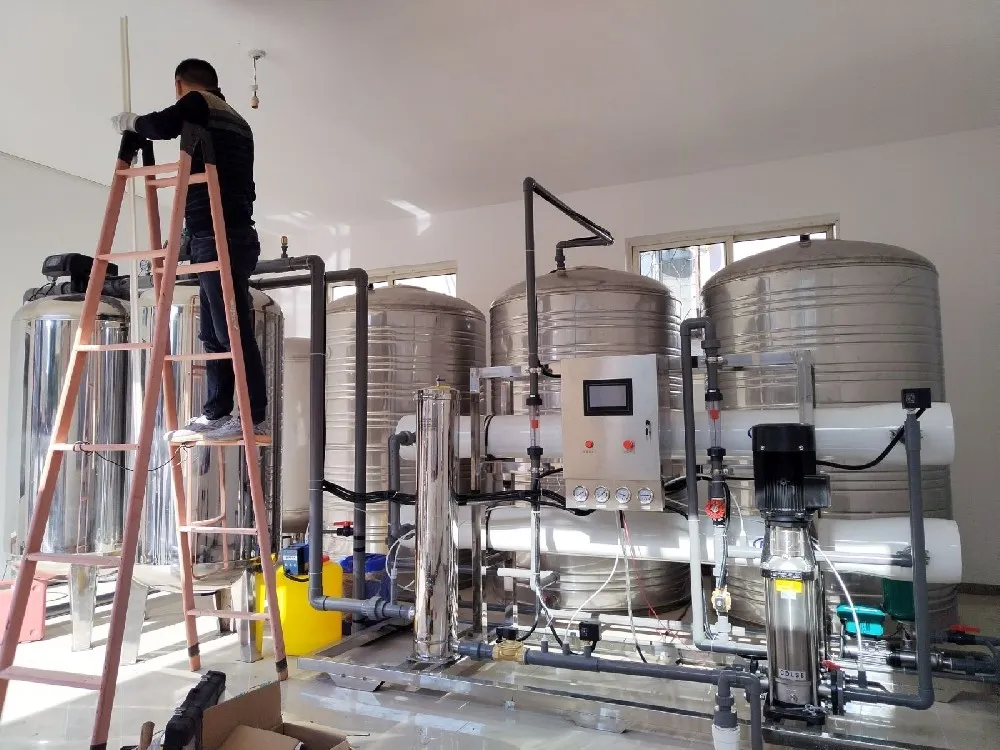

Established as a dedicated team of professionals, we specialize in manufacturing household and commercial water treatment plants. Our product range includes reverse osmosis, ultrafiltration, ultrapure water systems, and softening accessories. We provide OEM and customized services based on client requirements, focusing on honesty and timely delivery.
Frequently Asked Questions
How long is the delivery time for the equipment?
Usually, the production and delivery lead time is between 35 to 40 working days depending on the customization requirements.
What information is needed for a quote?
We require the raw water testing report, the required outflow capacity per hour or day, and the intended application of the pure water.
Do you support OEM services?
Yes, as a professional water treatment equipment manufacturer, we offer full OEM and customization services for our water purification systems.
What is the capacity range of your machines?
Our equipment capacity ranges from 0.25 tons/hour to 100 tons/hour to meet various industrial and residential needs.
What is the advantage of your ultrafiltration membrane?
Our membranes offer high-precision filtration that removes bacteria and viruses while retaining essential minerals, with a water recovery rate of over 95%.
Can I visit the manufacturing facility?
Yes, we welcome customers to visit our factory to inspect the production process and quality control measures firsthand.
