Advanced Hydrogen Pressurization System for 1000kg Fixed Stations

Customization:	Available
After-sales Service:	on-Line
Warranty:	12 Months

Basic Information

Principle:

Hydrolic Drive

Application:

H2 Pressurizing

Performance:

Explosion-Proof

Lubrication Style:

Oil-free

Drive Mode:

Hydraulic Drive

Configuration:

Portable

Material:

Stainless Steel

Industry:

Hydrogen

Technology:

Spiral Liquid Cooling

Product Description

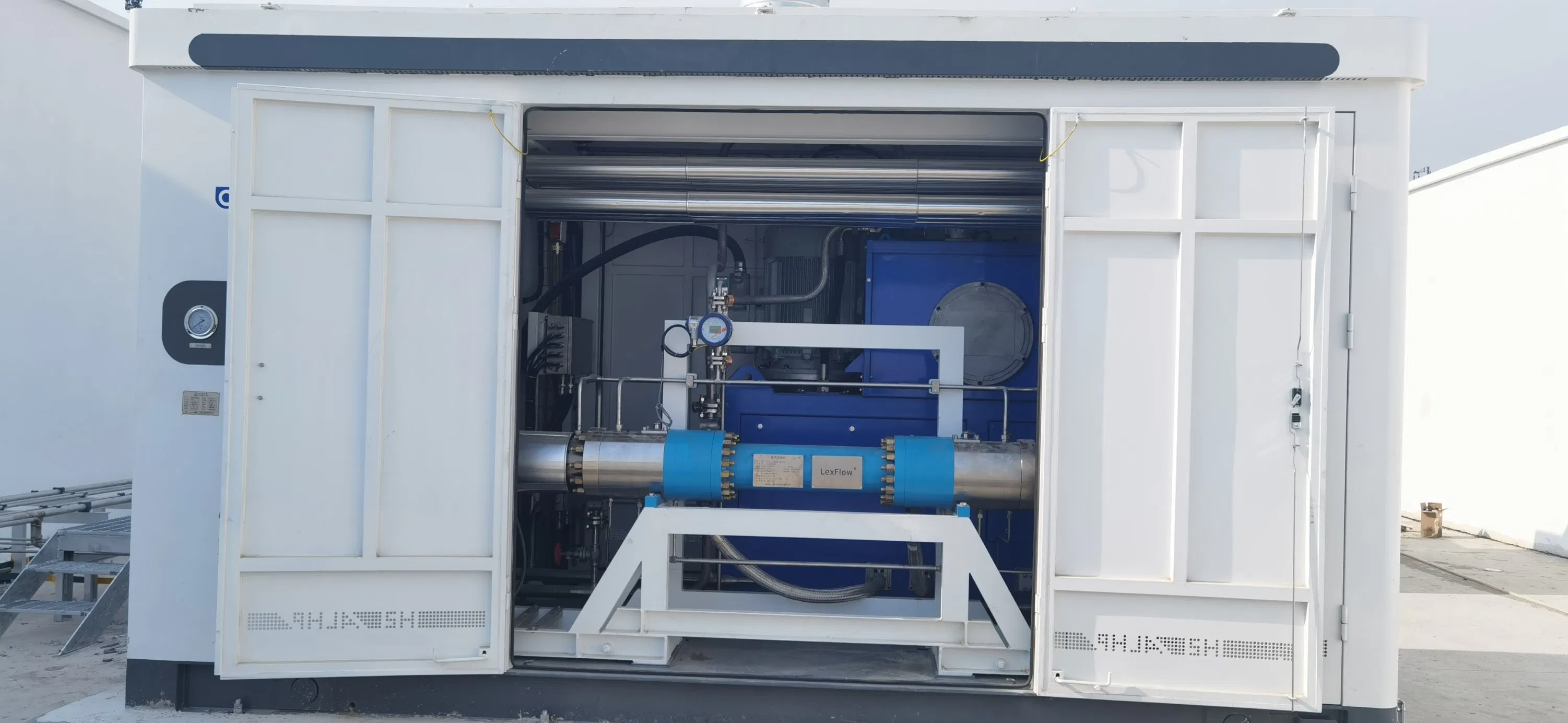

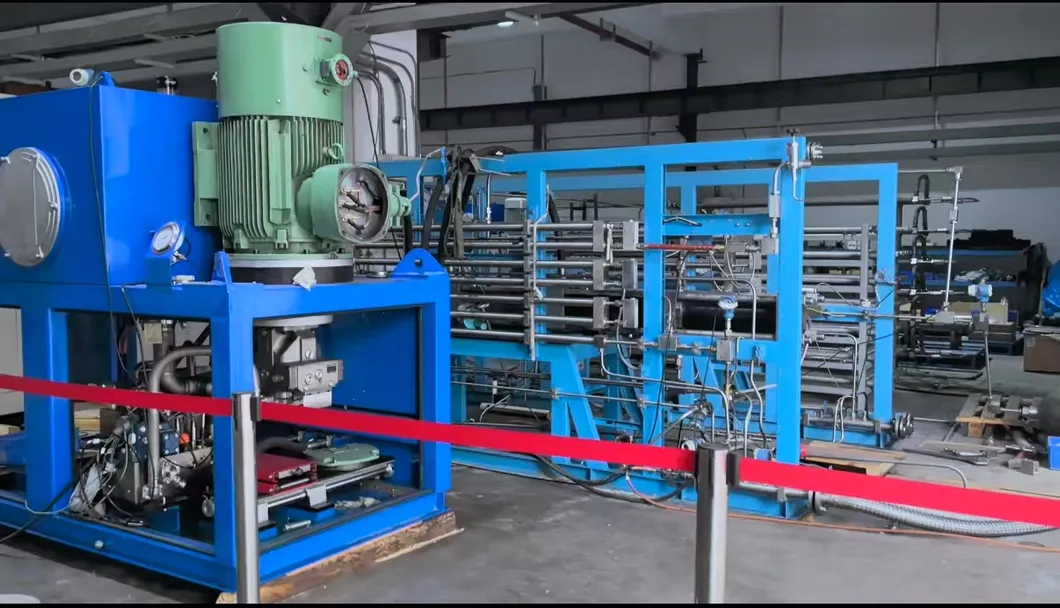

Hydrogen pressurization system for 100kg Station

The hydrogen gas compressor is primarily utilized in hydro-generation stations to pressurize low-pressure hydrogen to a specified level and store it in hydrogen storage containers at hydrogen refueling stations or directly fill vehicle-mounted cylinders to meet customer demand for hydrogen gas refills.

Our Advantages

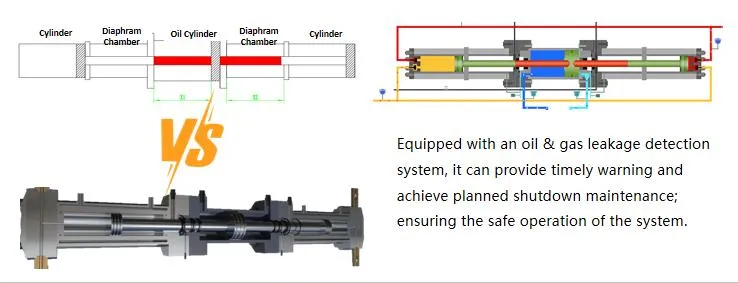

💡 Oil Isolation Technology

The unique cylinder seal + isolation chamber oil-isolating structure implements double isolation and protection of oil. The oil film part of the piston rod is isolated from the cylinder, preventing oil from entering the cylinder and contaminating the medium at the molecular level, ensuring a "pollution-free" hydrogen refueling station.

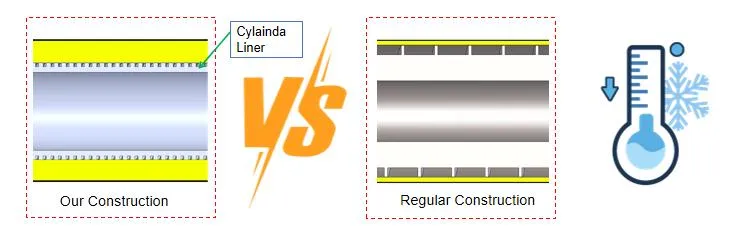

❄️ High-efficiency Spiral Liquid Cooling

The compressor cylinder adopts a 360-degree spiral cooling structure with no dead ends. Heat transfer efficiency is improved through structural optimization, ensuring the exhaust temperature is 10°C lower than conventional structures.

Key Technical Features

Specialized structural design and processing technology to enhance service life.

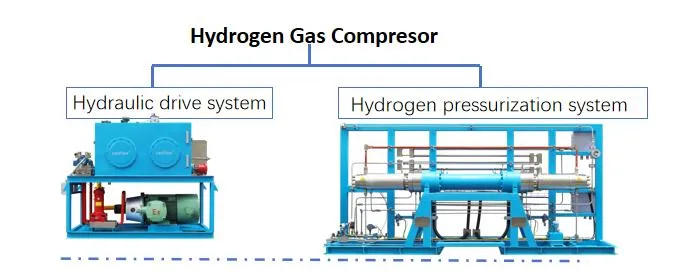

Hydraulic system with simple control and low failure rate.
Simple structure with minimal parts for convenient maintenance.
Senior pistons can be replaced within 30 minutes.
Special construction design for improved heat conduction and volume efficiency.
Performance testing using helium gas (pressure, temperature, displacement, leakage) before delivery.

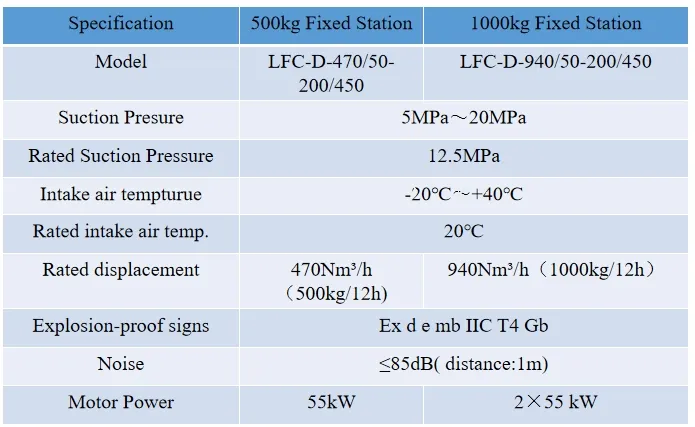

Product Parameters

Model	LFC-D-470/50-200/450	LFC-D-940/50-200/450	LFC-D-1410/50-200/450	LFC-D-1880/50-200/450
Stage	1 - 2	1	1	1
Medium	H2	H2	H2	H2
Rated output	500kg/12 h	1000kg/12 h	1500kg/12 h	2000kg/12 h
Inlet pressure	5Mpa ~ 20 Mpa	5Mpa ~ 20 Mpa	5Mpa ~ 20 Mpa	5Mpa ~ 20 Mpa
Inlet temp.	-20ºC ~ +45ºC	-20ºC ~ +45ºC	-20ºC ~ +45ºC	-20ºC ~ +45ºC
Max working pressure	45MPa	45MPa	45MPa	45MPa
Power	55KW - 90KW	110KW	145KW	180KW
Explosion-proof	Ex d e mb IIC T4 Gb

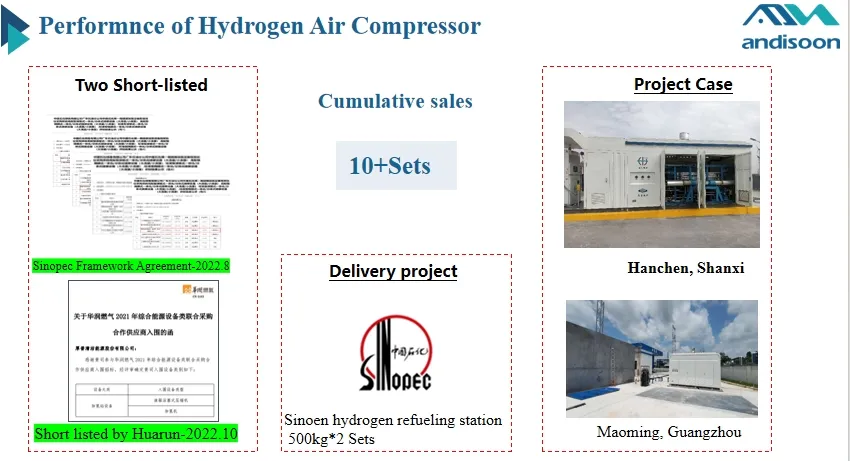

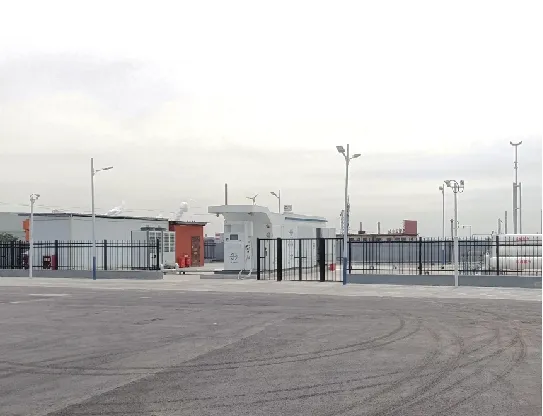

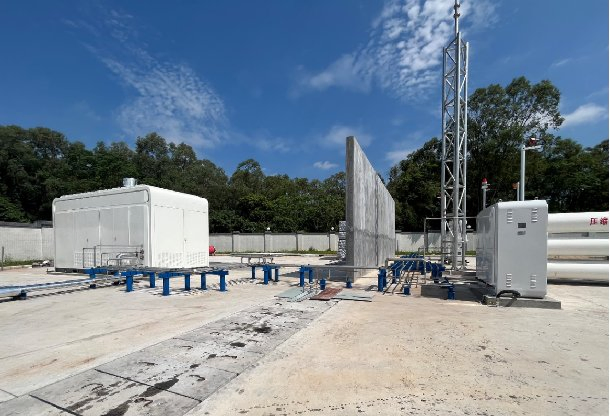

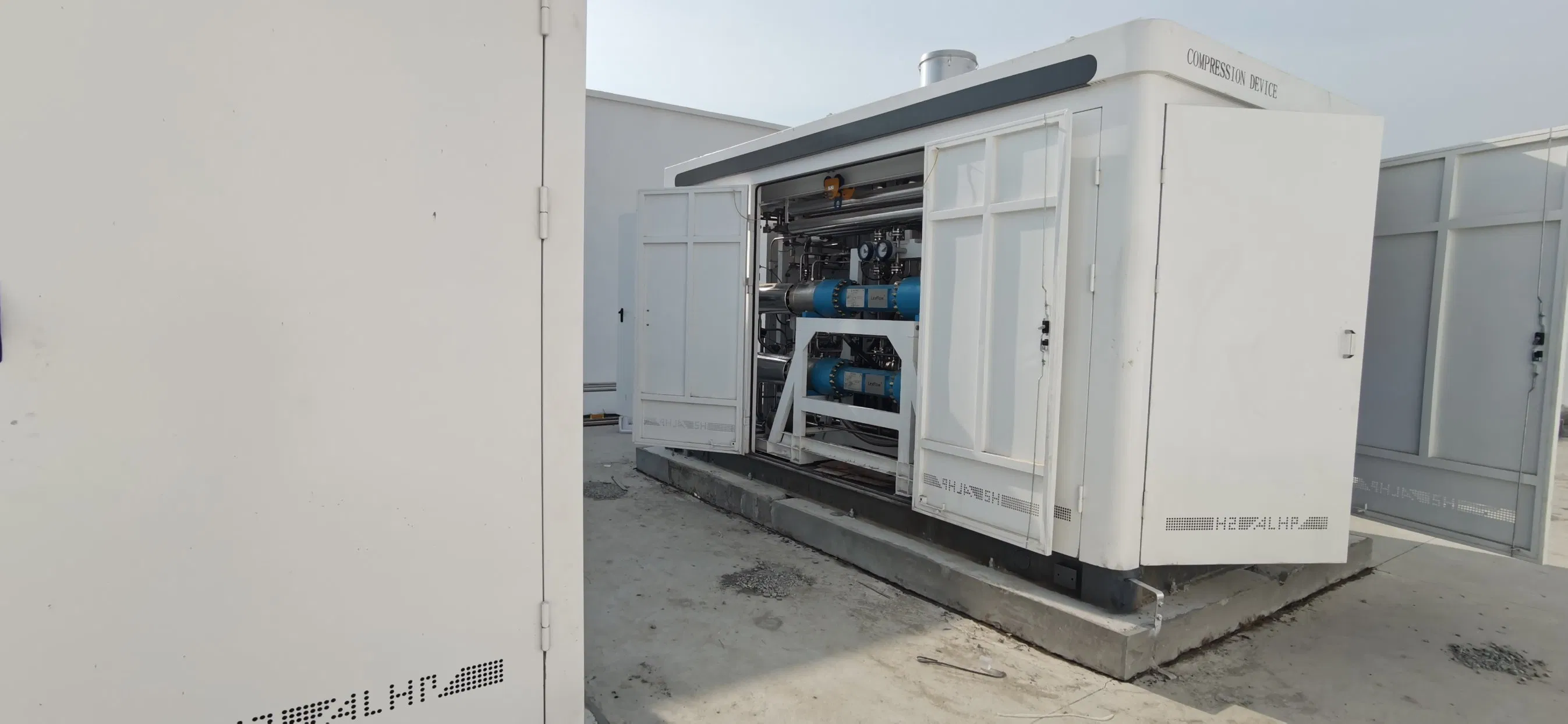

Project References

R&D Key Technology

Vacuum Nickel-Based Brazing: Solves uneven heating issues, minimizing deformation and internal stress.
High-Precision Time Difference Detection: Testing reaches within 0.3 nanoseconds for high accuracy.
Adaptive Digital Filtering: Effectively filters interference waveforms without affecting linear characteristics.
Weak Signal Detection: High-precision differential analog operational amplifier circuit for strong anti-interference.
Synchronous Phase Tracking: Ensures resonance amplitude stability within 6°.

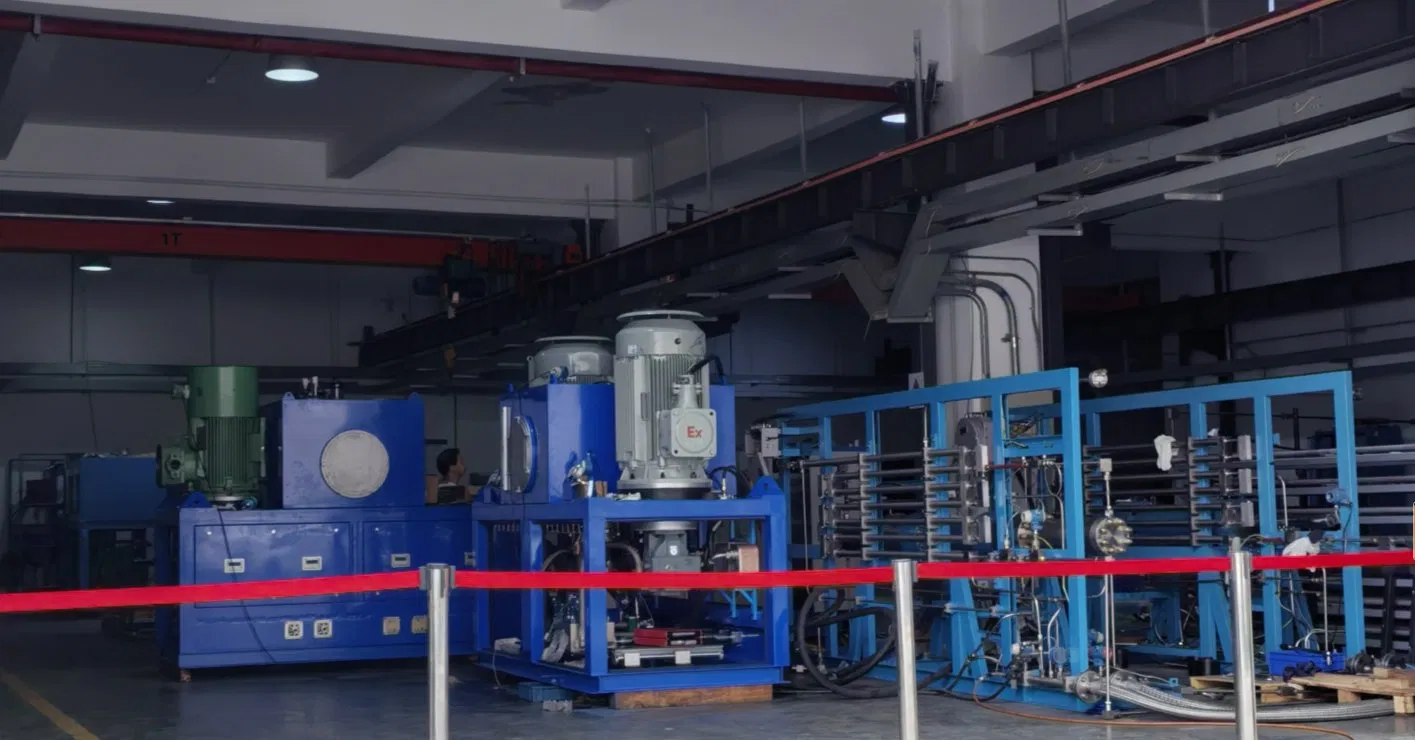

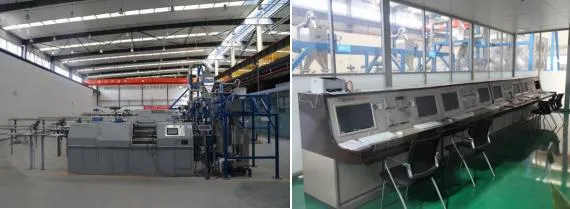

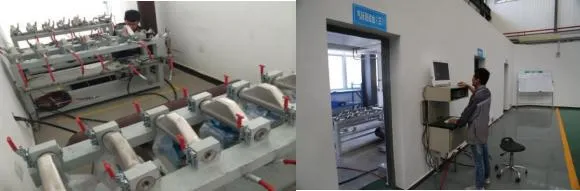

Testing & Calibration Platforms

Frequently Asked Questions

What is the standard delivery time?

For stock items based on GB/DIN flanges, delivery takes 10 days. For custom flanges (ANSI/JIS) or thread connections, delivery is approximately 15 days.

Do you provide OEM/ODM services?

Yes, we provide full OEM and ODM services to design and manufacture products according to your specific technical requirements.

What is the warranty period for the equipment?

The quality guarantee period is 12 months from the completion of installation or 14 months from the date of delivery (whichever comes first).

Which certifications do your products hold?

Our systems hold ISO 9001, ATEX, IECEx, PESO, and SIL2 certifications, ensuring compliance with global safety and quality standards.

What industries are these compressors suitable for?

They are ideal for hydrogen refueling stations, hydro-generation facilities, oil refining, chemical processing, and industrial gas applications.

How do you ensure product reliability before shipment?

Every unit undergoes rigorous performance testing using helium gas to check for pressure integrity, temperature control, displacement accuracy, and leakage.
