| Model NO. | BHF-VI |
| Certification | CE, ISO13485 |
| Group | Full Range |
| HS Code | 9027509090 |
The instrument utilizes reverse hybridization for virus sub-type analysis. After adding specimens, the instrument adds reagents, extracts DNA, amplifies PCR via micro-pumps, and transfers products to the test area. If target genes are present, they bind to probes, revealing spots post-coloration to identify virus sub-types. Negative specimens show no spots.

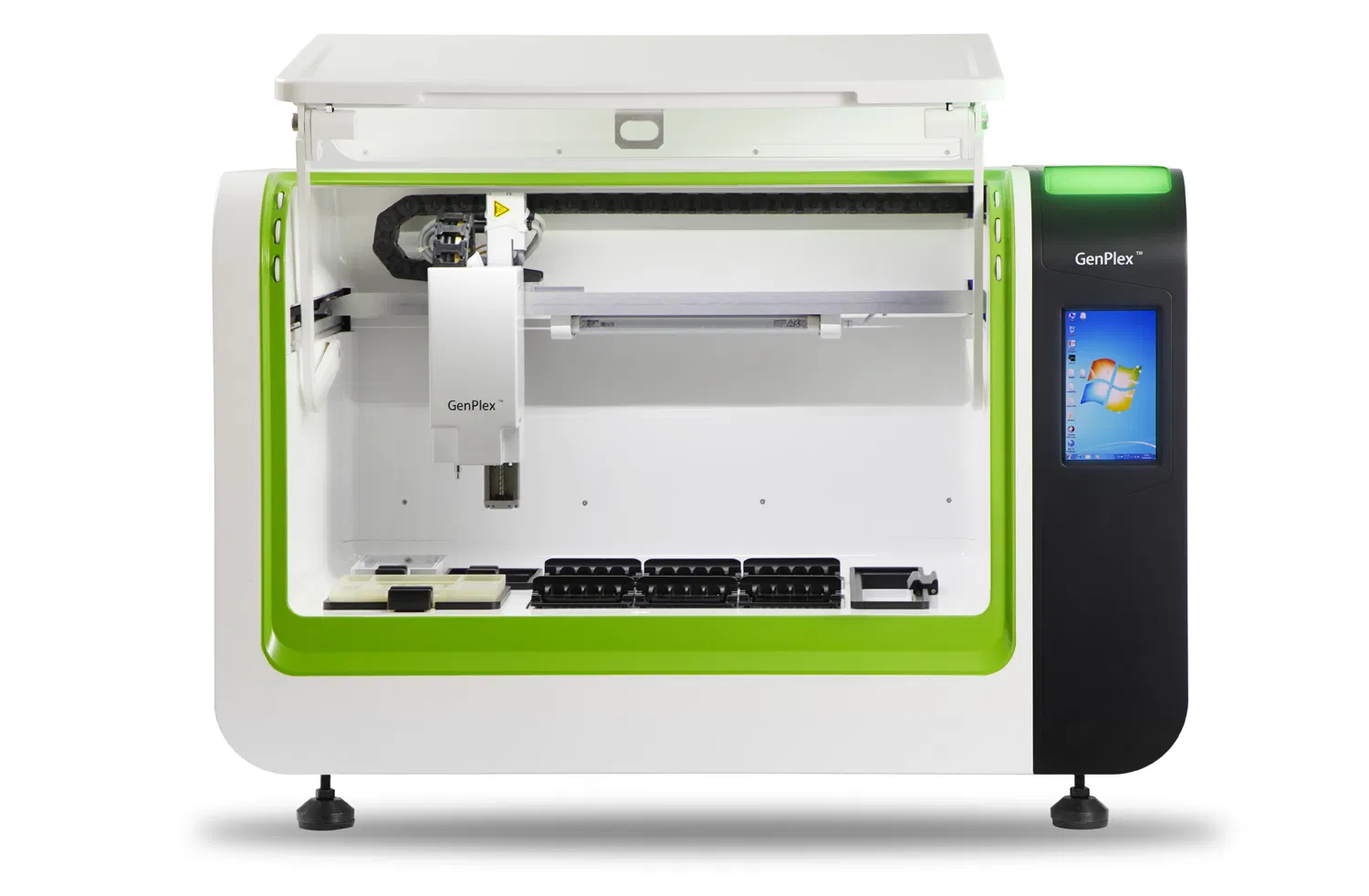

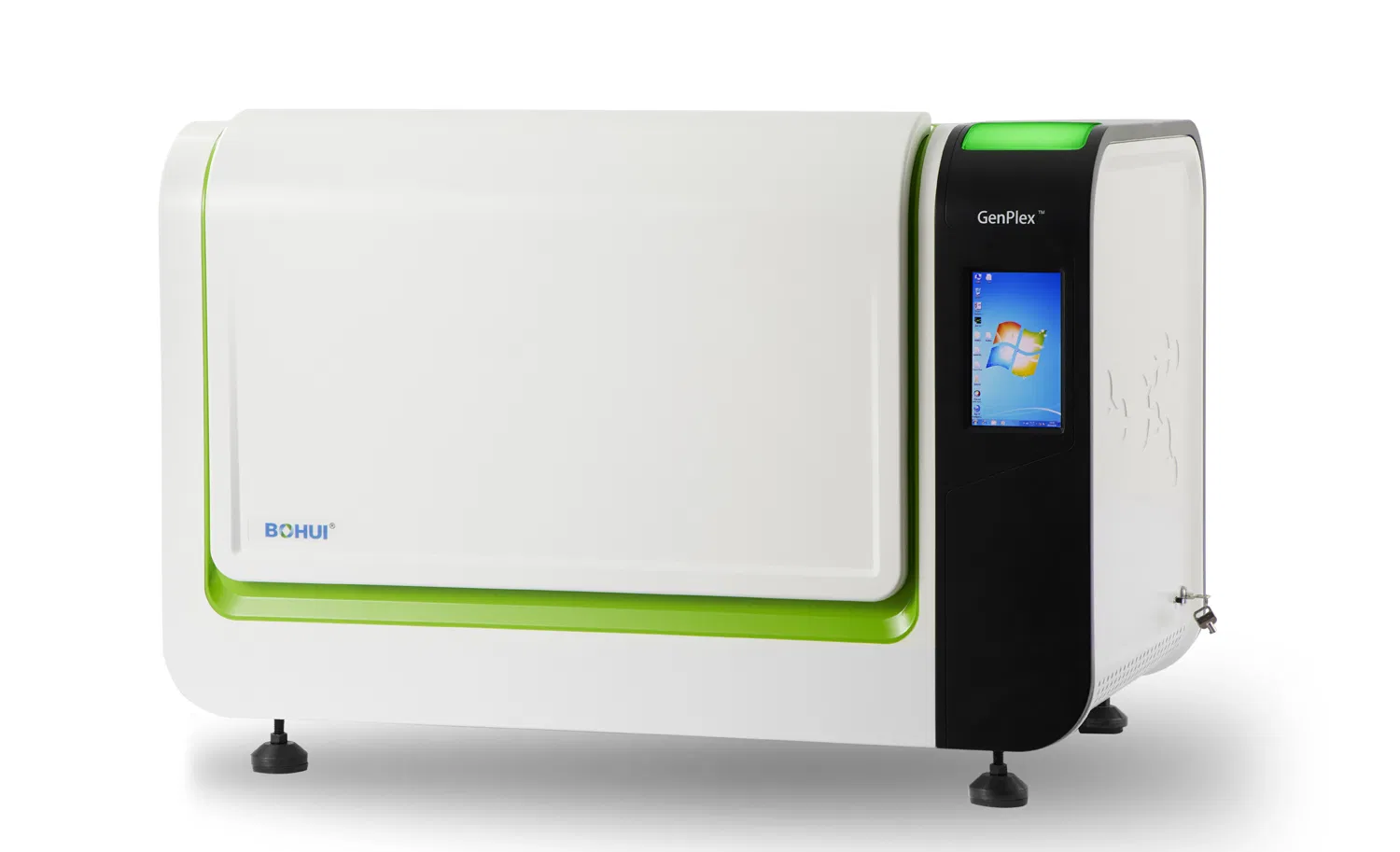

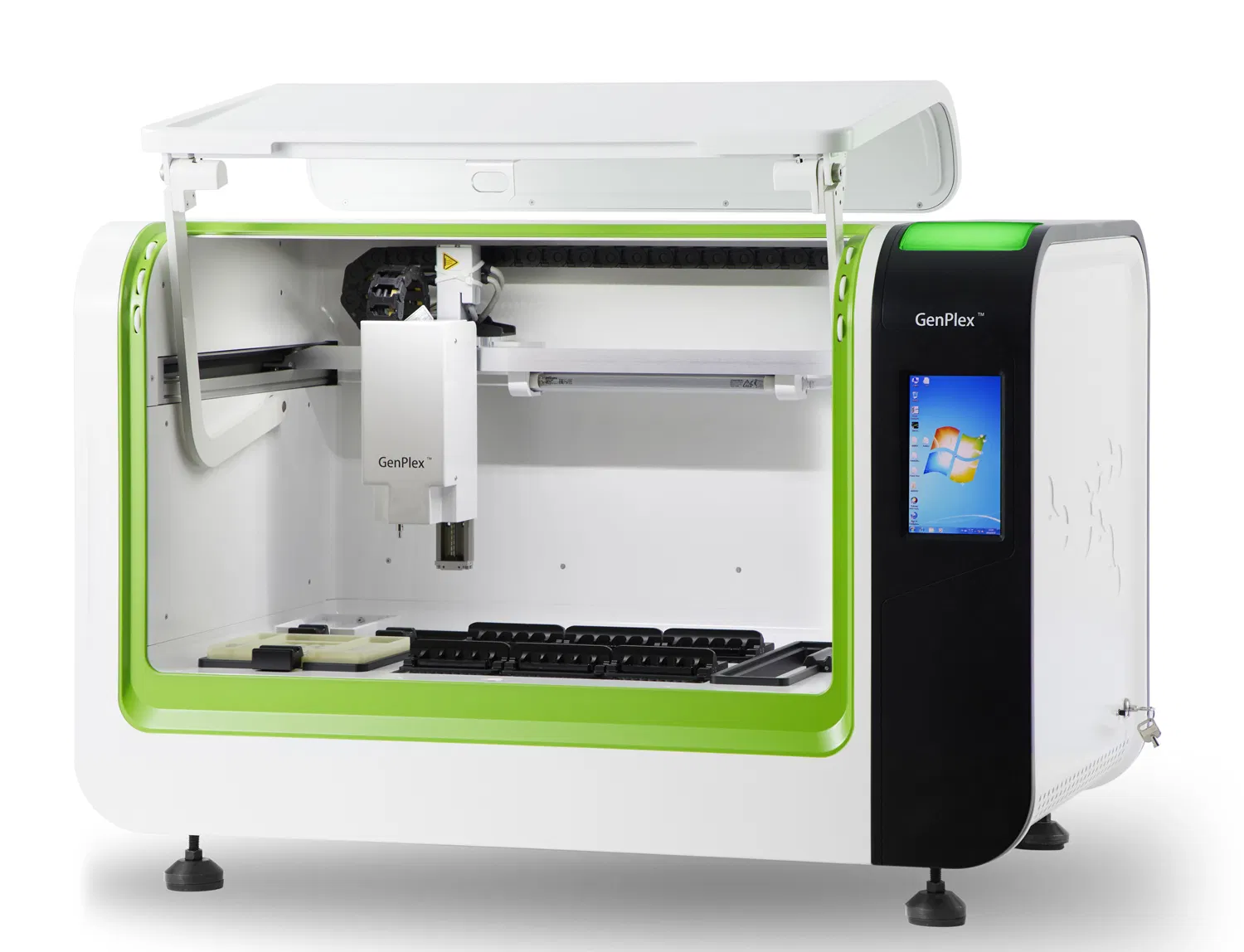

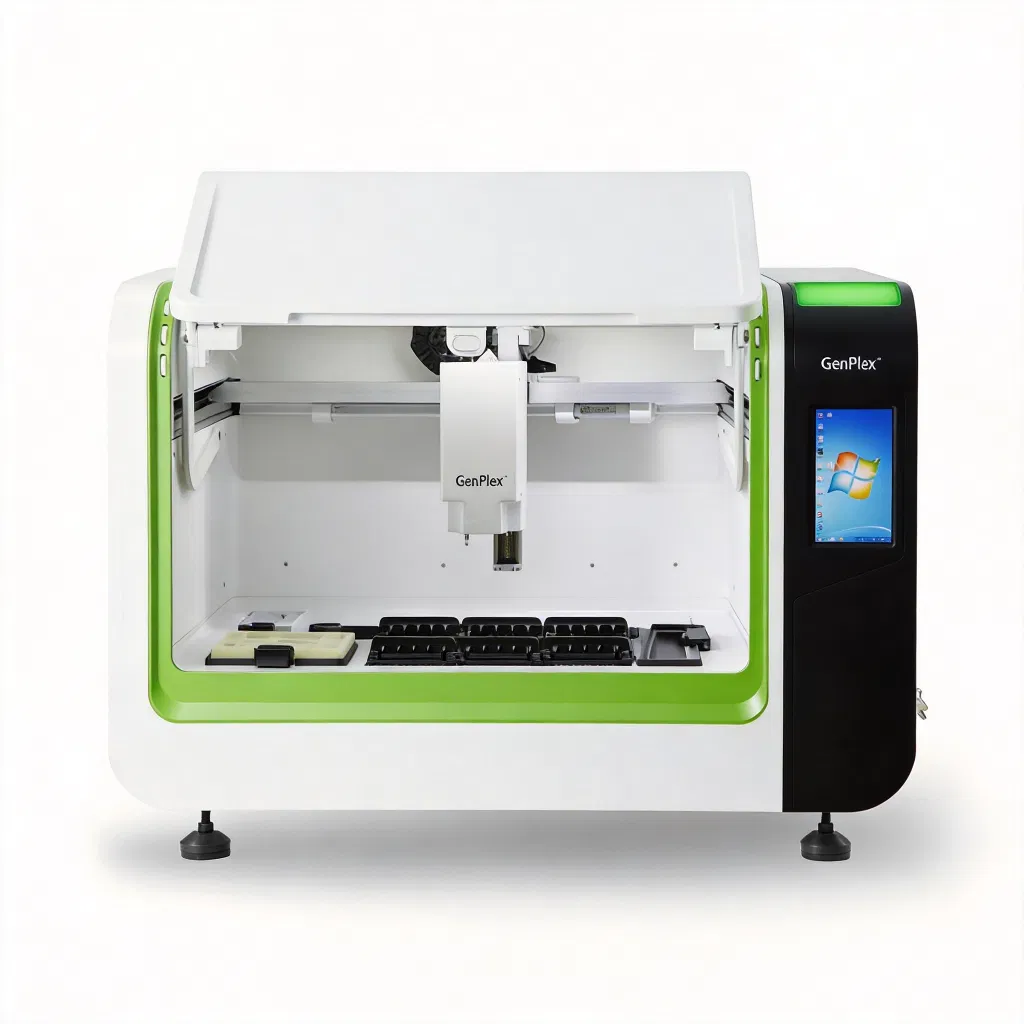

GenPlex® BHF-VI Nucleic Acid Chip Analyzer
Comprises a host unit and optional printer.
Host Unit Features:
Sample Type: exfoliated cervical epithelial cells
Application: Ideal for nucleic acid detection and clinical screening, including HPV testing.
| Model | BHF-VI |
| Detection Platform | PCR & Reverse dot blot hybridization |
| Detection Modules | 6 Modules |
| Sample Capacity | 24 |
| Heating rate | ≥1.5 ℃/s (from 50℃ to 90℃) |
| Cooling rate | ≥1.5 ℃/s (from 90℃ to 50℃) |
| Electrical specification | 230V, 50Hz, 600VA |
| Dimension | 1000 x 610 x 690±10 (mm) |
| Altitude | ≤2300m |
| Weight | ≤80kg |
5 minutes of hands-on time
No precise measuring or pipetting required
Turnaround time of about 3.5 hours
24/28 target HPV genotypes panel
Founded in 2001, our group has grown into a leading high-tech biomedical company, integrating R&D, production, and service. With a 40,000 sqm R&D center, we focus on independent innovation in medical diagnostics.
Why Choose Us?
We excel in independent R&D with a dedicated team. Through innovation, we have developed platforms like molecular diagnosis, immunoassay, atomic absorption, and mass spectrometry. The human trace element detection system is used in over 4,000 hospitals.
Innovation Focus

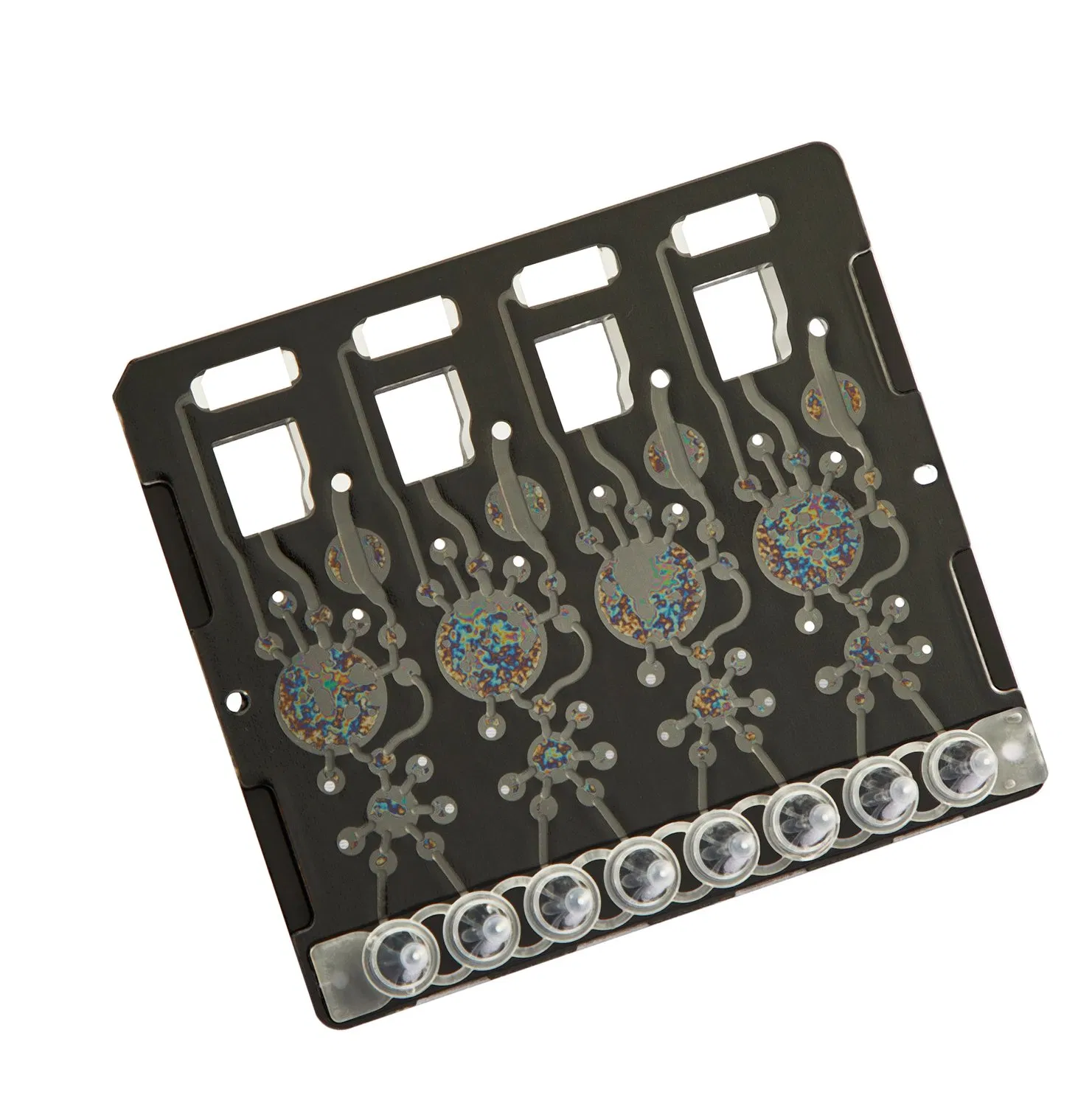

Our microfluidic nucleic acid detection products are renowned as a "laboratory on a chip". We focus on life sciences, providing customers with superior diagnostic products and professional experiences.
