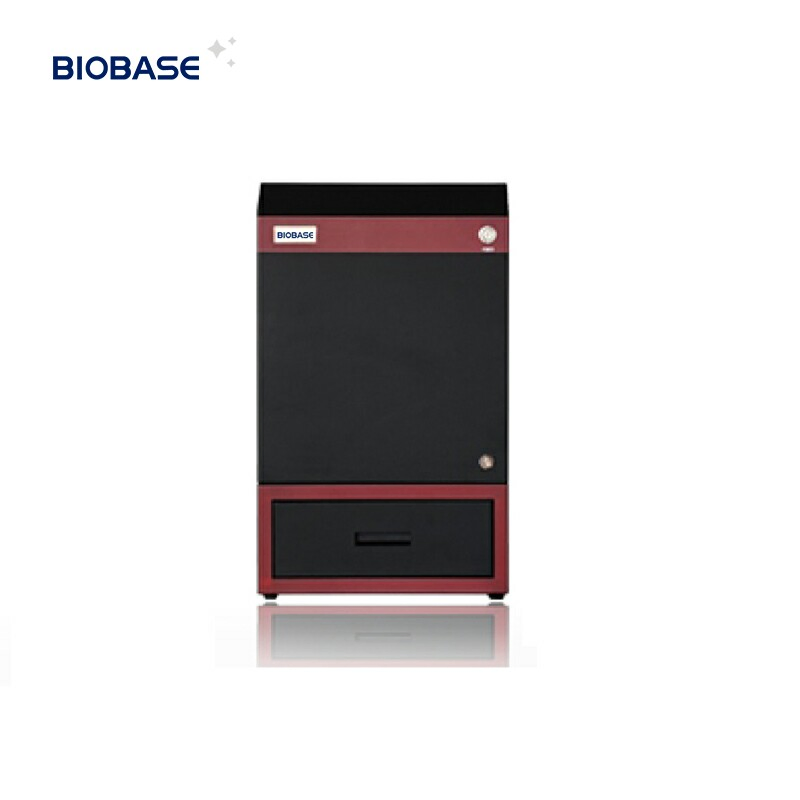

Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument
Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument
Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument
Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument
Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument
1 / 5
Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument
Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument
Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument
Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument
Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument

Biobase DNA Gel Documentation System Reader Gel Imaging Analysis Instrument

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
BK-AG100
Element
Organic Elemental Analyzer
Analysis
Photoelectric Colorimetry
Display
Digital
Application
Soil / Lab Analysis
Frequency
50±1HZ
Performance
Automation
Function
Storage
Weight
0-100Kg
Power Source
AC220V±22V
Product Name
Gel Imaging and Analysis System
Pixel
2592*1944 (5.03MP)
Exposure Time
1ms-3000ms
Qe Value
High Qe: >65%
Optical Density
≥4.8od
Bit Depth
16 Bit (0-65535)
Lens
Motorized 8-48mm, F1.2
Capacity
1000PCS/Month
💻 Product Description

The Automatic Gel Imaging and Analysis System is a highly integrated and fully automated gel imaging solution. The system interface is designed to be simple and practical, featuring a primary control interface with shooting buttons and time control to guide users through the process. It is exceptionally easy to operate, eliminating the need for manual and tedious debugging, making it an ideal choice for laboratory professionals.

Gel Imaging Analysis Instrument
Feature Specification
ModelBK-AG100
Pixel2592×1944 (5.03MP)
Exposure Time1ms-3000ms
Binning1×1
LensMotorized 8-48mm, F1.2
Epi-WhiteLED
Filters590nm (Others optional)
UV Area21×21cm
🎖 Our Advantages
Product Advantages Banner
📷 Product Overview
Imaging System Features
❓ Frequently Asked Questions
What is the resolution of the BK-AG100 imaging system?
The system features a high-resolution camera with 2592×1944 pixels (5.03 Megapixels), ensuring clear and detailed capture of gel samples.
How flexible is the exposure control?
It offers a wide range of exposure times from 1ms up to 3000ms, allowing for precise adjustment based on sample intensity.
Is the lens adjustment manual or automatic?
The system is equipped with a motorized 8-48mm F1.2 lens, which simplifies the focusing and zooming process through software control.
What size of gels can be analyzed in the UV area?
The system provides a generous UV observation area of 21×21cm, accommodating most standard gel sizes.
Does the system support high-sensitivity detection?
Yes, with a 16-bit depth (0-65535 levels) and a Qe value greater than 65%, the system is designed for high sensitivity and accurate quantification.
What kind of light sources are included?
It includes LED Epi-White light for general imaging and a UV transilluminator for DNA/RNA gel documentation.
