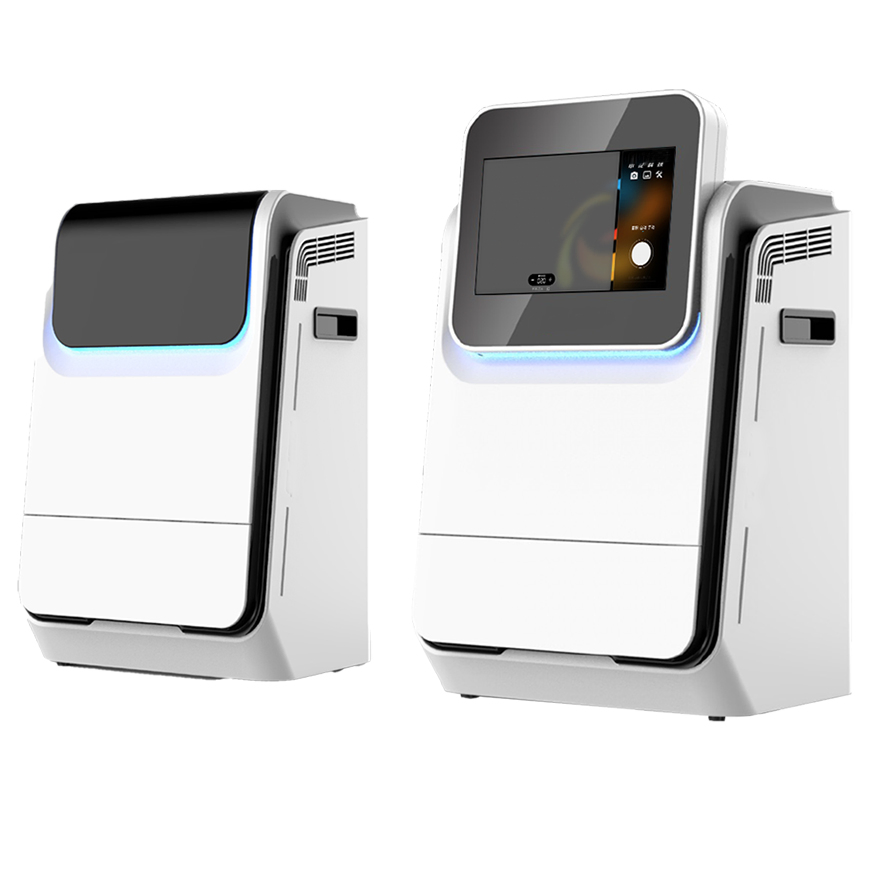

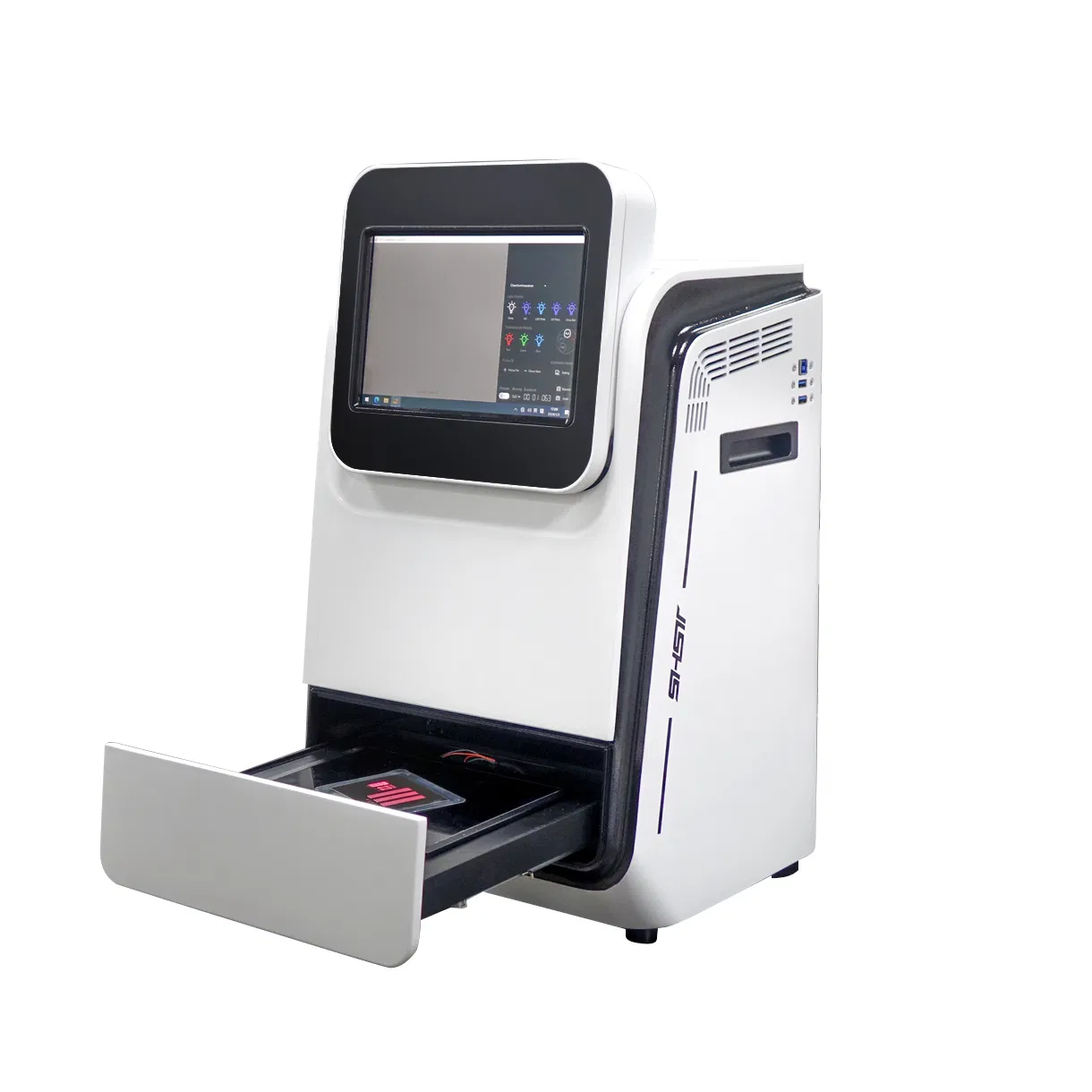

DNA Rna Protein PCR Documentation Gel Analysis Imaging System
DNA Rna Protein PCR Documentation Gel Analysis Imaging System
DNA Rna Protein PCR Documentation Gel Analysis Imaging System
DNA Rna Protein PCR Documentation Gel Analysis Imaging System
DNA Rna Protein PCR Documentation Gel Analysis Imaging System
1 / 5
DNA Rna Protein PCR Documentation Gel Analysis Imaging System
DNA Rna Protein PCR Documentation Gel Analysis Imaging System
DNA Rna Protein PCR Documentation Gel Analysis Imaging System
DNA Rna Protein PCR Documentation Gel Analysis Imaging System
DNA Rna Protein PCR Documentation Gel Analysis Imaging System

DNA Rna Protein PCR Documentation Gel Analysis Imaging System

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Model:
Magic Series
Camera Type:
Cooled Back-Illuminated CMOS
Resolution:
9 Megapixels
Pixel Size:
3.76 × 3.76 μm
Electronic Lens:
F0.95 (F0.8 Optional)
Chemi Imaging:
Single Layer Chemidoc Sample Tray
Gel Doc:
UV LED Transilluminator
Protein Gels:
White LED Transilluminator
Software:
SHSTCapture Software
HS Code:
9031809090
📦

Packaging & Delivery

Package Size:
80.00cm * 60.00cm * 60.00cm
Gross Weight:
50.000kg
★

DNA RNA Protein PCR Documentation Gel Analysis Imaging System

Gel Analysis Imaging System
Introduction: Smart, compact, and space-saving design. Optional removable industrial computer provides high feasibility, rapid running speed, and minimizes maintenance requirements compared to embedded PADs.
✔

Applications

· ChemiDoc, Gel doc, and Protein Gel analysis as standard configuration.
· Optional fluorescence application support.

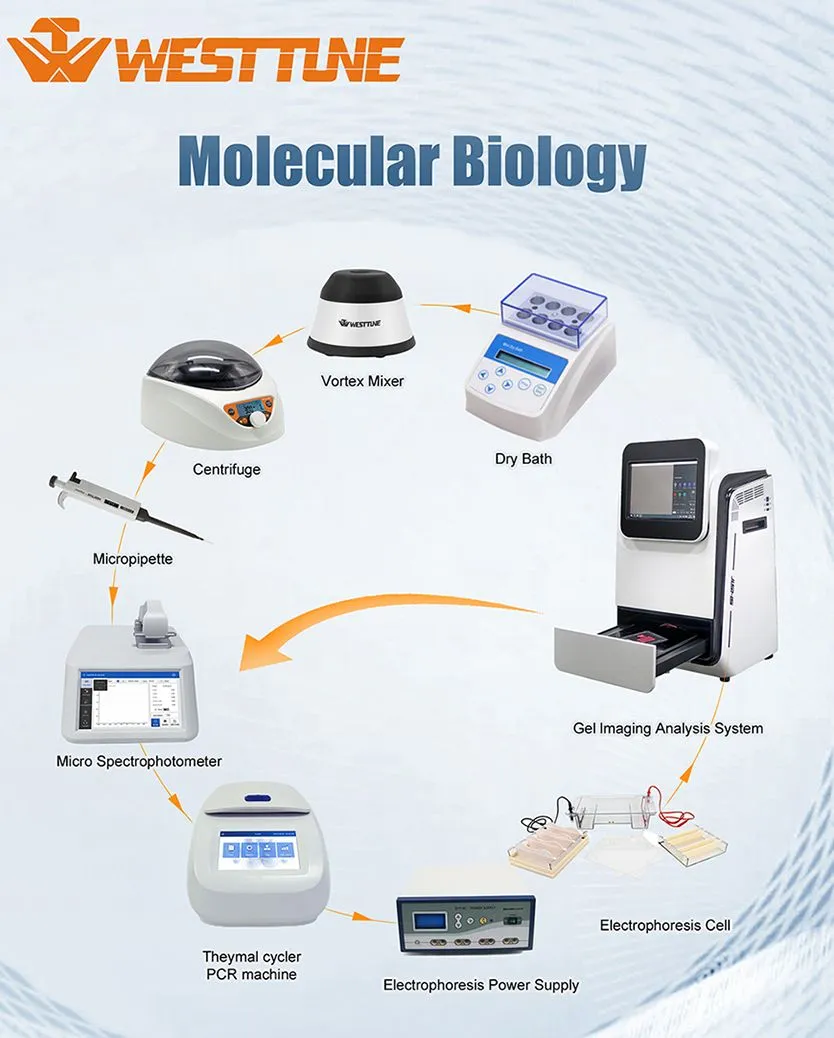

Imaging System Application
⚙

Key Features

  • Sensitive Cooled Digital Camera for high-precision imaging.

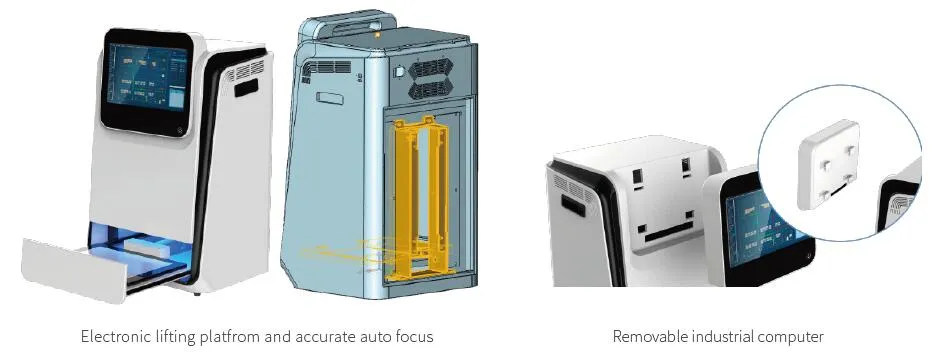

  • Electronic lifting platform and accurate auto-focus function for diverse sample sizes.
  • Removable industrial computer (optional) for superior processing power and reliability.
Features Display
📋

Detailed Specifications

Model Feature SH-Magic 100 Mini Multi SH-Magic 523 Mini Multi
Camera Type Cooled Back-illuminated CMOS Cooled CCD
Resolution 9 Megapixels 6 Megapixels
Pixel Size 3.76 × 3.76 μm 4.54 x 4.54 μm
Temperature -30 degree regulated
Dynamic Range 4.8OD
Pixel Density 16bit (65536 Grey scales)
Lens Electronic F0.95 standard (F0.8 optional)
Sample Tray Single Layer ChemiDoc tray / UV LED / White LED
Filter Wheel Standard 5 position wheel
Optional PC 10.1 Inch Touch Screen, Windows 11, Intel Chip
🖼

Product Portfolio

System Overview Technical Details
?

Frequently Asked Questions

What imaging modes does the Magic Series support?
The system supports ChemiDoc, Gel Doc, and Protein Gel imaging as standard, with optional fluorescence modules.
How does the cooling system benefit the results?
The camera is regulated to -30 degrees, significantly reducing electronic noise and ensuring high sensitivity for weak chemiluminescence signals.
Is the lens manually adjusted?
No, the system features an electronic lens with an F0.95 aperture as standard, supporting auto-focus and remote control.
What software is provided with the system?
The equipment includes SHSTCapture for image acquisition and SHSTAnalysis for comprehensive data analysis.
Can I use my own computer with this imaging system?
Yes, while we offer an optional removable industrial PC, the system is designed for high compatibility with external workstations.
What is the bit depth of the captured images?
The system captures 16-bit images, providing 65,536 grayscale levels for precise quantification.
