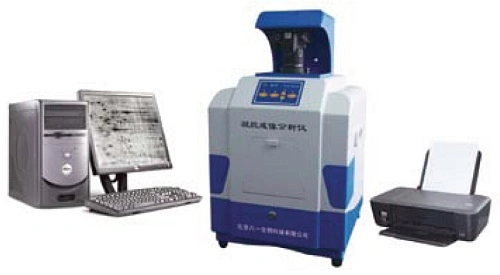

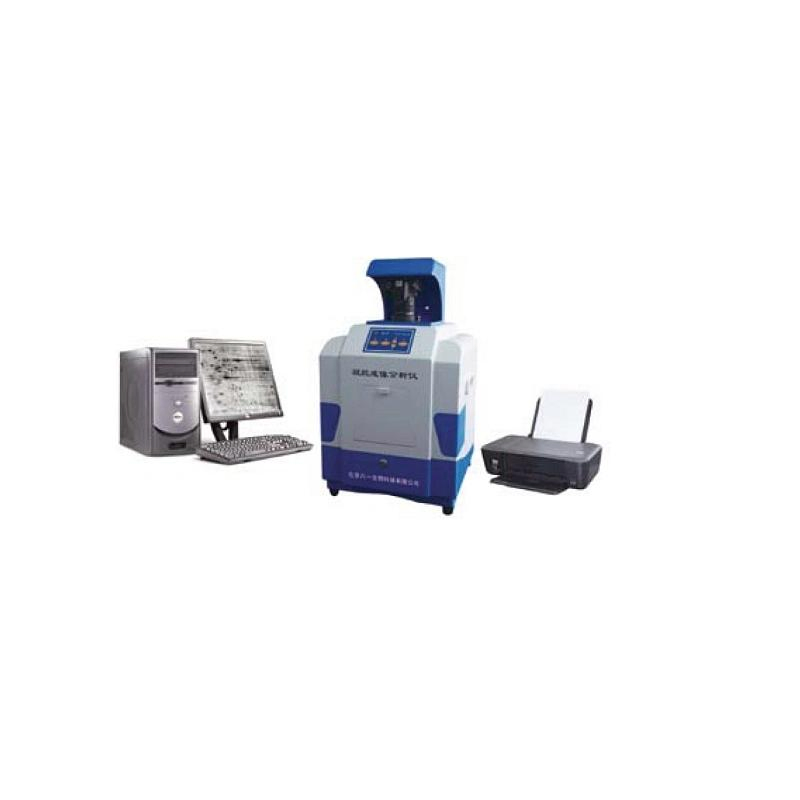

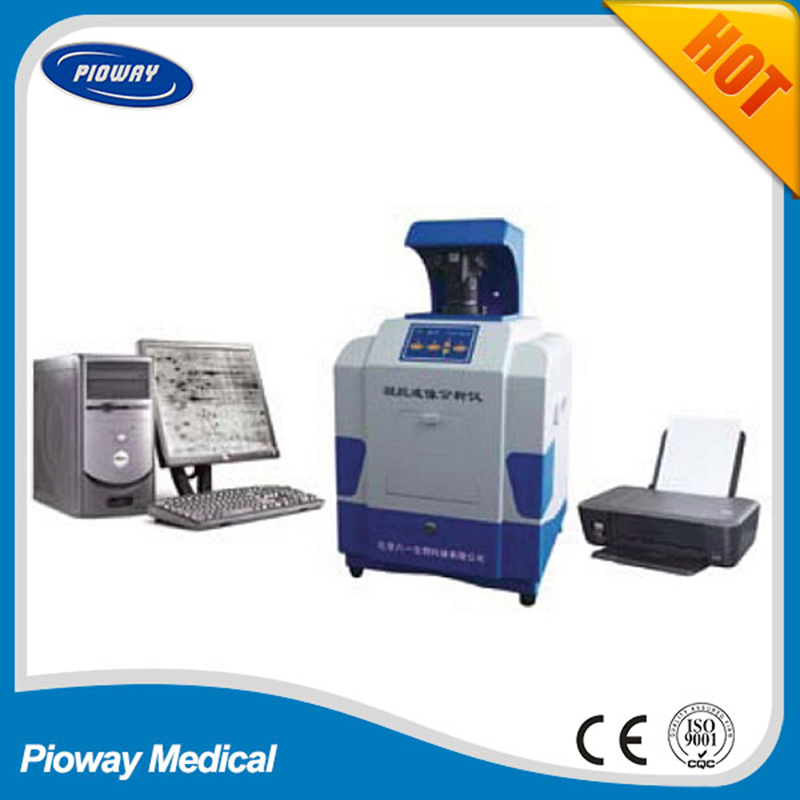

The WD-9413A is specifically designed for analyzing gel images following electrophoresis experiments. By capturing images under UV or white light via the high-precision digital camera, researchers can utilize specialized software to analyze DNA, RNA, protein gels, and thin-layer chromatography (TLC). The system provides critical data including peak values of bands, molecular weight, base pairs, area, height, and sample volume.
Frequently Asked Questions
What type of samples can be analyzed with this system?
The system is designed for the analysis of DNA, RNA, protein gels, and thin-layer chromatography (TLC) images.
Is a traditional darkroom required for operation?
No, the integrated dark chamber design makes a separate darkroom unnecessary for capturing clear gel images.
Can I export my analysis data for use in other software?
Yes, all analysis data can be easily exported to Excel software for further research and data management.
What are the available UV wavelengths for this model?
It supports a transmission wavelength of 300nm and repercussion wavelengths of 254nm and 365nm.
What are the main software functions included?
The included software provides 1D, 2D, and RFLP analysis, including automatic lane identification and molecular weight calculation.
What is the resolution and quality of the captured images?
The system features a 7.1-megapixel digital camera (3072x2304 pixels) with 24-bit grayscale density for high-precision results.
