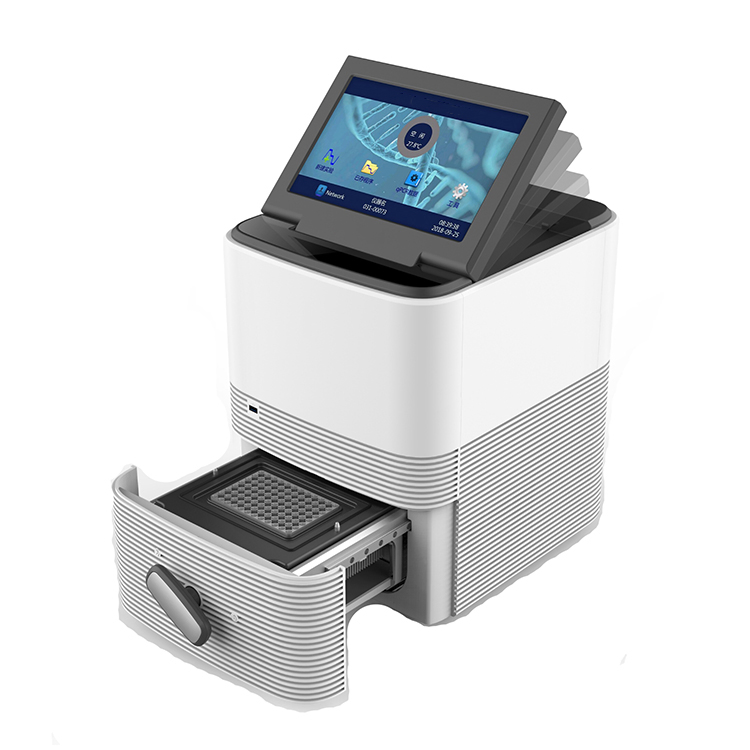

Medical Lab Analysis Touch Screen DNA Test Machine Gene Diagnosis PCR Detection System

1 / 5

Medical Lab Analysis Touch Screen DNA Test Machine Gene Diagnosis PCR Detection System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LCR20T

Certification

CE, FDA

Sample Block

2 Blocks 48 Wells

Heating & Cooling

0.2ml PCR Tube, Strip with Flat & Dome Cap

Display

New Generation Peltier Technology

Language

English

Temp. Control

Block SIM-Tube Mode

Gradient Accuracy

≤±0.1

Max. Step

30 Steps, Multiple Nesting Available

Max. Cycle

100 Typical Cycles

Origin

China

Production Capacity

100 Unit/Week

Product Overview

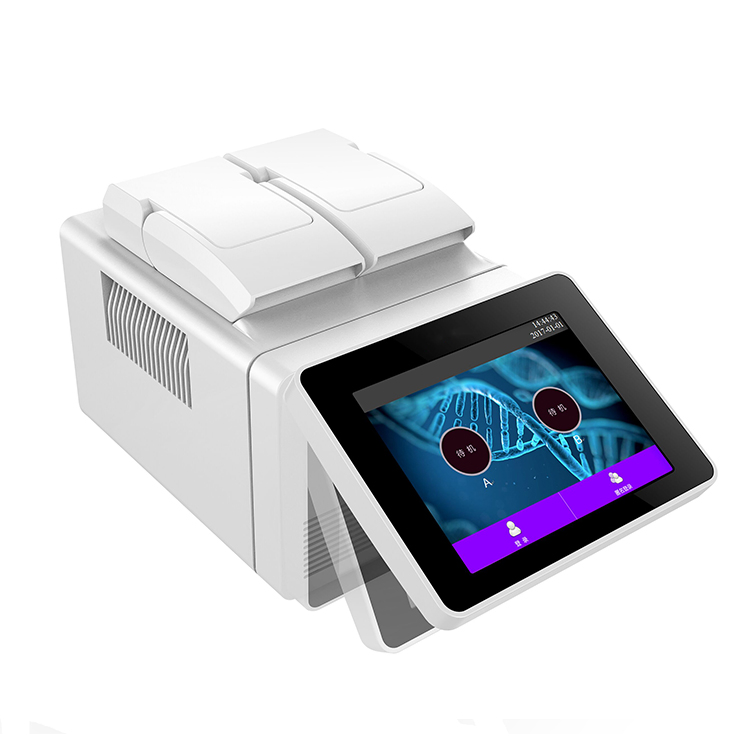

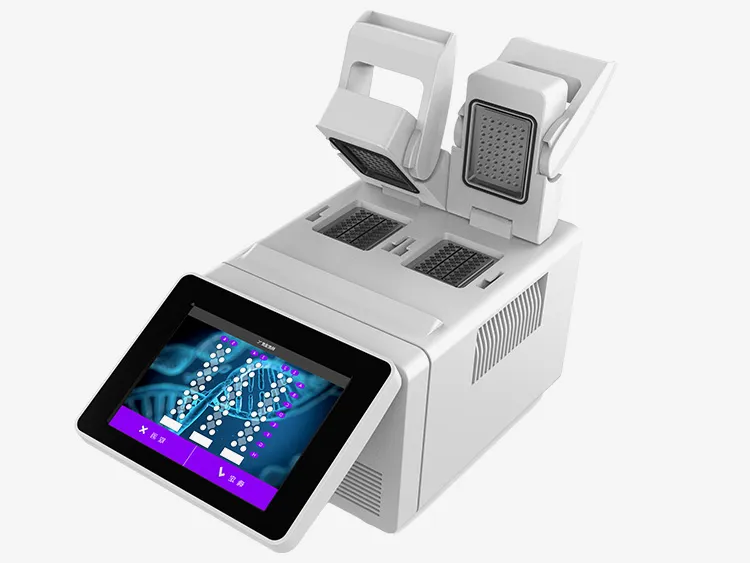

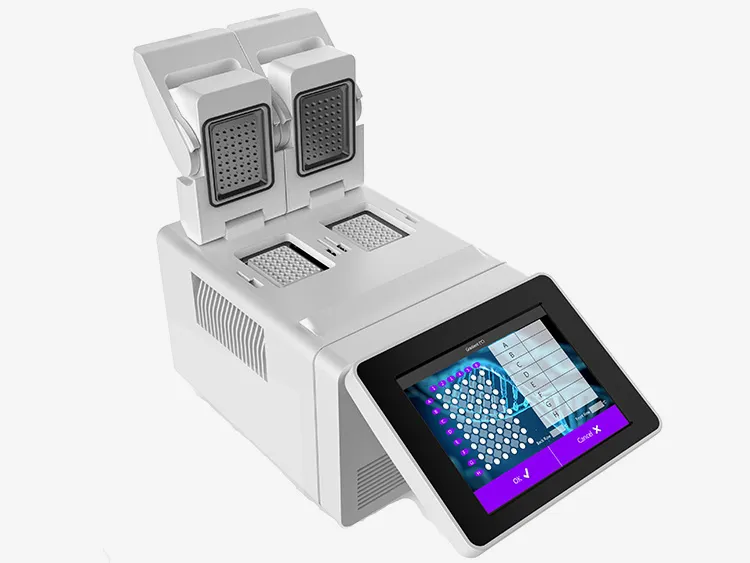

LCR600A Lab Analyzer Digital DNA Test Multi-block Thermal Cycler PCR System

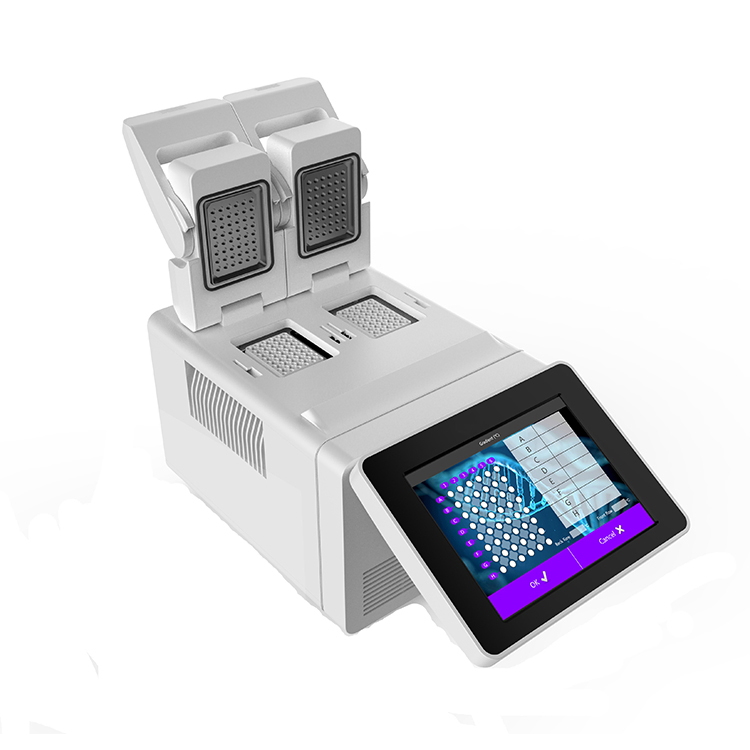

2 or 3 individual blocks allowing simultaneous operation of different protocols
Latest Peltier technology, maximum ramp rate 7ºC/s
10" TFT touch screen, freely adjustable, wide viewing angles
Easily interchangeable sample blocks without need for tools

Technical Parameters

Thermal Block Performance
Sample Block	2 blocks 48 wells
Block Temp. Range	0°C - 105°C
Max. Heating Rate	7.5°C/s
Max. Cooling Rate	6°C/s
Temp. Uniformity	≤±0.2°C (at 90°C)
Temp. Accuracy	≤±0.2°C (at 90°C)
Ramping Rate Adjustable	0.1ºC ~ 5°C/s
Gradient & Software
Gradient Range	30°C ~ 105°C
Temp. Differential Range	1 ~ 24ºC
Max. Programs	15,000 onboard, unlimited with USB
Display	10" Full Color Touch Screen, adjustable angle
Communication Ports	USB 2.0 & LAN
Physical & Power
Heat Lid Temp Range	30°C ~ 112°C
Power Supply	100V - 240V, 50-60Hz, Max. 750W
Dimensions (LxWxH)	375 x 270 x 277mm
Net Weight	13KG

Equipment Gallery

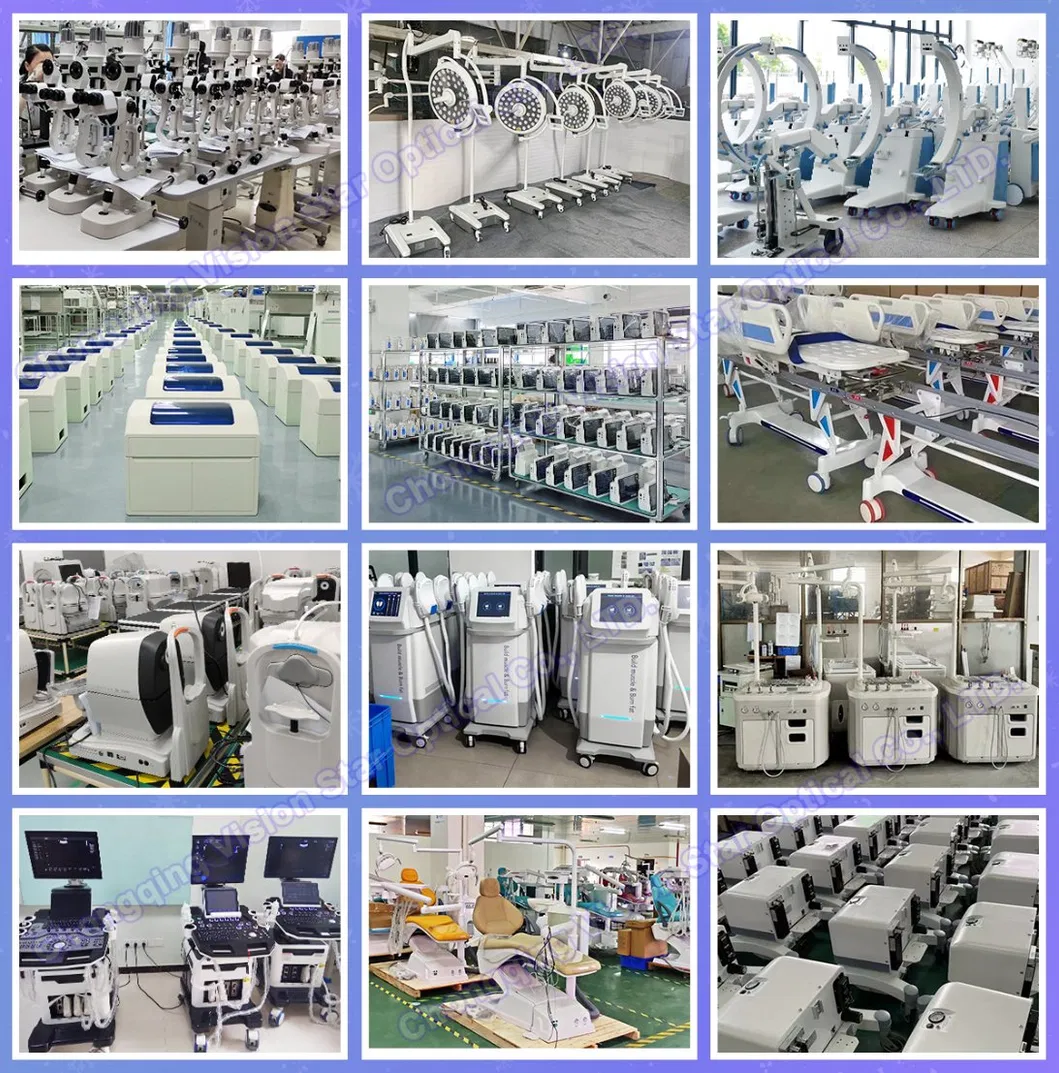

Manufacturing Facility

Quality Certification

Professional Support

Frequently Asked Questions

What are the main advantages of the LCR600A PCR system?

It features individual blocks that allow for simultaneous operation of different protocols, high-speed ramping up to 7.5°C/s, and a large adjustable 10" touch screen for easy operation.

Is the sample block interchangeable?

Yes, the sample blocks are easily interchangeable without the need for any specialized tools, providing flexibility for different lab requirements.

What cooling technology is used in this machine?

The system utilizes latest Peltier technology, which ensures highly accurate temperature control and durability for over 1,000,000 cycles.

How many programs can be stored on the device?

The unit has an onboard capacity for up to 15,000 programs. Additionally, you can use a USB flash drive for unlimited protocol storage.

Does the system support gradient PCR?

Yes, each individual block can handle 8 gradient temperatures, with a gradient range from 30°C to 105°C and high uniformity.

What safety features does the heat lid have?

The system includes an innovative TOP-OPEN technology with even pressure and an auto shut-off function when protocols finish or when the block temperature falls below a set threshold.
