Biobase DNA and Protein Automatic Gel Imaging Analysis System with HD Camera

1 / 5

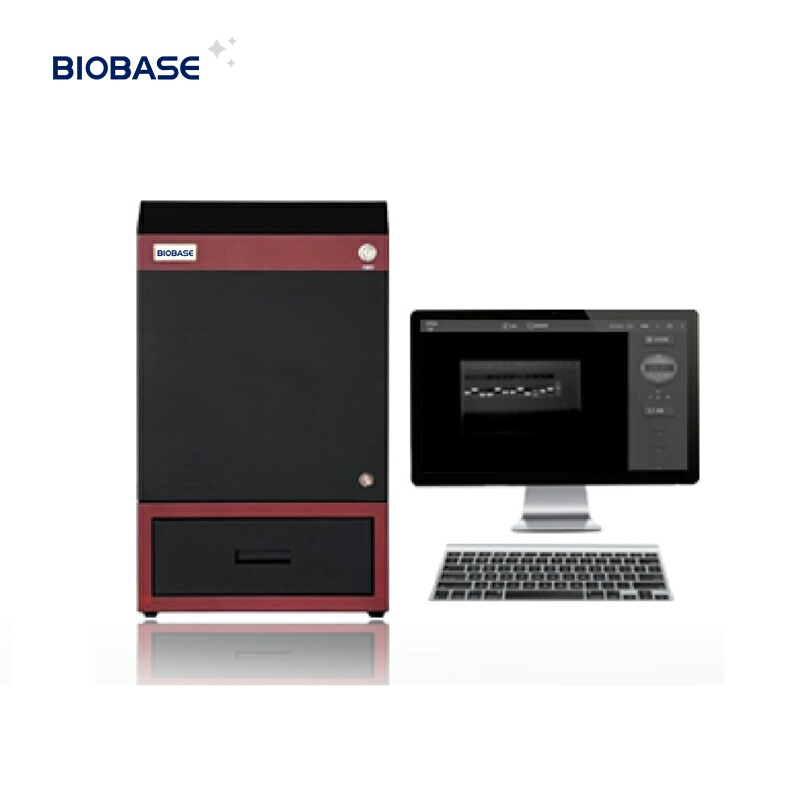

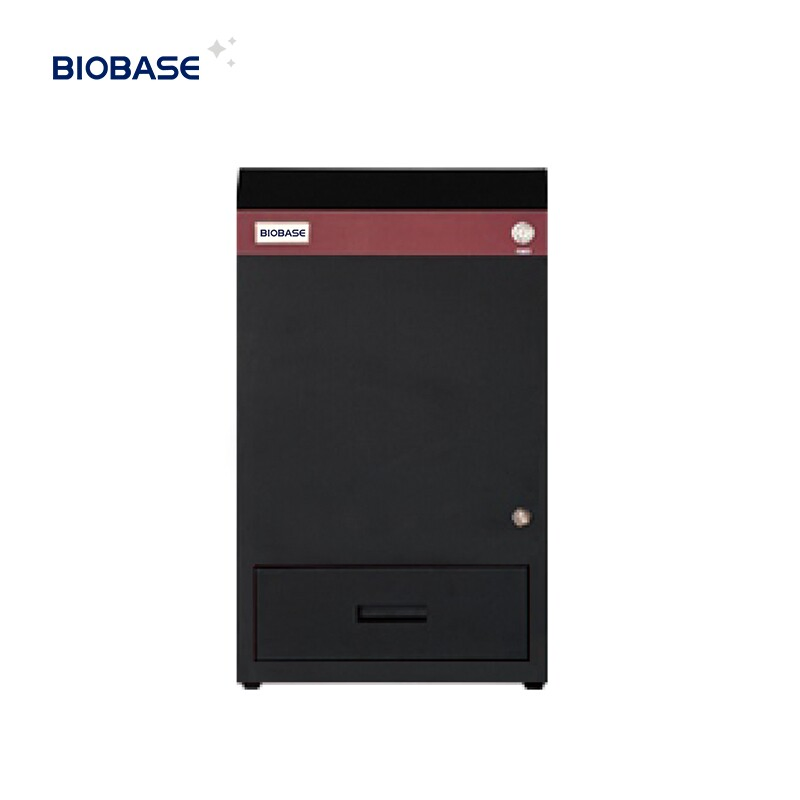

Biobase DNA and Protein Automatic Gel Imaging Analysis System with HD Camera

Send Inquiry

Product Description

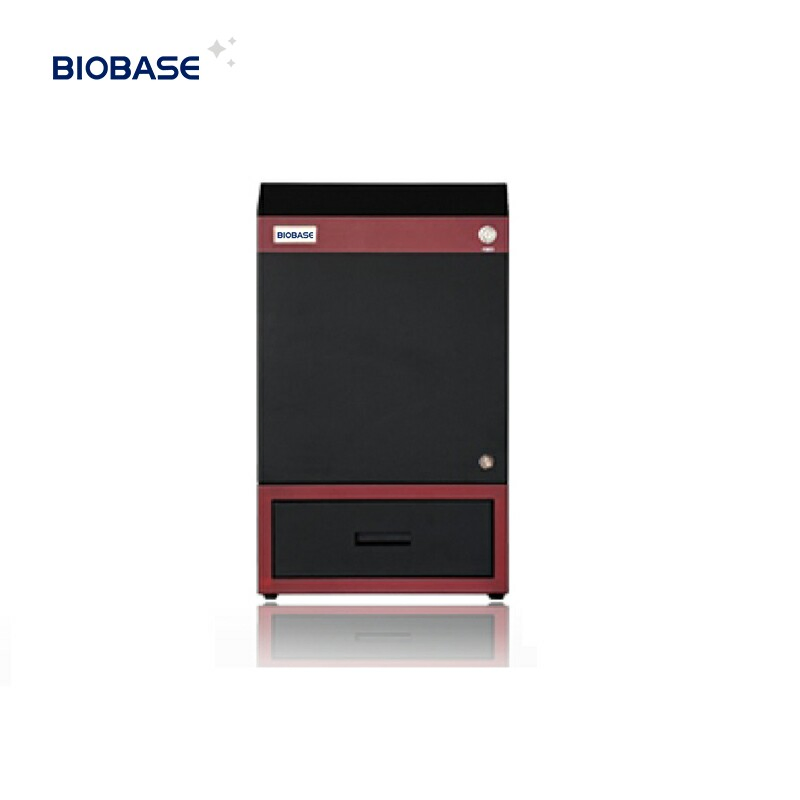

Automatic Gel Imaging Analysis System

Introduction:

Automatic Gel Imaging and Analysis System is a highly integrated and fully automated gel imaging system. The system interface is simple and practical; the main interface features a shooting button and time control to guide the user. It is very easy to operate, requiring no manual or tedious debugging, making it your best choice for laboratory efficiency.

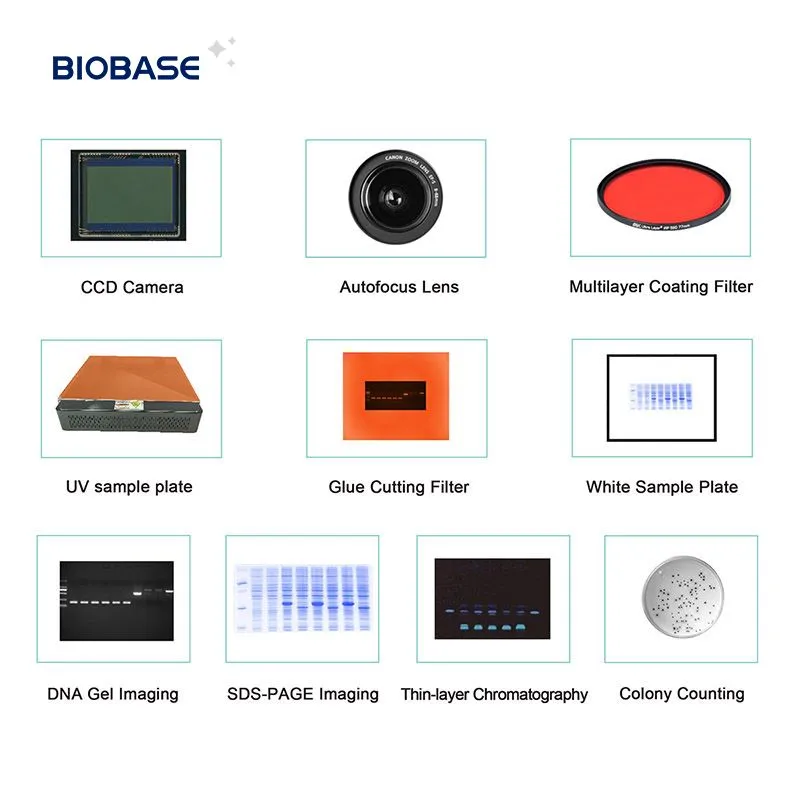

Detailed Pictures

Features

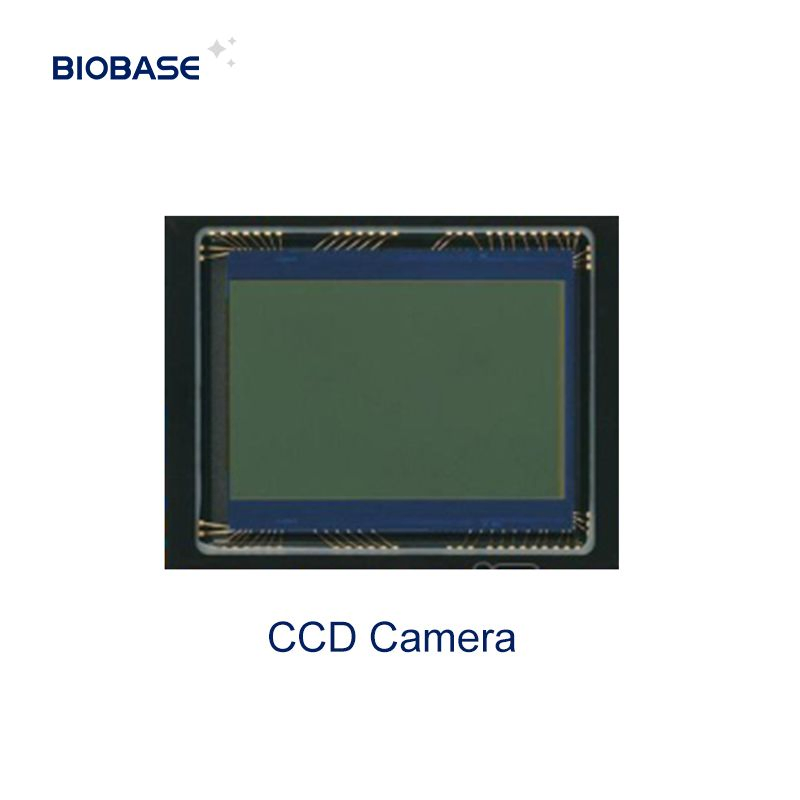

High-resolution CCD camera with high sensitivity and high resolution.
Features automatic focus and high-performance 6x zoom lens.
Specialized filter for nucleic acid dye.

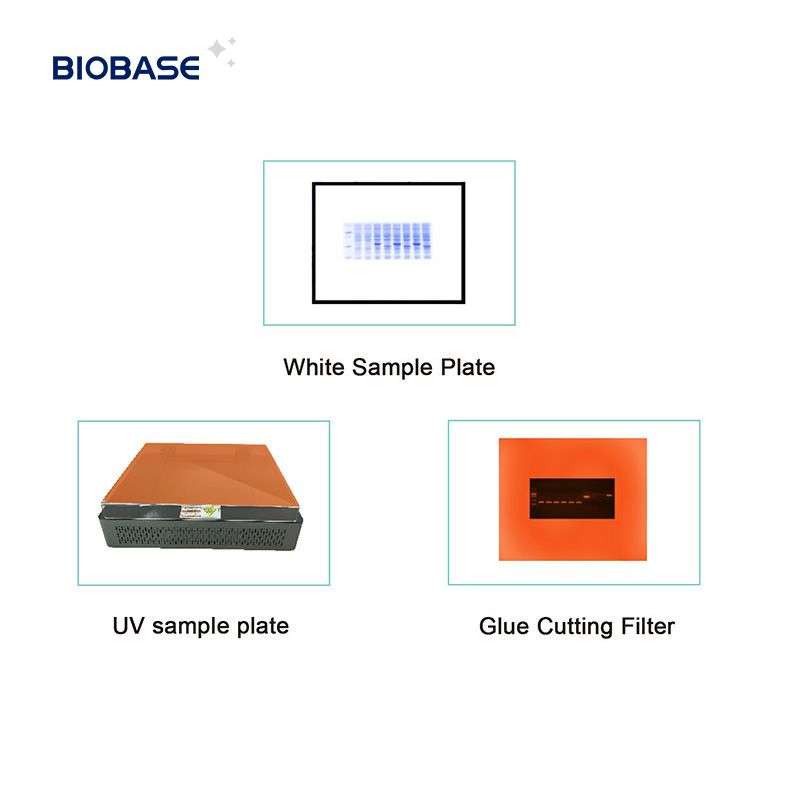

Specialized overlay glue cutting filter: Compared with traditional filters, it is easy to operate, prevents UV and blue light damage, and eliminates the need for a dark room.
Works effectively under strong light conditions.
White light sample plate included for SDS-PAGE glue samples shooting.
Compatible with various fluorescent dyes: EB, SYBR Gold, SYBR Green, SYBR Safe, Gel Red, Gel Green, Texas Red, and Fluorescein marked DNA/RNA.

Technical Parameters

Parameter	Specification
Effective pixels	1280*1024
Pixel density	10 bit
Pixel Size	5.4*5.4μm
Resolution	1.4 megapixels
S/N Ratio	56db
Sensitivity	Detect double chain DNA of EB staining below 20pg
Camera	Low illumination and high resolution digital CCD
Zoom lens	F=1:1.2, 2/3 inch 6 times zoom lens
Filter	590nm
UV light transmission area(W*L)	250*200mm
Visible light transmittance area(W*L)	250*210mm
Transmission UV wavelength	302nm
Reflectance UV wavelength	254, 365mm
Transmission UV lamp power	8W
Reflectance UV lamp power	11W
Output	RS232 interface
Power supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
External Size(LWH)	470405820mm
Package Size(LWH)	7507001550mm
G.W	37Kg

Other Laboratory Equipment

Air Protection	Cold Chain	General Lab	Analytical
Biosafety Cabinet	Medical Refrigerator	Autoclave	Chemistry Analyzer
Laminar Flow Cabinet	Blood Bank Refrigerator	Incubator	ELISA Reader & Washer
Fume Hood	-25 Freezer	Drying Oven	Hematology Analyzer
Clean Room	-40 Freezer	Centrifuge	Electrolytic Analyzer
PCR Cabinet	-60/ -86 Freezer	Spectrophotometer	Urine Analyzer

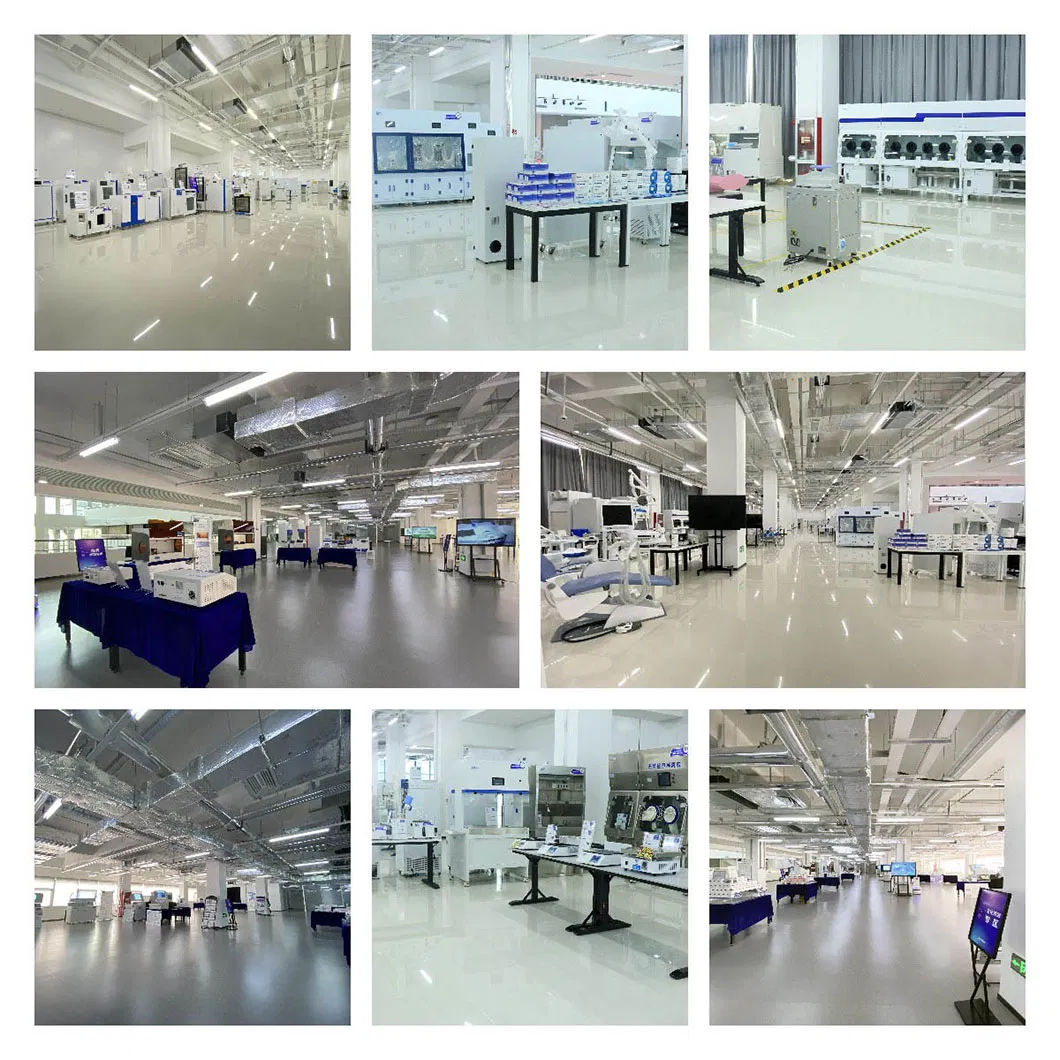

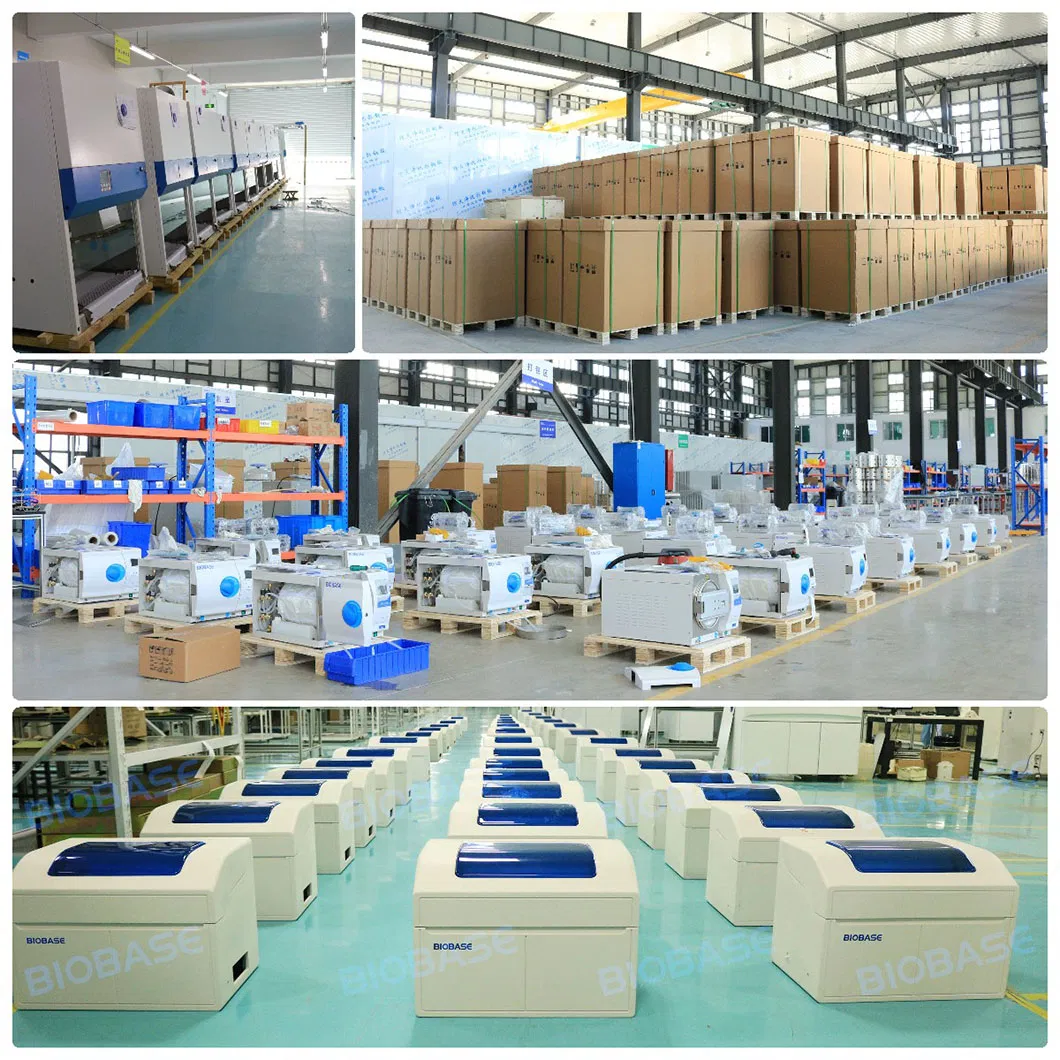

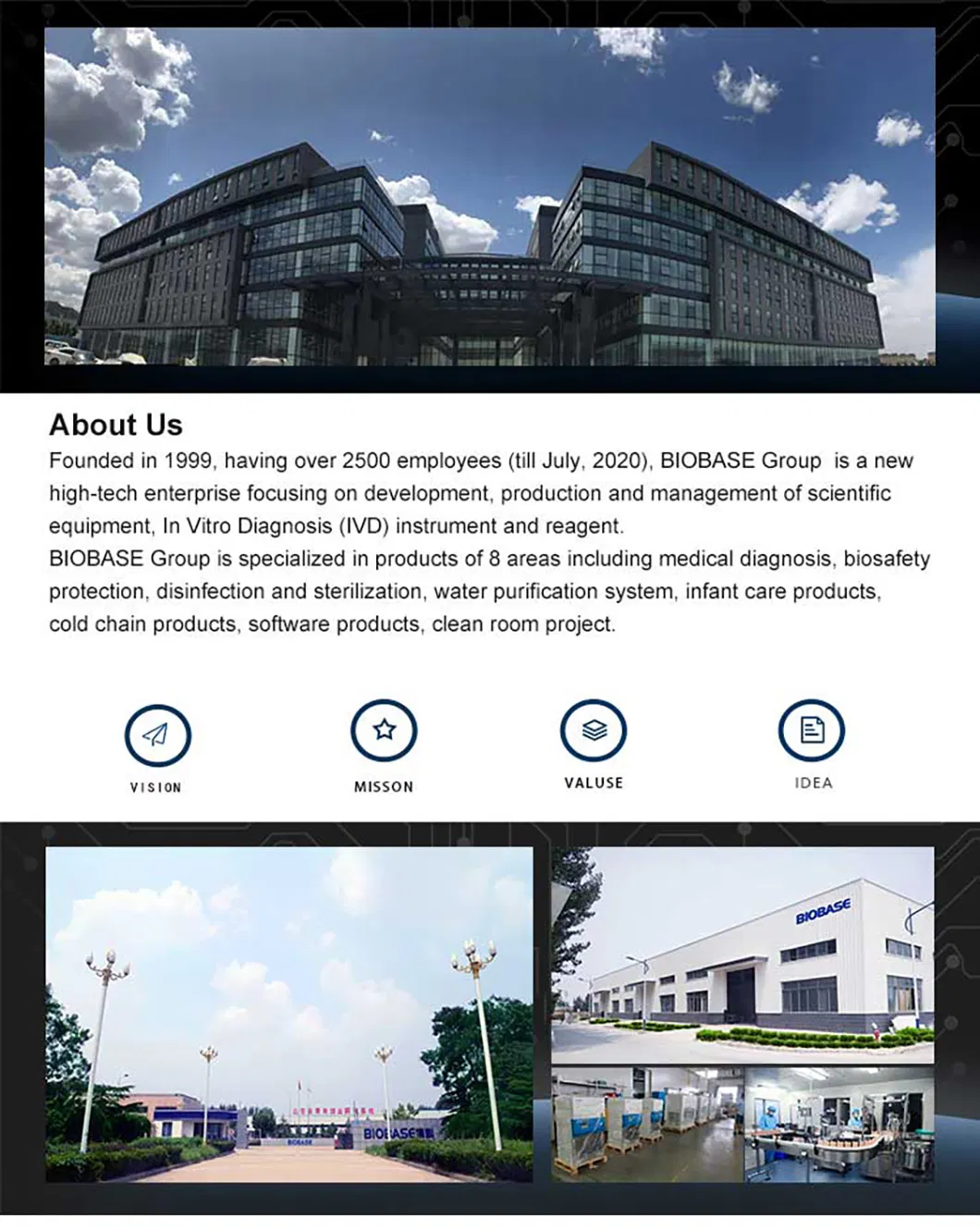

Production and Logistics

Packaging & Shipping

After-Sales Service

At your service: We provide comprehensive product training, online technical support, and on-site service to ensure your equipment operates at peak performance.

Customer Evaluation:

Exhibitions

Frequently Asked Questions (FAQ)

Does this system require a dark room for operation?

No, the system features a specialized overlay glue cutting filter that allows it to work effectively under strong light conditions, eliminating the need for a dedicated dark room.

What types of fluorescent dyes are compatible with this system?

The system is compatible with a wide range of dyes including EB, SYBR Gold, SYBR Green, SYBR Safe, Gel Red, Gel Green, and Texas Red.

What is the imaging resolution of the CCD camera?

The system is equipped with a 1.4-megapixel digital CCD camera with a pixel resolution of 1280*1024, providing high sensitivity for clear imaging.

Is the zoom lens automated?

Yes, the system includes a high-performance 6x zoom lens with automatic focus capabilities to simplify the imaging process.

Can this system be used for protein analysis?

Yes, the white light sample plate is specifically designed for shooting SDS-PAGE glue samples commonly used in protein analysis.

What is the transmission UV wavelength of the system?

The standard transmission UV wavelength is 302nm, which is ideal for nucleic acid detection.
