Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis
Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis
Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis
Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis
Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis
1 / 5
Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis
Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis
Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis
Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis
Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis

Biobase Electrophoresis System Gel Document Imaging System for Lab Protein DNA Analysis

Customization: Available
Certification: CE
Effective Pixels: 1280*1024
Send Inquiry

Product Description

Basic Information
Model NO. IM series
Pixel Density 10 Bit
Transport Package Carton Package
Origin China
Production Capacity 3880
Product Overview

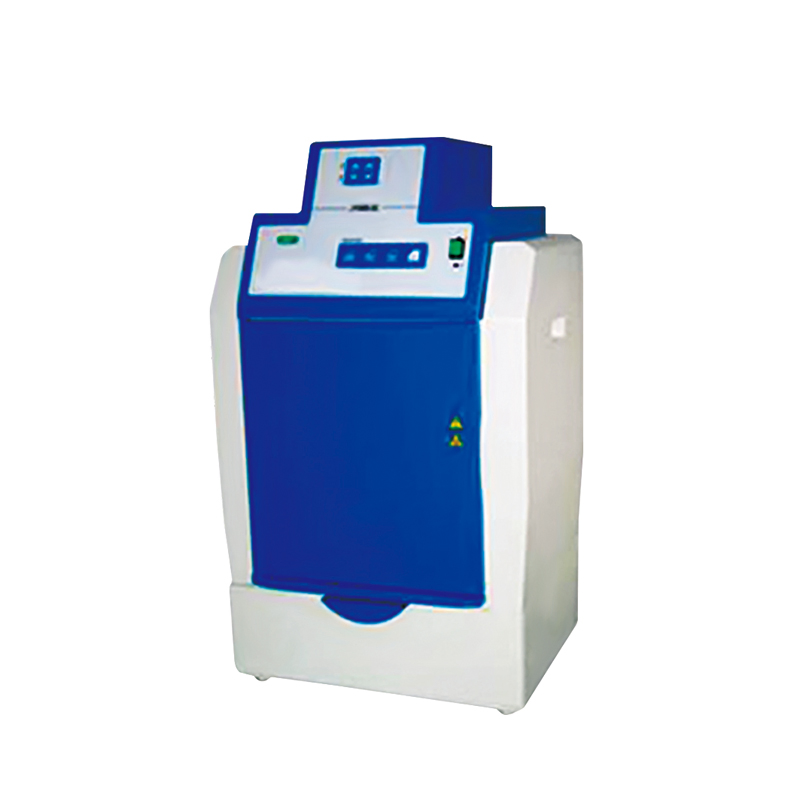

Electrophoresis System Gel Document Imaging System

Designed for professional lab protein and DNA analysis, this system is used for precise gel band observation and analysis after electrophoresis runs. Utilizing advanced software technology, band pictures can be zoomed and adjusted to meet specific user requirements.

Gel Document Imaging System
Key Features
  • CCD with lower lux and high-resolution imaging.
  • Six-time zoom lens for easy enlargement and shrinking of gel photos.
  • Multi-layer gel-filter effectively filters background noise.
  • Indicator-guided gel positioning for center alignment.
  • Intelligent Control Box:
    • Aperture, focus, zoom, UV, and white light controllable via panel or computer.
    • Safety UV shut-off when the door is opened.
    • UV protection system with 15-minute automatic delay shut-down.
    • Convenient drawer-style gel platform.
Technical Specifications
Model BK04S-3C BK04S-3E
Effective Pixels1280*10242560 *1920
Pixel Density10 bit
Pixel Size5.4*5.4μm
Resolution1.4 megapixels5.0 megapixels
Signal To Noise Ratio>=56db
SensitivityDetects double chain DNA (EB staining) below 20pg
CameraLow illumination and high resolution digital CCD
Zoom LensF=1:1.2, 2/3 inch 6x zoom lens
Filter590nm
UV Light Trans. Area250*200mm
Visible Light Trans. Area250*210mm
Transmission UV Wavelength302nm
Reflectance UV Wavelength254, 365mm
External Size (L*W*H)470*405*820mm
Gross WeightMain machine: 61kg, Accessory: 2.5kg
System Detailed Features
Frequently Asked Questions
What are the primary applications of this system?
The Gel Document Imaging System is specifically designed for observing and analyzing gel bands for protein and DNA analysis after electrophoresis.
How does the system ensure user safety regarding UV exposure?
The system features an intelligent control box that automatically shuts down the UV light when the door is opened and includes a 15-minute automatic delay shut-off for protection.
What is the detection sensitivity for DNA?
The system is highly sensitive and can detect double-chain DNA of EB staining at levels below 20pg.
Can the camera settings be adjusted through a computer?
Yes, the zoom, focus, aperture, as well as the UV and white light, can be controlled both through the panel keys and via a computer.
What type of lens does the system use?
It utilizes a high-quality F=1:1.2, 2/3 inch 6-times zoom lens for clear and flexible imaging.
Is the gel platform easy to access?
Yes, the system is designed with a drawer-style gel platform for easy placement and retrieval of samples.
