| Model NO. | 9220 |
| Material | Polyurethane Foam Board |
| Applicable Temperature | -196°C to 120°C |
| Density | 160-340 Kg/M³ |
| Shape | Rectangle |
| Customized Services | Yes |
| Package Size | 76.00cm * 66.00cm * 102.00cm |
| Package Gross Weight | 20.000kg |
| Technical Property | Unit | 9160 | 9220 | 9320 | 9340 |
|---|---|---|---|---|---|
| Density | Kg/m³ | 160 | 220 | 320 | 340 |
| Thermal Conductivity | W/(m.k) | ≤0.036 | ≤0.040 | ≤0.050 | ≤0.048 |
| Water absorption | % | ≤2 | ≤2 | ≤1.8 | ≤1.6 |
| Closed cell | % | ≥95 | ≥95 | ≥95 | ≥98 |
| Compressive strength | Mpa | ≥1.6 | ≥4 | ≥6 | ≥9 |

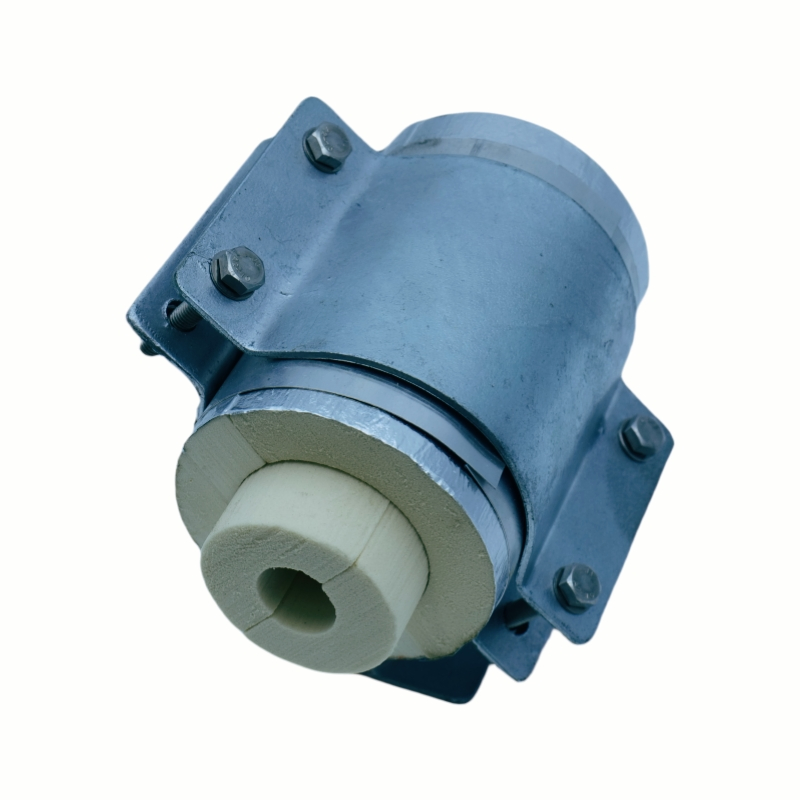

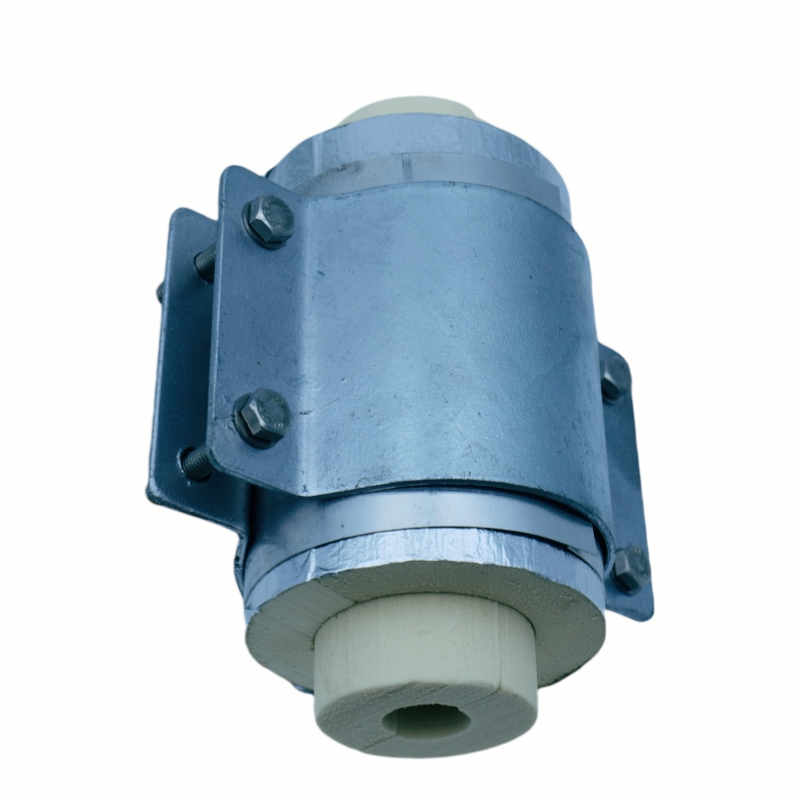

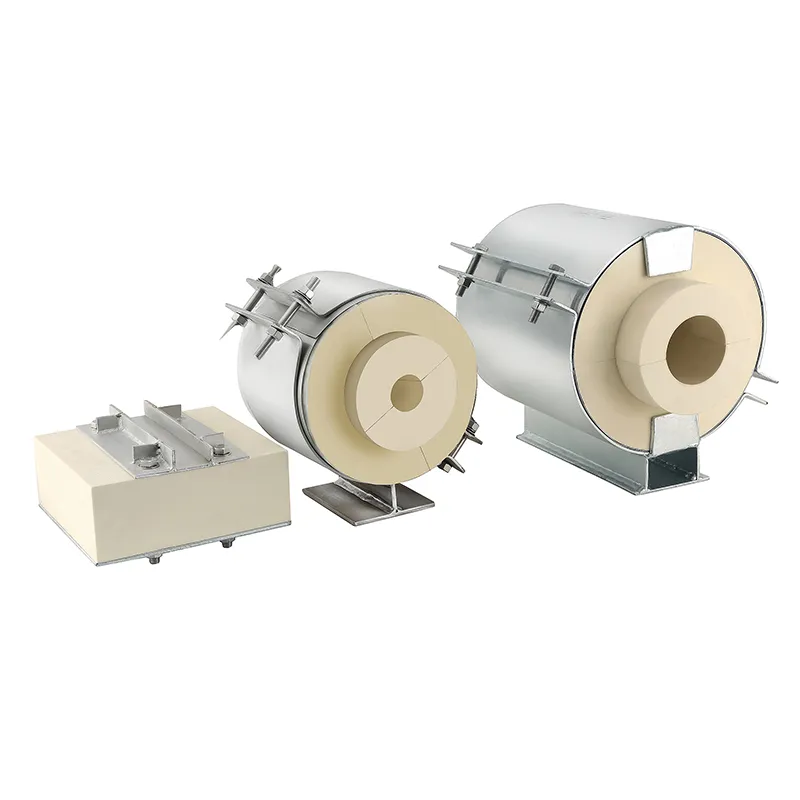

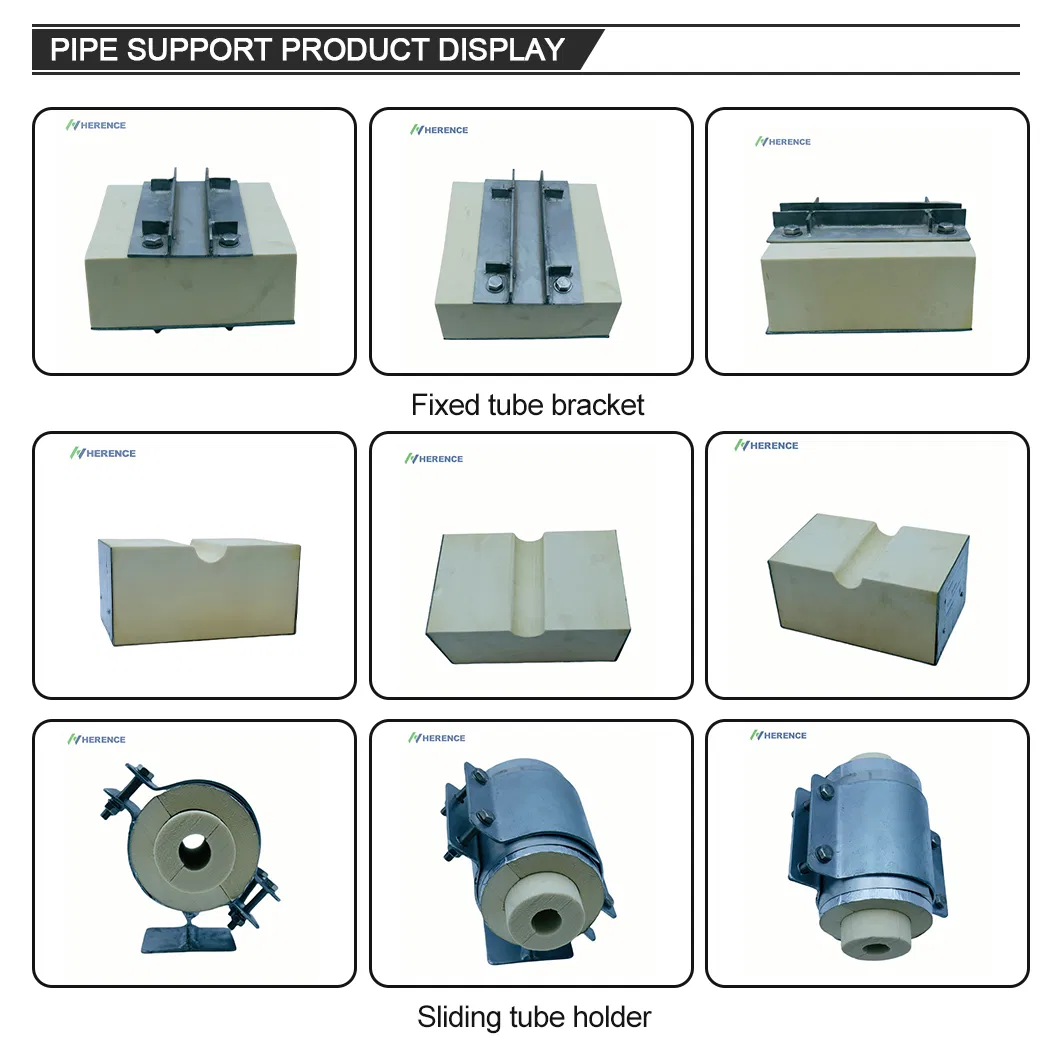

Fixed Tube Bracket
Sliding Tube Holder

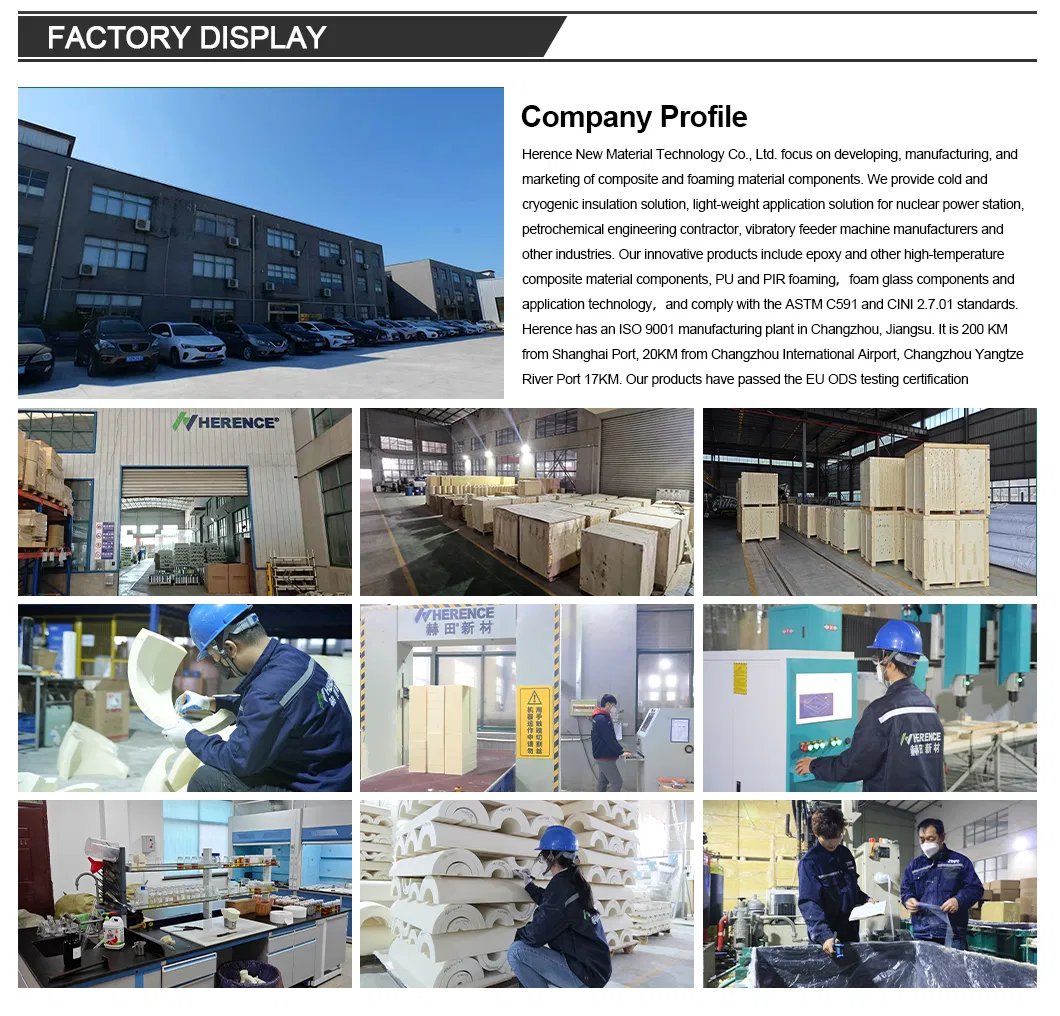

We are an R&D-driven company dedicated to the development, manufacture and global promotion of advanced foamed and composite molded components. We specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries.
We currently hold 2 invention patents and 23 utility-model patents. By continuously exploring and analyzing the specific needs of each sector, we design products that are highly targeted, exceptionally durable and meticulously detailed. Our solutions—covering complete pipeline cold insulation, electrical insulation and composite lightweight systems—serve city-gas operators, petrochemical EPC contractors, air-separation plants, nuclear-power facilities, LNG pipelines, LNG shipping and many other industrial applications.
