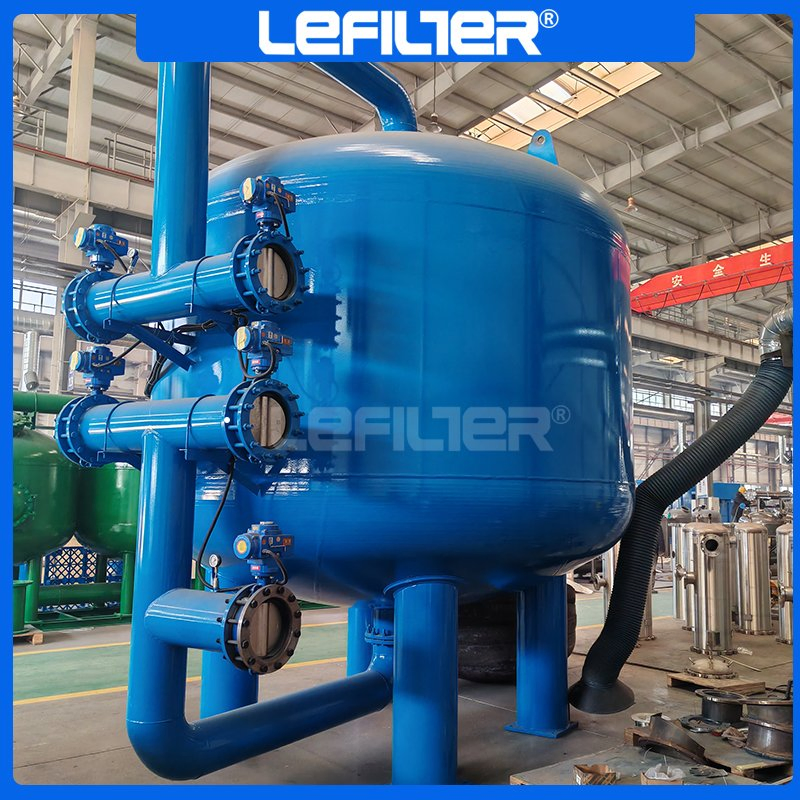

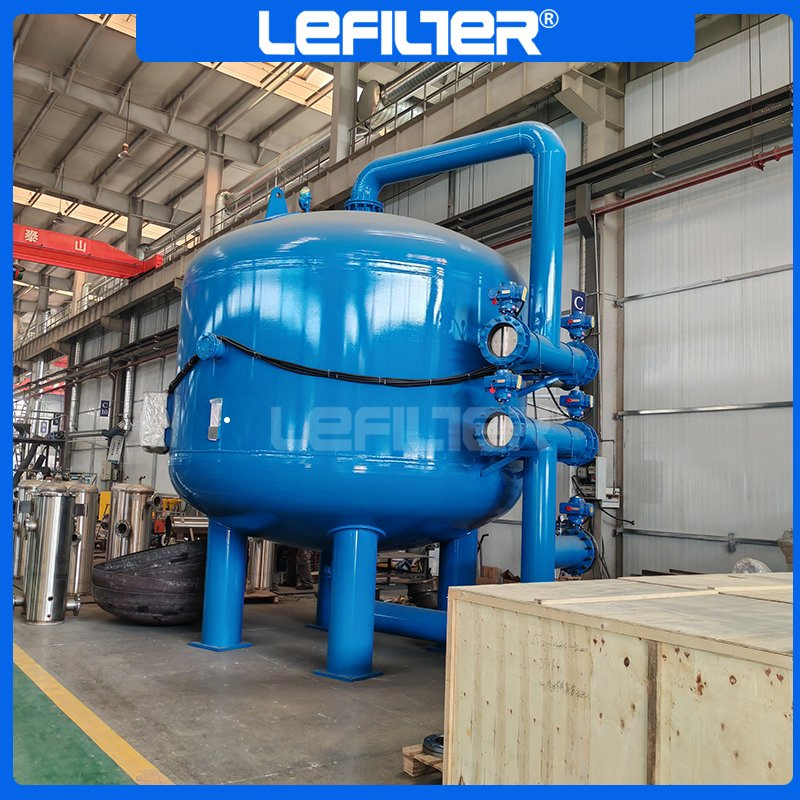

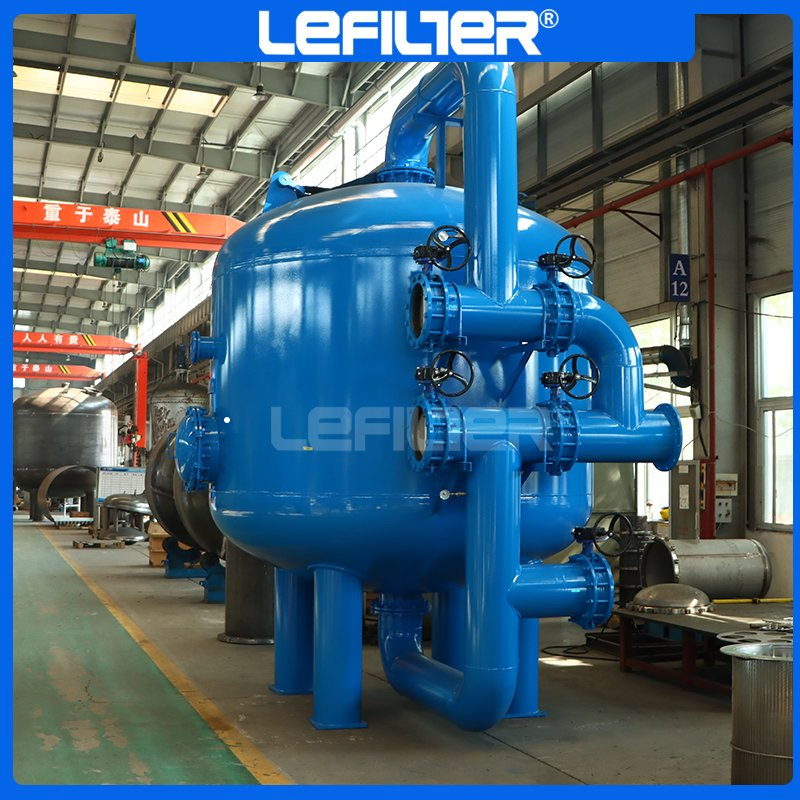

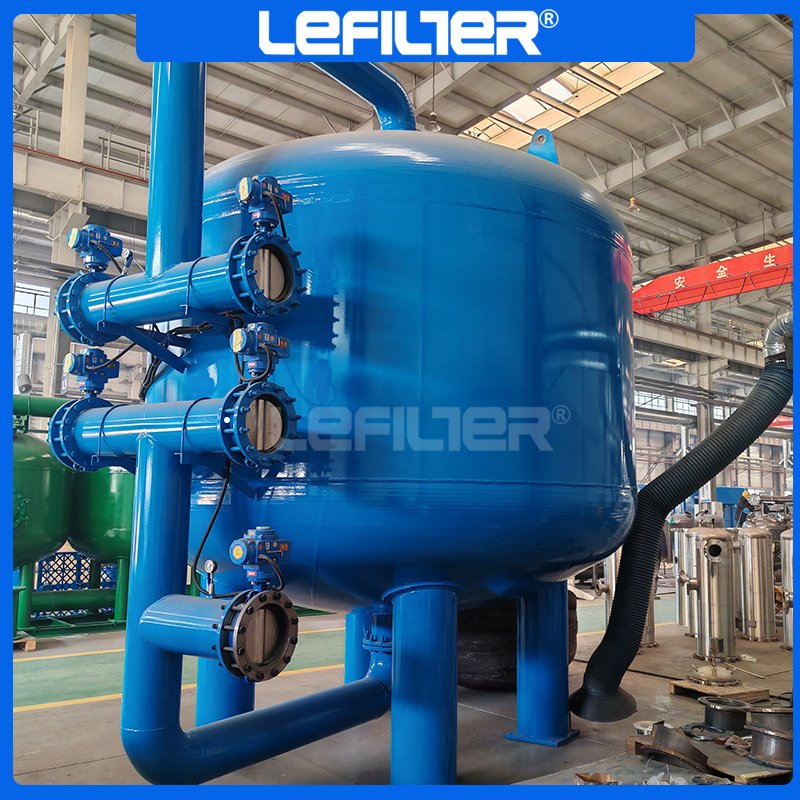

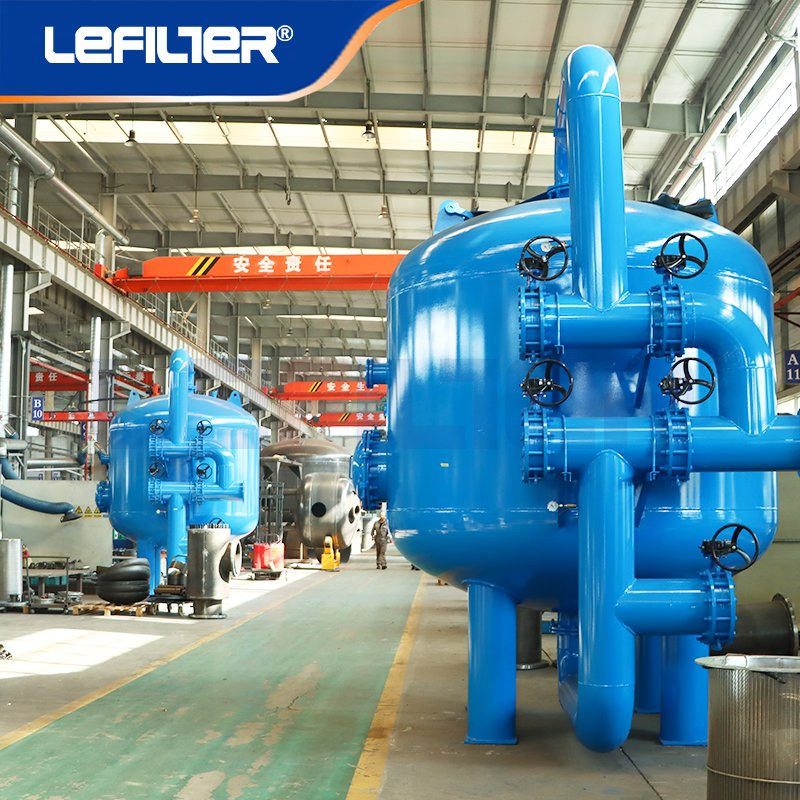

Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters
Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters
Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters
Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters
Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters
1 / 5
Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters
Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters
Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters
Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters
Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters

Customized Flow Rate 10-500t/H Fully Automatic Backwash Sand and Gravel Filtration System Supports Multiple Pipe Diameters

Customization: Available
Type: Manganese Sand Filter
Usage: Environmental Protection, Chemical Industry
Send Inquiry

Product Description

🟦 Basic Information
Model NO.
LF-SYS1200
Motive Force
Electric power
Style
Vertical
Performance
Manganese Sand Filter
Certification
CE
Flow Rate
12t/H
Material
Stainless Steel Carbon Steel
Pressure
10kg
Interface
Flange
Specification
1200*2650
HS Code
8421299090
Production Capacity
300 Set/M
📦 Packaging & Delivery
Package Size
80.00cm * 80.00cm * 210.00cm
Gross Weight
500.000kg
Transport Package
Export Wooden Case
⚙️ Product Description

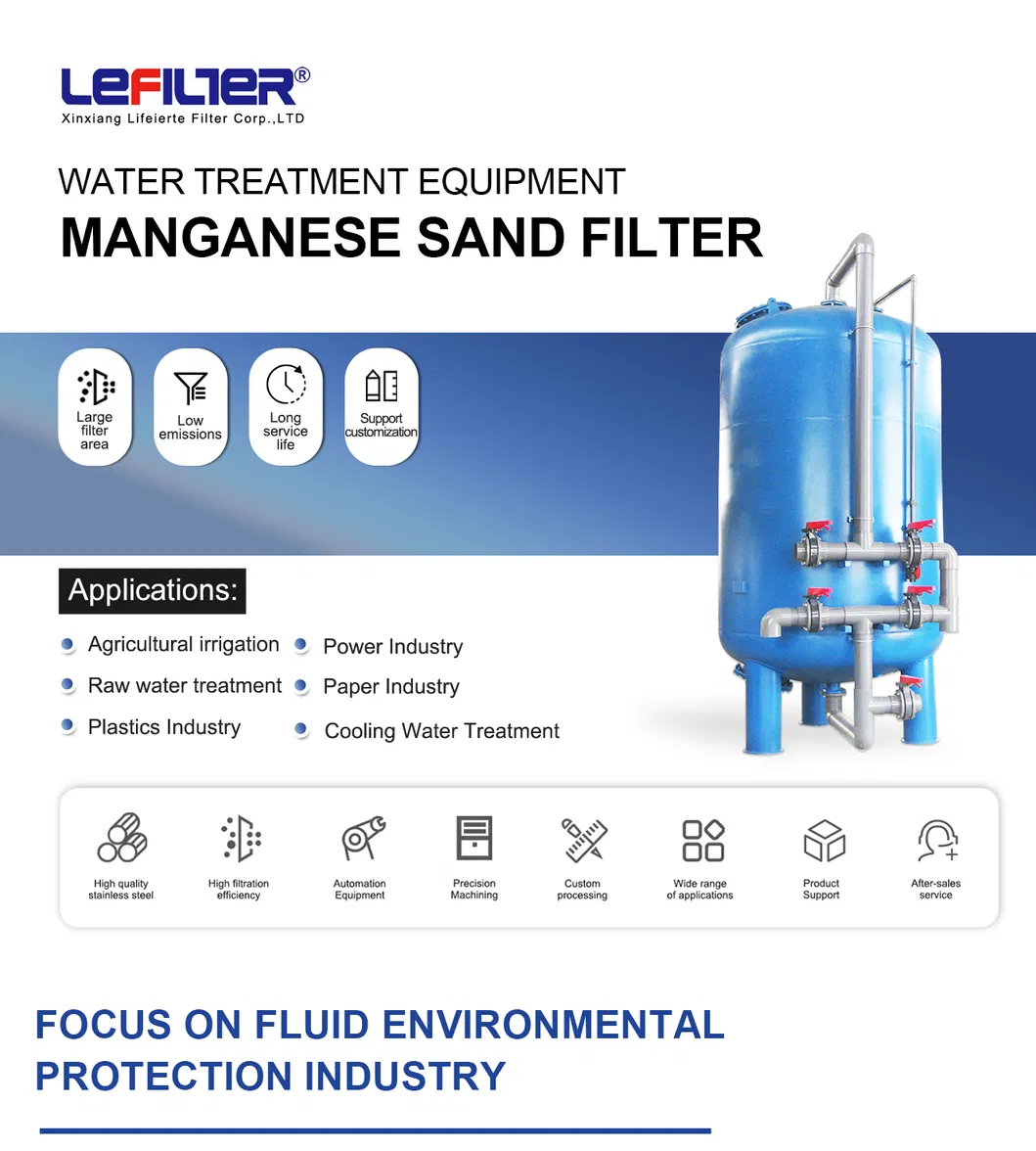

Filtration System 1

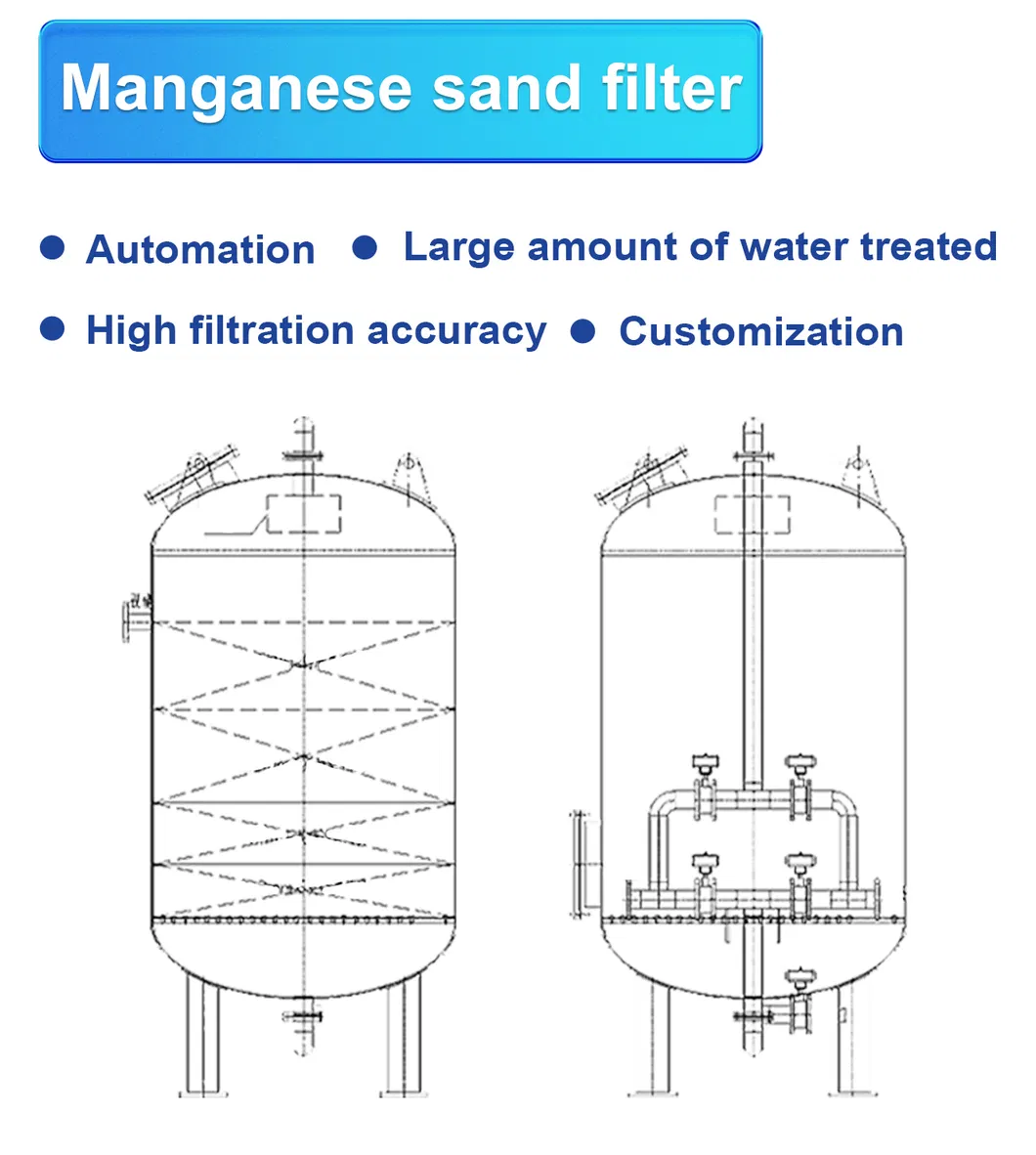

Filtration System 2

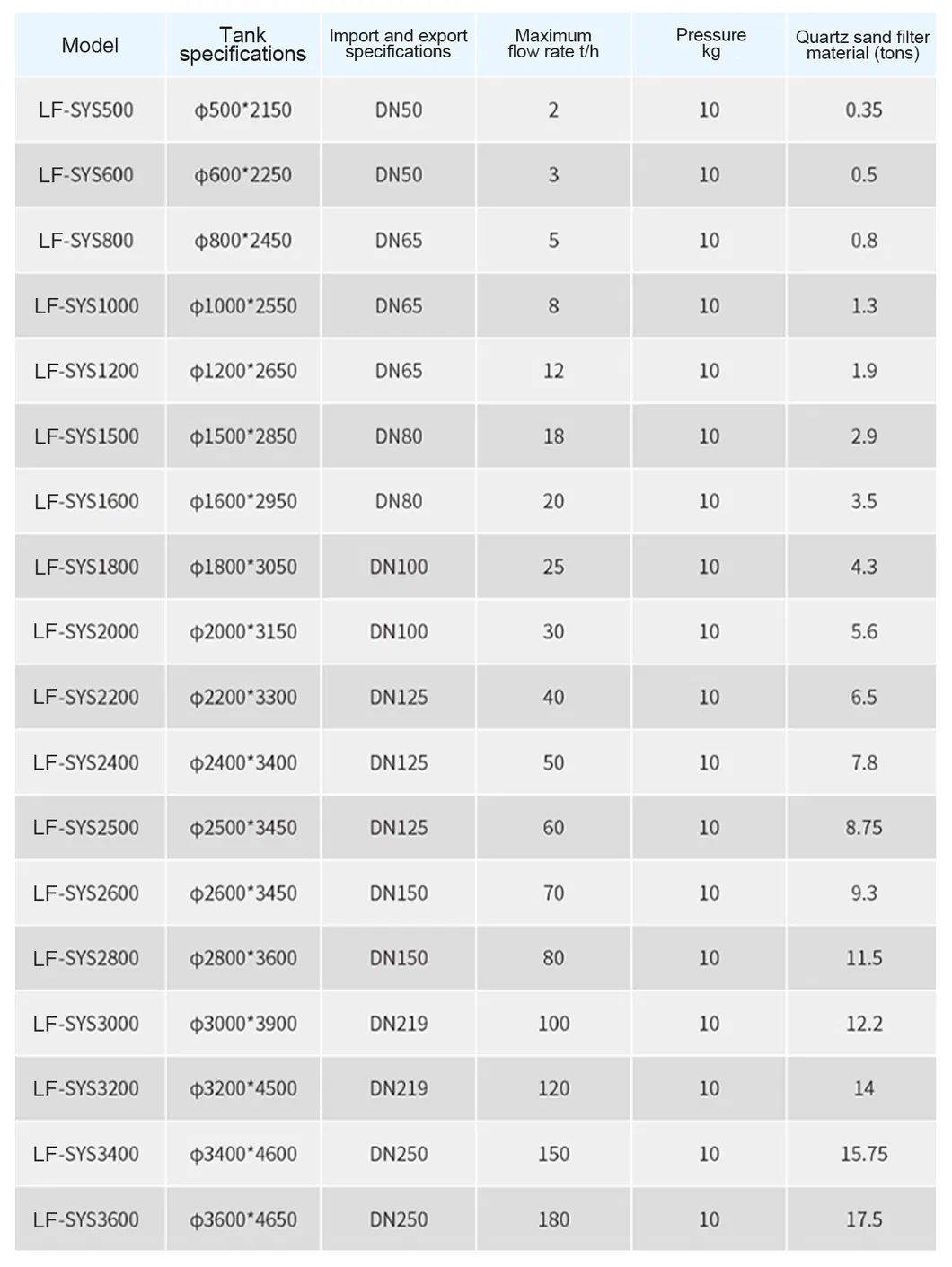

Filtration System 3
Project Parameter Explain
Flow Rate20-10000m3/hModel selection depends on filtering accuracy and impurity content.
Min working pressure0.2MPa(g)-
Working pressure1.6MPa(g)Special requirements can be customized
Path diameterDN50-DN700Special requirements can be customized
Max operating temperature80ºCHigh temperature types available
Filtering accuracy50-3000um-
Filter materialManganese sand-
Equipment materialQ235, 304, 316L-
Motor power0.37-1.1KW-
Supply voltage380V/50Hz-
Backwash flow rate< 1% of total traffic-
Backwash time15sAdjustable
Backwash pressure diff0.5Kg/cm2Adjustable

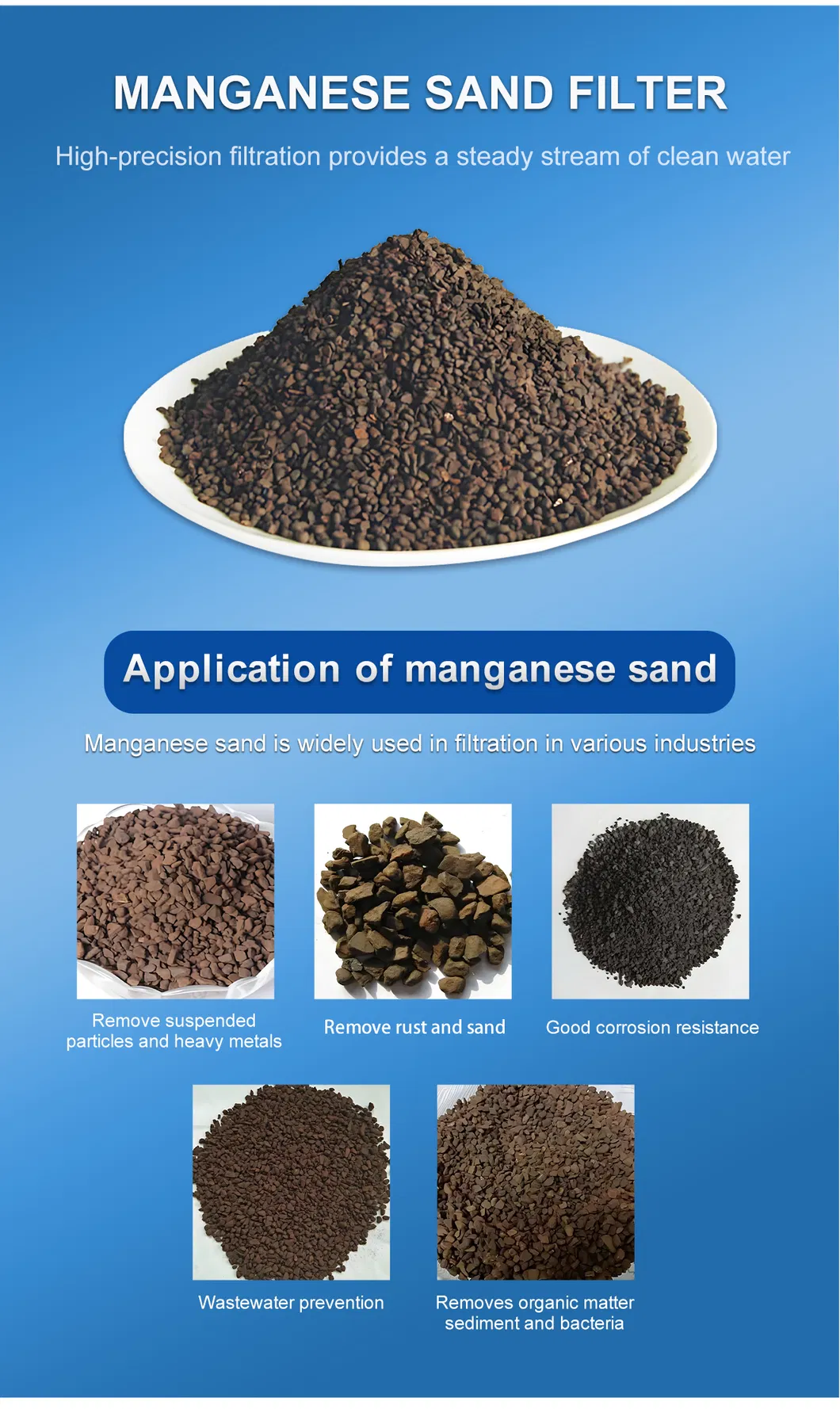

Details 1

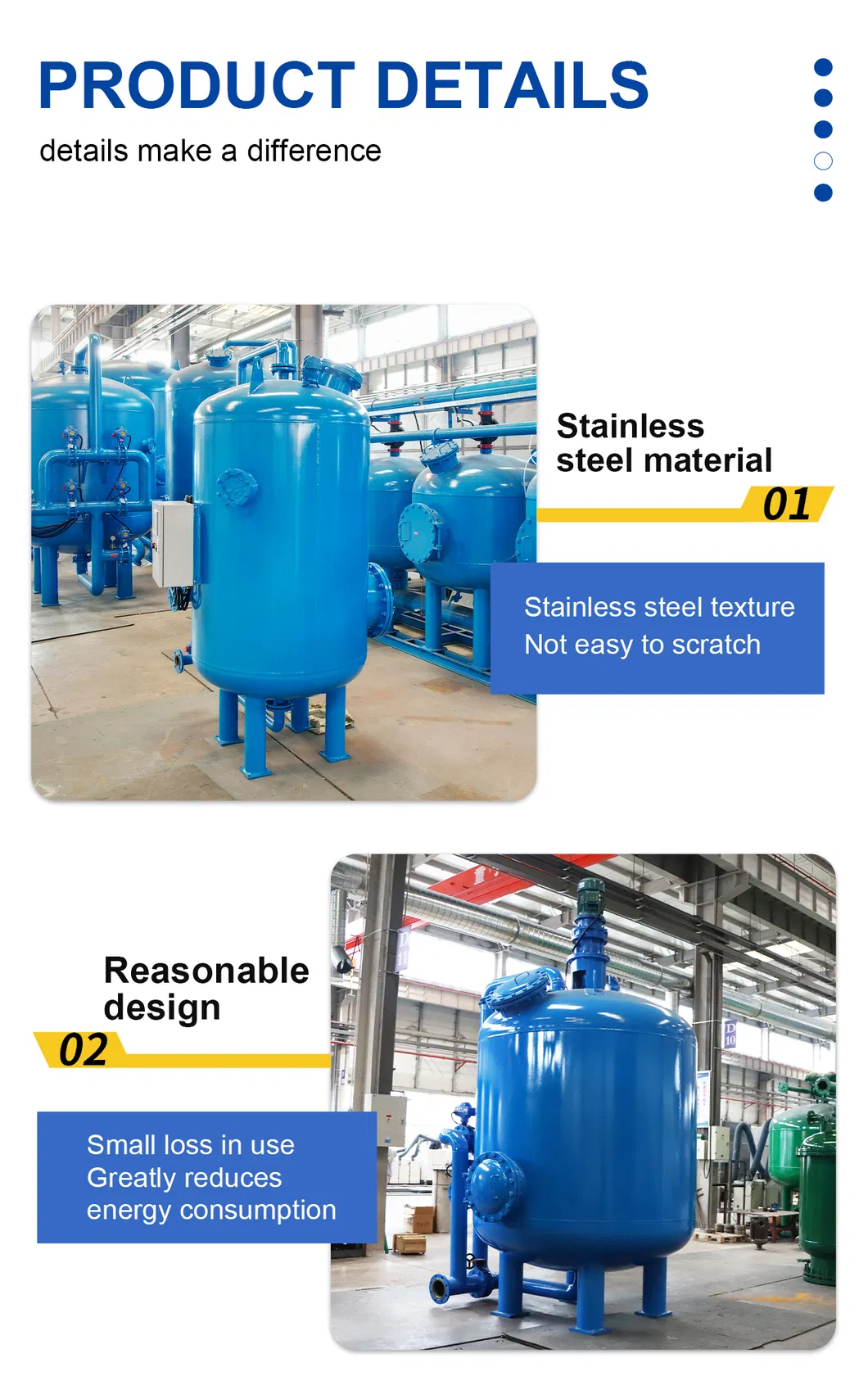

Details 2

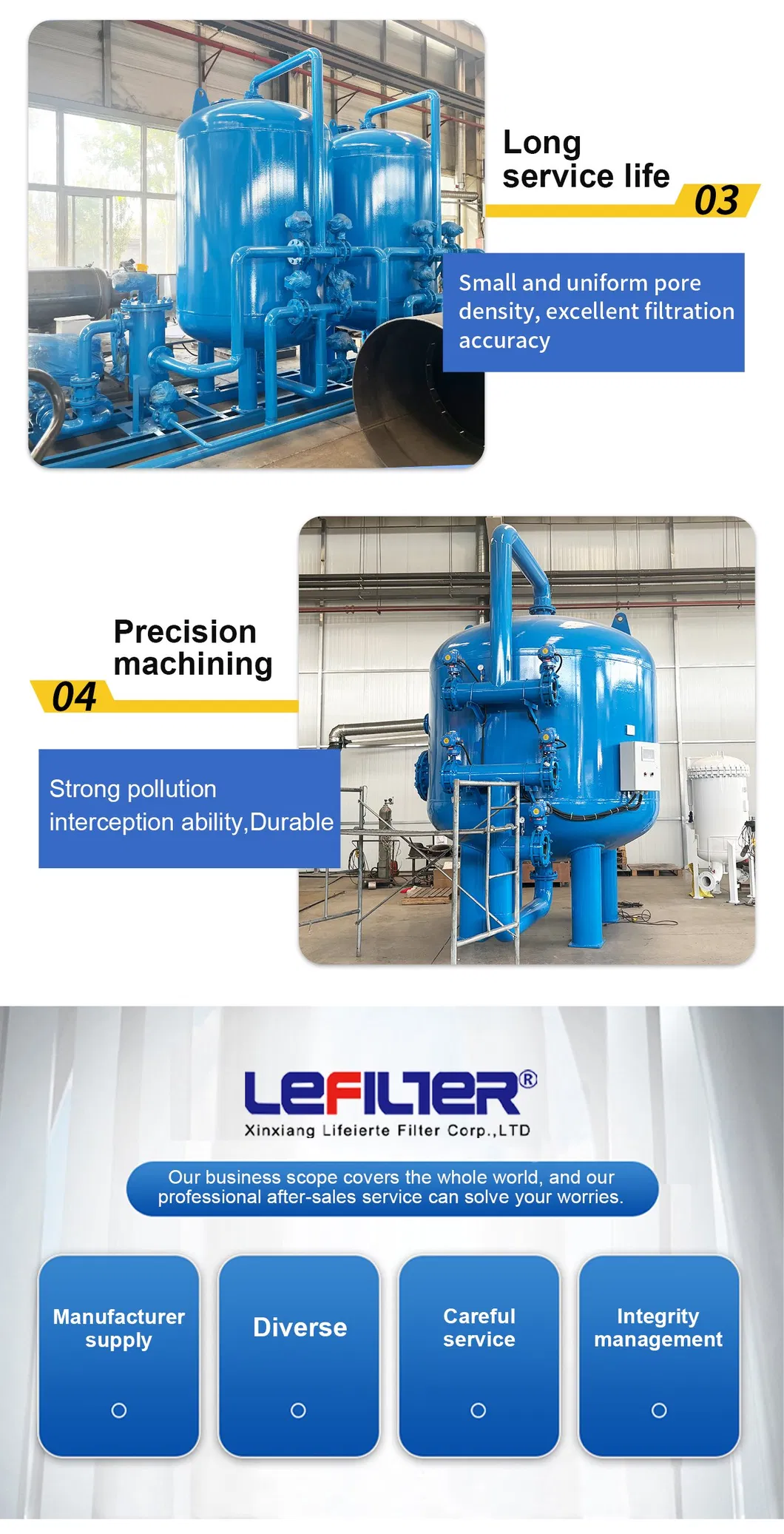

Details 3

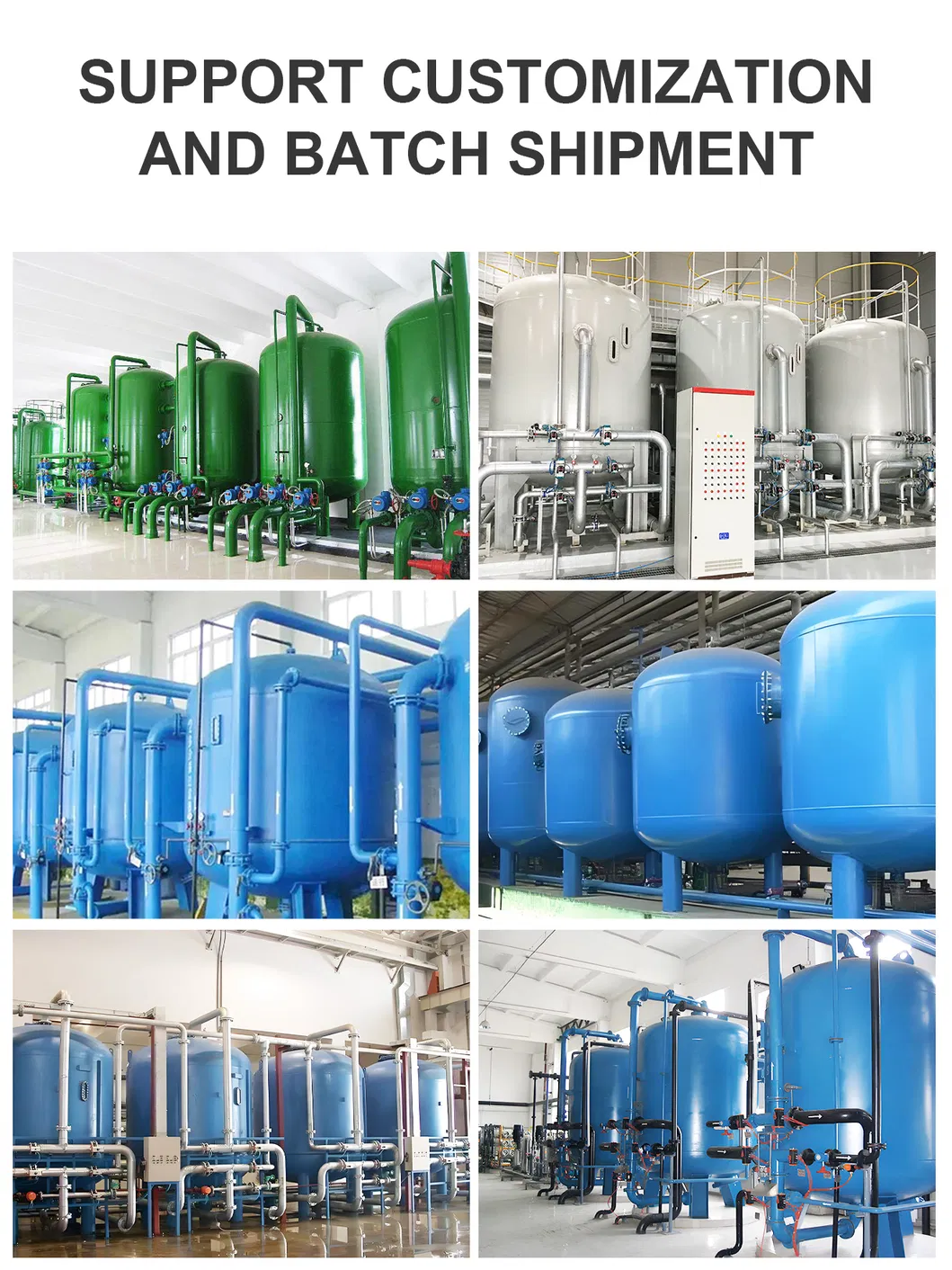

Details 4
Details 5
Details 6
Details 7

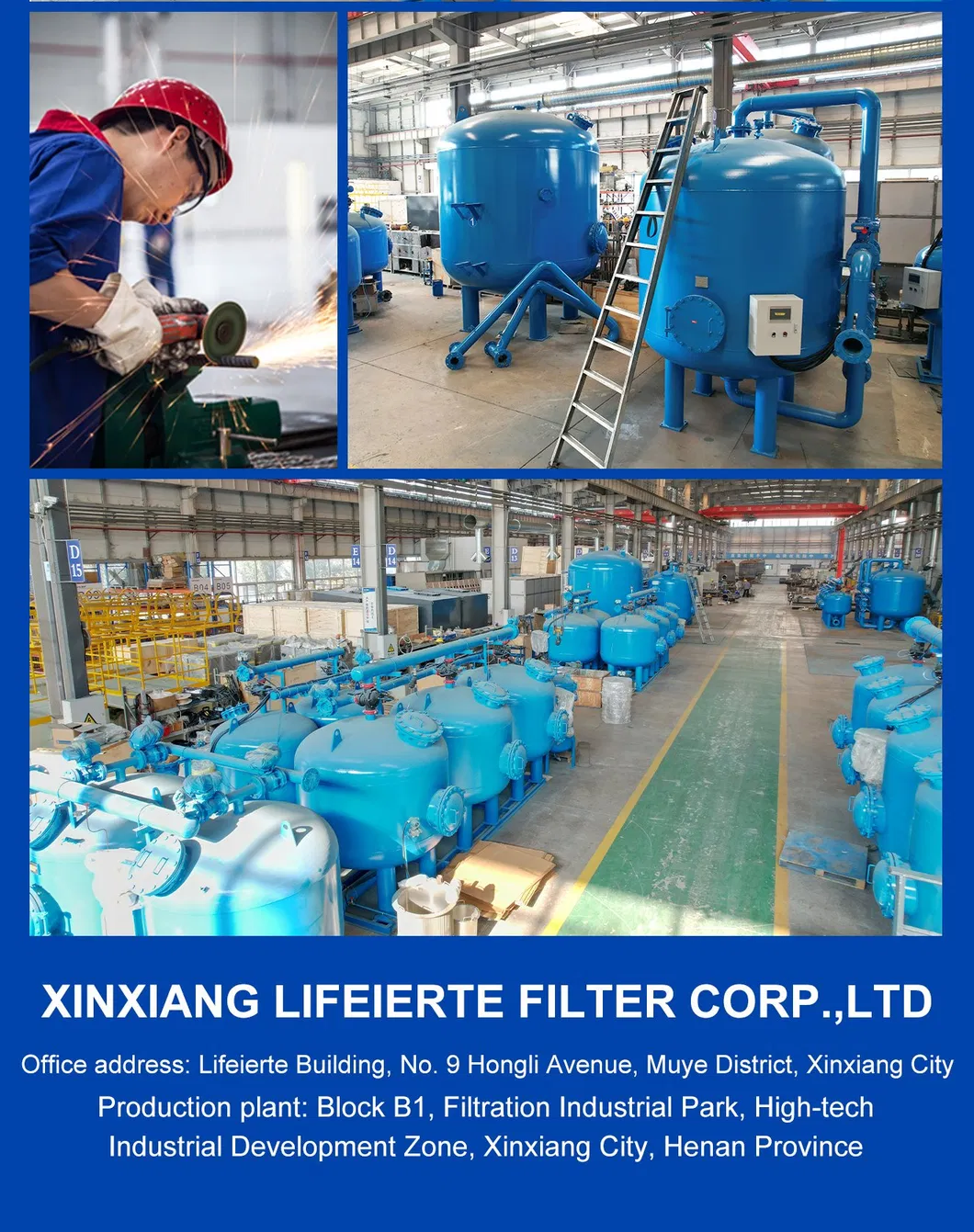

Details 8
❓ Frequently Asked Questions
1. What types of industrial water filters are available?
We provide a wide range of industrial equipment including self-cleaning filters, security filters, bag filters, sand and gravel filters, fiber ball filters, and backwash filters, along with accessories like filter screens and cartridges.
2. What is the maximum processing capacity of these filters?
The filtration system can achieve a maximum processing capacity of up to 1000m³/h, depending on the specific model and application requirements.
3. Which filter is best for reducing water turbidity?
Quartz sand filters are ideal for high turbidity water. They use granular quartz sand media under pressure to effectively remove suspended solids, organic matter, colloidal particles, and microorganisms.
4. How is the filtration equipment installed?
The system features skid-mounted loading for easy transportation. Installation simply requires connecting the inlet/outlet flanges and setting up the drain connection.
5. Can the filtration products be customized?
Yes, customization is available based on detailed specifications or technical drawings to meet specific industrial flow rates, pressures, or material requirements.
6. How does the backwash system operate?
The system features an automatic backwash function. The backwash time (typically 15s) and the backwash pressure difference (standard 0.5Kg/cm2) are both fully adjustable to optimize performance.
