Dycp-31DN Horizontal Gel Electrophoresis System for The Identification, Separation and Preparation of DNA

1 / 5

Dycp-31DN Horizontal Gel Electrophoresis System for The Identification, Separation and Preparation of DNA

Customization:	Available
After-sales Service:	Lifetime Online Technial Support
Warranty:	One Year

Send Inquiry

Product Description

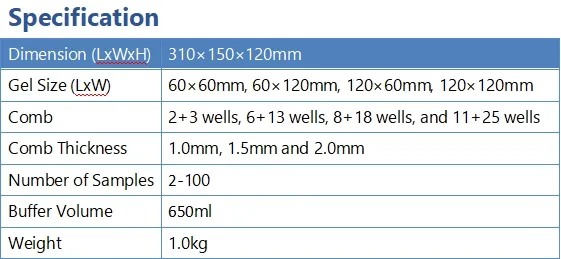

Basic Information

Model NO.DYCP-31DN

Weight1.0kg

Gel Size (LxW)60×60mm, 60×120mm, 120×60mm, 120×120mm

Comb Wells2+3, 6+13, 8+18, 11+25 Wells

Comb Thickness1.0mm, 1.5mm, 2.0mm

Sample Capacity2-100 Samples

Buffer Volume650ml

Dimensions310×150×120mm

Production Capacity5000 Sets Per Year

PackageStandard Carton

Product Description

DYCP-31DN Horizontal Gel Electrophoresis System is designed for the identification, separation, and preparation of DNA, as well as for measuring molecular weight. It provides a reliable solution for molecular biology laboratories requiring precision and ease of use.

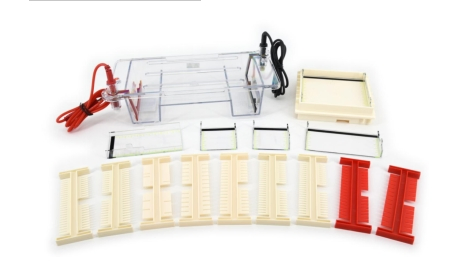

Horizontal Gel Electrophoresis System Main View

Primary Application: This system is widely applied to identify, separate, and prepare DNA fragments. It is an essential tool for nucleic acid analysis and molecular weight determination.

Key Features

Constructed from high-quality polycarbonate, ensuring an exquisite finish and long-term durability.
Transparent top lid allows for easy, real-time observation of the electrophoresis process.
Includes a special gel casting base for quick, easy, and leak-proof gel preparation.
Safety auto-switch-off function activates immediately when the lid is opened.
Equipped with removable electrodes for simple maintenance and thorough cleaning.
Designed to save buffer solution while remaining exceptionally simple to operate.
Features black bands and fluorescent marks on the gel tray for convenient sample loading and observation.
High versatility: Can run two pieces of gel simultaneously and cast different gel sizes on one base.

Frequently Asked Questions

Q1: What is the minimum order quantity (MOQ) for this system?

The minimum order quantity is very low; you can order as little as one set. For customized projects, the MOQ depends on specific technical requirements.

Q2: Does the DYCP-31DN come with a product warranty?

Yes, we provide a 1-2 year warranty on our electrophoresis products to ensure reliable performance in your laboratory.

Q3: What is the typical delivery time after placing an order?

Standard delivery is usually within 3-5 days when the product is in stock. For larger orders, we will provide a specific lead time based on the quantity.

Q4: How many gel sizes can be used with this system?

The system is highly flexible, supporting multiple gel sizes including 60×60mm, 60×120mm, 120×60mm, and 120×120mm, all cast using the same base.

Q5: Is the system safe for student use or high-traffic labs?

Yes, it features an auto-switch-off mechanism that cuts power the moment the lid is opened, ensuring maximum safety for all users.

Q6: How can I access after-sales service?

We take full responsibility for our products within the validity period. If you require assistance, our technical support team is available to help with maintenance and troubleshooting.
