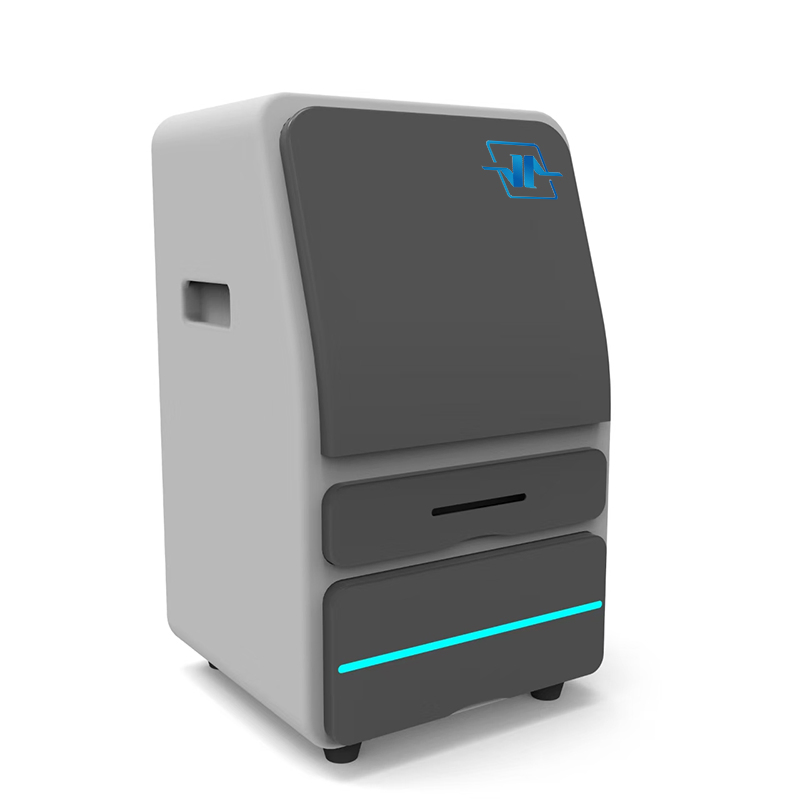

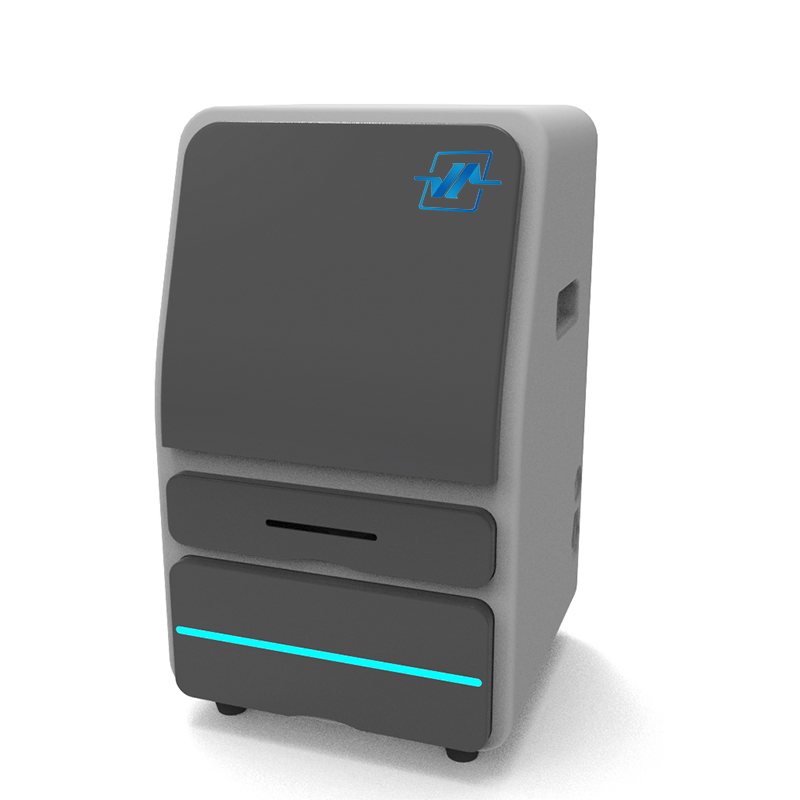

0-100% N Energy Adjustable USB 3.0 Interface Protein Gel Imaging Analysis Chemiluminescence Imaging System
0-100% N Energy Adjustable USB 3.0 Interface Protein Gel Imaging Analysis Chemiluminescence Imaging System
0-100% N Energy Adjustable USB 3.0 Interface Protein Gel Imaging Analysis Chemiluminescence Imaging System
1 / 3
0-100% N Energy Adjustable USB 3.0 Interface Protein Gel Imaging Analysis Chemiluminescence Imaging System
0-100% N Energy Adjustable USB 3.0 Interface Protein Gel Imaging Analysis Chemiluminescence Imaging System
0-100% N Energy Adjustable USB 3.0 Interface Protein Gel Imaging Analysis Chemiluminescence Imaging System

0-100% N Energy Adjustable USB 3.0 Interface Protein Gel Imaging Analysis Chemiluminescence Imaging System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
AY3800
Warranty
One Year
Performance
Semi-automatic
Power Supply
220V
Certification
CE
Sensor Size
12.49*9.99mm
Pixel Size
≥4.54μm*4.54μm
Resolution
6.05 Million Pixels
Lens
25mm F0.8 Large Target Surface
Package Size
60x55x80cm
Gross Weight
50.00kg
Product Overview
0-100% N Energy Adjustable USB 3.0 Protein Gel & Chemiluminescence Imaging System
Imaging System Overview
Key Features
  • ⚙️
    Fully Automatic Control: Seamless operation of zoom and focus without manual adjustment, preventing cross-interference.
  • 🧪
    Multi-Layer Sample Design: Optimized for various exposure experiments with modular trays (UV/Dye-free, White Light, Blue Light).
  • 📱
    Smart Interface: Features a 5.0-inch touchscreen for real-time status monitoring and operation.
  • 👁️
    Infrared Sensing: Built-in system for automatic identification of sample placement status.
  • 💡
    Adjustable LED Light: White light source with 0-100% energy adjustment, ideal for Coomassie Brilliant Blue or Silver staining.
  • ⚡
    High-Speed USB 3.0: Single interface control for the camera, light source, UV stage, and rapid image acquisition.

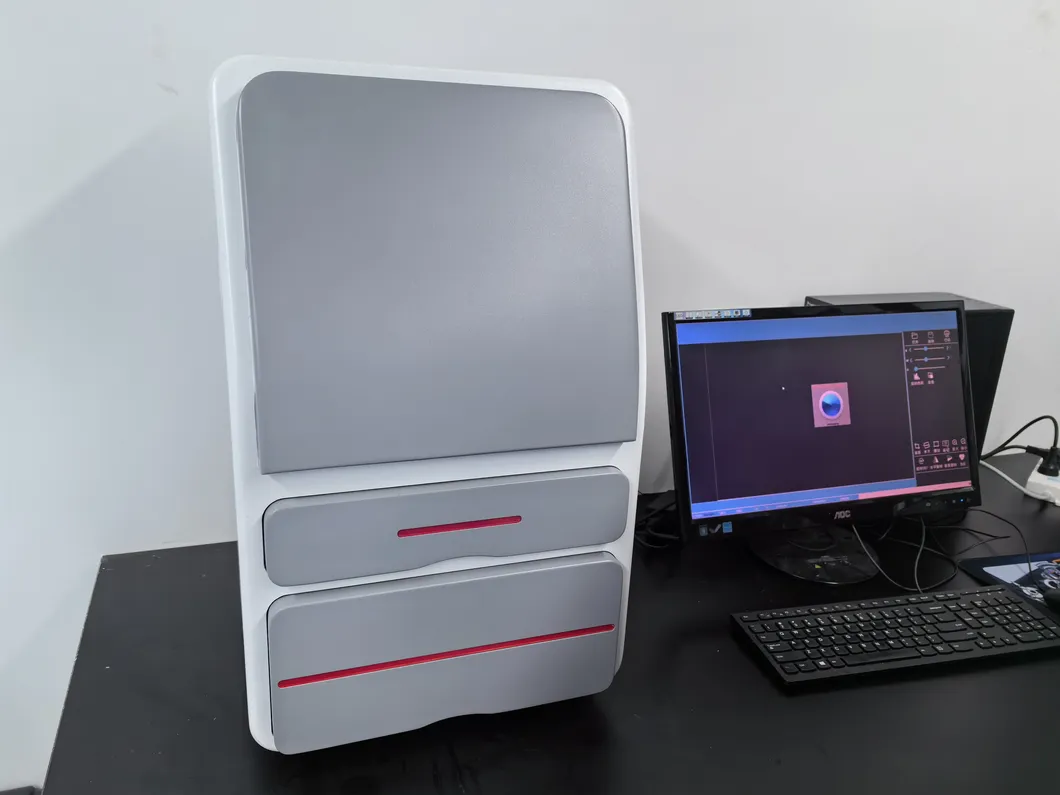

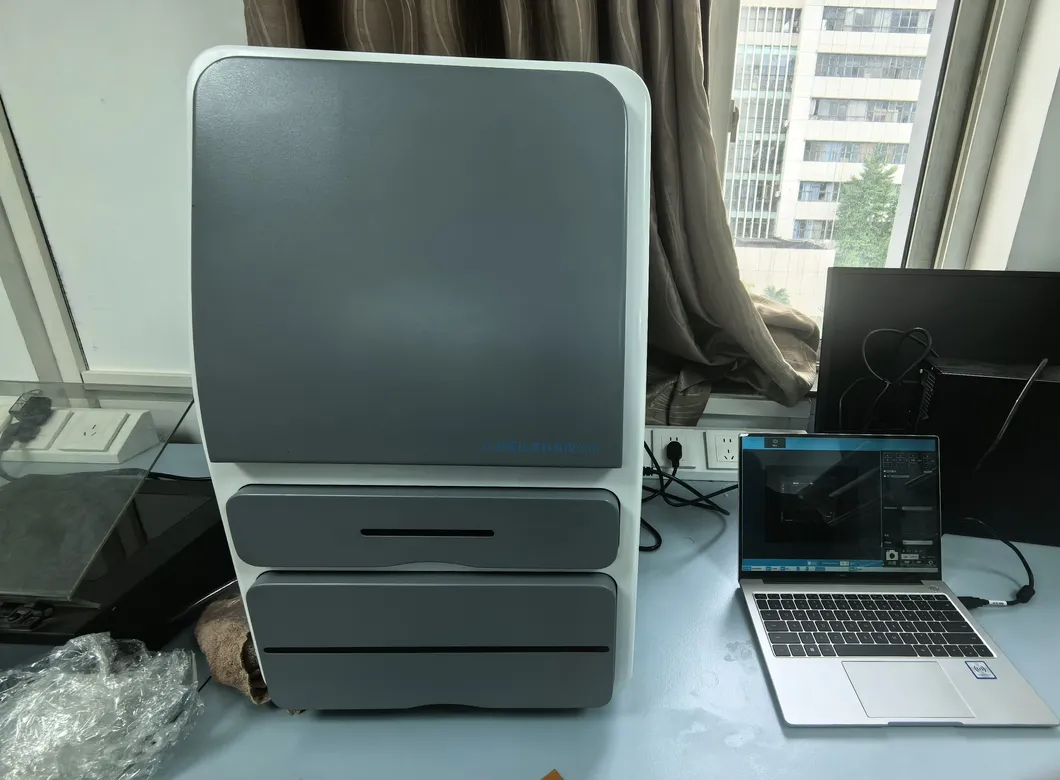

Imaging Performance 1 Imaging Performance 2
Technical Parameters
1. CCD Camera Specifications
Sensor Size12.49 × 9.99 mm
Pixel Size≥4.54μm × 4.54μm
Readout Noise5.5e- RMS at 12 MHz
Dark Current<0.0005 e-/pixel/sec. @ -20º C
Dynamic Range>4.6 OD
Physical Resolution6.05 Million Pixels (2750 * 2200)
Pixel Density16 bit (65,536 grayscale)
Quantum Efficiency>78%
Refrigeration3-Level TEC, -65ºC below ambient
2. Optical Lens & Darkroom
Lens Type4/3-inch 25mm F0.8 Large Aperture
Lens ControlSoftware-controlled Auto Focus & Aperture
Darkroom DesignFully enclosed with three-layer sliding tray
3. Auxiliary Light Source
Top LightLED Matrix Light Source
Imaging Area200 * 180 mm
Equipment Detail 1 Equipment Detail 2
Shipping & Logistics

Standard Delivery Times:

  • DHL: 5-7 working days
  • UPS / FedEx: 7-9 working days
  • EMS: 25-30 working days
  • Sea Freight: Depends on destination
Shipping Info
Frequently Asked Questions
What are the primary applications for this imaging system?
The system is designed for high-sensitivity protein gel imaging analysis, chemiluminescence imaging, and works effectively with Coomassie Brilliant Blue or Silver staining.
How does the cooling system benefit the camera performance?
It utilizes a third-level TEC refrigeration system that reaches -65ºC below room temperature, significantly reducing dark current and noise for clearer long-exposure images.
Is the focus adjustment manual or automatic?
The system features fully automatic control for both zoom and focus via the integrated software, ensuring precision and preventing contamination.
What type of data interface is used for image transfer?
A high-speed USB 3.0 interface is used, which manages the camera, light sources, and digital image acquisition through a single connection.
What kind of sample trays are available?
The system supports modular trays including UV/dye-free, white light, and blue light trays to accommodate a wide variety of sample types.
What is the warranty period for the AY3800 model?
This model comes with a standard one-year warranty covering technical performance and manufacturing quality.
