| Model | CH11 Pro | Application | Drone Detection/Locating |
|---|---|---|---|
| Detected Bands | 300M~1.5G, 2.4G, 5.2G, 5.8G | Detection Height | 0m - 1000m |
| Azimuth Error | ≤1.5° (RMS) | Positioning Accuracy | ≤10m |
| Success Rate | ≥99% | Deployment Time | ≤90s |
| Weight | ~19.5kg | Dimensions | 520mm x 415mm x 224mm |

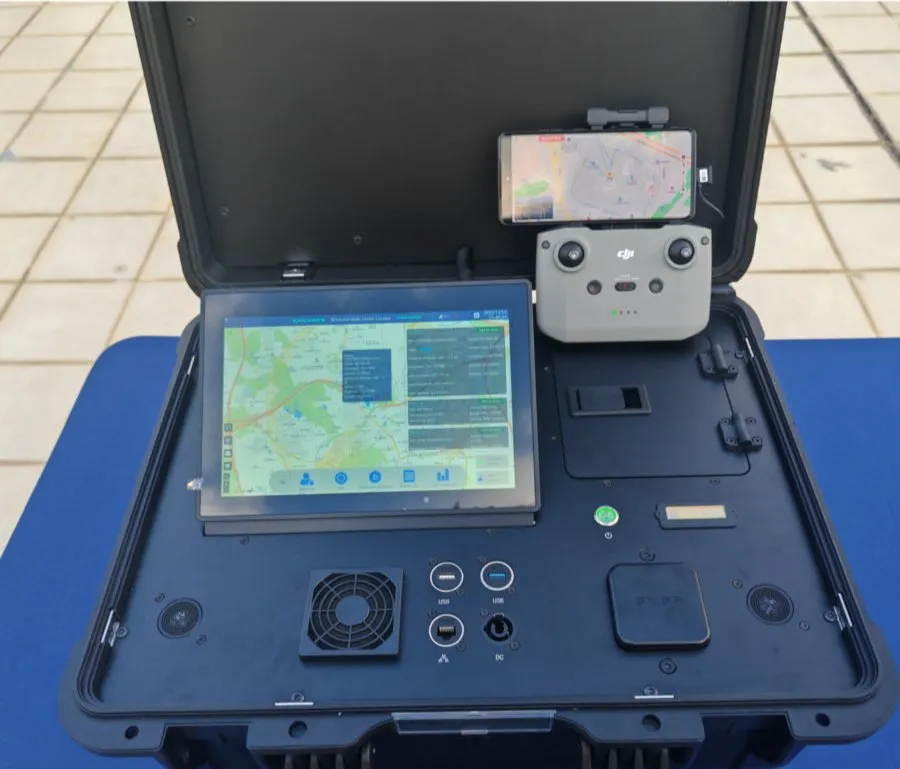

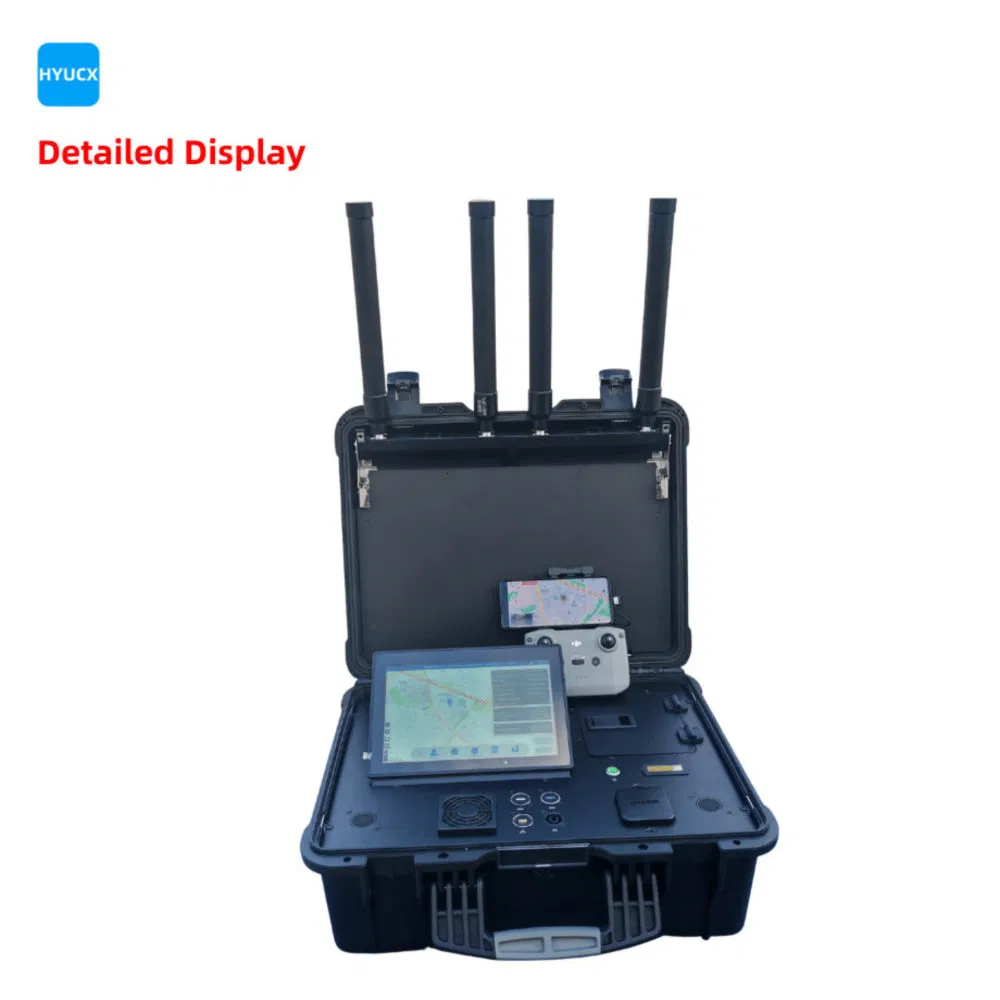

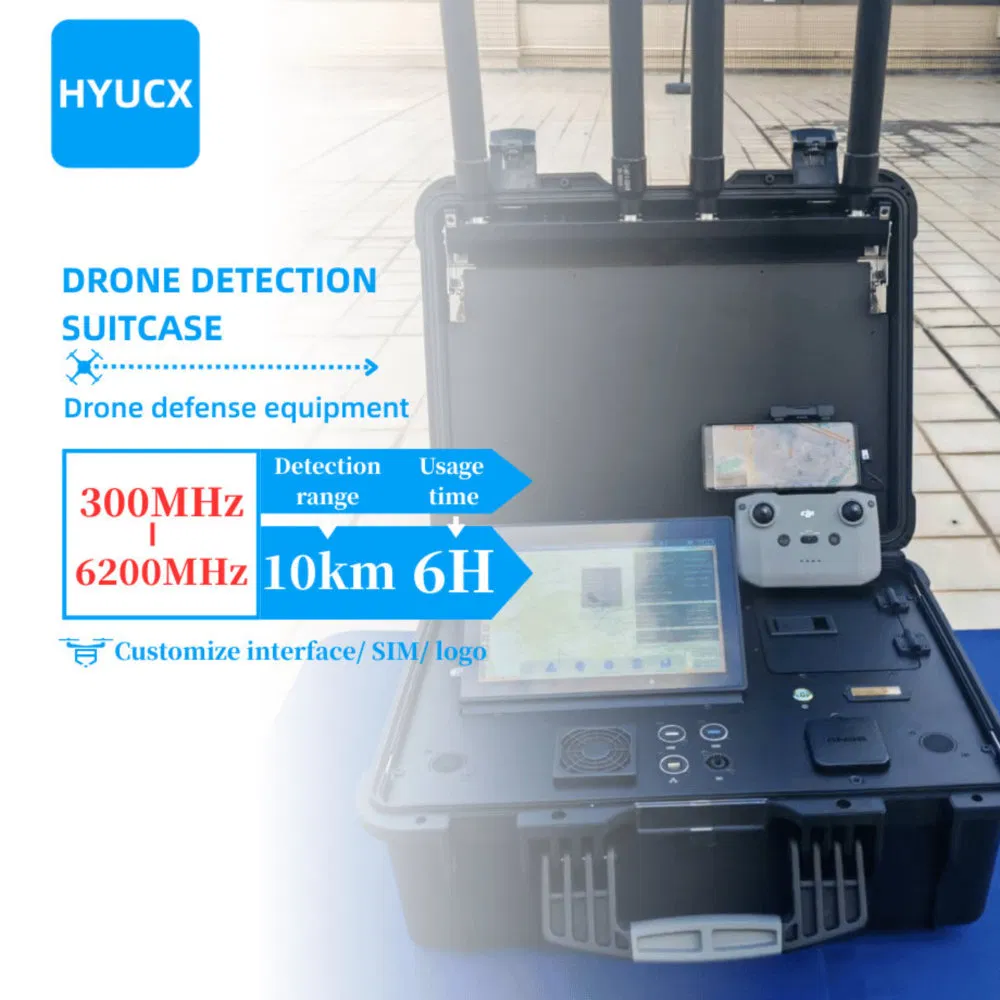

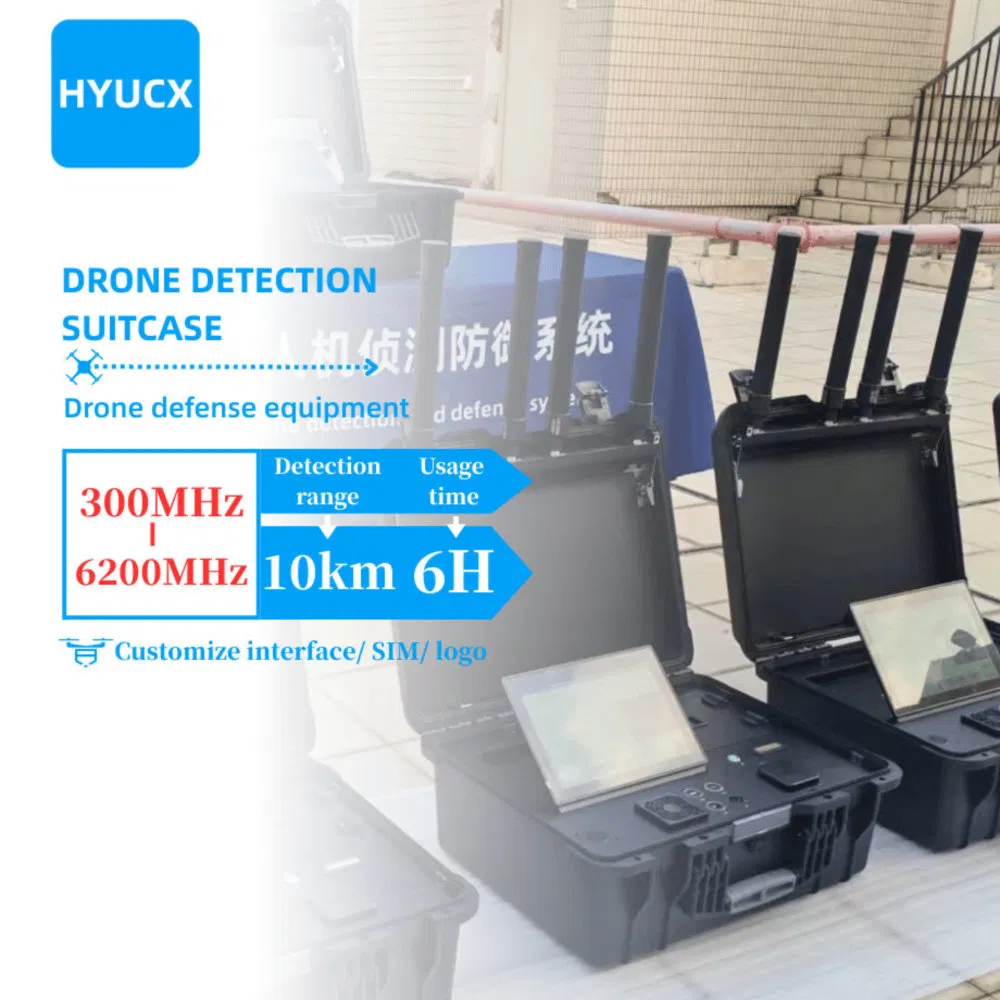

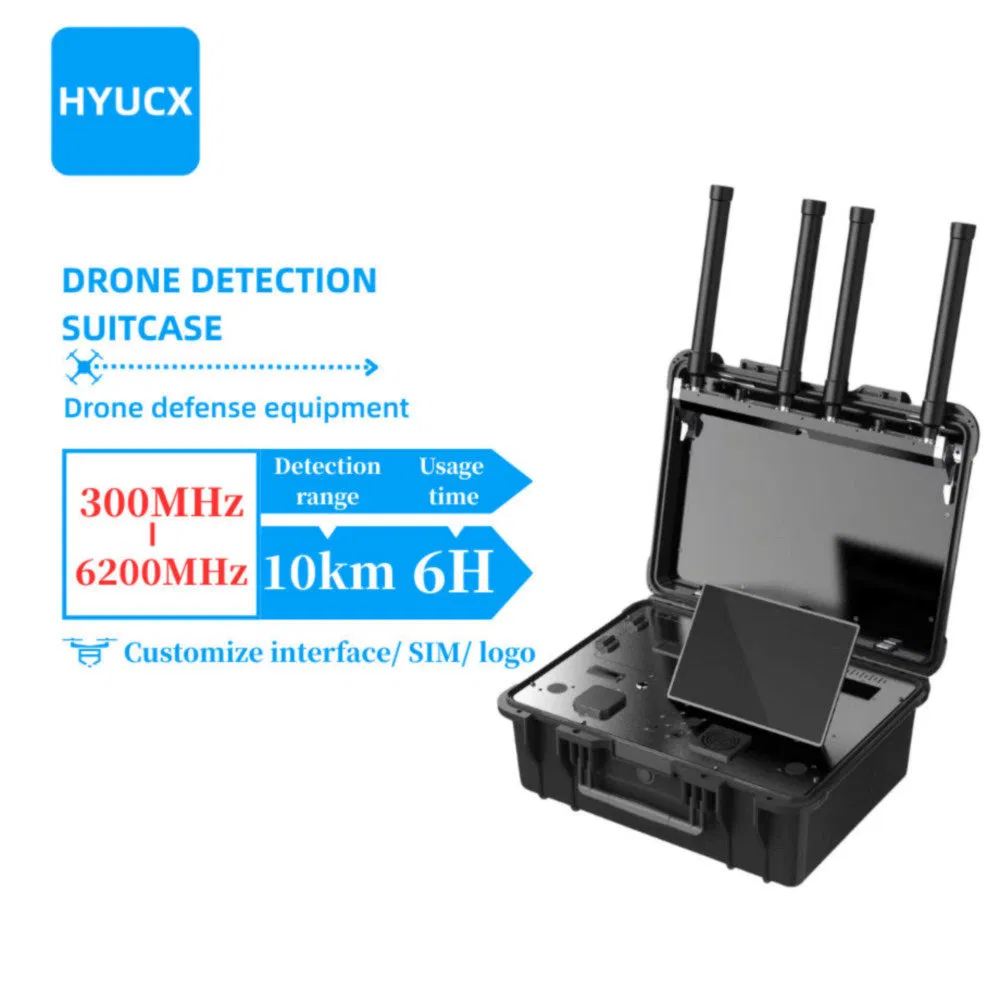

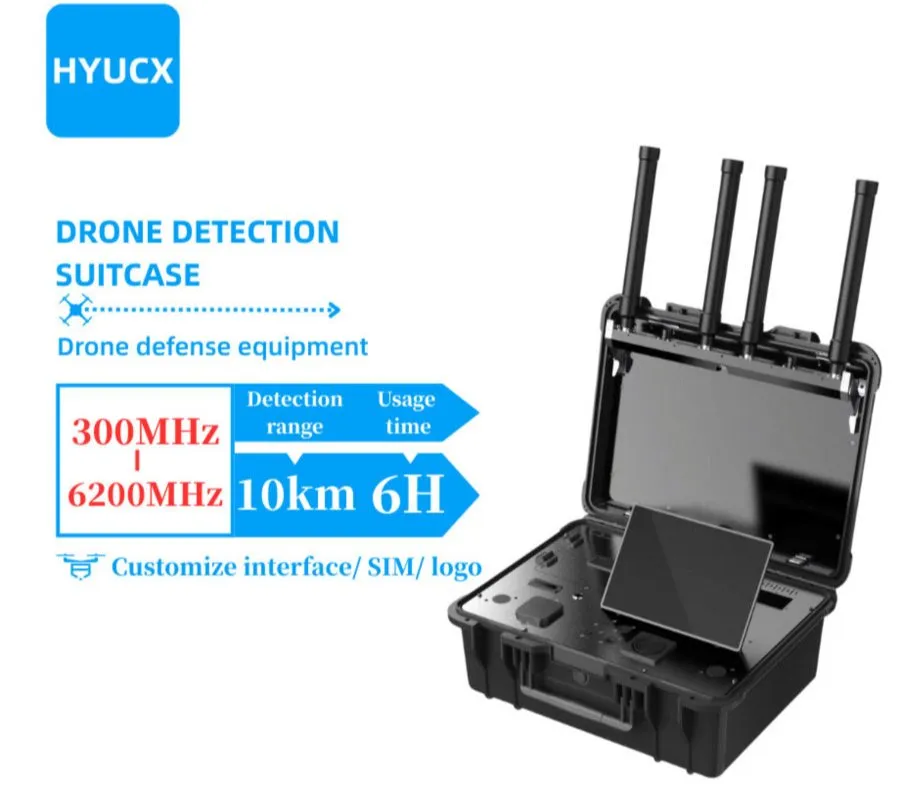

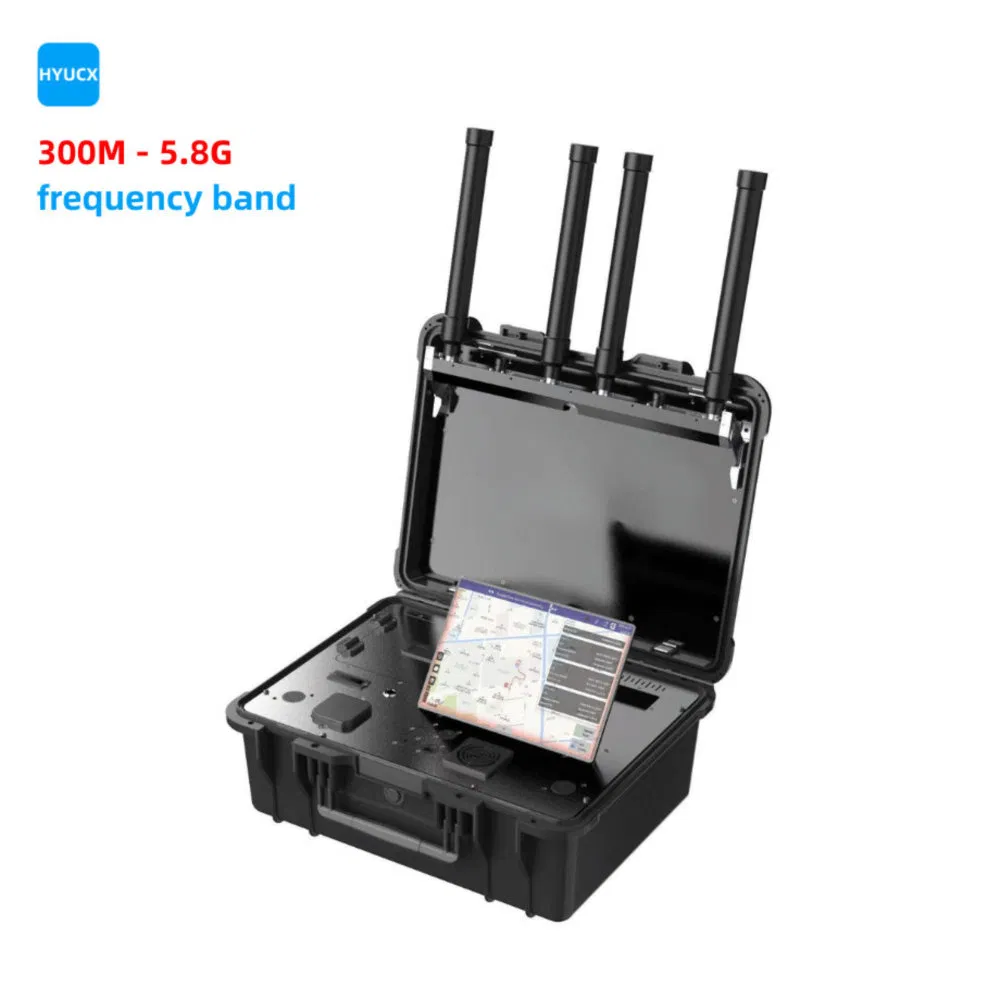

BRIEFCASE-STYLE DRONE LOCATOR: The CH11 Pro portable Drone detection and positioning system enables real-time monitoring of Drone parameters, including serial numbers, models, coordinates, speed, altitude, flight paths, and pilot positions through advanced signal analysis and data mining. It also significantly enhances detection capabilities for FPV Drones.
The equipment is suitable for low-altitude security in major events, public security patrol, counter-terrorism, border defense, and industrial parks. It operates offline and can be quickly deployed to meet various mobile security needs.
| Number | Device Name | Quantity | Unit |
|---|---|---|---|
| 1 | Device Host | 1 | pcs |
| 2 | Battery | 4 | pcs |
| 3 | Power Adapter | 1 | pcs |
| Metric | Parameter | Remarks |
|---|---|---|

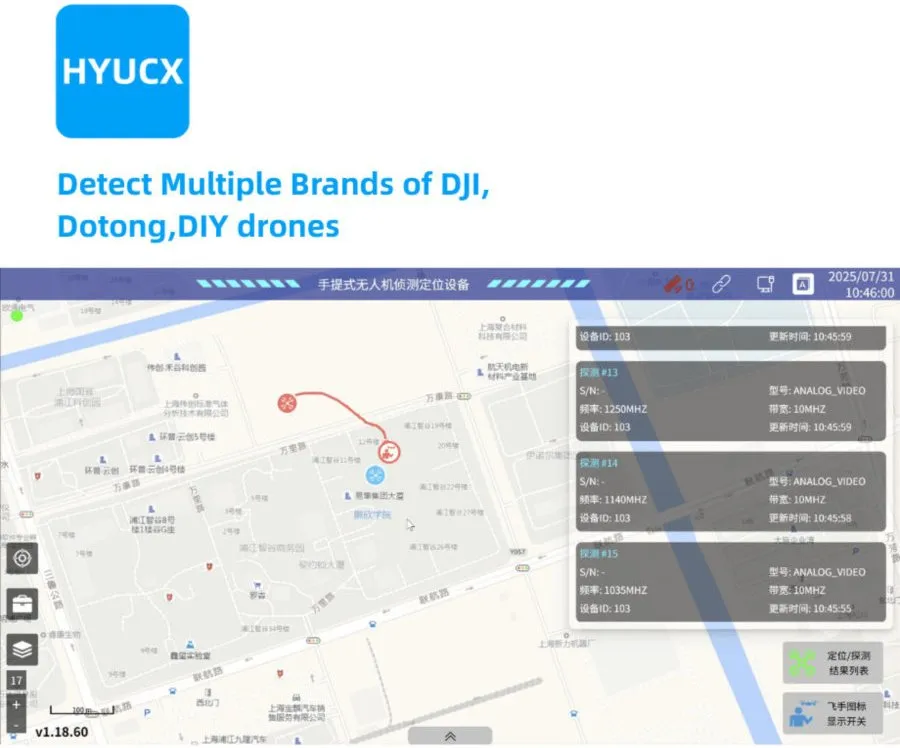

| Detected Drone Types | DJI, Autel, FIMI, Yuneec, WiFi/FPV Aircraft | Industry-wide coverage |
| Detection Frequency | 300M~1.5G, 2.4G, 5.2G, 5.8G | Expandable |
| Distance (Urban/Open) | 0.5~5km / Up to 10km | Environment dependent |
| Simultaneous Targets | ≥20 flights | Real-time tracking |
| Trajectory Tracking | ≥5 entries | Simultaneous data |
| Identification Time | ≤5s | Rapid response |
| Withdrawal Time | ≤30s | Quick extraction |
Core applications include low-altitude security for international major events, airports, ports, oil and gas fields, power lines, and industrial parks. The products adapt to high temperature, high humidity, and high altitude.
Yes. The system includes a built-in multi-language platform supporting English, Arabic, Spanish, and other mainstream global languages with an intuitive touch interface.
Yes. We provide full-process customized solutions from product selection and function customization to system integration based on specific environmental and protection needs.
Standard products typically take 7-15 working days, while customized solutions take 20-45 working days. We support various international trade delivery methods such as DDP and DAP.
Customers have access to 7×24-hour multi-language technical support, remote fault diagnosis, installation training, and long-term technical upgrades.
Our advantages include advanced multi-source fusion detection technology, strong compliance with international standards, and a robust global service network for localized support.
