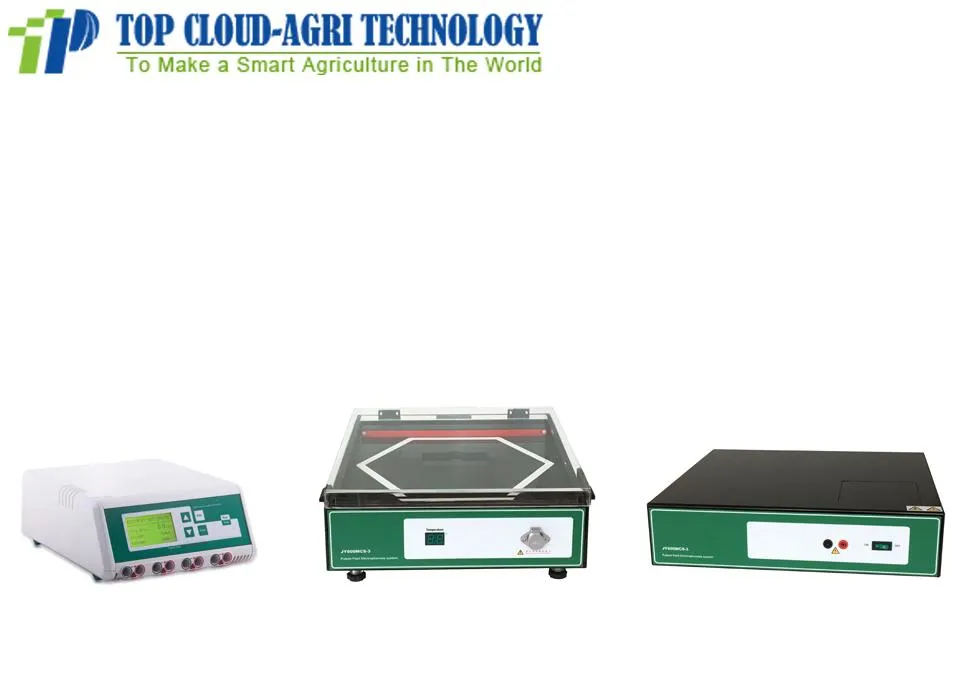

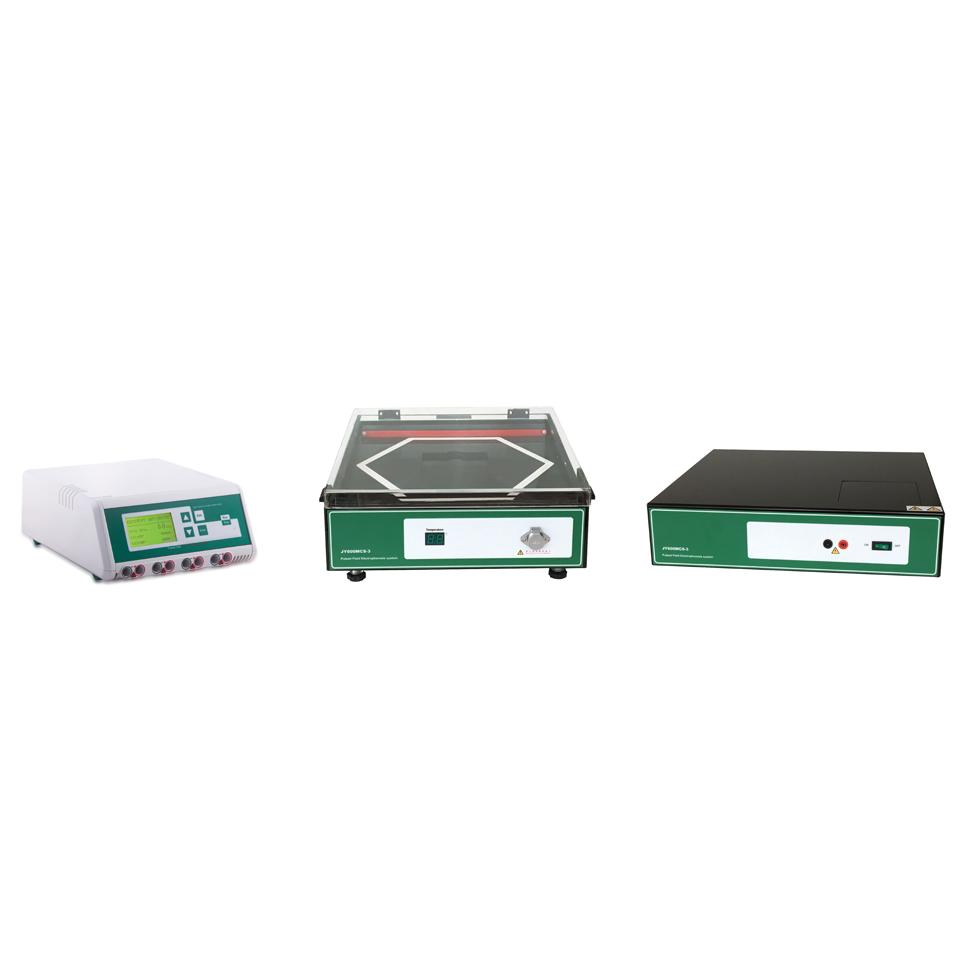

The JY600MCS-3 pulse field electrophoresis system features a hexagonal pulse field electrode consisting of 18 groups of independent electrodes. This design meets the requirements for macromolecular DNA separation and overcomes the limitations of clamp-type equalized electric field (CHEF) technology.
In addition to optional fixed modular or linear incremental modular program editing, it includes a dynamic correction function and advanced field inversion capabilities. These features effectively improve the recovery and purity of macromolecular fragments while streamlining experimental workflows.
Applications: Ideal for detection and separation of DNA molecules (100bp-6Mb), genomic DNA analysis, chromosomal separation, and large fragment library construction.
Performance Characteristics:
| Gel area (W×L) | 120×120(mm) |
| Sample throughput | (2.0mm thick) 9, 13 teeth |
| Buffer volume | ~3000 (ml) |
| Electrophoresis apparatus | 280×240×110(mm) |
| Electrophoresis tank | 465×445×142(mm) |
| Controller | 465×445×100(mm) |
| Circulator | 350×200×480(mm) |
| Net weight | 85.2 (kg) |
Professional after-sales team with global service coverage available 24 hours to provide solutions.
The enterprise specializes in the design, development, manufacture, and sales of laboratory testing instruments and smart solutions. Core products include instruments for seed measurement, plant physiology, soil analysis, crop quality analysis, and general laboratory devices.

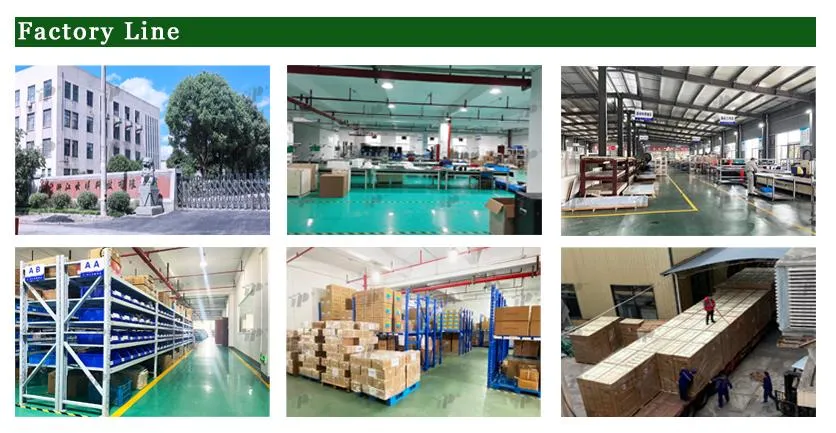

Equipped with modern production bases and a rigorous quality inspection team, ensuring strict control from raw materials to final packaging.
Certificates & Patents
The enterprise has passed ISO9001:2015, ISO14001:2015, and ISO45001:2018. It holds multiple national invention patents, utility model patents, and software copyrights.
