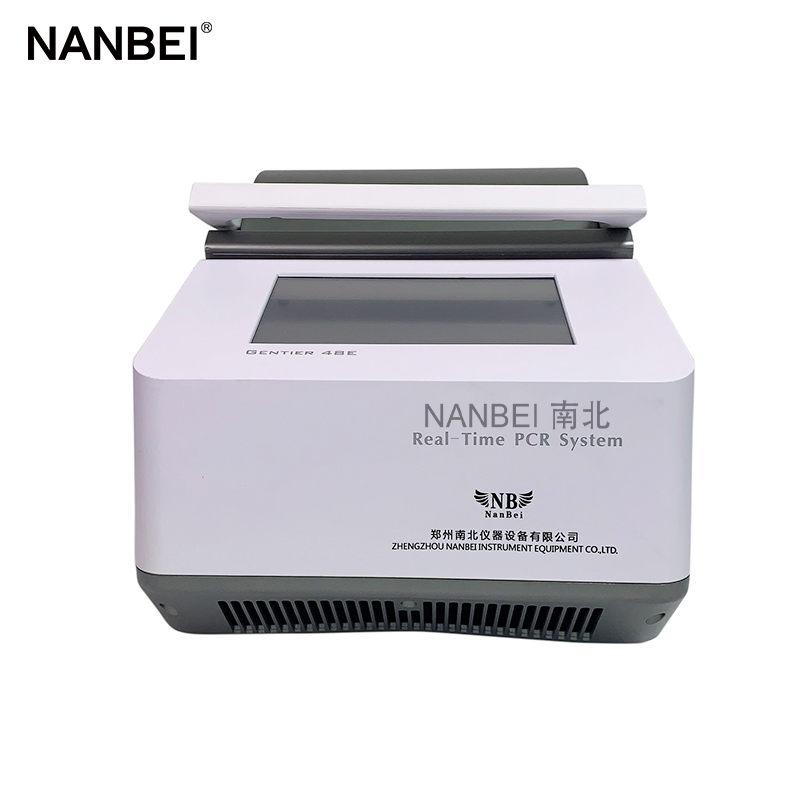

Nanbei Instruments 48 Well Real Time PCR System - Gentier48e

Customization:	Available
After-sales Service:	Online Support, Video Technical Support
Warranty:	1 Year

Send Inquiry

Product Description

📋

Basic Information

Model NO.

Gentier48E

Block Formats

48-Well

Sample Volume

10-100UL

Temperature Steps

1-99

Excitation

2LEDs

Communication

USB

Transport Package

Carton Case

Specification

HS Code

8419899090

Production Capacity

2000 Sets/Month

🔬

Product Description

The Gentier 48E real-time PCR system is tailor-made for small and medium-sized laboratories, mobile laboratories, and on-site inspection workers. With superior performance and portability, your inspections are more convenient, accurate and efficient.

🚀 Excellent Performance

Detection flux: 48-hole 4-color fluorescence detection, each tube can simultaneously detect 4 kinds of items, greatly improving efficiency.

Temperature control: Maximum heating rate up to 8 °C / s, cooling rate up to 6.1 ° C / s. Complete a standard PCR program in only 30min.

Fluorescence scanning: Takes only 2s to complete all 48-hole 4-color fluorescence scanning.

⚙️ Convenient Operation

Built-in 7-inch full-color touch screen and independent control system; no computer connection required.

Wizard-style parameter setting allows users to master the instrument quickly.

Standard network interface for remote operation and experiment monitoring.

📊 Powerful Data Processing

Multi-purpose: Compatible with relative/absolute quantitative, SNP, and various isothermal amplification technologies.

Complex data analysis: Equipped with independent data management software for centralized statistics.

Universal report function: Adjustable and customizable experiment report formats.

📸

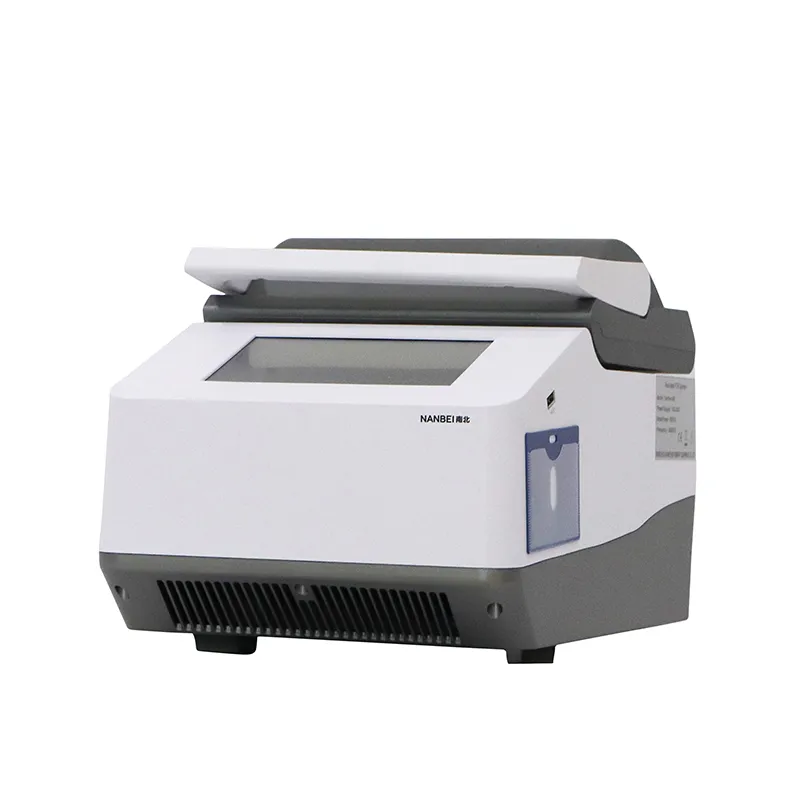

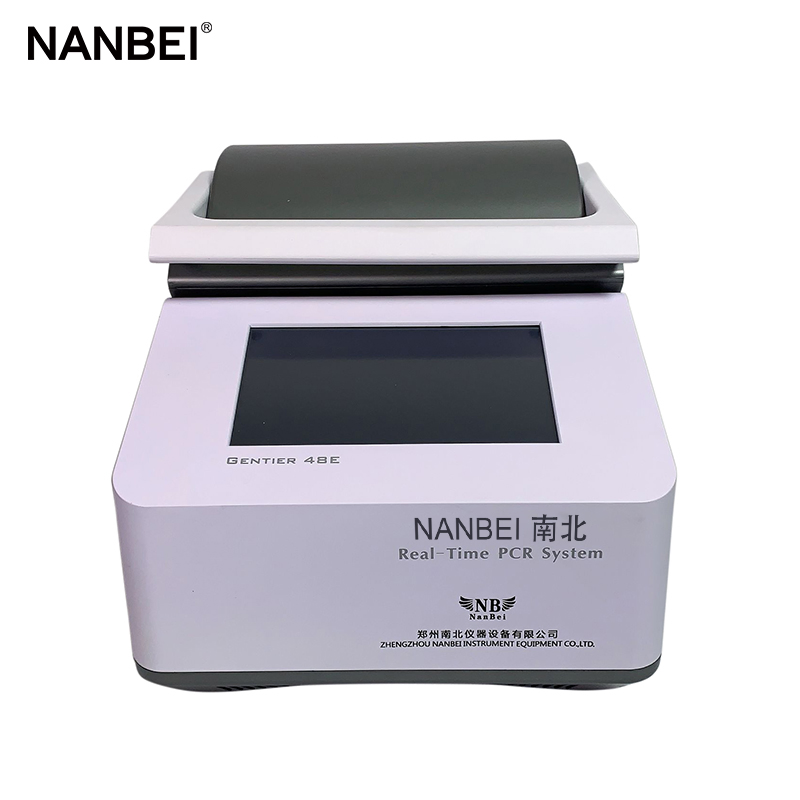

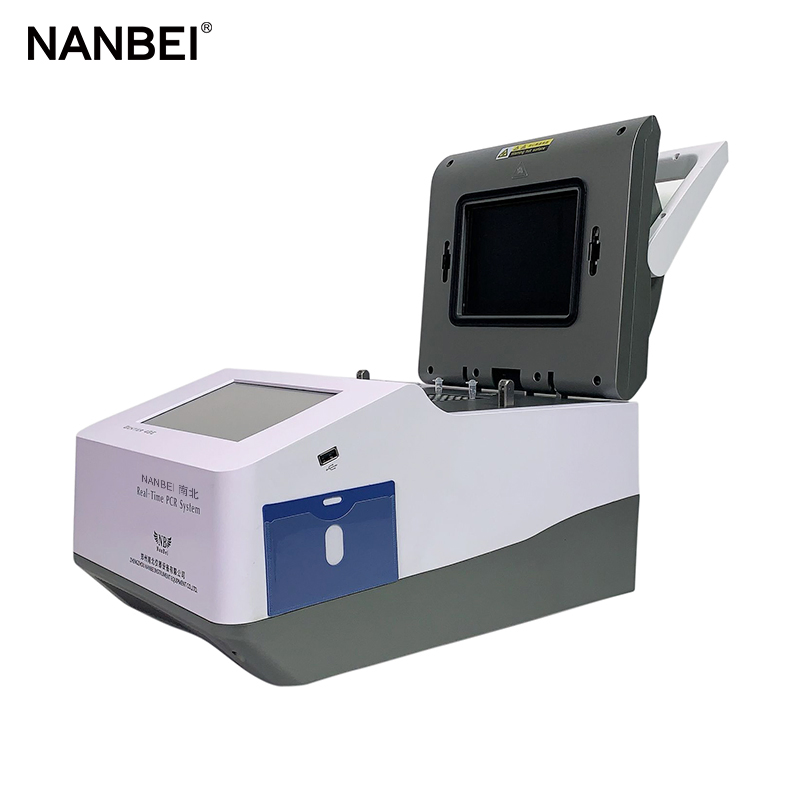

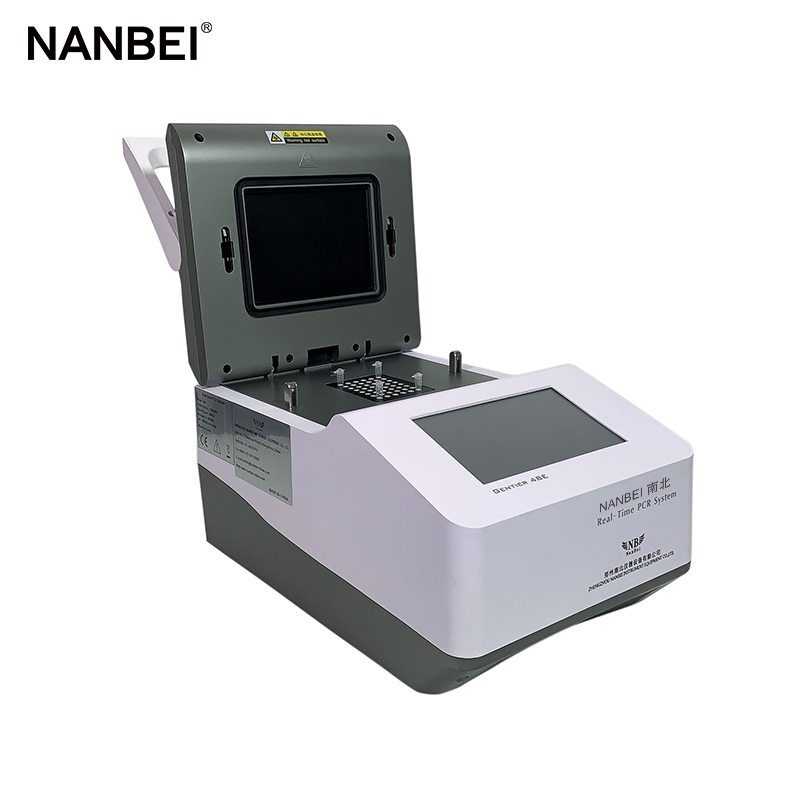

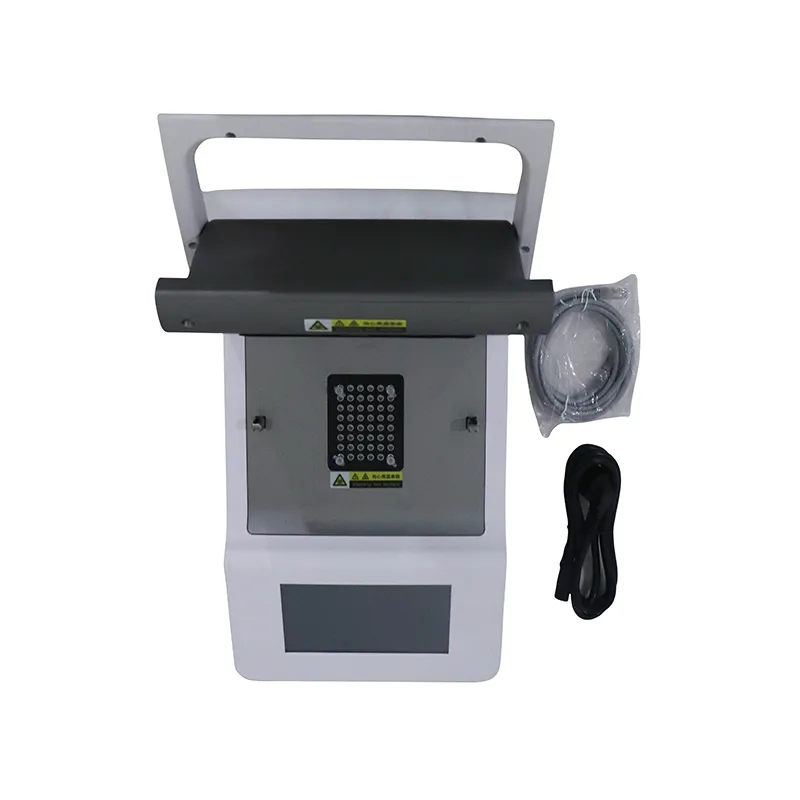

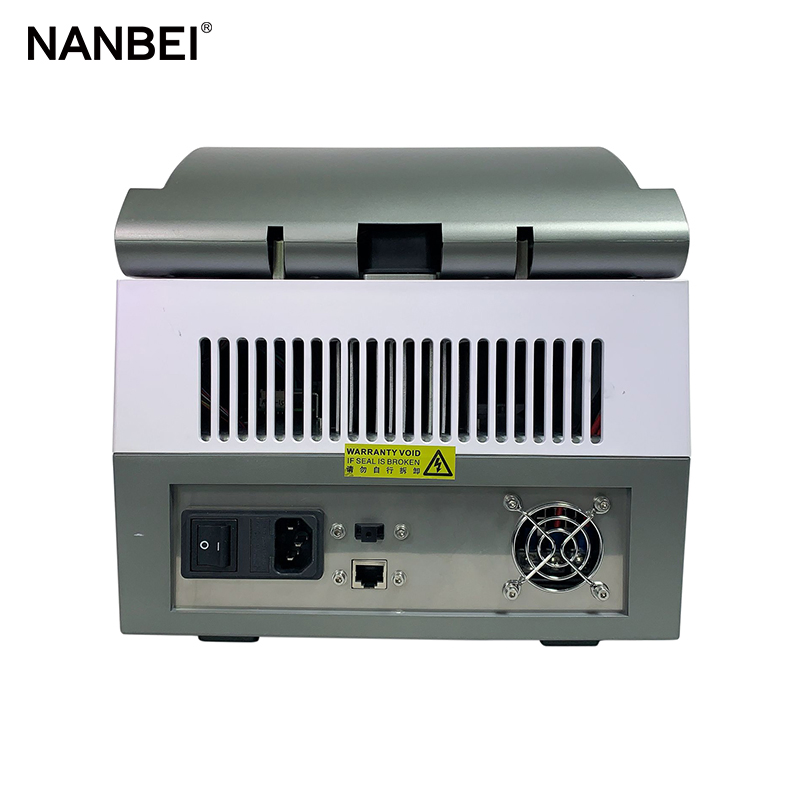

Detailed Photos

📐

Product Parameters

Specifications	Gentier 48E
Thermal Block
Sample capacity(wells)	48
Reaction Volume	5-100 μL
Consumables	0.2ml 8-strip tubes, 0.2ml PCR single tube (Optical flat cap)
Temperature range	0°C-100°C
Max heating/cooling rate	8.0°C/sec / 5.5°C/sec
Temperature accuracy	±0.1ºC
Gradient Range	1°C-40°C
Optical System
Excitation Source	4LEDs
Detector	Photodiode
Detection time	2 seconds for 48 wells for all channels
Excitation/Emission (nm)	1: 465/510, 2: 527/563, 3: 580/616, 4: 632/664
Software & Performance
Sample Linearity	/r/≥0.999
Control modes	7" touch screen, PC direct control, WLAN control
Data Storage	USB upload/download, 1000 results stored in machine
General
Footprint (WxDxH)	260mm X 400mm X 260mm
Weight	11kg

📦

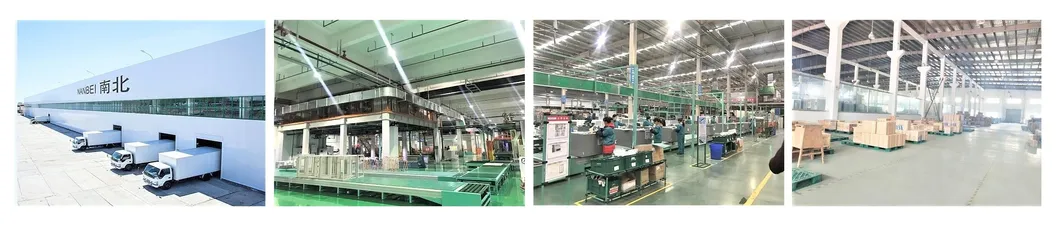

Packaging & Shipping

🛠️

Service & Support

Warranty: 1 year standard warranty.

Parts: Free replacement parts for quality issues during warranty.

Technical Support: Life-long technical assistance and maintenance service.

Certifications: CE, ISO quality certificates, and SGS authentication.

Frequently Asked Questions

How fast can this PCR system complete a standard program?

The system features a high heating rate of up to 8°C/s and can complete a standard PCR amplification program in approximately 30 minutes.

Is a computer required to operate the Gentier 48E?

No, the instrument has a built-in 7-inch full-color touch screen and an independent control system, allowing for standalone operation and data export via USB.

What types of tubes are compatible with the 48-well block?

It is compatible with 0.2ml 8-strip tubes and 0.2ml PCR single tubes, specifically those with optical flat caps and clear tube bodies.

Can the system be used for remote monitoring?

Yes, with its standard network interface, you can realize remote operation, experiment monitoring, and data transmission within a LAN.

What analysis modes does the software support?

The software supports Qualitative analysis, Absolute and Relative quantification, Genotyping, Endpoint analysis, Melt curve analysis, and High Resolution Melting (HRM).

Is the equipment portable for on-site testing?

Yes, the Gentier 48E is small in size (11kg) and designed for portability, making it ideal for mobile laboratories and on-site inspections without requiring recalibration after moving.
