New Technology Thermal Cycler PCR System

Product Description

Product Description

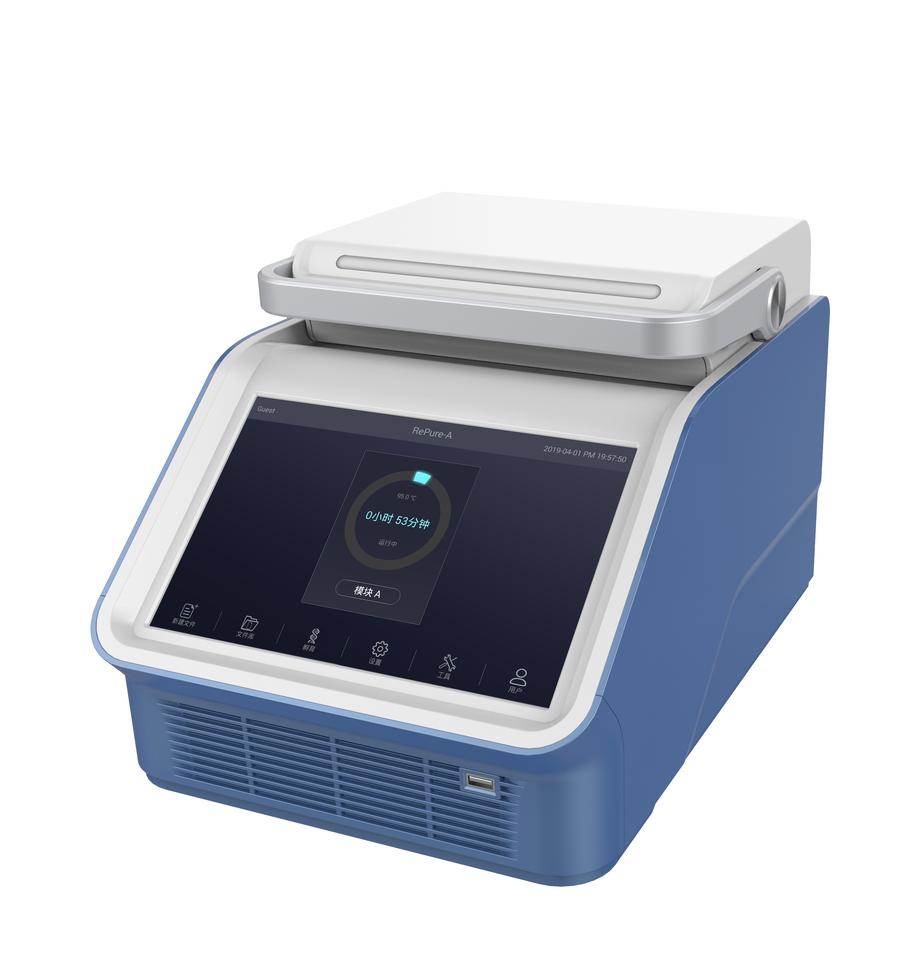

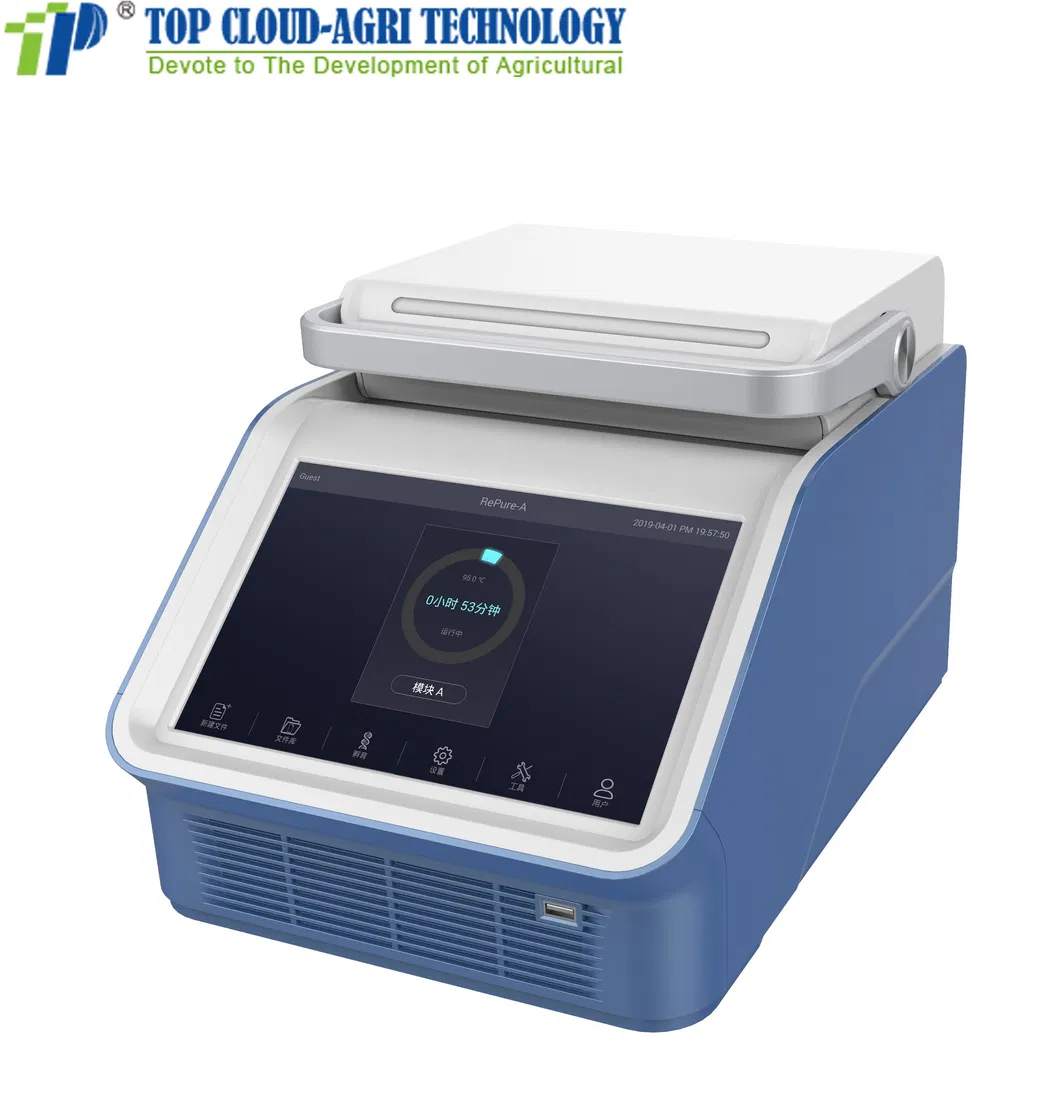

Thermal Cycler PCR System

The product features an Android operating system and a 10.1-inch capacitive touch screen, ensuring simple and smooth operation. The air channel is located in the front and back, allowing machines to be placed side by side. The self-adapting pressure hot lid makes closing and tightening the lid a single-step process.

It utilizes long-service-life Peltier heating units with a maximum ramping rate of 8°C/S and cycle times exceeding 1,000,000. The unique compound dual-block two-dimensional gradient design can run independently to meet various experimental needs. With a built-in Wifi unit, users can control multiple units through a mobile App.

Key Features
⚙️
Long service life Peltier heating units and reinforced aluminum modules with anodizing technology.
High heating and cooling rate, max. ramping rate of 8 °C/s.
🔬

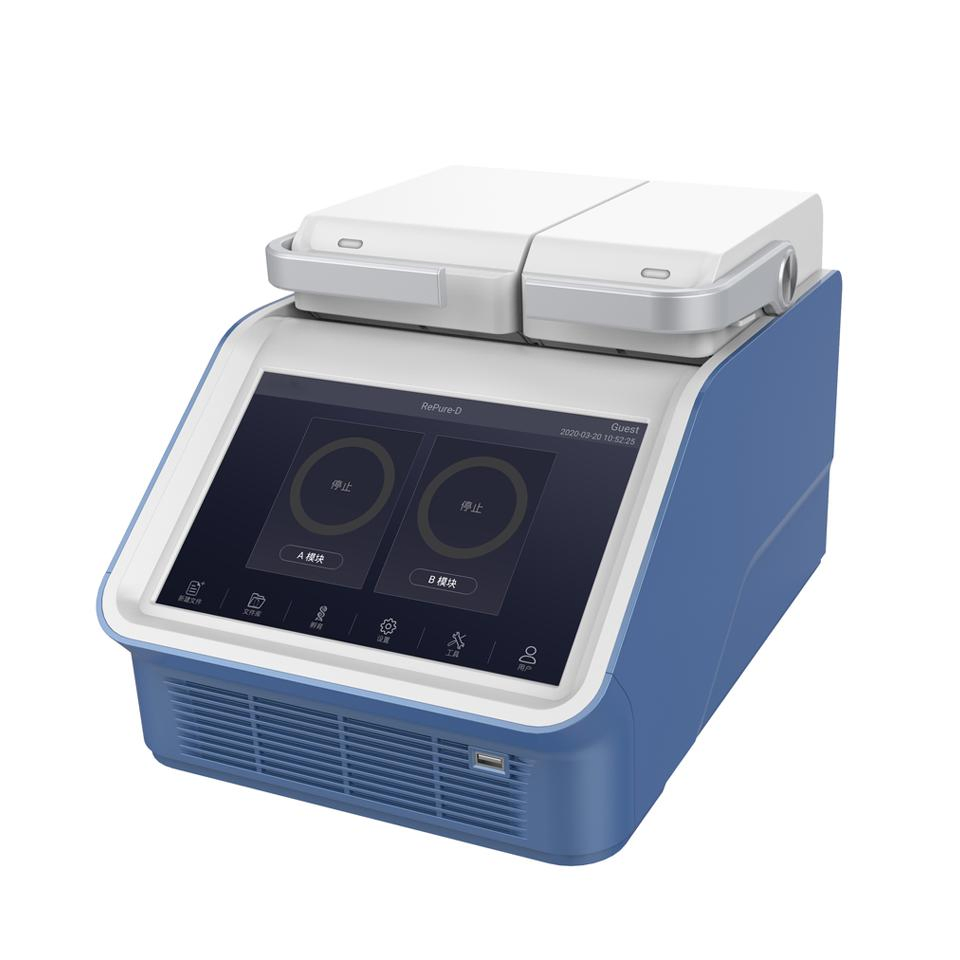

Double blocks design: 64-well blocks for two-dimensional gradient and 32-well blocks for conventional gradient.
📱
10.1-inch capacitive touch screen with graphical menu navigation.
💾
Built-in 11 standard program file templates for quick editing.
📶
WIFI module built-in, control multiple machines through a computer or cell phone.
🛡️
Automatic restart after power failure and email notifications after experiments.
🖱️
Support USB storage, data copying, and USB mouse control.
Technical Specifications
Model No. RePure-A RePure-A(F) RePure-A(384) RePure-B RePure-C 1
Capacity 96x0.2ml 96x0.2ml 384 well 6x16x0.2ml 96x0.2ml
Temp Range 0-105°C
MAX. Ramp Rate 5°C/s 6°C/s 5°C/s 6°C/s 8°C/s
Uniformity <±0.2°C
Accuracy <±0.1°C
Gradient Type - Normal Gradient - Dynamic Gradient Two-Dimensional
Dimensions 385mm x 270mm x 255mm (LxWxH)
Weight - 10kg - 10kg 17kg
Packaging & After-Sales Service

We have a professional after-sales team with global service coverage and a 24-hour time difference free to provide you with solutions.

Manufacturing Excellence

Founded in 2008, the enterprise specializes in the design, development, manufacture, and sales of laboratory equipment and agricultural testing instruments. Core expertise includes plant physiology, soil analysis, crop quality testing, and general laboratory devices.

The manufacturing process adheres to ISO9001:2015, ISO14001:2015, and ISO45001:2018 standards. The company holds multiple national invention patents, utility model patents, and numerous software copyrights.

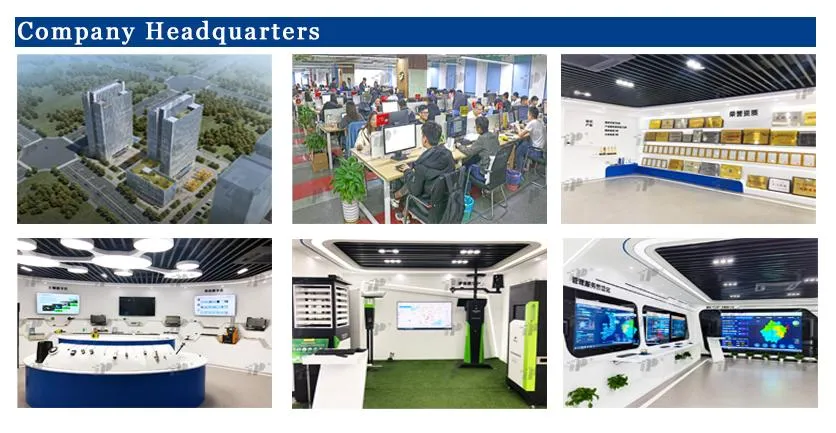

Company Facility
Certificate Detail
Customer Response
Customer Response
Frequently Asked Questions
Are you a manufacturer?
Yes, we are. We have a production base of over 26,680 square meters and employ more than 300 workers.
How do you guarantee product quality?
We are ISO9001 / 14001 / 45001 certified and maintain a professional quality inspection team of over 30 inspectors to control every process from raw materials to packaging.
What is the warranty and after-sales service?
We provide a full 1-year warranty and lifelong maintenance services for our products.
How long is the delivery lead time?
Generally, it is 3-5 days, though this may vary depending on the specific product and order quantity.
Is OEM service available?
Yes, OEM is acceptable. Please contact us with your specific requirements for detailed information.
Can the machine be controlled remotely?
Yes, with the built-in WIFI module, one unit can control multiple machines through a computer or cell phone via an internet connection.
