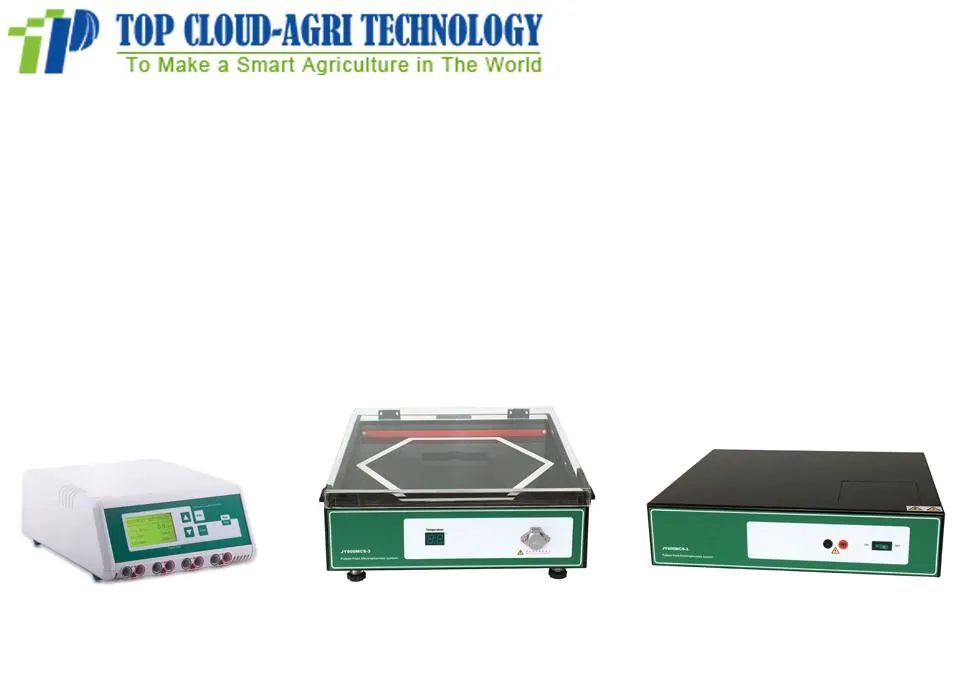

Pulsed Field Gel Electrophoresis System

Customization:	Available
After-sales Service:	Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.	JY600MCS-3
Customized	Available
Structure	Desktop
Application	Laboratory
Gel Size	120*120 mm
No. of Samples	9-13
Total Buffer Volume	3000ml
Power Supply	280240110 mm
Pulsed Tank	465445142 mm
Net Weight	85.2kg
Origin	China
HS Code	9027202000

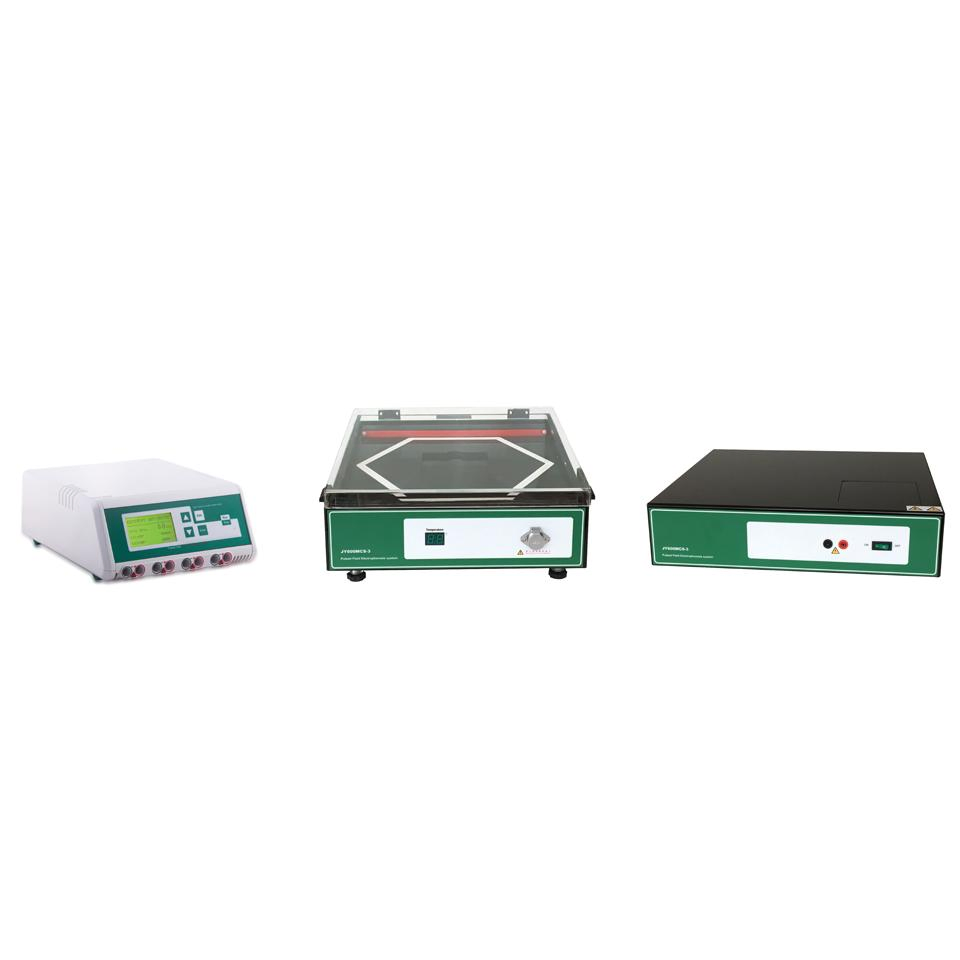

Product Description

The JY600MCS-3 pulse field electrophoresis system features a hexagonal pulse field electrode consisting of 18 groups of independent electrodes. This design allows for independent output, meeting the specific requirements of macromolecular DNA separation while addressing the limitations of traditional clamp-type equalized electric field (CHEF) technology.

In addition to modular program editing (fixed or linear incremental) and automatic connection, it includes a dynamic correction function and advanced field inversion. These features significantly improve the recovery and purity of macromolecular fragments, streamlining experimental workflows.

System Features & Composition

Pulse Electric Field Power Module Microprocessor intelligent control with program editing, automatic connection, cover-opening power-off protection, and automatic memory/shutdown functions.

Output Control Distribution Module Driven by a CPU control unit, it manages the electric field output according to program modes, precisely controlling voltage, current, and electric field duration.

Electrophoresis Tank Module Regular hexagonal design with 3 independent sub-electrodes per group. Ensures precise field intensity and conversion time for buffer cooling and constant temperature operation.

Constant Temperature Circulator Built-in buffer refrigeration circulation pump for high-efficiency temperature control and extended service life.

Performance Characteristics:

Isolated Fragment Range: 100bp - 6Mb
Voltage Gradient: 9.5V/cm max, 0.1V/cm increments
Pulse Angle: ±120°, ±180° with field inversion
Pulse Width: 1 to 9999 seconds (fixed) or 1 to 20 seconds (linear incremental)
Display: Backlit LCD (128 × 64 pixels)
Temperature Range: 10ºC ~ 30ºC (Error < ±0.5ºC)

Technical Specifications

Gel Area (W×L)	120 × 120 (mm)
Sample Throughput	9, 13 teeth (2.0mm thick)
Buffer Volume	~3000 (ml)
Electrophoresis Apparatus	280 × 240 × 110 (mm)
Electrophoresis Tank	465 × 445 × 142 (mm)
Controller Size	465 × 445 × 100 (mm)
Circulator Size	350 × 200 × 480 (mm)

Packing & After-Sales Service

We provide global service coverage with a 24-hour response time to ensure seamless solutions for your laboratory needs.

Customer Response

Frequently Asked Questions

Are you a manufacturer?

Yes, we operate a production base of over 26,000 square meters with more than 300 skilled workers, ensuring high-quality manufacturing standards.

How do you guarantee product quality?

We are ISO9001, ISO14001, and ISO45001 certified. Our dedicated quality control team of over 30 inspectors monitors every stage from raw materials to final packaging.

What is the warranty and after-sales policy?

We provide a full 1-year warranty and lifelong technical maintenance support for all our systems.

What is the typical delivery lead time?

Standard delivery usually takes 3-5 days, though this may vary depending on the specific product configuration and order quantity.

Is OEM service available?

Yes, we accept OEM requests. Please contact our support team for specific requirements and customization details.

What DNA sizes can this system separate?

The system is designed for the detection and separation of DNA molecules ranging from 100bp to 6Mb in size.
