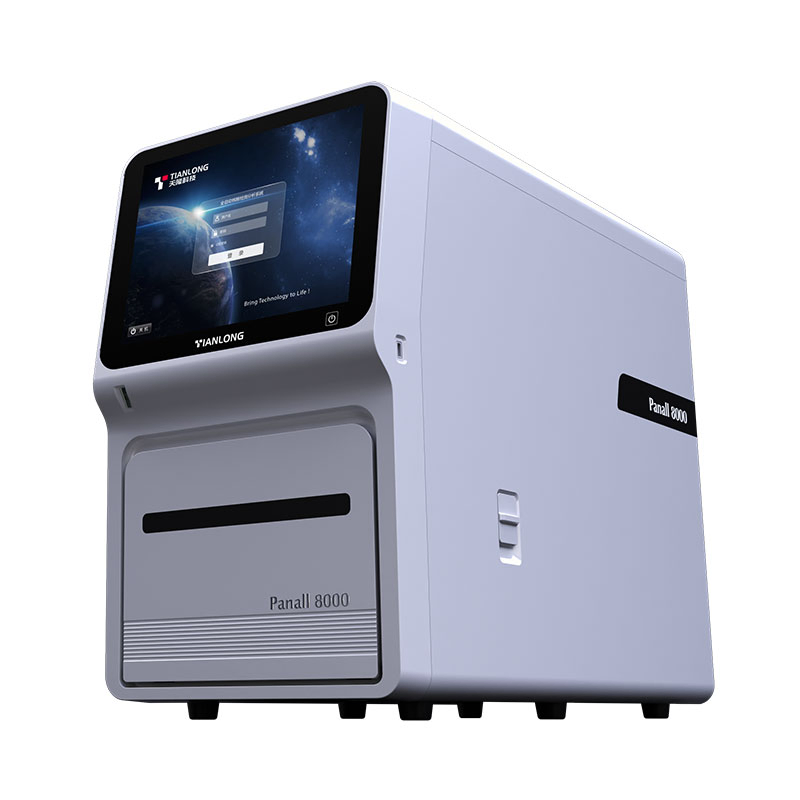

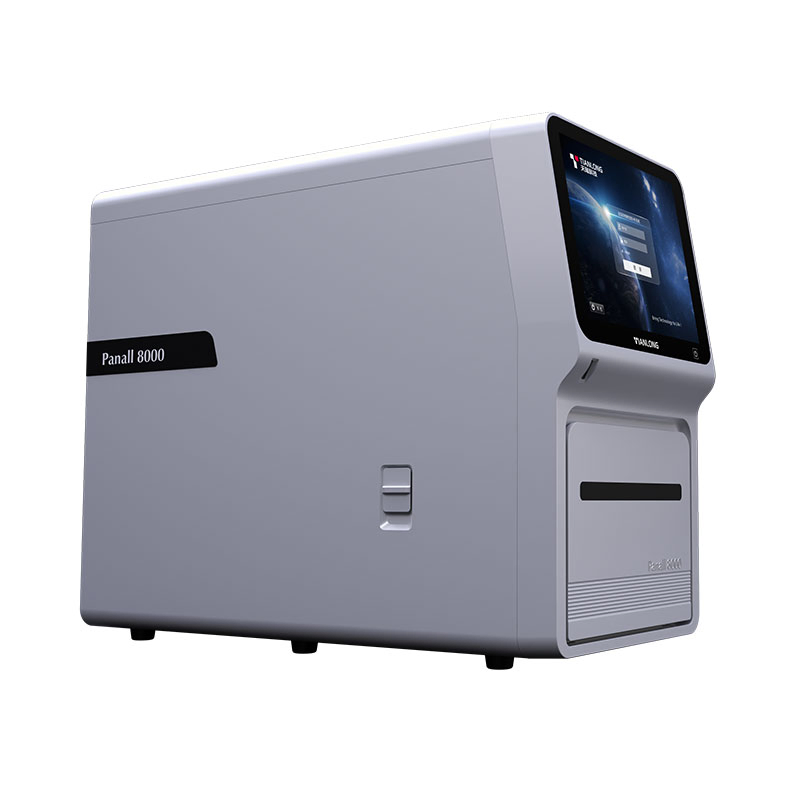

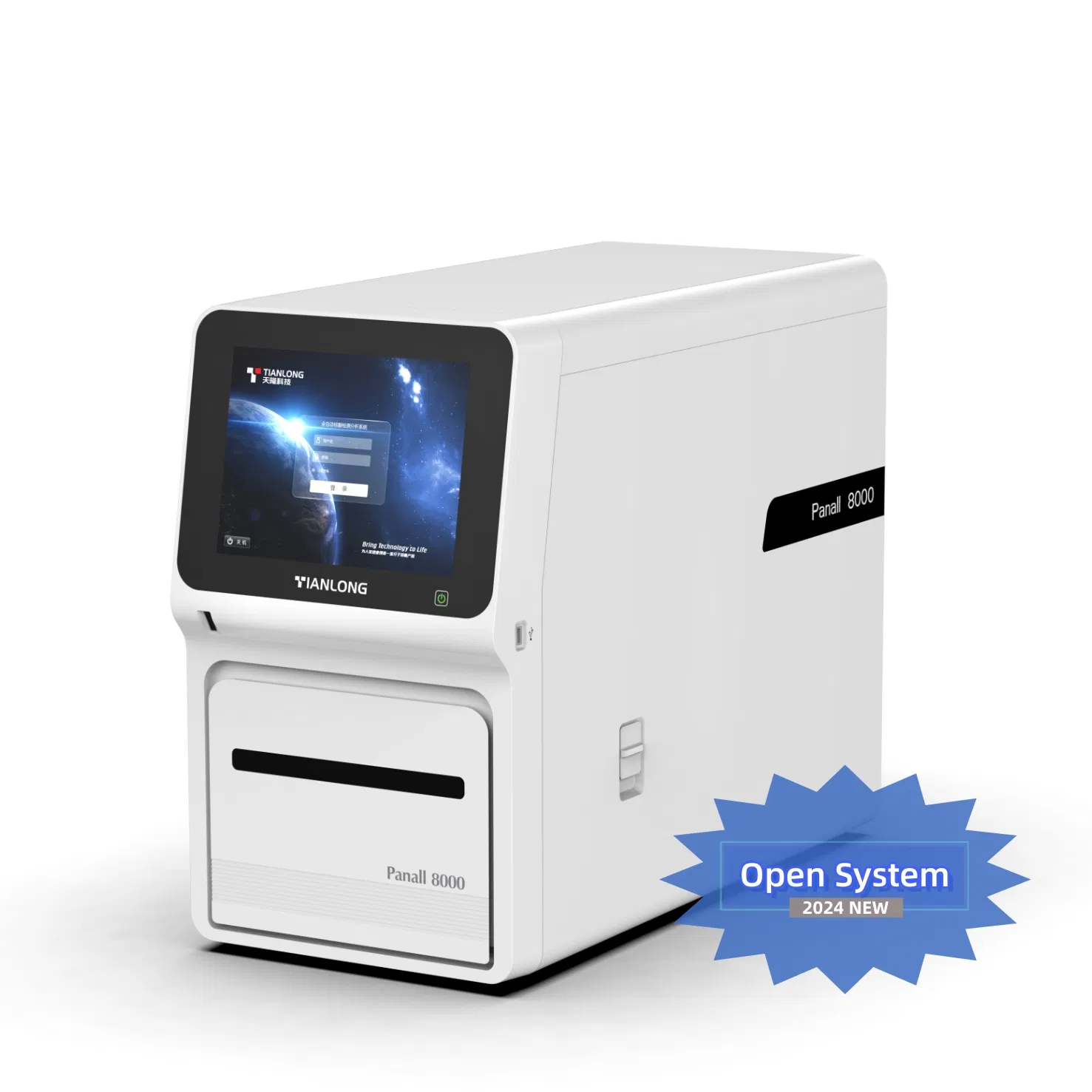

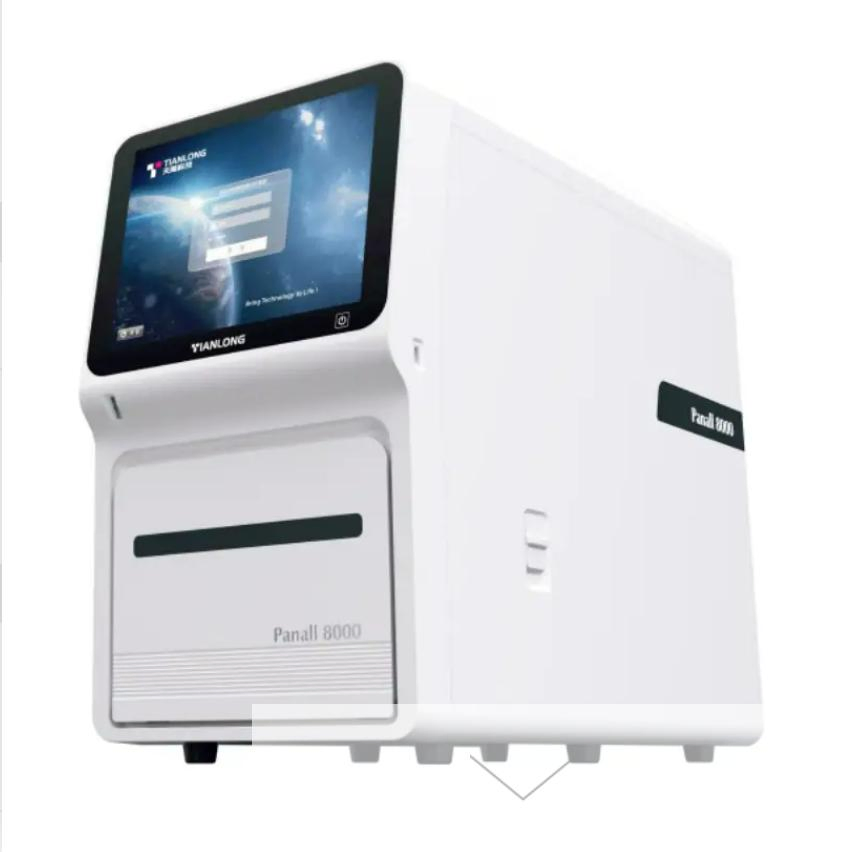

Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
1 / 5
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System
Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System

Tianlong Panall 8000 Open System All-in-one Molecular Diagnosis System

Customization: Available
Classification: Biological Diagnostics
Type: Molecular Diagnosis system
Send Inquiry

Product Description

📋Basic Info.
Model NO.
Panall 8000 Open System
Certification
CE, FDA, ISO13485
Group
All
Sample Throughput
1~8 samples at the same time
Pipetting Range
20μL ~250μL
Detection time
1~2 hours (reagent dependent)
Channel
4
Warranty
2 Years
Weight
80Kg
Feature
Sample in - result out system
Screen
12.1-inch intuitive touchscreen
USB Port
USB 2.0
Specification
750mm(L) × 350mm (W) × 600mm (H)
Production Capacity
5000 Units/Year
🔍Product Description
Panall 8000 is an open system that enables laboratories to program user-defined PCR analysis protocols. Laboratories can use user-defined protocols in addition to standard ones. The simple and efficient design allows testing a wide range of sample types and meeting emerging diagnostic requirements through customized reagents. This system is designed to work with partners to bring more new tests for detecting a broad range of disease categories.

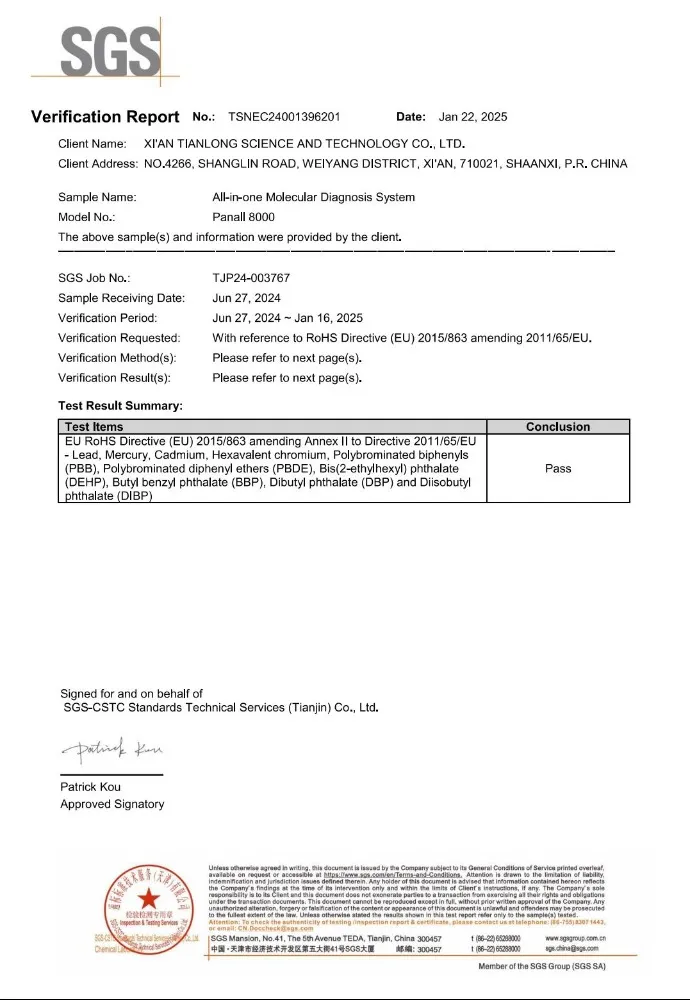

Panall 8000 has completed EU RoHS testing, meeting environmental requirements and occupational health requirements.
⭐Key Features
✔
Compatible with PCR reagents from different manufacturers: Empty PCR tubes work seamlessly with your specific PCR reagents.
✔
Customize collaboration mode: Collaboration to expand testing menus. Customize nucleic acid extraction reagents to match PCR reagents for more business possibilities.
✔
Diverse Application Scenarios: An open system with a diversified testing menu meets emerging diagnostic requirements with minimal hands-on time and maximum efficiency.
📊Product Parameters
Panall 8000 Parameters
ModelPanall 8000 Open System
Sample Throughput1~8 samples at the same time
Pipetting Range20μL ~250μL
Detection time1~2 hours (reagent dependent)
ChannelsChannel 1: FAM, SYBR Green I; Channel 2: VIC, HEX, TET, JOE; Channel 3: ROX, Texas Red; Channel 4: Cy5
Pipetting Performance20μL≤V<40μL: A≤5.0%, CV≤3.0%; V≥100μL: A≤1.0%, CV≤1.0%
Heating/Cooling RatePCR Max Heating: ≥ 6.1ºC/s; Max Cooling: ≥ 5.0ºC/s
Temperature Accuracy≤ 0.1ºC
Information ManagementInternal scanner for sample info; visual system for reagent identification
Contamination ControlDirectional exhaust, HEPA filtration, UV disinfection, negative pressure system
Data Storage1000 experiment files
Power SupplyAC 100~240V, 50/60Hz; 1200VA
🖼️Detailed Photos

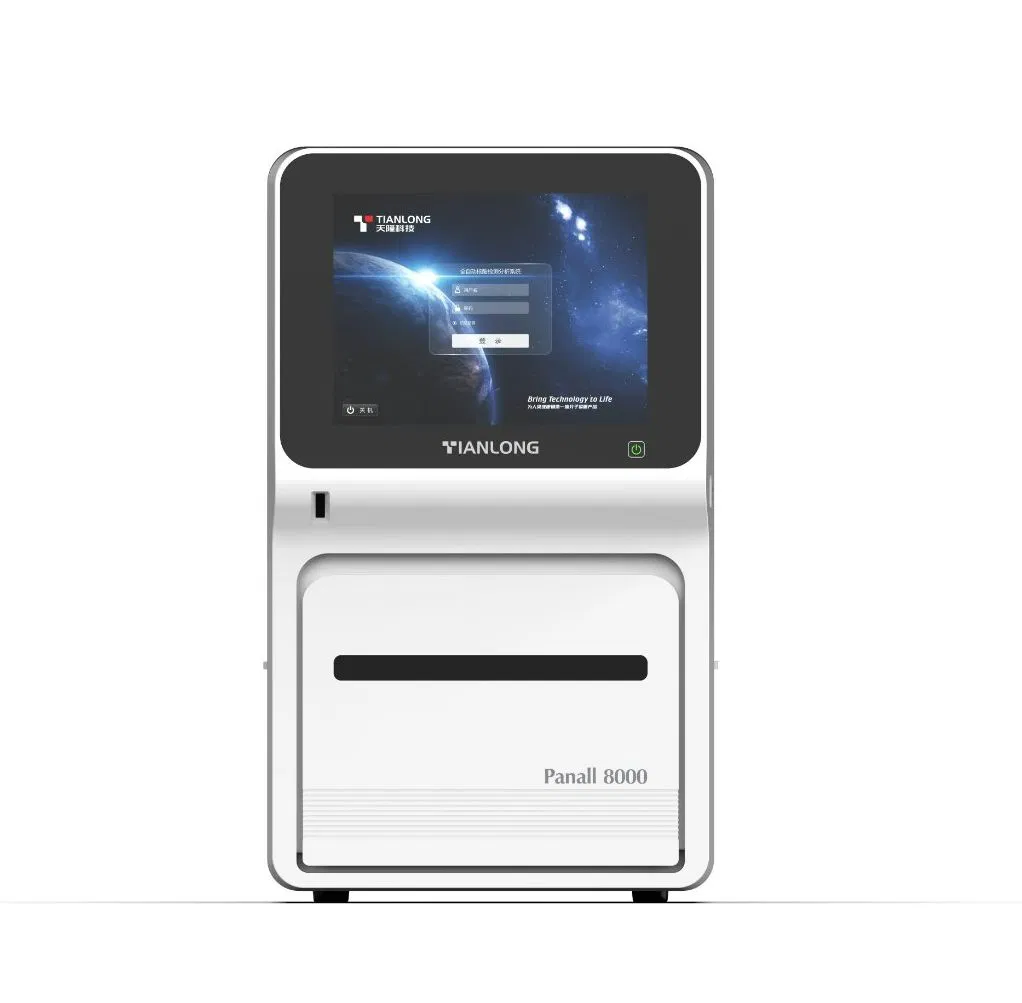

Detailed View 1

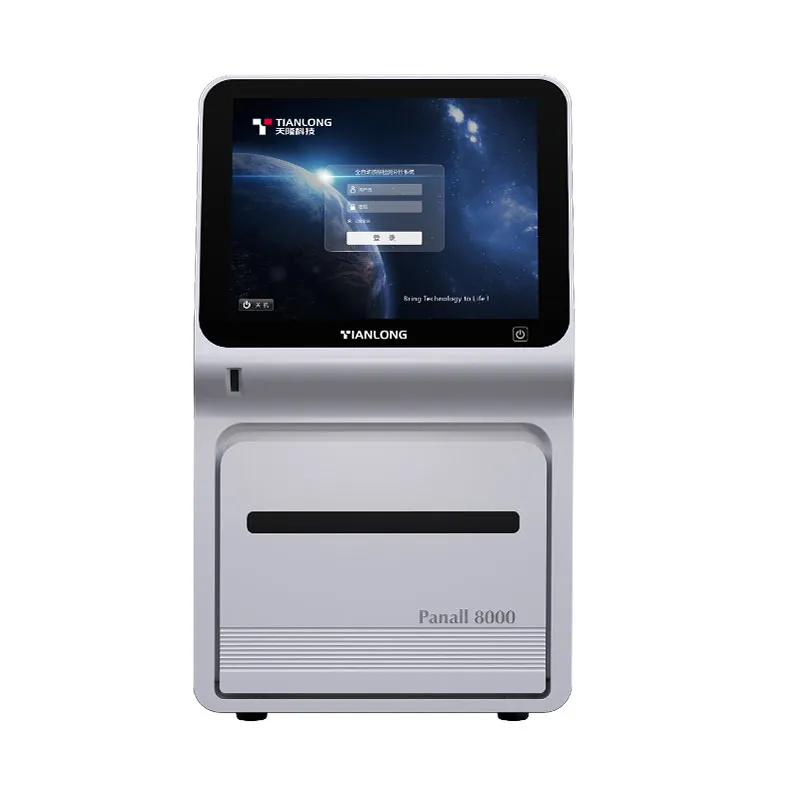

Detailed View 2
Detailed View 3
📑Product Leaflet & Packing

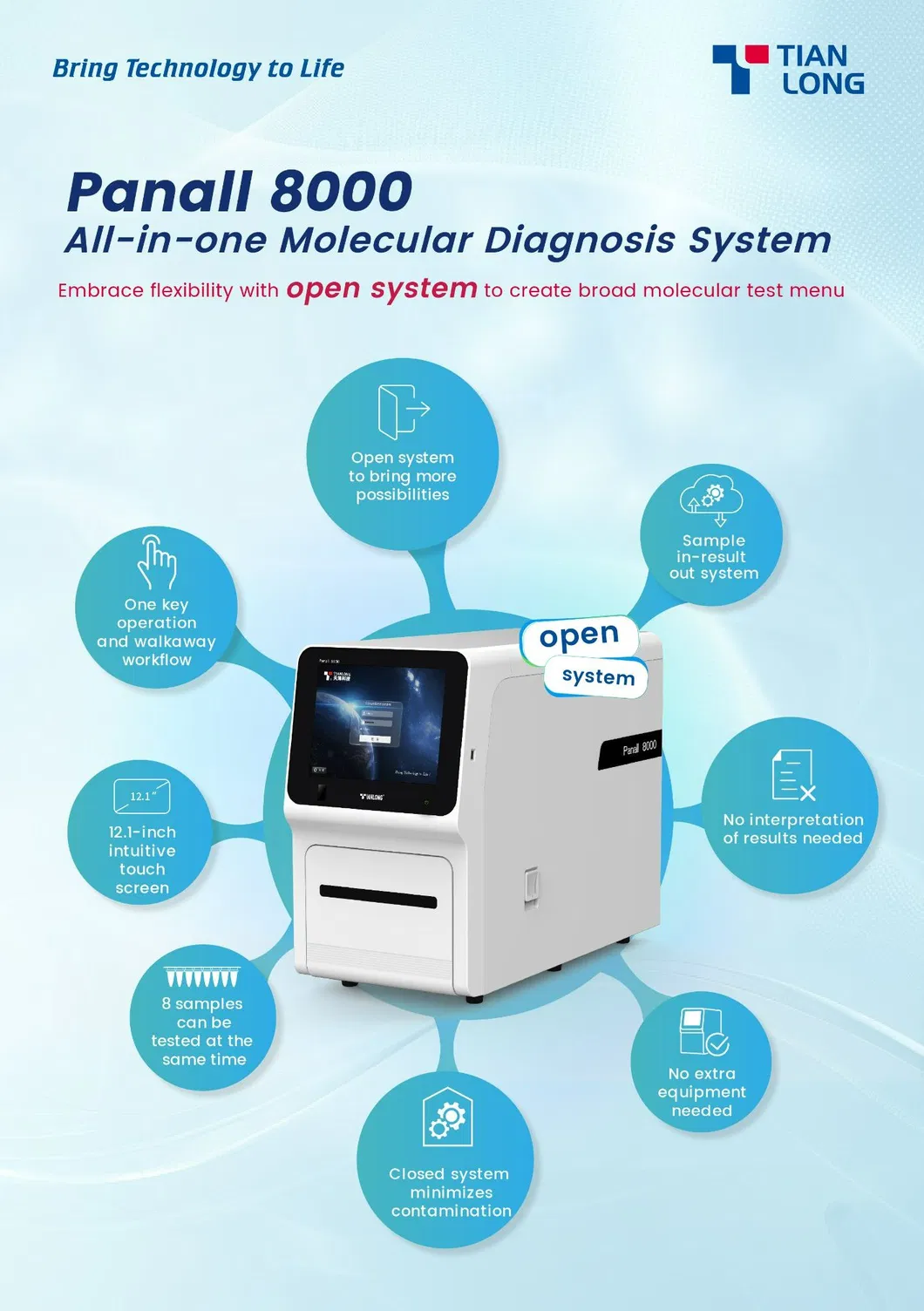

Leaflet 1

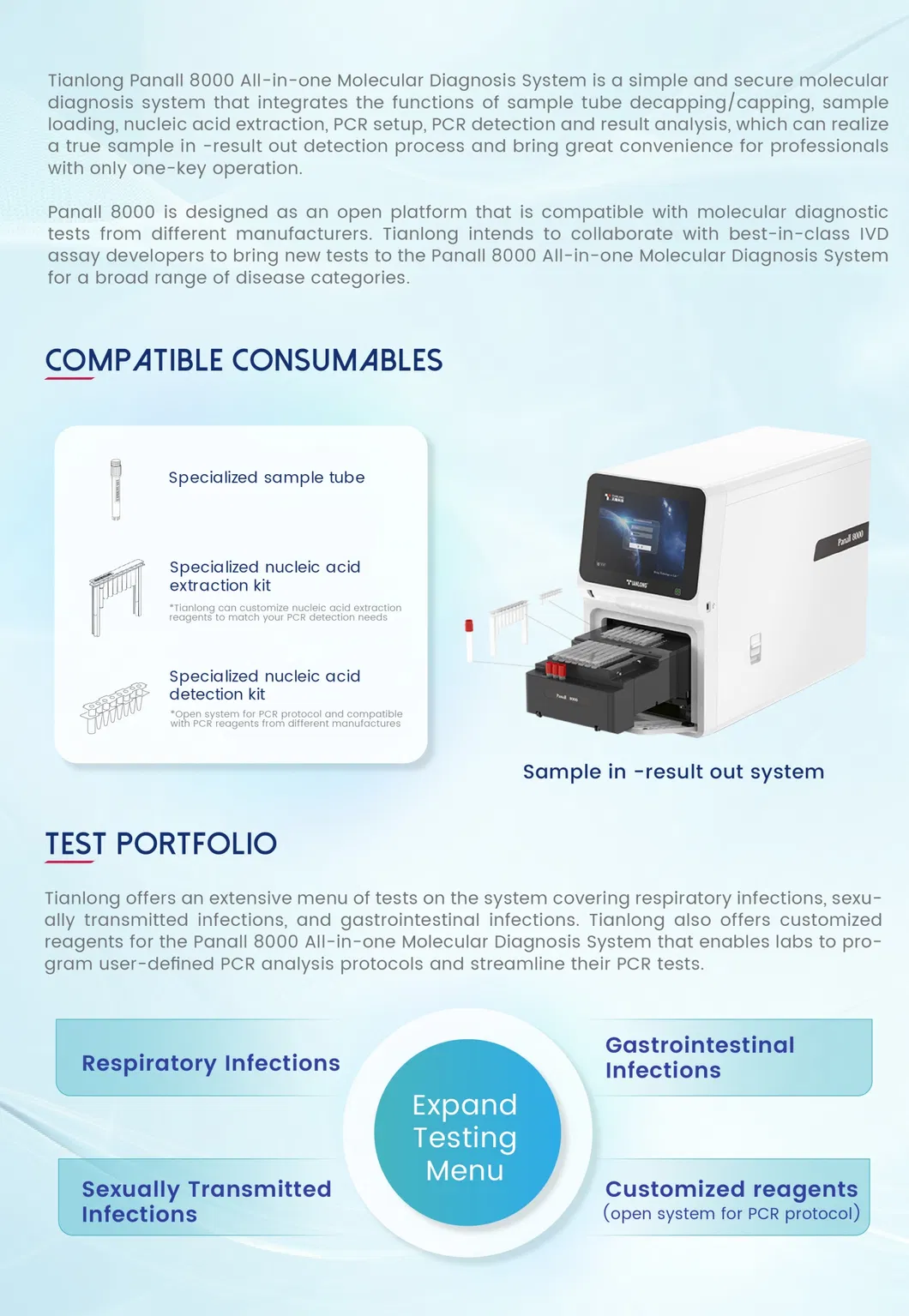

Leaflet 2

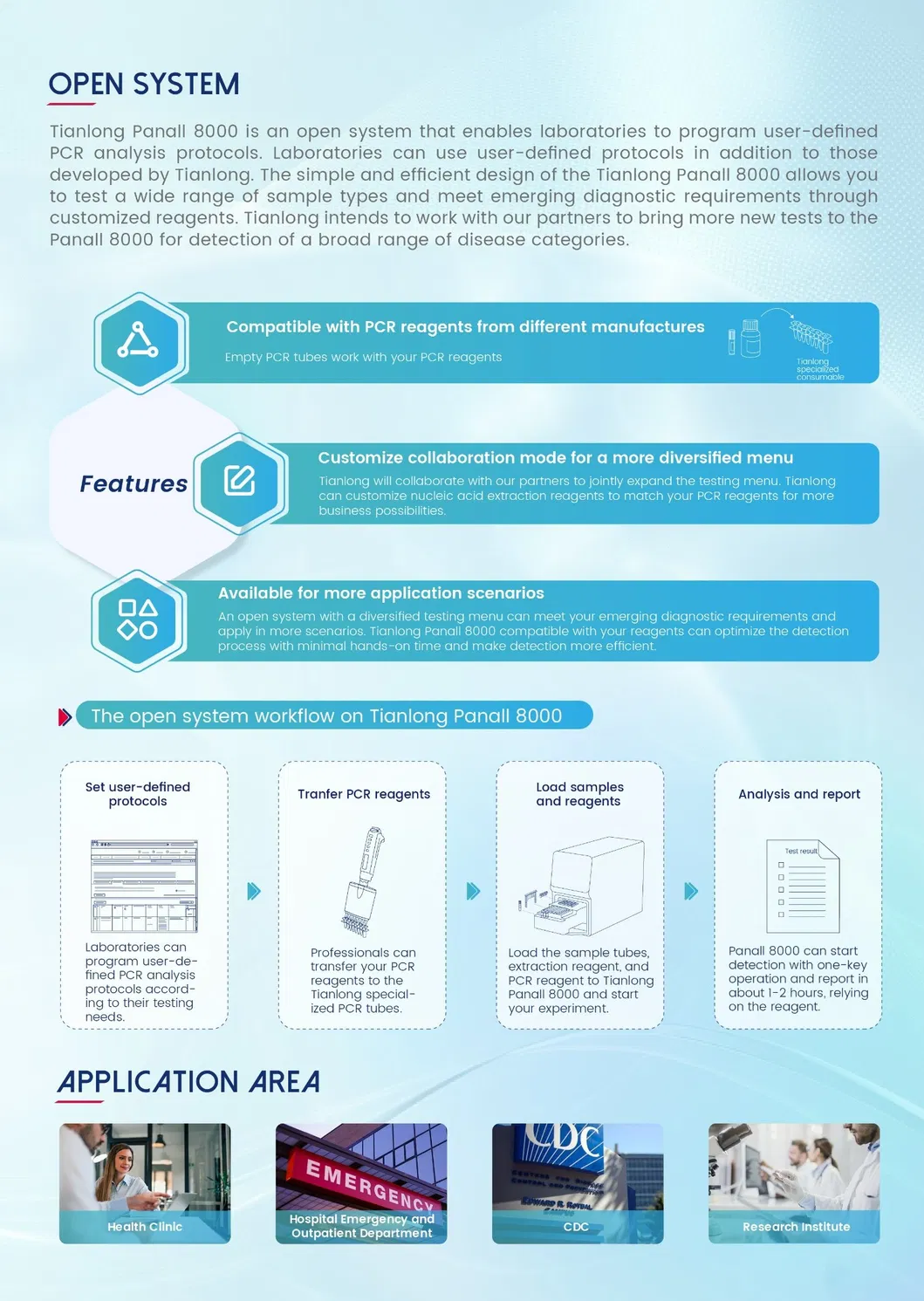

Leaflet 3

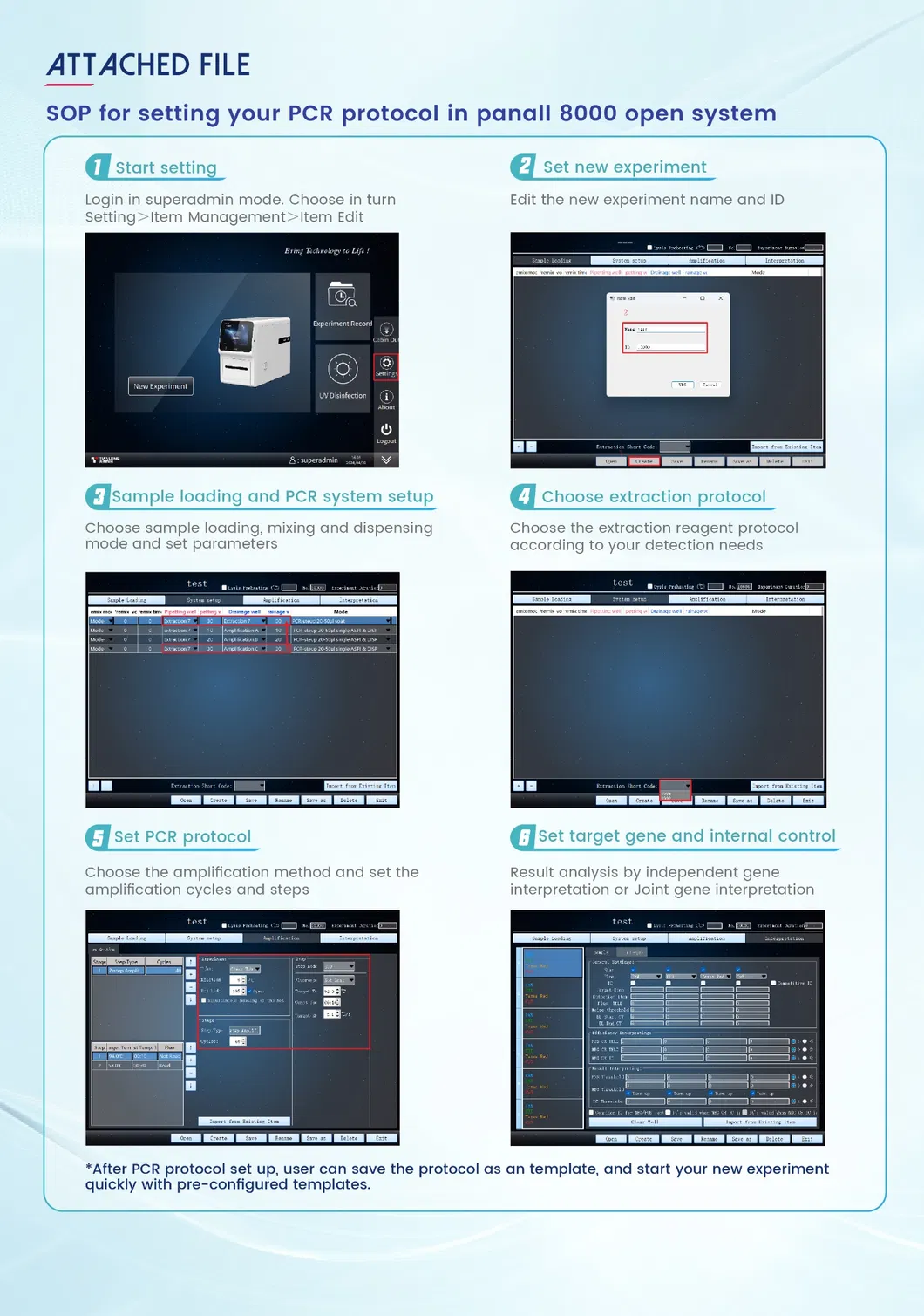

Leaflet 4

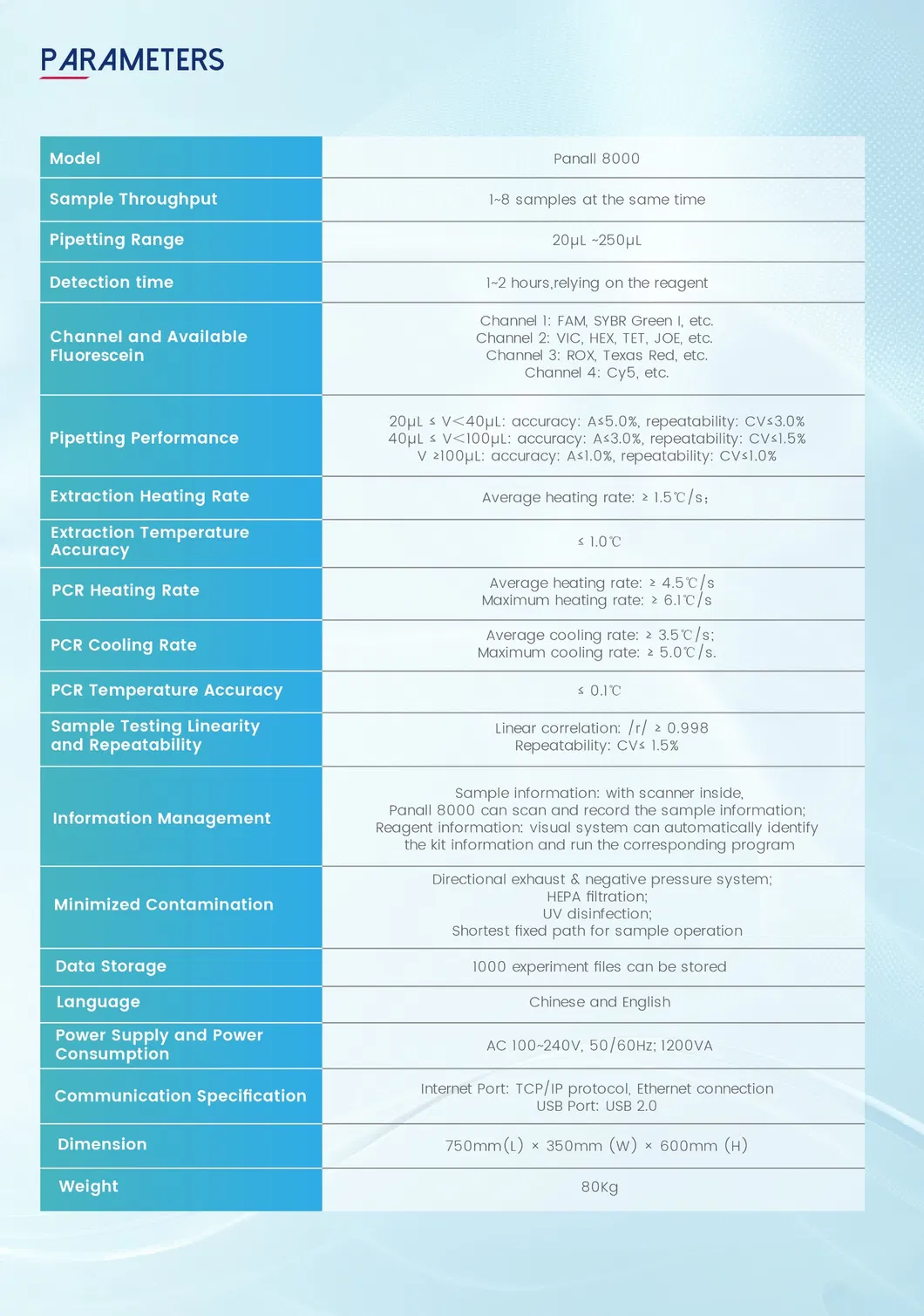

Leaflet 5

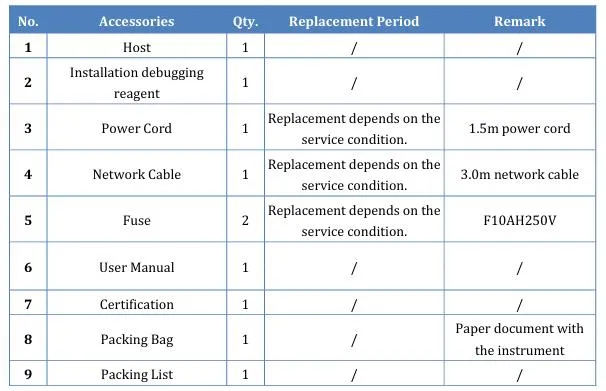

Packing List
Packing List
🏭Production Facilities
Facility 1
Facility 2

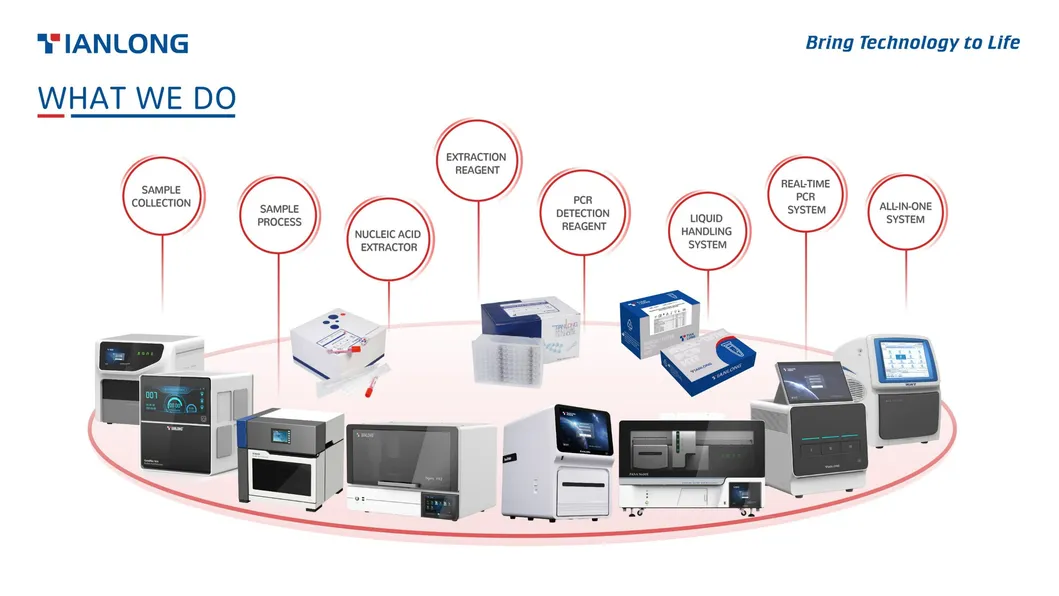

Facility 3
Facility 4
Facility 5

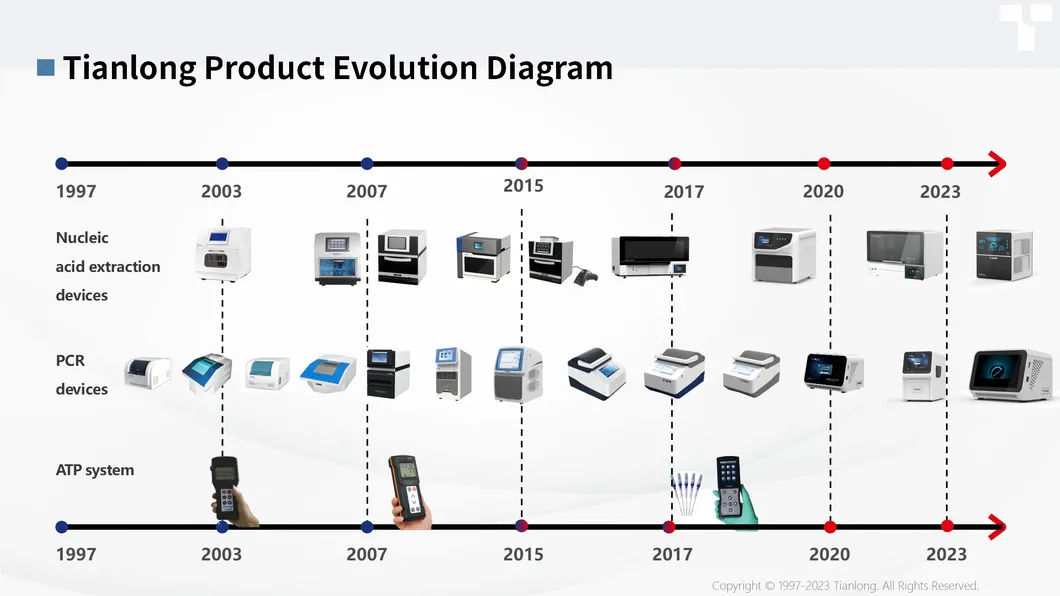

Facility 6
Facility 7

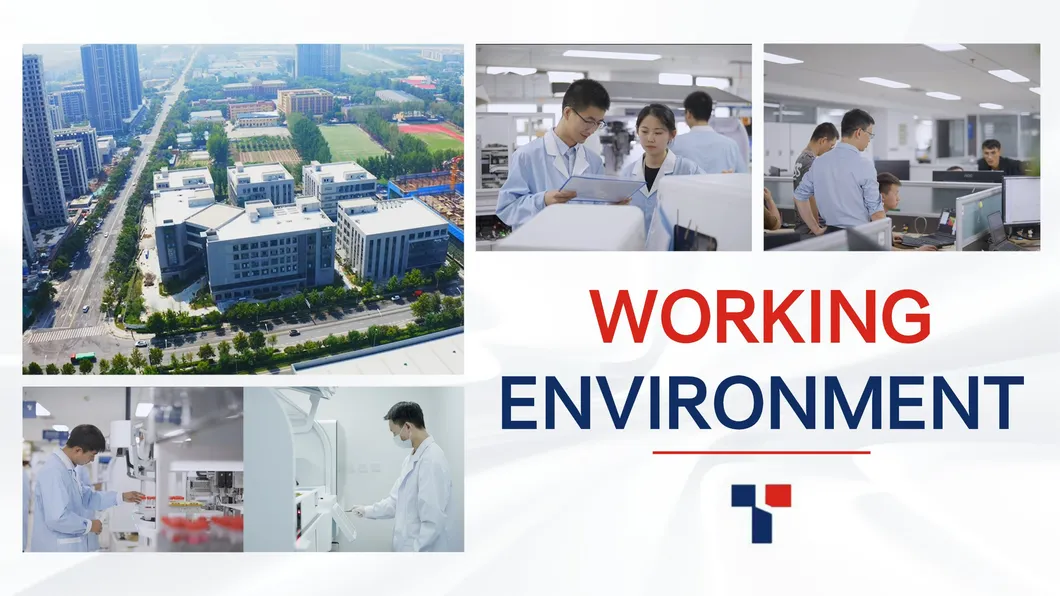

Facility 8
Facility 9
Facility 10

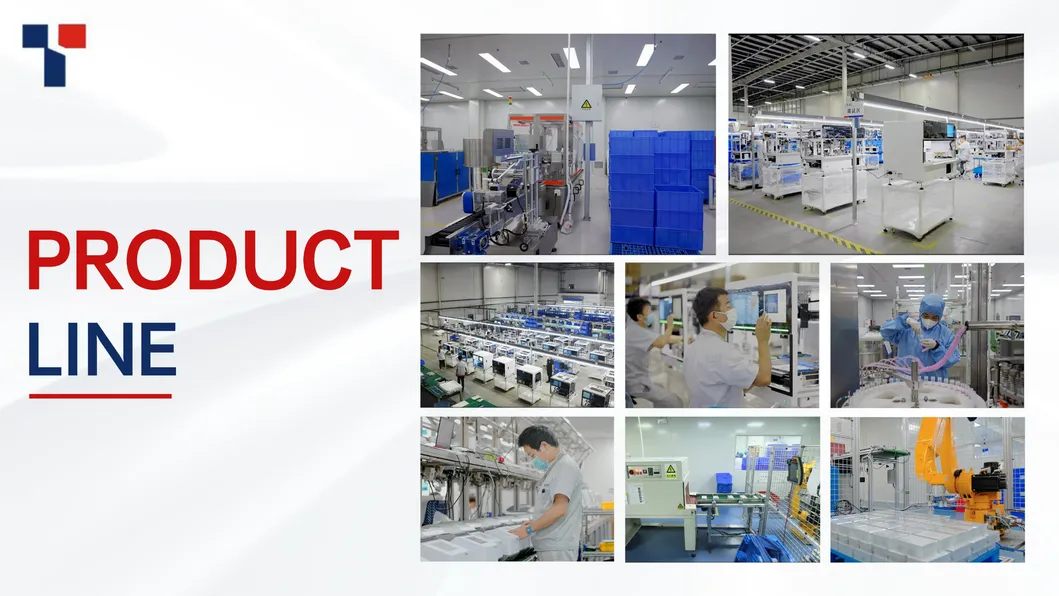

Facility 11
Facility 12
Workflow Chart
Frequently Asked Questions
What makes the Panall 8000 an "Open System"?
The system allows laboratories to program their own PCR protocols and use reagents from different manufacturers, providing flexibility for emerging diagnostic needs.
How many samples can be processed simultaneously?
The Panall 8000 can handle between 1 to 8 samples at the same time, making it suitable for varying laboratory workloads.
Which fluorescence channels are available on this system?
It features 4 channels compatible with various dyes including FAM, SYBR Green I, VIC, HEX, TET, JOE, ROX, Texas Red, and Cy5.
How does the system prevent cross-contamination?
It utilizes a directional exhaust and negative pressure system, HEPA filtration, UV disinfection, and a optimized fixed path for sample operations to minimize contamination risk.
What certifications does the Panall 8000 hold?
The system is certified by CE, FDA, and ISO13485, and it is compliant with EU RoHS environmental and health standards.
What is the typical detection time for an analysis?
Depending on the specific reagents used, the detection time generally ranges from 1 to 2 hours.
