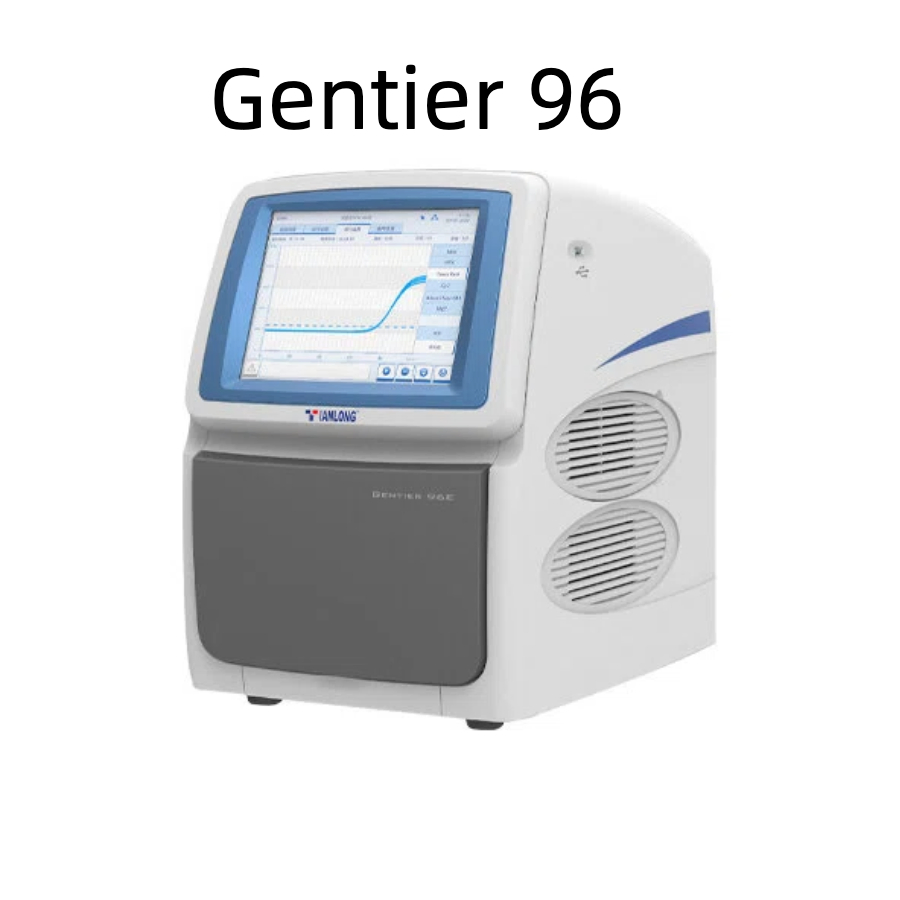

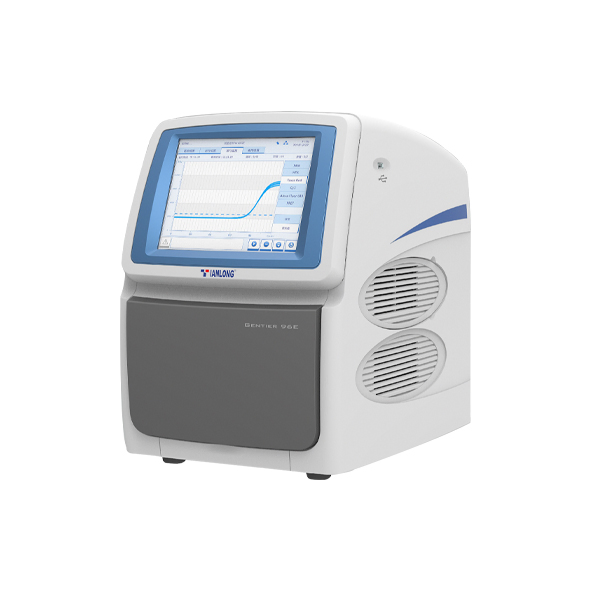

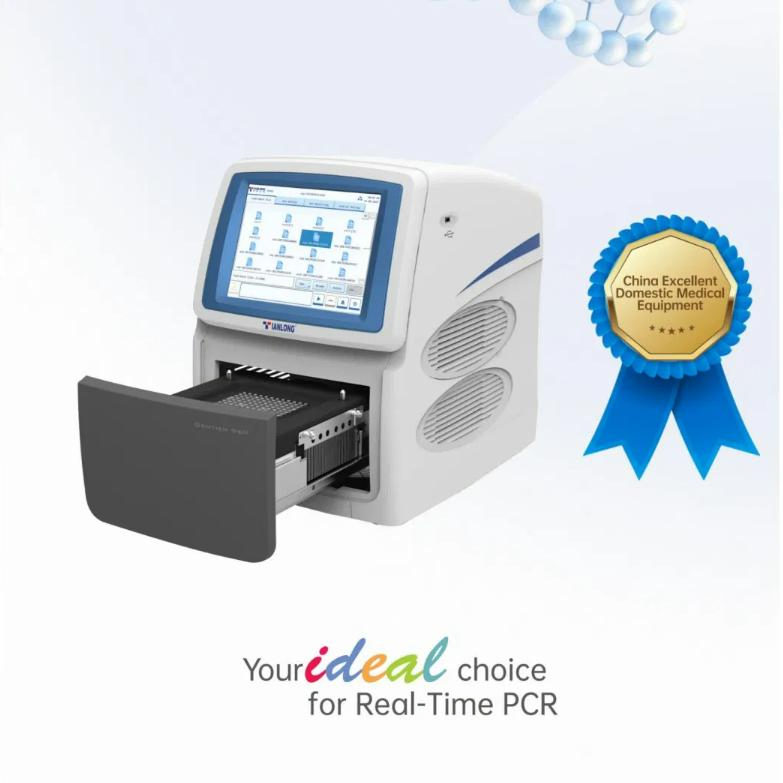

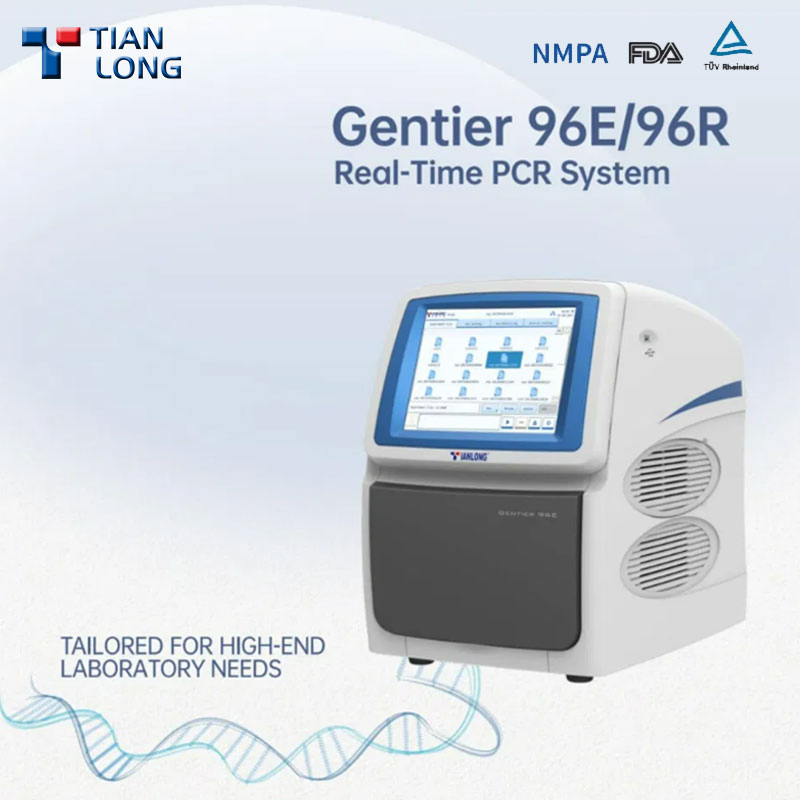

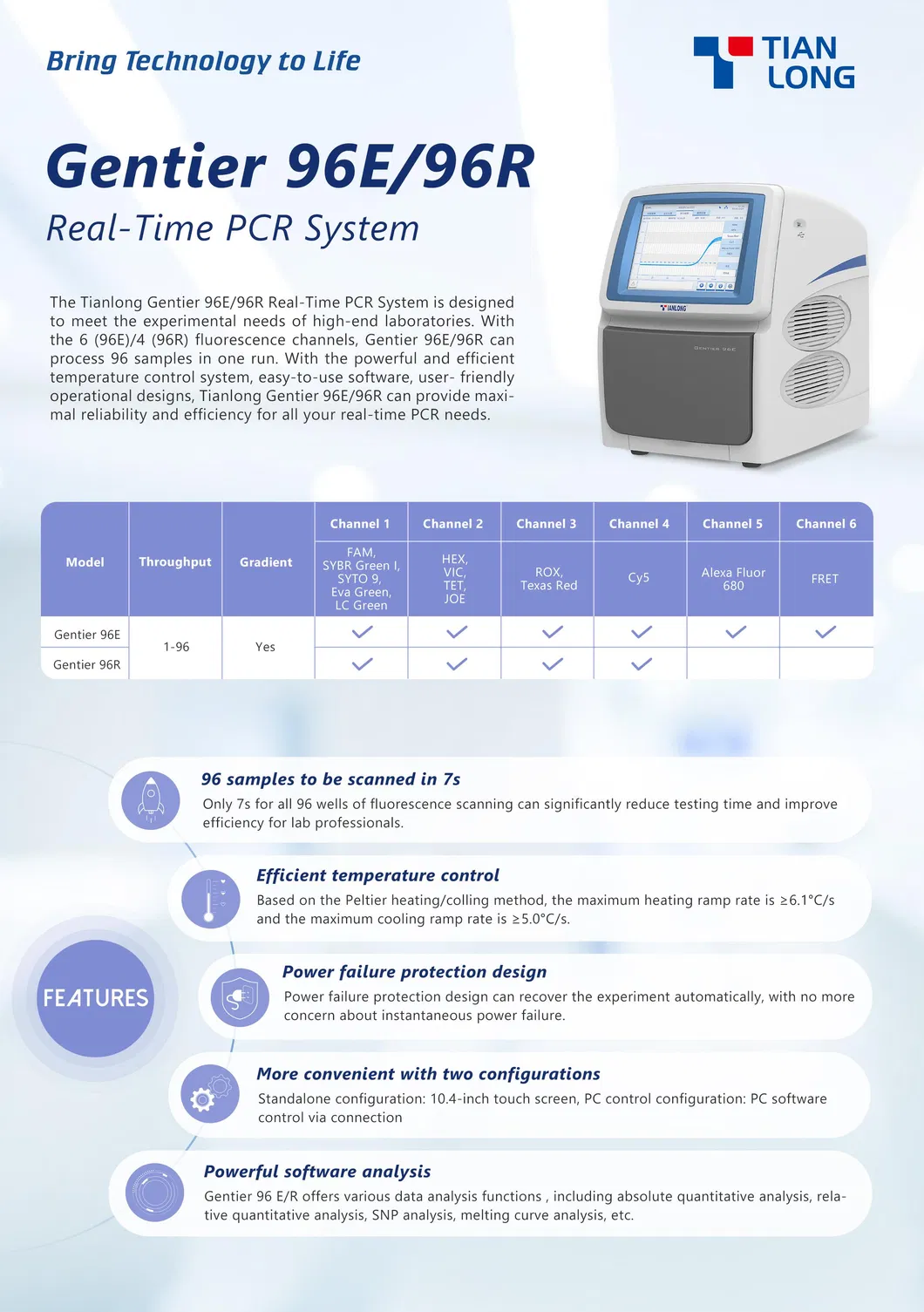

Gentier96E is a real-time PCR detection system designed to meet the experimental needs of high-end users. The product features an advanced, efficient temperature control system combined with a high-performance photoelectric system.
Equipped with powerful and intuitive software analysis functions and user-friendly control methods, it easily processes downstream multiplex gene detection, quantitative analysis, SNP analysis, dissociation curve analysis, and various other applications.
It is widely utilized in medical institutions at all levels, universities, research institutes, CDC centers, inspection and quarantine bureaus, criminal identification centers, veterinary centers, and food or dairy product manufacturing facilities.

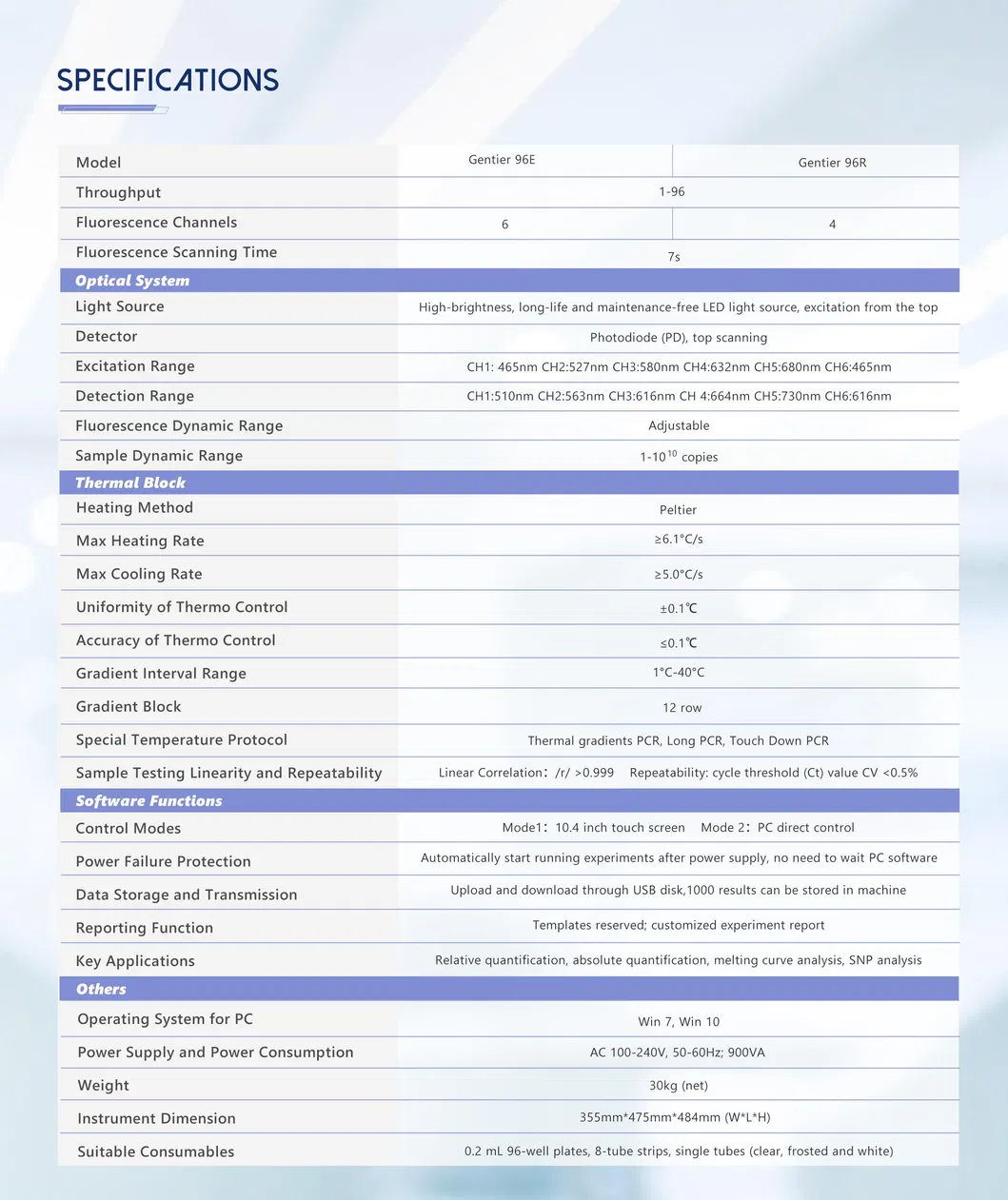

| Item | Parameter |
|---|---|
| Product Model | Gentier96E |
| Fluorescence Channels | 6 |
| Sample Throughput | 96 |
| Authoritative Certifications | NMPA, CE, etc. |
| Compatible Fluorophores | Channel 1: FAM, SYBR Green I, SYTO 9, EvaGreen, LC Green. Channel 2: HEX, VIC, TET, JOE. Channel 3: ROX, Texas Red. Channel 4: Cy5. Channel 5: Alexa Fluor 680. Channel 6: FRET. |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Detector and Position | Photodes (PDs), excitation and scan at top |
| Detection Method | Simultaneous well-by-well scanning of all fluorescent channels, without edge effects |
| Detection Duration | Detection of 96 wells of all channels completed in 7s. |
| Heating & Cooling Rates | Max heating: 6.1ºC/s; Max cooling: 5.0ºC/s. |
| Temperature Accuracy | ≤±0.1ºC |
| Analytical Functions | Qualitative, Absolute/Relative Quantitative, Endpoint Fluorescence, Dissociation Curve, SNP analysis, etc. |
| Control Method | 10.4-inch touchscreen (Stand-alone) or PC software (LAN/Direct connection) |
| Suitable Consumables | 0.2 mL 96-well plate, 8-tube strips, single-tube strips |
| Size and Weight | 355mm x 475mm x 484mm (W*D*H), 30kg |

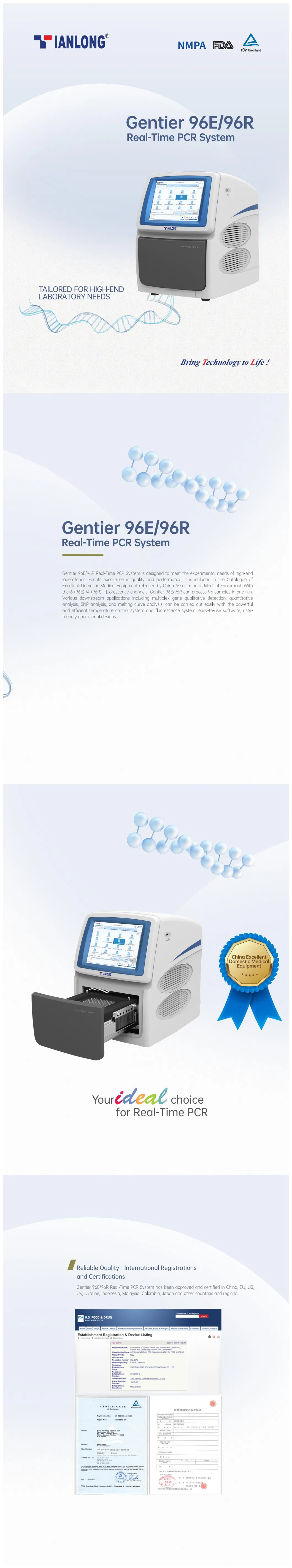

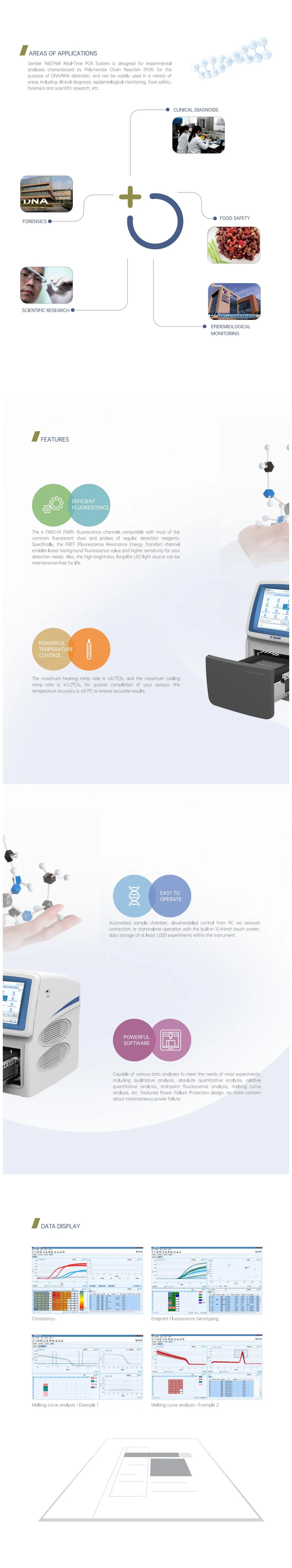

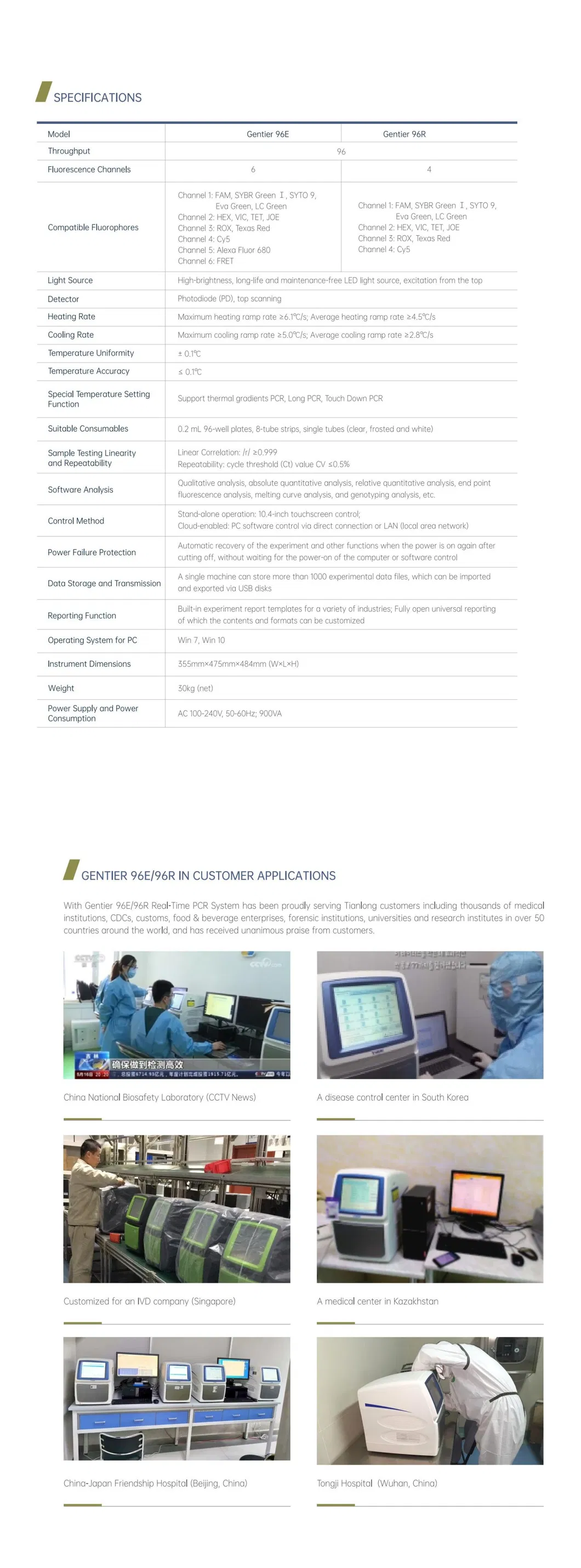

Product Catalogue:

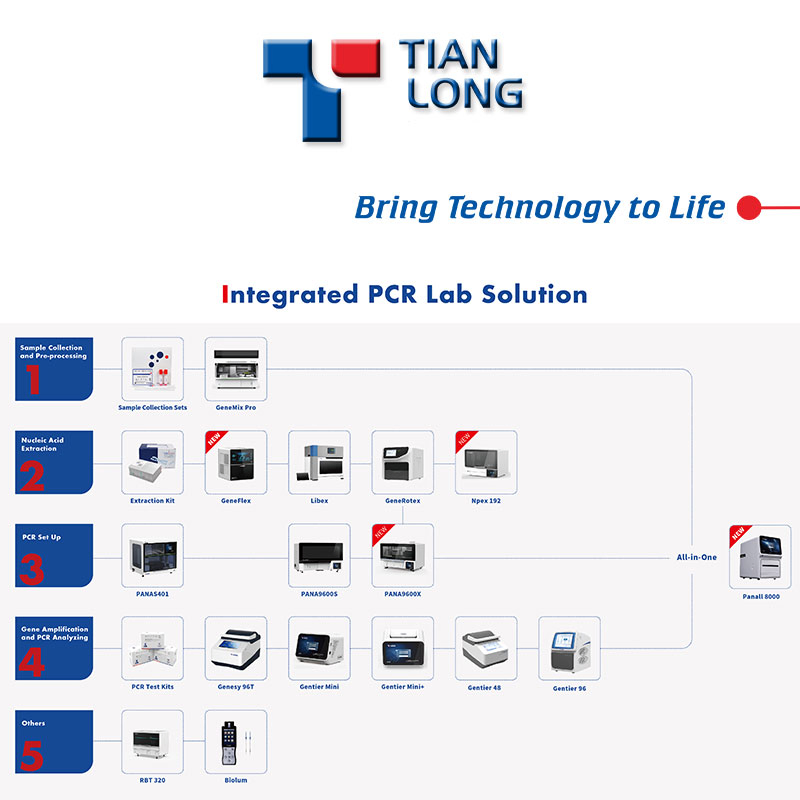

Product Solution:
