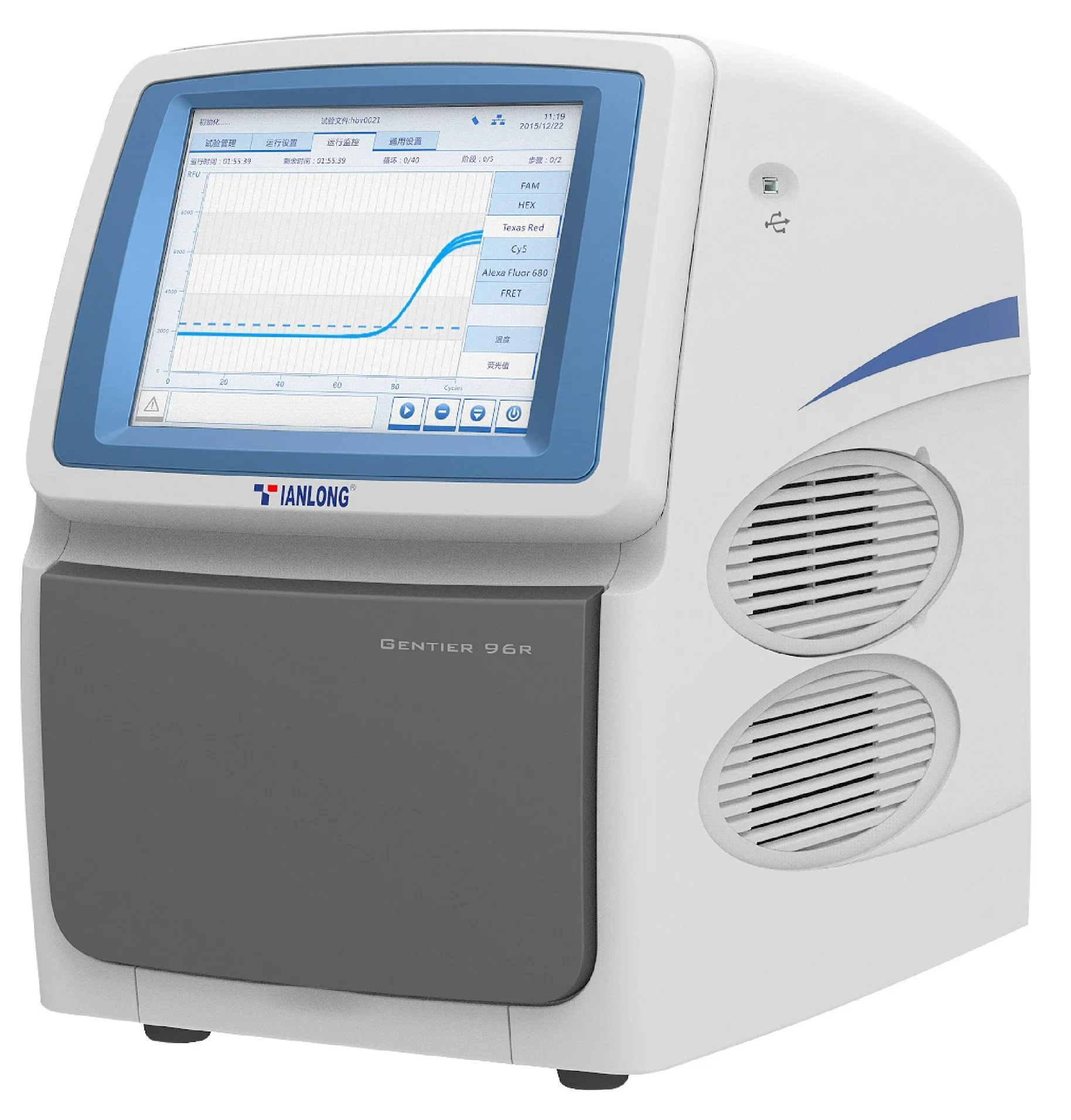

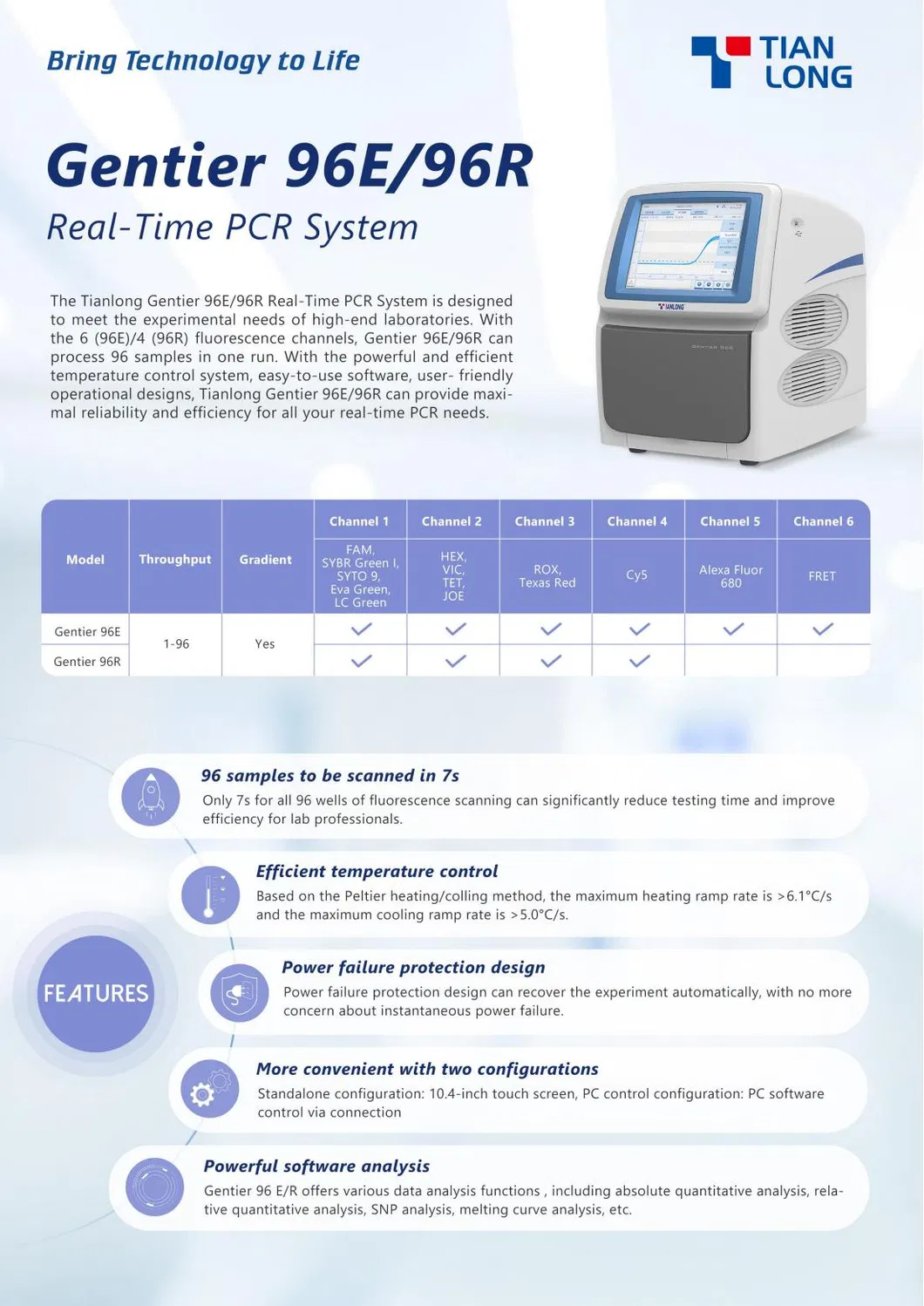

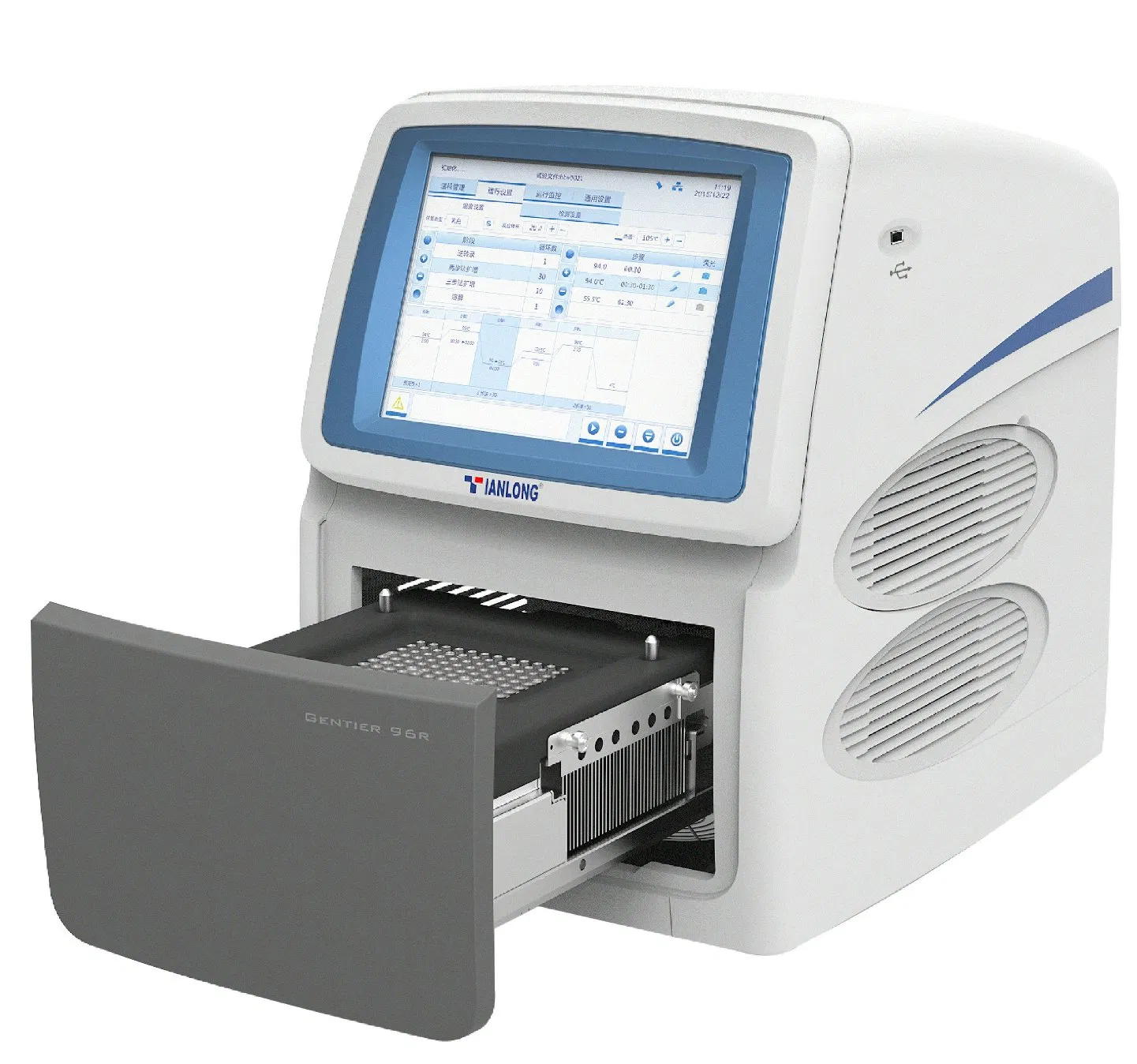

Gentier96R is a real time PCR detection system designed to meet the experimental needs of high-end users. The product features an advanced efficient temperature control system, a high-performance photoelectric system, and powerful, user-friendly software analysis functions.
It efficiently processes downstream applications including multiplex gene detection, quantitative analysis, SNP analysis, and dissociation curve analysis.
This system is widely utilized across medical institutions, universities, research institutes, disease control centers (CDC), inspection bureaus, criminal identification centers, and food safety industries.

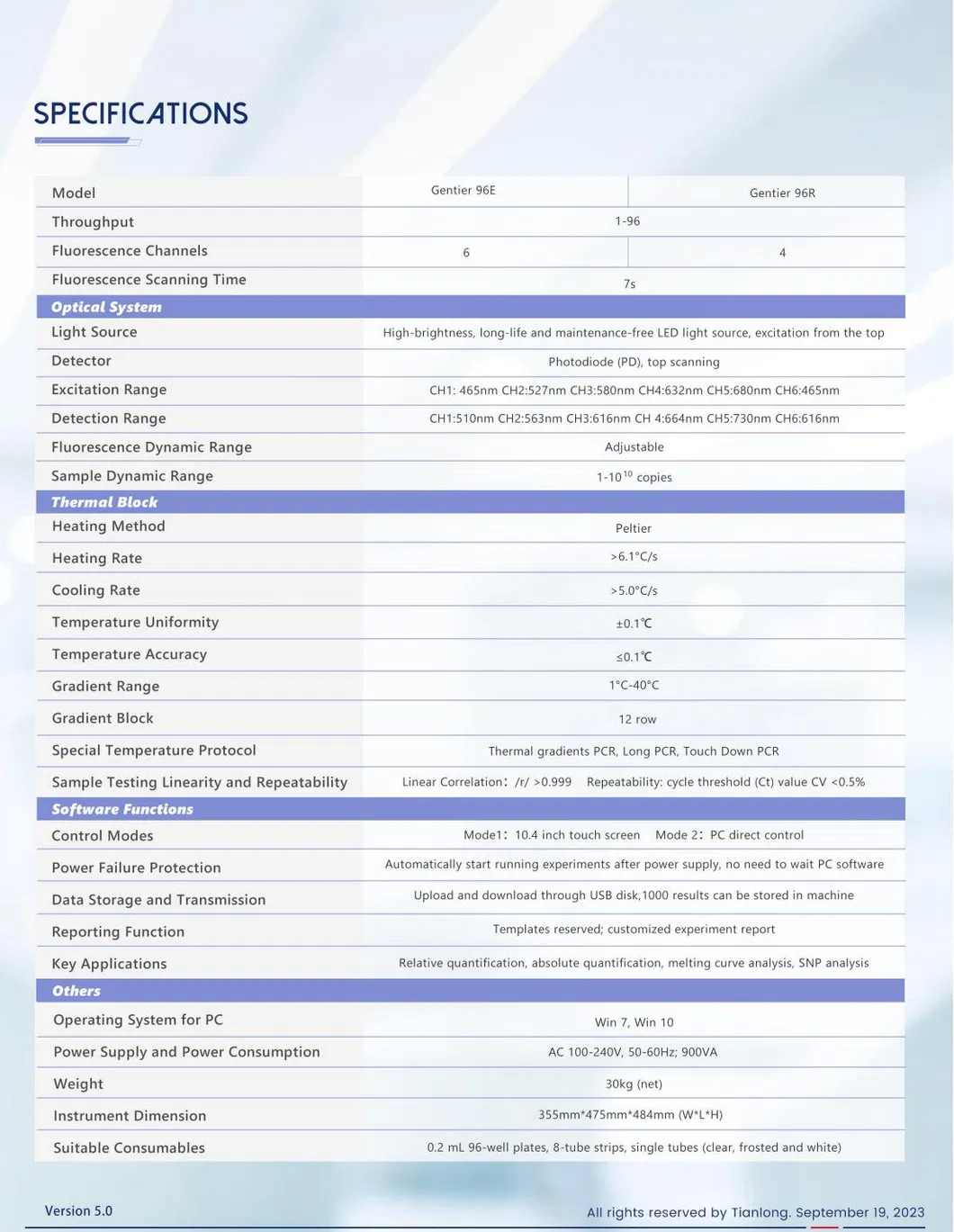

| Item | Parameter |
|---|---|
| Product Model | Gentier 96R |
| Fluorescence Channels | 4 |
| Sample Throughput | 96 |
| Compatible Fluorophores | Channel 1: FAM, SYBR Green I, SYTO 9; Channel 2: HEX, VIC, TET; Channel 3: ROX, Texas Red; Channel 4: Cy5 |
| Lightsource | High-brightness, long-life, maintenance-free LED |
| Detector | Photodiodes (PDs), excitation and scan at top |
| Detection Method | Simultaneous well-by-well scanning without edge effects |
| Detection Duration | 96 wells of all channels completed in 7s |
| Heating & Cooling Rates | Max Heating: 6.1ºC/s; Max Cooling: 5.0ºC/s |
| Temperature Uniformity | ±0.1ºC |
| Special Functions | Up to 12 thermal gradients, Long PCR, Touch Down PCR |
| Analytical Functions | Qualitative, Absolute/Relative Quantitative, SNP, Dissociation curve |
| Control Method | 10.4-inch touchscreen or PC software control (LAN) |
| Suitable Consumables | 0.2 mL 96-well plate, 8-tube strips, single tubes |
| Data Storage | > 1000 experimental data on-board |
| Size & Weight | 355mm x 475mm x 484mm (W*D*H), 30kg |
| Power | AC 220 V, 50 Hz 900 VA |
