Tianlong Gentier Mini 2-Channel 16 Wells Portable Real Time PCR System

Product Description

Product Description

Based on years of application-oriented R&D, Gentier Mini Portable Real-Time PCR System is developed and launched to meet the increasing needs for on-site and rapid testing. This product is compact and portable, easy to use, high efficiency in real-time PCR testing with accurate temperature control, allowing real-time PCR tests out of your labs for all types of fields for your applications.

Designed for mobile, small laboratories or on-site testing, Gentier Mini can be widely applied in food safety, animal disease and infectious disease prevention and control, scientific research, environmental monitoring and other fields, especially animal disease detection. Continuing the excellent performance of intelligent manufacturing real-time PCR systems, Gentier Mini plays an important role in animal disease detection and solves the problems of limited space and fragmented samples.

Product Features
🌐 THOUGHTFUL DESIGN
  • Compact size, 3.2kg, hand-held, easy to carry.
  • 7-inch high-definition LCD capacitive touch screen for a smooth experience.
  • Patented design, no need for fluorescent calibration after moving.
  • Instant power failure protection, seamless automatic recovery of the operation.
⚡ HIGH-EFFICIENCY TESTING
  • 16-well dual-color fluorescence scanning within 1 second.
  • Independent temperature control module, supporting touchdown PCR and long-range PCR.
  • Supports qualitative and quantitative analysis, melting curve, and SNP site analysis.
  • Powerful software analysis function to meet diverse testing needs.
🖱️ EASY TO OPERATE
  • Special shortcut mode with preset programs for fast testing.
  • Multiple connectivity options: Internet interface, USB, WiFi.
  • Direct data analysis in stand-alone state with immediate printing capabilities.
  • Various control modes including stand-alone, PC, and tablet.
Technical Specifications
Item Parameters
Product ModelGentier Mini
Sample Throughput16
Fluorescence Channels2
Suitable Consumables0.2mL transparent single tubes and 8-strip tubes
Compatible FluorophoresChannel 1: FAM, SYBR Green I, SYTO 9, Eva Green, LC Green; Channel 2: HEX, VIC, TET, JOE
Heating RateAverage: 3.39°C/s; Maximum: 5.09°C/s
Cooling RateAverage: 3.0°C/s; Maximum: 4.0°C/s
Temperature Accuracy≤0.1ºC
LightsourceHigh-brightness, long-life, maintenance-free LED light source
Detection DurationFluorescence channel information acquisition within 1 second for all holes
Temperature Controlled ProgramsSupporting conventional PCR, touchdown PCR, long-range PCR, etc.
Hot Lid Temperature40°C-110°C
Software AnalysisQualitative, absolute/relative quantitative, endpoint fluorescence, dissociation curve, and SNP analysis.
Display7-inch full-color HD LCD capacitive touch screen
Control MethodsMode 1: Touch-screen stand-alone; Mode 2: Computer software; Mode 3: Remote control via tablet
Network ConnectionInternet interface, USB, WiFi
Power Failure ProtectionInstant protection with seamless automatic recovery when restarted
Specifications & Weight205mm (L) × 156mm (W) × 153mm (H); 3.2kg
Product Visuals
Product Leaflet: Portable Real Time PCR System Leaflet

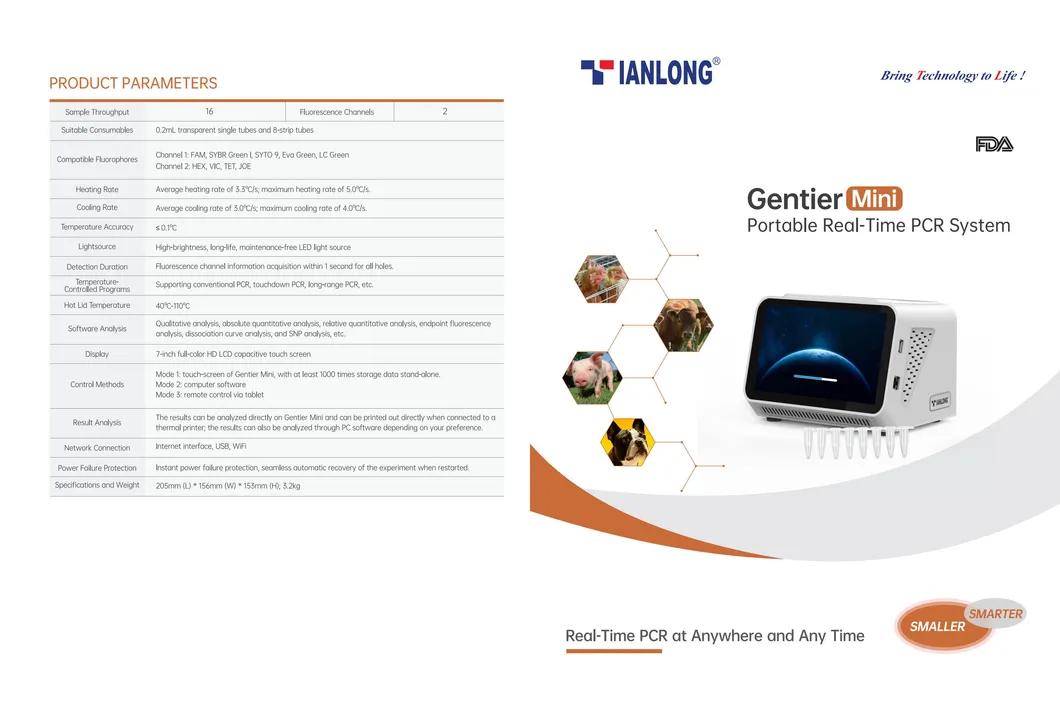

Product Catalogue Page 1

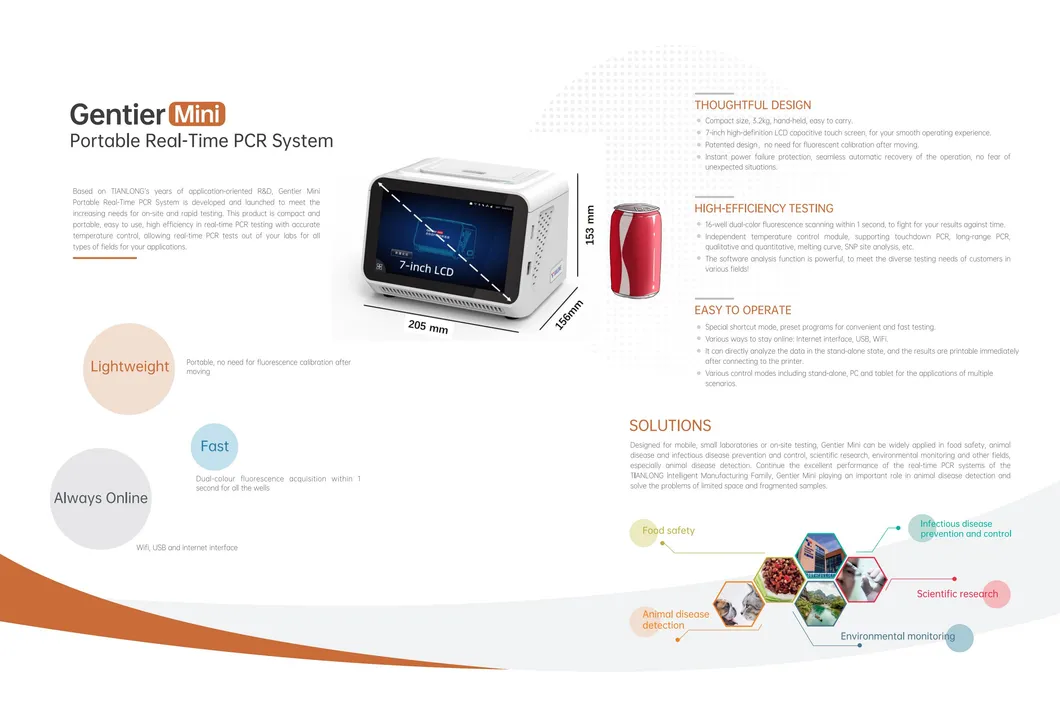

Product Catalogue Page 2
Frequently Asked Questions
What is the primary advantage of the Gentier Mini?
The Gentier Mini is highly portable (only 3.2kg) and designed for on-site rapid testing, eliminating the need to transport samples to a central laboratory.
How many samples can be tested simultaneously?
The system features a 16-well throughput, allowing you to process up to 16 samples in a single run.
Does the device require calibration after being moved?
No. Thanks to its patented design, the Gentier Mini does not require fluorescent calibration after moving, making it ideal for mobile laboratory use.
What fluorescence channels are available?
It is a 2-channel system. Channel 1 supports FAM/SYBR Green I, and Channel 2 supports HEX/VIC/TET/JOE.
What happens if there is a sudden power failure?
The system includes instant power failure protection, allowing for a seamless automatic recovery of the experiment once power is restored.
Can the results be analyzed without a computer?
Yes, results can be analyzed directly on the built-in 7-inch touch screen in stand-alone mode and can be printed immediately if connected to a thermal printer.
