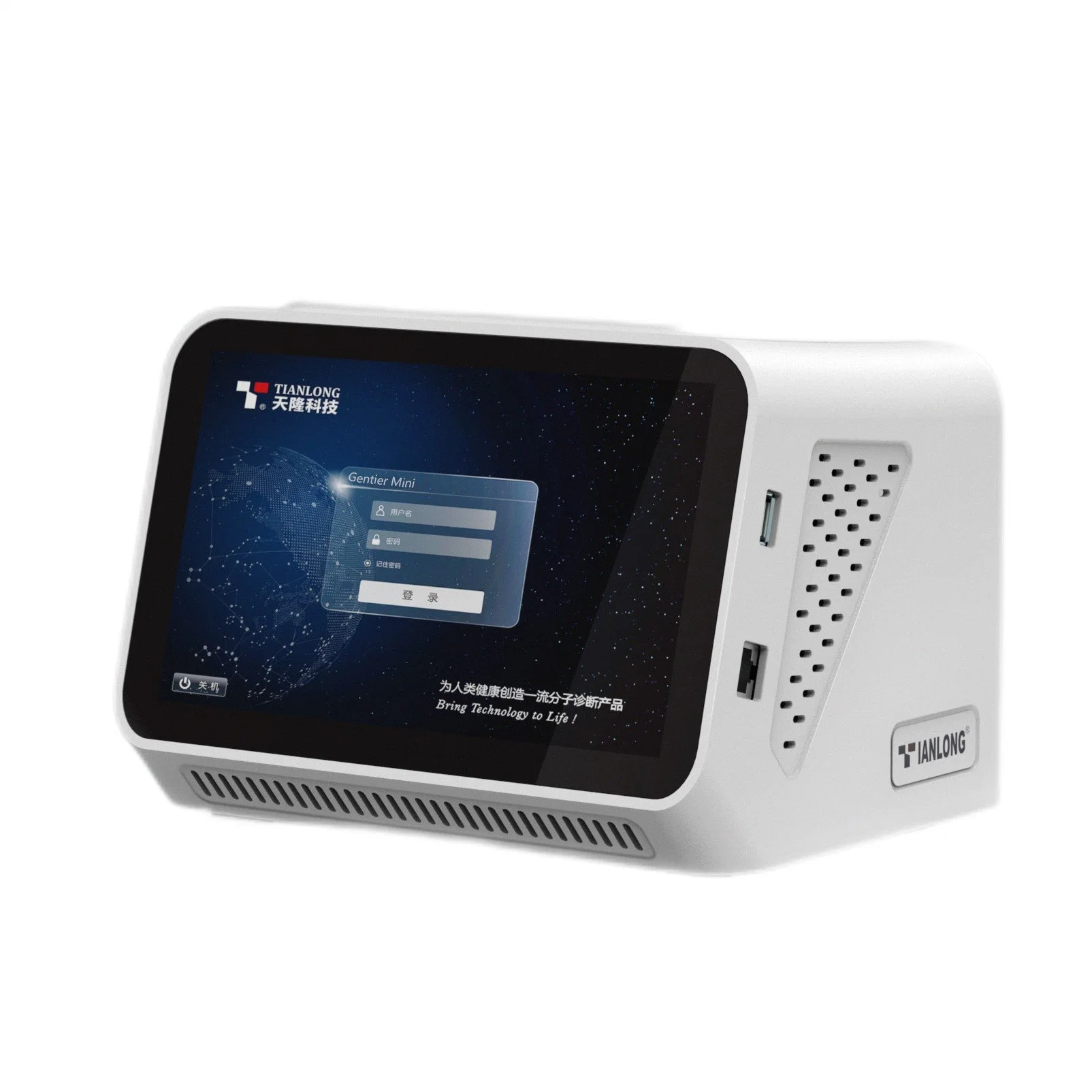

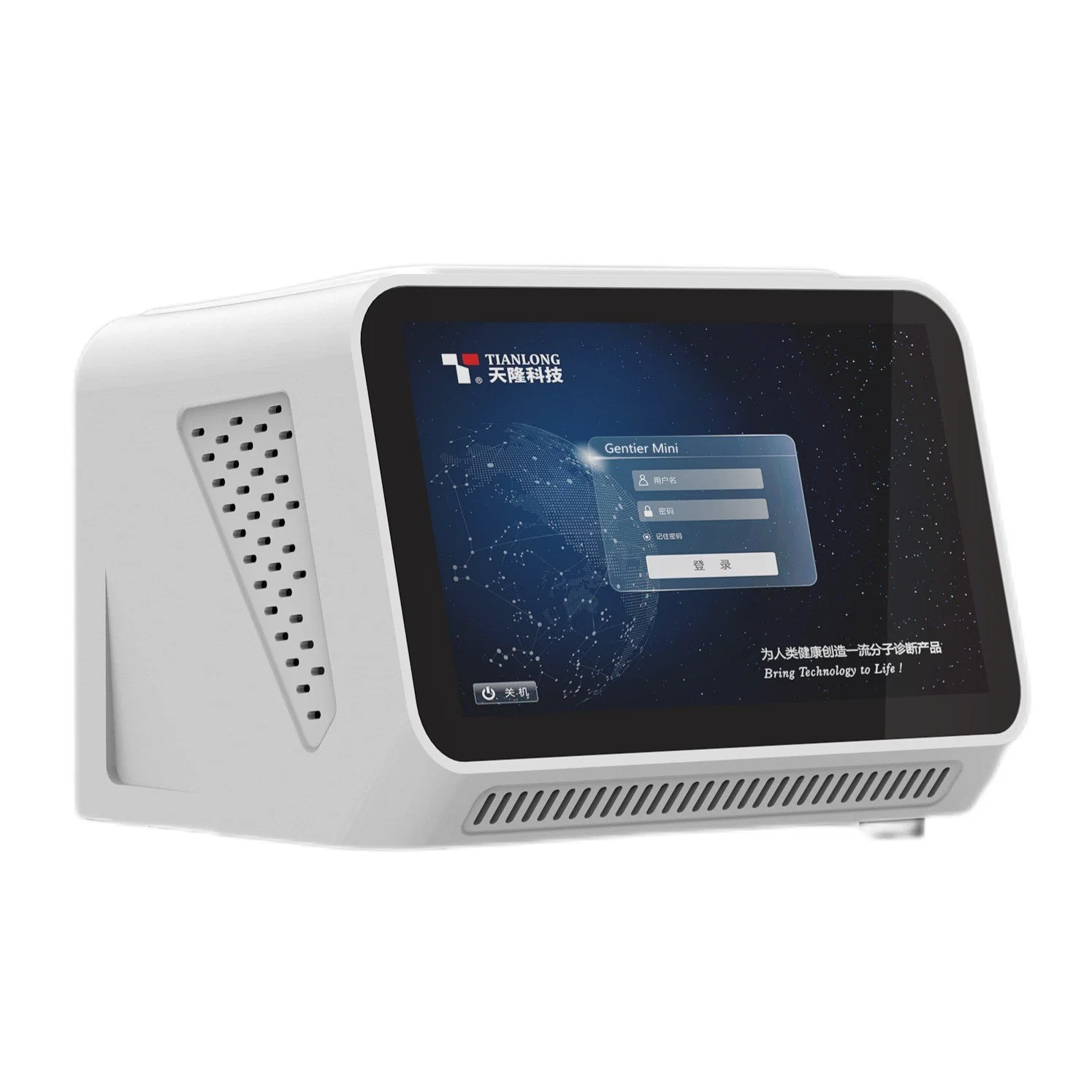

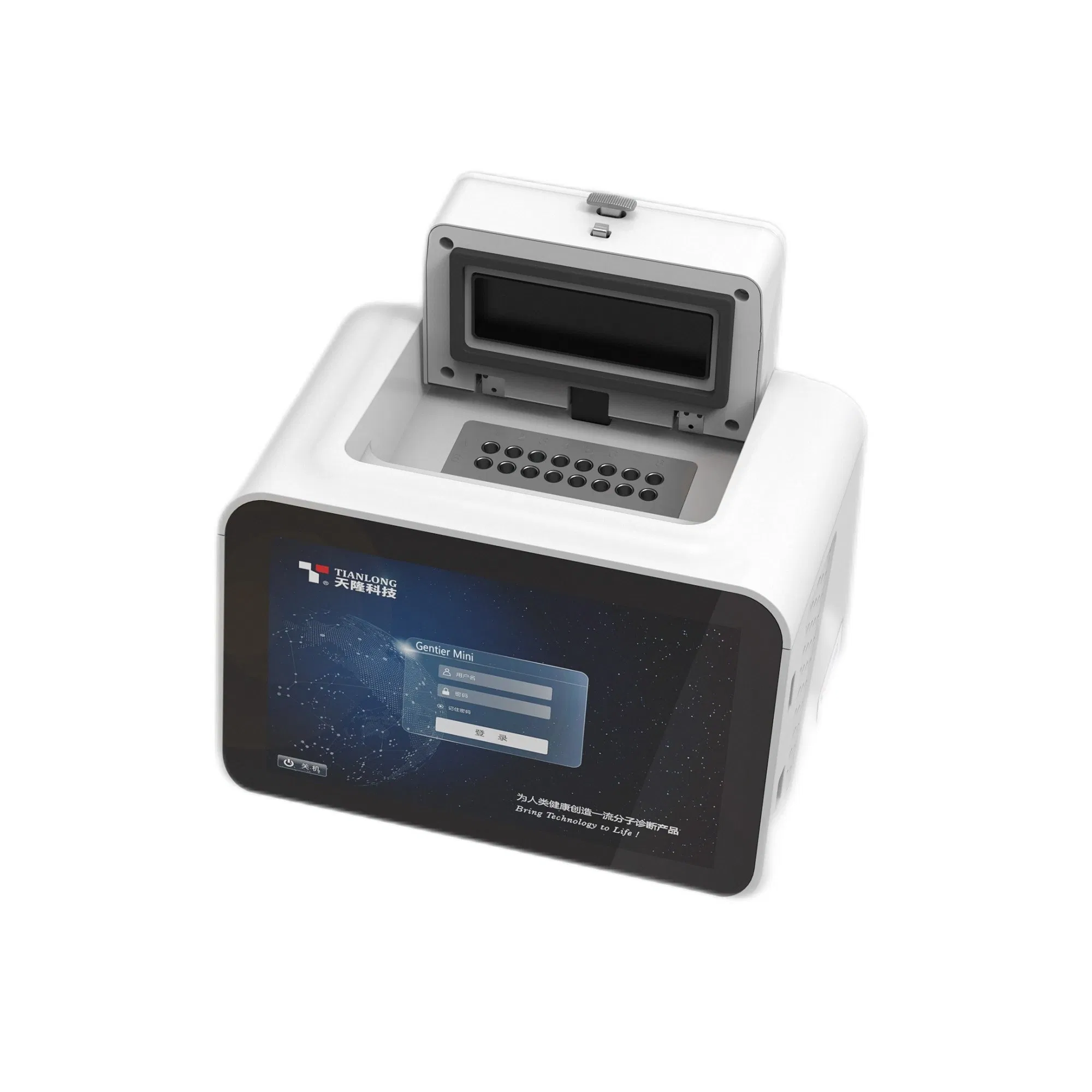

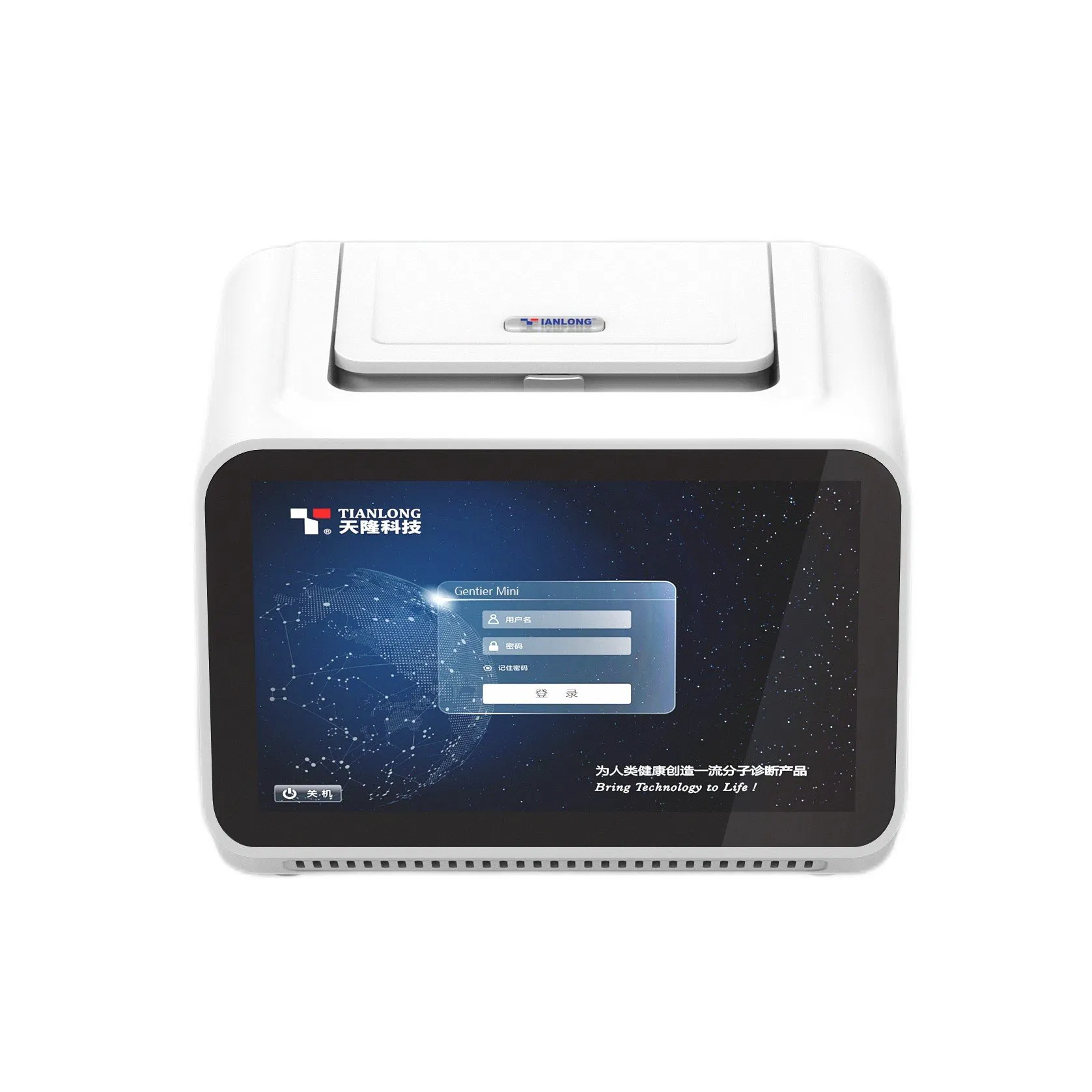

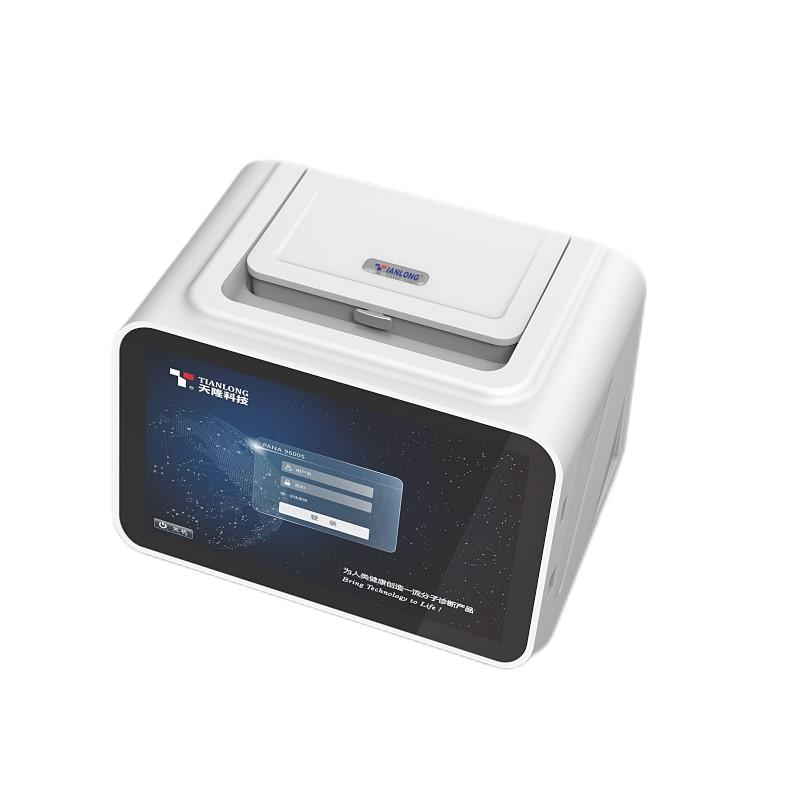

Tianlong Portable Real Time PCR System - Gentier Mini
Tianlong Portable Real Time PCR System - Gentier Mini
Tianlong Portable Real Time PCR System - Gentier Mini
Tianlong Portable Real Time PCR System - Gentier Mini
Tianlong Portable Real Time PCR System - Gentier Mini
1 / 5
Tianlong Portable Real Time PCR System - Gentier Mini
Tianlong Portable Real Time PCR System - Gentier Mini
Tianlong Portable Real Time PCR System - Gentier Mini
Tianlong Portable Real Time PCR System - Gentier Mini
Tianlong Portable Real Time PCR System - Gentier Mini

Tianlong Portable Real Time PCR System - Gentier Mini

Send Inquiry

Product Description

Product Description
Based on years of application-oriented R&D, the Gentier Mini Portable Real-Time PCR System is developed and launched to meet the increasing needs for on-site and rapid testing. This product is compact and portable, easy to use, and high efficiency in real-time PCR testing with accurate temperature control, allowing real-time PCR tests out of your labs for all types of fields for your applications.
Designed for mobile, small laboratories or on-site testing, Gentier Mini can be widely applied in food safety, animal disease and infectious disease prevention and control, scientific research, environmental monitoring and other fields, especially animal disease detection. It plays an important role in animal disease detection and solves the problems of limited space and fragmented samples.
Product Features
THOUGHTFUL DESIGN
  • Compact size, 3.2kg, hand-held, easy to carry.
  • 7-inch high-definition LCD capacitive touch screen for a smooth experience.
  • Patented design, no need for fluorescent calibration after moving.
  • Instant power failure protection with seamless automatic recovery.
HIGH-EFFICIENCY TESTING
  • 16-well dual-color fluorescence scanning within 1 second.
  • Independent temperature control module supporting touchdown and long-range PCR.
  • Powerful software analysis for qualitative, quantitative, melting curve, and SNP analysis.
EASY TO OPERATE
  • Special shortcut mode with preset programs for fast testing.
  • Multiple connectivity: Internet interface, USB, WiFi.
  • Standalone data analysis with direct printing capabilities.
  • Flexible control modes via stand-alone unit, PC, or tablet.
Technical Parameters
Item Parameters
Product ModelGentier Mini
Sample Throughput16
Fluorescence Channels2
Suitable Consumables0.2mL transparent single tubes and 8-strip tubes
Compatible FluorophoresCH1: FAM, SYBR Green I, SYTO 9, Eva Green; CH2: HEX, VIC, TET, JOE
Heating RateAvg 3.39°C/s; Max 5.09°C/s
Cooling RateAvg 3.0°C/s; Max 4.0°C/s
Temperature Accuracy≤0.1ºC
LightsourceHigh-brightness, maintenance-free LED
Detection DurationAcquisition within 1 second for all holes
Hot Lid Temperature40°C - 110°C
Control MethodsTouch-screen (1000+ data storage), PC software, or tablet
Dimensions & Weight205mm(L) × 156mm(W) × 153mm(H); 3.2kg
Product Visuals
Product Leaflet:
Portable Real Time PCR System Leaflet
Product Catalogue:

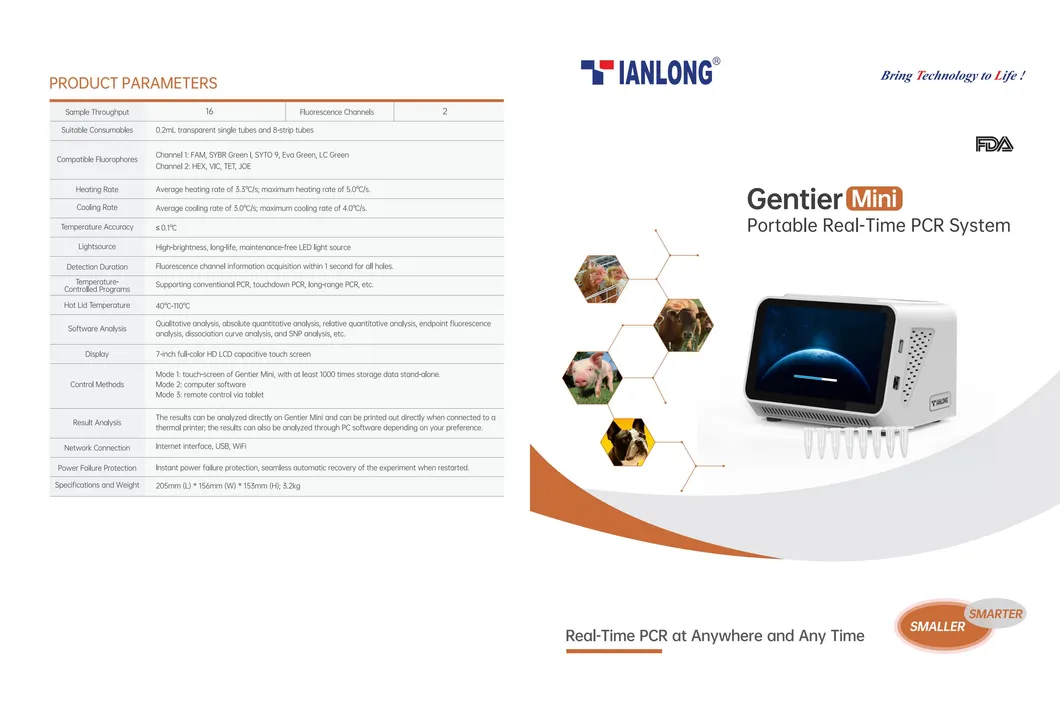

Catalogue Page 1

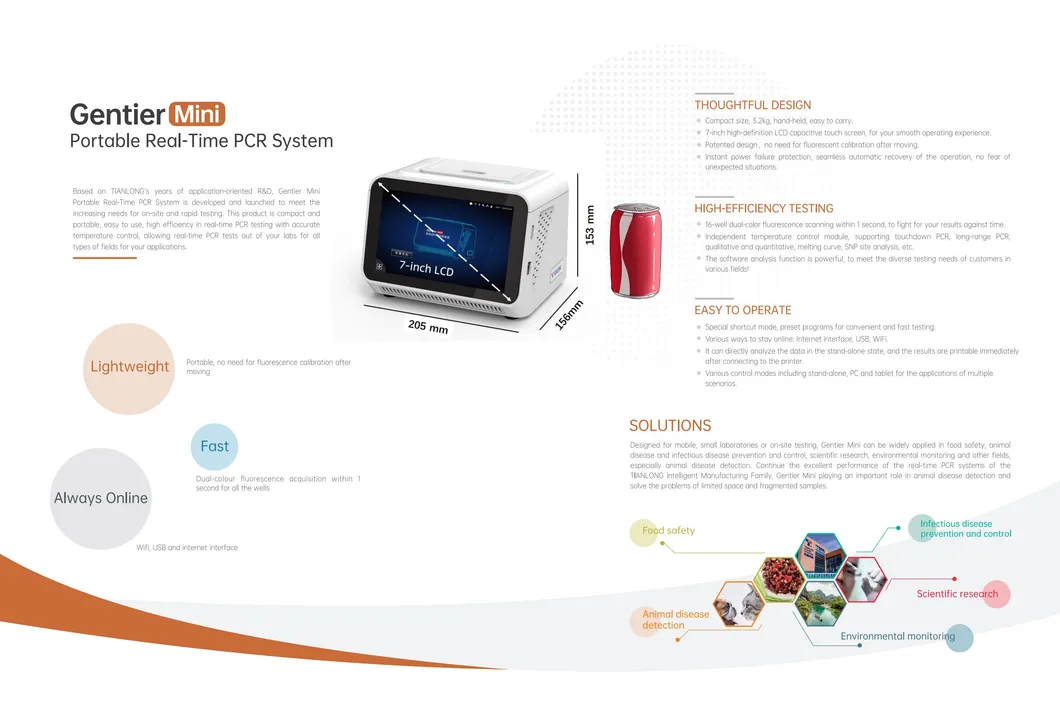

Catalogue Page 2
Product Pipeline:

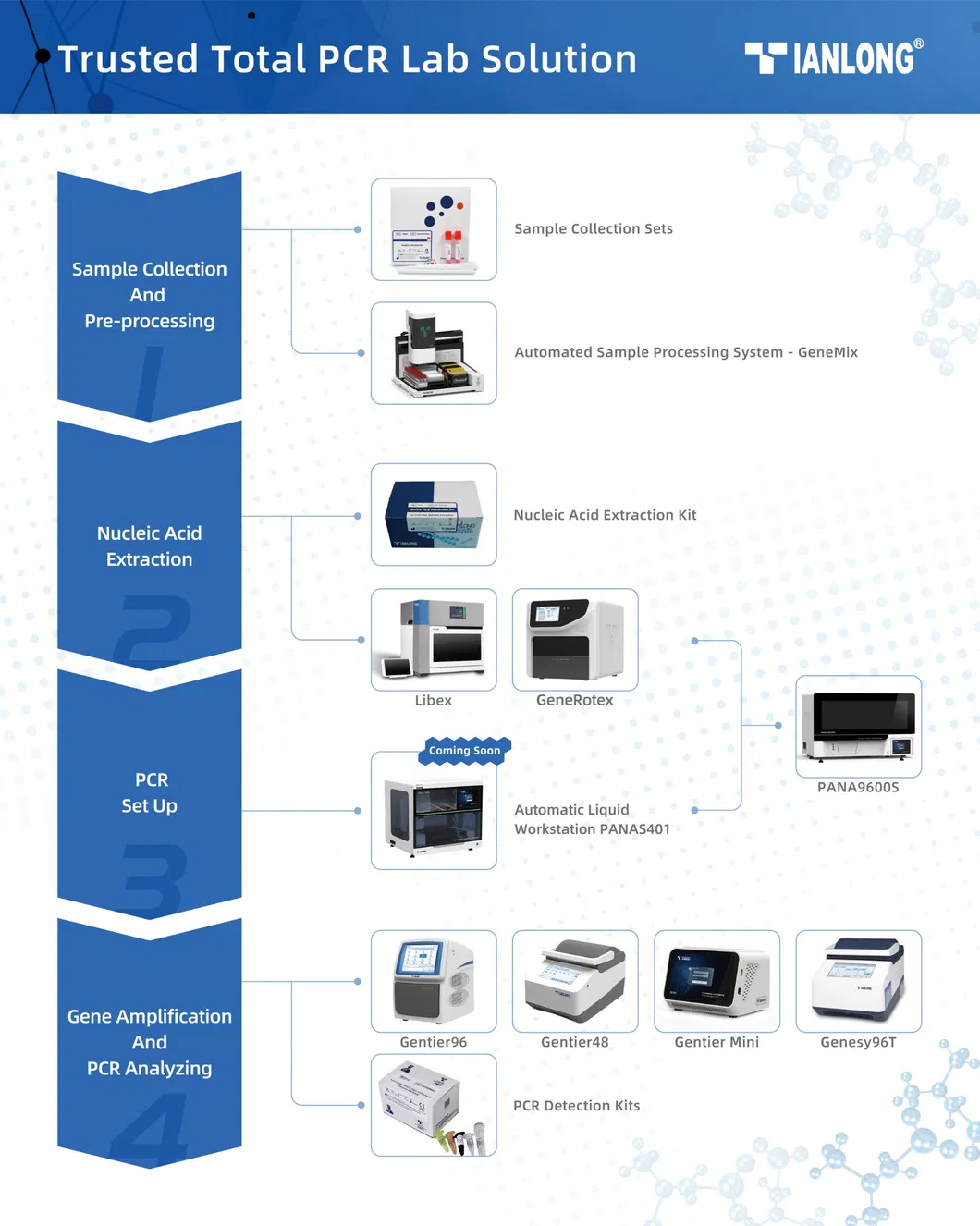

Product Pipeline
Frequently Asked Questions (FAQ)
Is the Gentier Mini suitable for outdoor or on-site testing?
Yes, it is specifically designed for mobile use. Weighing only 3.2kg and featuring a compact handheld design, it is ideal for rapid on-site testing in fields like animal disease control and food safety.
Does the device require calibration after being moved?
No. Thanks to its patented optical design, the Gentier Mini does not require fluorescent calibration after transportation or movement, making it truly portable.
How many samples can be processed at once?
The system features a 16-well throughput and supports dual-color fluorescence scanning, which can be completed within just 1 second.
What types of PCR analysis can the software perform?
The software is powerful and supports qualitative analysis, absolute/relative quantitative analysis, melting curve analysis, endpoint fluorescence analysis, and SNP site analysis.
What happens if there is a sudden power failure?
The device includes instant power failure protection. It allows for a seamless automatic recovery of the operation once power is restored, ensuring your experiment is protected.
Can I use the device without a computer?
Yes, the Gentier Mini features a 7-inch HD touch screen and can operate in stand-alone mode. It can store at least 1,000 sets of data and perform analysis directly on the device.
