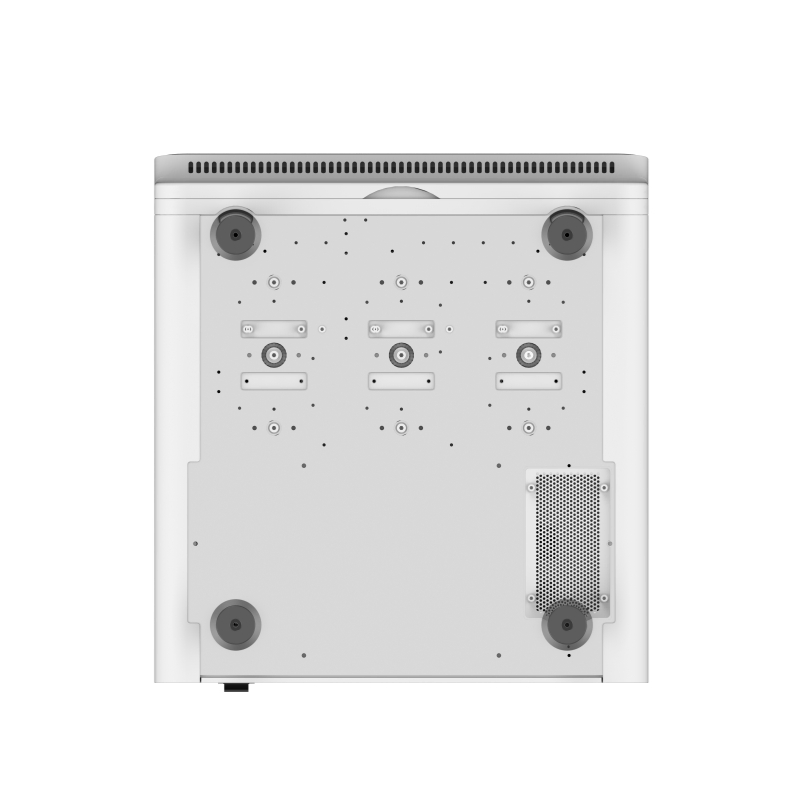

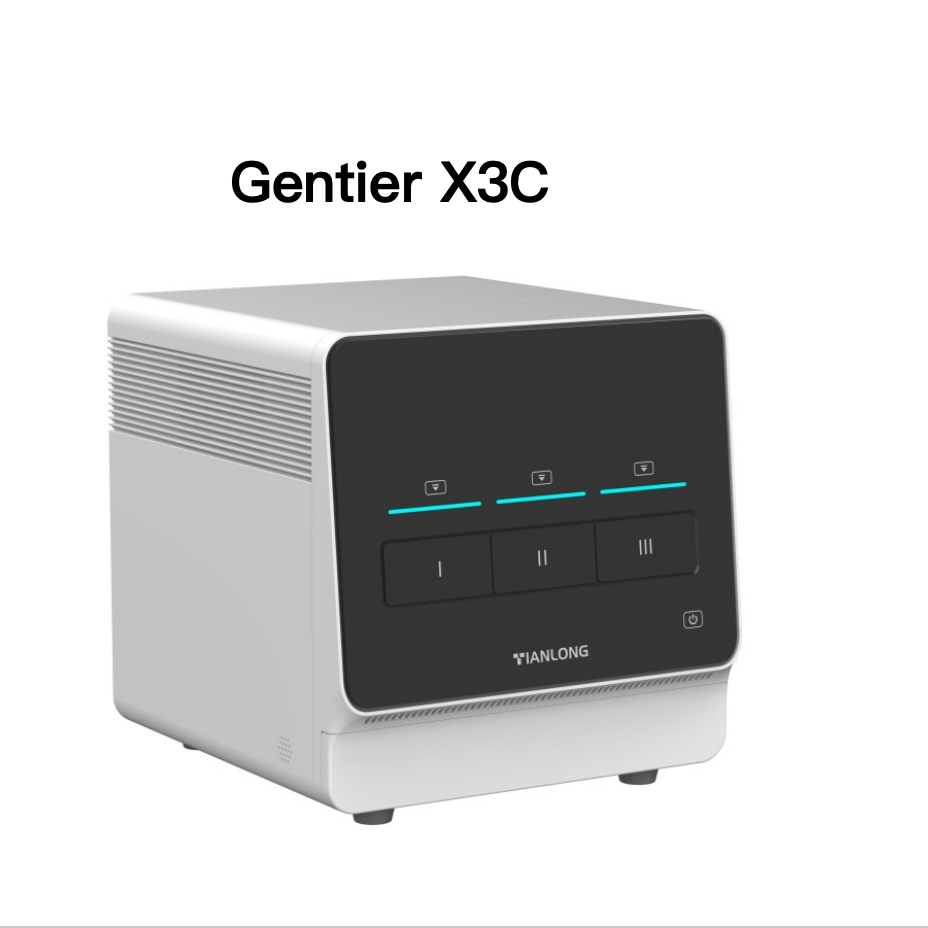

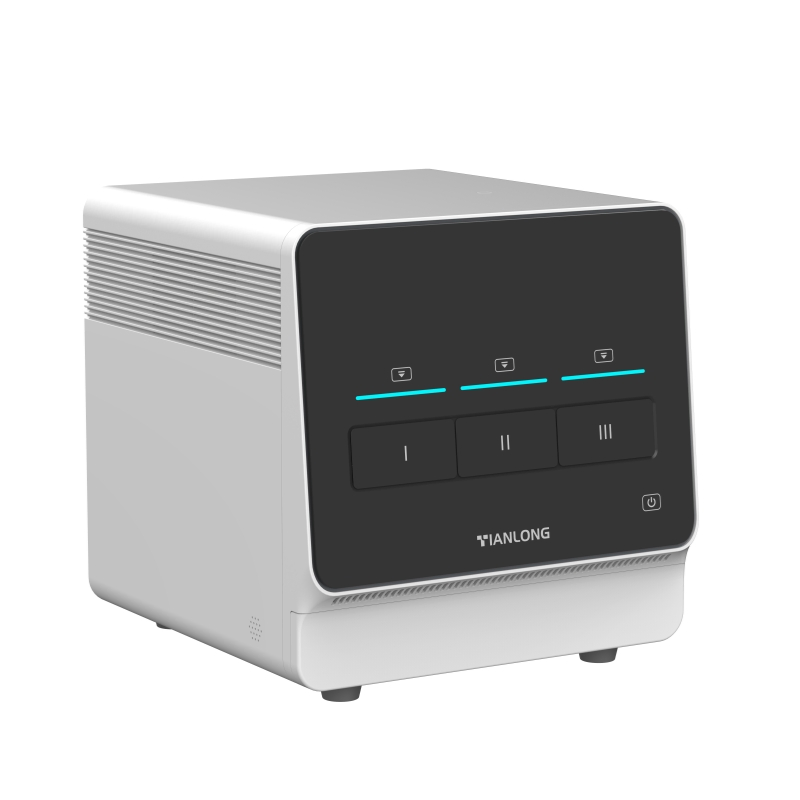

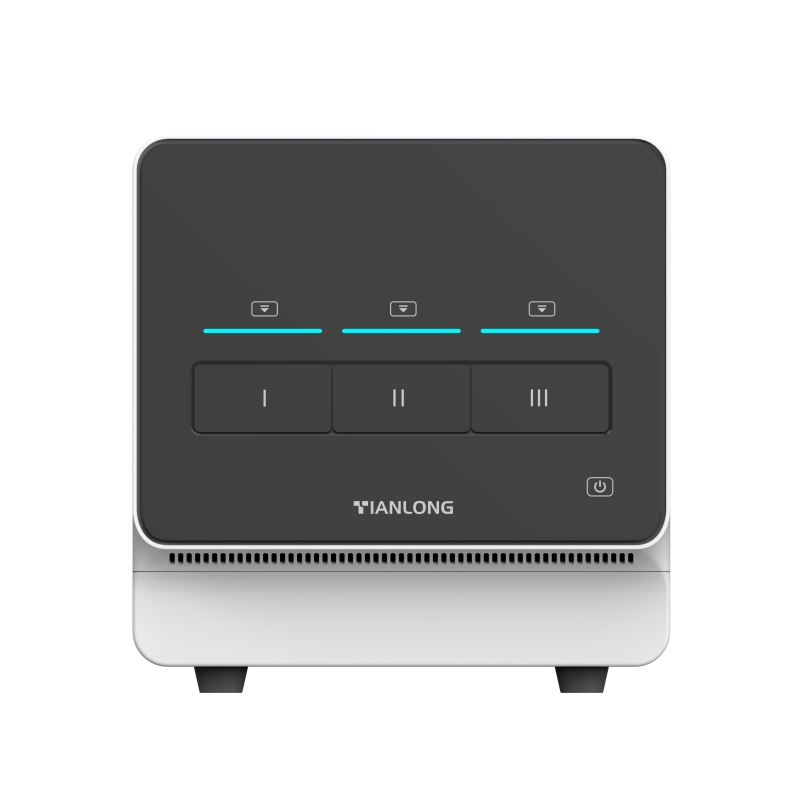

TianLong Gentier X3C Real Time PCR System 4 Channel
TianLong Gentier X3C Real Time PCR System 4 Channel
TianLong Gentier X3C Real Time PCR System 4 Channel
TianLong Gentier X3C Real Time PCR System 4 Channel
TianLong Gentier X3C Real Time PCR System 4 Channel
1 / 5
TianLong Gentier X3C Real Time PCR System 4 Channel
TianLong Gentier X3C Real Time PCR System 4 Channel
TianLong Gentier X3C Real Time PCR System 4 Channel
TianLong Gentier X3C Real Time PCR System 4 Channel
TianLong Gentier X3C Real Time PCR System 4 Channel

TianLong Gentier X3C Real Time PCR System 4 Channel

Customization: Available
After-sales Service: Online Support, Free Spare
Sample Type: Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Gentier X3C
Processing
Mix
Warranty
2 Years
Environment
Laboratory
Display
Digital Display
Performance
Automatic
Power Supply
220V
Certification
CE
Throughput
32x3
Channels
4 Fluorescence Channels
Product Description
GentierX3 Series Real-time PCR System innovates in flexibility and allows users to control three independent blocks in the same PCR system, saving your time and budget. Maximum 3×32-well samples can be run in three different protocols on three independent thermal blocks simultaneously. With the powerful and efficient temperature control system and user-friendly operational designs, this series provides maximal reliability and efficiency for all your real-time PCR needs.
Key Features
Multi-block design Three independently controlled blocks allow for three different protocols to be run simultaneously for 3×32-well samples.
Rapid Fluorescence Scanning Complete 32 wells of fluorescence scanning in one block within only 2 seconds, significantly improving laboratory efficiency.
Efficient Temperature Control Features 3 independent thermal blocks with compensation heating. Temperature accuracy and precision are both ≤ 0.1ºC.
Powerful Software Analysis Offers absolute quantification, relative quantification, melting curve, high resolution melting (HRM), genotyping, and more.
User-Friendly Design Built-in 13.3-inch full-color touch screen, adjustable for different angles. Supports standalone and PC control configurations.
Power Failure Protection Innovative design allows the system to recover the experiment automatically after power supply restoration.
Product Parameters
Model Gentier X3E Gentier X3S Gentier X3R Gentier X3C
Touch Screen YES NO YES NO
Throughput 32 х 3 Wells
Scanning Time 2s for 32 wells
Fluorescence Channels 6 Channels 4 Channels
Max Heating Rate ≥ 6.2°C/s
Max Cooling Rate ≥ 5.0°C/s
Temp. Accuracy ≤ 0.1ºC
Data Storage 1000 results on-board
Dimensions 380mm(L) × 410mm (W) × 395mm (H)
Application Areas
Hospitals Research Institutes CDC Third-party Testing Laboratories Customs Food Factories Blood Stations Animal CDC
Product Leaflet & Solutions

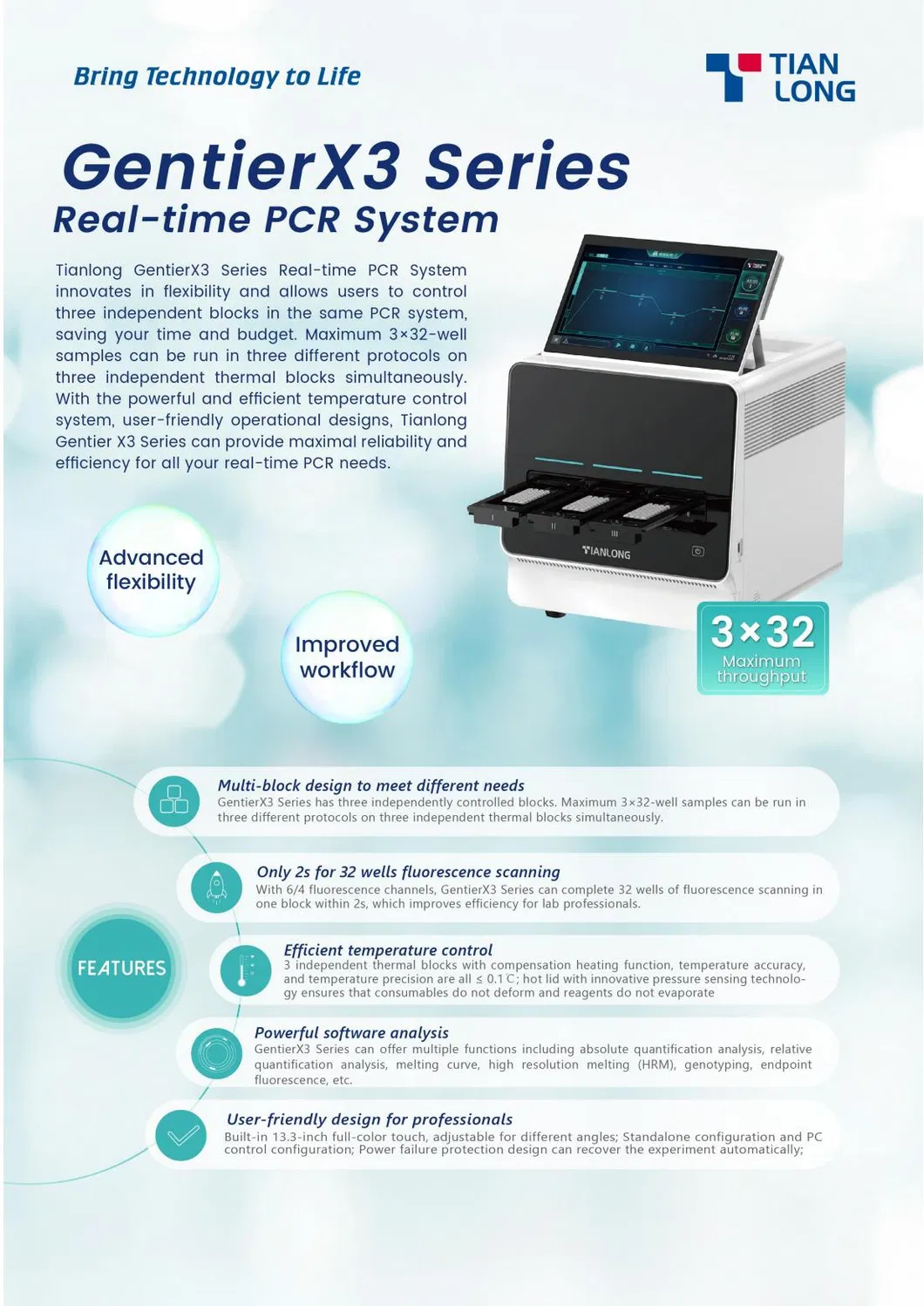

Gentier X3C Leaflet 1

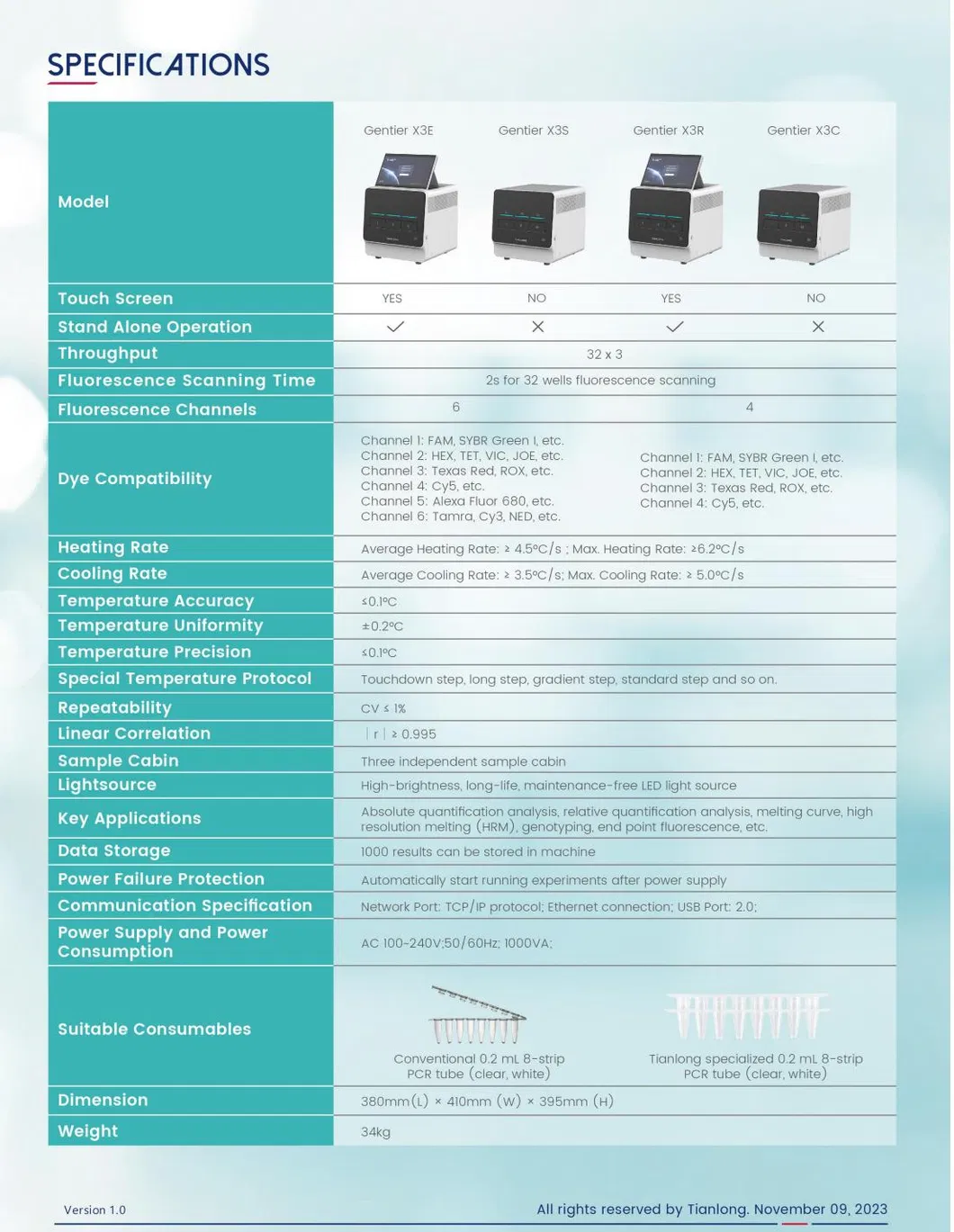

Gentier X3C Leaflet 2

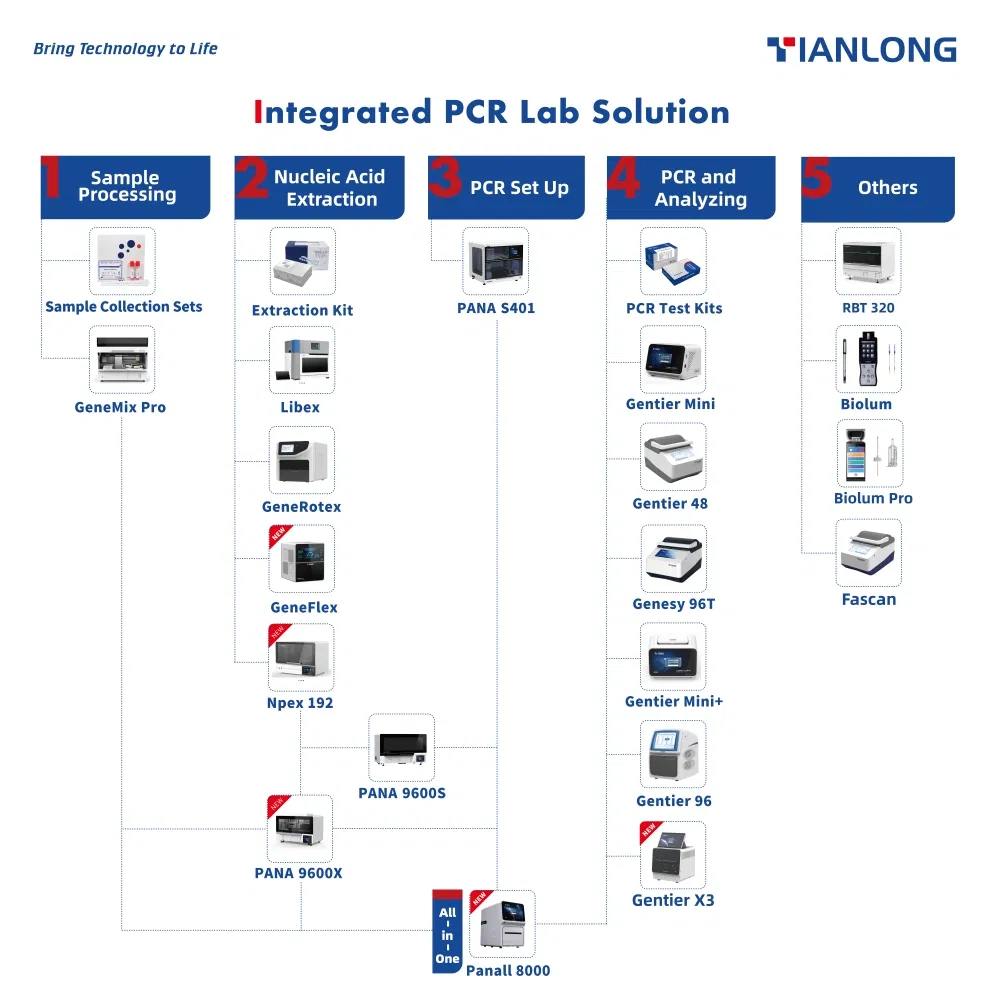

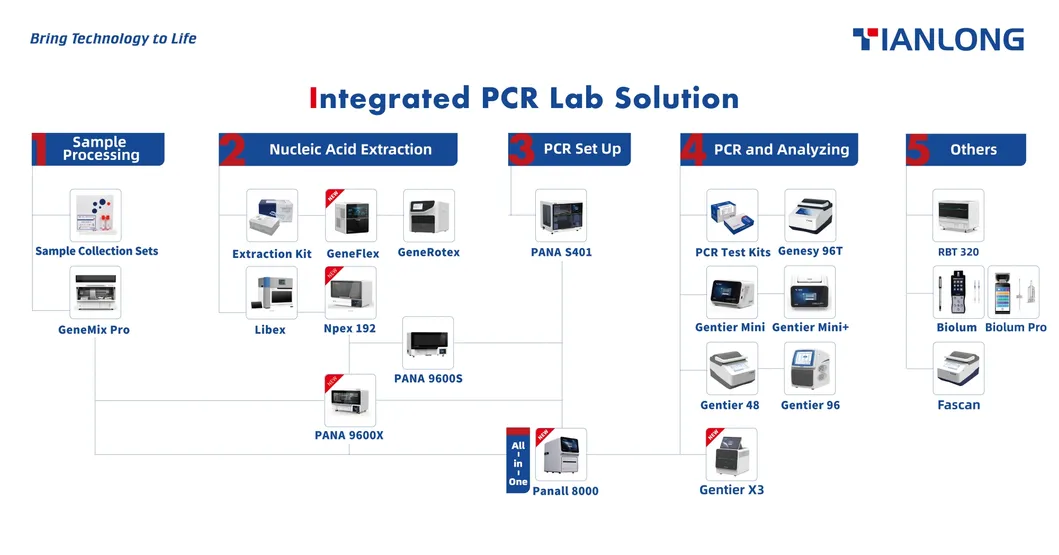

Product Solution
Manufacturing & Facilities
Facility 1
Facility 2

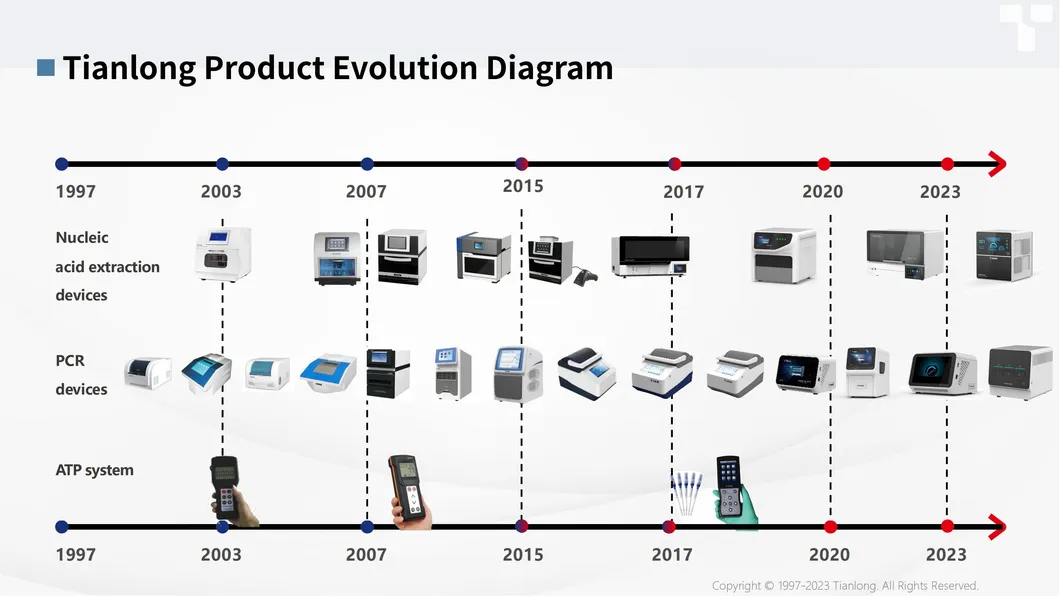

Facility 3
Facility 4

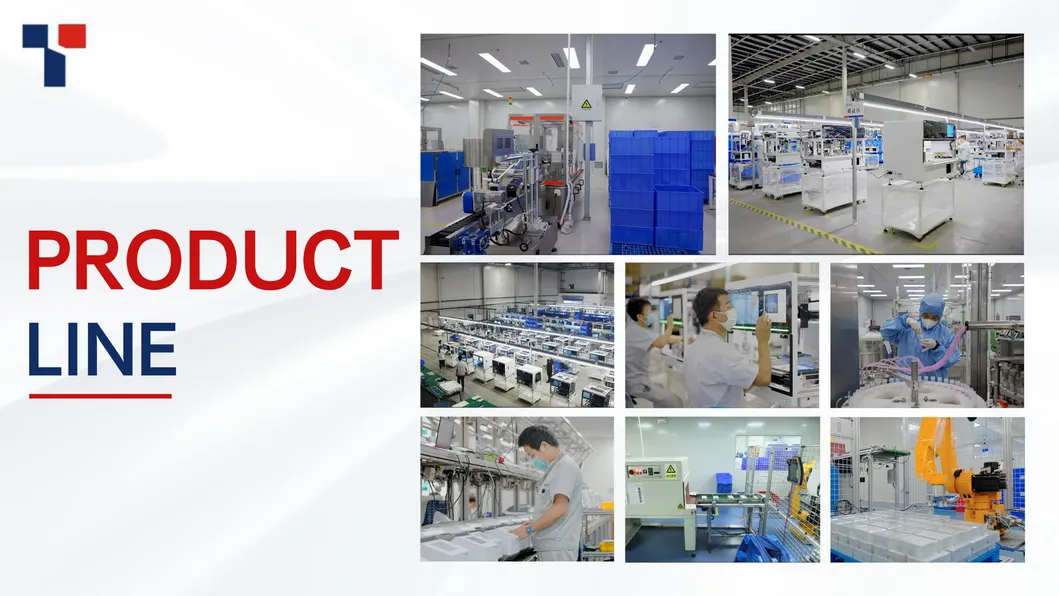

Facility 5
Facility 6
Facility 7
Facility 8

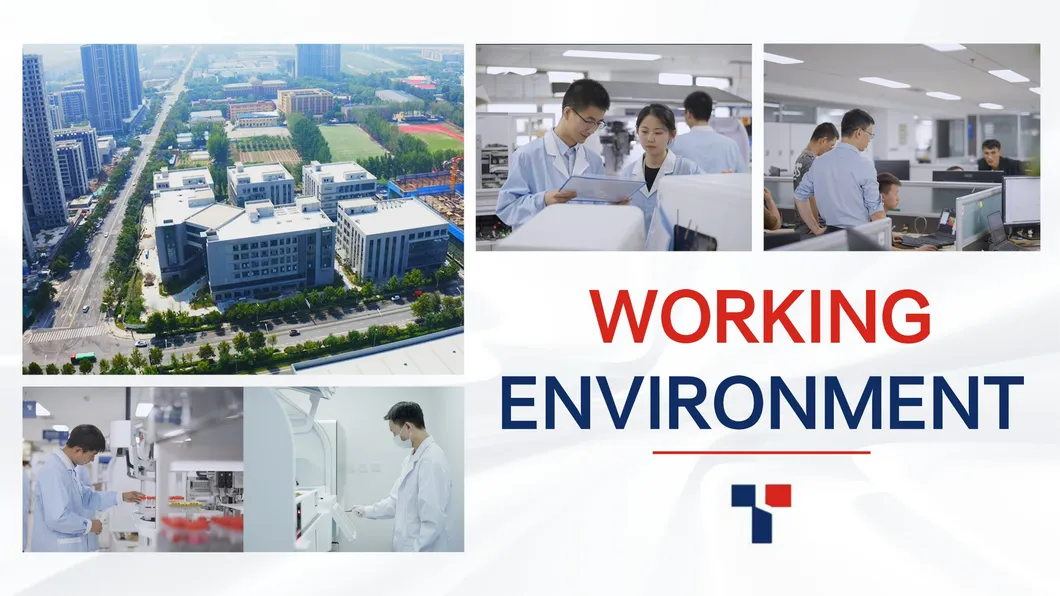

Facility 9
Certifications
Frequently Asked Questions
What are the advantages of the multi-block design in the Gentier X3 series?
The multi-block design allows for independent control of three thermal blocks. This means you can run three different PCR protocols simultaneously, maximizing throughput and efficiency for busy laboratories.
How fast can the system scan a full plate?
The Gentier X3 series is exceptionally fast, completing a fluorescence scan of 32 wells within just 2 seconds for a single block.
Does the system provide high temperature accuracy?
Yes, the system features an efficient temperature control system where both temperature accuracy and temperature precision are maintained at ≤ 0.1ºC.
What happens if there is a power failure during a run?
The Gentier X3 series includes a power failure protection design. It can automatically recover and resume the experiment once power is restored.
What type of analysis can the included software perform?
The powerful software supports a wide range of applications, including absolute quantification, relative quantification, melting curve analysis, high-resolution melting (HRM), genotyping, and endpoint fluorescence.
Can the system be operated without a computer?
Yes, models like the Gentier X3E and X3R come with a built-in 13.3-inch touch screen and support standalone configuration, allowing for operation without an external PC.
