Basic Info.
Filter Size
180X205X220mm
Package
Standard Export Package
Product Description

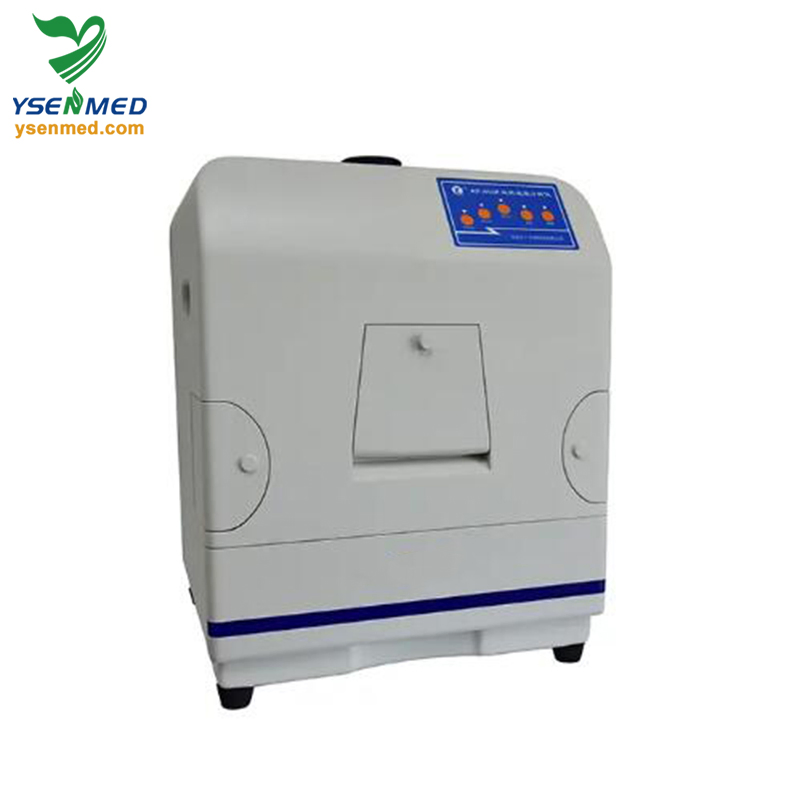

YSTE-Gel13B Medical Equipment Laboratory Use Gel Imaging & Analysis System
Short Description:
Gel Documentation & Analysis System is used for analysing and researching into the gel, films and blots after the electrophoresis experiment. It is a basic device with ultraviolet light source for visualizing and photographing the gels stained with fluorescent dyes like ethidium bromide, and with white light source for visualizing and photographing the gels stained with dyes like coomassie brilliant blue.
Technical Specifications
| Dimension |
458 x 445 x 775 mm |
| Transmission UV Wavelength |
302nm |
| Reflection UV Wavelength |
254nm and 365nm |
| UV Light Transmission Area |
252×252mm |
| Visible Light Transmission Area |
260×175mm |
| Effective Pixels |
1.3 megapixels (Up to 6.4 megapixels optional) |
| Aperture Range |
F2.8/F4.5-F8.0 |
Detailed Description
The YSTE-Gel13B Gel Documentation & Analysis System is strong and compact with a specialized viewing window. The glass plate of the viewing window features ultraviolet ray intercepting glass to ensure eye protection. On the top of the apparatus, a cylinder connects the digital camera with the box, allowing for high-quality gel capture under UV or white light.
With relevant analysis software, users can analyze images of DNA, RNA, protein gels, and thin-layer chromatography to obtain peak values, molecular weight, base pairs, area, height, and volume. It is ideal for university labs, hospitals, and scientific research institutions.
Key Features
- Dark chamber design; no need for a dedicated dark room; all-weather use.
- Drawer-mode light box for convenient use and contamination avoidance.
- Real-time preview with manual focus function.
- UV filter: EB special super multi-layer coating filter.
- Compatible with various image formats: TIF, JPG, BMP, GIF.
- Capable of direct gel cutting within the dark chamber.

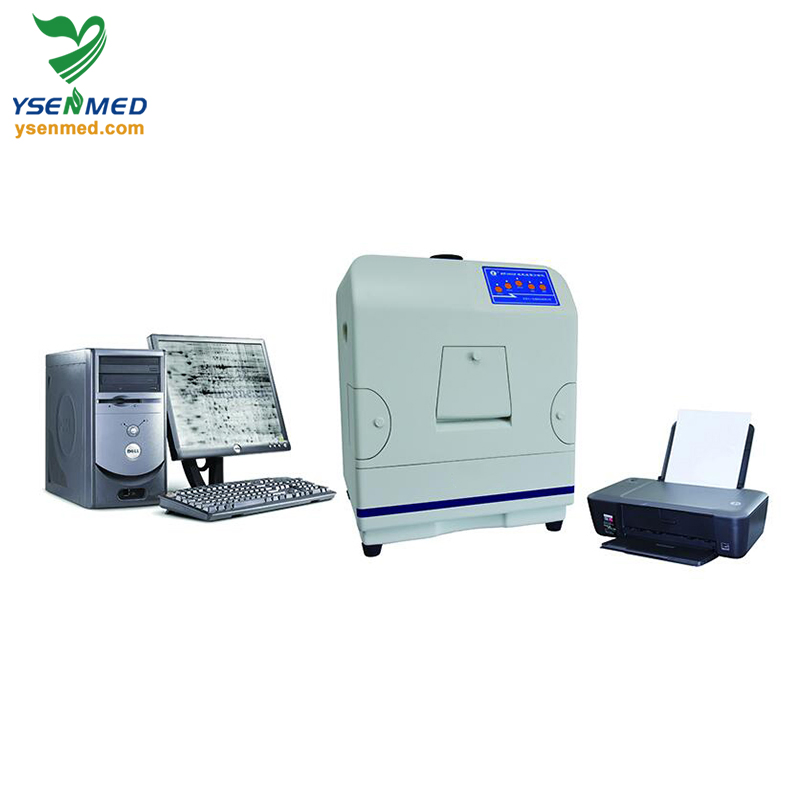

System Configuration
- High-performance black and white cameras.
- Professional analysis software.
- High configuration computer system support.
- High-resolution ink-jet printer compatibility.
Product Gallery
Service Commitment
Pre-sales Service
- Inquiry and consulting support
- Sample testing support
- Factory inspection accessibility
- High-speed timely response
After-sales Service
- Machine installation training
- Operational training for staff
- Remote technical support
- Online service availability
Frequently Asked Questions
Q1: What are the primary applications of this Gel Imaging System?
It is primarily used to observe, photograph, and analyze results of nucleic acid and protein electrophoresis, including DNA, RNA, and various protein gels.
Q2: Does this system require a dedicated dark room for operation?
No, the system features a built-in dark chamber design, allowing it to be used in any laboratory lighting condition without a separate dark room.
Q3: What type of software analysis functions are available?
The professional software provides 1D analysis, counting clone technology, colony and spot hybridization, and seamless data connection with MS Excel.
Q4: Can I customize the system with different camera resolutions?
Yes, while the standard configuration includes a high-performance camera, options for 5 or 6.4 megapixels with 6 times zoom lenses are available.
Q5: Which operating systems are compatible with the analysis software?
The software is designed to be compatible with Windows platforms, including Windows 7, Windows 10, and earlier versions like Win98/Me/2000.
Q6: What is included in the transmission wavelength specifications?
The system supports a transmission UV wavelength of 302nm and reflection UV wavelengths at both 254nm and 365nm.
