Overview
| Model NO. |
BHQ-III |
| Certification |
CE, ISO13485 |
| Group |
Full Range |
| HS Code |
9027899090 |
Technology Overview
The instrument uses fluorescent quantitative PCR tech for pathogen analysis. Once samples are added, the instrument automatically dispenses reagents. Micro-pumps on the chip complete DNA extraction and PCR amplification. The optical system detects fluorescence changes to identify pathogens.
Specification & Application

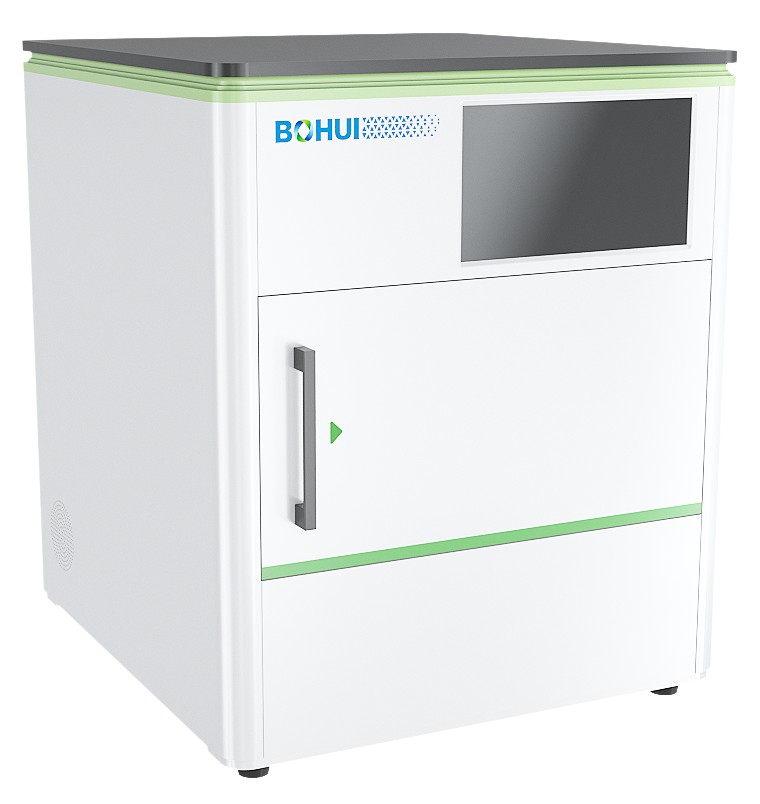

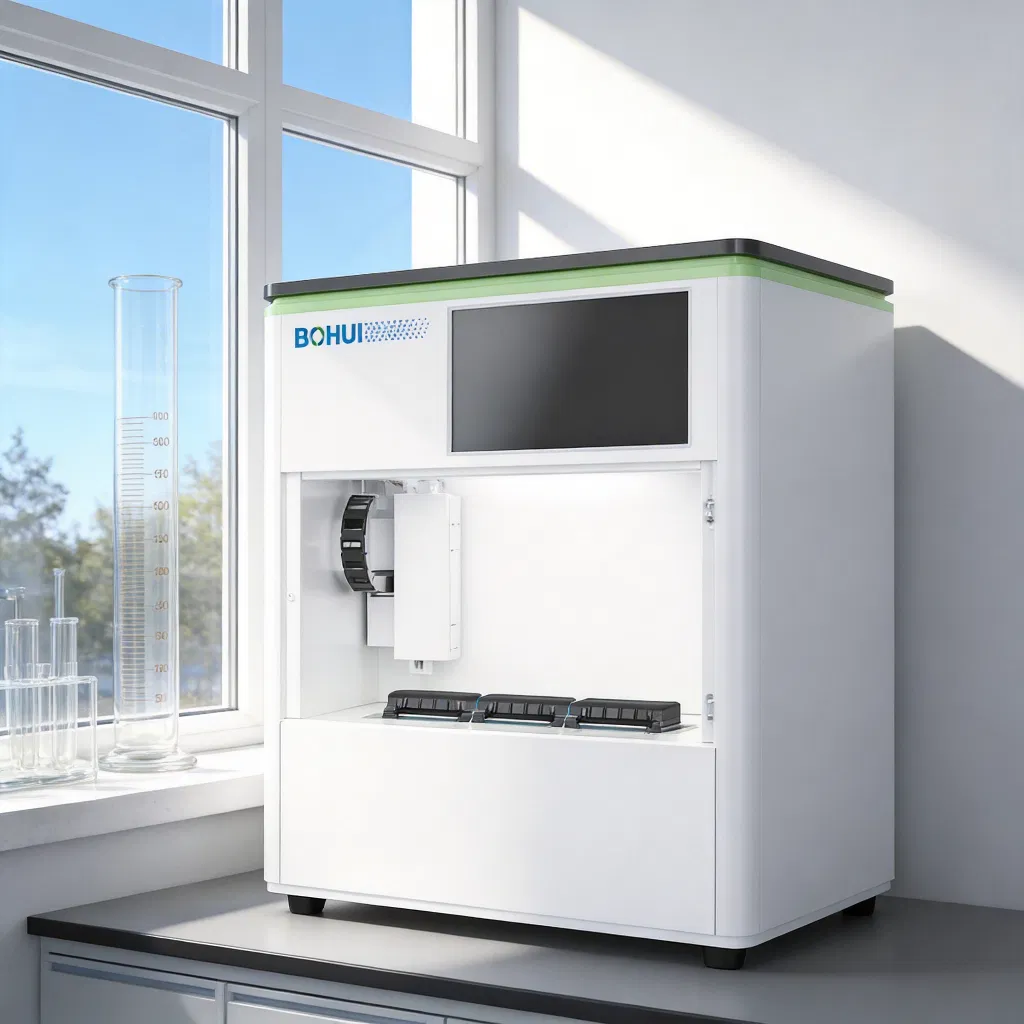

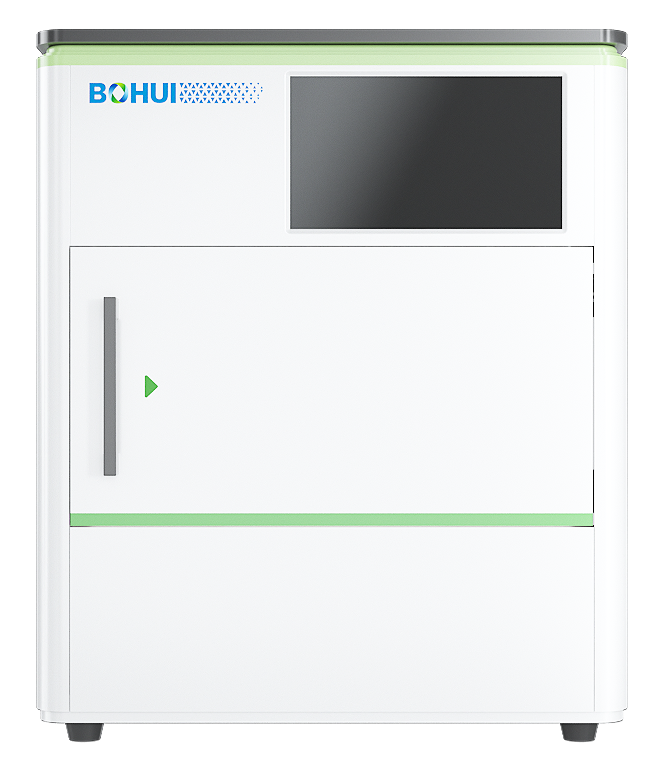

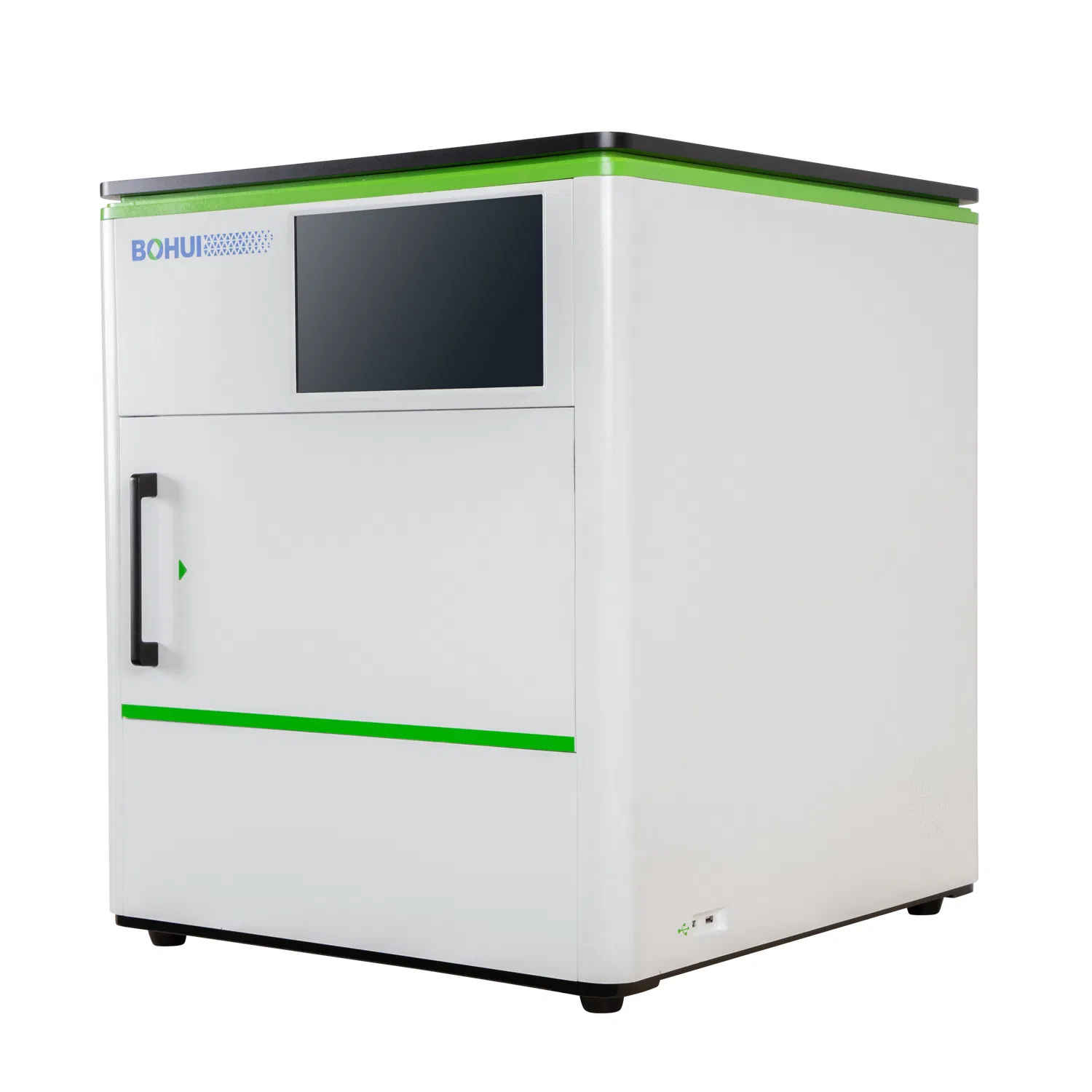

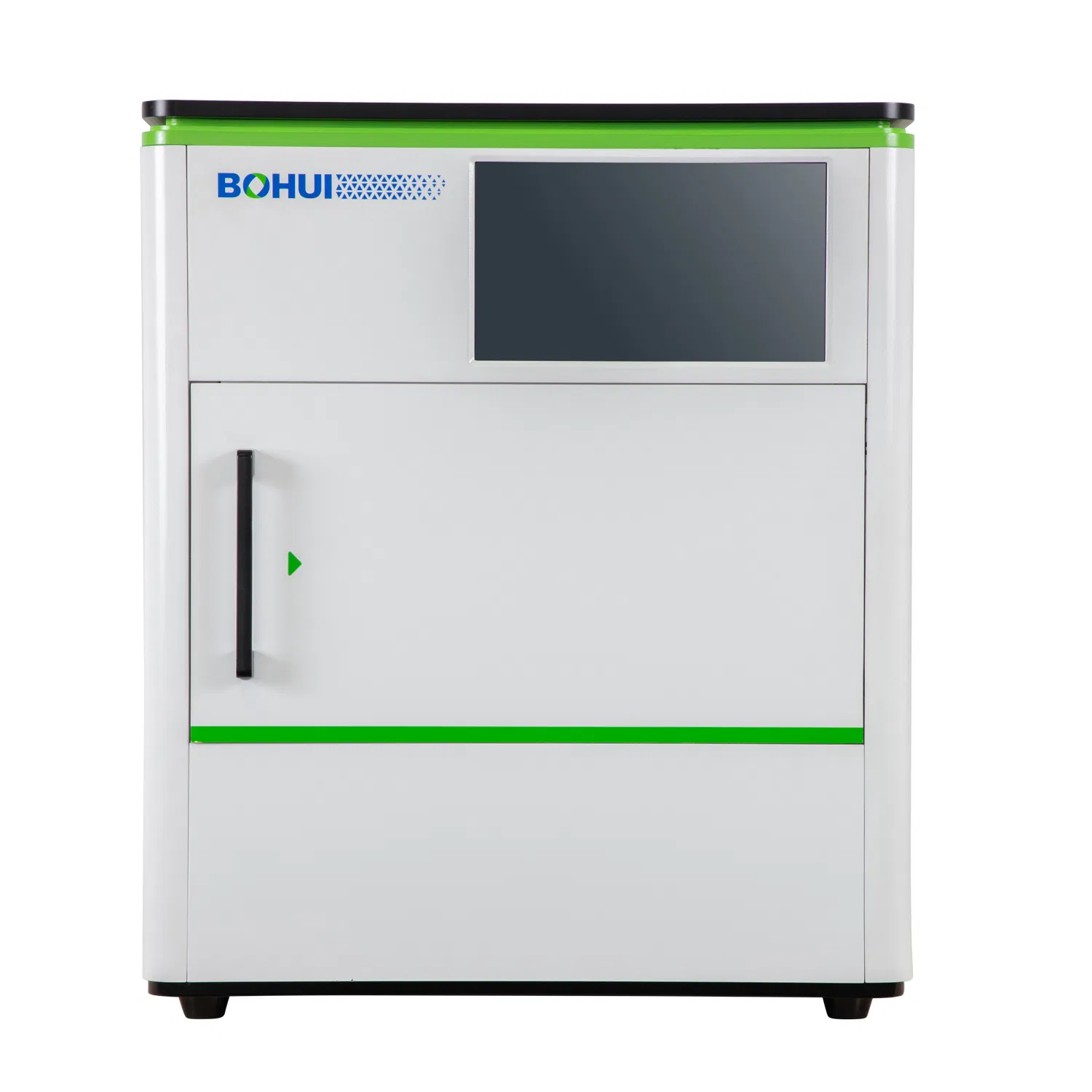

Automatic Real-time Fluorescent Nucleic Acid Chip Analyzer

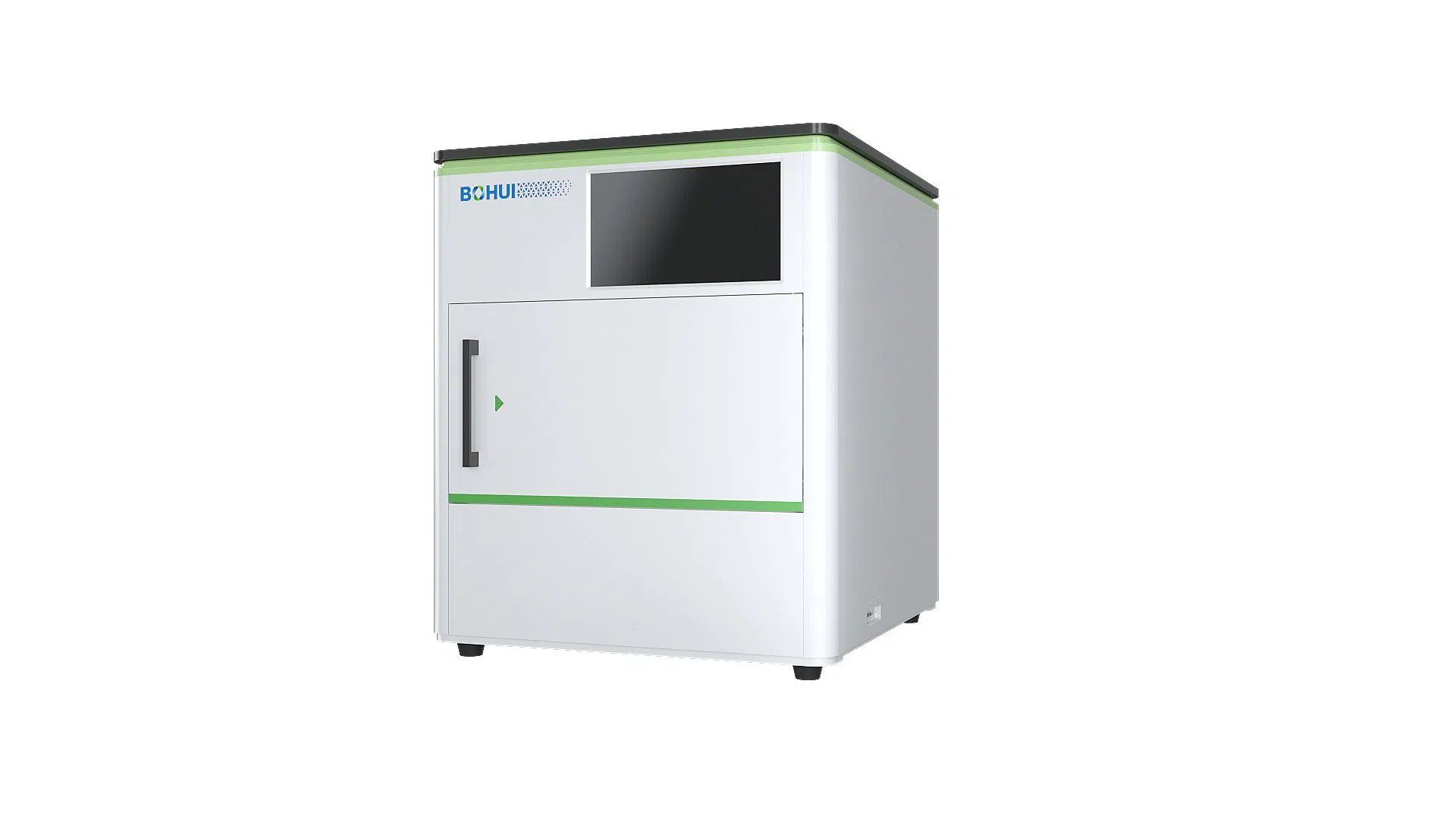

System includes a host unit and optional printer.
Host Unit Integration:
- Image display system
- Automated Reagent Dispensing System
- Pneumatic Control System (positive/negative pressure)

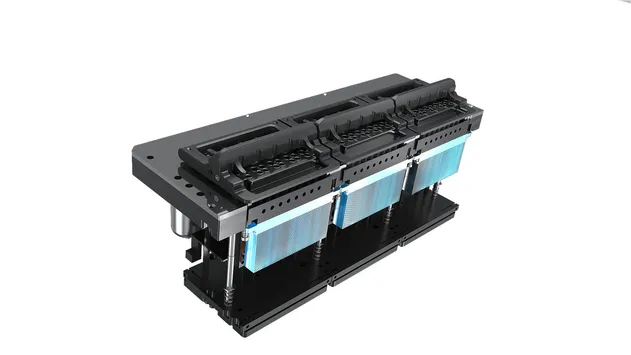

- Temperature Control System
- Fluorescence Signal Detection System
- 3D Movable Platform System
Applications & Samples
Sample Types: Nasopharyngeal swab, Vaginal discharge, Urethral discharge, Sputum, Bronchoalveolar lavage fluid (BALF), Feces / Stool.
Infection Detection: Respiratory, Gastrointestinal, Genital, and Urinary Tract Infection Nucleic Acid Detection.
Technical Specifications
| Model | BHQ-III |
| Detection Platform | Real-time PCR |

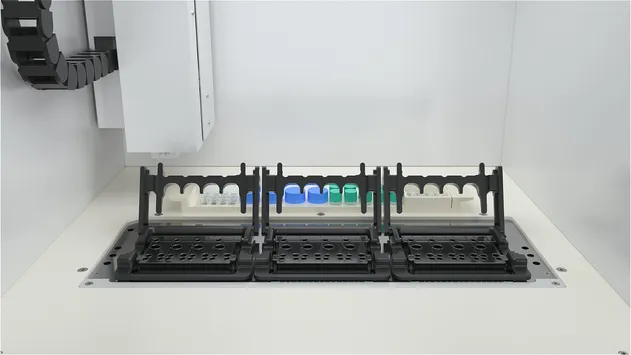

| Detection Modules | 3 Modules |
| Sample Capacity | 12 |
| Heating Rate | ≥1.5 ℃/s (from 50℃ to 90℃) |
| Cooling Rate | ≥1.5 ℃/s (from 90℃ to 50℃) |
| Electrical Specification | AC220V/50HZ |
| Dimension | 566mm X 624mm X 672mm |
| Altitude | ≤2300m |
| Weight | ≤70kg |
Product Features
⏱️
Simple
5 minutes of hands-on time
⚙️
Easy
No precise measuring or pipetting needed
🚀
Fast
Turnaround time of about 2 hours
About Our Enterprise
Founded in 2001, we are a high-tech biomedical enterprise integrating R&D, production, sales, and service. With a 40,000-square-meter R&D center, the group has been listed on the Shenzhen Stock Exchange since 2012. We excel in independent R&D with a skilled team, creating platforms like molecular diagnosis and mass spectrometry.
Our human trace element system is utilized in over 4,000 hospitals, detecting up to 22 million annually. Fully automated nucleic acid testing products using microfluidic tech, a "chip lab", serve diverse medical institutions worldwide.
Frequently Asked Questions
Can I obtain samples for testing?
Yes, samples can be obtained upon request.
Do you support OEM or ODM design services?
No, we focus on our standardized proprietary technology and do not support OEM/ODM services at this time.
Do you have a professional manufacturing facility?
Absolutely. We operate a professional manufacturing base dedicated to high-tech biomedical production.
What is your monthly production capacity?
We produce approximately 2,000 units and 1 million person-time reagents per month.
What is the expected shipping time?
For products currently in stock, goods are typically shipped within 7 days.
What components are included in the BHQ-III system?
The standard system includes a host unit with an integrated display and an optional printer for report generation.
