Basic Info
| Model NO. | Gentier48R |
|---|
| Certification | CE, FDA, ISO13485 |
|---|
| Sample Throughput | 48 |
|---|
| Authoritative Certifications | NMPA, CE, etc. |
|---|
| Lightsource | High-brightness, long-life, maintenance-free LED |
|---|
| Method | Simultaneous well-by-well scanning of all fluorescence |
|---|
| Transport Package | Paper Carton |
|---|
| Specification | 50*36*36 cm |
|---|
| HS Code | 9027509090 |
|---|
| Production Capacity | 5000 Units/Year |
|---|
Product Description

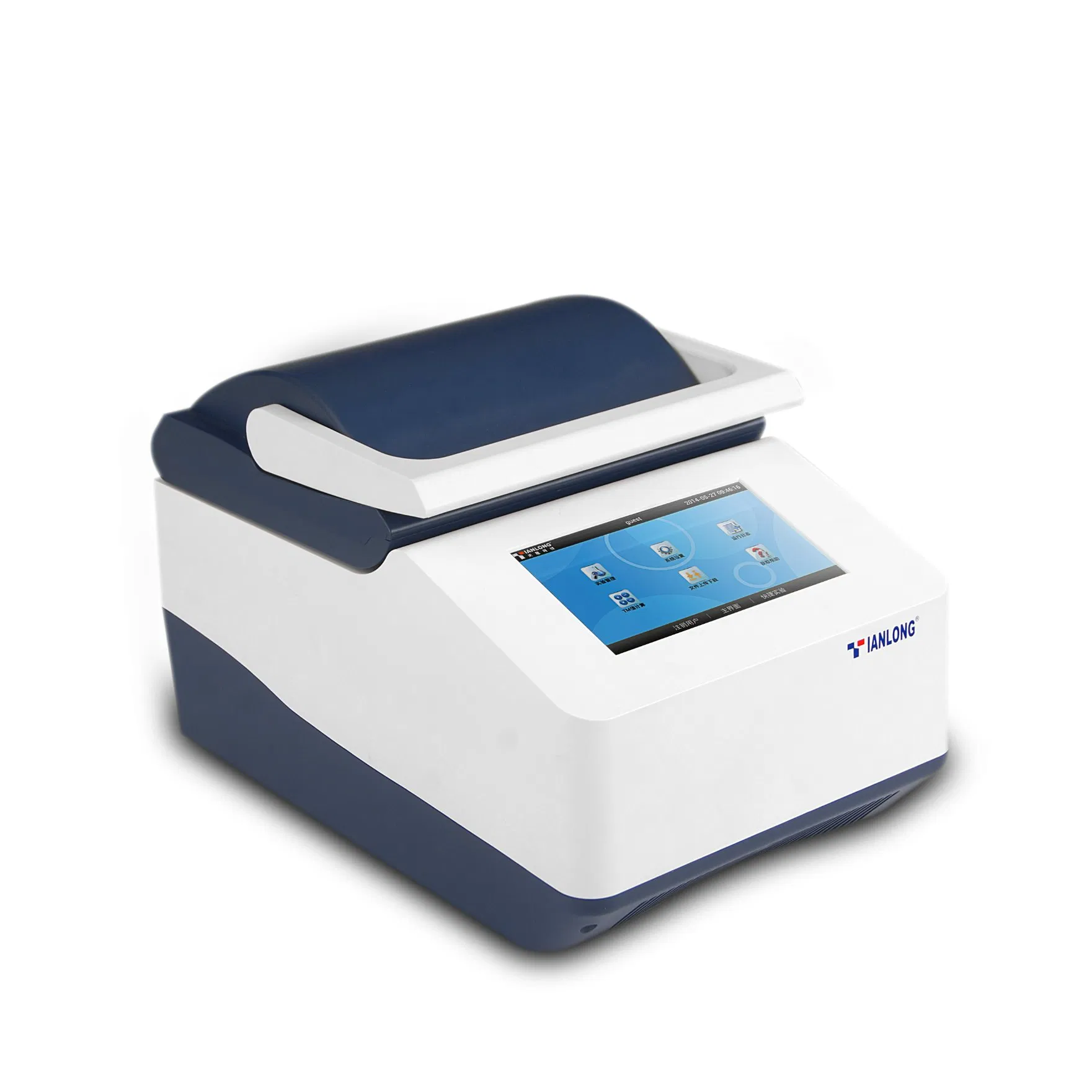

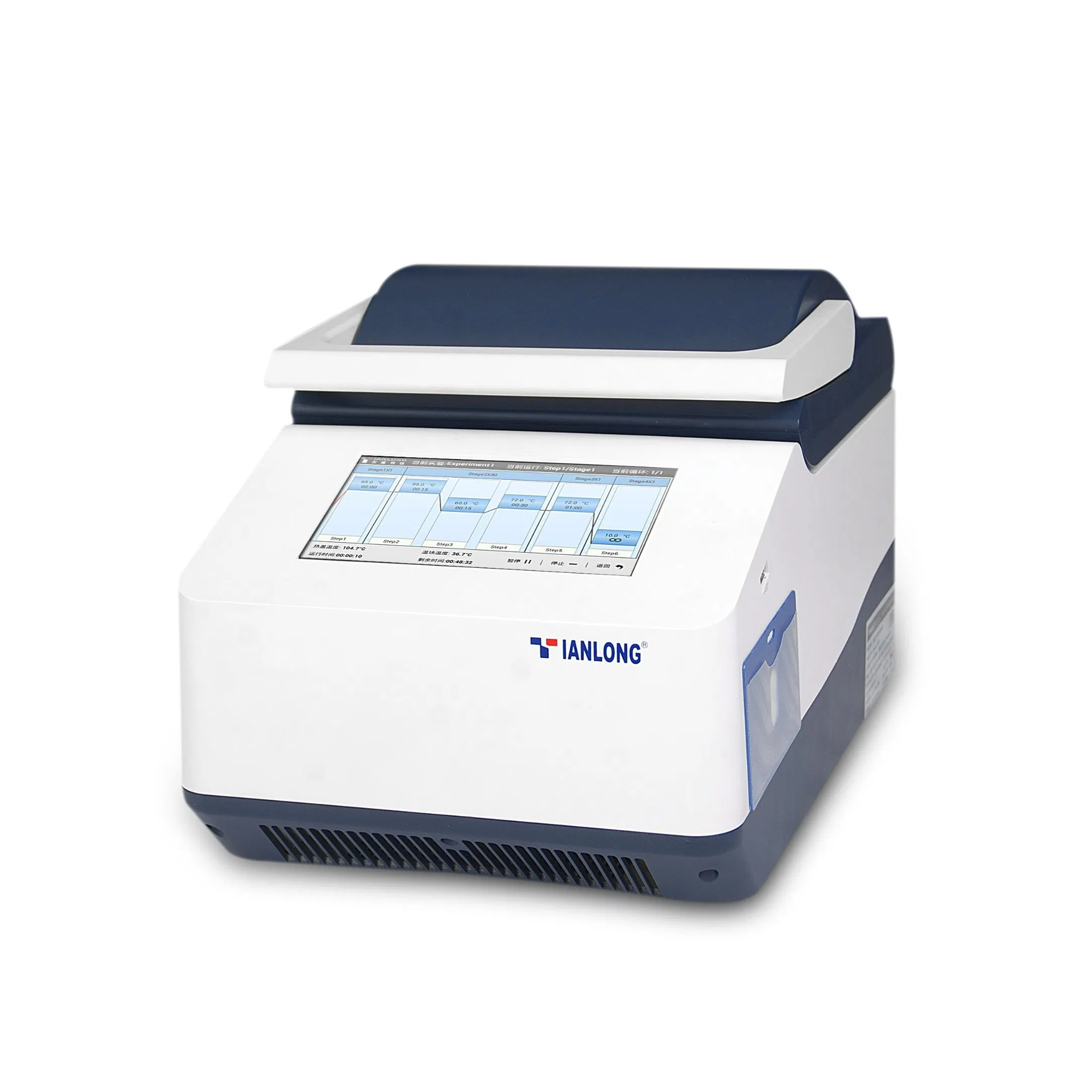

The real time PCR system is specially designed for small and medium-sized laboratories, mobile laboratories, field testing professionals and so on.
It is able to support absolute quantitative analysis, relative quantitative analysis, isothermal amplification, dissociation curve analysis, genotyping, and endpoint fluorescence analysis, etc.
With its excellent performance and portability, it can make your experiments more easy-to-use, accurate and efficient.

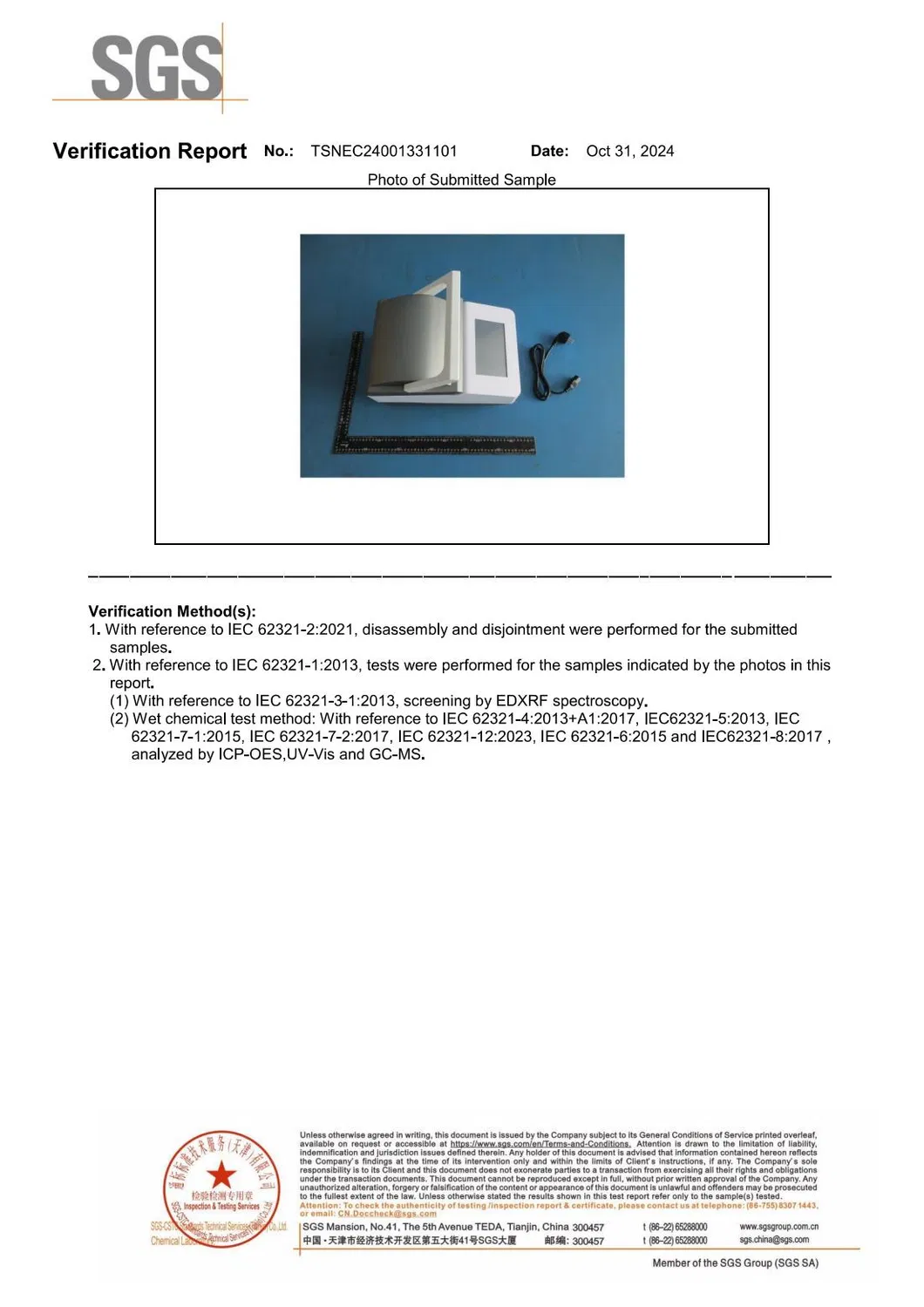

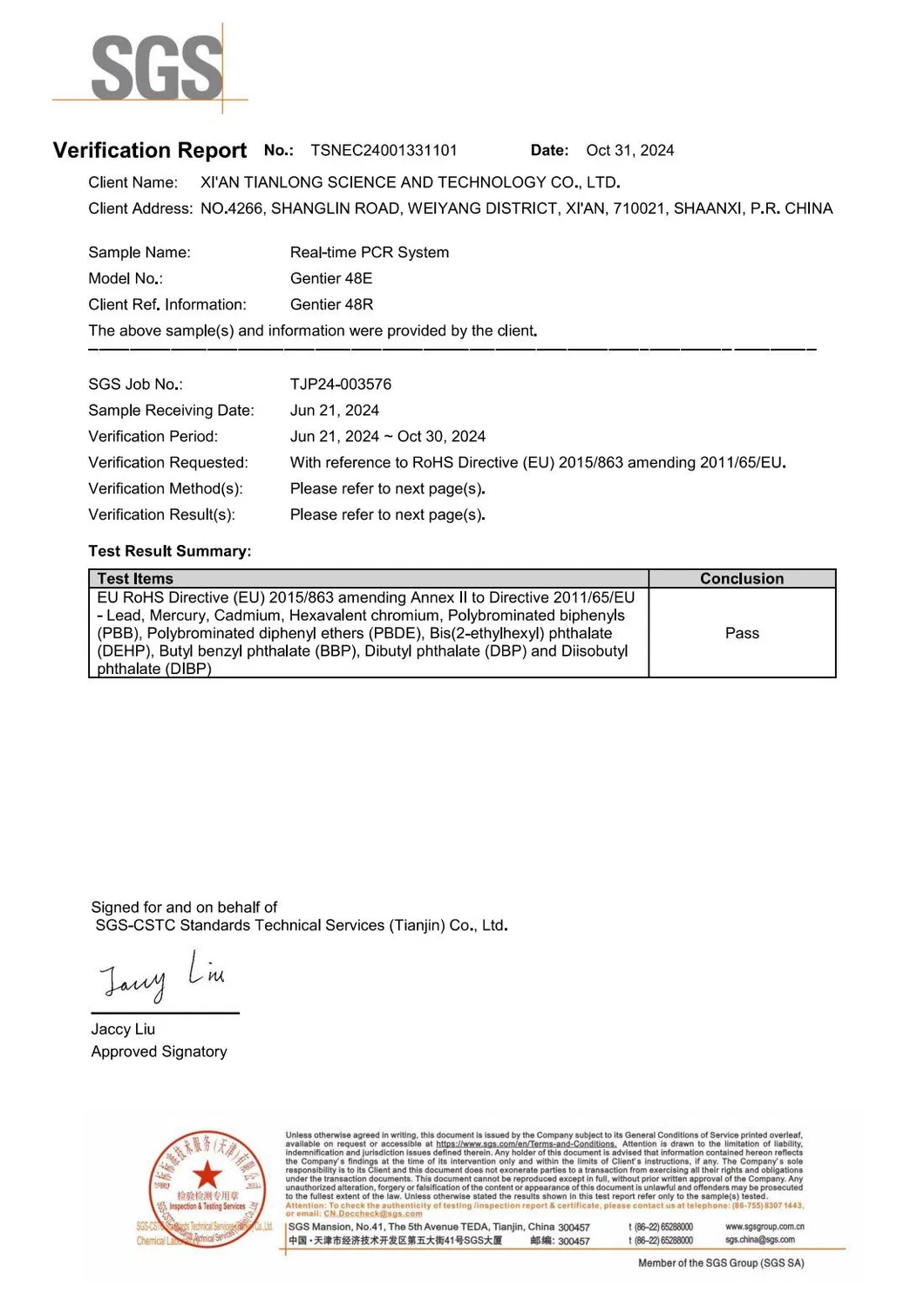

Gentier48R has completed EU RoHS testing and meets environmental and occupational health requirements.
Key Features
●
Rapid heating up and cooling down: maximum heating rate of 8.0ºC/s; maximum cooling rate of 6.2ºC/s.
●
High-brightness, maintenance-free LED lightsource with 4/2 fluorescence detection channels, allowing fluorescence scanning of all wells completed in just 2s.
●
With a 7-inch full-color touchscreen, the device can operate independently from the computer and store over 1,000 experimental data.
●
Immediate analysis of experimental data on the instrument; direct printing function by connecting to a thermal printer.
●
Automatic recovery of the experiment when power is restored after a cut-off.
●
Small in size, light in weight, easy to move; No calibration needed after moving.
Product Parameters
| Item | Parameter |
|---|
| Fluorescence Channels | 2 |
| Sample Throughput | 48 |
| Compatible Fluorophores | Channel 1: FAM, SYBR Green I, SYTO 9; Channel 2: HEX, VIC, TET, JOE. |
| Detector | Photodiodes (PDs) |
| Heating & Cooling Rates | Max heating 8.0ºC/s; Max cooling 6.2ºC/s. |
| Temperature Accuracy | ≤0.1ºC |
| Control method | 7-inch touchscreen or PC software control via LAN |

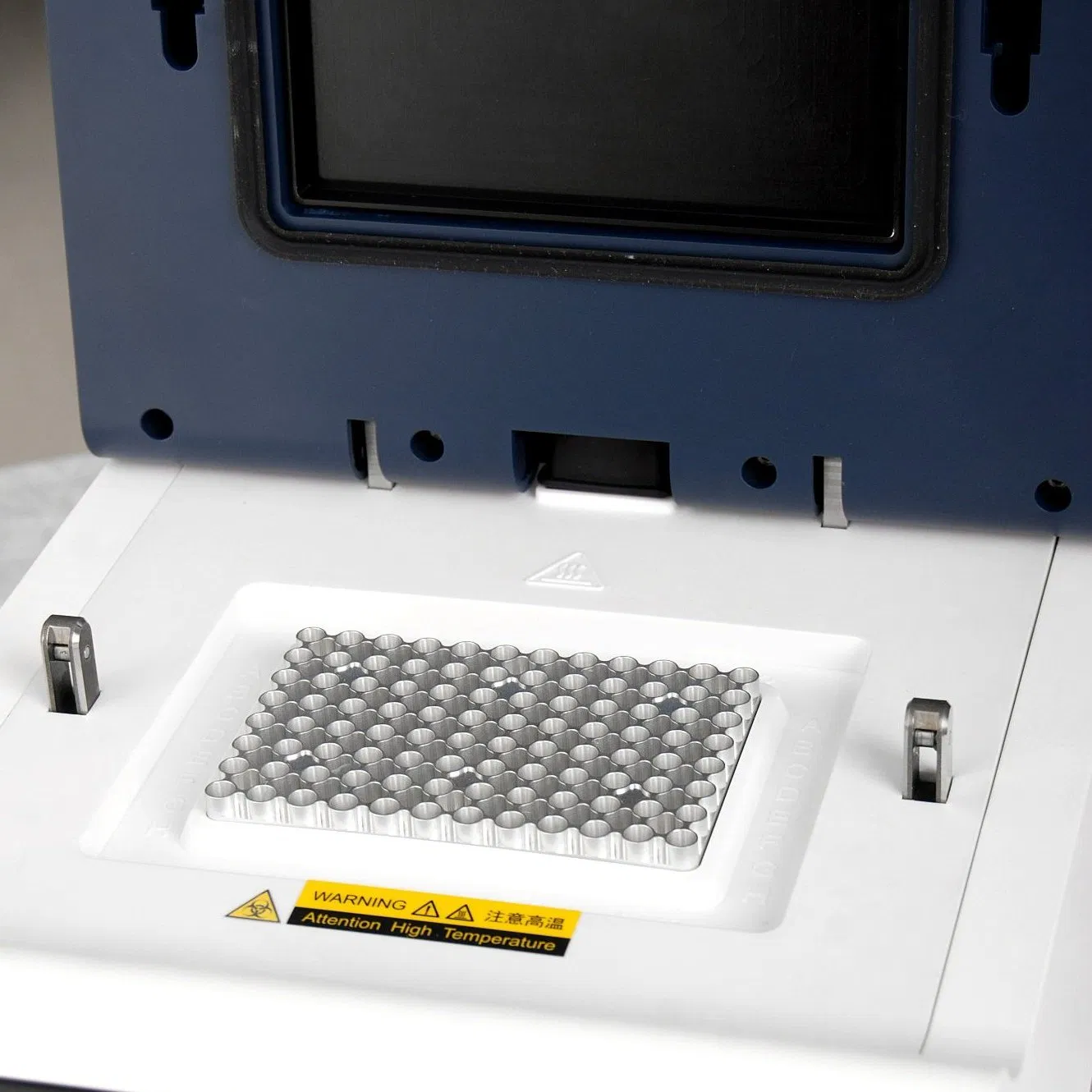

| Suitable Consumables | 0.2mL 48-well plate, 8-tube strips, single tubes |
| Size and Weight | 260mm*400mm*260mm, 11 kg |
| Power supply | AC 220 V (±10%), 50 Hz, 600 VA. |

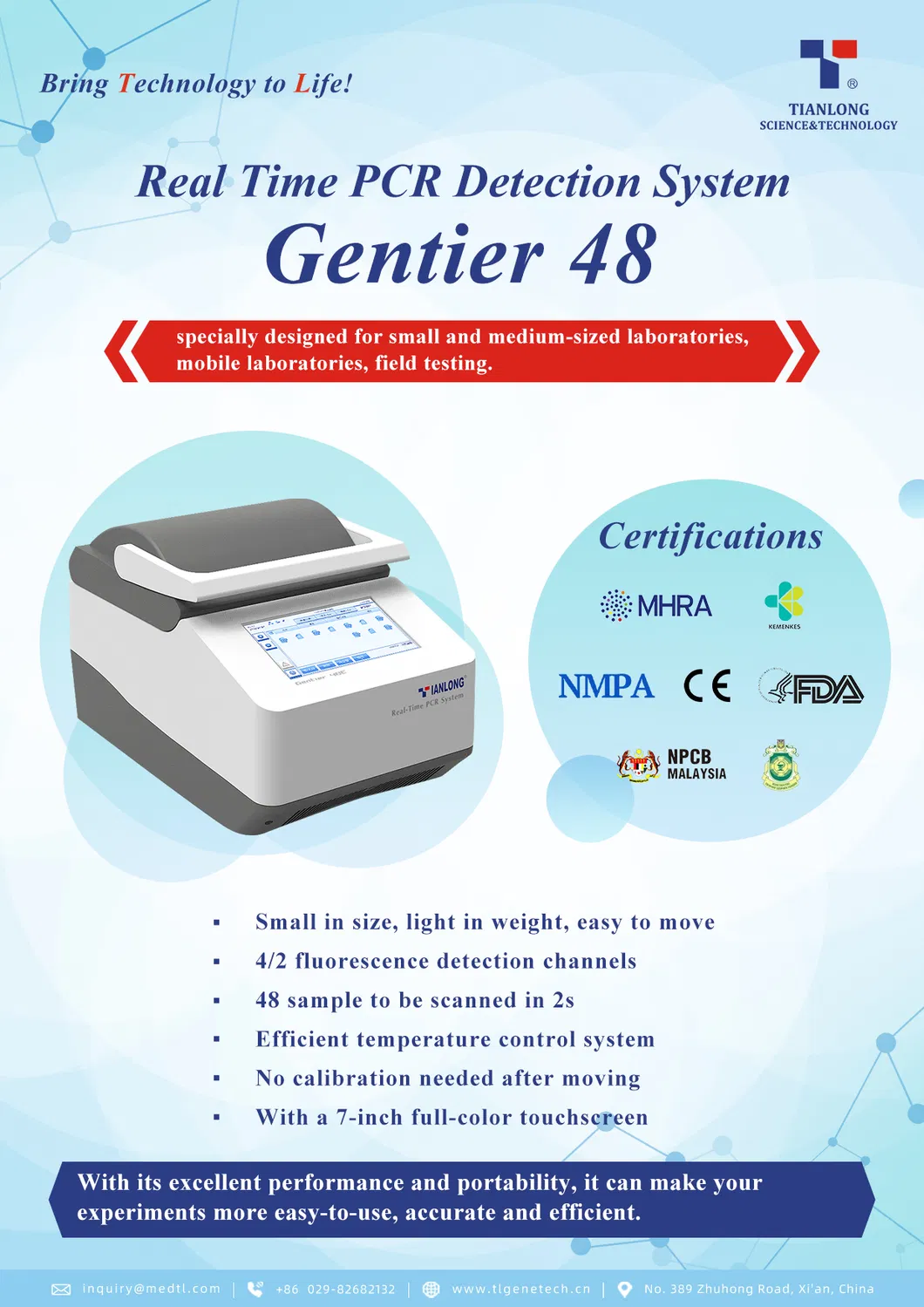

Product Leaflet & Catalogue

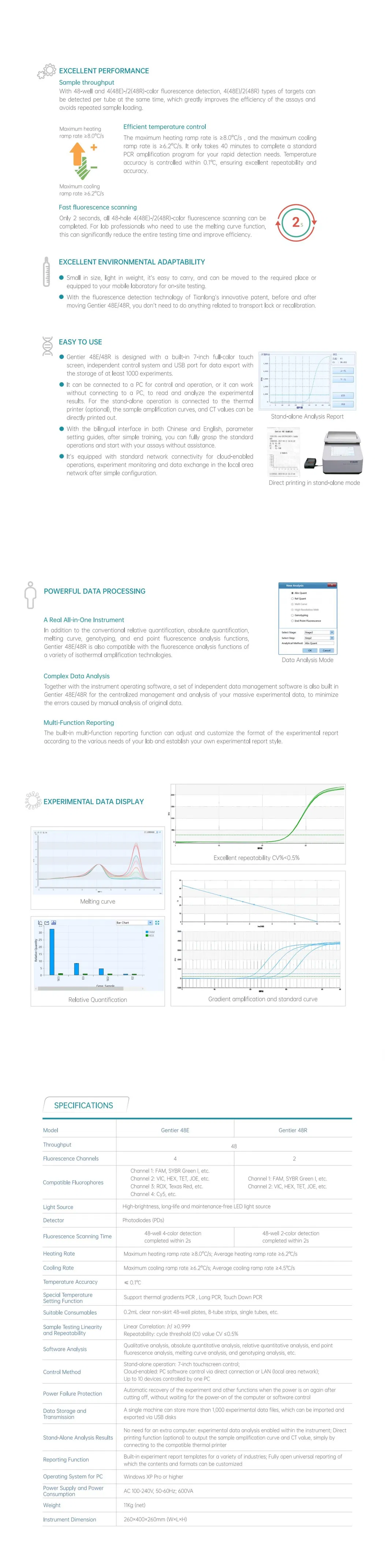

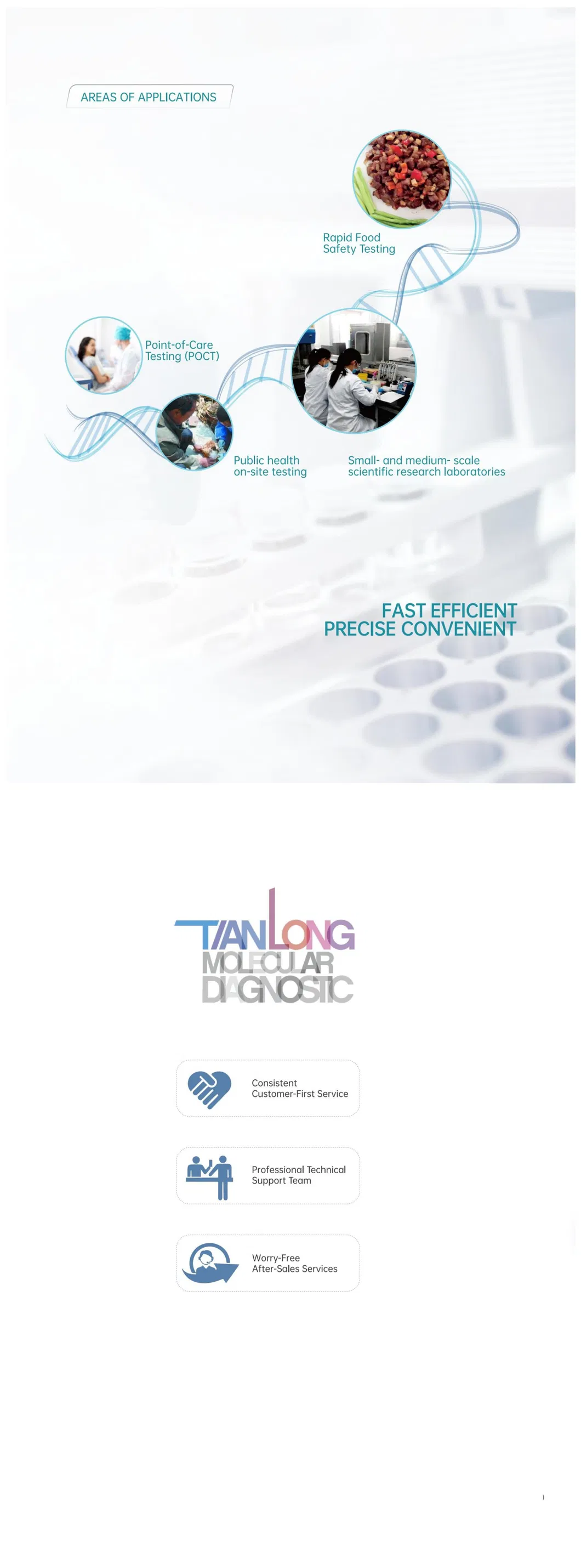

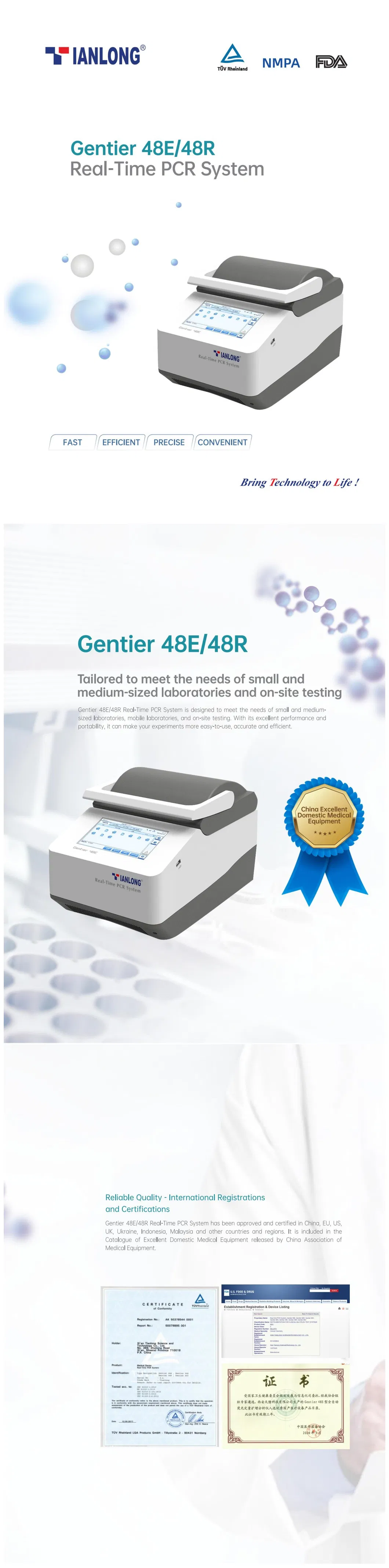

Product Catalogue:

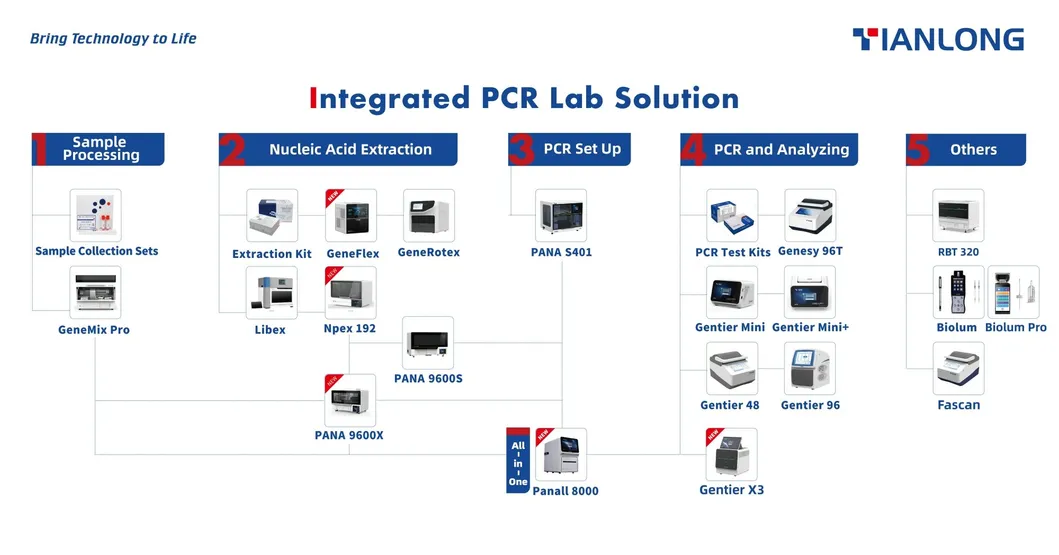

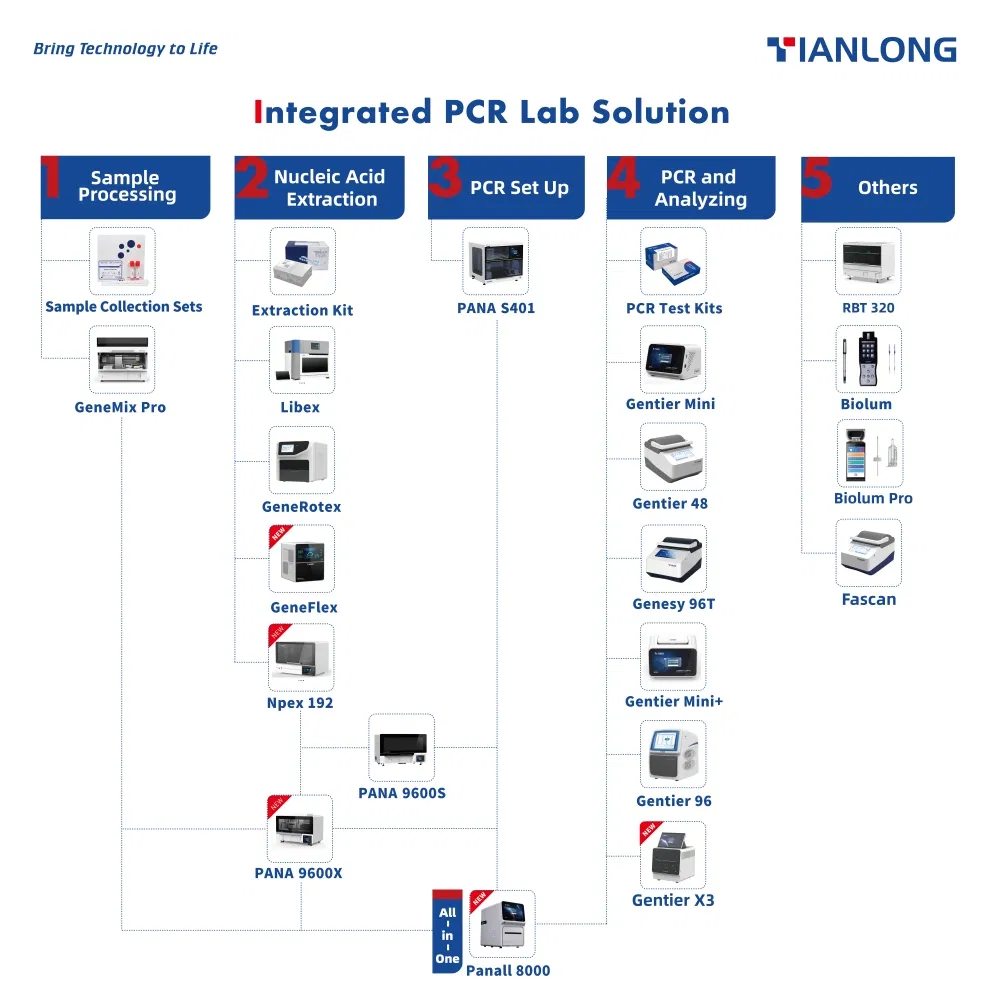

Product Solution:
Frequently Asked Questions
Q1: How many samples can the Gentier48R process at once?
A: The system features a sample throughput of 48 wells per run.
Q2: Does this PCR system require a computer for operation?
A: No, it features a 7-inch full-color touchscreen that allows for standalone operation and data storage of over 1,000 experimental records.
Q3: What are the heating and cooling speeds of the device?
A: It offers a maximum heating rate of 8.0ºC/s and a maximum cooling rate of 6.2ºC/s.
Q4: What types of consumables are compatible with the Gentier48R?
A: It is compatible with 0.2mL transparent skirtless 48-well plates, 8-tube strips, and single PCR tubes.
Q5: What happens if there is a power failure during an experiment?
A: The system includes power failure protection which allows for automatic recovery of the experiment once power is restored.
Q6: Are there any specific certifications for this instrument?
A: Yes, the instrument holds several authoritative certifications including CE, FDA, ISO13485, and NMPA.
