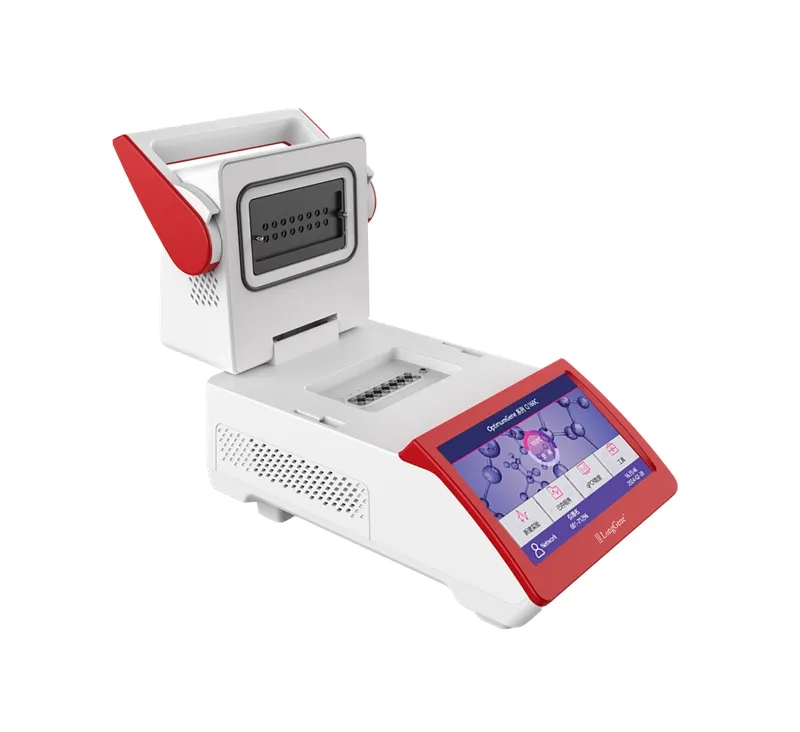

The UMALZ019 Fluorescence Quantitative PCR System is a portable, real-time PCR instrument designed for high-performance nucleic acid amplification and detection. It features a 7-inch high-definition touch screen, automatic thermal lid pressure control, and advanced optical detection technology. This system is ideal for rapid and accurate quantitative PCR analysis in various laboratory and clinical settings.
| Parameter | Value |
|---|---|
| Sample Capacity | 16 wells × 0.1 mL |
| Sample Volume Range | 10-100 μL |
| Applicable Tubes | White 0.1 mL PCR tubes, 8-strip tubes |
| Thermal Technology | High-grade semiconductor chip (MARLOW) |
| Temperature Precision | ≤±0.1ºC |
| Max Cooling Rate | 4ºC/second |
| Lid Temperature | 30ºC to 112ºC adjustable |
| Excitation Wavelength | 400-800 nm |
| Detection Range | 1-10^10 copies |
| Dimensions | 305mm (L) × 179mm (W) × 186mm (H) |
| Weight | 3.6 kg |
The UMALZ019 system is widely used in molecular diagnostics, clinical research, and laboratory settings for nucleic acid amplification. It is particularly suitable for high-sensitivity applications such as pathogen detection, gene expression analysis, and genetic testing.
