Product Description

Basic Information

Model NO.

Certification

CE, FDA, EEC, ISO13485

Group

Animal

Dimension Size

L275*W260*H186mm

Weight

4.8kg

Operating System

10-Inch Android System

Electrical

220V/50Hz, 255W

Sensitivity

Detectable Single-Copy Gene

Linear Range

10^0~10^10 Copies

Origin

China

HS Code

90275000

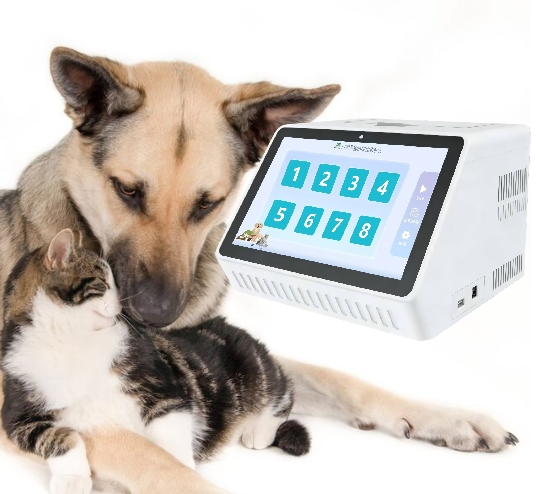

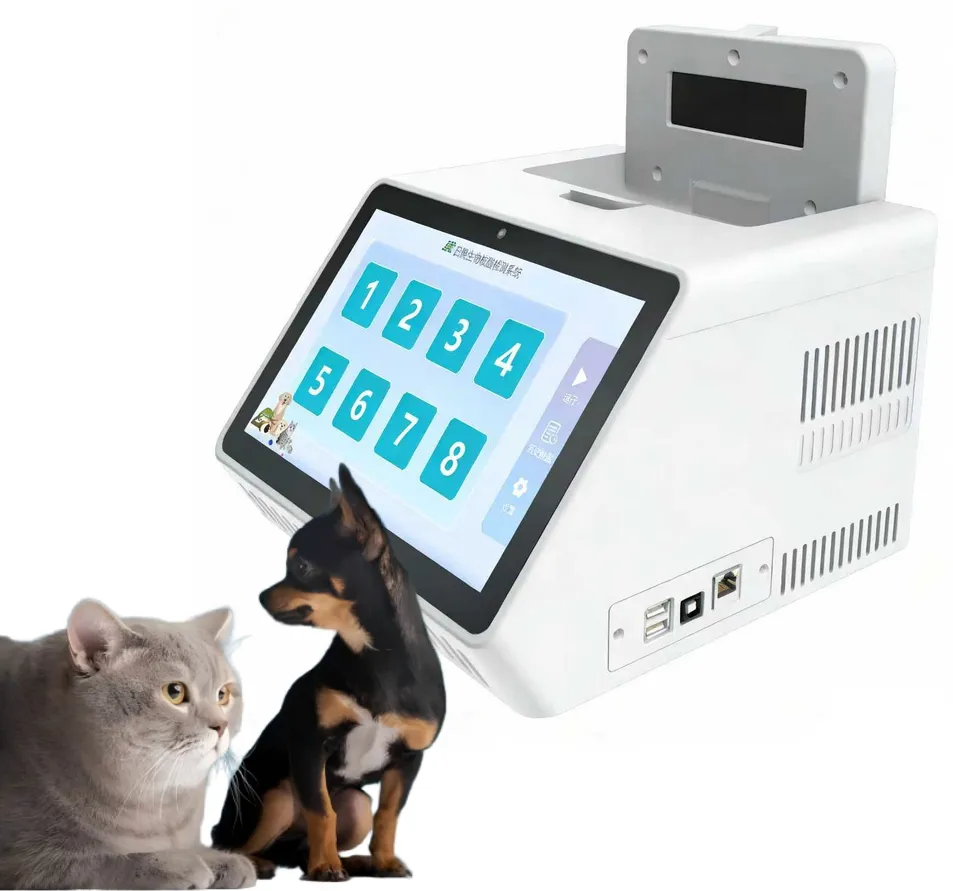

Portable Rapid PCR System

The system uses fluorescence signal monitoring during PCR cycles to provide real-time quantification of DNA/RNA. By detecting the Ct value, it accurately measures pathogen loads in pets or livestock samples within 30 minutes.

🚀 Core Applications

✔ Pet Care: Rapid screening for Canine Parvovirus (CPV), Distemper (CDV), Feline Leukemia, and more.
✔ Livestock: On-site detection of African Swine Fever (ASF), Bird Flu, and Foot-and-Mouth Disease.
✔ Safety: Foodborne pathogen testing and veterinary research.

💎 Key Advantages

★ High Sensitivity: Detects even trace amounts of viral/bacterial DNA.
★ Multi-Channel: Supports multiplex PCR for testing multiple diseases in one run.
★ User-Friendly: Pre-programmed protocols for one-click clinical operation.

Technical Specifications

Parameter	Specification	Parameter	Specification
Sample Size	0.2ml * 8 holes	Applicable Consumables	0.2ml Single/8-strip tube
Heating Method	Semiconductor	Temperature Range	4-99℃
Heating Rate	Max. 6℃/s	Cooling Rate	Max. 4℃/s
Accuracy	±0.1℃	Uniformity	±0.25℃
Light Source	Maintenance-free LED	Channels	Four-channel
Dyes Supported	FAM, HEX, ROX, CY5	Correlation Coefficient	≥0.999

Multi-plex Detection Panels

Species	Project Name	Detection Details
Feline	Feline Respiratory 7-plex	FHV-1, FCV, M. felis, C. felis, Bb, FIV, S. aureus
Feline	Feline Enteric 5-plex	FPV, FCoV, FechPV, Bocavirus, Astrovirus
Canine	Canine Wellness 4-plex	CPV, CDV, CCoV, CPIV
Canine	Canine Vector-Borne	Babesia, Lyme, Anaplasma, Ehrlichia
Zoonotic	Zoonotic 4-plex	Toxoplasma, Babesia, Bartonella, Leptospira

Exotic Pet Panels (Coming Soon)

Parrot / Avian

Rabbit

Pigeon

Turtle

Mink

Frog

Frequently Asked Questions

How long does the T8 PCR system take to provide results?

The system provides accurate real-time quantification and pathogen load measurements within approximately 30 minutes.

What types of animals can be tested with this system?

It is designed for a wide range of animals including common pets (Canine, Feline), livestock, and exotic pets like parrots, rabbits, turtles, and pigeons.

Is the system portable for on-site testing?

Yes, the T8 model is highly portable, weighing only 4.8kg with a compact footprint, making it ideal for clinical and field applications.

Does the system support multiplex detection?

Yes, it features a four-channel system that supports multiplex PCR, allowing the detection of multiple diseases or pathogens in a single run.

What is the detection sensitivity of the device?

The system is highly sensitive and is capable of detecting even a single-copy gene within a sample.

What operating system does the T8 use?

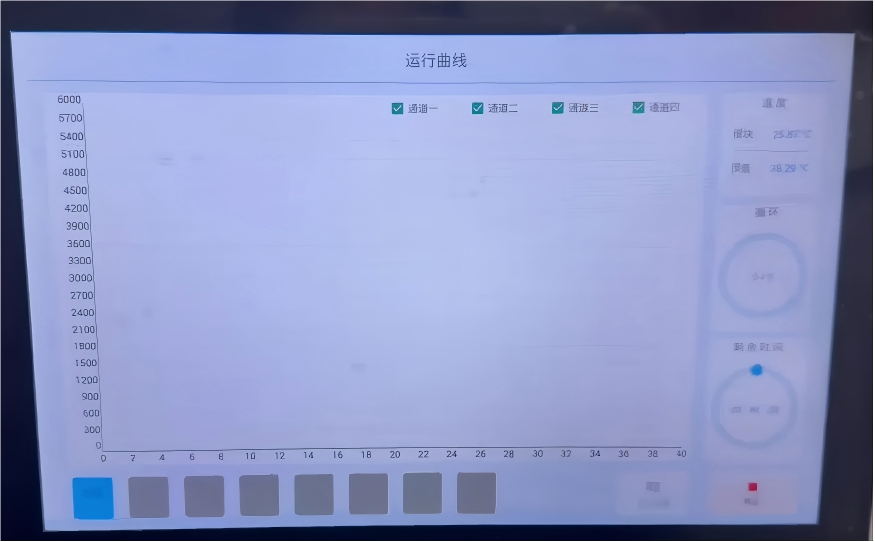

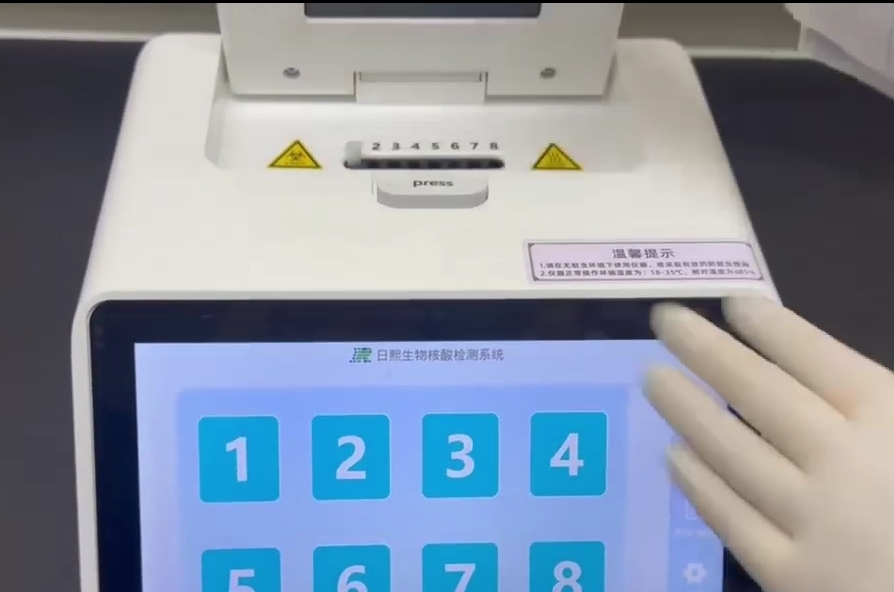

The device is equipped with a user-friendly 10-inch Android operating system with pre-programmed protocols for simple operation.
