Genplex® Hpv PCR Genotype Detection Nucleic Acid Analysis System

Send Inquiry

Product Description

🧬 Technology Overview

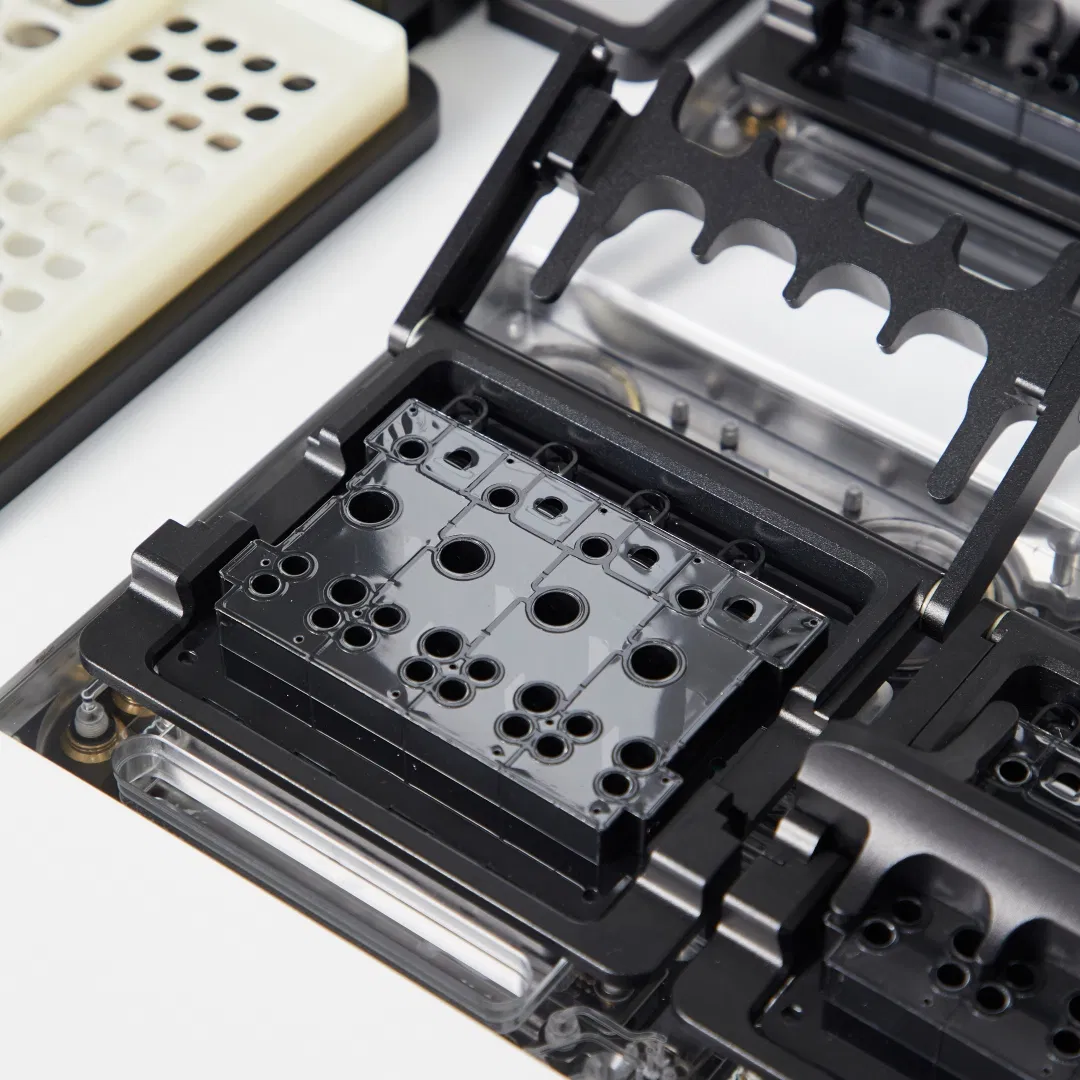

The instrument uses reverse hybridization for qualitative virus sub-type analysis. Specimens are added, and the instrument auto-adds reagents, extracts DNA, and amplifies PCR via micro-pumps. Amplified products are transferred to the test area and undergo reverse hybridization. If target gene products are present, they're captured by the probe, showing spots after coloration, identifying virus sub-type. Negative specimens show no spots.

📋 Specification

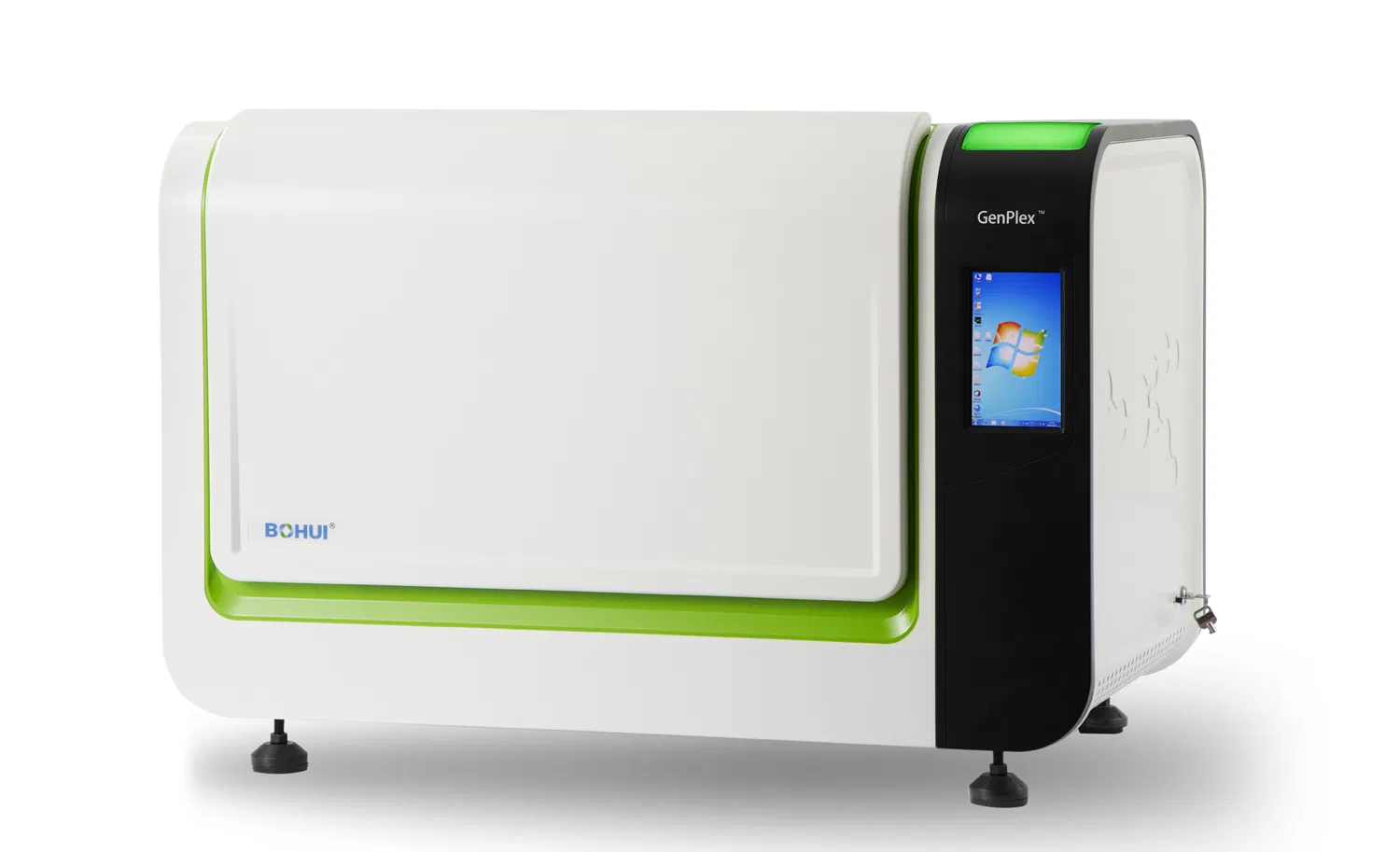

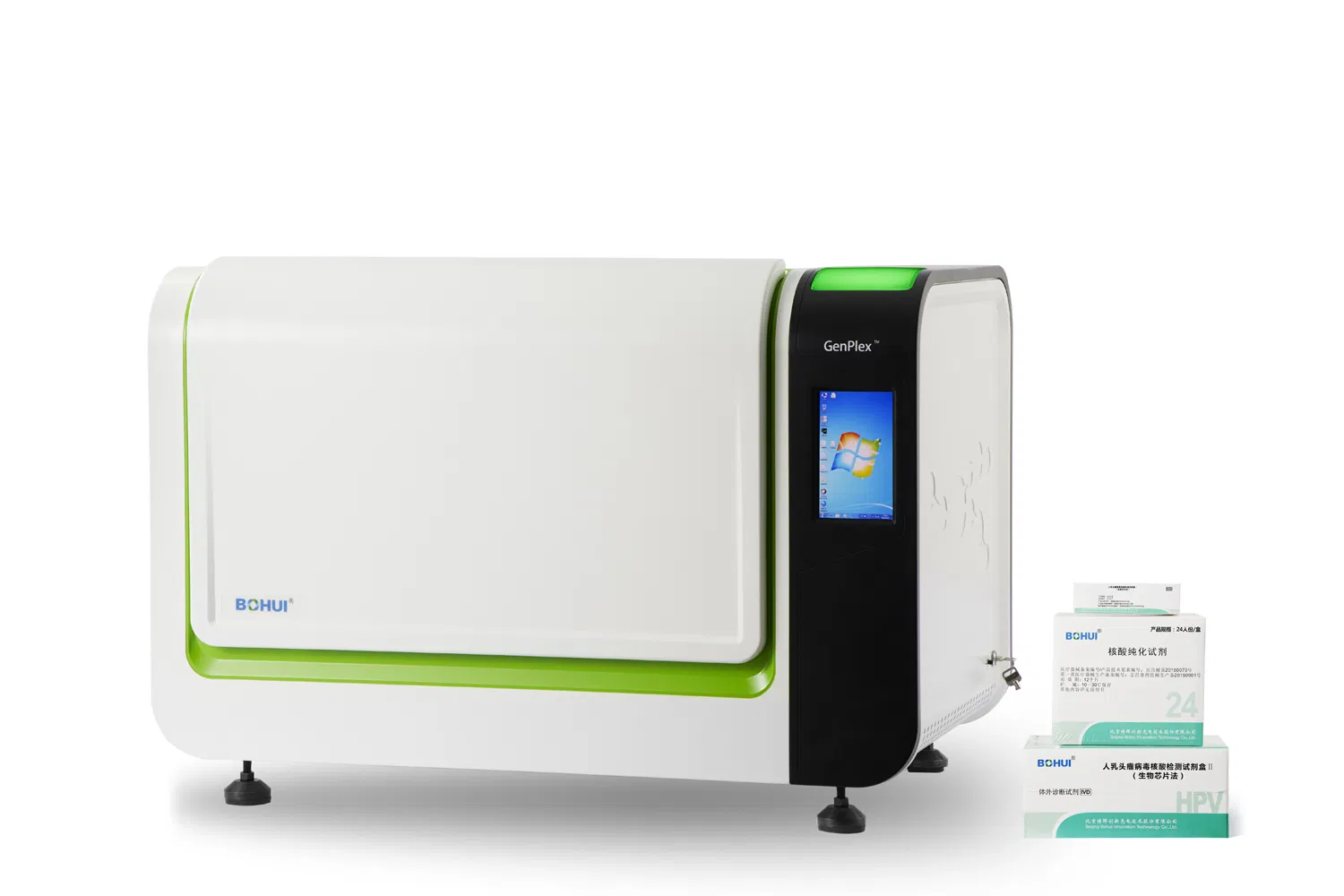

GenPlex® BHF-VI Nucleic Acid Chip Analyzer

The system includes a host unit and an optional printer.

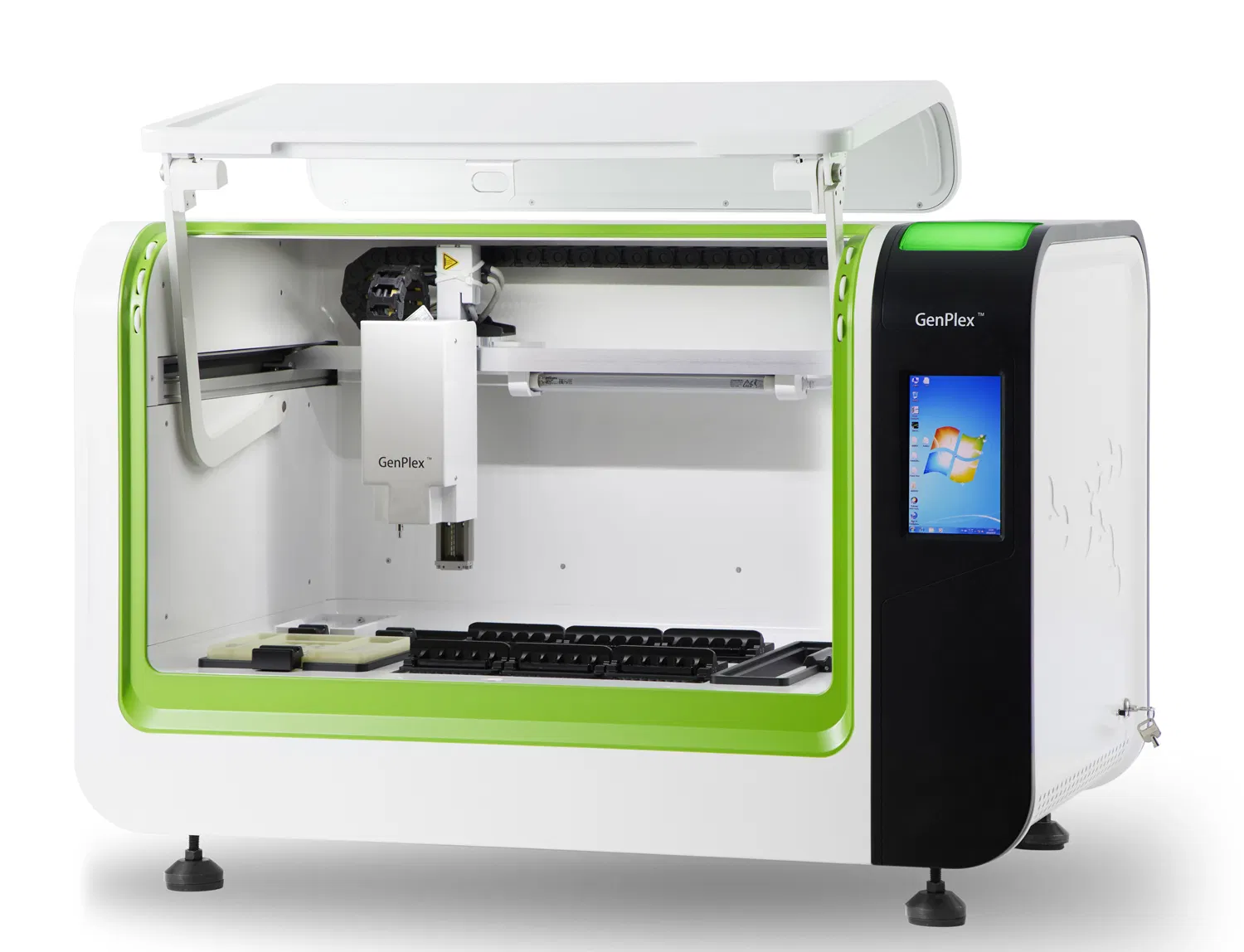

Host Unit Integrates:

Image display system

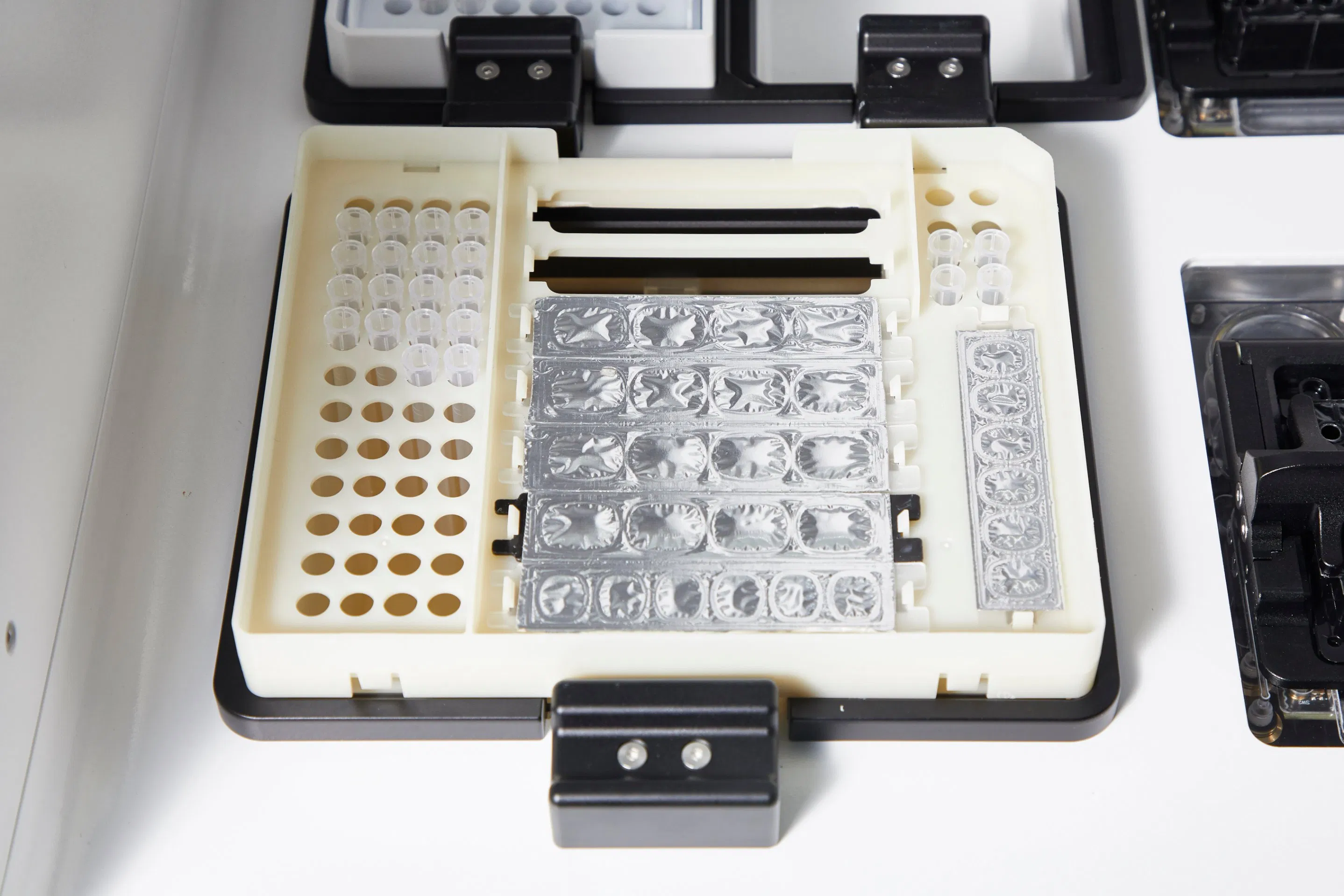

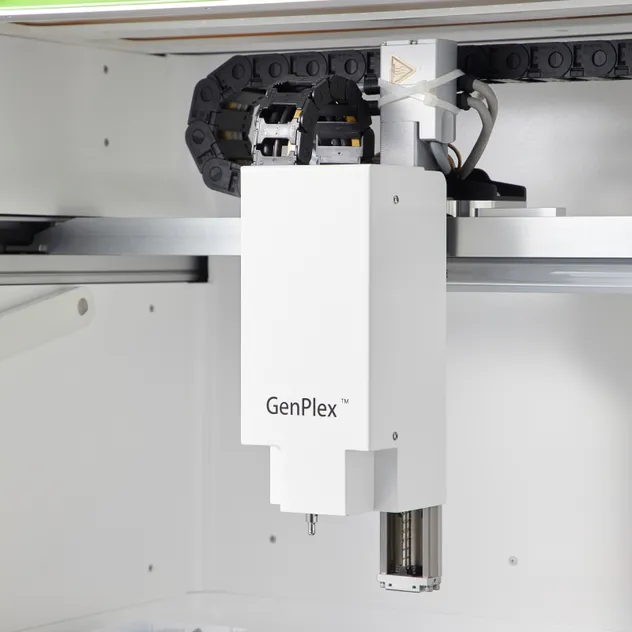

Automated Reagent Dispensing System

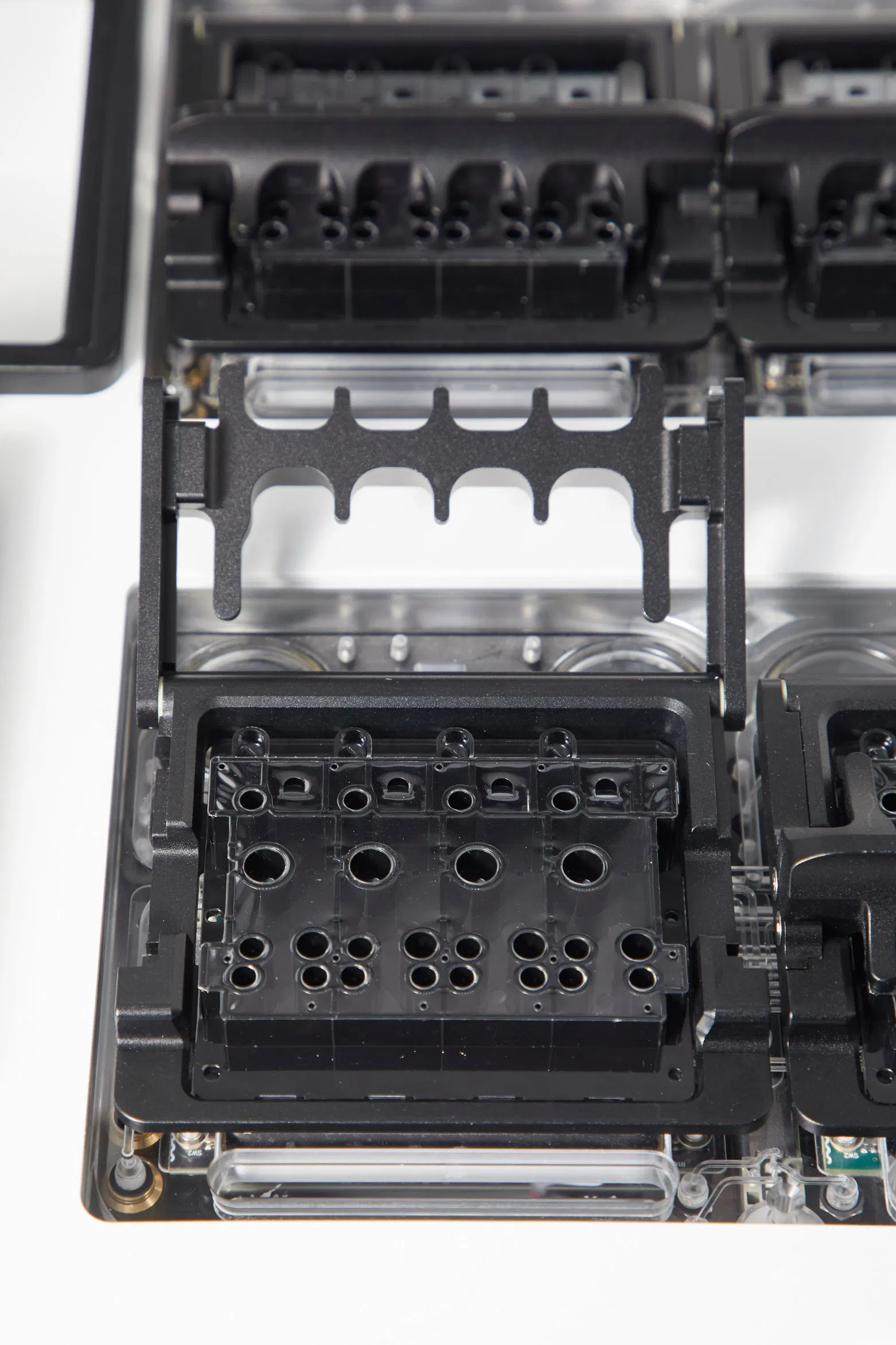

Pneumatic Control System (positive/negative pressure)
Temperature Control System
Image Detection System
3D Movable Platform System

Sample Type: exfoliated cervical epithelial cells

Application: For nucleic acid detection and analysis, ideal for clinical screenings like HPV testing.

⚙️ Technical Specifications

Model	BHF-VI
Detection Platform	PCR & Reverse dot blot hybridization
Detection Modules	6 Modules
Sample Capacity	24
Heating rate	≥1.5 ℃/s (from 50℃ to 90℃)
Cooling rate	≥1.5 ℃/s (from 90℃ to 50℃)
Electrical specification	230V, 50Hz, 600VA
Dimension	1000 x 610 x 690±10(mm)
Altitude	≤2300m
Weight	≤80kg

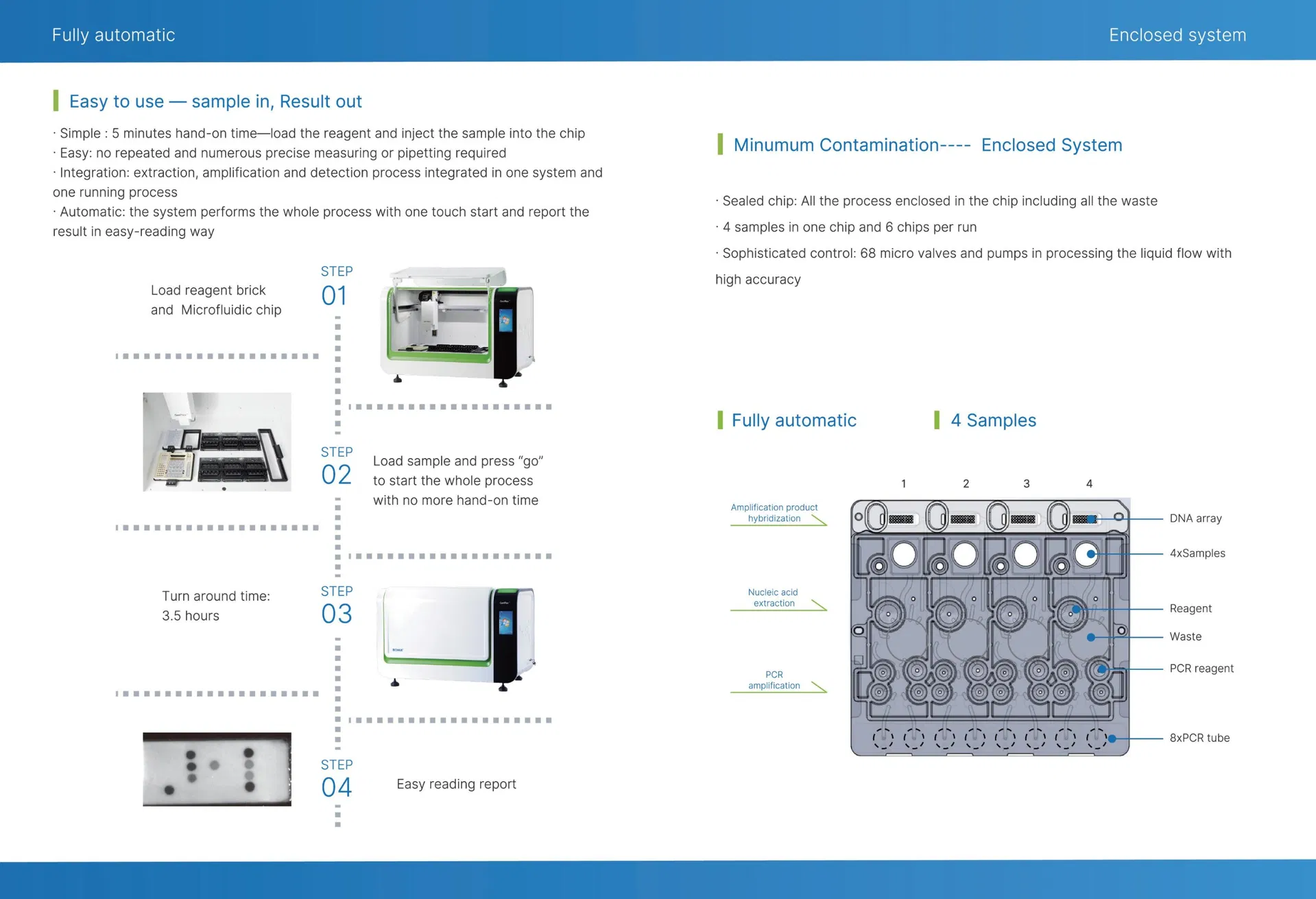

✨ Product Features

⏱️ Simple 5 minutes of hands-on time

✅ Easy No precise measuring or pipetting required

🚀 Fast Turnaround time of about 3.5 hours

🔬 Comprehensive 24/28 target genotypes Human Papillomavirus panel

🏢 Company Expertise

Founded in 2001, the group is a high-tech biomedical enterprise integrating R&D, production, sales, and after-sales service. With a 40,000 m² R&D center, the company excels in molecular diagnosis, immunoassay, and mass spectrometry. The microfluidic-based nucleic acid products are acclaimed as a 'lab on a chip', serving diverse medical institutions.
