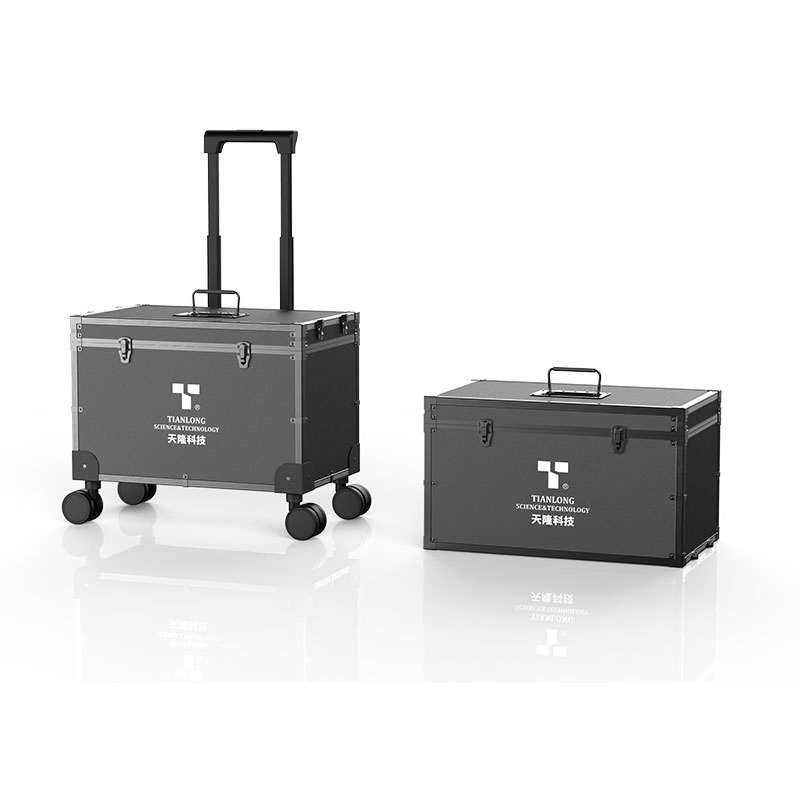

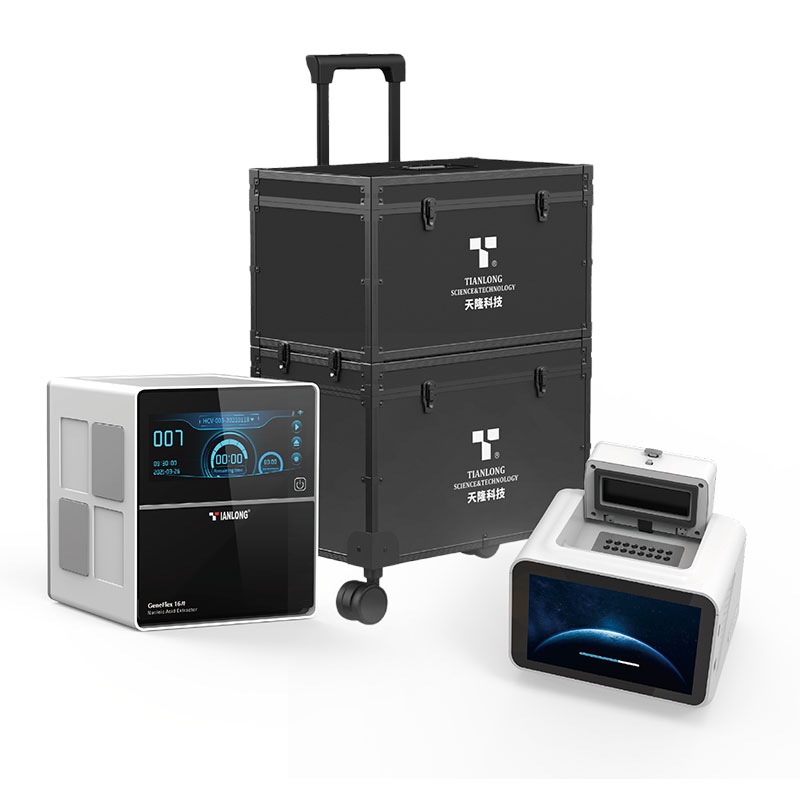

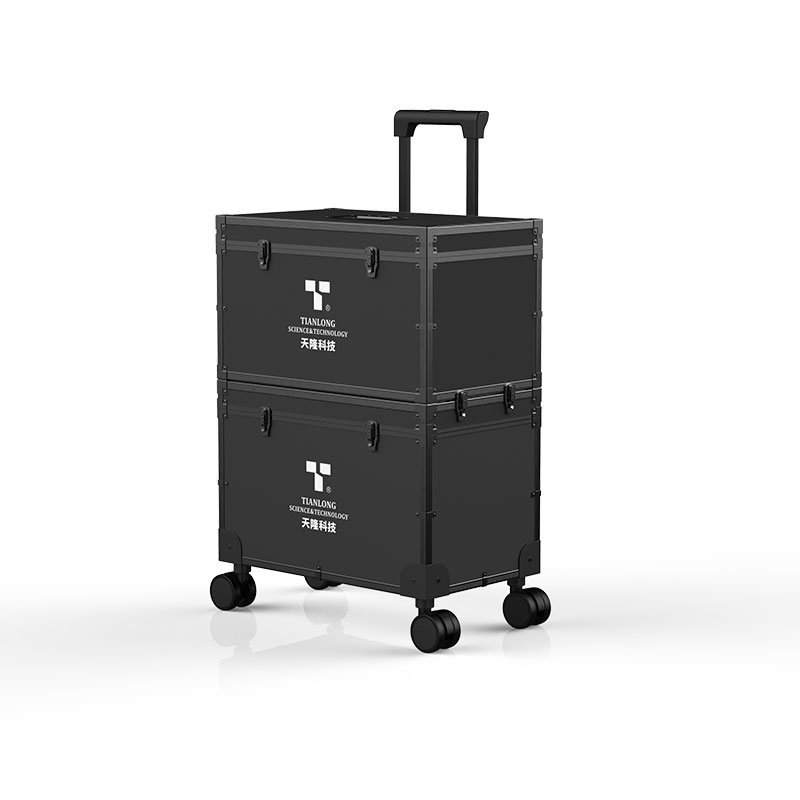

Lab in a suitcase is portable and flexible to meet your on-site testing needs in infectious disease control and food safety.
Equipped with a mobile power supply, experiments can start anywhere without worrying about outdoor power access or indoor outages.
The mobile laboratory delivers quick results. The crash-proof design ensures the stability of the suitcase lab during transport.
Fluorescence scanning of all wells in 1s; complete sample nucleic acid extraction in just 15 minutes.
User-friendly interface: 1 click to start extraction and 3 clicks to complete real-time PCR operations.
| Specifications | Details |
|---|---|
| Throughput | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Customized 96-deep-well plates, single 6-strip tubes |
| Inter-well Difference | CV≤3% |
| Mixing Method | Rotary mixing (100~3000rpm) |
| Temperature Control Range | 30°C to 120°C (Lysis and elution separately) |
| Temperature Accuracy | Heating speed: 4.0±0.2°C/s; Accuracy: ±1.0°C |
| Operation Mode | Android smartphone/tablet or 6.86 inch LCD screen |
| Disinfection | Ozone + UV disinfection (Auto power-off) |
| Filtration | Negative pressure HEPA filtration module |
| Weight & Dimensions | 7.4Kg; 210mm(L)*229mm(W)*242mm(H) |
| Model | Gentier Mini+ | Gentier Mini |
|---|---|---|
| Throughput | 1-16 | 16 |
| Fluorescence Channels | 4 | 2 |
| Scanning Time | 1s for all wells | 1s for all wells |
| Heating Rate | Max 5.0ºC/s | Max 5.0ºC/s |
| Temperature Accuracy | ≤0.1ºC | ≤0.1ºC |
| Light Source | High-brightness LED | High-brightness LED |
| Control Modes | Touch-screen / PC Software / Windows Tablet | Touch-screen / PC Software / Tablet |
| Network | USB, WiFi, Internet interface | USB, WiFi, Internet interface |
| Weight & Dimensions | 3.2kg; 205mm*156mm*153mm | 3.2kg; 205mm*156mm*153mm |

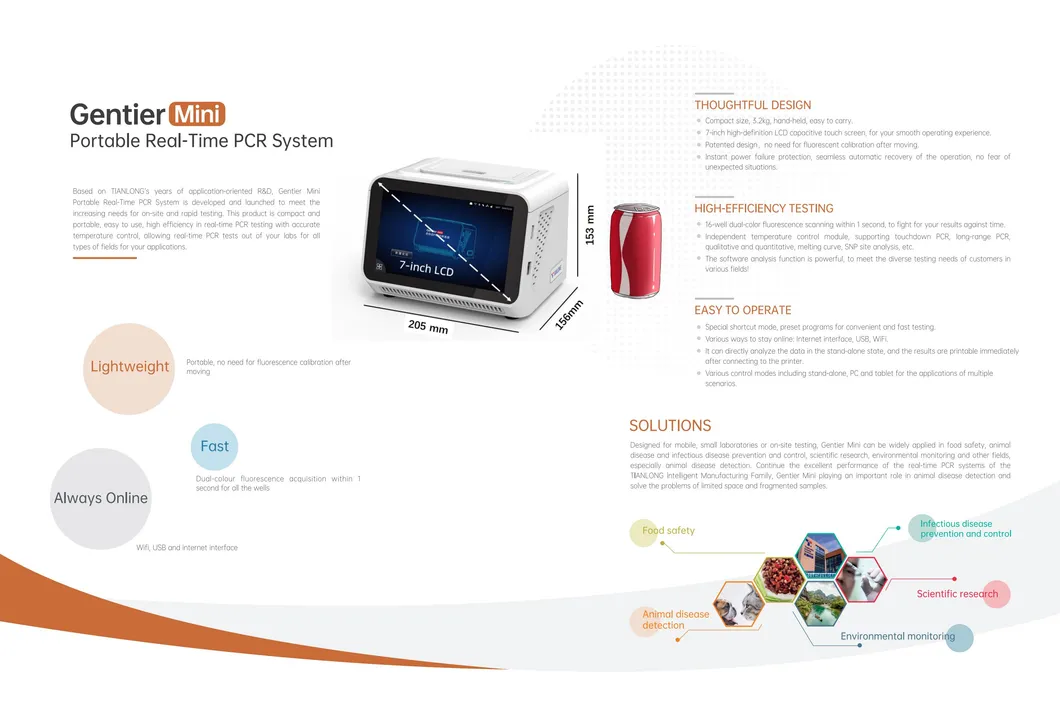

Product Catalogue:
