Tianlong Gentier96E Real-Time PCR System

1 / 5

Tianlong Gentier96E Real-Time PCR System

Customization:	Available
Classification:	Biological Diagnostics
Type:	Biochemistry Analyzer

Send Inquiry

Product Description

Basic Information

Model NO.

Gentier96E

Certification

CE, FDA, MSDS, ISO13485, RoHS

Group

All

Transport Package

Paper Carton

Specification

555*475*484mm (W*L*H)

HS Code

9027509090

Production Capacity

5000 Units/Year

Product Description

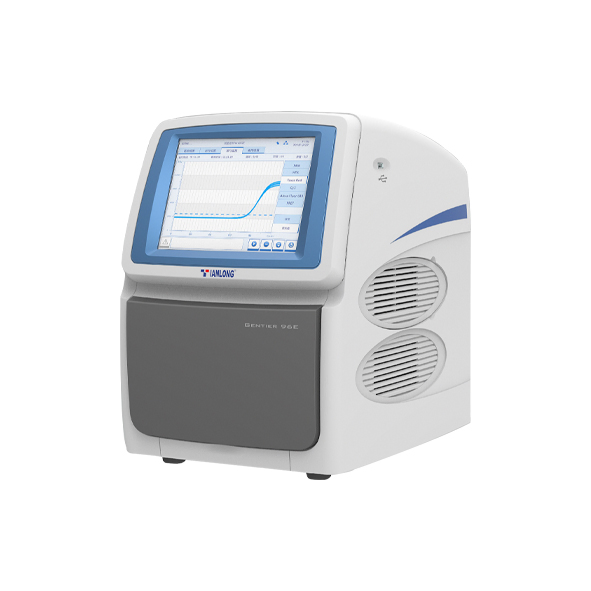

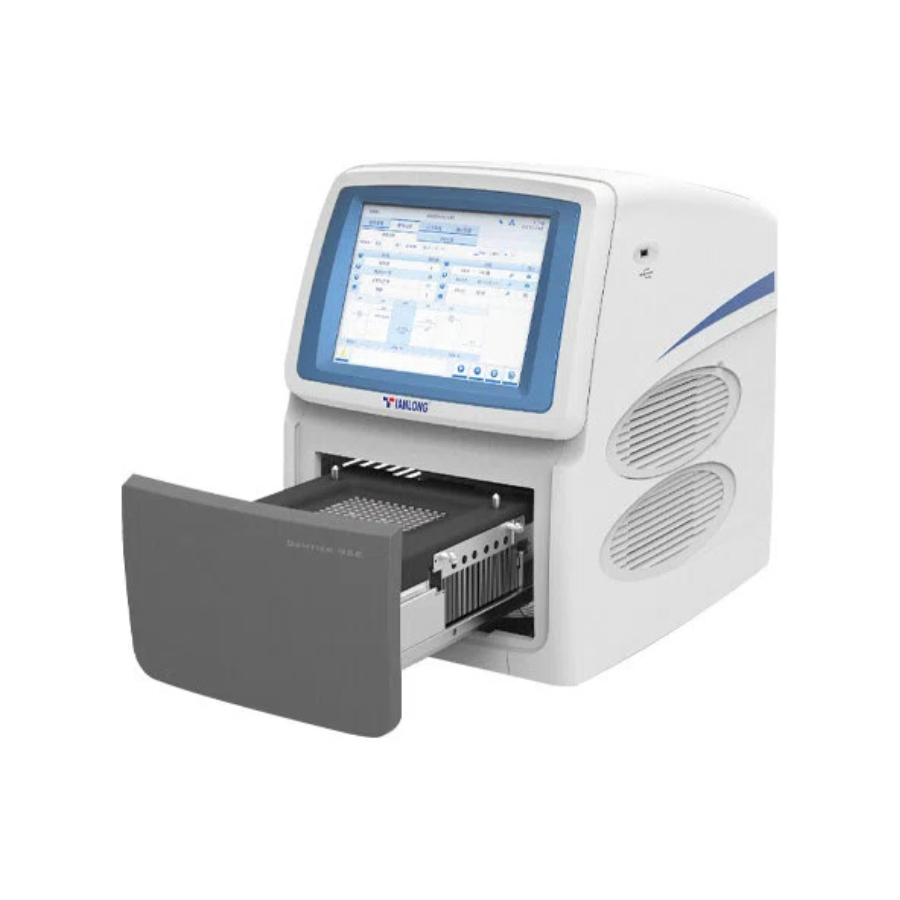

The Gentier 96E real-time PCR system is a PCR test machine designed to meet the specific needs of high-end laboratories. Featuring six fluorescence channels, the Gentier 96E is capable of processing 96 samples in one test run. Indulge in the powerful and efficient temperature control system, easy-to-use software, and user-friendly operational designs. This system can provide reliability and efficiency for all your real-time PCR needs.

It can easily process downstream multiplex gene detection, quantitative analysis, SNP analysis, dissociation curve analysis and other applications. It is widely used in medical institutions at all levels, universities and research institutes, CDC, food and dairy product factories, as well as other fields and industries.

★

Key Features

⏱ Fast Scanning

96 samples can be scanned in just 7s for all wells, significantly reducing testing time and improving lab efficiency.

🌡 Efficient Temp Control

Peltier-based method with maximum heating ramp rate >6.1ºC/s and cooling ramp rate >5.0ºC/s.

🛡 Power Failure Protection

Designed to recover experiments automatically after instantaneous power failure, ensuring data safety.

💻 Dual Configuration

Offers both Standalone mode (10.4-inch touch screen) and PC control configuration for flexible laboratory use.

Technical Parameters

Parameter	Specification
Throughput	1 - 96
Fluorescence Channels	6
Fluorescence Scanning Time	7s
Dye Compatibility	FAM, SYBR Green I, VIC, ROX, Cy5, Alexa Fluor 680, FRET, etc.
Light Source	Maintenance-free LED light source, excitation from top
Detector	Photodiodes (PDs), top scanning
Heating/Cooling Rate	Heating: >6.1 ºC/s; Cooling: >5.0 ºC/s
Temperature Uniformity	±0.1 ºC
Gradient Range	1ºC - 40 ºC (12 row)
Control Modes	10.4 inch touch screen or PC direct control
Weight	30 Kg (net)
Suitable Consumables	0.2mL 96-well plates, 8-tube strips, single tubes

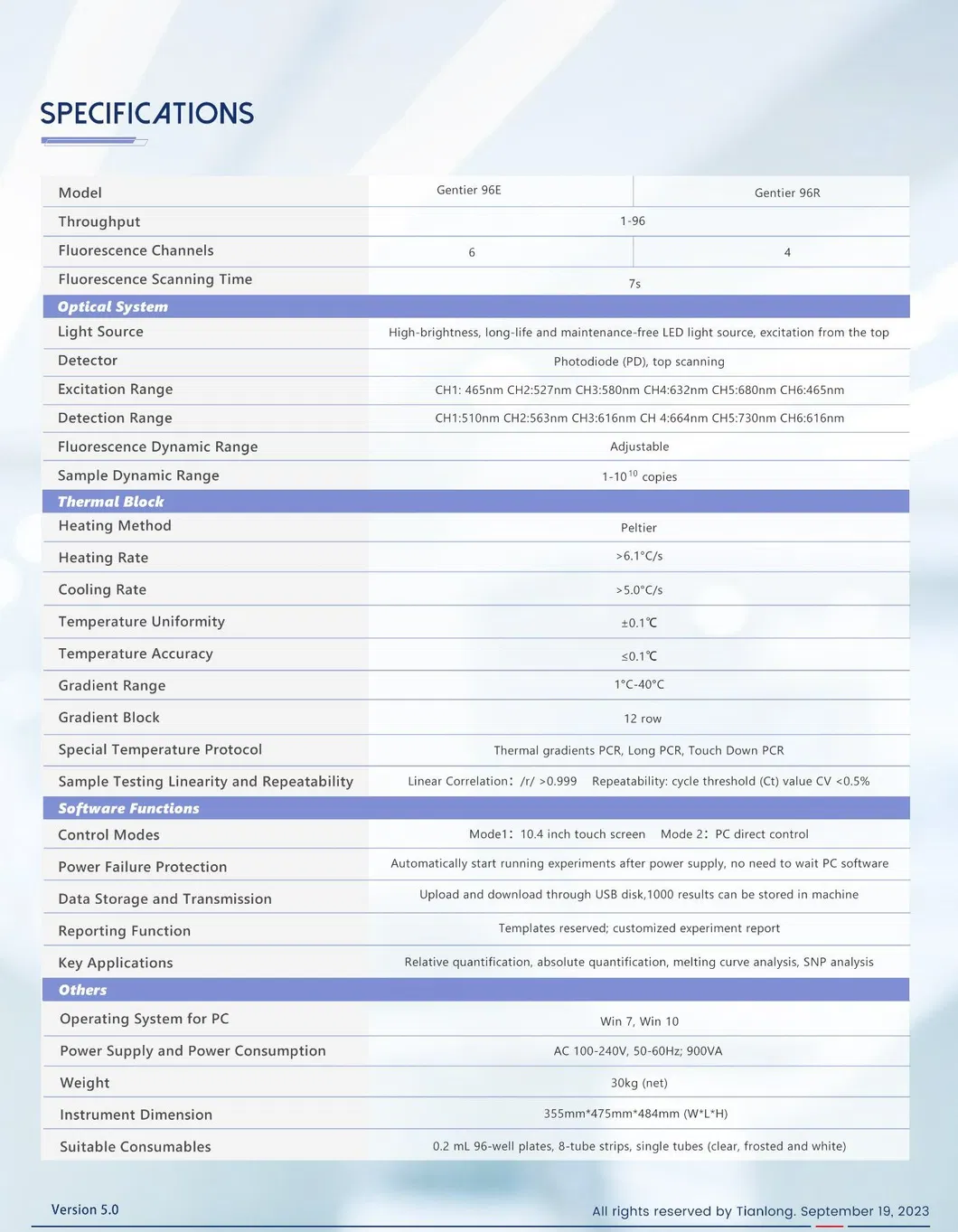

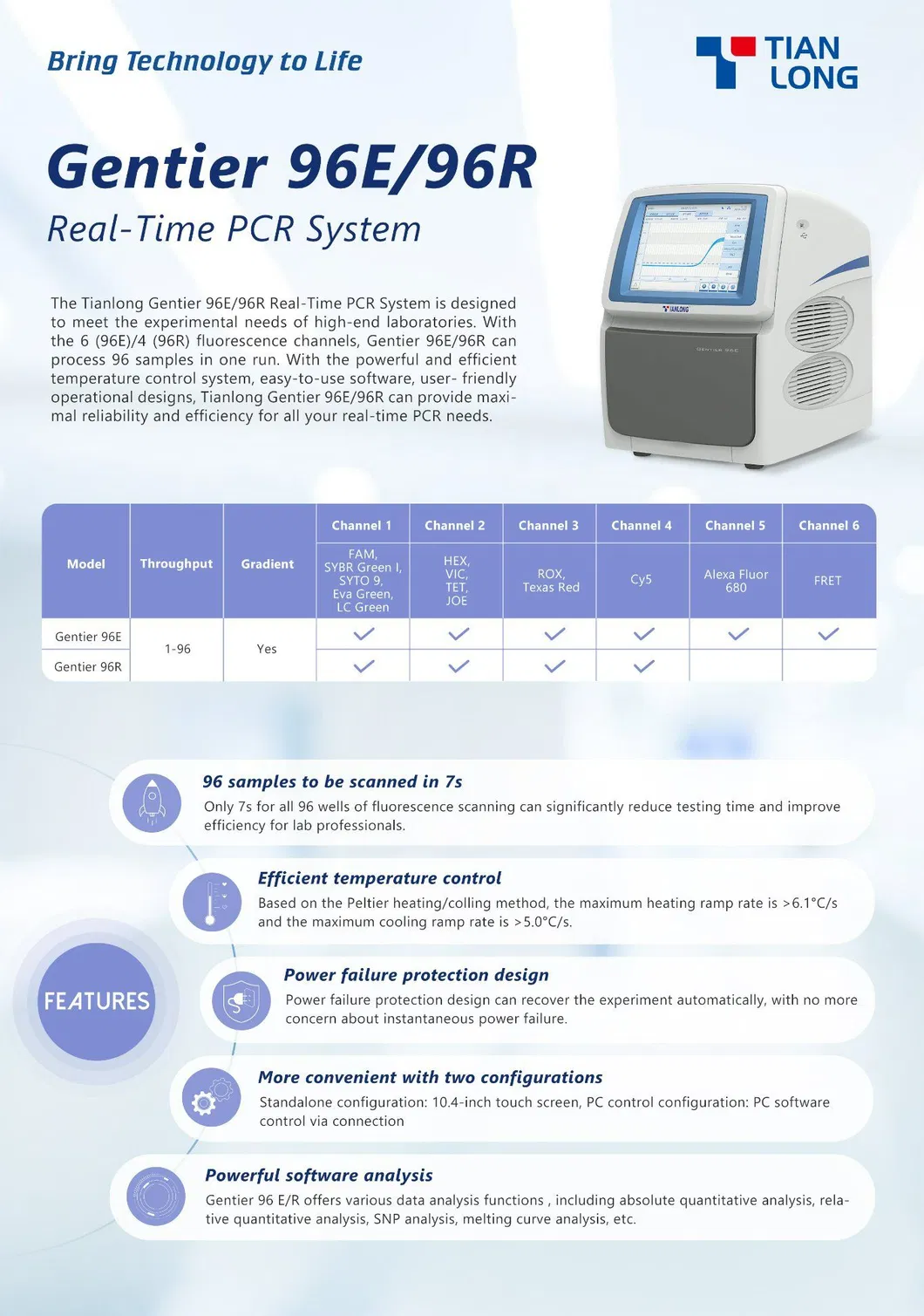

Product Literature

Product Solution

Visual Overview

Frequently Asked Questions

Q1: How many samples can the Gentier 96E process at once?

A: The system is designed for high-throughput laboratory needs and can process up to 96 samples in a single test run.

Q2: What is the scanning time for the fluorescence detection?

A: It takes only 7 seconds to complete a full scan of all 96 wells across the fluorescence channels.

Q3: Does the system require a connected PC to operate?

A: No, the Gentier 96E offers dual configurations. It can be used in Standalone mode via its built-in 10.4-inch touch screen or controlled via a PC connection.

Q4: What happens if there is a sudden power failure during an experiment?

A: The system features a power failure protection design that automatically recovers and continues the experiment once power is restored.

Q5: Which types of consumables are compatible with this PCR system?

A: It is compatible with standard 0.2mL 96-well plates, 8-tube strips, and single PCR tubes (available in clear, frosted, or white).

Q6: What analysis functions does the software provide?

A: The software supports various functions including absolute and relative quantitative analysis, SNP analysis, and melting curve analysis.
