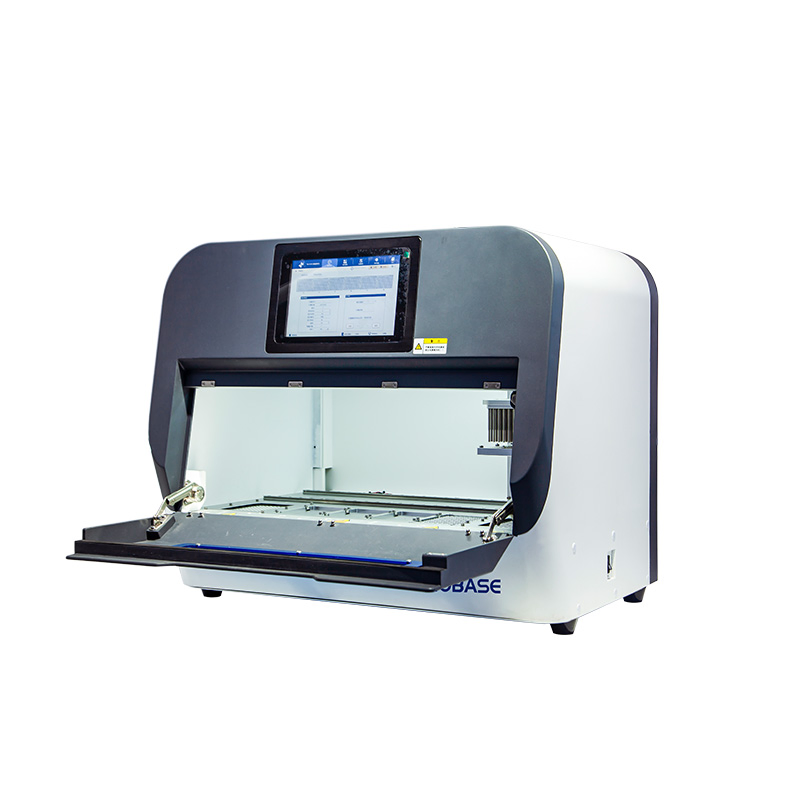

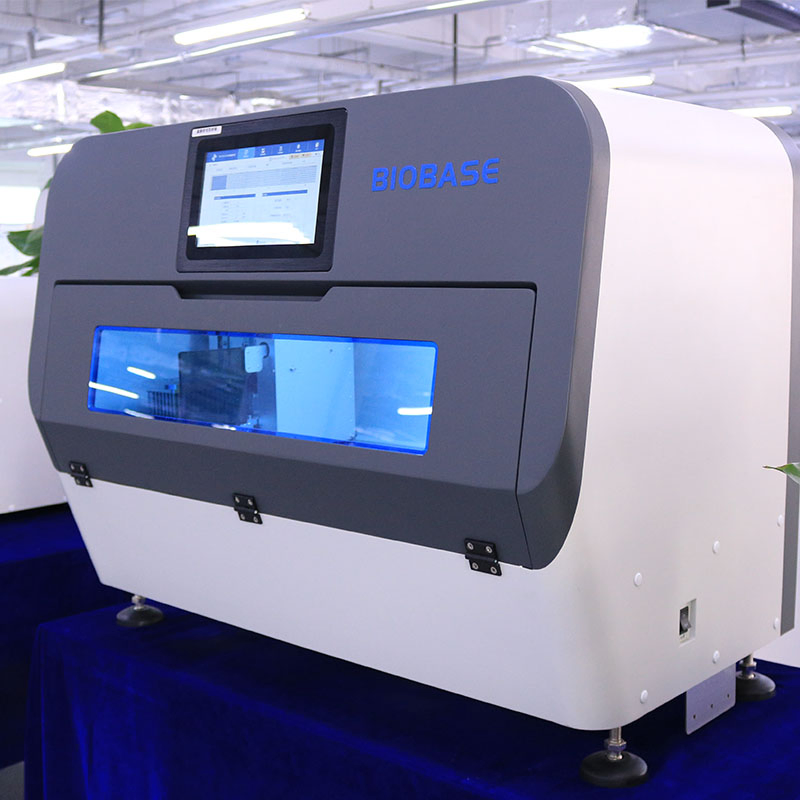

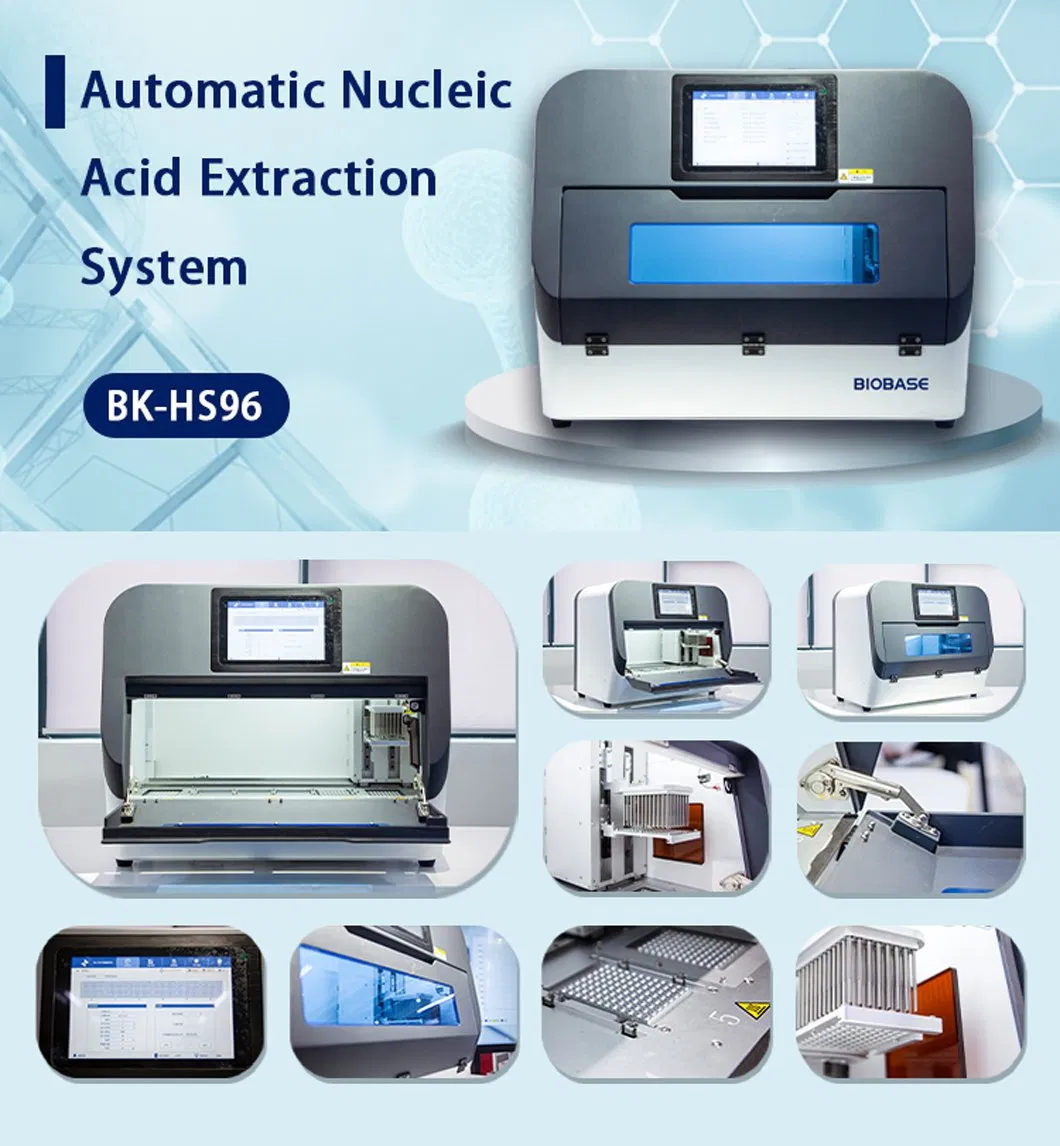

Automated Nucleic Acid Extraction System

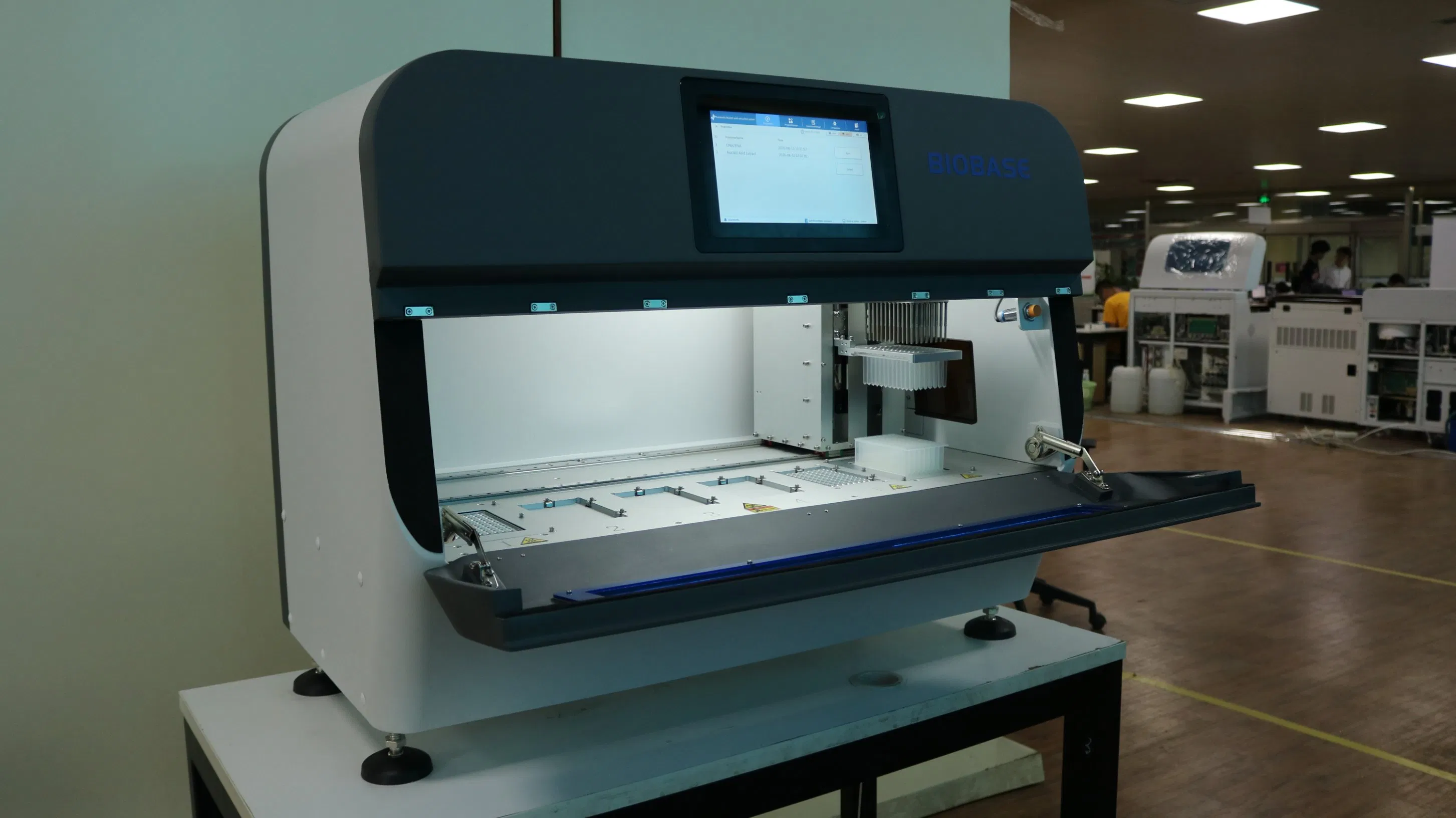

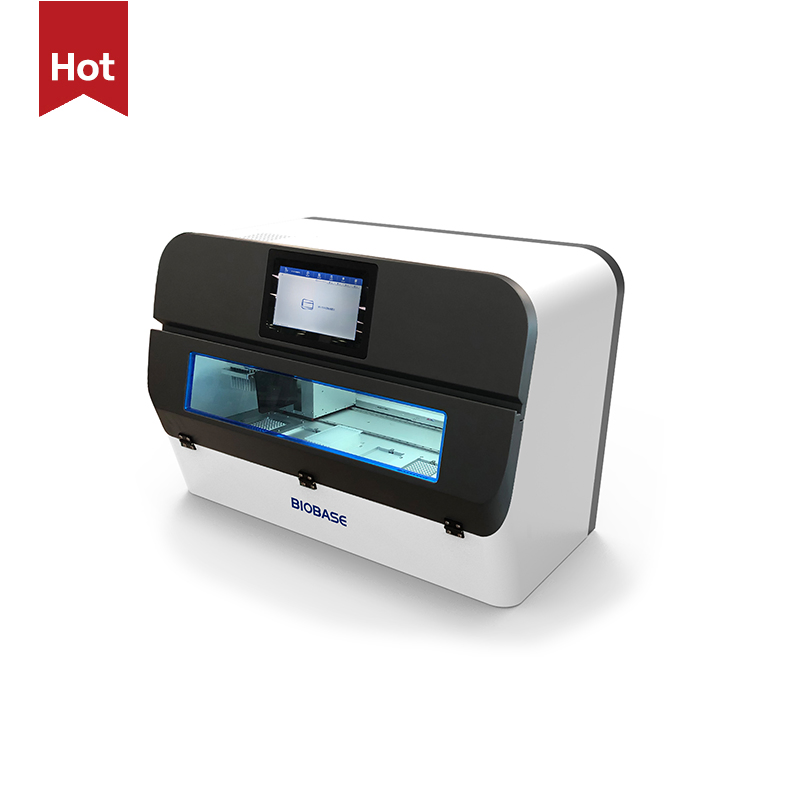

BK-HS96 PCR Laboratory Automated Nucleic Acid Extraction Machine
A high throughput, high sensitivity automated purification equipment designed to automatically complete the extraction of sample nucleic acid.

Basic Specifications

Model	BK-HS96
Nucleic Acid Extraction Method	Paramagnetic Particle Method
Sample Throughput	96
Processing Volume	20~1000UL
Extraction Time	15min~60min
Collection Efficiency	98%
Magnetic Flux	3000~6000GS
Shaking Mode	Up-Down Shaking + Horizontal Shaking

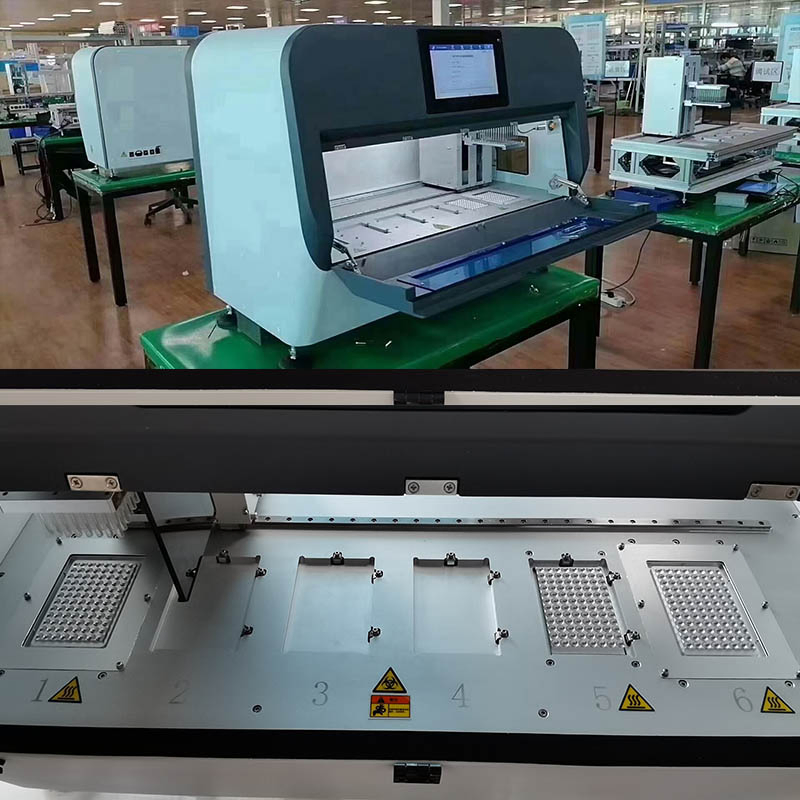

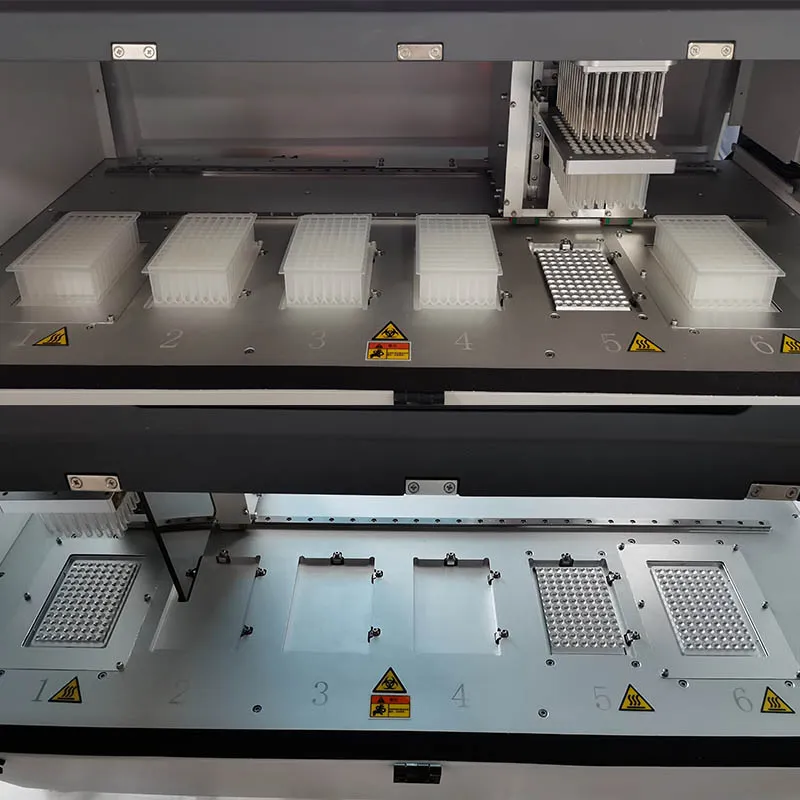

Module Amount	6
Antipollution Function	UV Lamp

Product Description

BK-HS96 offers a flexible and stable result at a low cost. Equipped with an efficient filtration device and safety gate design, it effectively avoids cross-infection and ensures high-quality nucleic acid extraction.

Key Features

📱

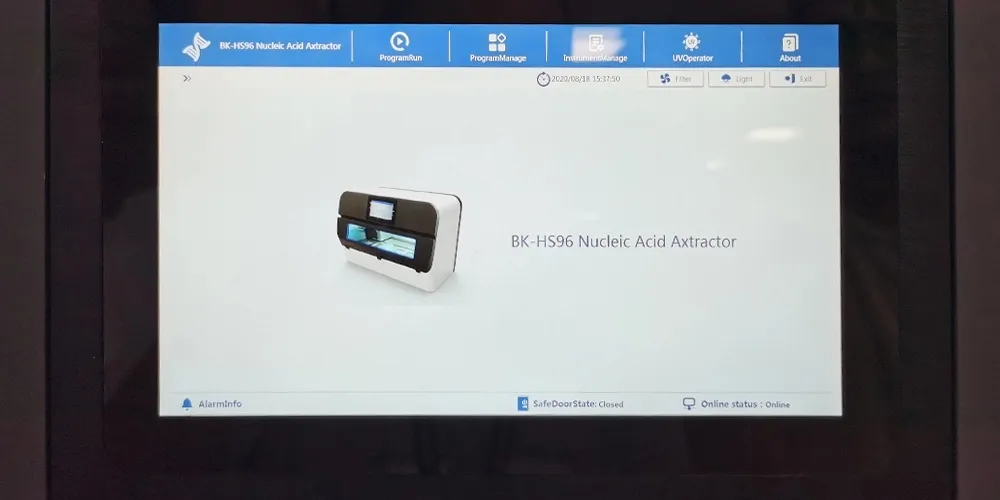

User Interface: 10.1 inch touch screen, easy to operate and convenient.

🌡️

Temperature Control: Accurate control and rapid temperature rise for sample storage.

🌀

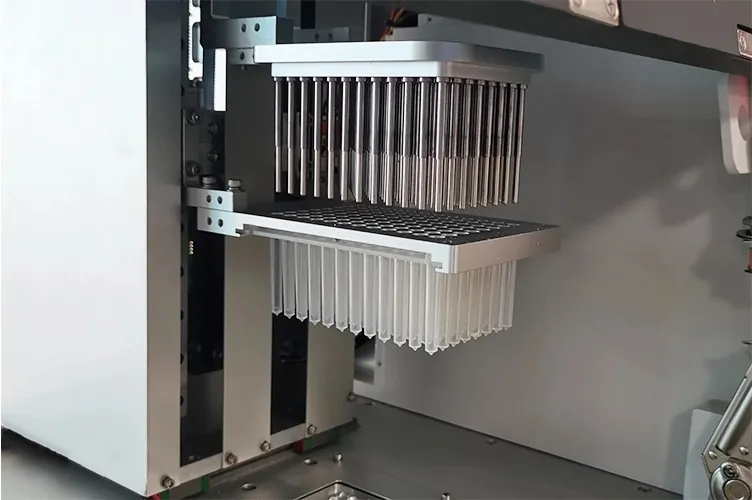

Integrated Module: Combined shaking and heating module to save extraction time.

🛡️

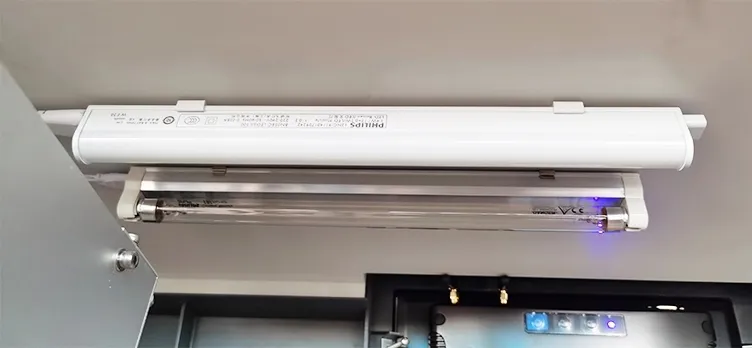

Pollution Control: UV disinfection lamp and HEPA high efficiency filter.

Technical Parameters

Temp. Control Range	RT~105ºC
Temp. Display Resolution	0.1ºC
Sample Protection	Power on self-check, power off protection, over-temperature protection
Operating System	Windows system
Memory	>1000 protocols
Communication Port	USB (Ethernet optional)
Power Supply	AC100~240V, 50/60Hz
Package Size (WDH)	11387331028 mm
Gross Weight	70 kg

Laboratory Solutions

Providing a comprehensive "one-stop procurement" service across various laboratory needs:

IVD Products: Analyzers for Chemistry, Hematology, Electrolyte, and Urine.
Air Protection: Biosafety cabinets, PCR cabinets, Fume hoods, and Clean booths.
Cold Chain: Blood bank refrigerators and ultra-low temperature freezers.
Sterilization: Vertical and horizontal autoclaves, disinfection robots.
General Instruments: Centrifuges, Incubators, Drying ovens, and Spectrophotometers.

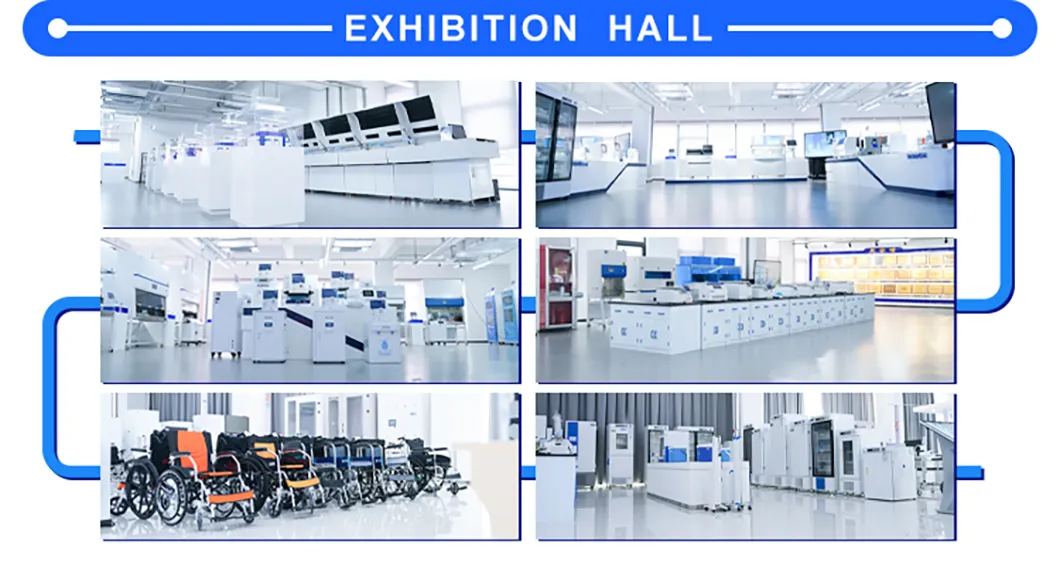

Exhibition and Global Service

Frequently Asked Questions

What is the maximum sample throughput of the BK-HS96?

The system is designed for high throughput, capable of processing up to 96 samples simultaneously.

Which extraction method does this machine use?

It utilizes the Paramagnetic Particle Method, ensuring high sensitivity and efficient nucleic acid purification.

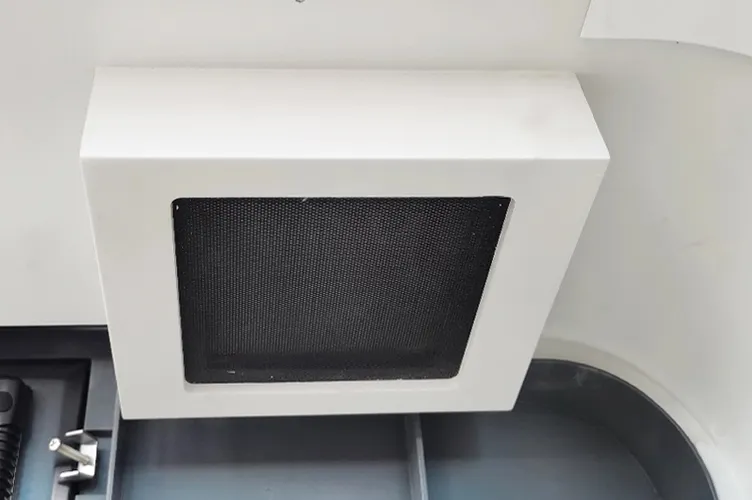

How does the system prevent aerosol pollution?

The machine is equipped with a HEPA high-efficiency filter, a UV sterilization lamp, and a safety door protection function to effectively prevent cross-contamination.

What is the range of processing volume for the samples?

The BK-HS96 can handle processing volumes ranging from 20μL to 1000μL.

What operating system does the device use?

The system runs on a Windows-based operating system and features a 10.1-inch LCD touch screen for easy operation.

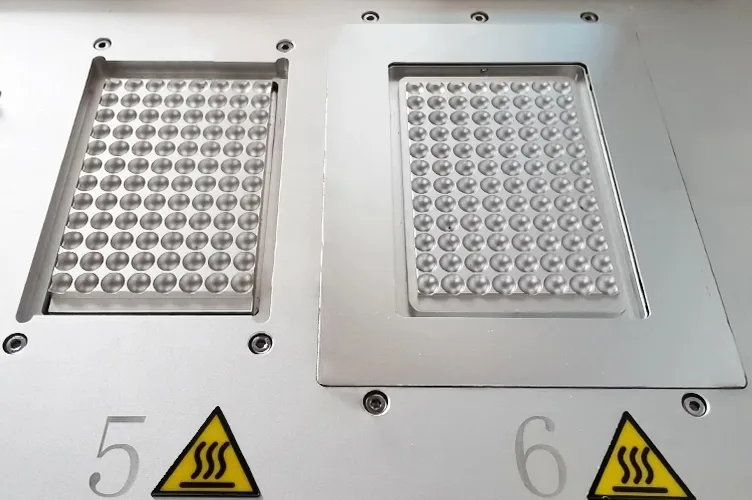

Is there a short-term sample storage feature?

Yes, the device includes a low-temperature sample storage position with accurate temperature control for short-term preservation.
