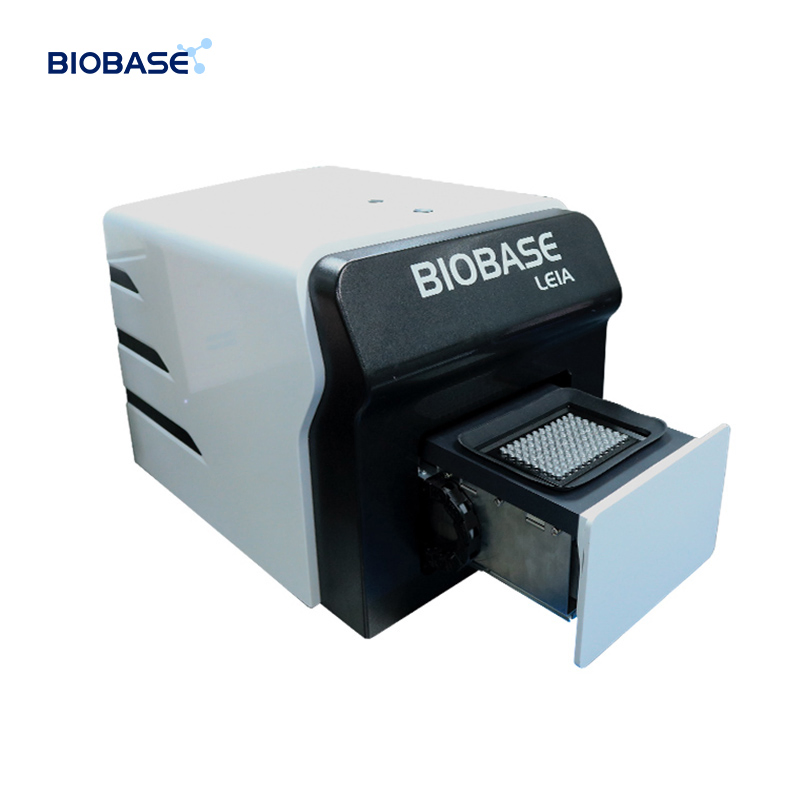

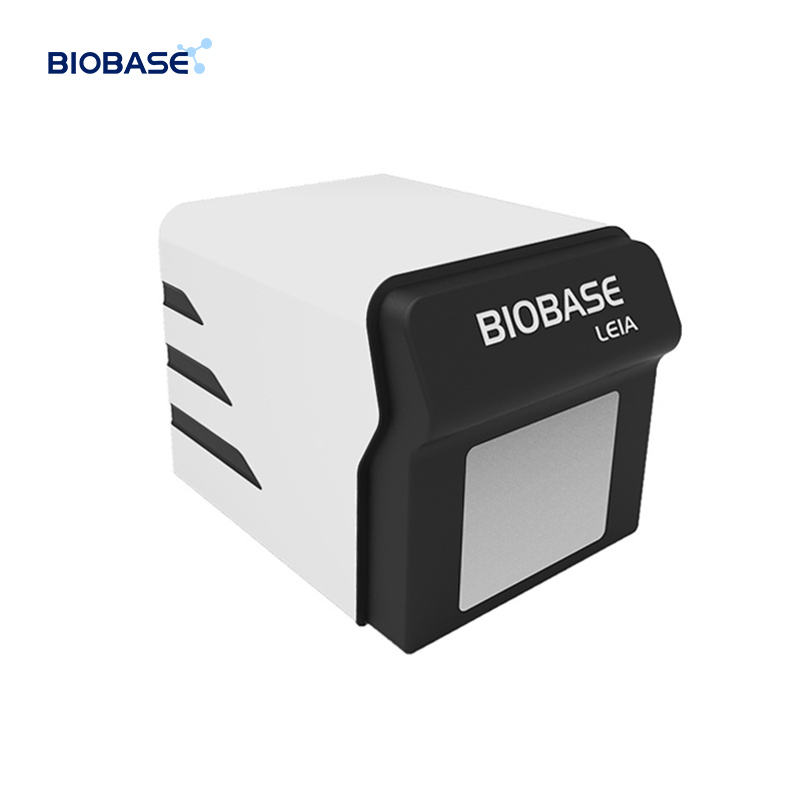

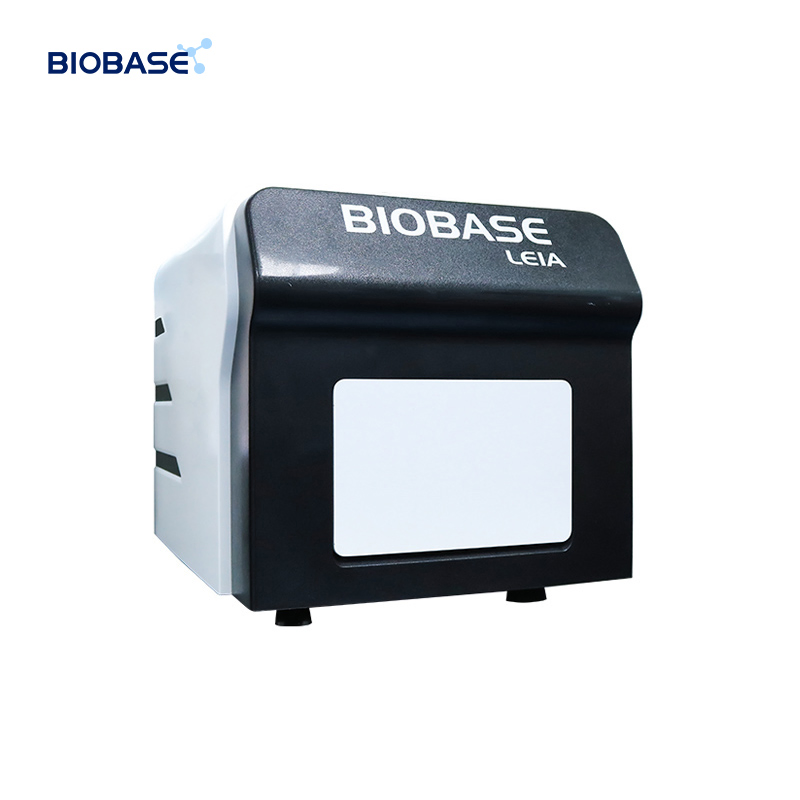

Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment
Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment
Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment
Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment
Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment
1 / 5
Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment
Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment
Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment
Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment
Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment

Biobase Digital PCR Machine Real-Time PCR System Fluorescent Quantitative Detection 6-Channel Leia-X6 Laboratory Equipment

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
LEIA-X6
Certification
CE, ISO13485
Group
Adult
Sample Capacity
96X0.1ml PCR, 12X8-Strip, 96*0.1ml Single Tube
Reaction System
10~50μL
Dynamics Range
1-10^10 Copies
Channel
6
Emission Light
LED
Detector
Pd
Excitation Wavelength
455~685nm
Detection Wavelength
510~740nm
Fluorescence Repeatability
CV≤2%
Module Temp. Range
4-99ºC (Resolution: 0.1ºC)
Ramp Rate
5.0ºC/S (Max)
Temp. Accuracy
±0.3ºC
Power Supply
AC100~240V, 50/60Hz
Origin
China
Product Description
Real-Time PCR System
  • Excellent temperature control performance, Module Max heating rate 7.0℃/s.
  • No edge effect, no optical path correction, top excitation/detection, non-contact measurement.
  • Fluorescence detection adopts PD sensor with high sensitivity.
  • Long-life LED light source, stable emission wavelength, maintenance-free.
  • 4/6-channel fluorescence detection, no cross interference between channels.
  • User-friendly and fully functional software, flexible program setting, and comprehensive analysis reporting.
Technical Specifications
Feature LEIA-X4 Details LEIA-X6 Details
Sample Capacity96*0.1ml PCR plate, 12*8-strip tubes, 96*0.1ml single tube
Reaction System5~50μl
Channels46
Light Source / DetectorLED / PD
Detection PathF1: FAM/SYBR, F2: VIC/HEX, F3: ROX, F4: Cy5F1-F4 + F5: CY5, F6: CY5.5
Excitation Wavelength455~650nm455~685nm
Detection Wavelength510~710nm510~740nm
Ramp Rate (Max)7.0℃/s
Temp. Accuracy±0.5℃
Gradient Range30°C to 105°C (Span: 1°C to 36°C)
Scanning Time8.5s
Operation SystemMicrosoft Windows 10
Dimensions375*505*375mm
Net Weight28kg
Packing & Delivery
Packaging

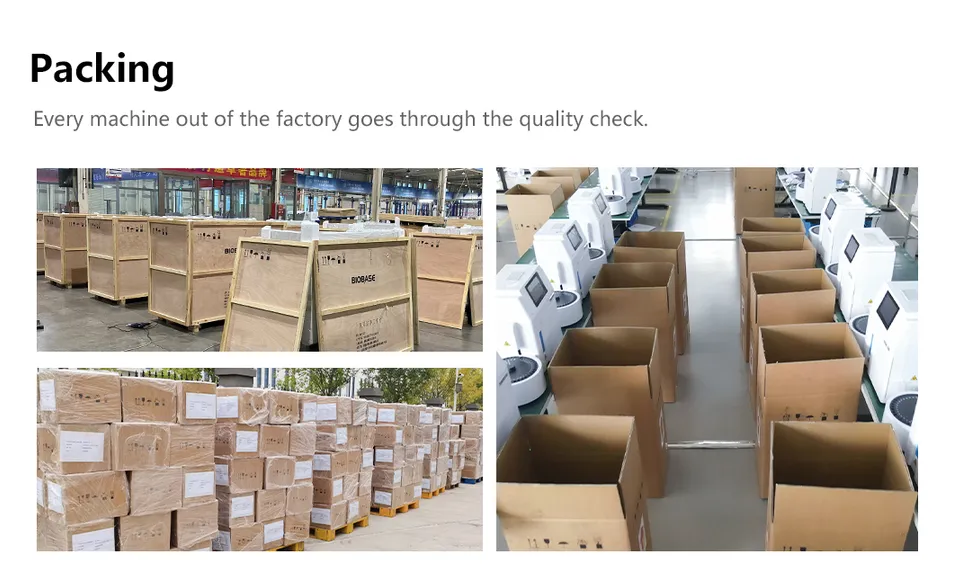

Delivery Preparation
After Sales Service
Support 1
Support 2

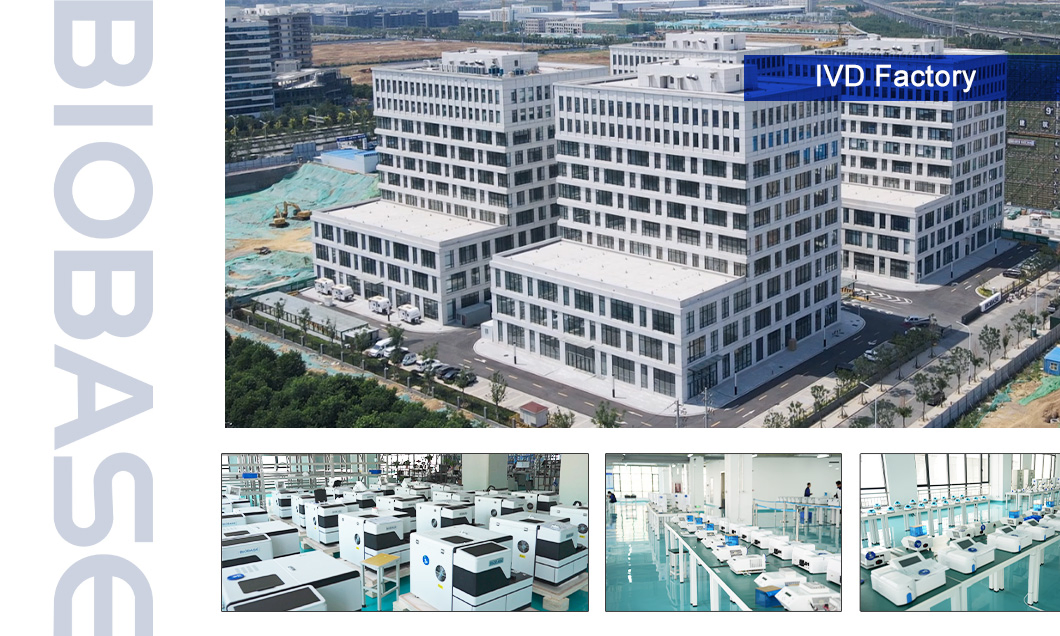

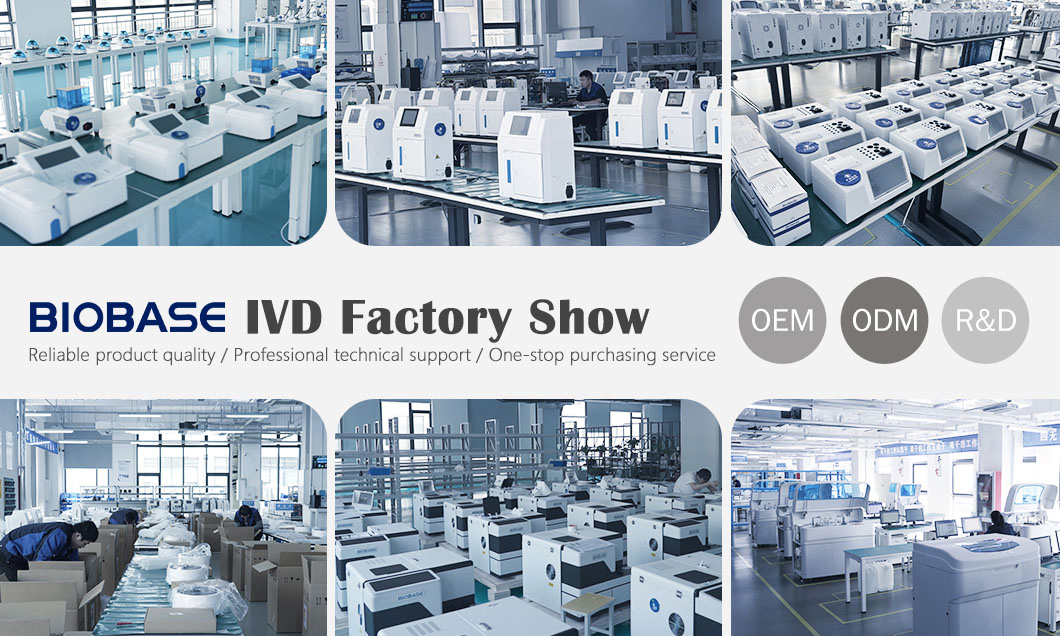

Manufacturing Facility
Facility 1
Facility 2
Contact Section
Frequently Asked Questions (FAQ)
What is the maximum ramp rate of the LEIA-X6?
The system features a high-performance temperature control module with a maximum heating ramp rate of 7.0℃/s.
How many fluorescence detection channels are available?
The LEIA-X6 model supports 6-channel fluorescence detection, while the LEIA-X4 supports 4 channels, ensuring no cross-interference between signals.
Which types of sample tubes are compatible with this system?
It is compatible with 96*0.1ml PCR plates, 12*8-strip tubes, and 96*0.1ml single tubes (transparent covers).
Does the software support absolute quantitative analysis?
Yes, the included software provides comprehensive analysis functions, including absolute and relative quantification, SNP analysis, and melting curve analysis.
What is the scanning speed of the instrument?
The instrument features efficient top-scanning technology with a full scanning time of approximately 8.5 seconds.
Is the light source maintenance-free?
Yes, the system utilizes a long-life LED light source with a stable emission wavelength, designed for maintenance-free operation.
