Product Description

🔹 Basic Specifications
Model NO.:LEIA-X4
Certification:CE
Product Name:Fluorescence Quantitative PCR Detection System
Sample Capacity:96X0.1ml PCR Plate
Channels:4
Light Source:LED
Dynamics Range:1-10^10 Copies
Ramp Rate:5.0℃/S (Max)
📝 Product Introduction

Fluorescent Quantitative PCR Detection System LEIA-X4 is designed for sensitive, specific detection and quantification of nucleic acid targets. Real-time PCR provides powerful assay capabilities across a diverse set of applications through intuitive data analysis and flexible instrumentation.

Main Applications:

Widely used in infectious disease research, food pathogen detection, waterborne pathogen detection, pharmaceutical analytics, stem cell research, pharmacogenomics, oncology, genetic disease research, and agricultural biotechnology.

Working Principle:

The system utilizes a semiconductor Peltier to control temperature step changes for PCR amplification. High-sensitivity MPPC units detect fluorescence with program-controlled channel switching. The non-contact excitation/detection structure on top, coordinated with motor control X and Y axis movement, achieves precise 96-well scanning.

📊 Technical Parameters
Parameter Specifications
Sample Capacity96x0.1ml PCR plate, 12x8-strip tubes, 96*0.1ml single tube
Reaction System10~50μl
Detection PathF1F2F3F4
Suitable DyesFAM/SYBR GREENVIC/JOE/HEX/TETROX/TEXAS-REDCy5
Excitation/Detection455~680nm / 510~730nm
Temp. Range4-99ºC (Resolution: 0.1ºC)
Temp. Accuracy±0.3ºC
Scanning Time8.5s (Full plate)
Operating SystemWindows 10
📷 Product Gallery
PCR Detection System Front View

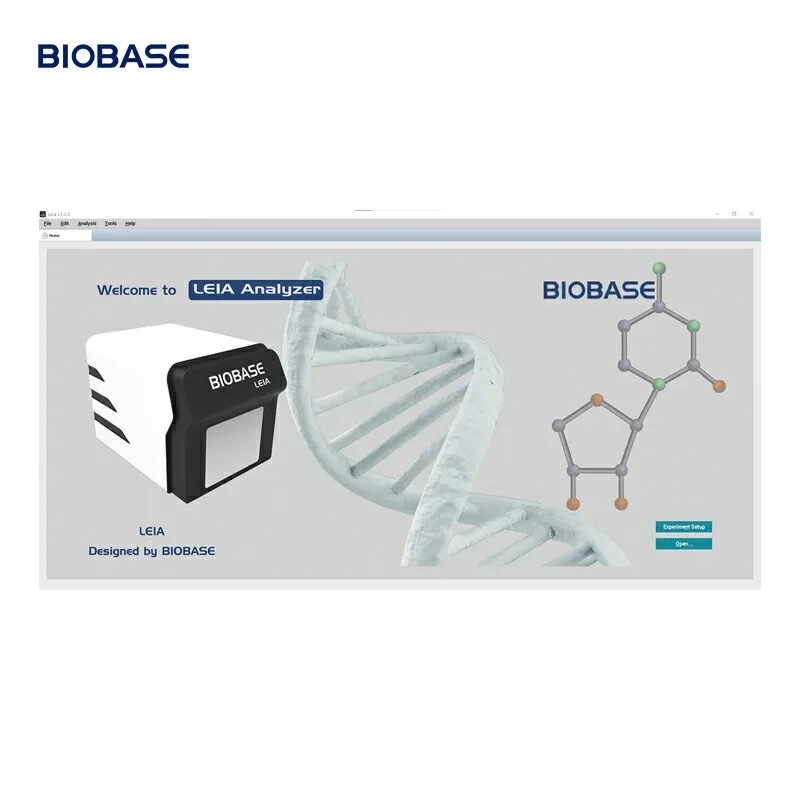

PCR Detection System Side View
Detailed View 1
Detailed View 2
Detailed View 3
🏭 Production & Quality
Production Facility

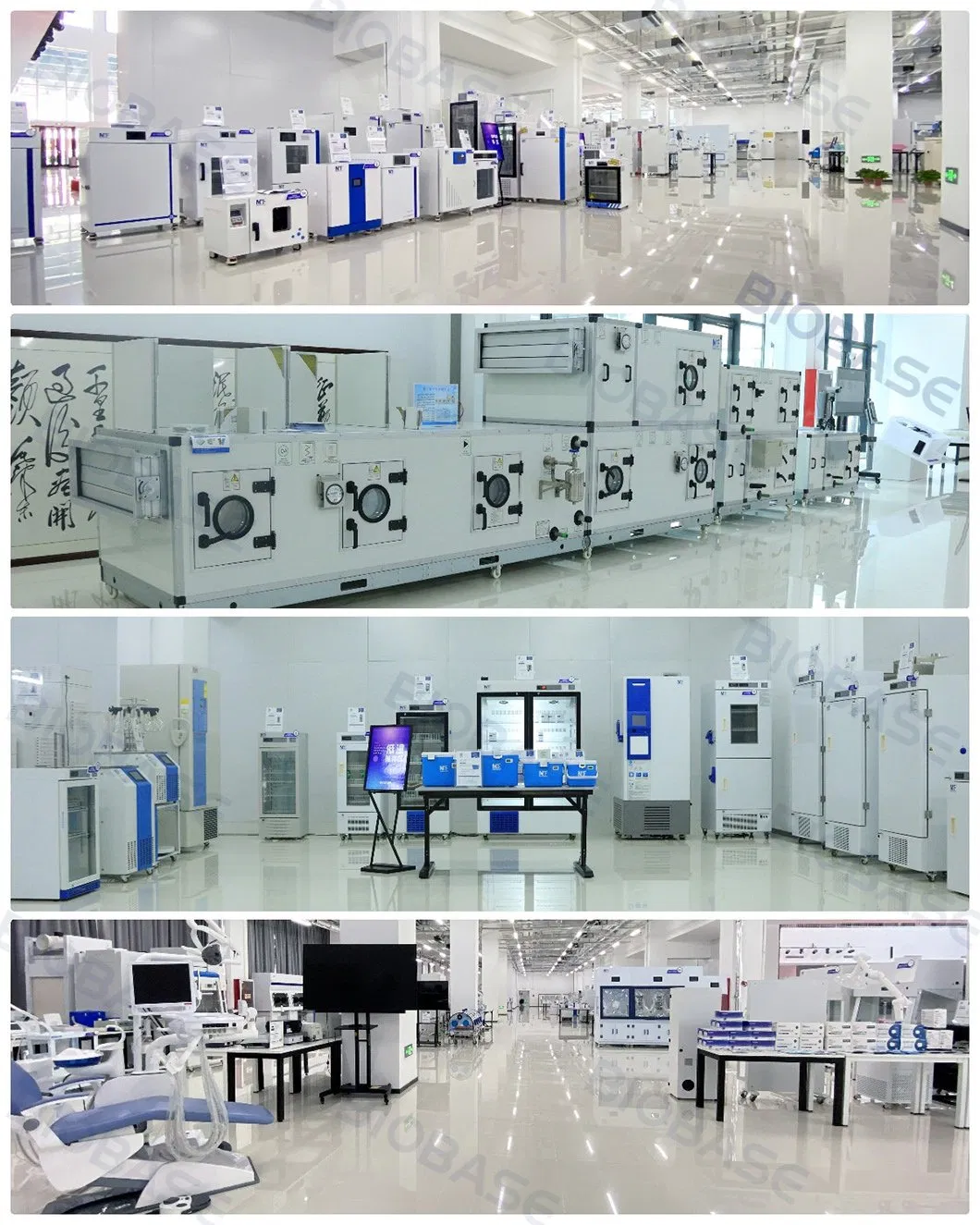

Quality Control
Certifications
❓ Frequently Asked Questions
What is the sample capacity for the LEIA-X4 system?
The system features a 96-well capacity compatible with 0.1ml PCR plates, 12x8-strip tubes, and 96x0.1ml single transparent cover tubes.
How many fluorescence channels does the device support?
It supports 4 channels, covering common dyes such as FAM/SYBR GREEN, VIC/JOE/HEX/TET, ROX/TEXAS-RED, and Cy5.
What is the scanning speed for a full 96-well plate?
The system provides rapid full-plate scanning in just 8.5 seconds.
What kind of temperature control technology is used?
It utilizes high-quality semiconductor Peltier technology for precise temperature cycling with a max ramp rate of 5.0℃/s.
What analysis functions does the software provide?
The included software supports absolute and relative quantitative analysis, SNP analysis, and melting curve analysis.
Is the system compatible with standard laboratory power supplies?
Yes, it is designed to work with both 220V (50/60Hz) and 110V (60Hz) power environments.
