BioX Medical
1 / 5

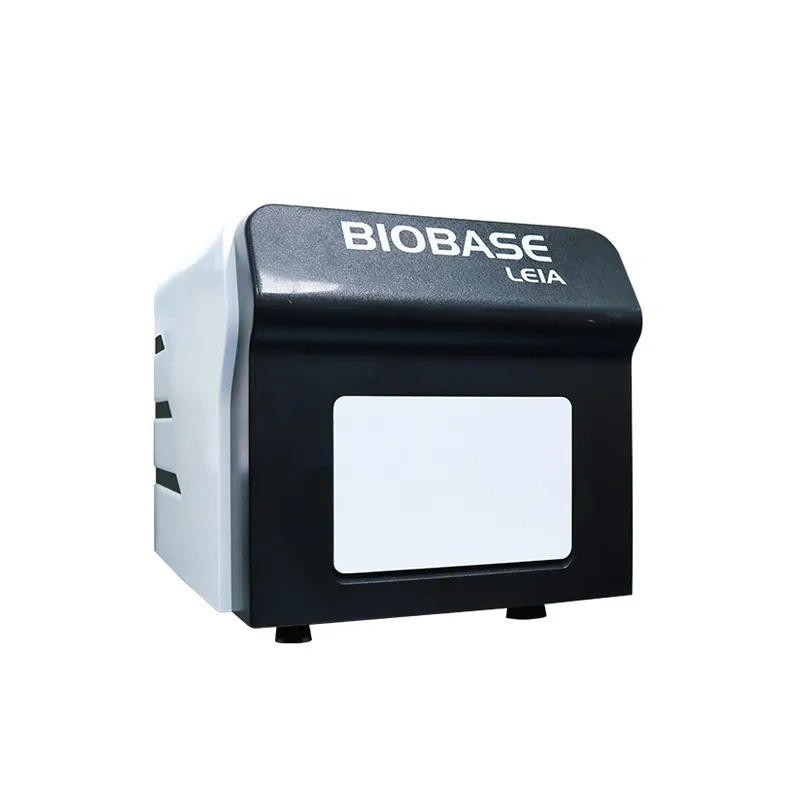

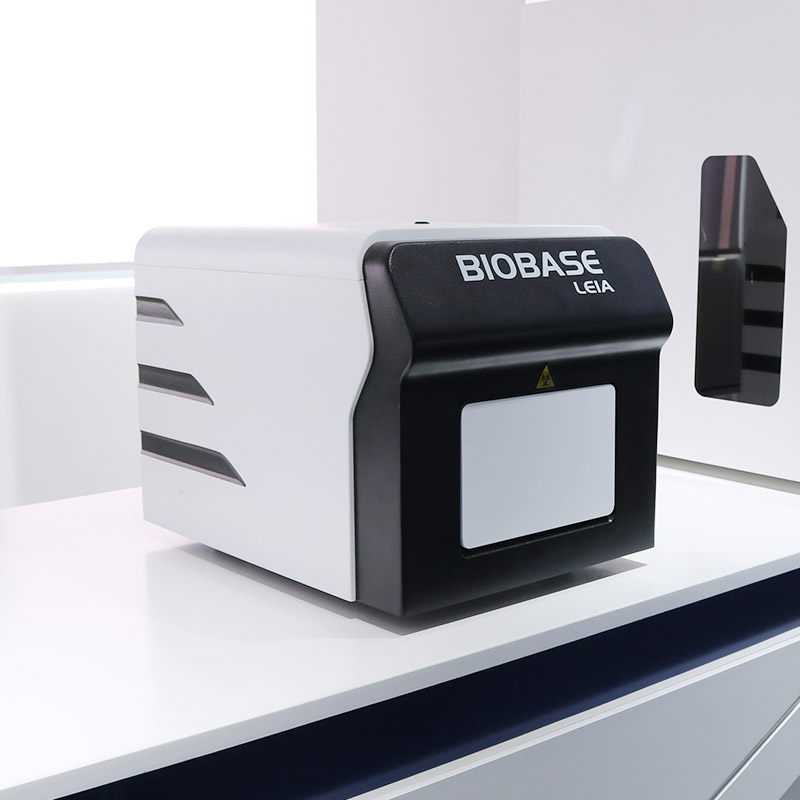

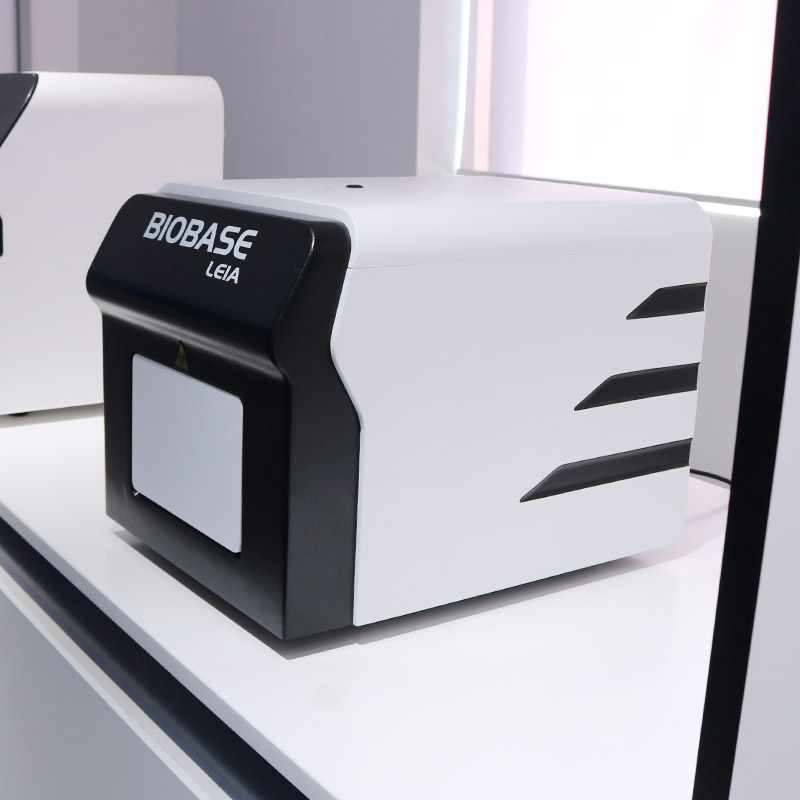

| Model NO. | LEIA-X4 |
| Sample Capacity | 96X0.1ml PCR Plate, 12X8-Strip Tubes |
| Reaction System | 10~50 μl |
| Dynamics Range | 1-10¹⁰ Copies |
| Channel | 4 Channels |
| Emission Light | LED |
| Detector | MPPC |
| Temp. Control Mode | Block Mode |
| Production Capacity | 2000 PCS Per Year |
Real-time PCR is used for sensitive, specific detection and quantification of nucleic acid targets. This system utilizes powerful assay design algorithms, optimized qPCR reagents, and intuitive data analysis software to help harness the power of qPCR across a diverse set of applications.
Widely used for infectious disease research, food pathogen detection, waterborne pathogen detection, pharmaceutical analytics, stem cell research, pharmacogenomics, oncology, genetic disease research, plant sciences, and agricultural biotechnology.

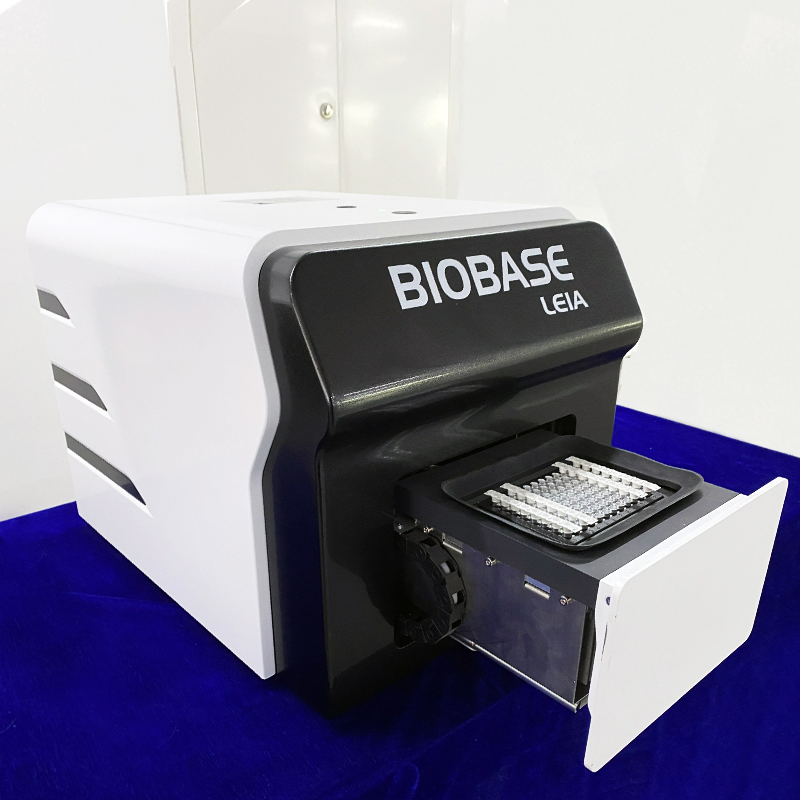

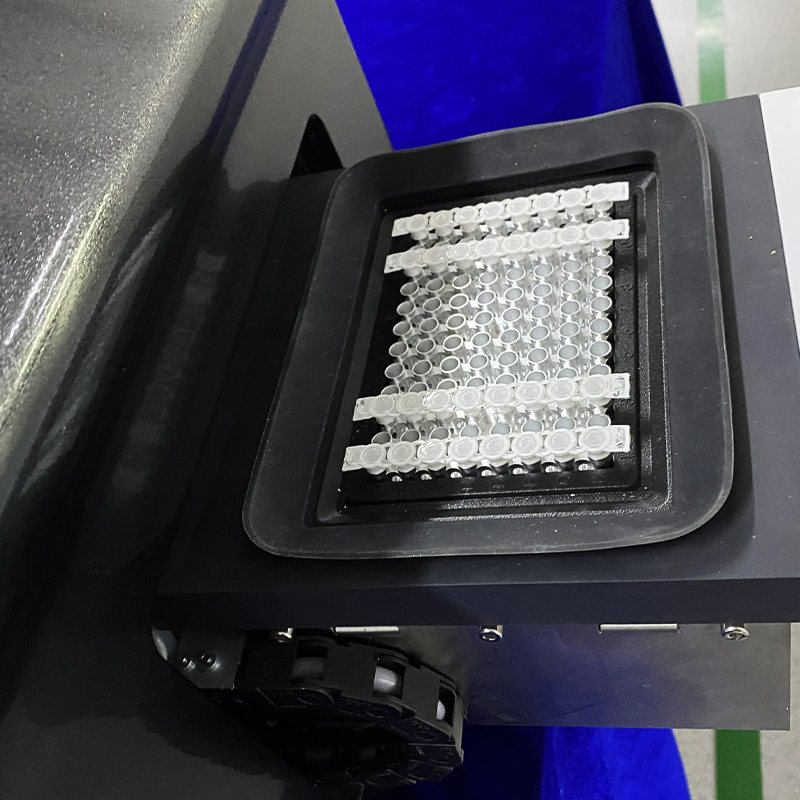

The temperature step change is controlled by the semiconductor Peltier to realize PCR amplification. High-sensitivity MPPC units detect fluorescence. Program control channel switching and non-contact excitation/detection on the top structure achieve 96-hole scanning through coordinated X and Y axis movement.
| Detection Path | F1, F2, F3, F4 |
| Suitable Probe/Dye | FAM/SYBR GREEN, VIC/JOE/HEX/TET, ROX/TEXAS-RED, Cy5 |
| Wavelength Range | Excitation: 455~680nm; Detection: 510~730nm |
| Detection Precision | Repeatability CV≤2%; Accuracy CV≤3% |
| Module Temp. Range | 4-99ºC (Resolution: 0.1ºC) |
| Max Ramp Rate | 5.0ºC/s |
| Temp. Accuracy | ±0.3ºC |
| Hot-Lid Temp. | 100ºC, Automatic |
| Scanning Time | 8.5s |
| Operation System | Windows 10 |
