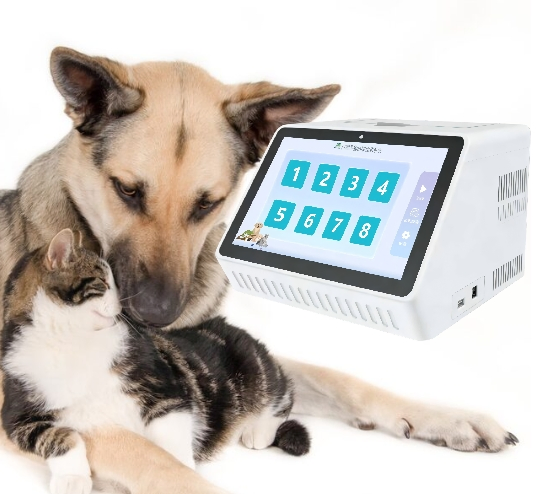

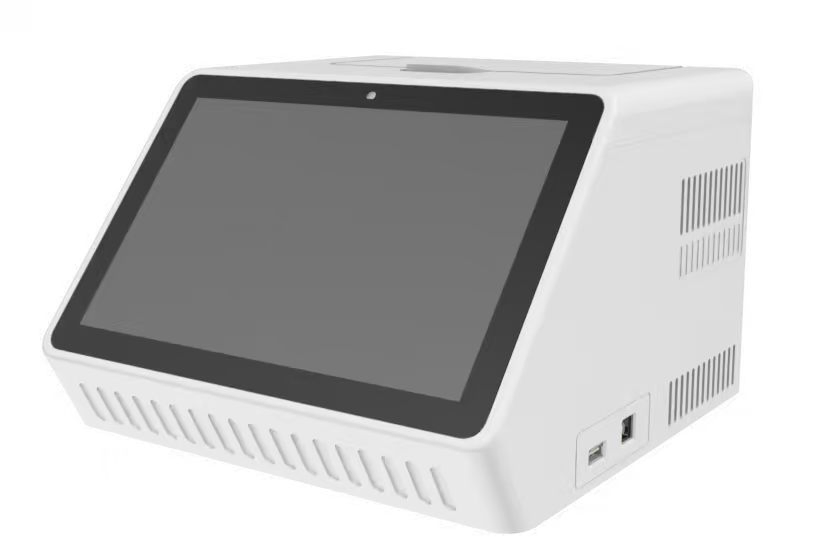

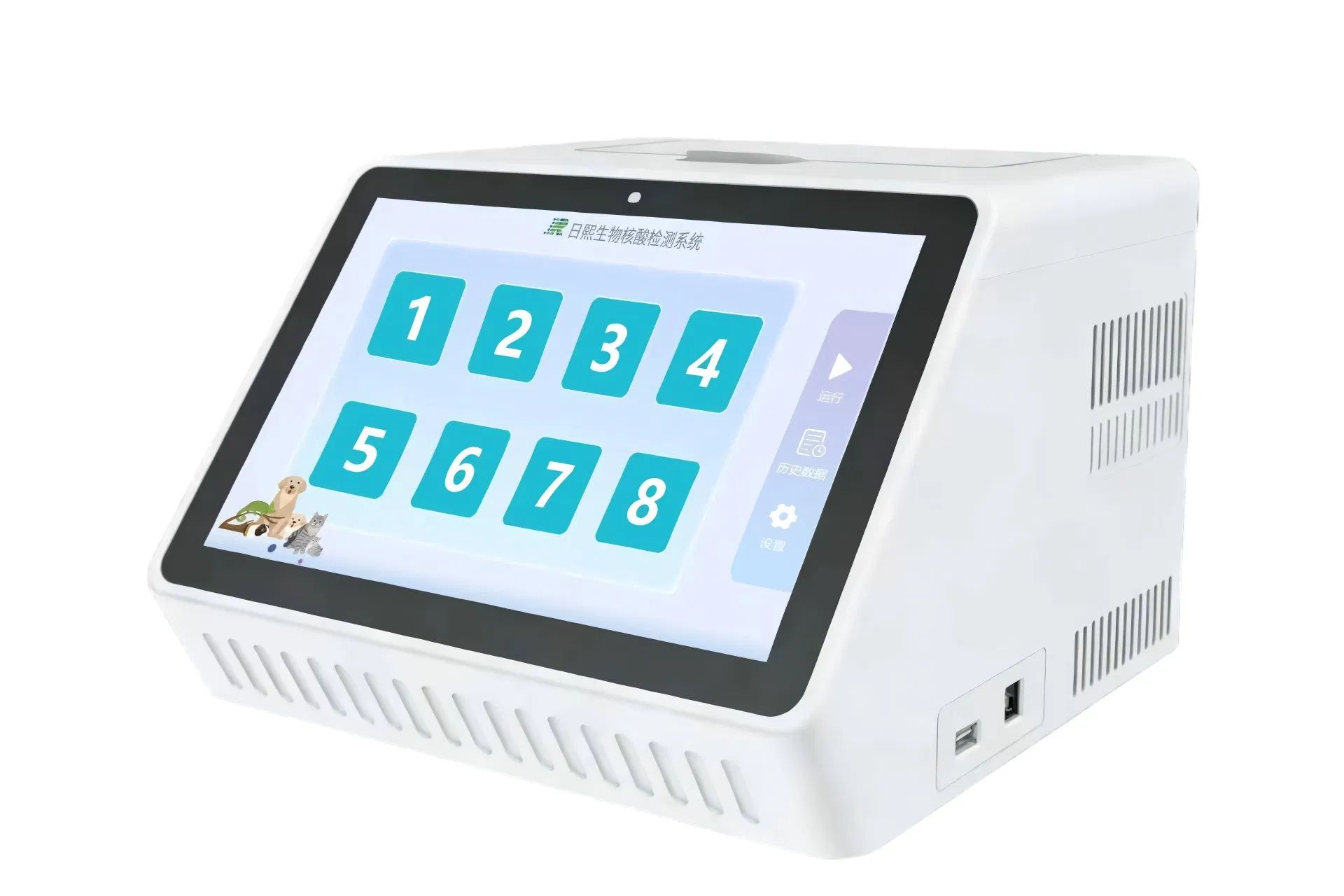

Fluorescence Quantitative PCR Detection System for Animal Disease Diagnostic

Basic Specifications

Model NO.

T8

Certification

CE, FDA, EEC, ISO13485

Group

Animal

Dimension

L275*W260*H186mm

Weight

4.8kg

OS

10-Inch Android Operating System

Electrical

220V/50Hz, 255W

Sensitivity

Detectable Single-Copy Gene

Range

10^0~10^10 Copies

Origin

China

HS Code

90275000

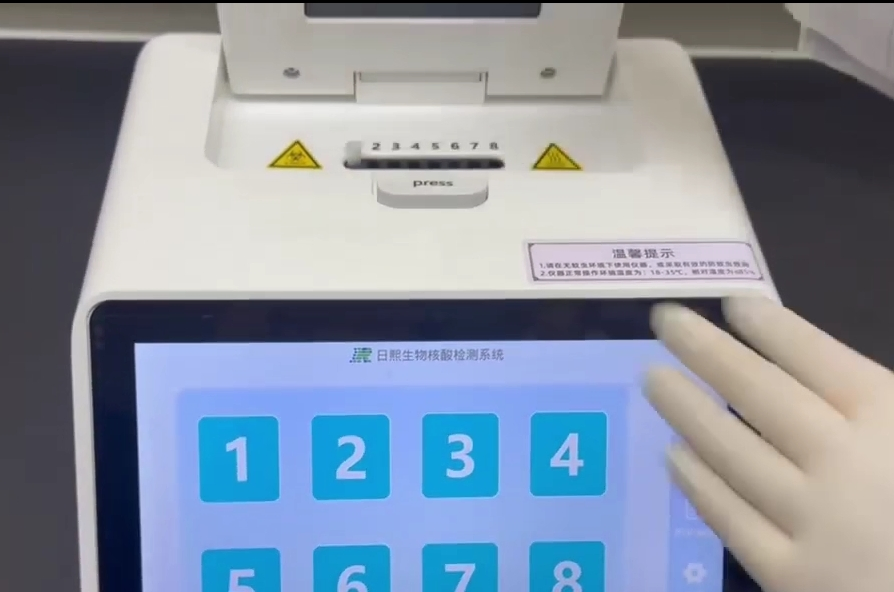

Portable Rapid PCR System

The system uses fluorescence signal monitoring during PCR cycles to provide real-time quantification of DNA/RNA. By detecting the Ct value, it accurately measures pathogen loads in pets or livestock samples within 30 minutes.

Fluorescence Quantitative PCR Detection System

Core Applications

Pet Care: Rapid screening for Canine Parvovirus (CPV), Distemper (CDV), and Feline Leukemia.
Livestock: On-site detection of African Swine Fever (ASF), Bird Flu, and Foot-and-Mouth Disease.
Safety: Foodborne pathogen testing and veterinary research.

Core Advantages

High Sensitivity: Detects even trace amounts of viral/bacterial DNA.
Multi-Channel: Supports multiplex PCR for testing multiple diseases in one run.
User-Friendly: Pre-programmed protocols for one-click clinical operation.

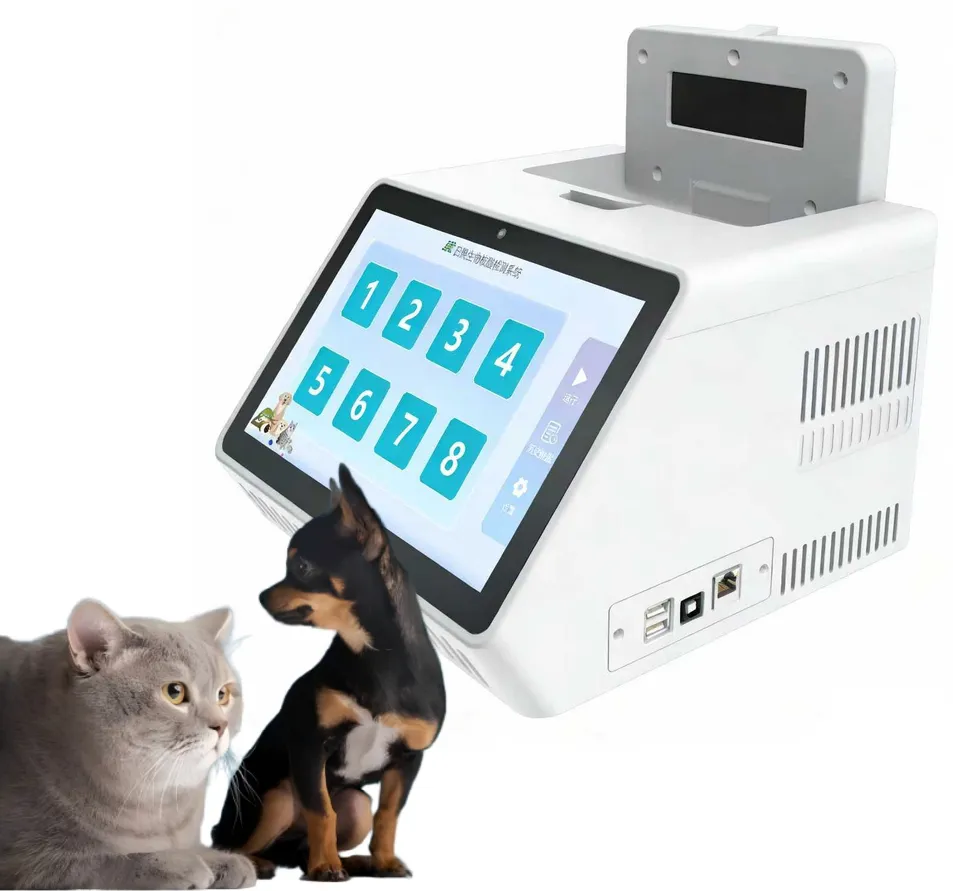

Why Choose PCR Diagnostics?

Accurate Diagnosis: Direct detection of viral nucleic acids before antibody seroconversion. Differential diagnosis for pathogens with overlapping clinical symptoms.

Comprehensive Coverage: Common Canine & Feline Infectious Diseases (CPV, CCV, FPV) and expanded Exotic Pet Pathogens.

Efficient & Economic: Multiplex detection saves significant time and costs.

Technical Specifications

Parameter	Details	Parameter	Details
Mode	T8	Sample Size	0.2ml * 8 holes
Sample Volume	20-120ul	Consumables	0.2ml Single/8-strip tube
Heating/Cooling	Semiconductor	Temp Range	4-99℃
Heating Rate	Max. 6℃/s	Cooling Rate	Max. 4℃/s
Temp Accuracy	±0.1℃	Uniformity	±0.25℃
Channels	Four-channel	Light Source	Maintenance-free LED
Correlation Coeff.	≥0.999	Duplication	CV≤3.0%

Multi-plex Detection Items

Species	Project Name	Details
Feline	Respiratory 7-plex	FHV-1, FCV, M. felis, C. felis, Bb, FIV, S. aureus
Feline	Enteric 5-plex	FPV, FCoV, FechPV, Bocavirus, Astrovirus
Feline	Wellness 4-plex	FHV-1, FCV, FCoV, FPV
Canine	Wellness 4-plex	CPV, CDV, CCoV, CPIV
Canine	Respiratory 7-plex	Bb, CDV, CAV-2, CPIV, CIV, M. canis, C. felis
Zoonotic	Zoonotic 4-plex	Toxoplasma, Babesia, Bartonella, Leptospira
