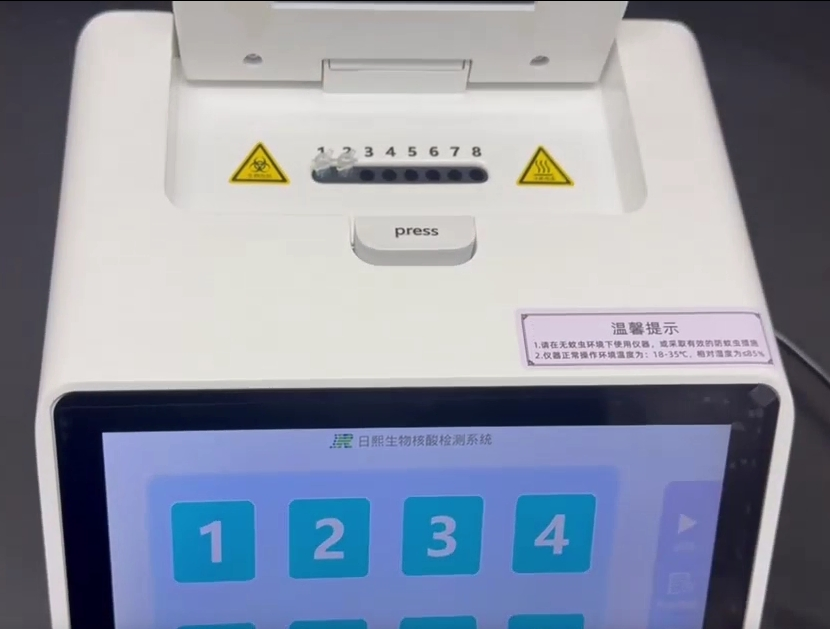

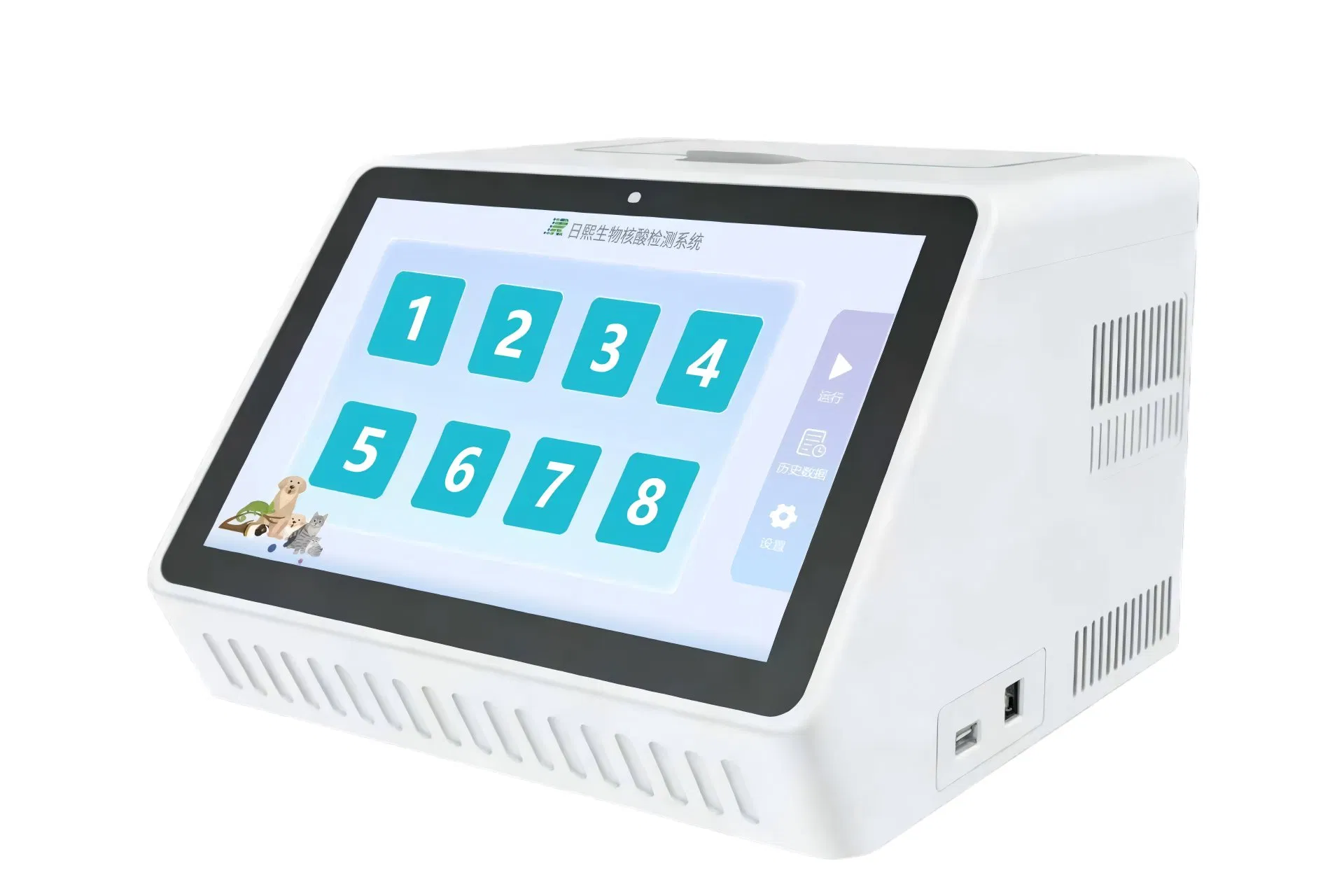

Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease
Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease
Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease
Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease
Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease
1 / 5
Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease
Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease
Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease
Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease
Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease

Portable 8-Well Real-Time Test System Compact PCR Machine for Animal Disease

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Portable Rapid PCR System - Model T8
Model NO.
T8
Certification
CE, FDA, EEC, ISO13485
Group
Animal
Dimension Size
L275*W260*H186mm
Weight
4.8kg
Operating System
10-Inch Android Operating System
Electrical
220V/50Hz, 255W
Sensitivity
Detectable Single-Copy Gene
Origin
China
HS Code
90275000
Product Overview

The T8 system uses fluorescence signal monitoring during PCR cycles to provide real-time quantification of DNA/RNA. By detecting the Ct value, it accurately measures pathogen loads in pets or livestock samples within 30 minutes.

Portable PCR System Overview

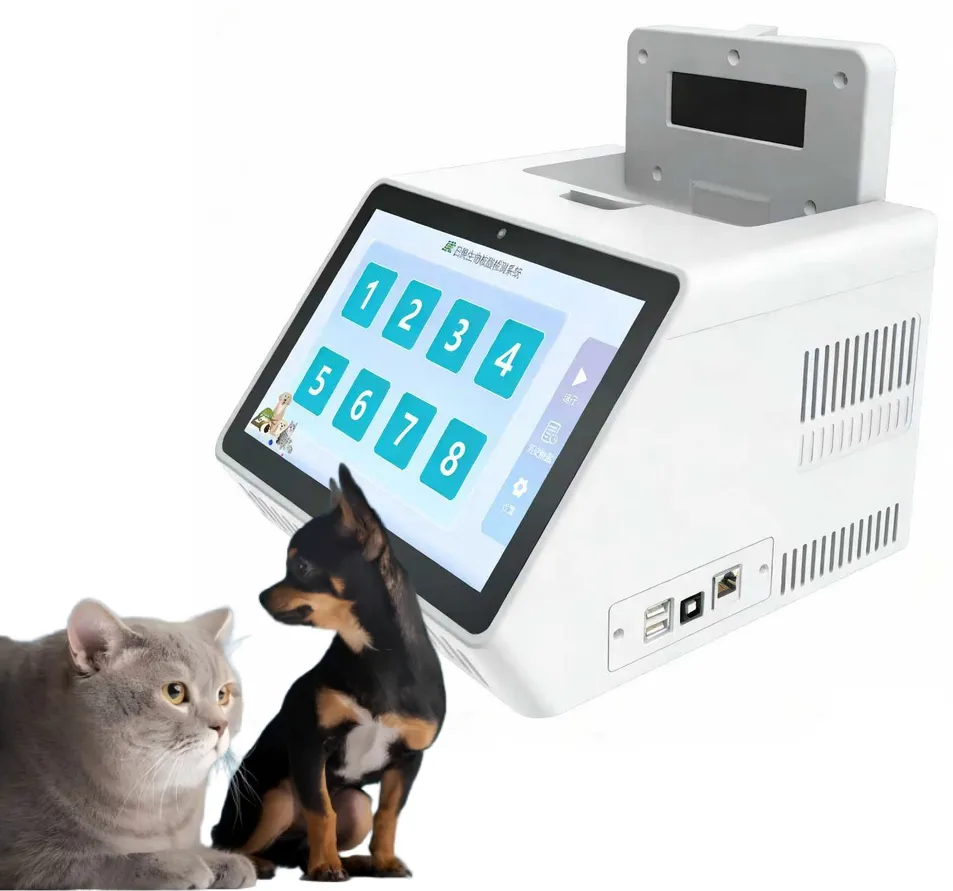

Compact PCR Machine Design
Core Advantages
  • High Sensitivity: Detects even trace amounts of viral/bacterial DNA.
  • Multi-Channel: Supports multiplex PCR for testing multiple diseases in one run.
  • User-Friendly: Pre-programmed protocols for one-click clinical operation.
  • Rapid Results: Accurate diagnosis within 30 minutes.
Technical Specifications
Parameter Detail Parameter Detail
Mode T8 Sample size 0.2ml * 8 holes
Sample Volume 20-120ul Applicable consumables 0.2ml Single tube / 8-strip tube
Heating method Semiconductor Heating/Cooling Temperature range 4-99℃
Heating rate Max. 6℃/s Cooling rate Max. 4℃/s
Accuracy ±0.1℃ Temperature uniformity ±0.25℃
Light source High-brightness maintenance-free LED Number of channels Four-channel
Linear correlation ≥0.999 CV ≤3.0%
Multi-plex Detection Items
Species Project Name Project Details
Feline Feline Wellness 4-plex FHV-1, FCV, FCoV, FPV
Feline FIP Diagnostic Pan FIP (Feline Infectious Peritonitis) + FCoV
Canine Canine Wellness 4-plex CPV, CDV, CCoV, CPIV
Canine Canine Respiratory 7-plex Bordetella, CDV, CAV-2, CPIV, CIV, M. canis, Chlamydia
Zoonotic Zoonotic 4-plex Panel Toxoplasma, Babesia, Bartonella, Leptospira
Exotic Pet Panels (Coming Soon)
Parrot Testing
Rabbit Testing
Pigeon Testing
Turtle Testing
Mink Testing
Frog Testing
Frequently Asked Questions
1. How fast can the T8 PCR system provide results?
The system is designed for rapid on-site testing and can provide accurate pathogen load results within approximately 30 minutes.
2. What types of animals can be tested with this machine?
The T8 is highly versatile, supporting diagnostic panels for Felines (cats), Canines (dogs), livestock, and zoonotic diseases. Exotic pet panels for parrots, rabbits, and turtles are also becoming available.
3. Is the device easy to operate for clinical staff?
Yes, it features a 10-inch Android operating system with a user-friendly interface and pre-programmed protocols for one-click operation.
4. Does the system support testing for multiple diseases simultaneously?
Yes, the T8 is a four-channel system that supports multiplex PCR, allowing for the detection of multiple pathogens in a single run.
5. What is the detection sensitivity of the T8?
The system offers high sensitivity capable of detecting even a single-copy gene, with a wide linear detection range from 10^0 to 10^10 copies.
6. How portable is the T8 PCR machine?
The device is compact and lightweight, weighing only 4.8kg, making it suitable for both laboratory and on-site field testing.
