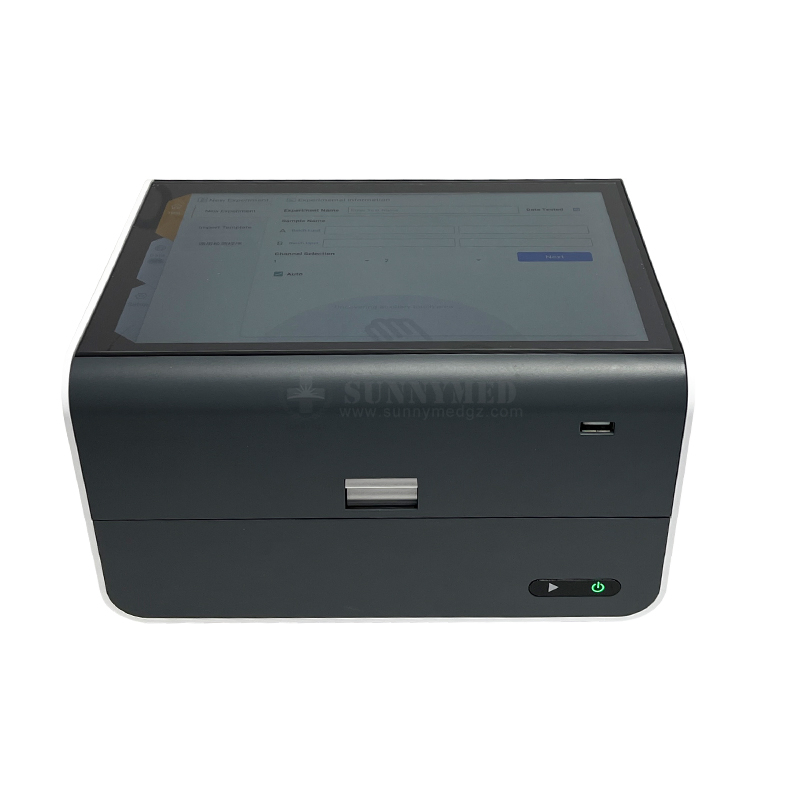

Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence
Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence
Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence
Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence
Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence
1 / 5
Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence
Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence
Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence
Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence
Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence

Sy-W007-1 Portable Real Time PCR System Veterinary 4-Channel Direct Imaging Fluorescence

Send Inquiry

Product Description

Product Overview

SY-W007-1 Portable Real-Time PCR System

Veterinary 4-channel direct imaging fluorescence technology for high-performance quantitative analysis.

PCR System Overview 1

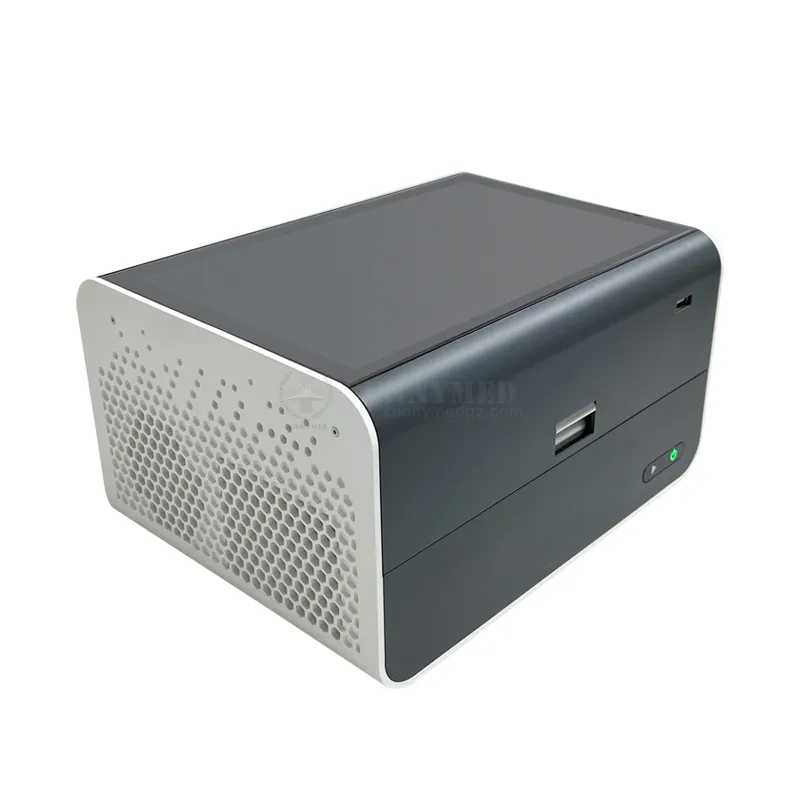

PCR System Overview 2
Technical Specifications
Parameter Specifications
Capacity 8 wells
Channels (# of Fluorophores) Up to 4 (FAM/SYBR Green, JOE/HEX/VIC/TET, ROX/Texas Red, CY5/LIZ/Cy5.5)
Multiplex Capability Up to 4 targets per well
Minimum Detection Threshold 3 copies
Dynamic Range >1.0E9
Signal Interface USB 2.0
Excitation Source High endurance LED
Detector Ultra-low-light CMOS bio-imaging chip
Thermal System Solid-state, Peltier-based
Tube/Plate Formats 0.2mL, 4 or 8-tube strip
Reaction Volume 10uL – 60uL
Temperature Uniformity Within ±0.25°C at annealing stage
Excitation/Emission Range 460nm – 670nm / 510nm – 720nm
Key Features & Applications

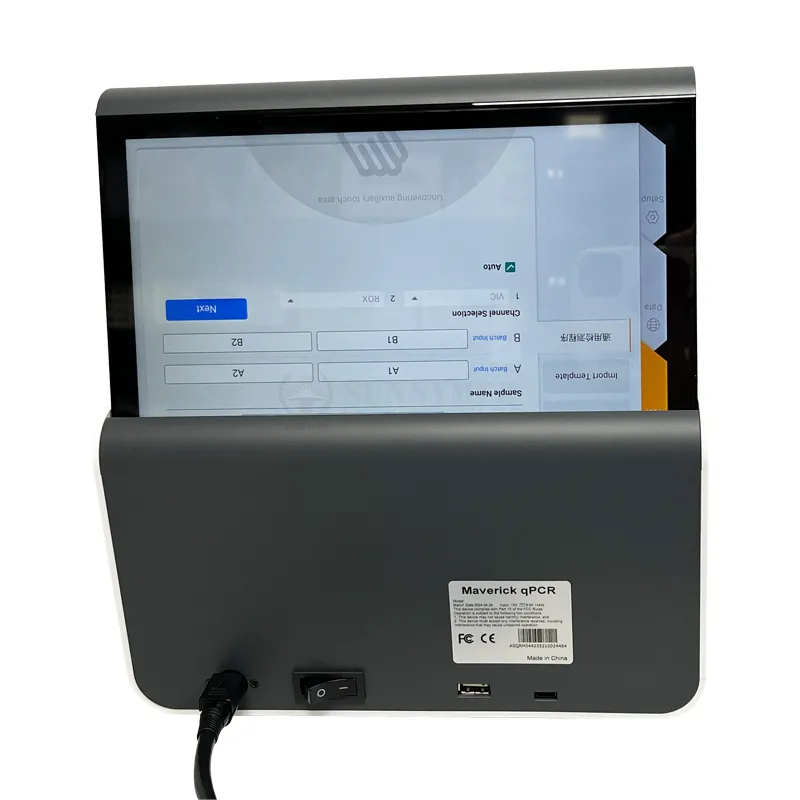

PCR Features
✓
Compatibility: Fully compatible with standard qPCR assays and consumables.
✓
Compact Design: Rugged build with no internal moving parts; no calibration required.
✓
Advanced Sensing: Multi-wavelength 4-channel fluorescence sensing with CMOS imager.
✓
User Friendly: Intuitive cross-platform software with cloud connectivity.
✓
Power Efficient: External 16V supply with less than 150W active power.

Ideal Applications: Point-of-care molecular diagnostics (POCT), food safety, environmental testing, agriculture, and compact research labs.

Product Gallery
PCR Gallery 1
PCR Gallery 2

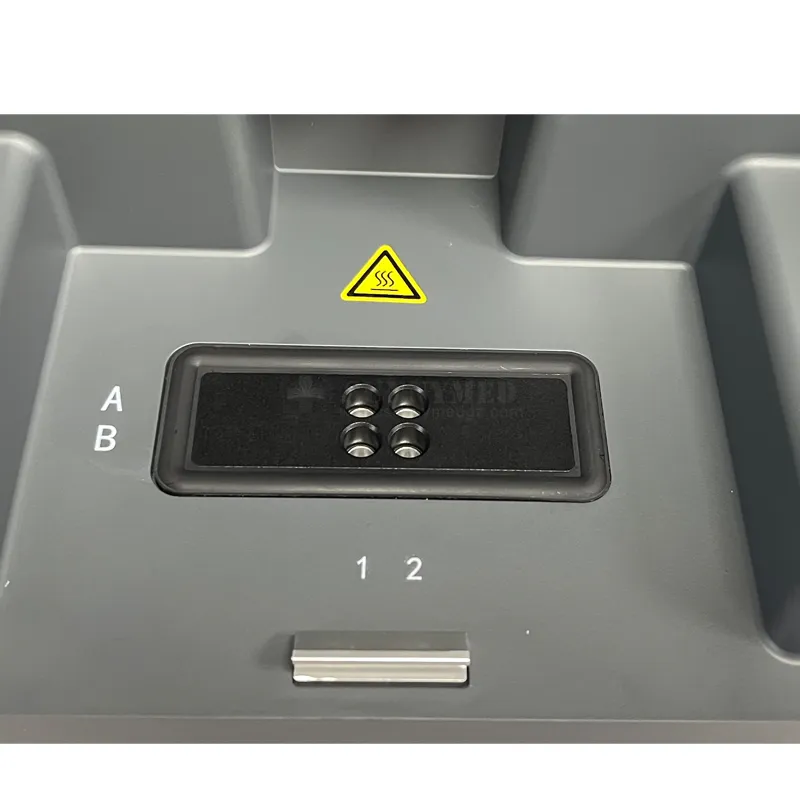

PCR Gallery 3

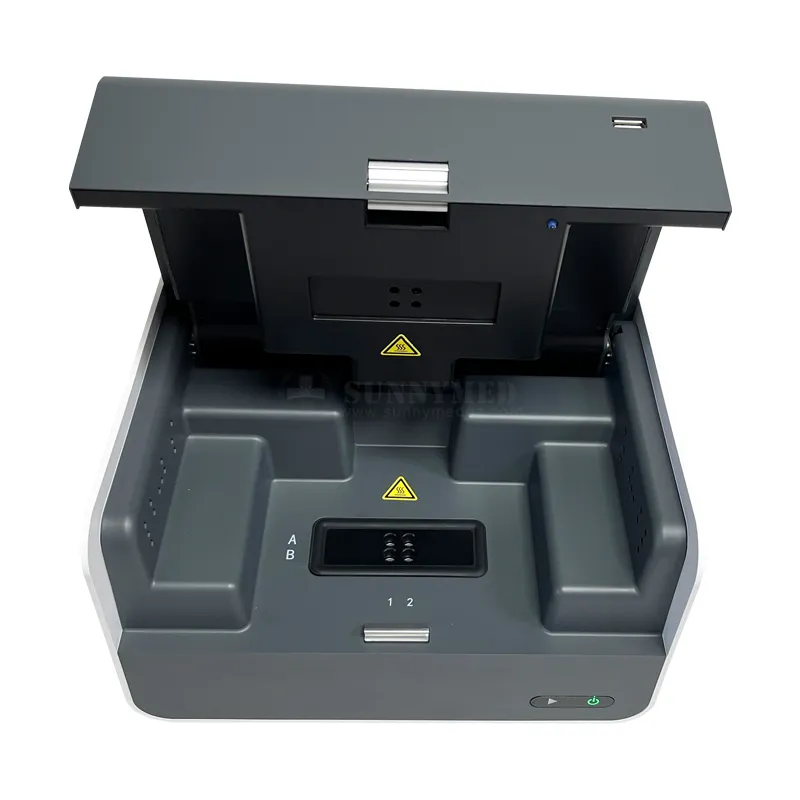

PCR Gallery 4
PCR Gallery 5
Packaging & Quality Assurance
Packaging 1

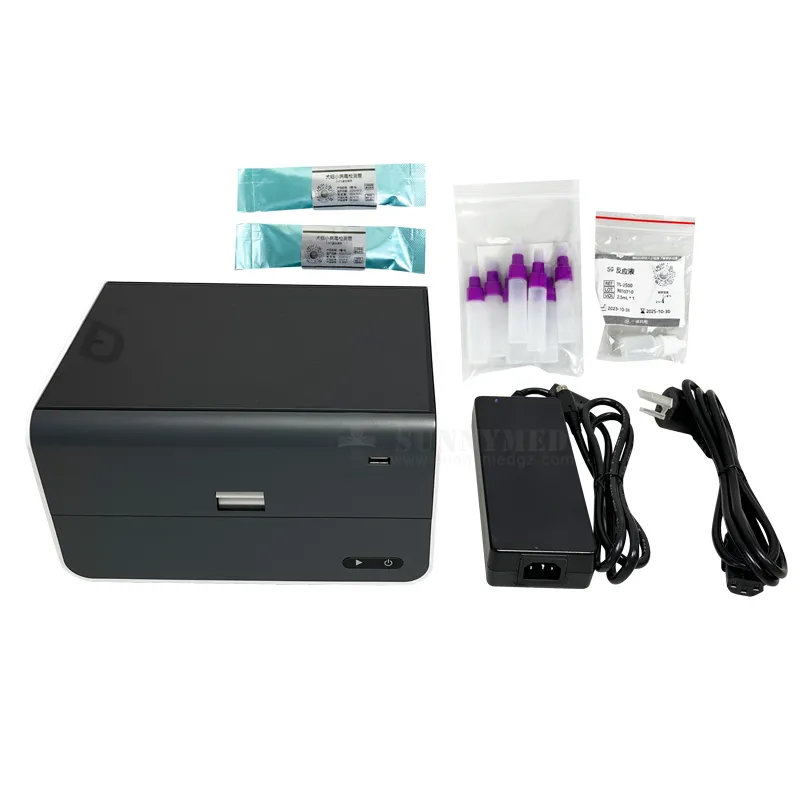

Packaging 2
Quality Inspection
Support & Service
!
Professional Training: Detailed video tutorials for installation, operation, and maintenance.
!
Real-time Support: Online video calls for pre-sales and after-sales training at your convenience.
!
Fast Response: After-sales service inquiries are typically addressed within 8 hours.
Global Support
Frequently Asked Questions
Q1: What is the main advantage of the CMOS-based imaging chip? A: The ultra-low-light CMOS bio-imaging chip provides high sensitivity and high signal-to-noise ratios, allowing for precise fluorescence detection across 4 channels without the need for frequent calibration.
Q2: Can I use standard 0.2mL PCR tubes with this system? A: Yes, the SY-W007-1 is fully compatible with standard 0.2mL PCR tubes, as well as 4-tube or 8-tube strips.
Q3: Is the system suitable for field testing or remote locations? A: Absolutely. Its compact, rugged design, low power consumption (<150W), and portable nature make it ideal for POCT (Point-of-Care Testing) and agriculture or environmental field work.
Q4: What types of DNA probes does the system support? A: It supports various DNA binding dyes (like SYBR-Green), hydrolysis probes (like TaqMan), and hybridization probes (like FRET probes).
Q5: How long does it take for delivery and setup support? A: Ready stock items can be processed within 24 hours. We provide full setup support via video tutorials and real-time online video calls to ensure you can operate the device immediately.
Q6: What programming modes are available on the software? A: The system supports qPCR amplification with touchdown options, isothermal amplification, melting curve analysis, and manual fluorescence measurement.
